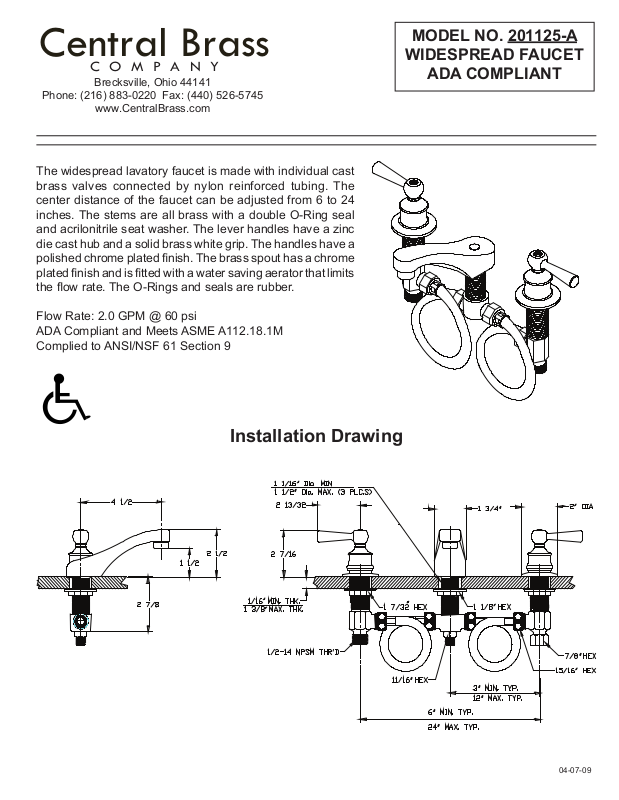

Page 1
MODEL NO. 201125-A
Central Brass
C O M P A N Y
WIDESPREAD FAUCET
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
The widespread lavatory faucet is made with individual cast
brass valves connected by nylon reinforced tubing. The
center distance of the faucet can be adjusted from 6 to 24
inches. The stems are all brass with a double O-Ring seal
and acrilonitrile seat washer. The lever handles have a zinc
die cast hub and a solid brass white grip. The handles have a
polished chrome plated nish. The brass spout has a chrome
plated nish and is tted with a water saving aerator that limits
the ow rate. The O-Rings and seals are rubber.
Flow Rate: 2.0 GPM @ 60 psi
ADA Compliant and Meets ASME A112.18.1M
Complied to ANSI/NSF 61 Section 9
ADA COMPLIANT
Installation Drawing
04-07-09
Page 2
MODEL NO. 201125-A
Central Brass
C O M P A N Y
WIDESPREAD FAUCET
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
# Part # Description
1 4015-BAR Brass Coupling Nut
2 2970-S Brass Corner Valve Body
3 53-AS Locknut
4 491-U Fiber Gasket
5 PF-263-D Brass Seat
6 1028-Y Nylon Gasket
7 104 Brass Seat Washer Screw
8 901-WNN Seat Washer
9 453-FL Brass Left Thread O-Ring Stem
9 453-FR Brass Right Thread O-Ring Stem
10 1038-453 O-Ring
11 453-EWC Brass Left Thread O-Ring Bonnet
11 453-EWH Brass Right Thread O-Ring Bonnet
12 524-B Escutcheon
13 512-HUB-02 Handle Hub
14 SU-512-G-15 White Handle With O-Ring
ADA COMPLIANT
Parts Breakdown
# Part # Description
15 1038-HDL O-Ring
16 107-F15/8 Brass Phillips Head Screw
17 168-B Brass Hex Nut
18 28-A Brass Washer
19 954-AN Slip Joint Washer
20 312-10N Flexible Hose Connector
21 2003 Brass Center Tee
22 427-WS Rubber Gasket
23 53-CZ Locknut
24 50-S Steel Washer
25 PF-725-GH Brass Spout Tube
26 2090-CP Cast Brass Spout
27 70-WA Brass Button
28 30-L Male Aerator
29 SU-453-EL Left Thread O-Ring Stem Assembly
29 SU-453-ER Right Thread O-Ring Stem Assembly
The parts listed in the parts breakdown above may not be
offered separately as replacement parts. Please review the
Replacement Parts page for the authorized replacement parts
that are available for this item.
04-07-09
