MODEL NO. 200123-A
Central Brass
C O M P A N Y
KITCHEN TOPMOUNT
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com

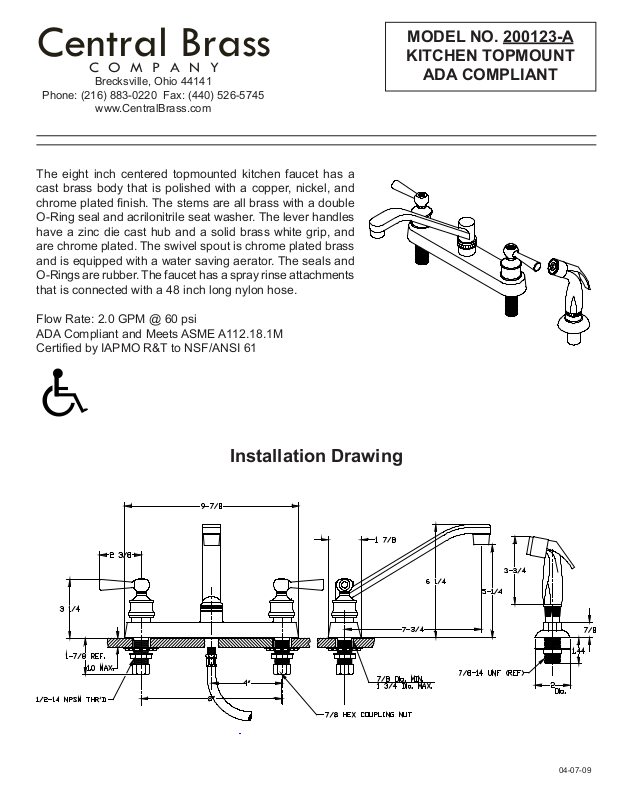

The eight inch centered topmounted kitchen faucet has a
cast brass body that is polished with a copper, nickel, and
chrome plated nish. The stems are all brass with a double
O-Ring seal and acrilonitrile seat washer. The lever handles
have a zinc die cast hub and a solid brass white grip, and
are chrome plated. The swivel spout is chrome plated brass
and is equipped with a water saving aerator. The seals and
O-Rings are rubber. The faucet has a spray rinse attachments
that is connected with a 48 inch long nylon hose.
Flow Rate: 2.0 GPM @ 60 psi
ADA Compliant and Meets ASME A112.18.1M
Certied by IAPMO R&T to NSF/ANSI 61
ADA COMPLIANT

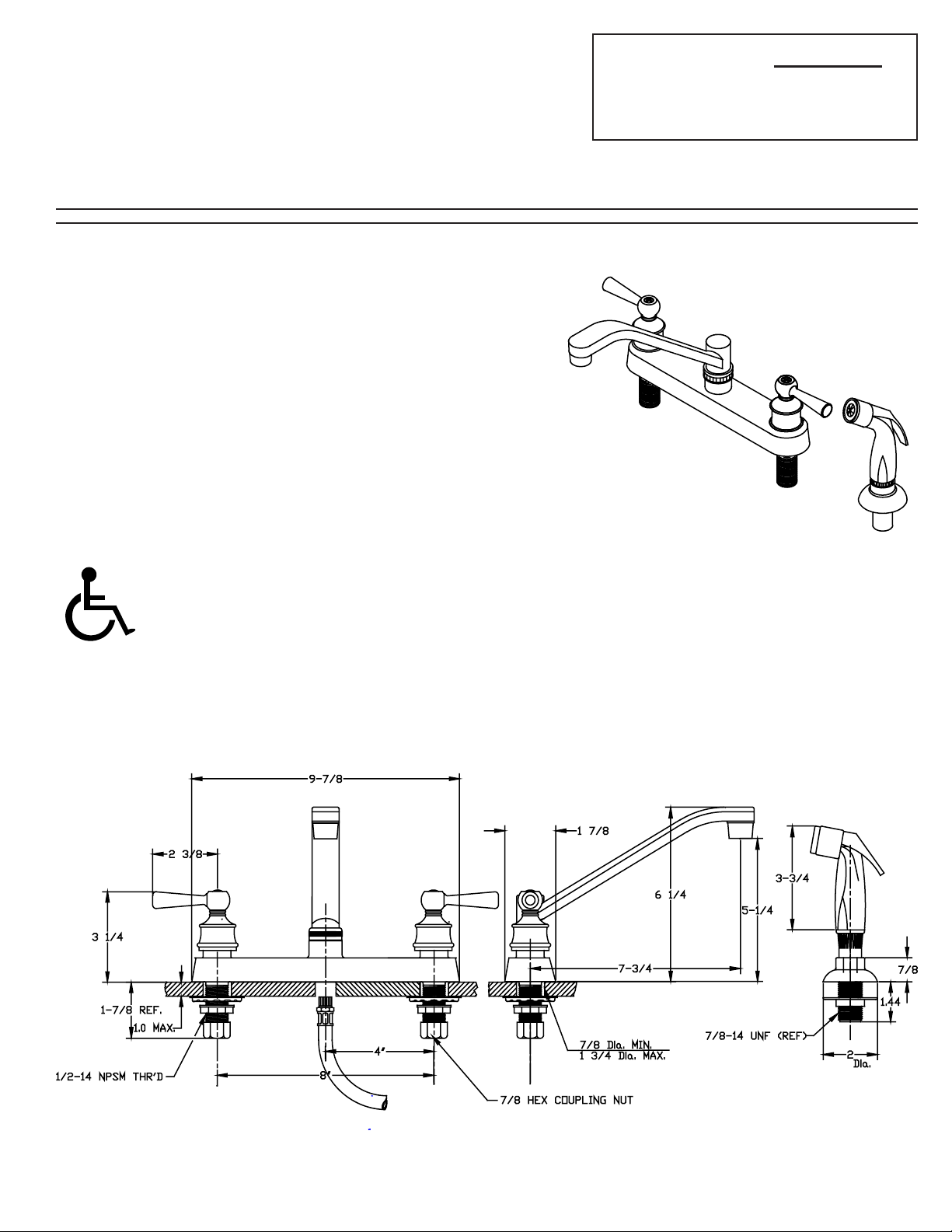

Installation Drawing
04-07-09
Page 2
MODEL NO. 200123-A
Central Brass
C O M P A N Y
KITCHEN TOPMOUNT
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
# Part # Description
1 4015-BAR Brass Coupling Nut
2 7133-AL Aluminum Locknut
3 54 Steel Crowfoot Washer
4 1947-AN Brass Faucet Body
5 263-BC Bronze Seat
6 1028-Y Nylon Gasket
7 104 Brass Seat Washer Screw
8 901-WNN Seat Washer
ADA COMPLIANT

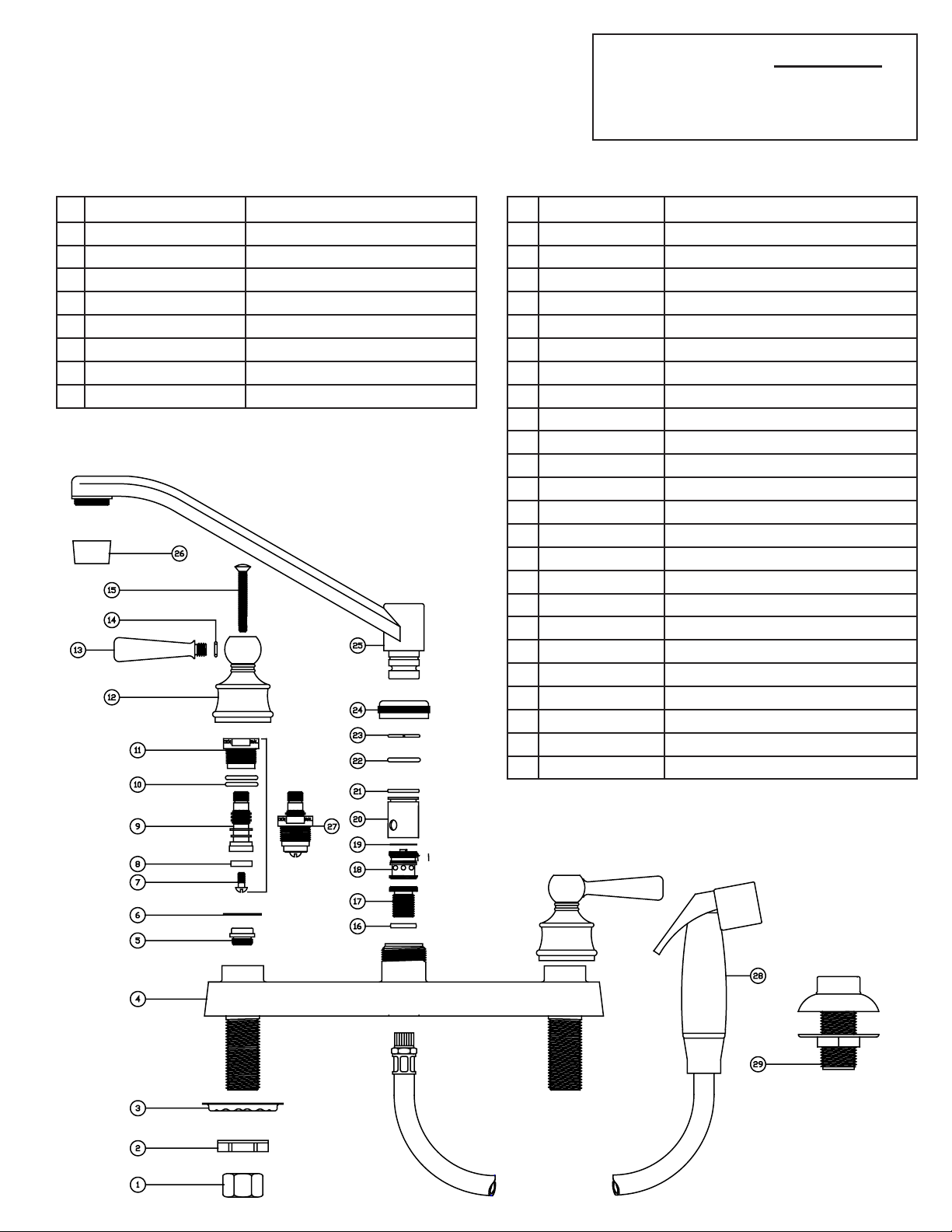

Parts Breakdown
# Part # Description
9 453-FL Brass Left Thread O-Ring Stem
9 453-FR Brass Right Thread O-Ring Stem
10 1038-453 O-Ring
11 453-EWC Brass Left Thread O-Ring Bonnet
11 453-EWH Brass Right Thread O-Ring Bonnet
12 512-HUB-02 Handle Hub
13 SU-512-G-15 White Handle With O-Ring
14 1038-HDL O-Ring
15 107-F15/8 Brass Phillips Head Screw
16 1038-IN O-Ring
17 266-AD Diverter Adapter
18 266-D Diverter
19 266-S Diverter Seal
20 266-C Diverter Casing
21 1038-DIV O-Ring
22 1038-KN O-Ring
23 166-FN Stainless Steel Snap Ring
24 PF-782-D Brass Spout Nut
25 365-D Brass Swivel “D” Spout
26 30-M Female Aerator
27 SU-453-EL Left Thread O-Ring Stem Assembly
27 SU-453-ER Right Thread O-Ring Stem Assembly
28 266-A Hose & Spray
29 SU-2987-DA Hose Guide
The parts listed in the parts breakdown above may not be
offered separately as replacement parts. Please review the
Replacement Parts page for the authorized replacement parts
that are available for this item.
