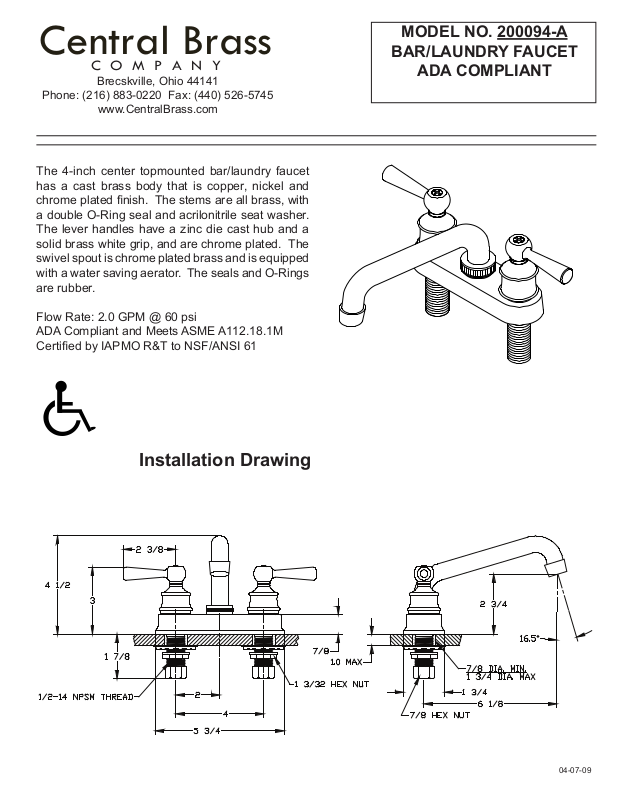

Page 1
Central Brass
C O M P A N Y
MODEL NO. 200094-A
BAR/LAUNDRY FAUCET
Brecskville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
The 4-inch center topmounted bar/laundry faucet
has a cast brass body that is copper, nickel and
chrome plated nish. The stems are all brass, with
a double O-Ring seal and acrilonitrile seat washer.
The lever handles have a zinc die cast hub and a
solid brass white grip, and are chrome plated. The
swivel spout is chrome plated brass and is equipped
with a water saving aerator. The seals and O-Rings
are rubber.
Flow Rate: 2.0 GPM @ 60 psi
ADA Compliant and Meets ASME A112.18.1M
Certied by IAPMO R&T to NSF/ANSI 61
ADA COMPLIANT

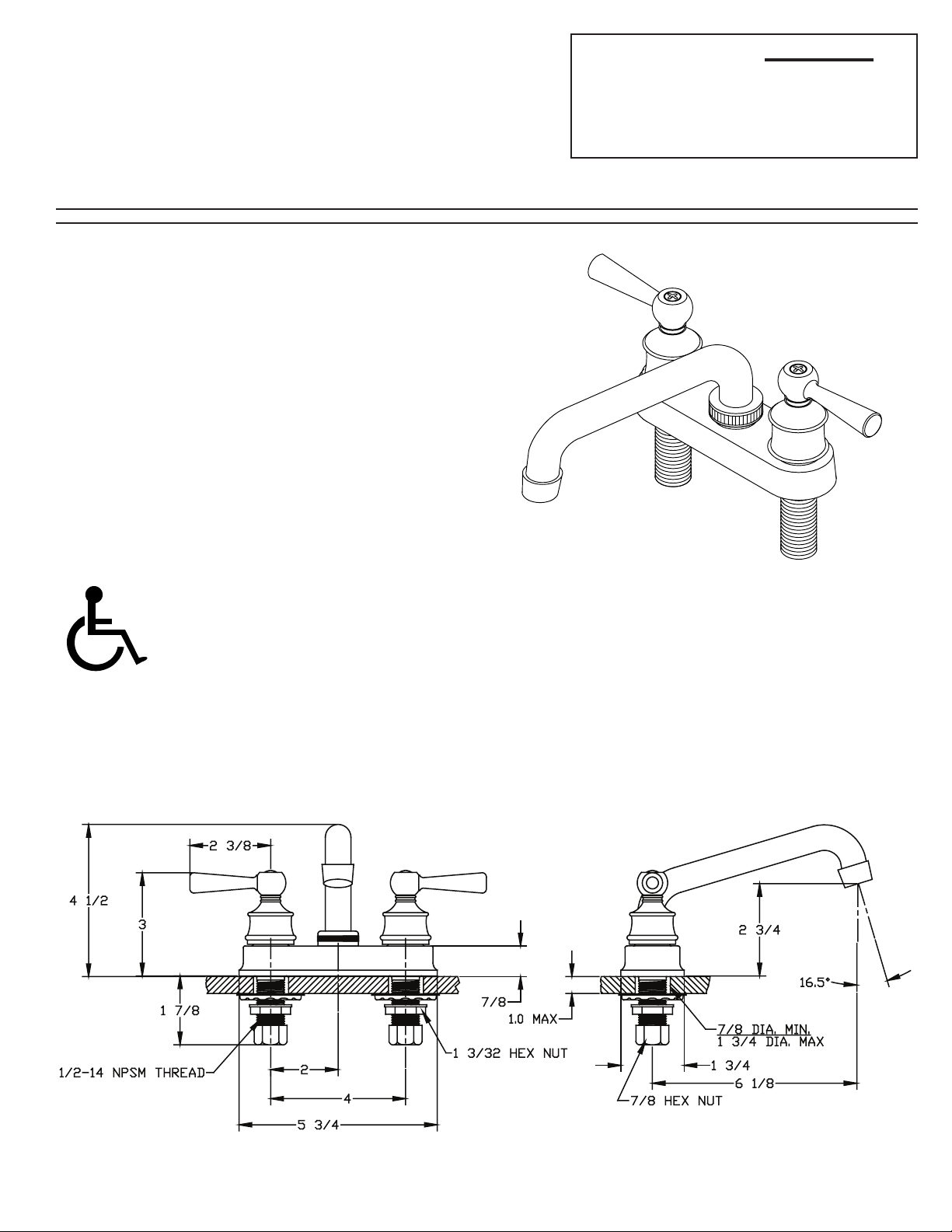

Installation Drawing
04-07-09
Page 2
Central Brass
C O M P A N Y
MODEL NO. 200094-A
BAR/LAUNDRY FAUCET
Brecskville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
17
16
15
14
13
12
11
10
9
8
7
6
5
CEN RAL
CEN RAL
23
22
21
20
19
18
ADA COMPLIANT

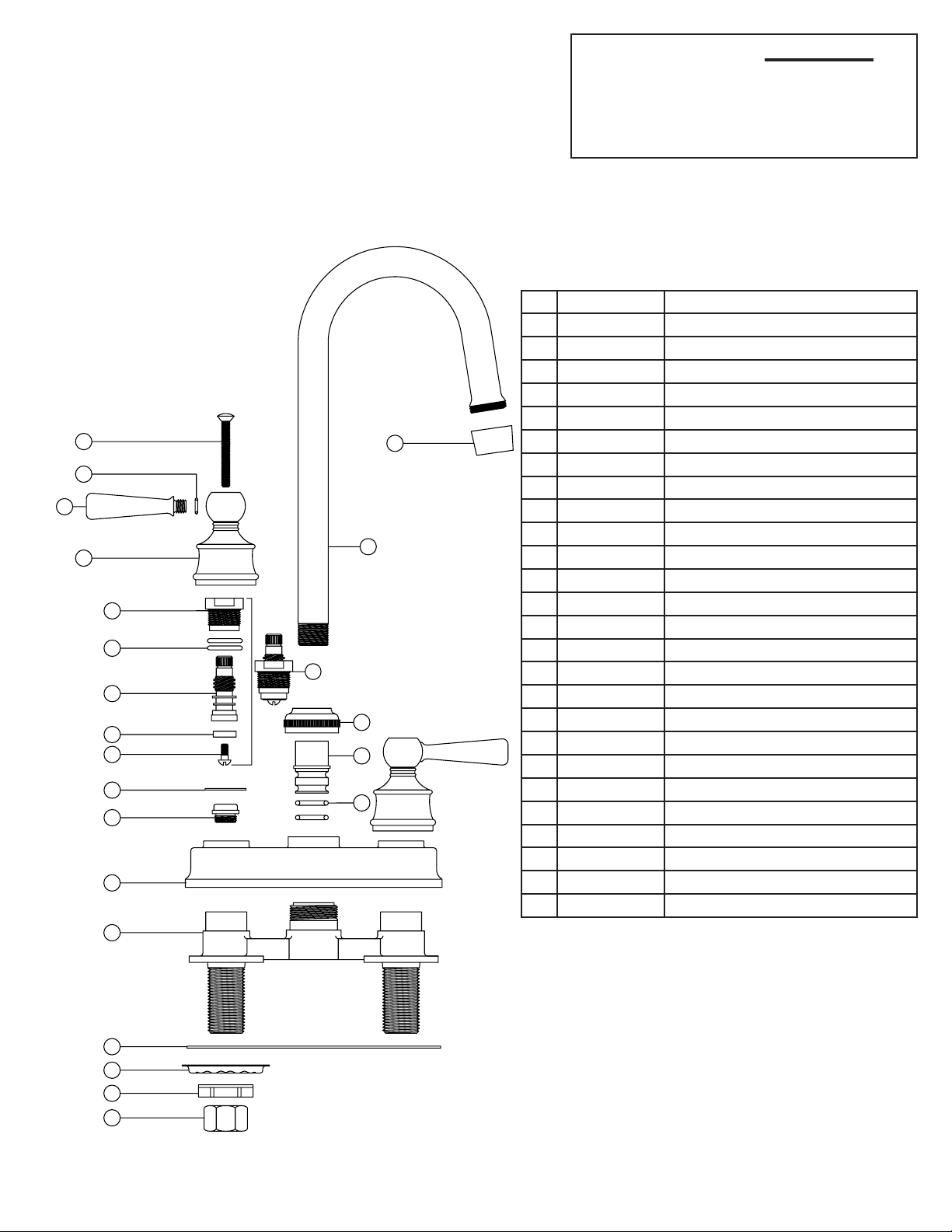

Parts Breakdown
# Part # Description
1 4015-BAR Brass Coupling Nut
2 7133-AL Aluminum Locknut
3 54 Steel Crowfoot Washer
4 392-G Gasket
5 2145 Brass Faucet Body
6 PF-392 Brass Cover Plate
7 263-BC Bronze Seat
8 1028-Y Nylon Gasket
9 104 Brass Sat Washer Screw
10 901-WNN Seat Washer
11 453-FL Brass Left Thread O-Ring Stem
11 453-FR Brass Right Thread O-Ring Stem
12 1038-453 O-Ring
13 453-EWC Brass Left Thread O-Ring Stem
13 453-EWH Brass Right Thread O-Ring Stem
14 512-HUB-02 Handle Hub
15 SU-512-G-15 White Handle With O-Ring
16 1038-HDL O-Ring
17 107-F15/8 Brass Phillips Head Screw
18 1038-KN O-Ring
19 166-FN Stainless Stel Snap Ring
20 PF-782-D Brass Spout Nut
21 PF-2924 Brass Swivel Spout
22 30-M Female Aerator
23 SU-453-EL Left Thread O-Ring Stem Assembly
23 SU-453-ER Right Thread O-Ring Stem Assembly
4
3
2
1
04-07-09
