Central Brass
C O M P A N Y
MODEL NO. 200073-A07-Q
CONCEALED KITCHEN FAUCET
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
The kitchen sink faucet has a cast brass body designed for
concealed ledge mounting on a stainless steel sink. The
quarter turn stems are all brass with a double O-Ring seal
and acrilonitrile seat washer. The lever handles have a zinc
die cast hub and a solid brass white grip, and are chrome
plated. The waterfall swivel spout is brass with a chrome
plated nish and is tted with a water saving aerator that
limits the ow rate. The faucet has a spray rinse attachment
that is connected with a 48 inch long nylon hose.
Flow Rate: 2.0 GPM @ 60 psi
ADA Compliant and Meets ASME A112.18.1M
Certied by IAPMO R&T to NSF/ANSI 61
ADA COMPLIANT

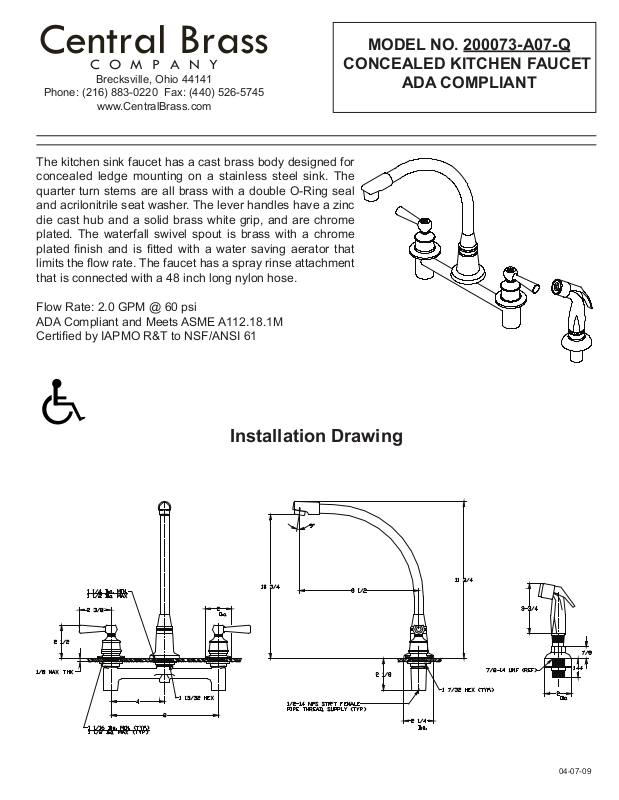

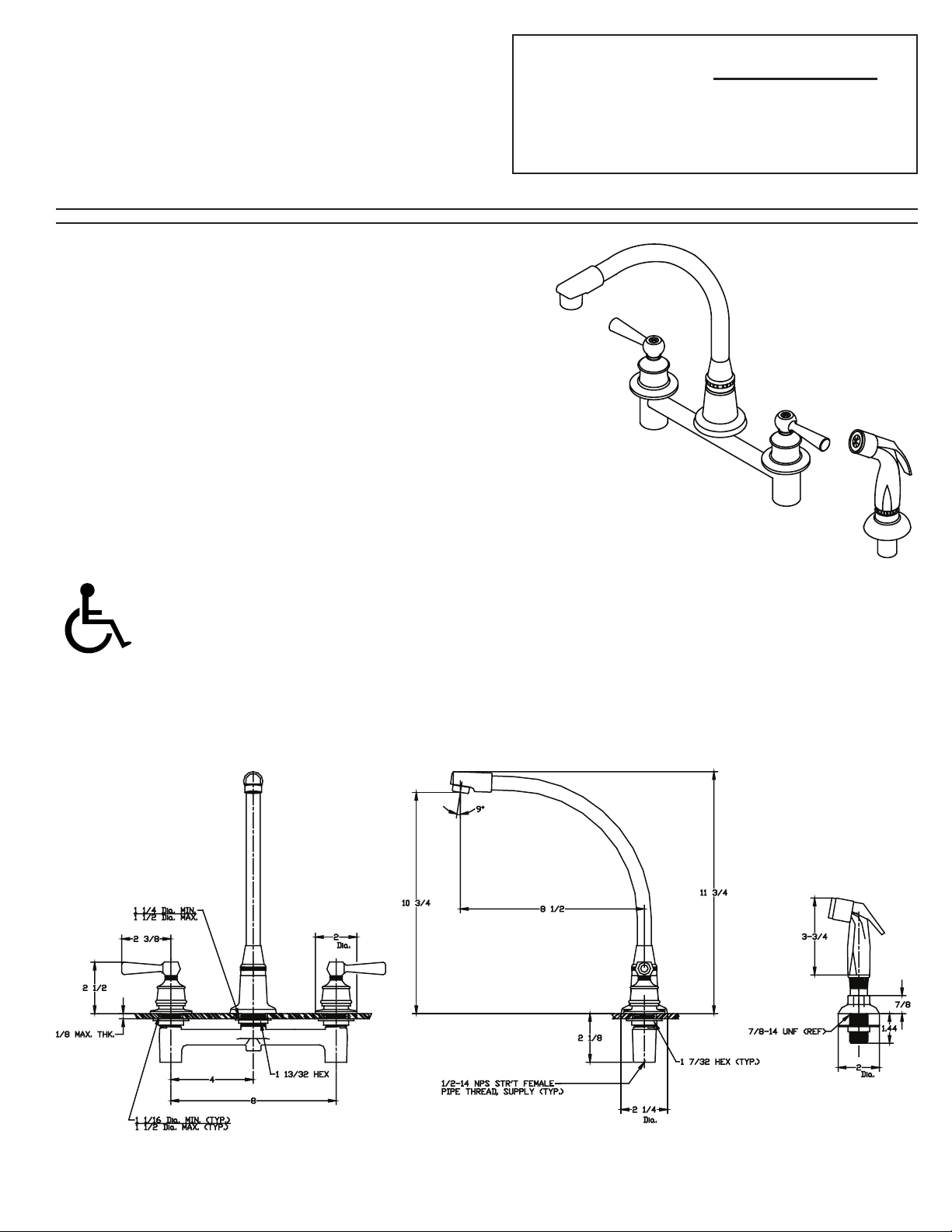

Installation Drawing
04-07-09
Page 2
Brecksville, Ohio 44141
Central Brass
C O M P A N Y
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com

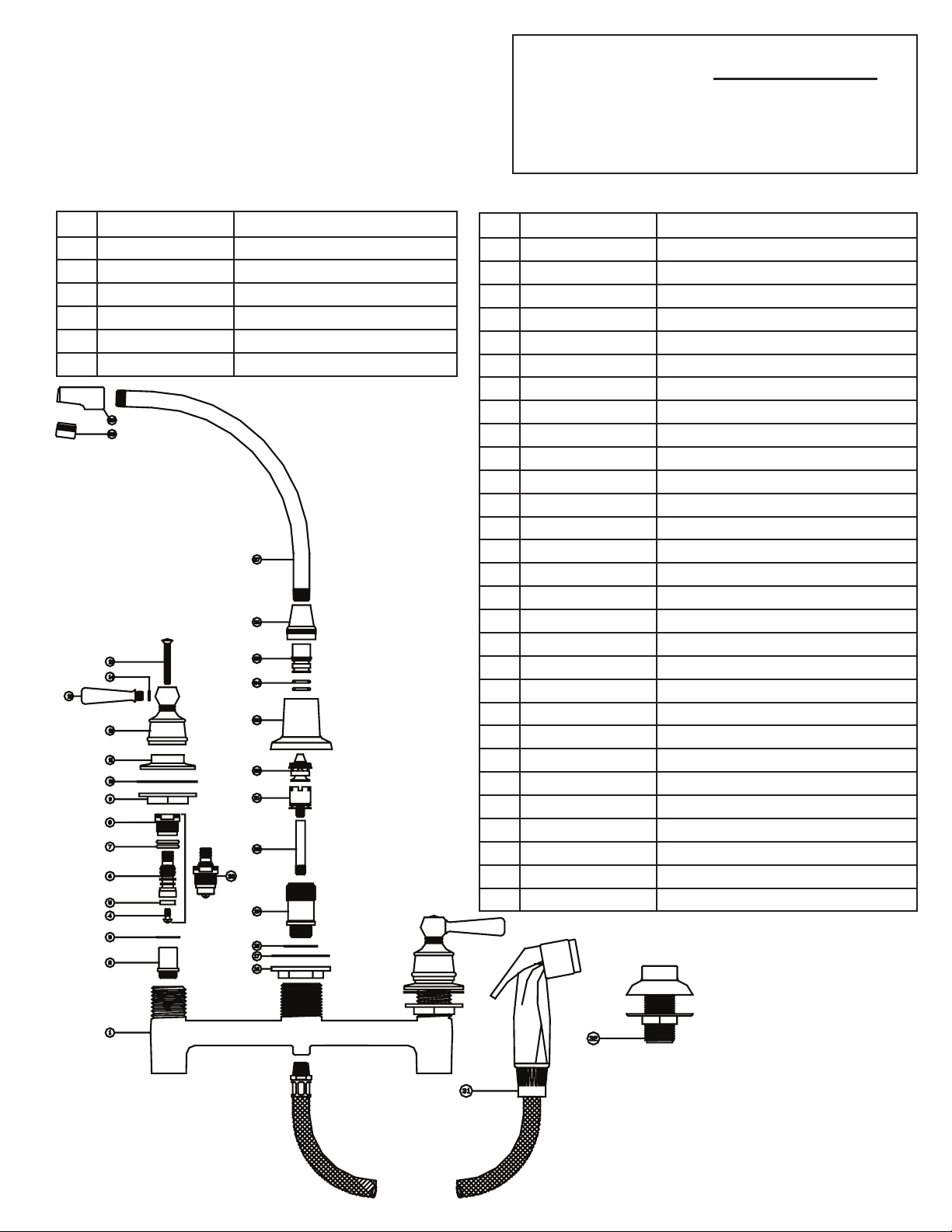

Parts Breakdown
MODEL NO. 200073-A07-Q
CONCEALED KITCHEN FAUCET
ADA COMPLIANT
# Part # Description
1 1959-JS Brass Faucet Body
2 PF-263-C Brass Seat
3 1028-Y Nylon Gasket
4 104 Brass Seat Washer Screw
5 901-WNN Seat Washer
6 454-FL Brass Left Thread O-Ring Stem
# Part # Description
6 454-FR Brass Right Thread O-Ring Stem
7 1038-453 O-Ring
8 454-EC Brass Left Thread O-Ring Bonnet
8 454-EH Brass Right Thread O-Ring Bonnet
9 53-AS Locknut
10 491-U Fiber Gasket
11 524-B Escutcheon
12 512-HUB-02 Handle Hub
13 SU-512-G-15 White Handle With O-Ring
14 1038-HDL O-Ring
15 107-F15/8 Brass Phillips Head Screw
16 53-BS Locknut
17 491-S Fiber Gasket
18 402-JN Washer
19 3985-J Brass Centerpiece
20 PF-166-JS Brass Diverter Tube Extension - RC
21 166-D Lower Diverter
22 166-E Upper Diverter
23 1012-N Escutcheon
24 1038-KN O-Ring
25 PF-741-DO Brass Spout Adapter
26 PF-782-JES Brass Spout Nut
27 PF-357-JHR Brass Spout
28 30-L Male Aerator
29 PF-1550-J Brass Spout End Adapter
30 SU-454-EL Left Thread O-Ring Stem Assembly
30 SU-454-ER Right Thread O-Ring Stem Assembly
31 166-A Hose & Spray
32 SU-2987-DA Hose Guide
The parts listed in the parts breakdown above may not be
offered separately as replacement parts. Please review the
Replacement Parts page for the authorized replacement parts
that are available for this item.
