Page 1
MODEL NO. 1675
Central Brass
C O M P A N Y
MULTI TUB POP UP
Brecksvilled, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
The pop up bath drain is designed for 14-16 inch multi tub installations. The pop up stopper provides a
full open drain and a positive leak tight shut off with an O-Ring seal. The tee and shoe elbow are heavy
pattern cast brass. The 1-1/2 inch drain tubes are 20 gage (.031) wall brass. The strainer assembly is
all brass with a polished chrome plated nish. The O-Ring is rubber. The faceplate is zinc die cast with a
chrome plated nish. The coupling nuts are zinc die cast with a brass plated nish.
BATH DRAIN
ASME A112.18.1M

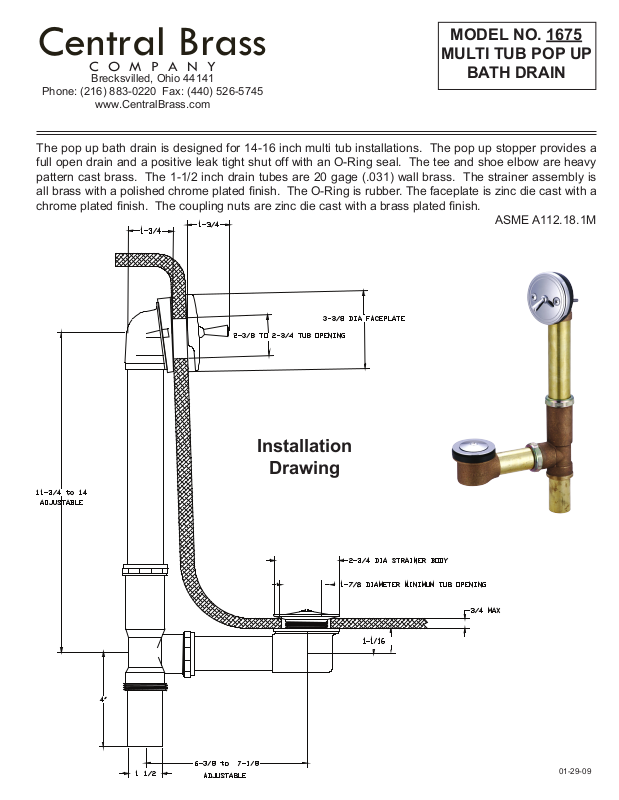

Installation
Drawing
01-29-09
Page 2
MODEL NO. 1675
Central Brass
C O M P A N Y
MULTI TUB POP UP
Brecksvilled, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
Bath Drain options available
BATH DRAIN
PR - Sufx
Additional
Slip Nut and
Slip Washer
3364-R Tee
less Tailpiece
(Available on
1645, 1675 and
1685 series
only)
01-29-09
Page 3
MODEL NO. 1675
Central Brass
C O M P A N Y
MULTI TUB POP UP
Brecksvilled, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
BATH DRAIN

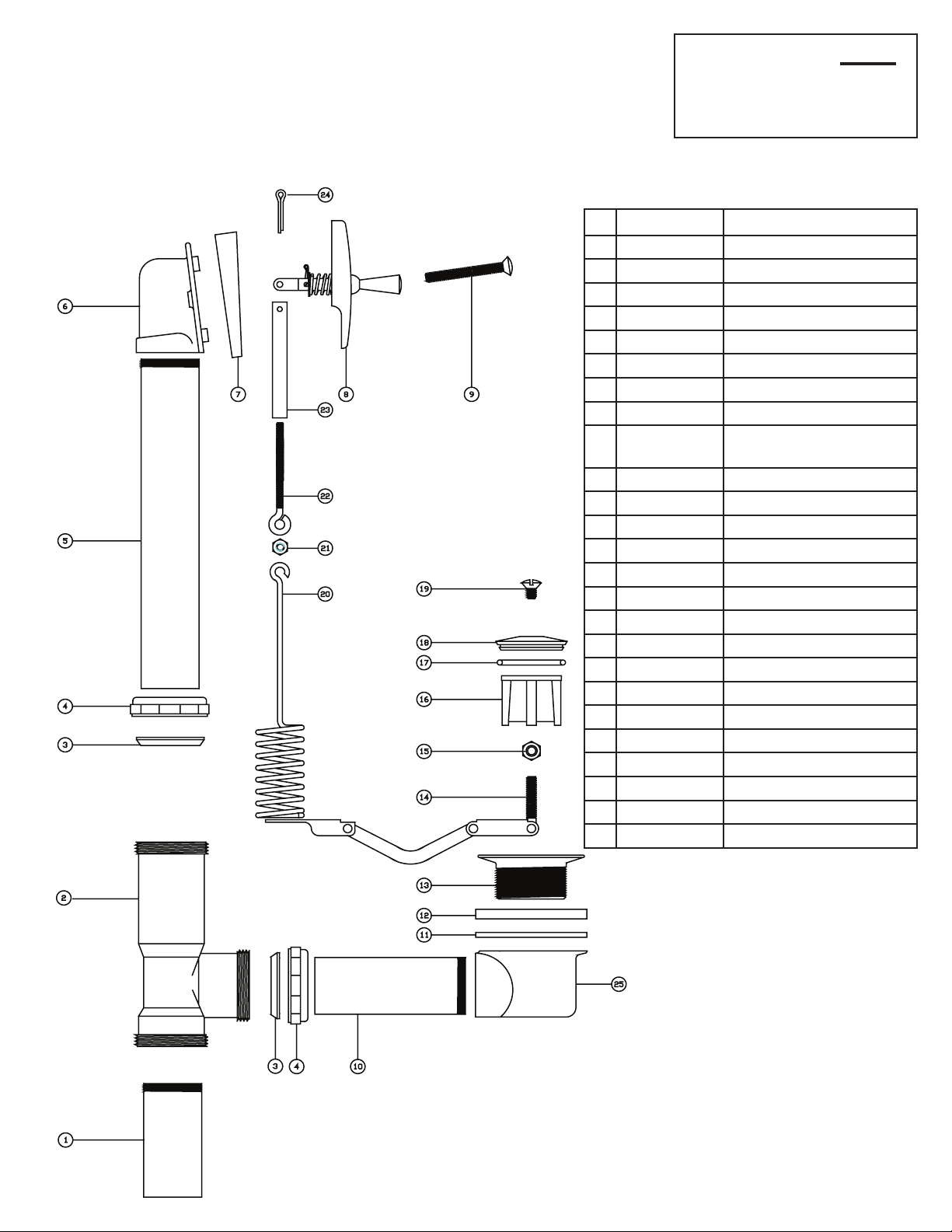

Parts Breakdown
# Part # Description
1 PF-731-G 3” Brass Tailpiece
2 PF-3364-DA Brass Tee Body
3 149-PR Slip Joint Washer
4 3008-BP Coupling Nut
5 PF-731-N 9-9/16” Brass Standpipe
6 3360-D Brass Top Ell
7 990-L Washer
8 SU-83-AZ Trip Lever
9 124-AP21/4 Brass Phillips Head
Screw
10 PF-731-A 4-1/4” Brass Show Tube
11 991 Rubber Washer
12 991-A Rubber Washer
13 3362 Brass Strainer Body
14 SU-85-APF Brass Rocker Arm
15 207-B Brass Hex Nut
16 3359-P Celcon Guide
17 1038-W O-Ring
18 PF-3359-A Brass Plug
19 127-T Brass Slotted Head Screw
20 85-K Stainless Steel Spring
21 1081-N Brass Hex Nut
22 85-U Brass Eyebolt
23 61-LU Brass Clevis
24 222-D Brass Cotter Pin
25 3026-B Brass Drain Shoe
The parts listed in the parts breakdown above may not be
offered separately as replacement parts. Please review the
Replacement Parts page for the authorized replacement parts
that are available for this item.
01-29-09
