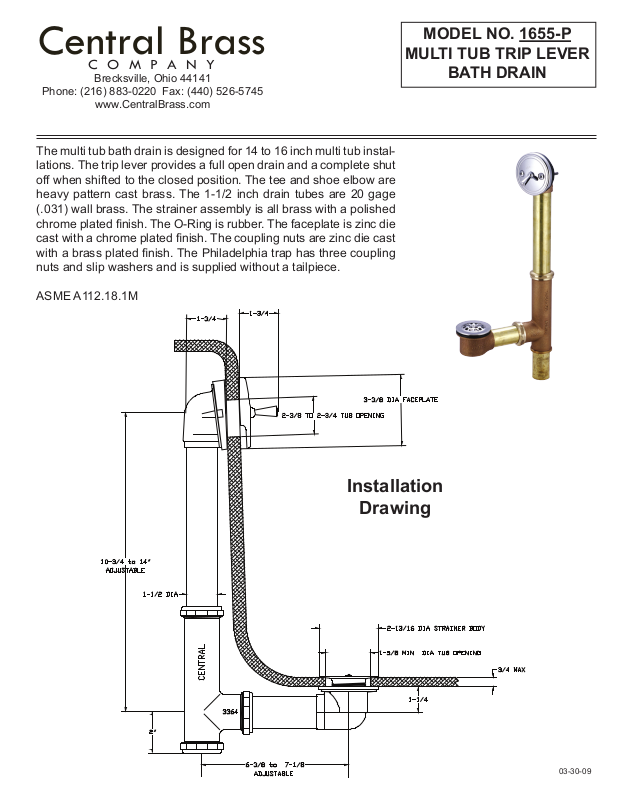

Page 1
MODEL NO. 1655-P
Central Brass
C O M P A N Y
MULTI TUB TRIP LEVER
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
The multi tub bath drain is designed for 14 to 16 inch multi tub installations. The trip lever provides a full open drain and a complete shut
off when shifted to the closed position. The tee and shoe elbow are
heavy pattern cast brass. The 1-1/2 inch drain tubes are 20 gage
(.031) wall brass. The strainer assembly is all brass with a polished
chrome plated nish. The O-Ring is rubber. The faceplate is zinc die
cast with a chrome plated nish. The coupling nuts are zinc die cast
with a brass plated nish. The Philadelphia trap has three coupling
nuts and slip washers and is supplied without a tailpiece.
ASME A112.18.1M
BATH DRAIN

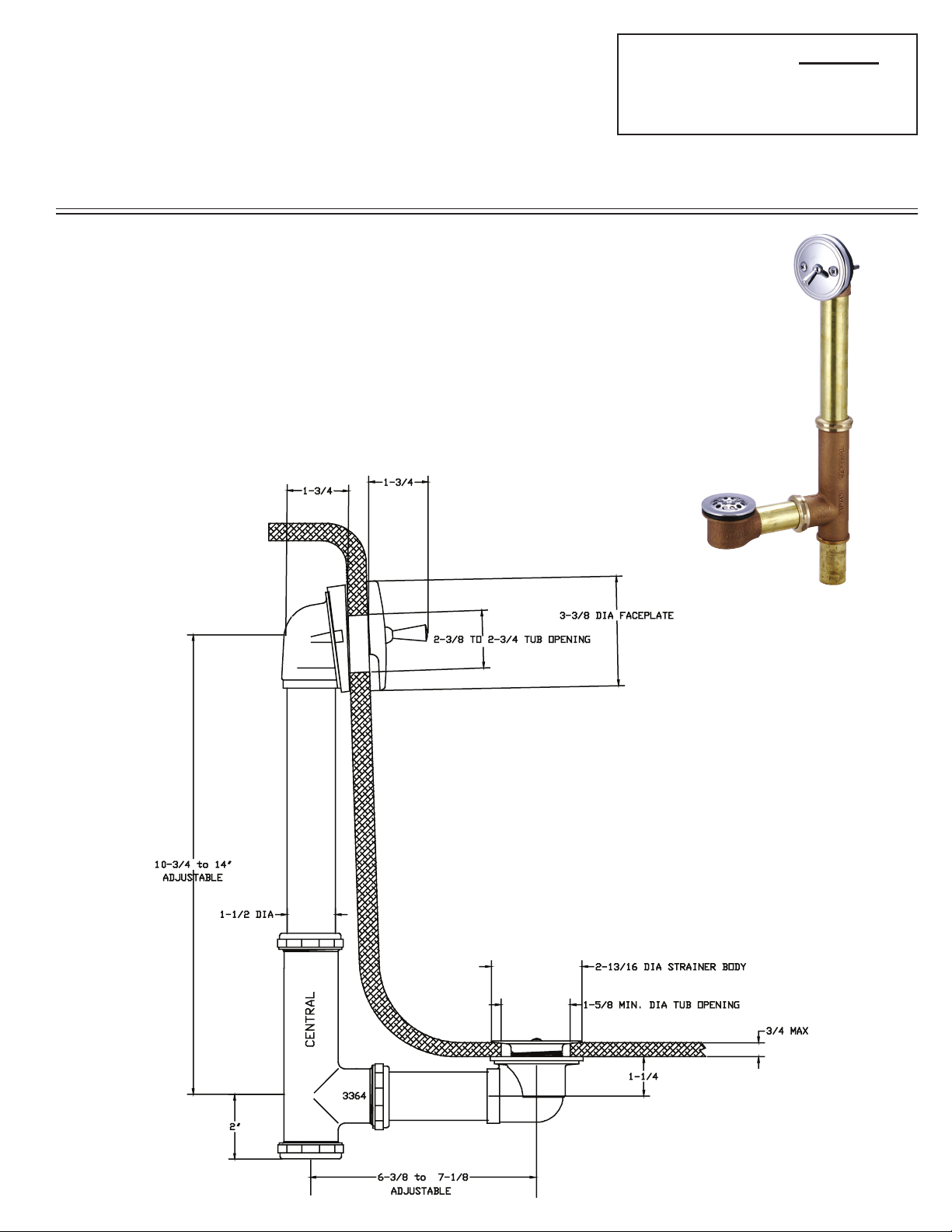

Installation
Drawing
03-30-09
Page 2
MODEL NO. 1655-P
Central Brass
C O M P A N Y
MULTI TUB TRIP LEVER
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
BATH DRAIN

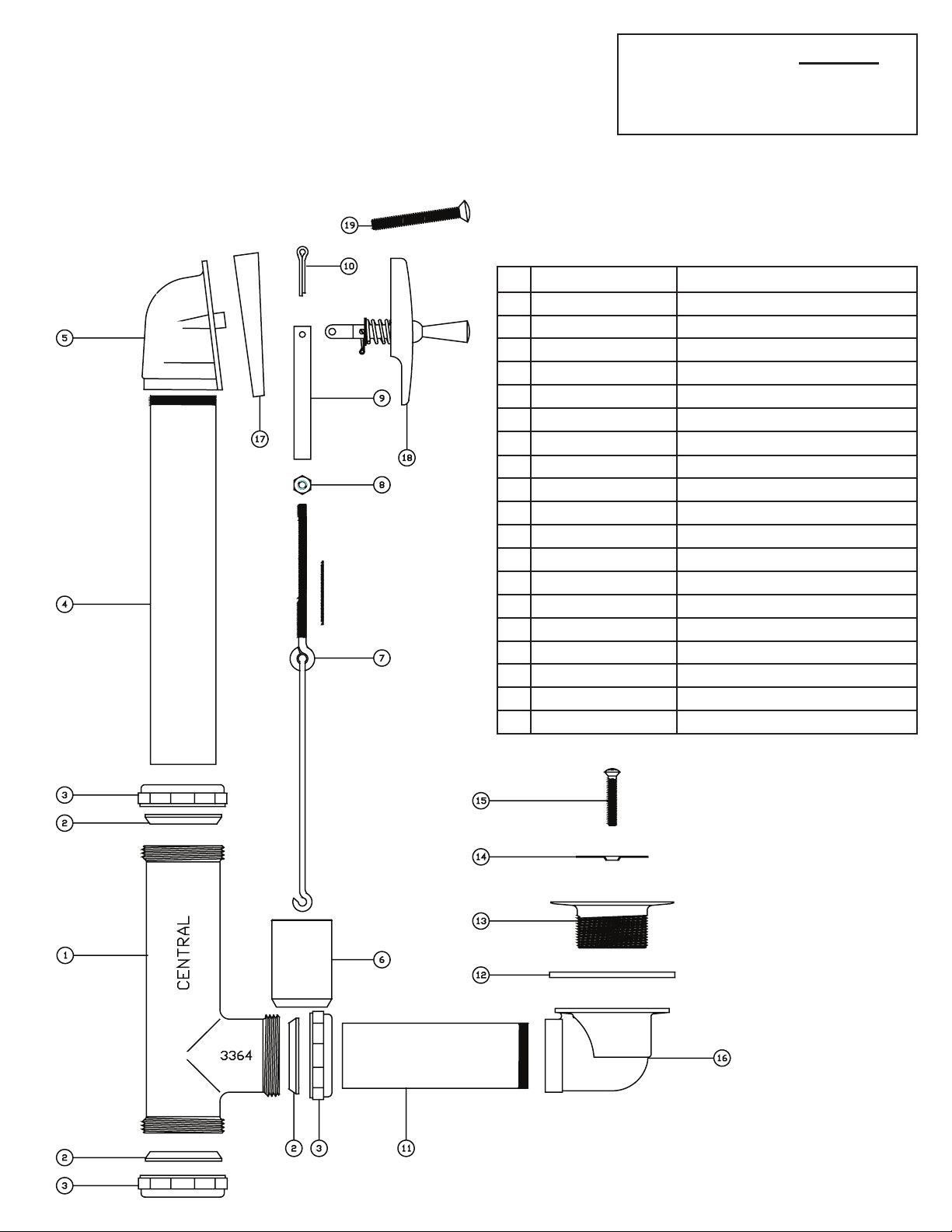

Parts Breakdown
# Part # Description
1 3364 Brass Tee Body
2 149-RP Slip Joint Washer
3 3008-BP Coupling Nut
4 PF-731-D 8-1/2” Brass Standpipe
5 3371 Brass Top Ell
6 3042-A Brass Plunger
7 61-LD Brass Linkage
8 1081-N Brass Hex Nut
9 61-LU Brass Clevis
10 222-D Brass Cotter Pin
11 PF-731-A 4-1/4” Brass Shoe Tube
12 991-C Rubber Washer
13 PF-218-A Brass Strainer Body
14 218-B Stainless Steel Strainer
15 218-C Brass Phillips Head Screw
16 3026-CD Brass Ell
17 990-L Washer
18 SU-83-AZ Trip Lever
19 127-AP21/4 Brass Phillips Head Screw
The parts listed in the parts breakdown above may not be
offered separately as replacement parts. Please review the
Replacement Parts page for the authorized replacement parts
that are available for this item.
03-30-09
