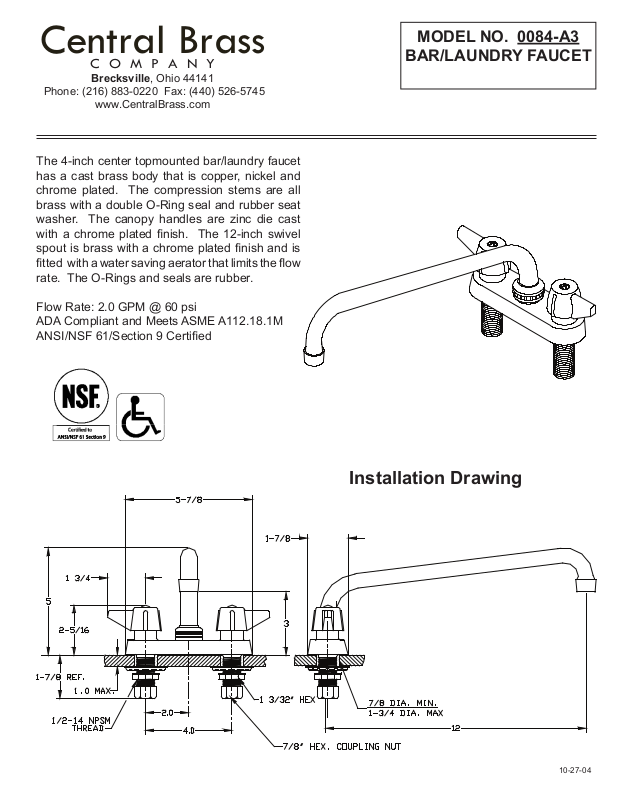

The 4-inch center topmounted bar/laundry faucet
has a cast brass body that is copper, nickel and
chrome plated. The compression stems are all
brass with a double O-Ring seal and rubber seat
washer. The canopy handles are zinc die cast
with a chrome plated nish. The 12-inch swivel
spout is brass with a chrome plated nish and is
tted with a water saving aerator that limits the ow
rate. The O-Rings and seals are rubber.
Flow Rate: 2.0 GPM @ 60 psi
ADA Compliant and Meets ASME A112.18.1M
ANSI/NSF 61/Section 9 Certied
MODEL NO. 0084-A3
BAR/LAUNDRY FAUCET

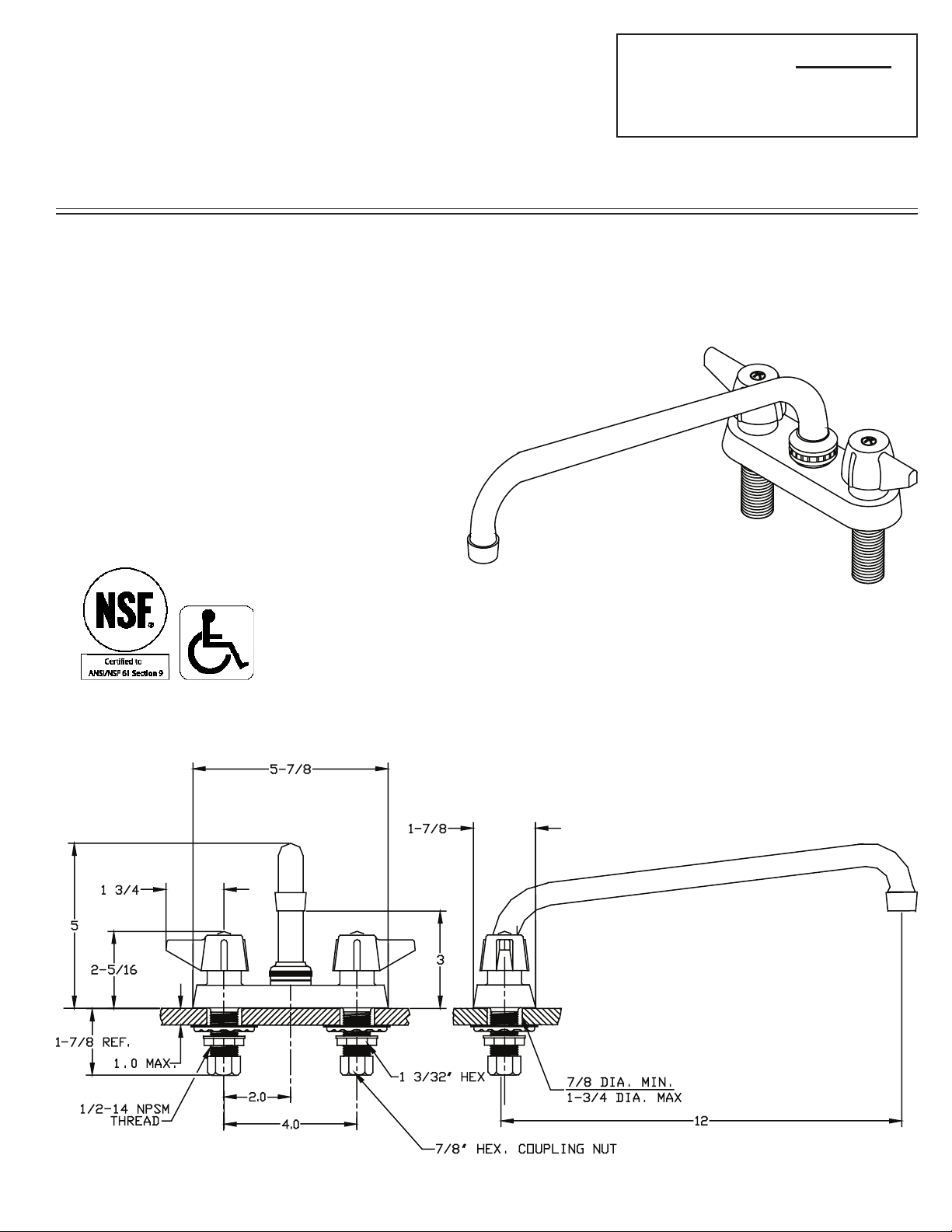

Installation Drawing
10-27-04
Page 2
Brecksville, Ohio 44141
Central Brass
C O M P A N Y
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
MODEL NO. 0084-A3
BAR/LAUNDRY FAUCET

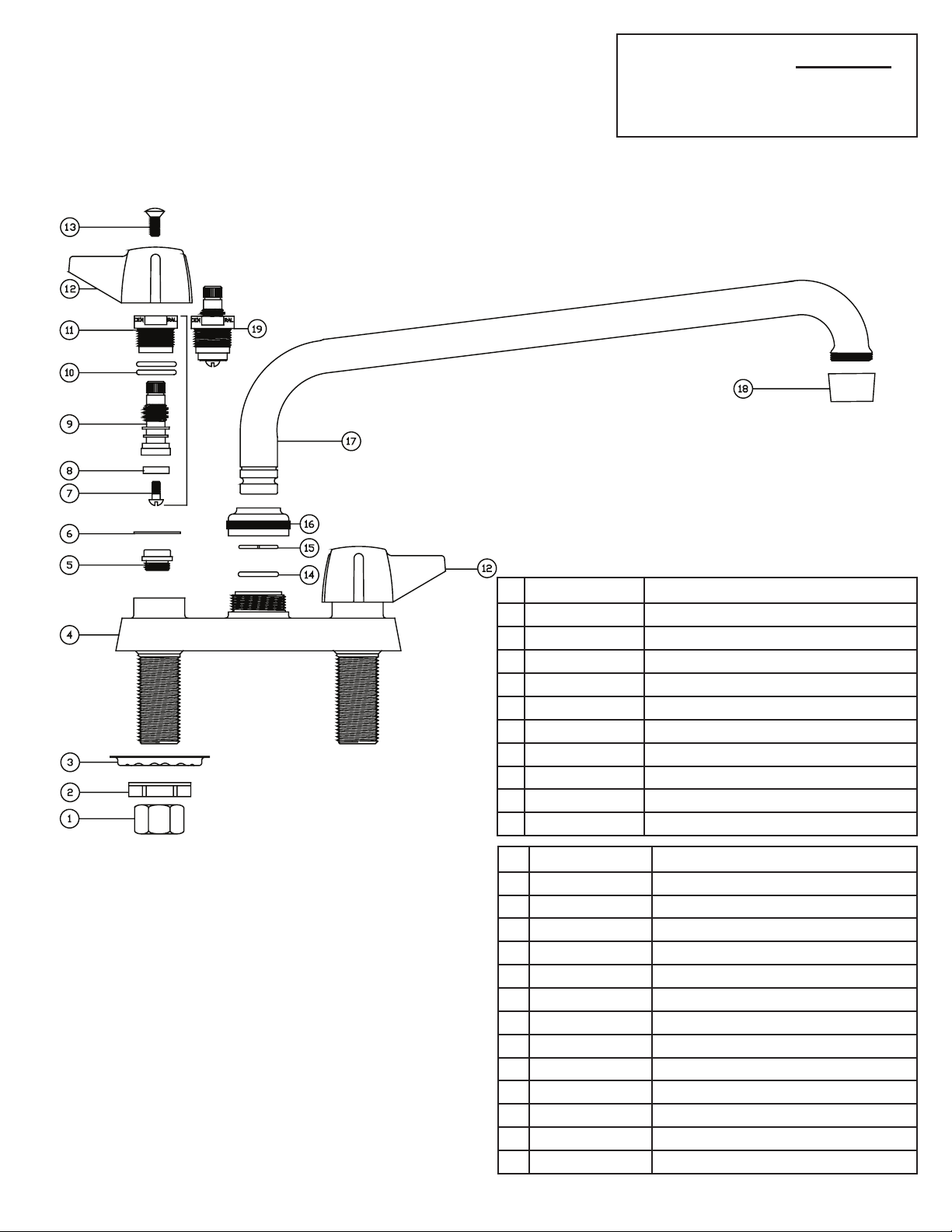

Parts Breakdown
The parts listed in the parts breakdown above may not be
offered separately as replacement parts. Please review the
Replacement Parts page for the authorized replacement parts
that are available for this item.
# Part # Description
1 4015-BARP Brass Coupling Nut
2 7133-AZ Zinc Dichromate Locknut
3 54 Steel Crowfoot Washer
4 2103-B Brass Faucet Body
5 263-BC Bronze Seat
6 1028-Y Nylon Gasket
7 104 Brass Seat Washer Screw
8 901-WNN Seat Washer
9 453-FL Brass Left Thread O-Ring Stem
9 453-FR Brass Right Thread O-Ring Stem
# Part # Description
10 1038-453 O-Ring
11 453-EWC Brass Left Thread O-Ring Bonnet
11 453-EWH Brass Right Thread O-Ring Bonnet
12 523-C Handle Indexed “C”
12 523-H Handle Indexed “H”
13 107-F Brass Phillips Head Screw
14 1038-KN O-Ring
15 166-FN Stainless Steel Snap Ring
16 PF-782-DES Brass Spout Nut
17 PF-362-LA Brass Swivel Spout
18 30-M Female Aerator
19 SU-453-EL Left Thread O-Ring Stem Assembly
19 SU-453-ER Right Thread O-Ring Stem Assembly
