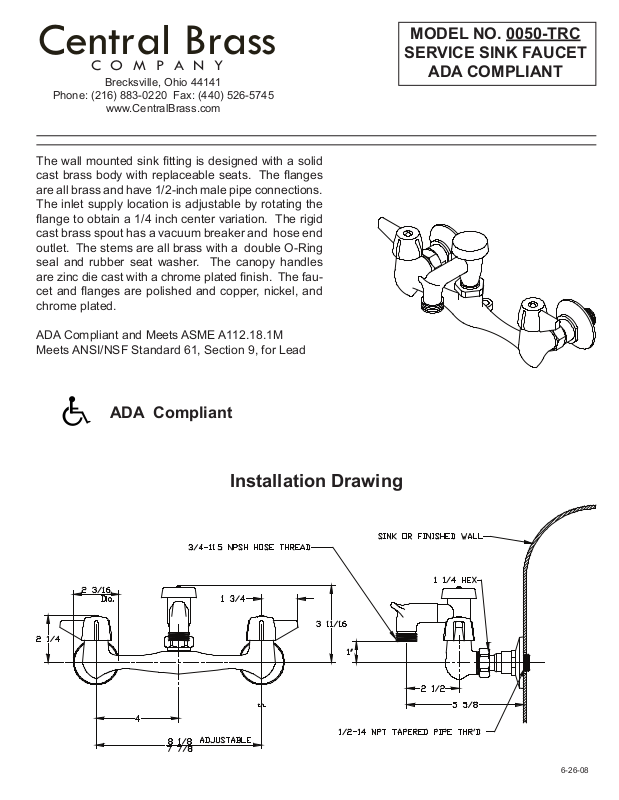

Page 1
MODEL NO. 0050-TRC
Central Brass
C O M P A N Y
SERVICE SINK FAUCET
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
The wall mounted sink tting is designed with a solid
cast brass body with replaceable seats. The anges
are all brass and have 1/2-inch male pipe connections.
The inlet supply location is adjustable by rotating the
ange to obtain a 1/4 inch center variation. The rigid
cast brass spout has a vacuum breaker and hose end
outlet. The stems are all brass with a double O-Ring
seal and rubber seat washer. The canopy handles
are zinc die cast with a chrome plated nish. The faucet and anges are polished and copper, nickel, and
chrome plated.
ADA Compliant and Meets ASME A112.18.1M
Meets ANSI/NSF Standard 61, Section 9, for Lead
ADA COMPLIANT
ADA Compliant
Installation Drawing
6-26-08
Page 2
MODEL NO. 0050-TRC
Central Brass
C O M P A N Y
SERVICE SINK FAUCET
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
Handle variations available
ELS - Sufx
Wrist 4-inch
EL - Sufx
Elbow 6-inch
G-4147 (4-inch)
G-4149 (6-inch)
ADA COMPLIANT
Sufx Options
& Accessories
Flange variations available
U - Suffix
T-Suffix
Faucets with lever, wrist or elbow handles with compression
or ceramic stem cartridges are
ADA compliant.
S - Suffix
YRC - Suffix
6-26-08
Page 3
MODEL NO. 0050-TRC
Central Brass
C O M P A N Y
SERVICE SINK FAUCET
Brecksville, Ohio 44141
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
# Part # Description
1 2831-RC Brass Faucet Body
2 263-BC Bronze Seat
3 1028-Y Nylon Gasket
4 104 Brass Seat Washer Screw
5 901-WNN Seat Washer
6 453-FL Brass Left Thread O-Ring Stem
6 453-FR Breass Right Thread O-Ring Stem
7 1038-453 O-Ring
8 453-EWC Brass Left Thread O-Ring Bonnet
8 453-EWH Brass Right Thread O-Ring Bonnet
ADA COMPLIANT
Parts Breakdown
# Part # Description
9 523-C Handle Indexed “C”
9 523-H Handle Indexed “H”
10 107-F Brass Phillips Head Screw
11 1038-KN O-Ring
12 PF-5355-A Brass Adapter
13 PF-2843-49 Brass Hex Nut
14 5355 Vacuum Breaker
15 1615-50RC Brass Spout
16 1146 Flange
17 PF-2843-49 Brass Hex Nut
18 2846 Brass Flange
19 940-TRN Washer
20 SU-453-EL Left Thread O-Ring Stem Assembly
20 SU-453-ER Right Thread O-Ring Stem Assembly
21 SU-2846 Brass Flange Assembly
The parts listed in the parts breakdown above may not be
offered separately as replacement parts. Please review the
Replacement Parts page for the authorized replacement parts
that are available for this item.
6-26-08
