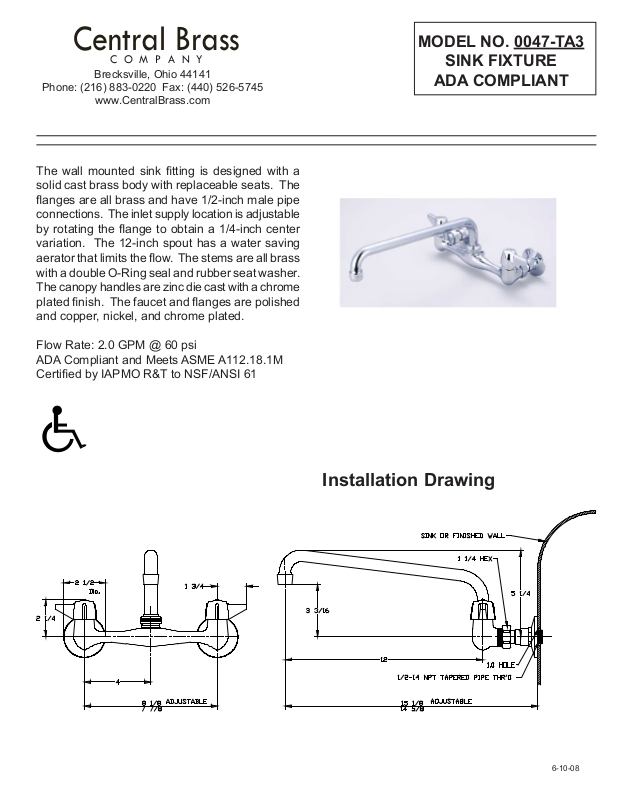

The wall mounted sink tting is designed with a
solid cast brass body with replaceable seats. The
anges are all brass and have 1/2-inch male pipe
connections. The inlet supply location is adjustable
by rotating the ange to obtain a 1/4-inch center
variation. The 12-inch spout has a water saving
aerator that limits the ow. The stems are all brass
with a double O-Ring seal and rubber seat washer.
The canopy handles are zinc die cast with a chrome
plated nish. The faucet and anges are polished
and copper, nickel, and chrome plated.
MODEL NO. 0047-TA3
SINK FIXTURE
ADA COMPLIANT
Flow Rate: 2.0 GPM @ 60 psi
ADA Compliant and Meets ASME A112.18.1M
Certied by IAPMO R&T to NSF/ANSI 61
Installation Drawing
6-10-08
Page 2
Brecksville, Ohio 44141
Central Brass
C O M P A N Y
Phone: (216) 883-0220 Fax: (440) 526-5745
www.CentralBrass.com
Parts Breakdown
MODEL NO. 0047-TA3
SINK FIXTURE
ADA COMPLIANT
# Part # Description
1 2831-CP Brass Faucet Body
2 263-BC Bronze Seat
3 1028-Y Nylon Gasket
4 104 Brass Seat Washer
5 901-WNN Seat Washer
6 453-FL Brass Left Thread O-Ring Stem
6 453-FR Brass Right Thread O-Ring Stem
7 1038-453 O-Ring
8 453-EWC Brass Left Thread O-Ring Bonnet
8 453-EWH Brass Right Thread O-Ring Bonnet
9 523-C Handle Indexed “C”
9 523-H Handle Indexed “H”
10
9
8
CEN RAL
# Part # Description
10 107-F Brass Phillips Head Screw
11 1038-KN O-Ring
12 166-FN Stainless Steel Snap Ring
13 PF-783-DES Brass Spout Nut
14 PF-363-LA Brass Swivel Spout
15 30-M Female Aerator
16 1146 Flange
17 PF-2843-49 Brass Hex Spout Nut
18 2846 Brass Flange
19 940-TRN Washer
20 SU-453-EL Left Thread O-Ring Stem Assembly
20 SU-453-ER Right Thread O-Ring Stem Assembly
21 SU-2846 Brass Flange Assembly
7
6
5
4
3
2
1
21
CEN RAL
20
14
13
12
11
19
18
17
16
9
15
6-10-08
