Page 1
CenterVue
COMPASS Operating Manual
Pag. 1 di 53
Operating Manual
Page 2
CenterVue
COMPASS Operating Manual
Pag. 2 di 53
MANUAL INFORMATION
Date of release: March 31st, 2016
Revision number: 11
Reference software version: v2.0
Manufacturer:
CenterVue S.p.A.
Via San Marco 9h, 35129 Padova – ITALY
Tel. +39 049 739 6147
Fax +39 049 739 6148
CONTENTS
1. INTRODUCTION ....................................................................................................................................... 4
2. SYSTEM .................................................................................................................................................... 5
2.1 The device ............................................................................................................................................. 5
2.2 The tablet ............................................................................................................................................... 6
3. LABELS ..................................................................................................................................................... 7
4. SYMBOLS.................................................................................................................................................. 8
5. PREPARING THE SYSTEM ...................................................................................................................... 9
5.1 Assembling the tablet and joystick supports ........................................................................................ 10
5.2 Turning on the Device .......................................................................................................................... 11
6. PREPARING THE SUBJECT .................................................................................................................. 12
7. WARNINGS AND PRECAUTIONS ......................................................................................................... 13
8. NOTES FOR THE OPERATOR .............................................................................................................. 14
9. PERFORMING THE TEST ...................................................................................................................... 15

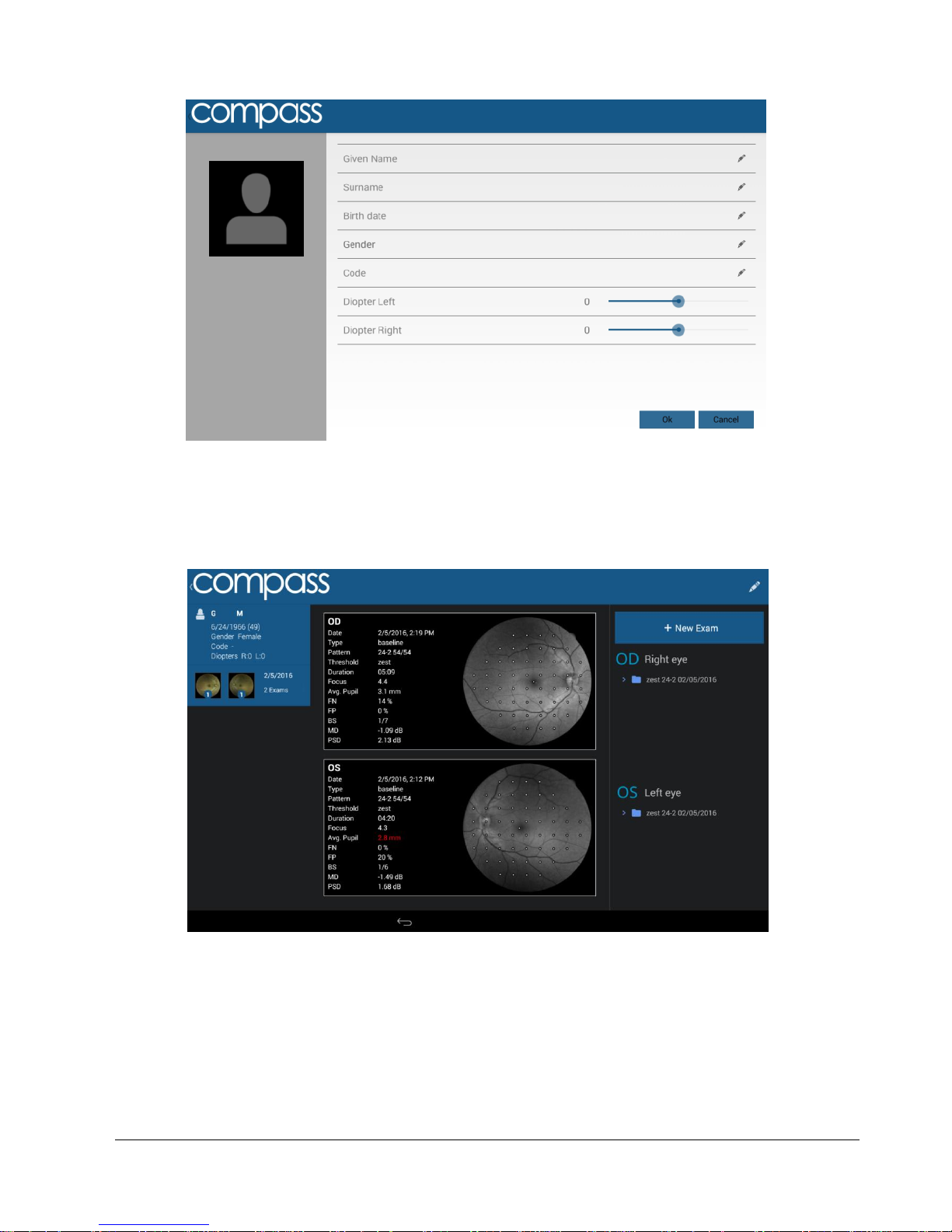

9.1 Adding a new patient ........................................................................................................................... 15

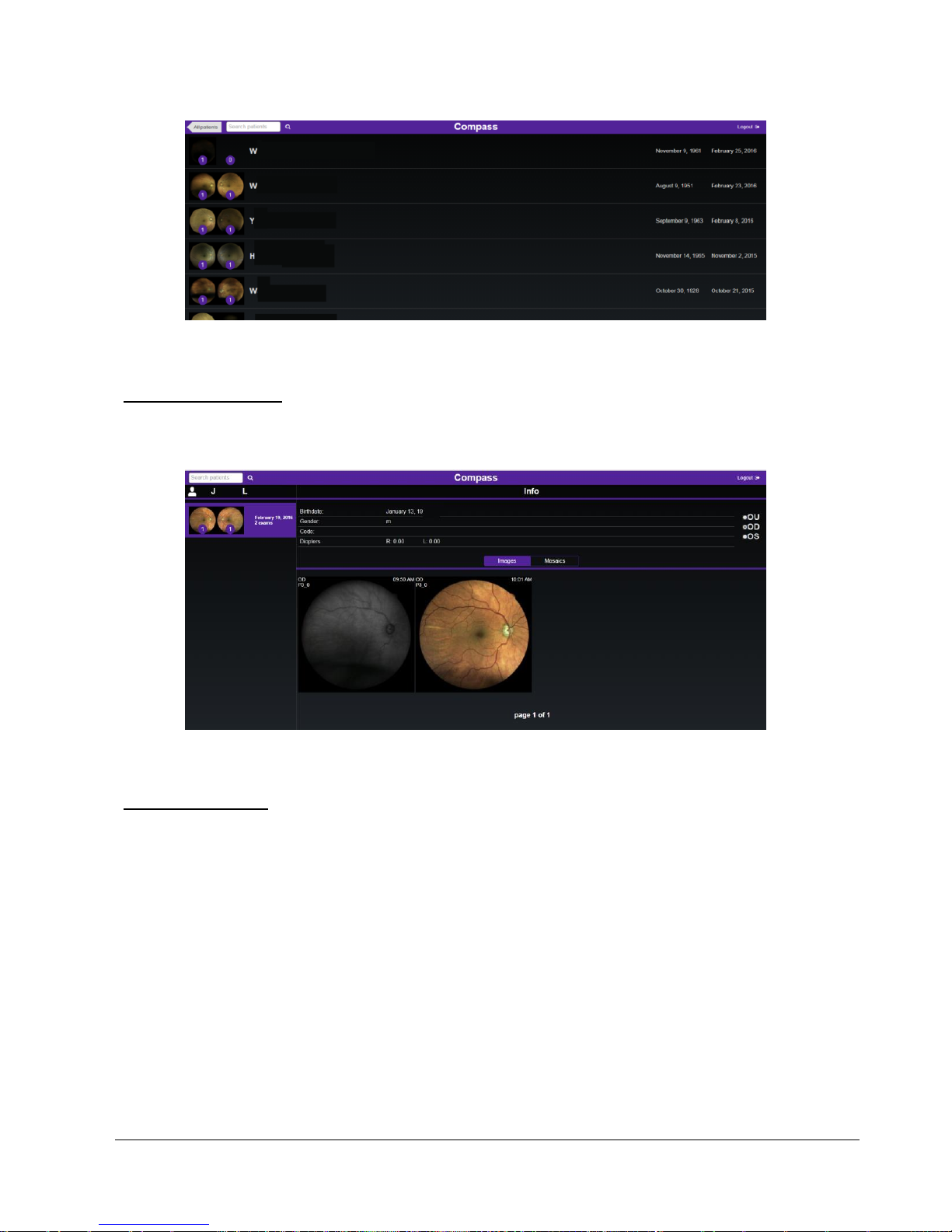

9.2 Searching for an existing patient ......................................................................................................... 15
9.3 Selecting an existing patient ................................................................................................................ 15
9.4 Root test vs. follow-up test ................................................................................................................... 17
9.5 Initiating a new root test ....................................................................................................................... 17
9.6 Initiating a new follow-up test............................................................................................................... 17

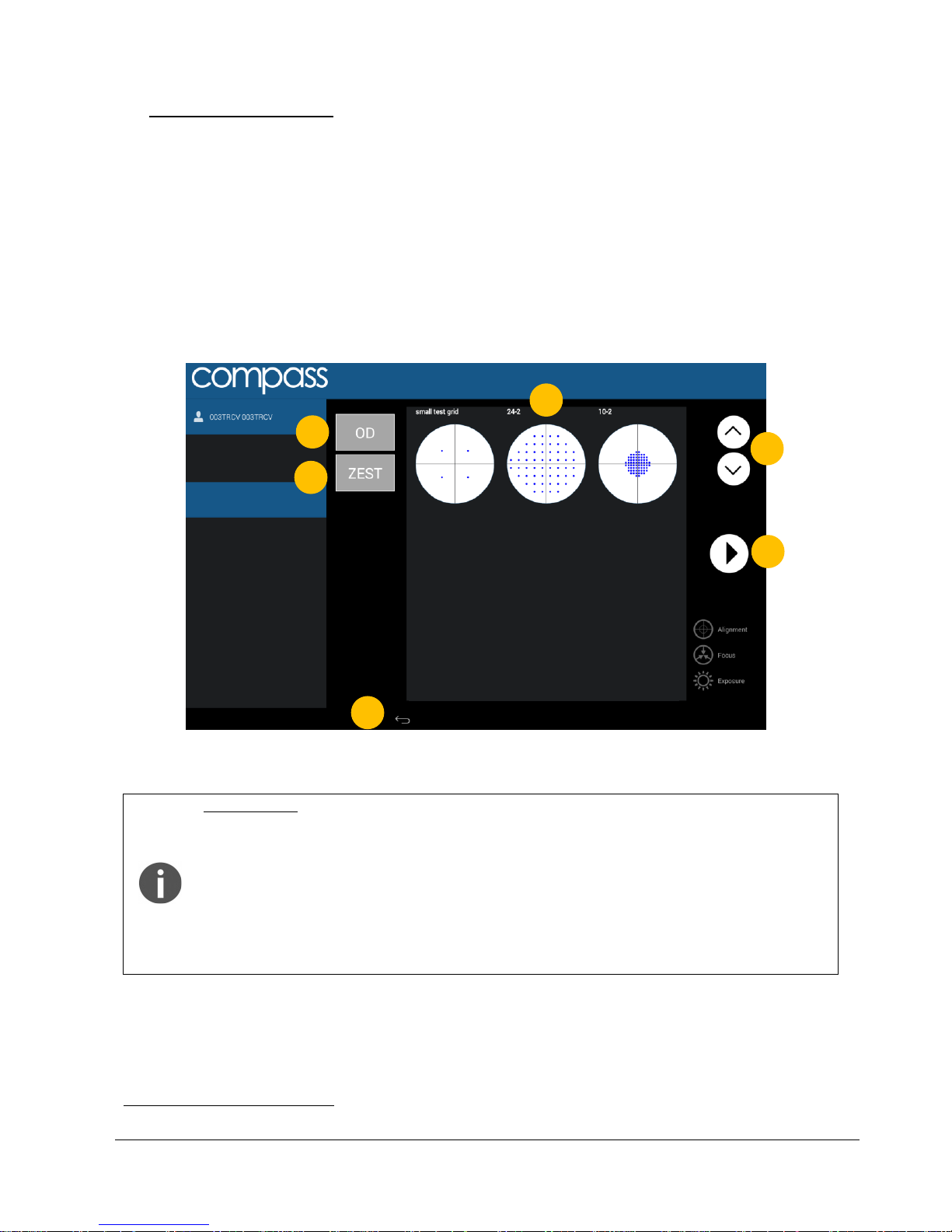

9.7 Choosing test parameters .................................................................................................................... 18
9.8 Before starting ..................................................................................................................................... 19
9.9 During the test ..................................................................................................................................... 20
9.10 Auto-alignment ..................................................................................................................................... 21
9.11 Retinal tracking .................................................................................................................................... 22
9.12 Monitoring test progress ...................................................................................................................... 23
10. REVIEWING RESULTS ........................................................................................................................... 24

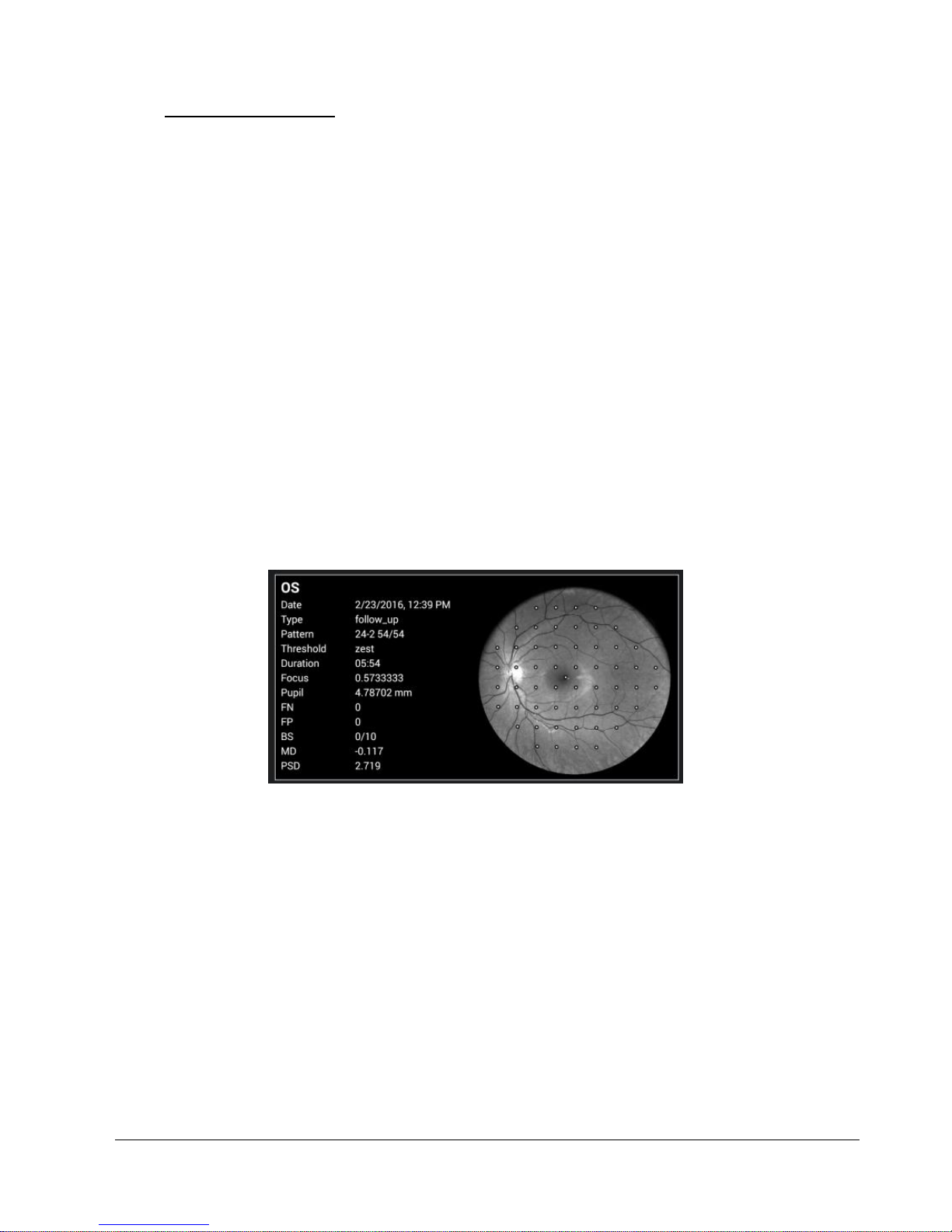

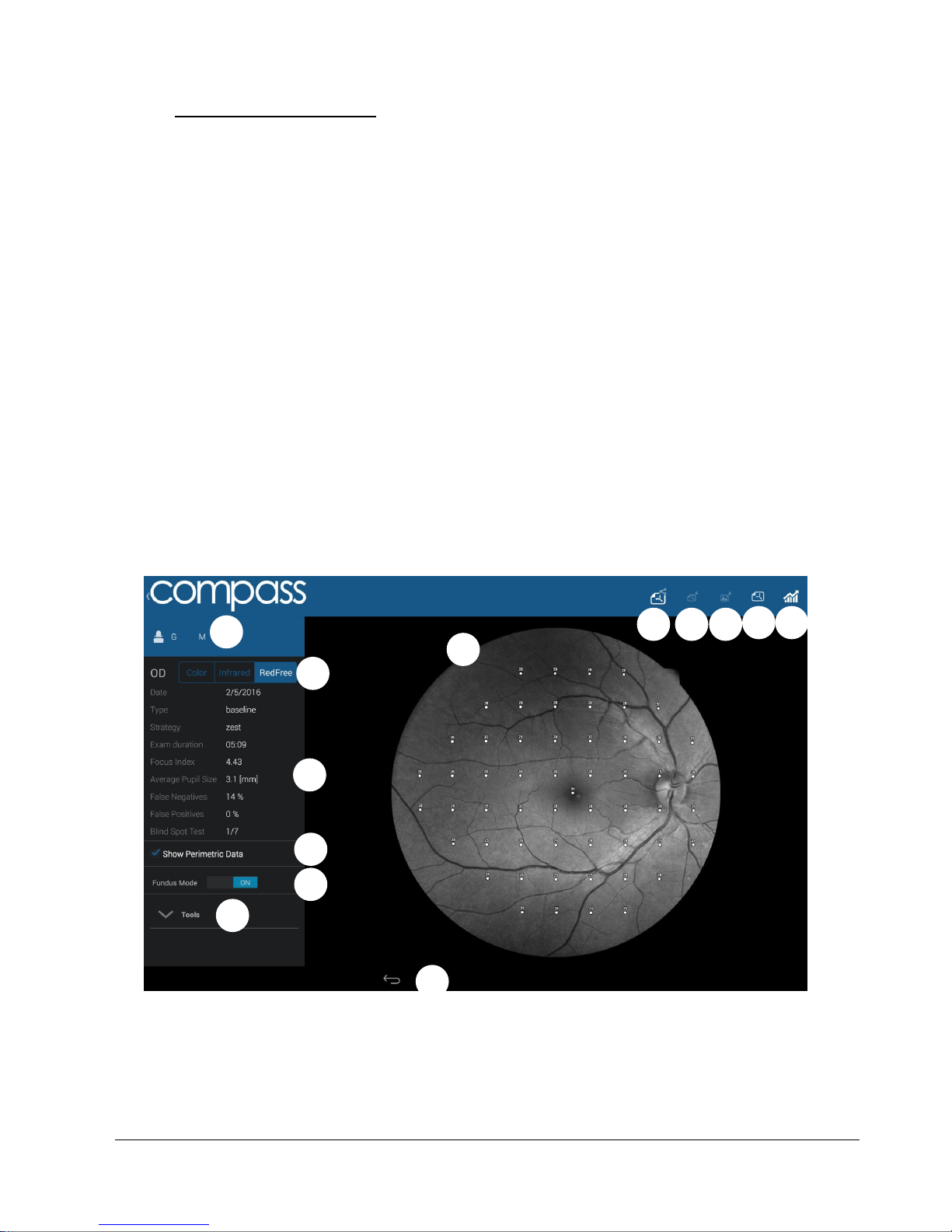

10.1 Individual test results review ................................................................................................................ 26

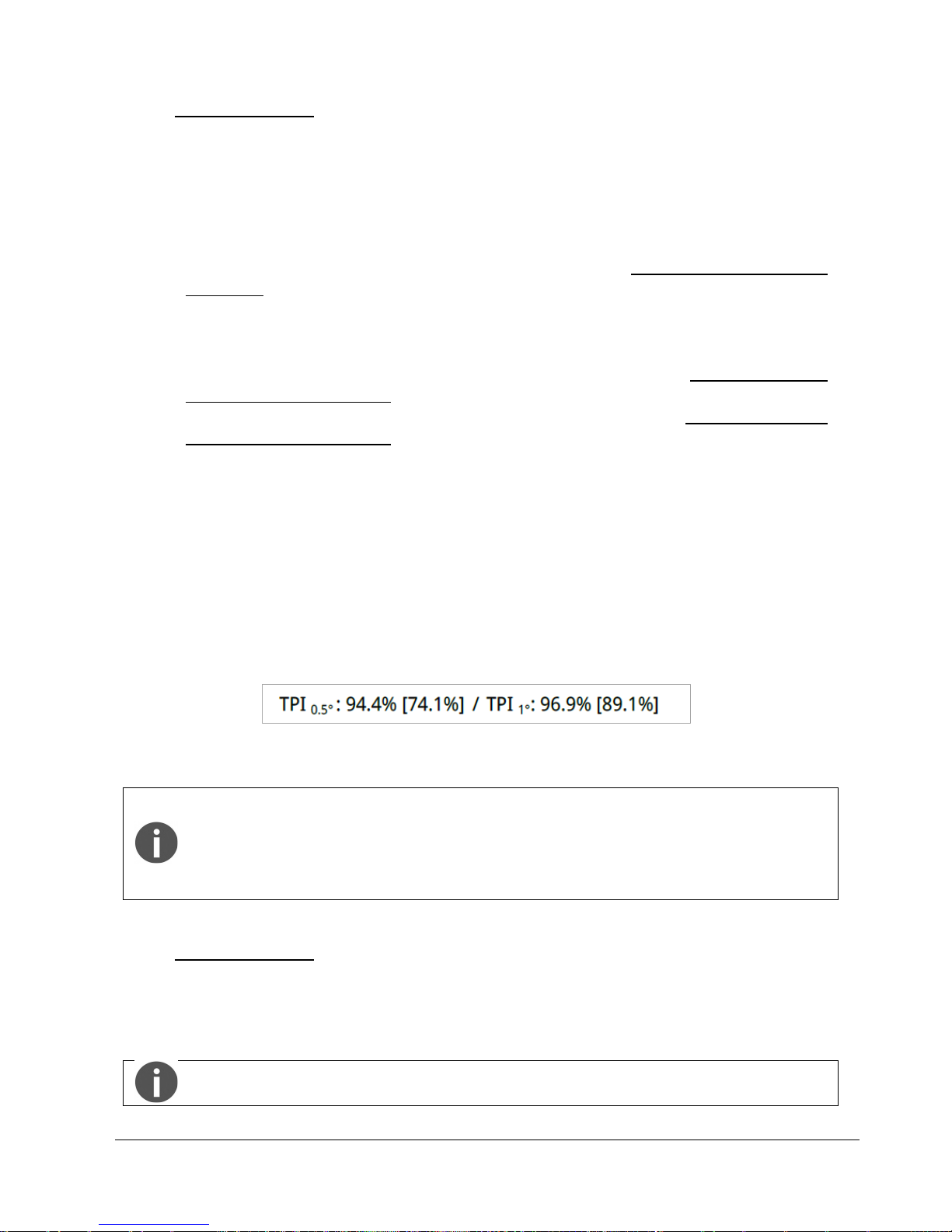

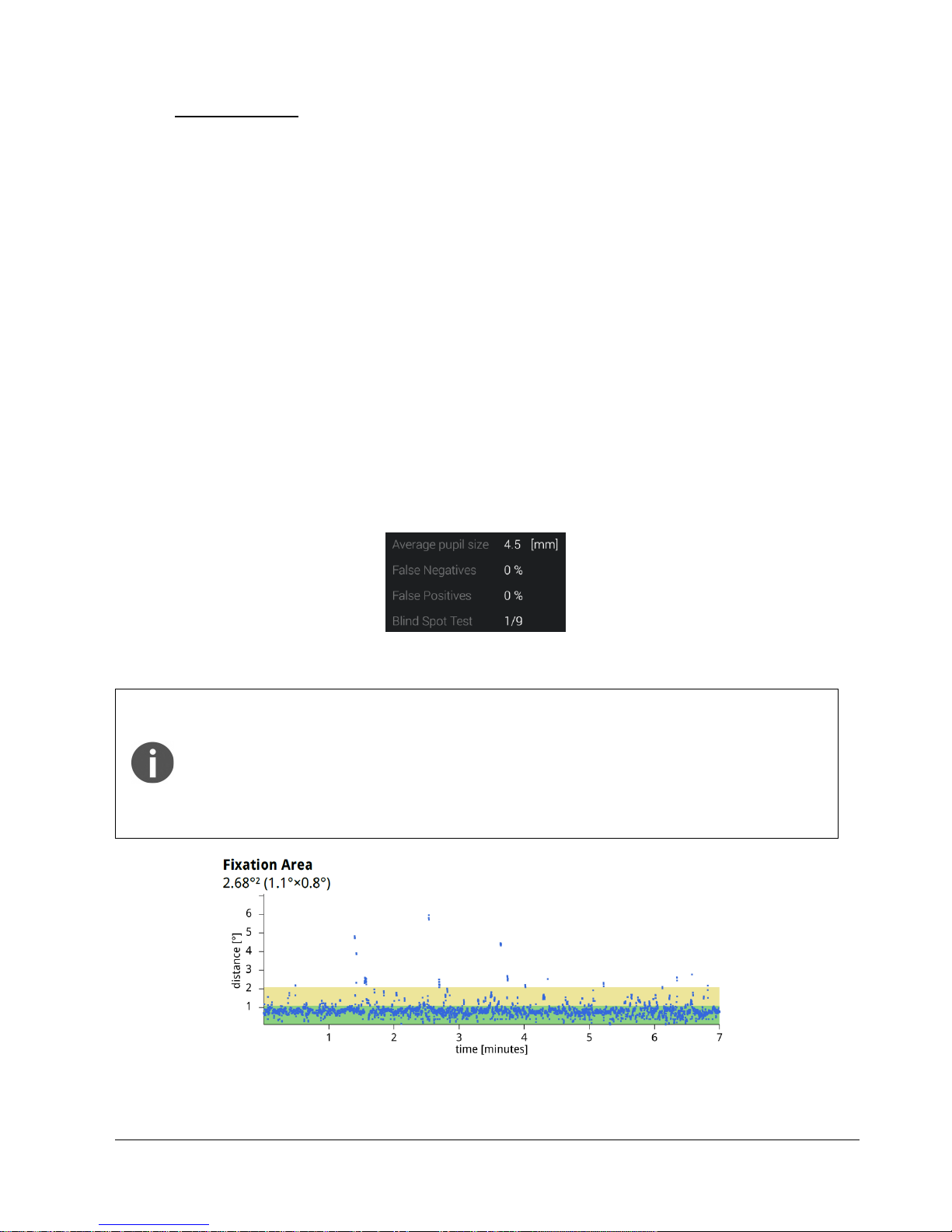

10.2 Reliability indices ................................................................................................................................. 27

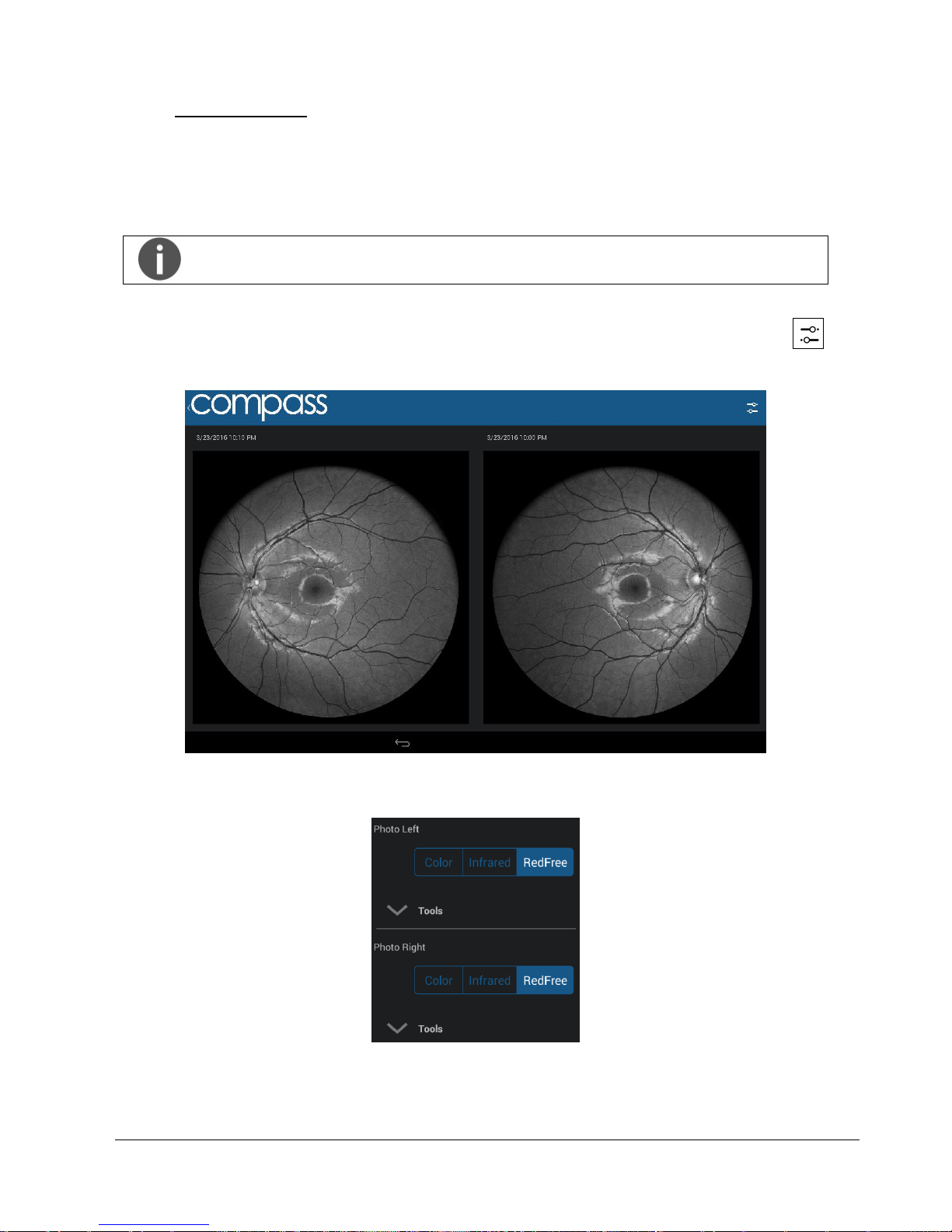

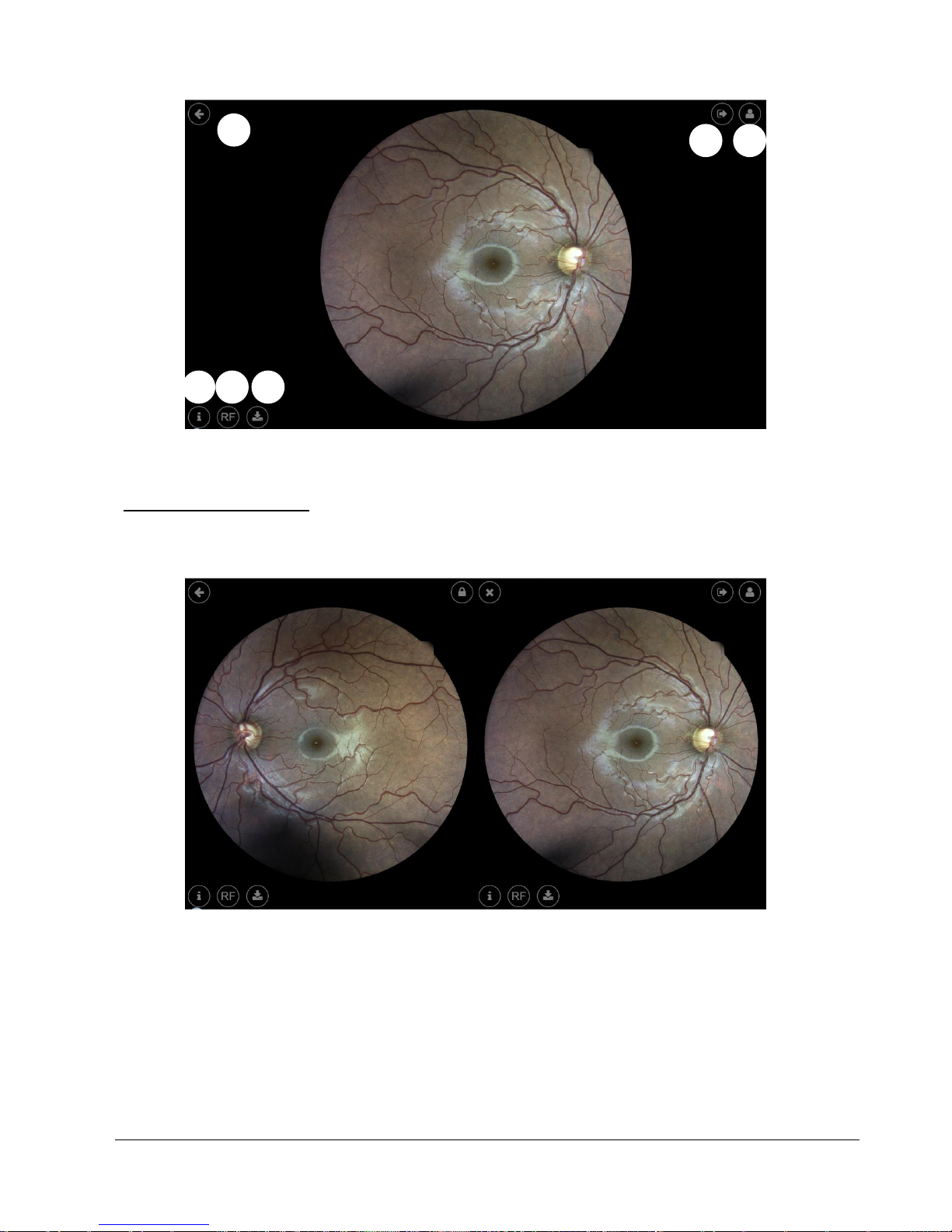

10.3 Dual image review ............................................................................................................................... 29

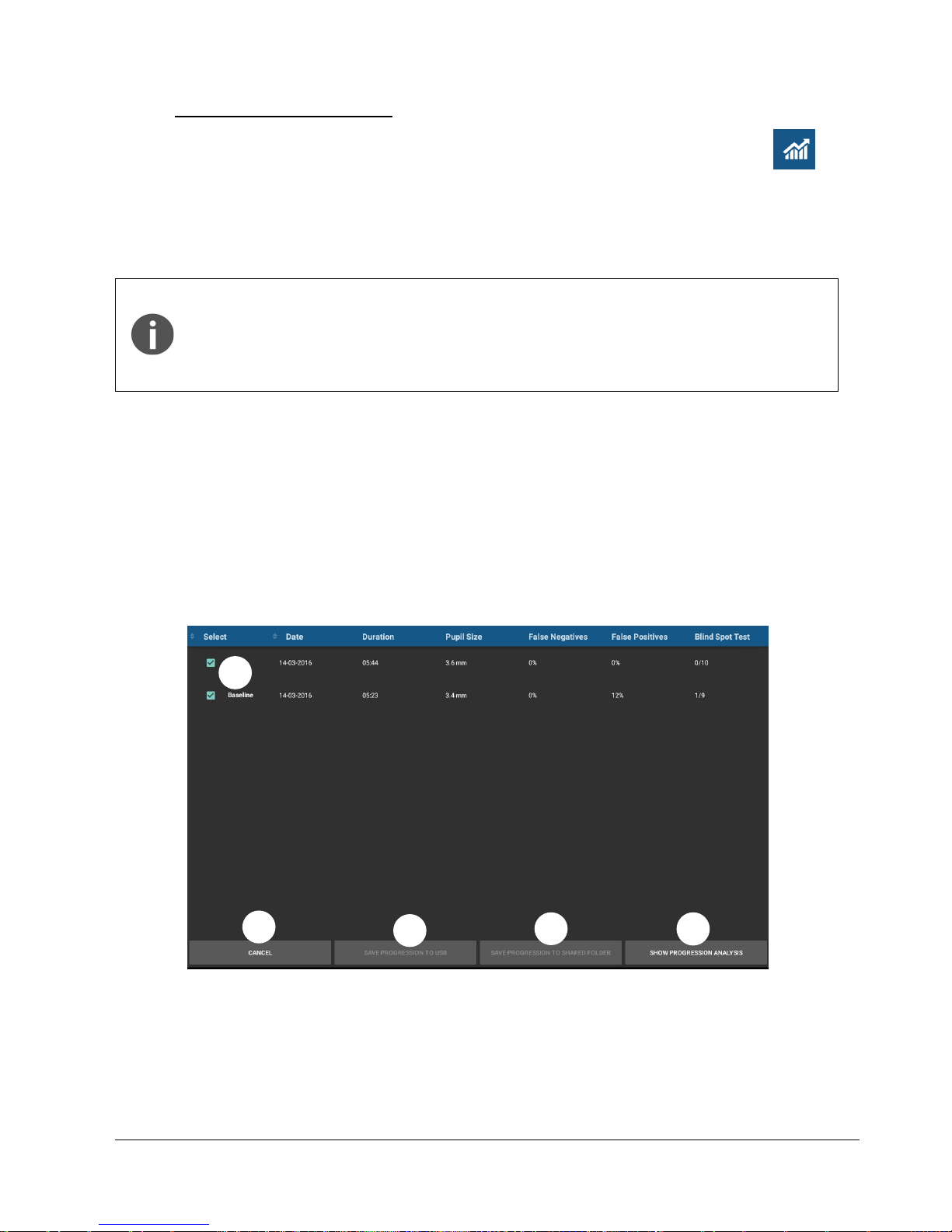

10.4 Creating a Progression Report ............................................................................................................ 30
10.5 Remote Viewer .................................................................................................................................... 31
Page 3
CenterVue
COMPASS Operating Manual
Pag. 3 di 53
11. PRINTING ................................................................................................................................................ 34

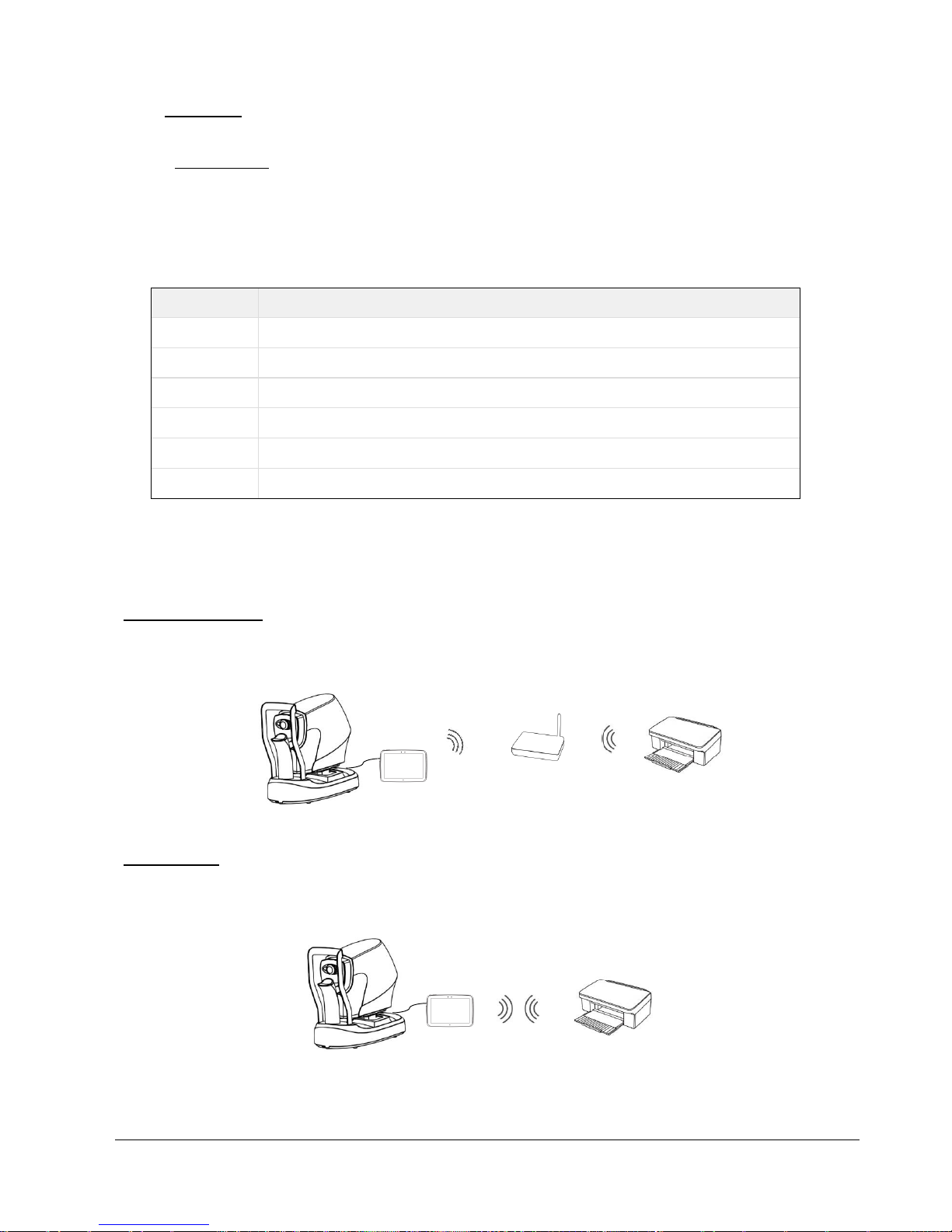

11.1 Printer Setup ........................................................................................................................................ 34

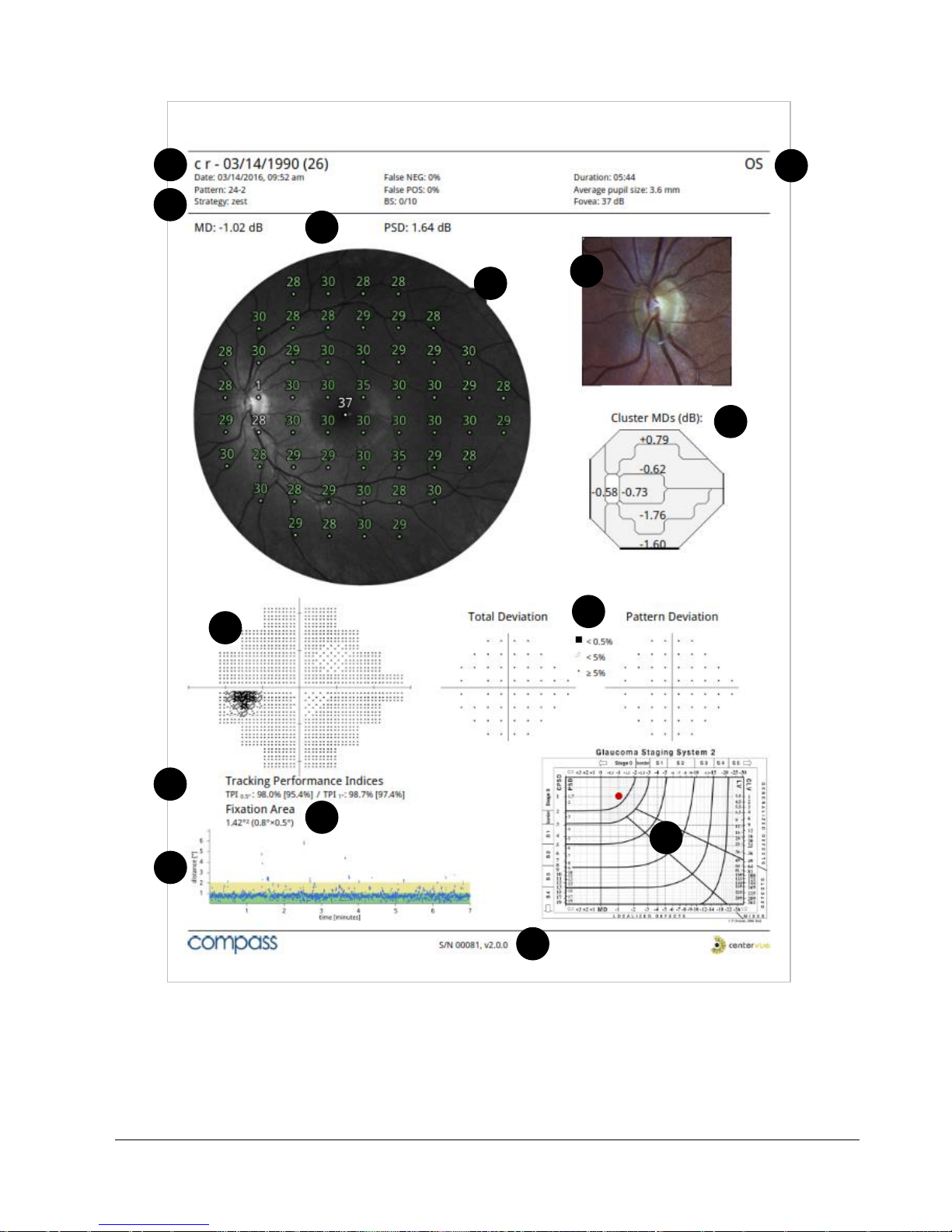

11.2 Report for 24-2 test .............................................................................................................................. 35
11.3 Report for 10-2 test .............................................................................................................................. 35

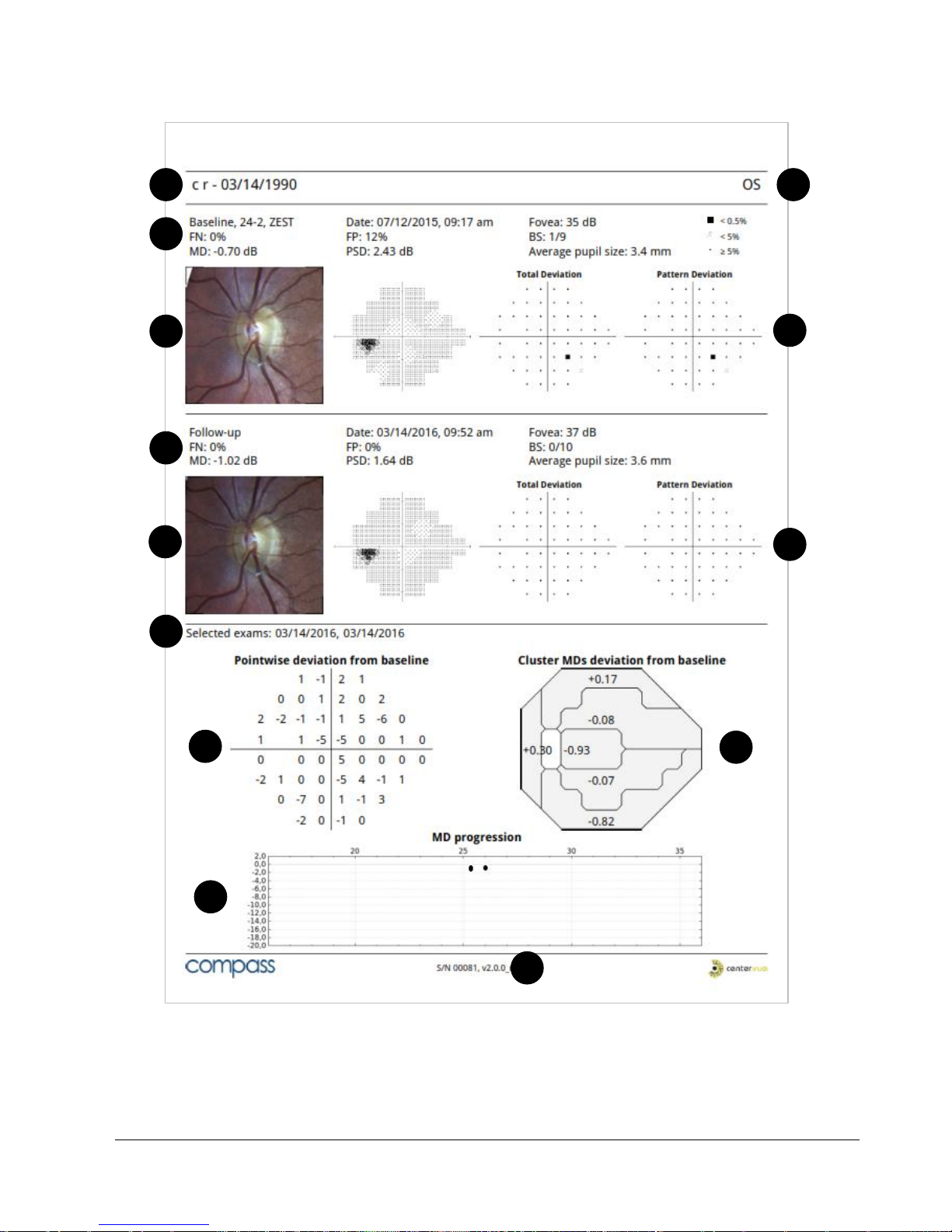

11.4 Progression report ............................................................................................................................... 38
12. SETTINGS ............................................................................................................................................... 40
12.1 Launching the Configurator ................................................................................................................. 40
12.2 Password change ................................................................................................................................ 40

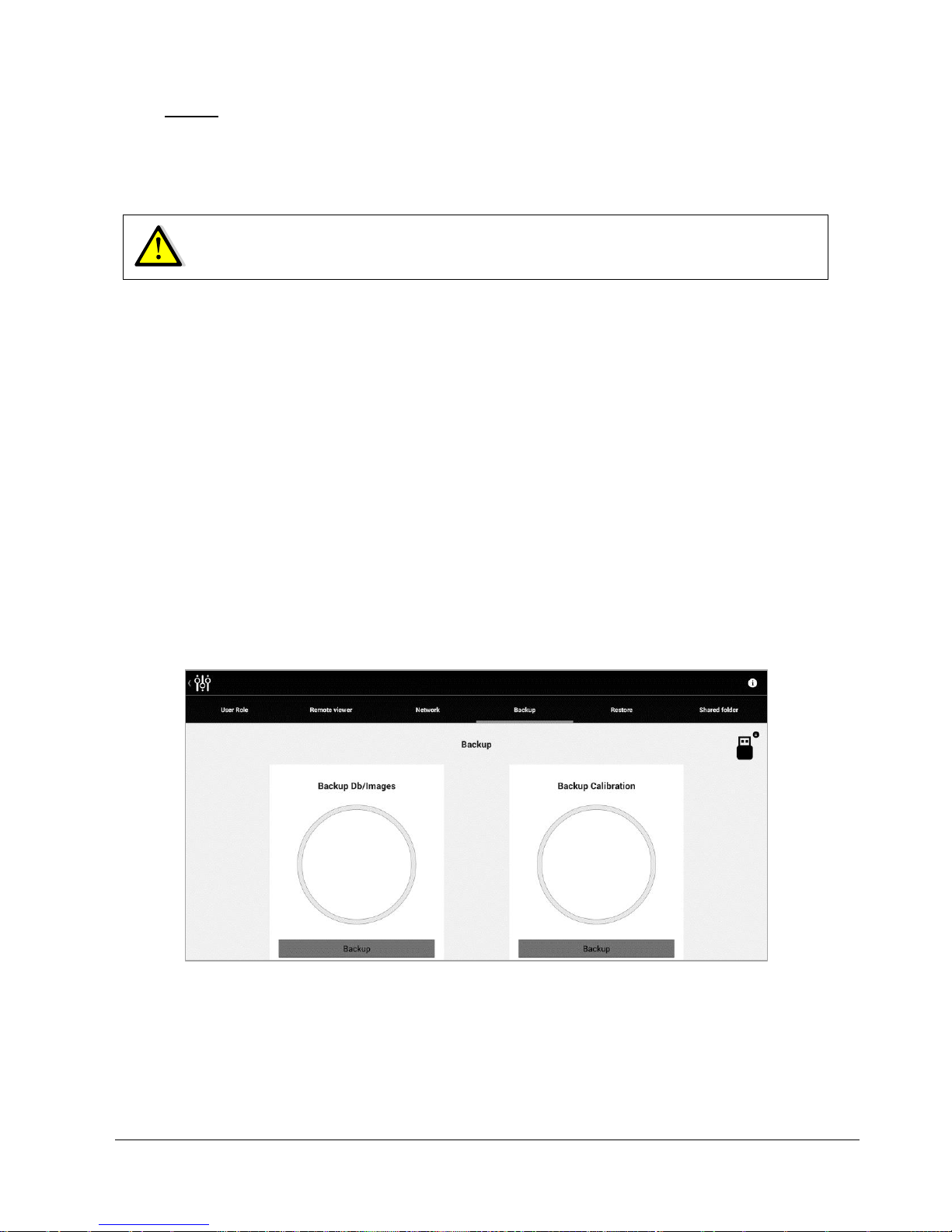

12.3 Backup ................................................................................................................................................. 41
12.4 Restore ................................................................................................................................................ 42
12.5 Device lock reset procedure ................................................................................................................ 42

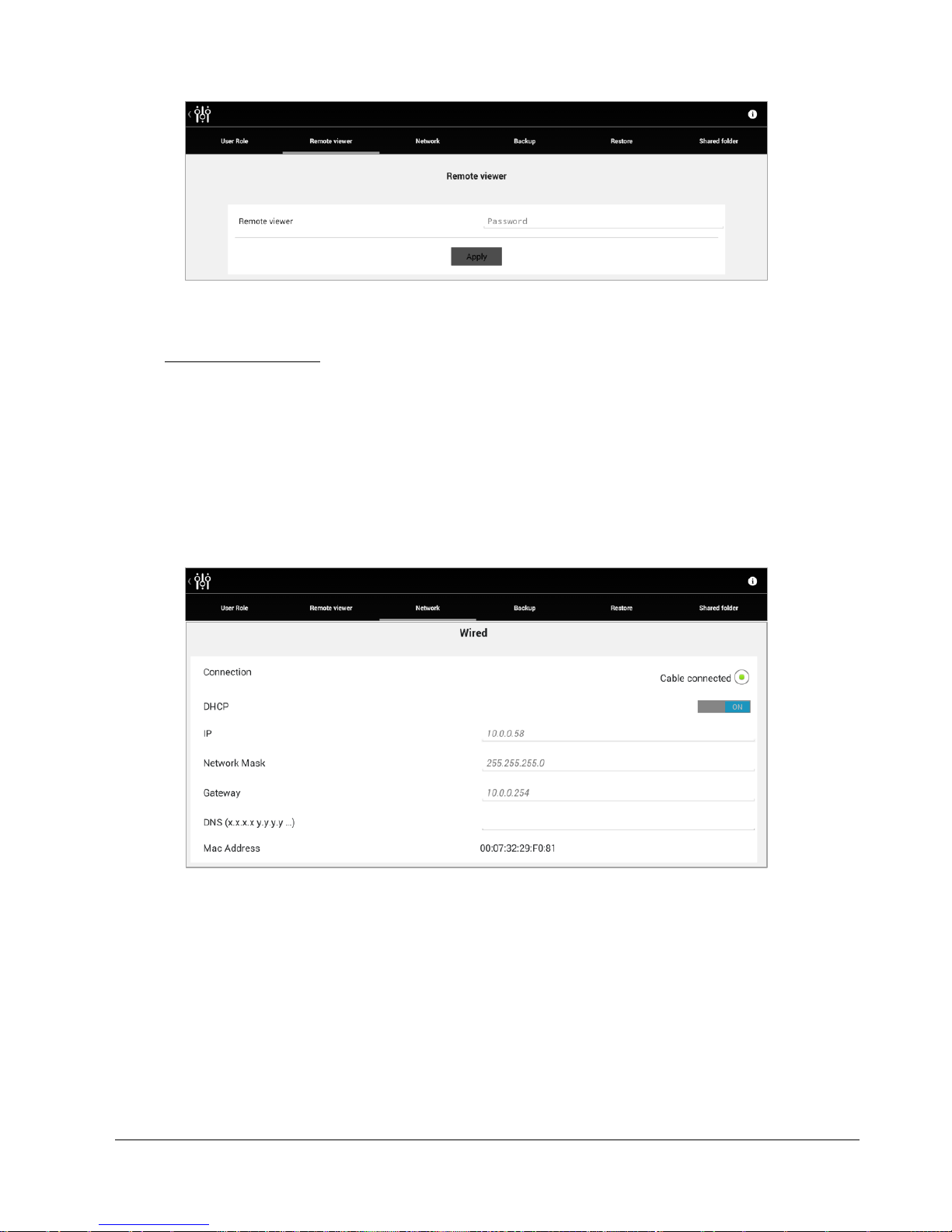

12.6 Password change for Remote Viewer ................................................................................................. 42
12.7 Network configuration .......................................................................................................................... 43

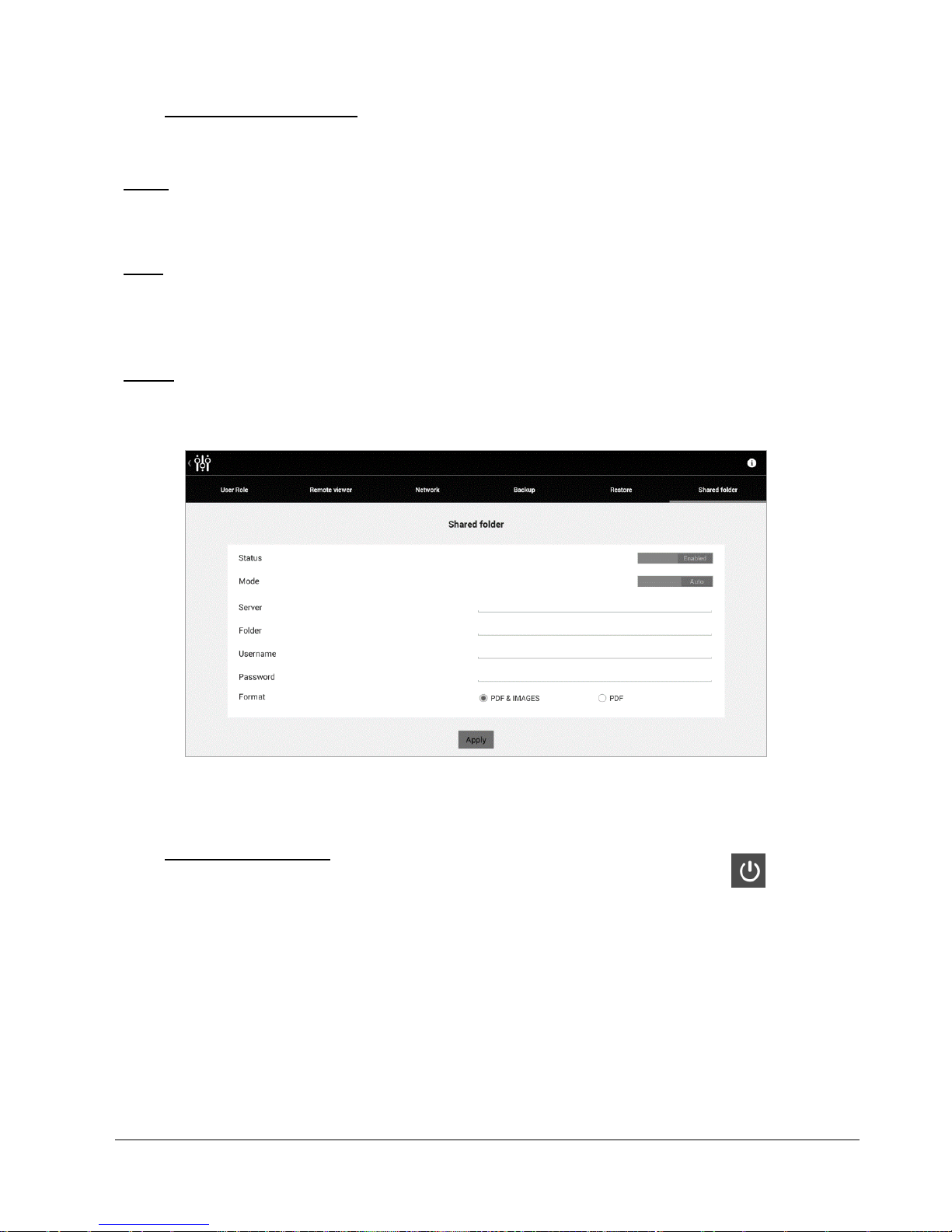

12.8 Shared folder configuration.................................................................................................................. 44
13. SYSTEM SHUTDOWN ............................................................................................................................ 44
14. TECHNICAL SPECIFICATIONS ............................................................................................................. 45
15. CLEANING............................................................................................................................................... 46

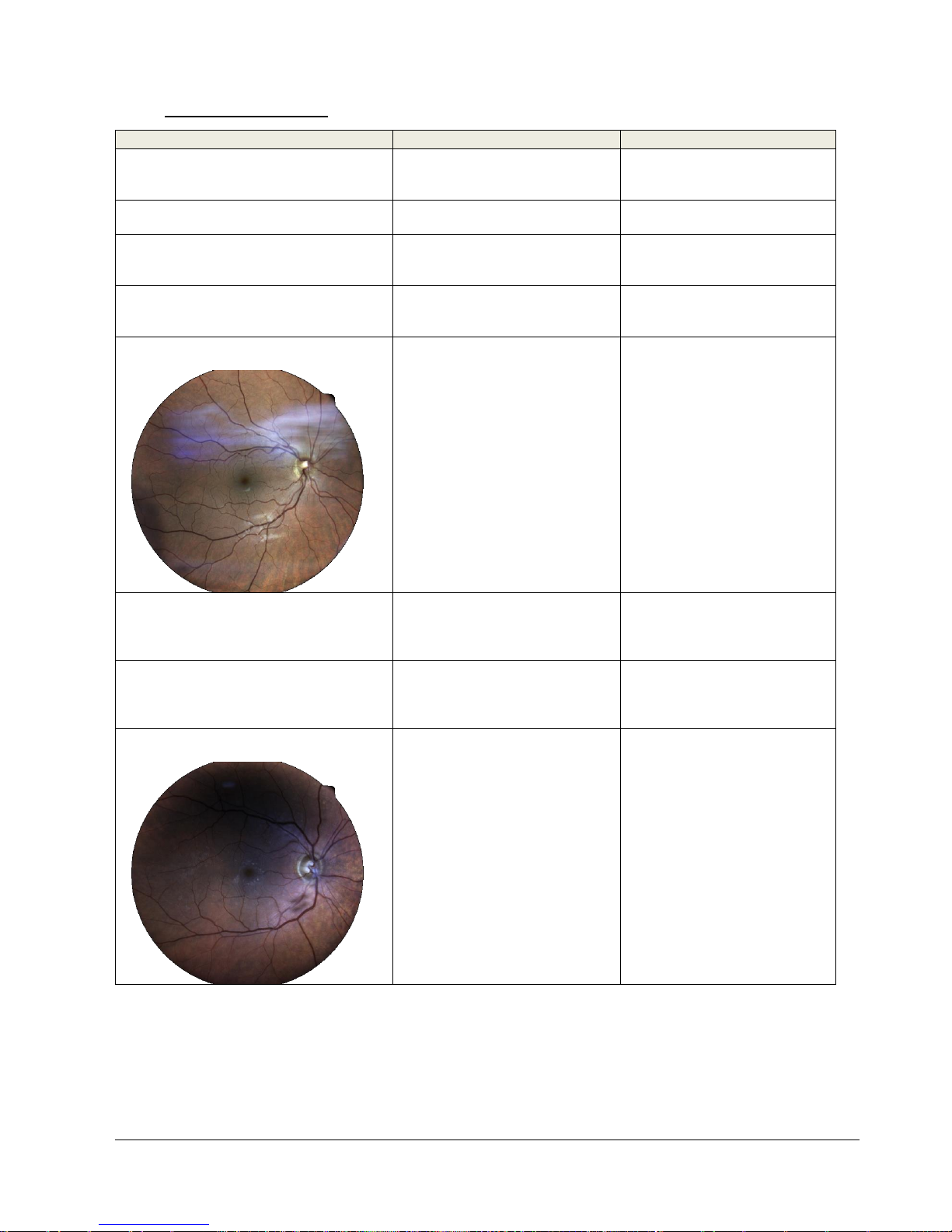

16. TROUBLESHOOTING ............................................................................................................................. 47
17. ELECTROMAGNETIC COMPATIBILITY ................................................................................................ 48
18. DISPOSAL ............................................................................................................................................... 53
Page 4
CenterVue
COMPASS Operating Manual
Pag. 4 di 53
1. INTRODUCTION
Fundus Perimetry is a technique that images the retina during visual field testing, enabling a
correlation to be made between visual function and retinal structure.
COMPASS is a scanning ophthalmoscope combined with an automatic perimeter, also a Fundus
Perimeter, that allows the acquisition of confocal images of the retina, simultaneously to the
measurement of retinal threshold sensitivity and the analysis of fixation. The Device operates in
non-mydriatic conditions, i.e. without the need of pharmacological dilation.
As a perimeter, the system offers full compatibility with standard 24-2 visual field testing and
contains an age-matched database of retinal sensitivity in normal subjects.
As a retinal imager, COMPASS uses a confocal optical design, similarly to SLO systems, to
capture color as well as red-free images of superior quality. In addition, a high resolution live image
of the retina obtained using infrared illumination is available throughout the test.
COMPASS is intended for use as a diagnostic device to aid in the detection and management of
glaucoma. The device is indicated for measuring retinal sensitivity, for a quantitative assessment of
fixation characteristics, as well as to capture infrared and color images of the retina without the use
of a mydriatic agent.
The Device integrates a tablet and is provided with an external power supply. The device works
with a dedicated software application and operates as a standalone unit.
The clinical interpretation of the results obtained with COMPASS is restricted to licensed eye care
practitioners. The process of making a diagnosis using COMPASS results is the responsibility of
the eye care practitioner.
A device specific training is required for any operator to become able to use the system.
Page 5
CenterVue
COMPASS Operating Manual
Pag. 5 di 53
2. SYSTEM
2.1 The device

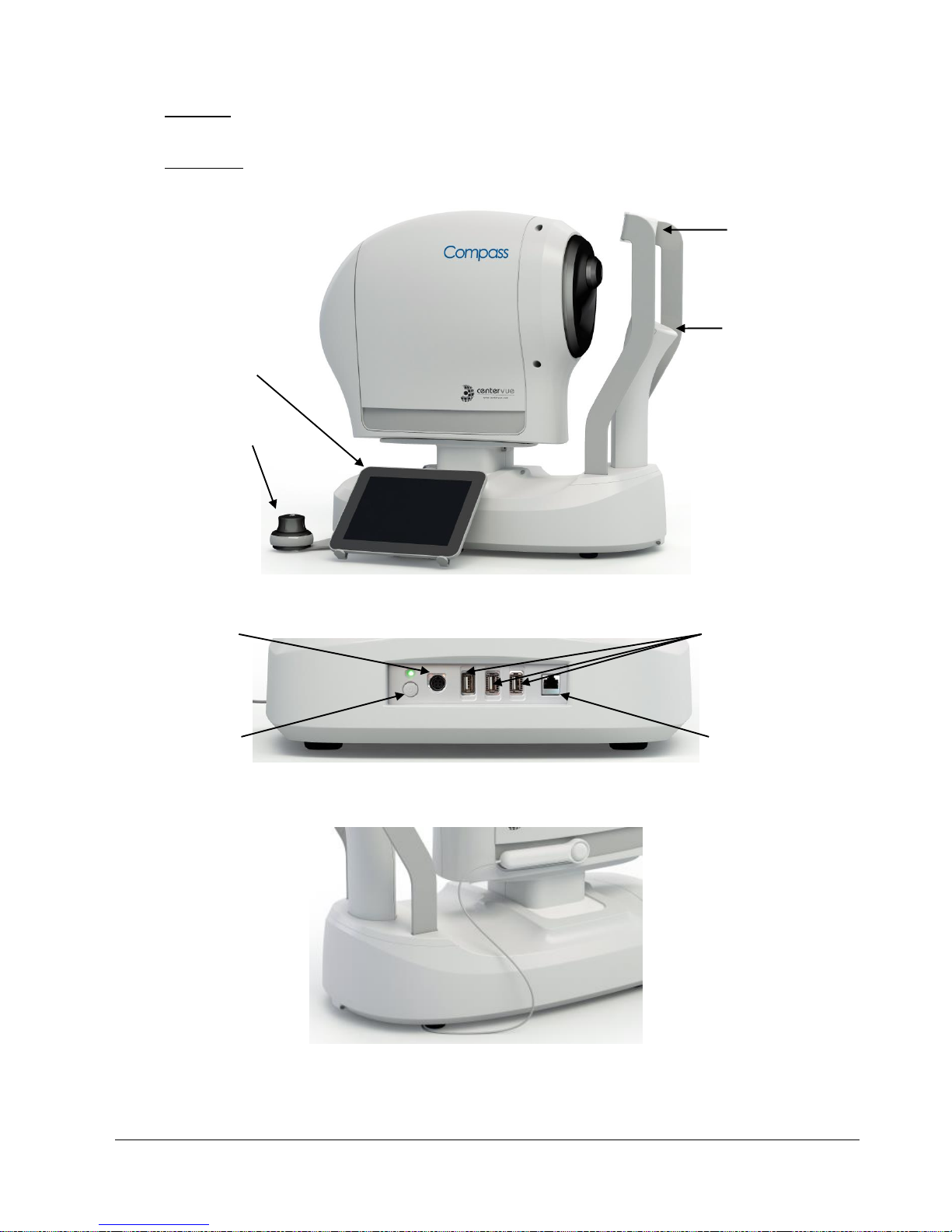

Fig. 1 - COMPASS
Fig. 2 – Detail of connectors side
Fig. 3 – Patient push button
3 USB ports
Ethernet port
Main switch
12V power inlet
Tablet (example)
Digital joystick
(not used)
Forehead rest =
contacting part
Chin rest =
contacting part
Patient Side
Page 6
CenterVue
COMPASS Operating Manual
Pag. 6 di 53
COMPASS is provided with:
dedicated tablet with USB cable and related support
external power supply and related power cord
digital, USB powered, joystick and related support
this operating manual
removable forehead rest
patient push button
front lens cap
2.2 The tablet
The tablet is an integral part of the system and COMPASS cannot operate without it.
The tablet must be connected to COMPASS using the supplied USB cable: if the connection is not
working an error message will appear on the screen (see par. 16 for details).
Use the USB port next to the power inlet to connect the tablet: this is the only port that will
also recharge the tablet.
The tablet is equipped with a color, multi-touch display.
More than one model is supported: the tablet power switch, volume control and USB port
are located on the tablet frame and vary depending on the specific model.
Patient data and images are not stored on the tablet.
The tablet must be used only together with COMPASS and in accordance with the
instructions provided in this manual. Use of the tablet for other purposes, as well as
any modifications of the tablet settings other than indicated in this manual may
result in the COMPASS to become unusable.
Charging the tablet
COMPASS cannot be used if the tablet is not sufficiently charged. The tablet is charged via the
USB port of the device.
To maximize the duration of the charge:
Set the screen brightness to “Auto” or anyway not to maximum;
Plug the tablet in the left-most USB port, near the power switch;
Keep COMPASS powered and the tablet connected when the device is off;
Turn off the screen when the device is not in use.
Page 7
CenterVue
COMPASS Operating Manual
Pag. 7 di 53

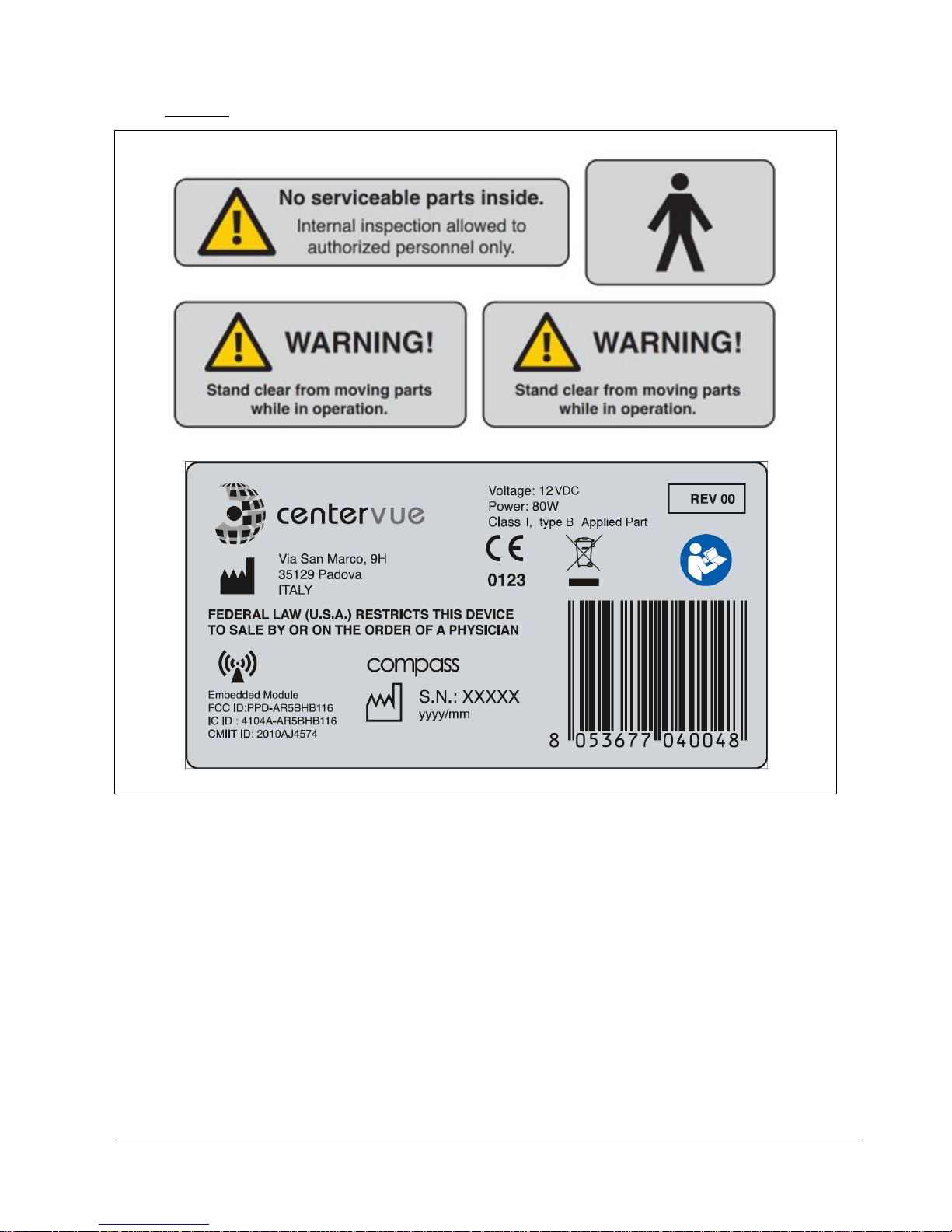

3. LABELS
Page 8
CenterVue
COMPASS Operating Manual
Pag. 8 di 53

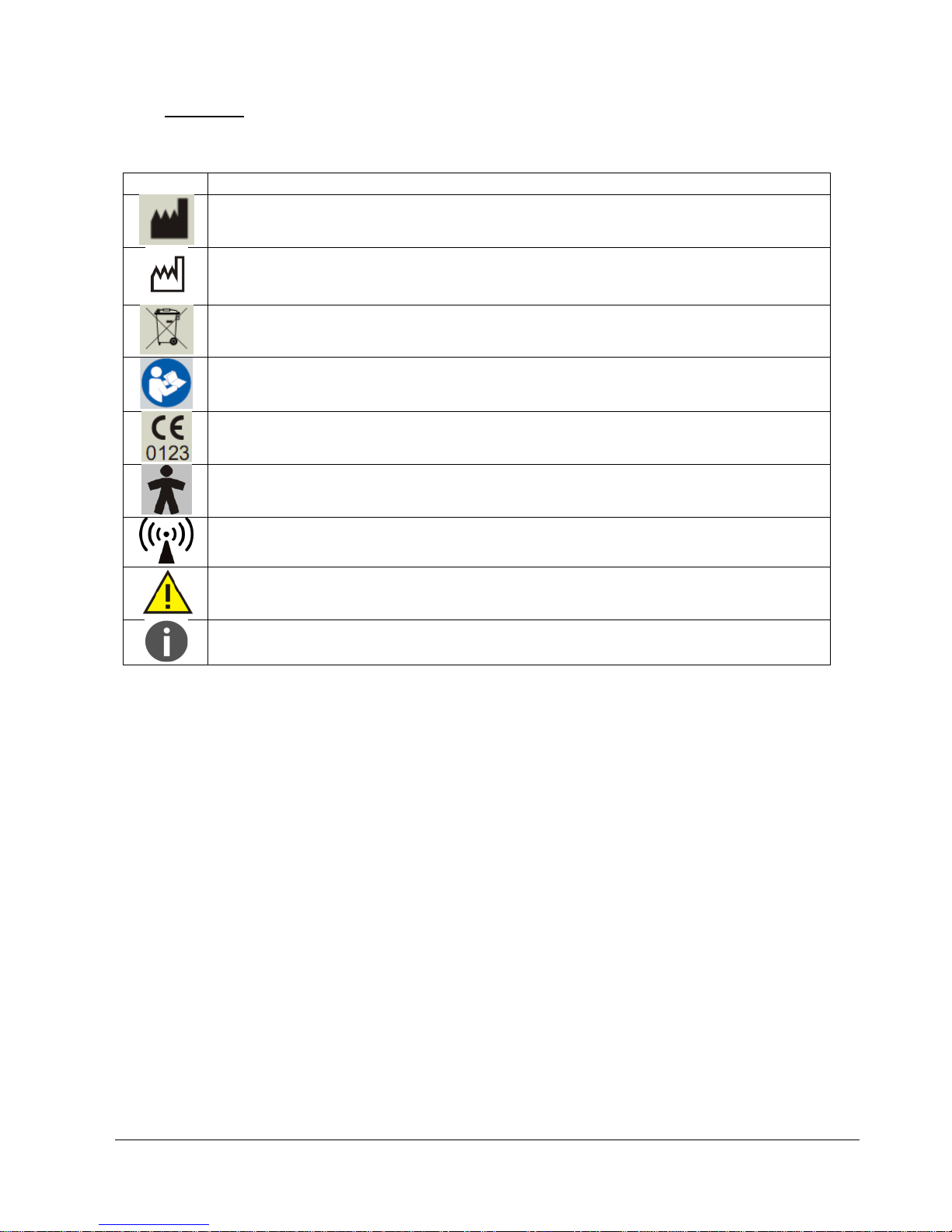

4. SYMBOLS
The meaning of the symbols adopted in this manual is as follows:
Symbol
Explanation
Manufacturer Data
Manufacturing Date (year/month of production)
Electronic and electric devices must be recycled.
Refer to Instruction Manual
CE mark: the device complies with the essential requirements of the European
Medical Devices Directive 93/42/EC
Type B Applied Part
Non-ionizing radiation - ME EQUIPMENT that include RF transmitters
Generic Warning
Important information
Page 9
CenterVue
COMPASS Operating Manual
Pag. 9 di 53
5. PREPARING THE SYSTEM
We recommend to read carefully and thoroughly par. 7 WARNINGS AND
PRECAUTIONS before proceeding with first use.
To make COMPASS functional for the first use:
extract the system from its box;
place it on a suitable electrical table1;
insert the soft forehead rest on the metal support (see Fig. 4);
mount the supports provided for the tablet and the joystick (see par. 5.1 below);
connect the patient push button cable to the connector located underneath the device;
connect the power supply provided with the unit to the power inlet (see Fig. 2);
place the tablet on its support and connect it using the cable to the left-most USB port;
place the joystick on its support, connect it using the cable to any of the free USB ports and
check for its correct orientation;
plug the power supply to the wall socket.

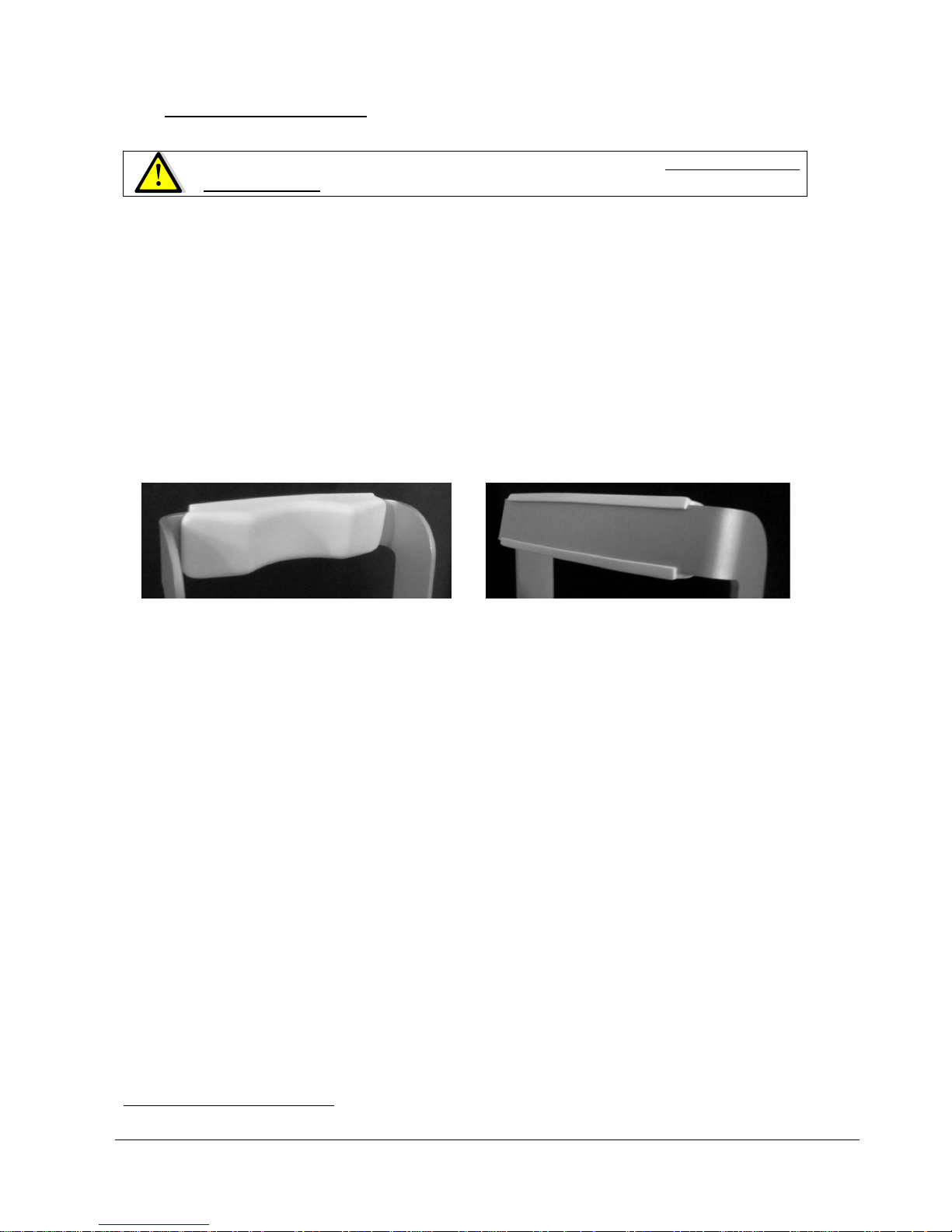

Fig. 4 - Forehead rest mounted on metal support
1
Not provided with the system
Page 10
CenterVue
COMPASS Operating Manual
Pag. 10 di 53

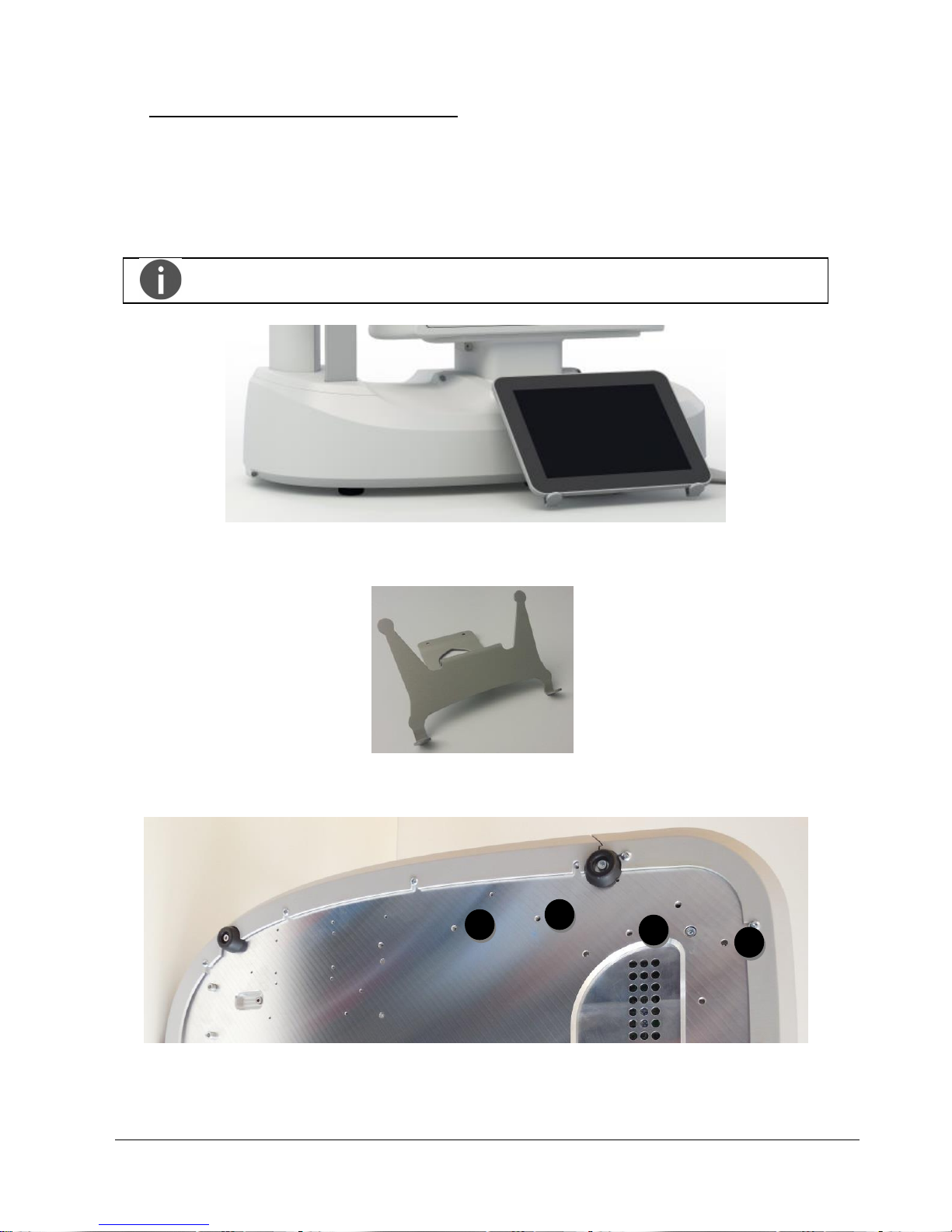

5.1 Assembling the tablet and joystick supports
The tablet and joystick are mounted, using the included supports (see Fig. 6), towards the posterior
part the device, on any side. Both supports are fixed with screws to the bottom of the device.
As an example, Fig. 7 shows the holes to be used for the left-side mount depicted in Fig. 5: to fix
the supports use holes marked 1 and 2 for the tablet and those marked 3 and 4 for the joystick.
Other configurations can be chosen, based on a user’s preferences.
The joystick is not used in the current software version.
Fig. 5 – Tablet mounted on the left side of the device
Fig. 6 – Support for the tablet
Fig. 7 – Instrument bottom with holes for tablet and joystick supports
Page 11
CenterVue
COMPASS Operating Manual
Pag. 11 di 53
5.2 Turning on the Device
Turn on the Device by keeping the main switch pressed for approximately 3 secs, turn on the
tablet by keeping its switch pressed for approximately 4 secs, wait for the boot process to complete
and the Login screen to appear (see Fig. 8).

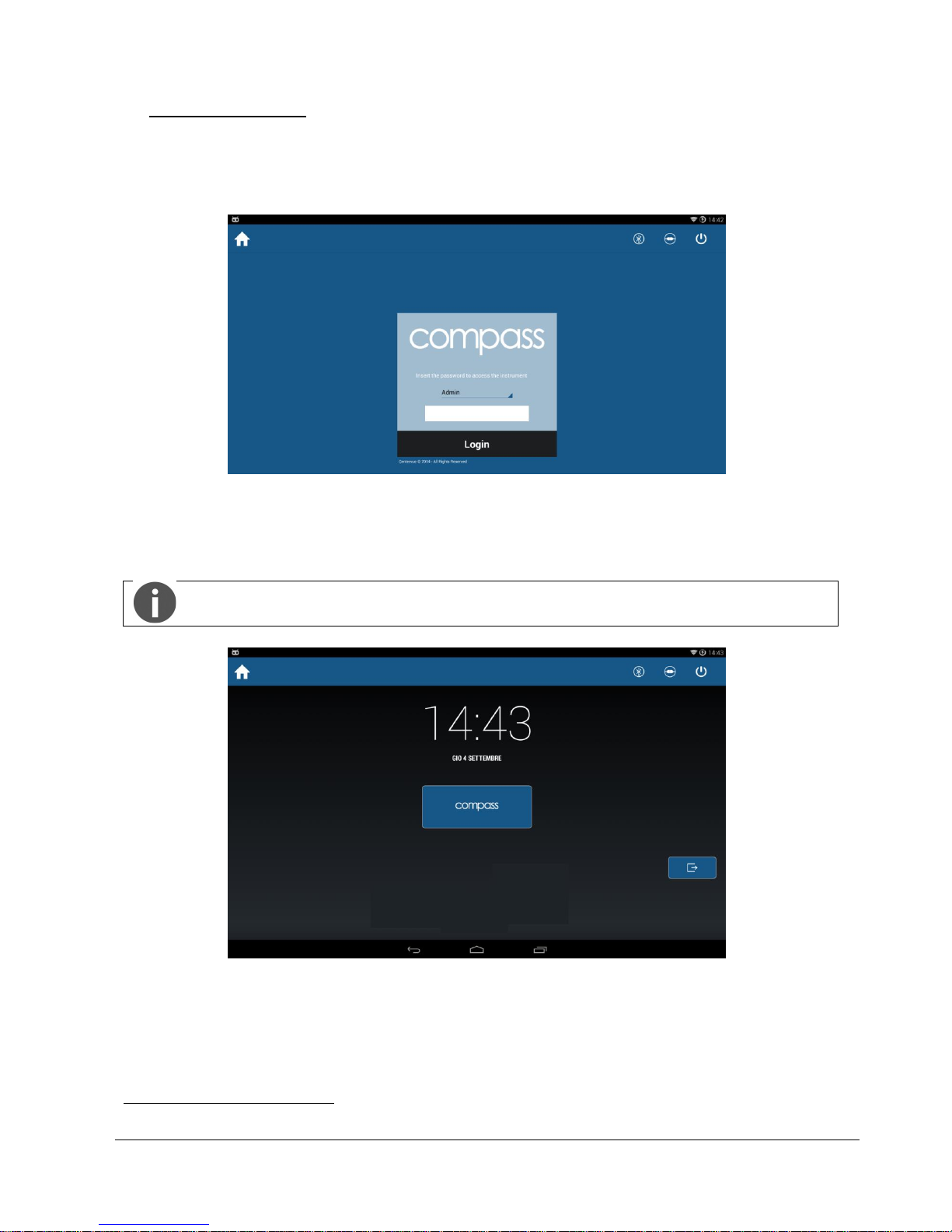

Fig. 8 – Login screen
From the drop-down menu select “Doctor”, type the password2 and click on Login. If login is
successful, the Home screen opens (see Fig. 9).
To modify the password, see par. 12.2.
Fig. 9 - Home screen
2
To find out the password please contact an authorized Centervue representative
Page 12
CenterVue
COMPASS Operating Manual
Pag. 12 di 53
6. PREPARING THE SUBJECT
This paragraph explains how to prepare a subject for the COMPASS test.
There are no restrictions as to the selection of the subjects undergoing testing, but since the test
requires the subject to maintain concentration and to follow the below instructions for several
minutes, very young subjects (before primary school), as well as mentally diseased persons may
not be able to co-operate appropriately.
COMPASS compensates for a subject’s spherical refractive error in the range -12 to +15 diopters:
testing a subject presenting a spherical error out of the above range may result in inaccurate
measurements.
COMPASS does not compensate for a subject’s astigmatism. Subjects with astigmatism within ± 4
diopters can be tested normally. Testing a subject with astigmatism outside of the above range
may result in inaccurate measurements.
The subject can wear contact lenses or spectacles while being examined, although in the latter
case artifacts may appear in the retinal image.
Patient contacting parts are indicated in Fig. 1 and Fig. 3.
COMPASS is a non-mydriatic device: there is no need to dilate the subject unless if the pupil is
smaller than 3 mm. The eye which is not examined should be patched.
Before starting the test, please check the following:
subject should sit in a comfortable position, with the fore head and chin in firm
contact with the rests;
height of the table and chair should be adjusted so that the subject can
comfortably place her/his chin on the corresponding rest;
the subject’s head should be vertical (not tilted forward / backward);
chin rest should be positioned so that the subject’s eye is aligned to the eye
mark found on the sides of the metal frame. If this is not the case the chin rest
height needs to be adjusted.
Before the test inform the subject about the following:
COMPASS will test your ability to perceive light while looking at a steady target.
the test is non-invasive, in particular you will only perceive some light.
find a comfortable position and keep the chin and forehead firmly pressed against
the rests;
at the beginning of each test, the unit will move around to find your pupil: this is
absolutely normal;
always keep your eyes wide open, so that eyelids do not interfere;
when the test starts, look straight in front of you and when a small green, circular
spot appears anywhere, look at it;
do not move, nor speak during the test;
you can blink whenever you feel necessary, unless instructed not to do so;
you will be given this push-button: press it when you see, or believe to see, a whitish
small spot appearing anywhere;
it is absolutely normal that you do not see many of the spots.
Page 13
CenterVue
COMPASS Operating Manual
Pag. 13 di 53
7. WARNINGS AND PRECAUTIONS
The following precautions are important for the device safety:
Federal laws (US) restrict this device to sale by or on the order of a physician or a
properly licensed practitioner.
Clinical interpretation of the results is restricted to licensed eye care practitioners.
A device specific training is required for any operator to become able to use the
system.
Do not open the Device: this could lead to electric shocks or damage to the system.
Do not use the Device in the event that the cover or other parts of the device have
been removed.
Only technicians authorized by CenterVue may service the Device. Centervue
cannot be held responsible for system safety should the device be opened, repairs
carried out, third parties’ software be installed, or parts be replaced by un authorized
persons.
Do not expose the Device to water: this could lead to fire or electric shock.
Stand clear from moving parts during operation.
The Device is supplied with an earth ground by means of a protection conductor
contained inside the power supply cable. Before turning on the system, make sure
the power supply socket is correctly grounded to avoid the risk of electric shock.
The Device must NOT be used in an oxygen rich environment or in presence of
flammable anesthetics.

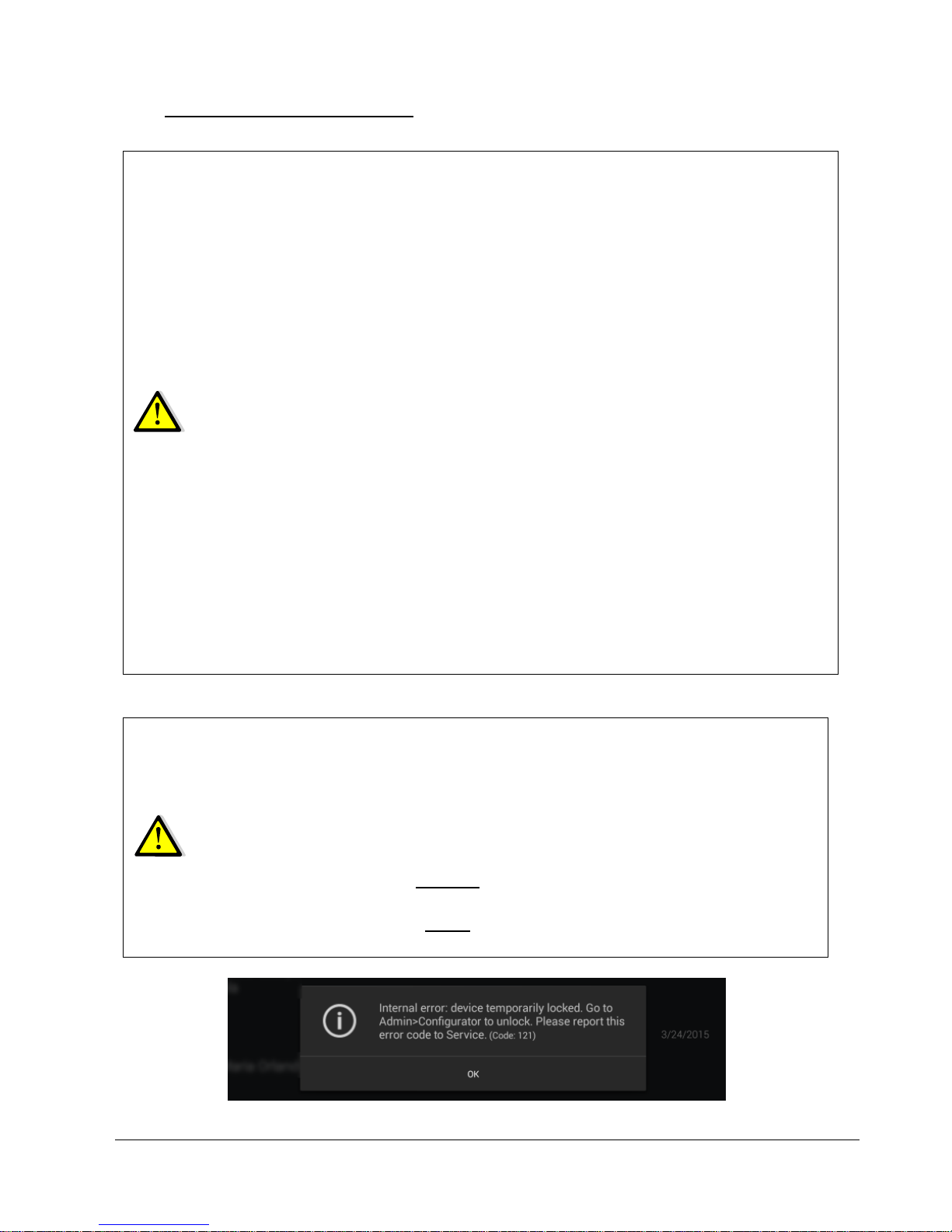

In case an unexpected hardware condition occurs during use, an error message may
appear (see for example Fig. 10) and COMPASS may become temporarily locked. It
is possible to reset this condition by letting the device re-initialize: refer to par. 12.4
for the complete procedure. If the error condition persists, please contact an
authorized service center.
The following precautions are important to prevent use errors:
The Device must be placed in a room which is not exposed to adverse chemical-
physical conditions, such as the presence of sulfur, salt, dust, direct sunlight, lack
of ventilation, high humidity, sudden temperature drops or peaks. The safety and/or
effectiveness of the instrument cannot be guaranteed if these conditions are not
fulfilled.
Since the Device measures a light sensitivity at the threshold of perception, it
needs to be operated in a dark environment.
The Device needs to be operated under the following environmental conditions:
temperature: 10 - 40 C° (50 – 104 F°); humidity (max): 90% not condensing.
The Device needs to be stored under the following environmental conditions:
temperature: 0 – 60 C° (32 - 140 F°); humidity (max): 90% not condensing.
Fig. 10 – Example of error message
Page 14
CenterVue
COMPASS Operating Manual
Pag. 14 di 53
8. NOTES FOR THE OPERATOR
COMPASS provides capabilities for a fully automated test process. No specific skills are required
to operate the Device and a minimal, device specific, training is required to become able to operate
the system.
In particular, the operator shall be acquainted with the following concepts:
pupil: the central part of the external surface of the eye, through which light goes in;
retina: the internal surface of the eye ball;
optic disk: a specific portion of the retina characterized by a roughly circular shape and by
outgoing / incoming vessels;
fixation / fixating: the ability of a subject to stare at a specific point in space and specifically
the Device internal fixation target;
alignment: the action of moving the top part of the system so that its optics are aligned with
a subject’s pupil;
focusing: the compensation, by means of internal optics, of a subject’s spherical defect
(myopia, hyperopia);
sensitivity threshold: the minimum intensity of a light stimulus that is perceived by a subject
as emerging from the background.
Acquaintance with the basic concepts of standard automated perimetry is helpful for
an effective use of some of the features of the Device and for interpretation of its
results.
Page 15
CenterVue
COMPASS Operating Manual
Pag. 15 di 53
9. PERFORMING THE TEST

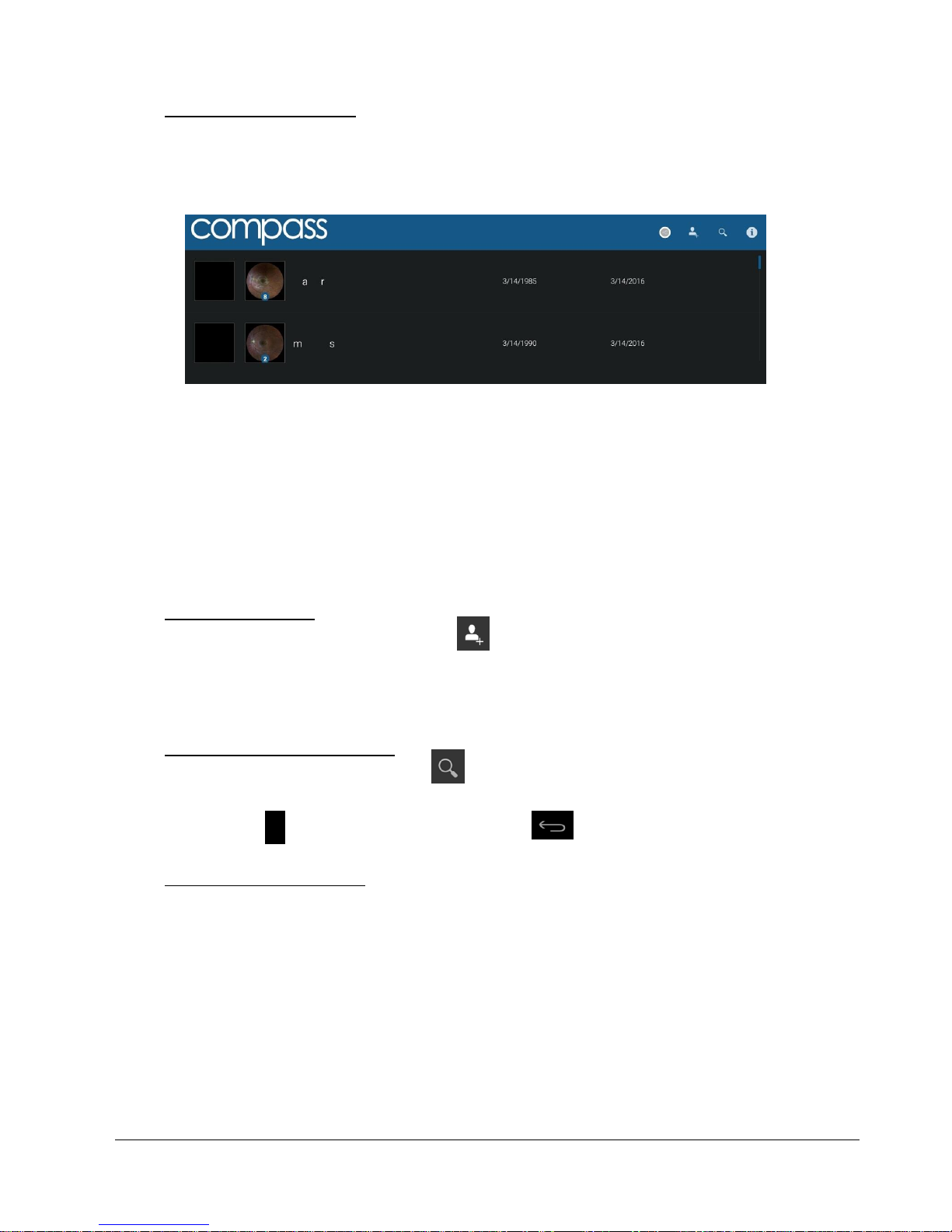

This paragraph explains how to operate COMPASS to perform the test (in this manual the terms
“test” and “exam” are used as synonyms). Once the Device has been turned on click on the
compass button to open the Patient List screen (see Fig. 11).
Fig. 11 – Patient list screen
The different columns in the list indicate respectively (left to right):
the presence and number of exams (represented by the retinal images) stored for a certain
patient (right and left eye);
the patient’s full name;
the patient’s date of birth;
the date of the last exam performed.
9.1 Adding a new patient
To create a record for a new patient, click on
and the Patient Editing screen will open
(see Fig. 12). Type the last name, first name and select the date of birth (mandatory fields),
optionally select the gender and type a unique code of your choice. Then click OK to save or
Cancel to abort.
9.2 Searching for an existing patient
To search for an existing patient, click on and type the initial letters of the patient you are
looking for, then click Ok. When the desired patient is shown in the list, click on it to select. To exit
the search, click on to hide the keyboard and then on .
9.3 Selecting an existing patient
To select a specific patient in the list, click on it. The list is sorted by the date and time of the last
exam and can be scrolled up and down.
Page 16
CenterVue
COMPASS Operating Manual
Pag. 16 di 53
Fig. 12 – Patient editing screen

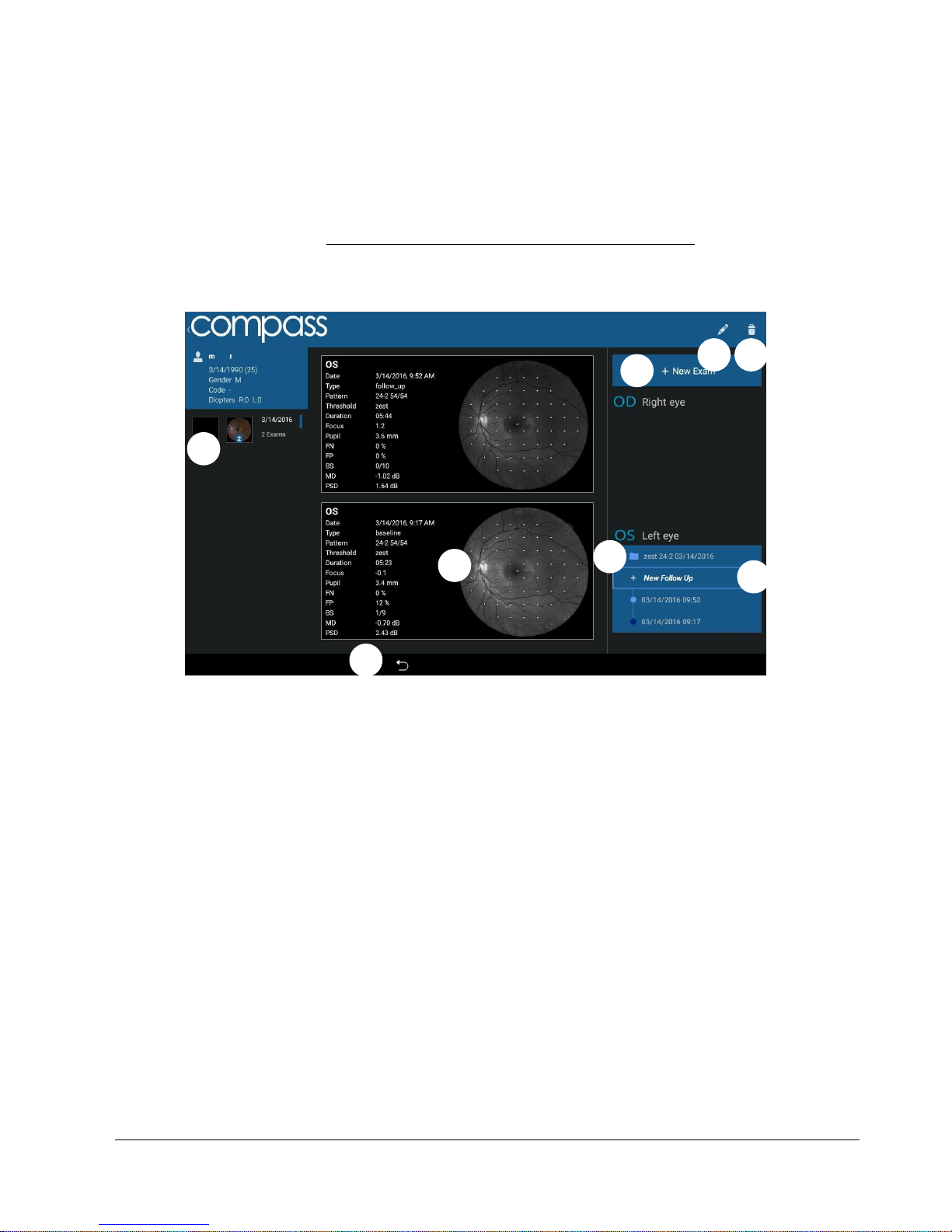

Once a patient has been selected in any of the above ways, the Patient Record screen opens
(see Fig. 13) and provides information on the selected patient, whose name is shown at the top-left
corner of the screen. See par. 10 for full details on how to review a patient’s data.
Fig. 13 – Patient Record screen
Page 17
CenterVue
COMPASS Operating Manual
Pag. 17 di 53
9.4 Root test vs. follow-up test
COMPASS allows to measure a subject’s visual field in time, hence creating a sequence of tests.
COMPASS provides two different test modalities:
a root test is the first performed on a certain subject and eye, thus it does not
require the existence of a previous test;
follow-up tests require a previous root test of the same eye.
The follow-up modality exploits image registration techniques to accurately
match stimuli locations in the follow-up test with their position in the
corresponding root test and ensure high precision of the results. Operators
shall be fully aware of the difference between root tests and follow-up tests.
With COMPASS:
any follow-up test is associated with its root test
any root test is identified by this graphics:
it is not possible to generate a progression report using only root tests
it is only possible to generate a progression report using a root test and its
follow-up tests
9.5 Initiating a new root test
To initiate a new root test, click on the New Exam button.
9.6 Initiating a new follow-up test
To initiate a new follow-up test, select the desired root test and click on the New Follow Up button.
Page 18
CenterVue
COMPASS Operating Manual
Pag. 18 di 53
9.7 Choosing test parameters
When the New Exam command is pressed the Test parameters selection screen opens (see Fig.
14), allowing review and modification of a test parameters.
The following commands / functions are available:
1. Eye selection (OD, OS)
2. Selection of the threshold strategy (“4-2” or ZEST)
3. Chin rest height adjustment
4. Selection of the test grid (or pattern)
3
5. Test start
6. Back to Patient Record screen
Fig. 14 – Test parameters selection screen
ZEST vs. 4-2
Zippy Estimation by Sequential Testing (ZEST) is an adaptive Bayesian method for
determining sensitivity measures. ZEST, similarly to SITA algorithms, allows to reduce
examination time while maintaining accuracy.
In terms of threshold, ZEST estimates are on average 0.9 dB higher than those found
with the 4-2 staircase (similarly to SITA algorithms vs. full threshold).
In terms of examination time, the average for a 24-2 test is approximately 40% shorter
using ZEST than using 4-2.
3
Total deviation and Pattern deviation maps and related indices are only available when using the 24-2 grid
1 2 3 4 5
6
Page 19
CenterVue
COMPASS Operating Manual
Pag. 19 di 53
The following perimetric parameters are used and cannot be modified:
background luminance: 31.4 asb
maximum luminance (0 dB): 10000 asb
stimulus duration: 200 ms
stimulus size: Goldmann III
blind spot test: ON
foveal threshold: ON
false Positives: ON
false Negatives: ON
fixation target for foveal stimulus: 4 green circles in diamond configuration
fixation target for non-foveal stimuli: single green circle
9.8 Before starting
Following are some hints to maximize the effectiveness of the test:
check that the lens cap has been removed
check that the room is sufficiently dark
subject should sit in a comfortable position, with the forehead and chin in firm
contact with the corresponding rests. Subject’s head should be vertical and not
tilted. Chin rest should be positioned so that eye is aligned to the mark
ask the subject to look at the fixation target throughout the test
perform a quick training on subjects that never had perimetry before
Page 20
CenterVue
COMPASS Operating Manual
Pag. 20 di 53
9.9 During the test
The following table describes the test process flow.
#
STEP
PURPOSE
INSTRUCTIONS
1
Autoalignment
Align instrument
to subject’s eye
Subject should not move and should look for the green fixation target.
For additional details see next paragraph.
2
Auto-focus
Correct for
subject’s
spherical
refraction
Subject should not blink and should look at fixation target
3
Reference
Capture reference
retinal image to
be used for eye
tracking

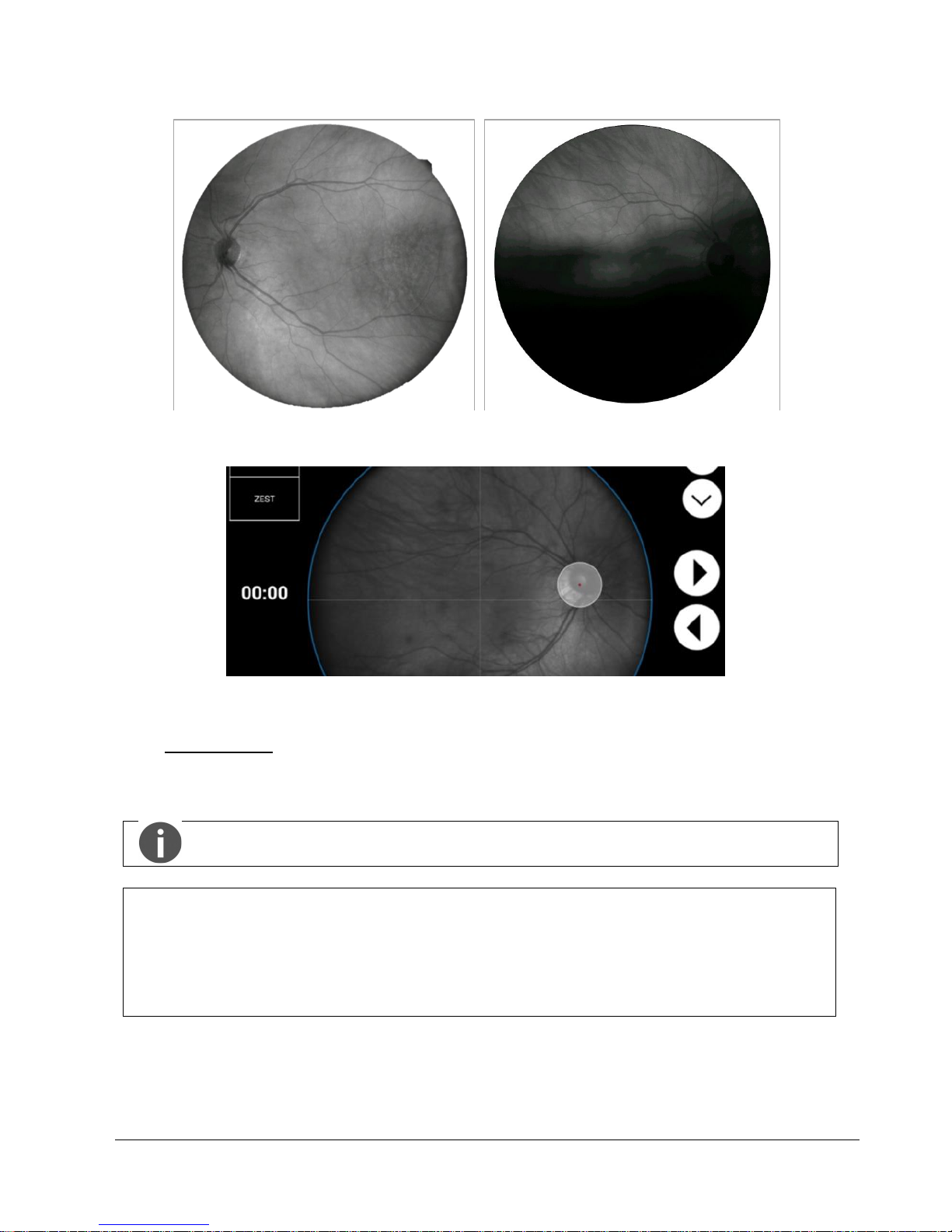

The reference image should have good quality, in particular images
that are too dark, or partially occluded by eye lashes or lids should be
retaken. Click the back arrow to retake the reference image if its quality
is not satisfactory (see for example Fig. 15).
: a poor quality reference image may compromise the VF
test, increase its duration, prevent retinal tracking or make followup testing impossible.
4
Blind spot
test
Identify location of
blind spot
Drag and center circle over optic disc, then click the forward arrow (see
Fig. 16)
: improper or missed placement of the optic disc marker
results in failure of the BS test
5
Detect
fixation
Locate center of
fixation
Subject should look steadily at fixation target.
: once this step has completed the system will stop and wait for
confirmation: click the forward arrow to proceed with next step
6
Fovea Test
Measure
sensitivity at the
fovea
Subject should look at the center of the 4 green dots and press the
button when she/he sees a white spot.
: if not properly instructed subjects often miss clicking at
this time.
: once this step has completed the system will stop and wait for
confirmation: click the forward arrow to proceed with next step
7
Perimetry
Measure
sensitivity at all
grid locations
using central
fixation target
Subject should look steadily at the green dot and press the button
when she/he sees a white spot. Subject can blink at any time.
Periodically inform the subject of the progress. See note concerning
eye tracking.
: if not properly instructed subjects sometimes get away
from the forehead rest during the test.
: once this step has completed the system will stop and wait for
confirmation: click the forward arrow to proceed with next step
8
Color
Capture color
photo of posterior
pole
Subject should not blink and should look at the green fixation dot until a
light is flashed.
: click on the back arrow to retake the image if of poor quality.
Page 21
CenterVue
COMPASS Operating Manual
Pag. 21 di 53
Fig. 15 – Good (left) and poor quality (right) reference image
Fig. 16 – Marker for optic disc location in Exam screen
9.10 Auto-alignment
Several hints may be presented on screen by the system to help the operator correct a subject’s
position: see Table below.
Pupils smaller than the minimum required may trouble the auto-alignment and autofocusing processes
EYE NOT FOUND: Please make sure patient head is not tilted, eye is open wide
EYE TOO FAR LEFT: Please make sure patient head is well centered in front rest and not tilted
EYE TOO FAR RIGHT: Please make sure patient head is well centered in front rest and not tilted
EYE TOO LOW: Please raise chin rest until alignment process restarts
EYE TOO HIGH: Please lower chin rest until alignment process restarts
PATIENT TOO FAR: Please make sure patient head is not tilted, or detached from front rest
Table 1 – System hints during auto-alignment
Page 22
CenterVue
COMPASS Operating Manual
Pag. 22 di 53
9.11 Retinal tracking
Eye tracking is a fundamental component of Fundus Perimetry.
Infrared retinal images, acquired at the rate of 25 images per second, allow for continuous,
automated, tracking of eye movements. Determination of eye movements allows, in turn, active
compensation of fixation losses, with perimetric stimuli being automatically re-positioned prior to
and during projection based on the current eye position. This mechanism reduces test-retest
variability and ensures accurate correlation between function (i.e. retinal threshold values) and
structure (retinal appearance). Compensation of eye movements takes place before and during
projection of a certain stimulus. In absence of this mechanism shifts in eye position occurring at the
time of projection of a certain stimulus even in healthy subjects easily produce artifacts in VF
results.
Regular operation of the eye tracking is indicated by a GREEN frame surrounding the retinal image
(see Fig. 17). A RED frame indicates that eye tracking is NOT operational: in such case stimuli
cannot be projected and the test is paused until the retina can be tracked again. Typical
reasons for tracking failure include: blinking, small pupil (requires dilation), closed eye lids,
incorrect subject position (e.g. far from forehead rest).

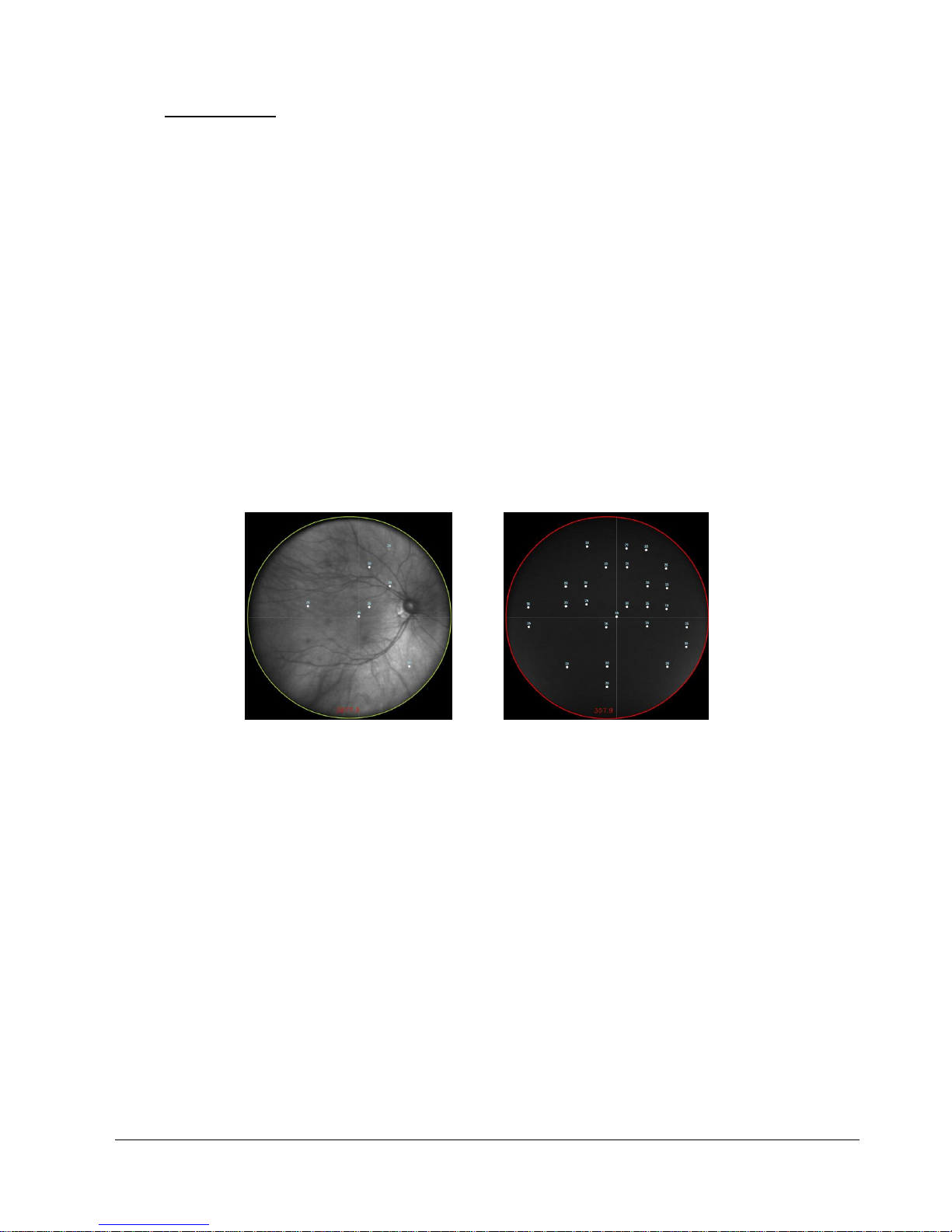

Fig. 17 - Tracking active (left) and on hold (right)
Page 23
CenterVue
COMPASS Operating Manual
Pag. 23 di 53
9.12 Monitoring test progress

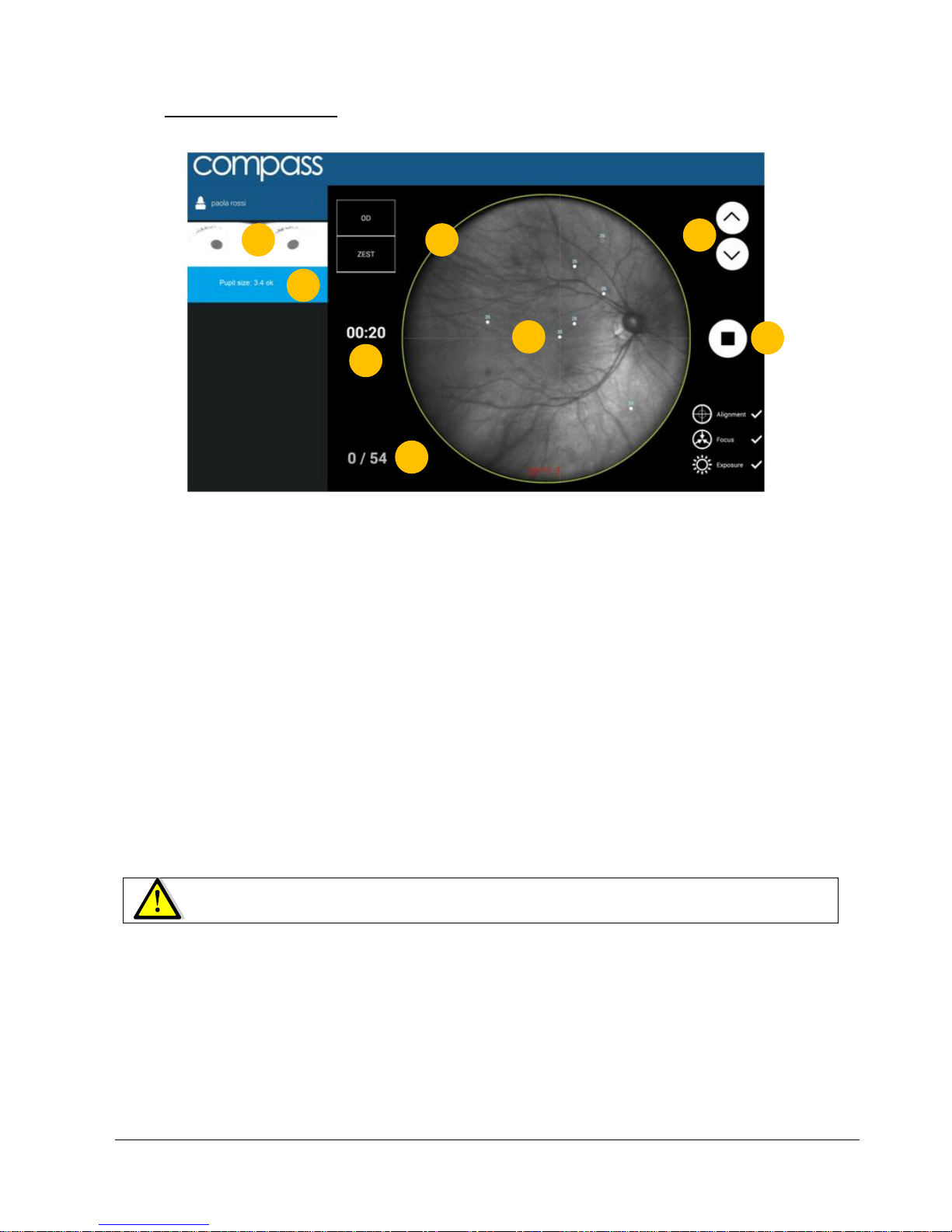

Fig. 18 – Exam screen while test is in progress
The following commands are available:
1. Pupil images from alignment cameras allow the operator to check if subject’s eyes are open
2. Pupil size: if smaller than 3 mm a “small pupil” warning is displayed. Pupil size may oscillate
during the test due to accommodation
3. Allows to adjust the height of the chin rest
4. Live retinal image with stimuli allows the operator to monitor progress. Fovea should stay at
the center of the gray cross. Seen stimuli are shown as filled dots. The stimulus being
projected is shown as an empty circle
5. Tracking status (circular colored frame, see par. 9.11)
6. Elapsed test time
7. Completed stimuli over total being projected: test proceeds slow at the beginning and turns
progressively faster
8. Allows to stop the test at any time
COMPASS requires a minimum pupil of 3.0 mm: a test with average pupil size smaller
than 3.0 mm may be unreliable.
1 2 3 4 5 6 7
8
Page 24
CenterVue
COMPASS Operating Manual
Pag. 24 di 53
10. REVIEWING RESULTS
Once a test is completed, the system will open the Patient Record screen (Fig. 20) for the
selected patient and present a thumbnail view of all tests made on the selected date.
Each thumbnail presents the following information:
red-free retinal image with overlaid actual test locations;
examined eye (OD/OS);
date and time the test was performed;
type (root / follow-up);
pattern used and number of test locations actually completed (incomplete tests will show
in yellow);
threshold algorithm (ZEST or 4-2 staircase);
duration (minutes: seconds);
focus index;
average pupil size during test;
False Negatives index (FN);
False Positives index (FP);
Blind Spot index (BS);
Mean Deviation index (MD);
Pattern Standard Deviation index (PSD);
Fig. 19 – Example of thumbnail
Page 25
CenterVue
COMPASS Operating Manual
Pag. 25 di 53
The Patient Record screen provides the following commands:
1. modify the patient’s name, birth date, gender and code
2. permanently delete the selected patient’s record (any data)
3. display the tests performed at a specific date
4. display the tests performed within a certain sequence identified by a root test
5. open Exam Review screen (see Fig. 21)
6. start a new root test (do not use this button if you wish to start a follow-up)
7. start a follow-up test within the specified sequence of tests
8. go back to patient list screen
Fig. 20 – Patient Record screen
1 2 3 4 5 6 7
8
Page 26
CenterVue
COMPASS Operating Manual
Pag. 26 di 53
10.1 Individual test results review
The Exam Review screen (Fig. 21) provides the following information and functions:
1. Patient name
2. Selector for image modality (color, infrared or red-free)
3. Retinal image and visual field data, depending on selected modality (default: red-free,
infrared and red-free images are shown with overlaid VF data). Click on image to open a
full screen view and zoom / pan the image
4. Perimetric test parameters
5. Option to enable / disable display of perimetric results over retinal image (default: yes)
6. Option to switch ON / OFF fundus mode convention (default: on). See information box
below at this regard
7. Image tools including blue, green, red filters used to display individual color channels and
gamma correction, used to enhance image brightness. The green channel provides the
red-free image. The red, green and blue filters are only available when reviewing color
images. These tools do not alter the original image.
8. Command to create a test report and save it to USB
9. Command to export the selected image to USB
10. Command to view or print a test report
11. Command to view or print a progression report
12. Export results to shared folder (see par. 12.8)
13. Command to go back to Patient record screen
Fig. 21 – Exam review screen, red-free display modality
1 3 4 5 2 6 7 8 9
10
11
13
12
Page 27
CenterVue
COMPASS Operating Manual
Pag. 27 di 53
10.2 Reliability indices
COMPASS provides standard methods to assess the reliability of a subject in performing the visual
field test:
False Positives: these are trials in which no stimulus has been projected, therefore the
subject is not expected to respond. If this index exceeds 25% the number will show in red,
indicating possibly poor reliability.
False Negatives: during the test, certain stimuli are randomly selected and retested at
brighter level than has been previously seen. If the patient does not respond, a false
negative instance is recorded. If this index exceeds 25%, the number will show in red,
indicating possibly poor reliability.
Blind Spot Test: during the test stimuli are projected with high luminance, at random times,
at the blind spot location that has been selected prior to the start. Index shows the number
of positive responses obtained over the total number of such BS projections. If this index
exceeds 25%, the number will show in red, indicating possibly poor reliability.
COMPASS provides one additional parameter to be considered when assessing the reliability of a
certain test:
Average pupil size: shows the average pupil diameter throughout the test. If this index is
below 3.0 mm, the number will show in red, indicating possibly poor reliability.
Fig. 22 – Detail of Exam review screen with reliability indices
Fixation plot / Area
Differently than in non-retinal tracked perimeters, the COMPASS fixation plot shown in a
test report (see par. 11.2 and Fig. 23 below) is not to be considered a way to assess the
reliability of a subject / test.
In fact, the plot shows fixation losses, as determined by tracking eye movements (see
par. 9.11), but these movements are taken into account and compensated at the time of
projection of the stimuli, therefore they do not necessarily degrade a test reliability.
Fig. 23 – Fixation plot and Area
Page 28
CenterVue
COMPASS Operating Manual
Pag. 28 di 53
Fundus Perimetry vs. Standard Perimetry display conventions
In Standard Automated Perimetry, results are always displayed using the patient’s
perspective, i.e. they represent visual field maps, with superior field at the top and
inferior field at the bottom: this convention is used in the Exam Review screen when the
Fundus Mode selector is set to OFF (“Visual Field” convention).
In Fundus Perimetry, results are displayed using the doctor’s perspective, i.e. they
represent retinal sensitivity maps and show properly oriented retinal images: this
convention is used when the Fundus Mode selector is set to ON (“Fundus” convention).
Values from the superior field correspond to the inferior retina and viceversa.
Therefore, the two conventions differ in that they flip the results vertically.
COLOR CONFOCAL IMAGING
SLO systems are superior to conventional fundus cameras in many ways, as they exploit
a confocal imaging principle, which limits the effect of backscattered light from deeper
layers and provides enhanced image quality in terms of contrast and resolution. Another
advantage of SLO systems is that they operate with smaller pupils than non-confocal
imaging systems. At the same time, though, SLO systems do not provide color images,
as they typically employ monochromatic laser sources, resulting in black and white or
pseudo-color images.
COMPASS uses white light instead of monochromatic lasers, hence providing true
color images and offering high image fidelity, no need for dilation down to 3 mm. pupil,
excellent resolution and contrast, high quality even in presence of media opacities and
optimized exposure of the ONH.
Page 29
CenterVue
COMPASS Operating Manual
Pag. 29 di 53
10.3 Dual image review
To review the images belonging to two different exams side by side, in the Patient Record Screen
keep the thumbnail of the first exam pressed until the exam is selected (highlighted border); do the
same for the second exam, then click the button found in the top-right corner of the screen: this will
open the Dual image review screen (see Fig. 24).
The most recent image is always displayed on the left
To change the type of image being displayed (infrared, color or red-free) in both halves of
the screen, click the button found in the top-right corner: this will open the panel shown in
Fig. 25.
Fig. 24 – Dual Review screen
Fig. 25 – Image type selection panel
Page 30
CenterVue
COMPASS Operating Manual
Pag. 30 di 53
10.4 Creating a Progression Report
To create a progression report, select and open any test belonging to the desired series
(root or follow-up), then click the button to view the progression report →
The Progression report test selection screen will open (see Fig. 26), which allows to select /
deselect the tests to be considered to generate the report. For example, some tests may be
excluded because of poor reliability (excess FP, FN or BS).
A progression report is created using a root test and its follow-up tests
Only tests that derive from the same root can be included
At least two tests shall be included
The earliest test included in the report acts as the baseline
Either root or follow-up tests can act as baseline
This screen provides the following functions:
1. Include / exclude a certain test from the report
2. Show Progression Report
3. Save Progression Report to USB (requires USB drive)
4. Save Progression Report to shared folder
5. Cancel report generation and go back to Exam Review screen
See par. 11.4 for a description of the Progression report.
Fig. 26 – Progression Report test selection screen
1
2
3 5 4
Page 31
CenterVue
COMPASS Operating Manual
Pag. 31 di 53
10.5 Remote Viewer
The Remote Viewer is a browser-based software that allows review of test results on any computer
connected to the device via a local area network.
The Remote Viewer provides access to the patient list, individual patient records and
image review screen.
The Remote Viewer does not allow to review Visual Field results, except by giving
access to the pdf reports.
Compatible browsers include Chrome, Firefox and Safari.
To use the Remote Viewer, the device needs to be plugged in the local area network via Ethernet
connection (Wi-Fi not supported).
Setting up the Remote Viewer
To enable the Remote Viewer, connect the device to the local network by plugging the network
cable in the Ethernet port located on the back of the system.
To start using the Remote Viewer a password must be set: to set (or change) the
Remote Viewer password see par. 12.6
Using the Remote Viewer
Open the browser and type http://gsd-sssss.domain in the address bar, where sssss is the five
digits serial number of the unit and domain is the local network domain name: this will open the
login screen.
If you cannot retrieve the network domain name or if the network is using static IPs and
not DHCP, you can retrieve the device IP as follows:
launch the Configurator application (see par. 12.1);
click on the “NETWORK” tab;
click on the icon of the “Wired” network;
retrieve the IP;
type http://IP in the address bar
Type the password and press Login: this will open the Patient List screen, which resembles the
corresponding screen in the on-board software.
The Remote Viewer session is automatically closed after 20 minutes of inactivity.
Patient List screen
Right and left eye image thumbnails are shown in the first column, followed by the patient name
and date of birth. The right-most column shows the date of the last exam.
Patients in the list are sorted by the date of their last exam.
Patient Search function is available in the top-left corner of the screen.
Click on the desired patient to enter the Patient Record screen (see Fig. 28), which resembles the
corresponding screen in the on-board software. Click on Logout to exit the Remote Viewer.
Page 32
CenterVue
COMPASS Operating Manual
Pag. 32 di 53
Fig. 27 – Patient List in Remote Viewer
Patient Record screen
This screen allows access to individual images.
Click on the desired image to enter the Single Image review screen (see Fig. 29).
Fig. 28 – Patient Record screen in Remote Viewer
Exam review screen
The following commands are available in this screen:
1. Go back to Patient Record Screen
2. Logout
3. Displays patient related information (full name, date of birth, gender, code) and a thumbnail
view of all exams available for this patient (date and time of acquisition, eye, average pupil
size, exam type). Command is also used to compare the currently displayed image with any
other image in the list click on the corresponding Compare button: see Dual Image Review
screen (see Fig. 30)
4. Displays all exam related information (date and time of acquisition, eye, exam type,
threshold strategy, focus index, average pupil size)
5. Shows red-free version of color image
6. Allows to save the corresponding image (jpg), or test report (pdf), or progression report
(pdf, if available) on the local memory
Page 33
CenterVue
COMPASS Operating Manual
Pag. 33 di 53
Fig. 29 – Exam Review screen in Remote Viewer
Dual Image review screen
This screen allows comparison of any pair of images (color and infrared, left and right eye, same or
different dates).
Fig. 30 – Dual Image Review screen in Remote Viewer
1
2 3 4 6 5
Page 34
CenterVue
COMPASS Operating Manual
Pag. 34 di 53
11. PRINTING
11.1 Printer Setup
COMPASS supports wireless connection to most Android-compatible printer. Printing apps from
the most common manufacturers come pre-installed into the COMPASS tablet (see Table 1).
Before choosing a printer, please check if the model is included in the compatibility list issued by
the printer manufacturer for every app.
Brand
Description
HP
HP Android ePrint
Samsung
Samsung Mobile Print App
Lexmark
Lexmark Mobile Printing
Canon
Canon Mobile Printing, Canon Easy-PhotoPrint, PIXMA/MAXIFY PrintingSolutions
Epson
Epson iPrint, Seiko Epson Corporation
Konica Minolta
Konica Minolta Printers, Page Scope Mobile
Table 1: Printing apps
There are two possible network setups for printers, depending on whether a wireless Access Point
(e.g. Wireless router) is available or not.
Infrastructure Mode
In this configuration, both the COMPASS tablet and the printer are connected to an Access Point,
such as a wireless router.
Ad-hoc Mode
COMPASS connects directly to the printer via wireless, without the need of an Access Point:
please note that, in order to setup this configuration, printer must support Wi-Fi Direct.
Wi-Fi Direct
Access Point
(e.g. Wireless router)
Page 35
CenterVue
COMPASS Operating Manual
Pag. 35 di 53
11.2 Report for 24-2 test
The printout for a 24-2 test is a one-page layout presenting the following information (see Fig. 32):
1. Patient information (name, date of birth, age when test was performed)
2. Examined eye (OD, OS)
3. Test parameters (date, time, duration, test pattern, threshold strategy, average pupil size
during test, BS, FP, FN, foveal threshold)
4. Color image of the ONH
5. Threshold values (dB) over red-free image, using the Fundus Perimetry display
convention (see info box below for information about the colors used and previous info
box for details about the various display convention)
6. Mean Deviation (MD) and Pattern Standard Deviation (PSD) indices
7. Cluster MDs (dB) (see clusters identification in Fig. 33)
8. Grayscale VF map (see Fig. 34 for the gray tone symbols adopted), using the Standard
Perimetry display convention
9. Total and Pattern deviation maps and related significance levels, using the Standard
Perimetry display convention (the Pattern Deviation map is not shown if MD < - 8 dB)
10. Tracking Performance Indices: TPI
0.5°
and TPI1° measure the rate of occurrence, during
stimuli projections, of uncompensated eye movements exceeding respectively 0.5° and
1.0° in amplitude. The numbers between brackets report the corresponding values in
(simulated) absence of retinal tracking, for comparison
11. Fixation Area: this index reports the area (and its semi-axis between brackets) of the 95th
percentile fitting ellipse of the fixation points recorded during the test; the higher this index
the more dispersed fixation and the wider eye movements
12. Fixation plot, describing the amplitude of eye movements in time, relative to the PRL
13. Glaucoma Staging System 2
14. Software version used to generate the report
Fig. 31 – Example of Tracking Performance Indices
The colors used in the Fundus Perimetry map (5) are derived from normative values:
green is used for points having a total deviation with p 5%
orange is used for points having a total deviation with p < 5% and 0.5%
red is used for points having a total deviation with p < 0.5%
white is used for the foveal and optic disc locations
11.3 Report for 10-2 test
The printout for a 10-2 test is similar to the 24-2, with the following differences:
the cluster analysis (7) is not available;
the Glaucoma Staging System (13) is not available and is replaced by the color photo.
Tests performed with the “small test grid” are solely for training and not suitable for
generating a report.
Page 36
CenterVue
COMPASS Operating Manual
Pag. 36 di 53
Fig. 32 – COMPASS report for 24-2 test
1 2 3 4 5 6 7 8 9
10
11
12
13
14
Page 37
CenterVue
COMPASS Operating Manual
Pag. 37 di 53

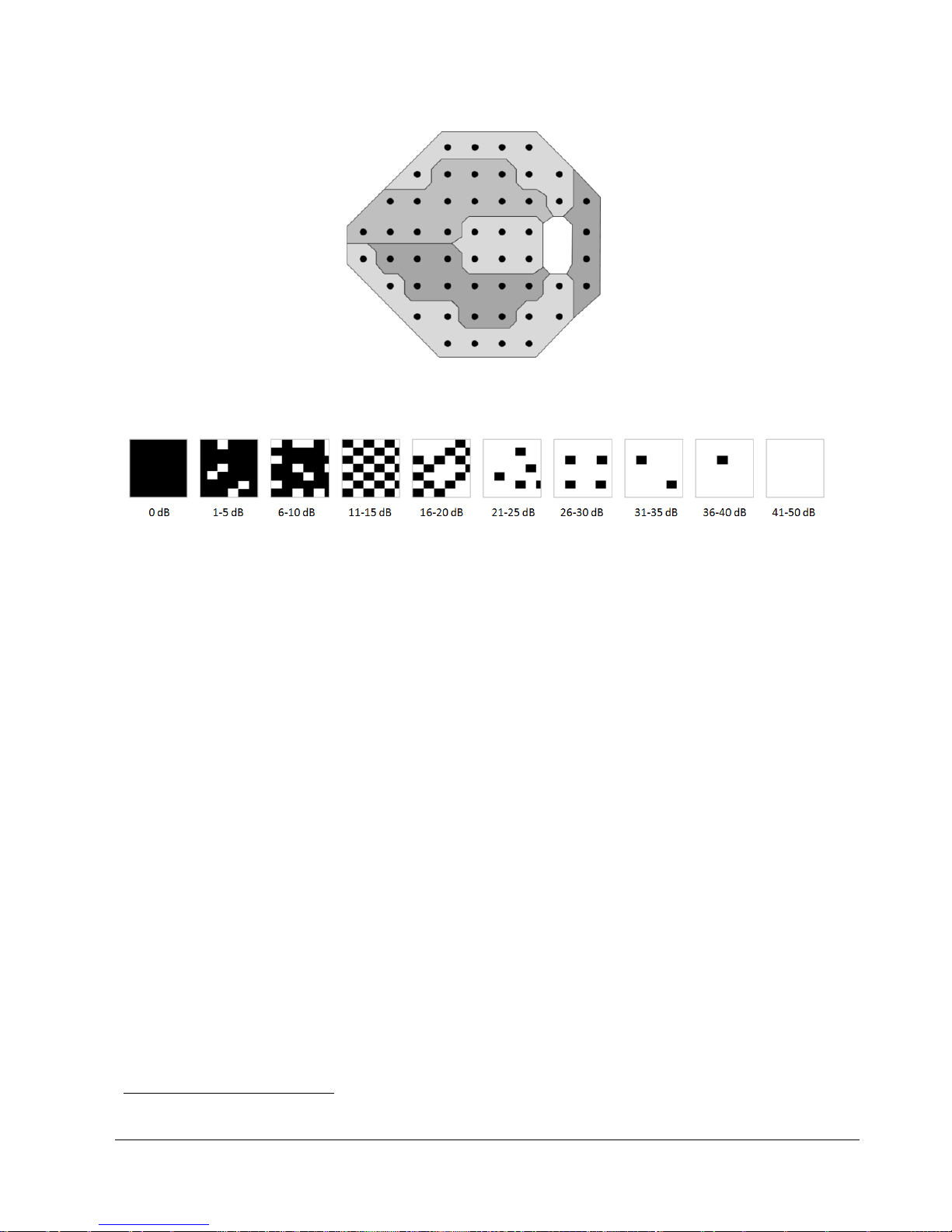

Fig. 33 – Stimuli of the 24-2 pattern grouped in clusters6
Fig. 34 – Symbols used for the grayscale map and related dB intervals
6
Garway-Heath et al; Mapping the Visual Field to the Optic Disc; Ophthalmology Volume 107, Number 10,
October 2000
Page 38
CenterVue
COMPASS Operating Manual
Pag. 38 di 53
11.4 Progression report
The Progression Report provides information on a series of tests (24-2 or 10-2) pertaining to the
same subject and eye.
It is a one-page layout presenting the following information (see Fig. 35):
1. Patient information (name, date of birth)
2. Examined eye (OD, OS)
3. Baseline Test parameters (date, time, duration, test pattern, threshold strategy, average
pupil size during test, BS, FP, FN, foveal threshold, MD and PSD)
4. Color image of the ONH at baseline
5. Grayscale map, Total and Pattern deviation maps and related significance levels at
baseline
6. Last follow-up parameters (date, time, duration, test pattern, threshold strategy, average
pupil size during test, BS, FP, FN, foveal threshold, MD and PSD)
7. Color image of the ONH at last follow-up
8. Grayscale map, Total and Pattern deviation maps and related significance levels at last
follow-up
9. Dates of intermediate follow-up tests included in the MD progression plot
10. Pointwise differences (dB) between last follow-up and baseline
11. Differences in cluster MDs between last follow-up and baseline
12. MD progression plot for all included tests
13. Software version used to generate report
Page 39
CenterVue
COMPASS Operating Manual
Pag. 39 di 53
Fig. 35 – Progression report for 24-2 series
1 2 3 4 5 7 8 6 9
10
11
12
13
Page 40
CenterVue
COMPASS Operating Manual
Pag. 40 di 53
12. SETTINGS
COMPASS provides access to settings by means of a separate application called “Configurator”.

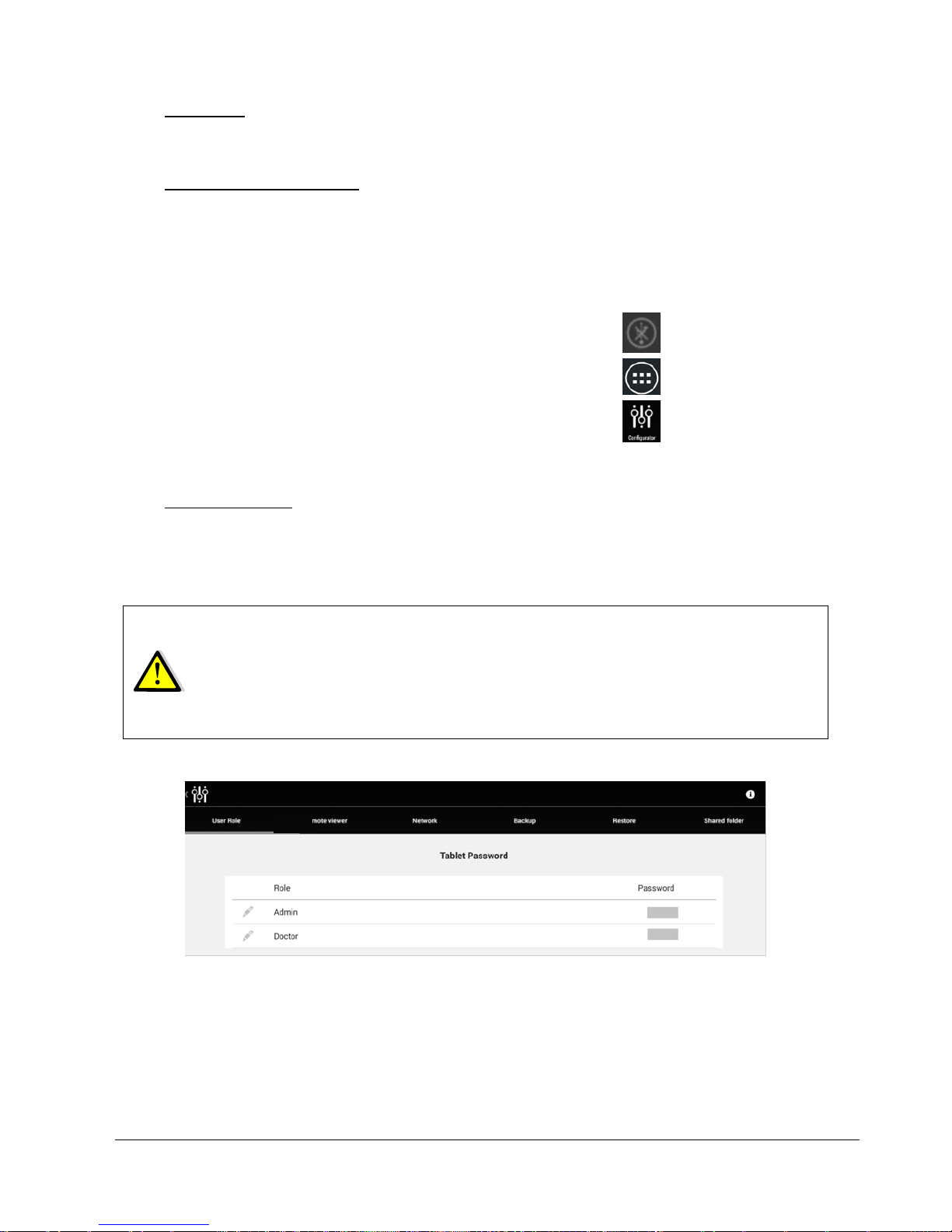

12.1 Launching the Configurator
To access the Configurator:
Press the “back” icon at the bottom of the screen to go to the Home screen;
Press the logout icon;
Select user “Admin” from the drop down menu;
Type the corresponding password and click login;
Enable tethering by clicking
Click the App icon
Start the Configurator by clicking
12.2 Password change
Passwords for both the “Admin” and “Doctor” users can be changed in the “User role” tab of the
Configurator by clicking the pencil icon (see Fig. 36). Shutdown and restart the device to make the
new passwords effective.
Do not type special characters in the passwords as this may lead to locking
the system
Always keep passwords in a safe place
It is not possible to operate COMPASS if the passwords are lost
If both passwords are lost, or to reset the “Admin” password, contact your
CenterVue Authorized Service Center for support
Fig. 36 – Configurator – User Role screen
Page 41
CenterVue
COMPASS Operating Manual
Pag. 41 di 53
12.3 Backup
COMPASS provides a USB-based data backup function. Backup requires an external USB
media (hard disk or memory stick), formatted as NTFS, with enough free space to store the
backup file.
Although COMPASS uses Solid State Drive (SSD) technology for data storage,
performing periodic backups is critical for the safety of your data against unpredictable
hardware failures.
Patient data (database and images) and calibration files can be backed up separately.
To perform a backup:
Click on the “BACKUP” tab of the Configurator screen (see Fig. 37);
Connect a pre-formatted USB disk to any available USB port (the icon on the top-right
corner turns active when a USB device is detected). You might need to temporarily
disconnect the external fixation to free up one USB port;
To perform a backup of the patient data, click on the left-most Backup button
(“Backup Db/Images”);
To perform a backup of the device calibration files click on the right-most one
(“Backup Calibration”);
Wait until message “Backup completed” is displayed.
The name of the backup file contains the ID of the device and the date and time of the backup. It is
possible to perform more than one backup on the same USB media, as long as there’s enough
available space.
Fig. 37 – Configurator – Backup screen
Page 42
CenterVue
COMPASS Operating Manual
Pag. 42 di 53
12.4 Restore
To restore from the most recent backup saved on a USB media:
Click on the Restore tab of the Configurator screen;
Connect the USB disk containing the backup to any available USB port (you might need to
temporarily disconnect the external fixation to free up one USB port);
Click on the left-most Restore button for restoring the patient data (database and images)
or on the right-most one for the calibration files;
Wait until message “Restore completed” is displayed.
The restore function will permanently erase all patient data stored in the device
and then restore the data and images that are stored on the USB flash drive!
To restore from a different backup file (not the latest), move all other backups into a subfolder, so
that only the desired backup file is on the top-level folder of the USB media.
To restore from a backup file made on a different COMPASS, rename the backup file with the
Serial Number of the COMPASS that should receive the data.
Example:
A backup of COMPASS SN 00001 exists and is named “gsd-00001_20150408-1028.backup”.
In order to transfer the content of this backup into COMPASS SN 12345, plug the USB media onto
any PC and rename the backup file to “gsd-12345_20150408-1028.backup”.
Eject the USB media from the PC and follow the usual restore procedure.
12.5 Device lock reset procedure
In case COMPASS raises error codes ranging from “117” to “121”, or from “124” to “130”, entering
in a locked state, the Configurator can be used to reset this condition. In such case a warning icon
is shown on the top right bar of the Configurator (to start the Configurator please refer to the
beginning of this chapter).
To reset the error condition, click on the warning icon: a confirmation message will appear. After
clicking the Ok button COMPASS will re-initialize. Upon completion of the re-initialization
procedure it is possible to restart using COMPASS normally. If the error condition keeps occurring,
please contact an authorized service center.
12.6 Password change for Remote Viewer
To change the password used to access the Remote Viewer click on the “Remote viewer” tab of
the Configurator, type the new password and press Save.
Page 43
CenterVue
COMPASS Operating Manual
Pag. 43 di 53
Fig. 38 – Configurator – Remote Viewer screen
12.7 Network configuration
COMPASS supports wired network connection.
To enable network connectivity, the device must be connected to the local network via Ethernet
cable, using the port located on the back of the system. Then click on the “Network” tab to
configure the network.
If the network is using static IPs and not DHCP, switch OFF the DHCP and type the IP, Network
Mask, Gateway and optionally DNS: you may need to contact your system administrator to obtain
these details.
Fig. 39 – Configurator – Network screen
Page 44
CenterVue
COMPASS Operating Manual
Pag. 44 di 53
12.8 Shared folder configuration
This screen is used to enable/disable data export to a remote shared folder.
Status
Turn this switch to “Enabled” to activate data export to a shared folder and configure the relevant
options, including server, destination folder, username and password.
Mode
If the “Manual” option is selected, data is exported using the export icon located in the exam
review screen. If “Auto” is selected, data is exported automatically to the selected shared folder
upon acquisition and can also be exported manually.
Format
Choose “PDF & IMAGES” to export both reports (pdf) and images (jpg), or “PDF” to export only the
reports.
Fig. 40 – Configurator – Shared folder configuration – remote shared folder
13. SYSTEM SHUTDOWN
To shut down the system go back to the Home screen and press the power off icon:
COMPASS beeps twice when turned off.
Page 45
CenterVue
COMPASS Operating Manual
Pag. 45 di 53
14. TECHNICAL SPECIFICATIONS
Class and type of applied part:
Class I, Type B (according to EN 60601-1).
IP classification:
IPX0 (according IEC 60529, related to the degree of protection provided by the enclosure with
respect to harmful penetration of particulate matter or water).
Fundus Perimetry:
Projection field: 30° (radius)
Background luminance: 31.4 asb
Maximum luminance: 10000 asb
Dynamic range: 0 - 50 dB
Stimulus size: Goldmann III
Stimulus duration: 200 ms
Threshold tests: 24-2, 10-2
Fixation control: 25 Hz automated retinal tracking
Fundus Imaging:
Field of view: 60° (diameter)
Sensor resolution: 5 Mpixel (2592x1944)
Light source: infrared (825-870 nm) and white LED (440-650 nm)
Imaging modalities: color, infrared, red-free
Other features:
Non-mydriatic operation: minimum pupil size 3 mm
Working distance: 28 mm
Auto-focus range: -12D to +15D
Fixation target: programmable, internal
User interface: Tablet with 10.1” multi-touch screen
Connectivity: Wi-Fi and Ethernet
Printer: any printer compatible with Tablet
Hard disk: SSD, 240 GB
Dimensions:
Weight: 25 Kg
Size: H 620 X W 590 X D 360 mm
Electrical requirements:
Power: 100-240 VAC, 50-60 Hz
Consumption: 80 W
Specifications are subject to change without notice for improvement
Page 46
CenterVue
COMPASS Operating Manual
Pag. 46 di 53
15. CLEANING
This paragraph explains how to clean the system.
The chin rest and the forehead rest should be wiped with an antiseptic wipe before each use and
allowed to dry prior to reuse. Painted parts of the chin rest, such as the twist grip, should not be
cleaned by means of aggressive solutions.

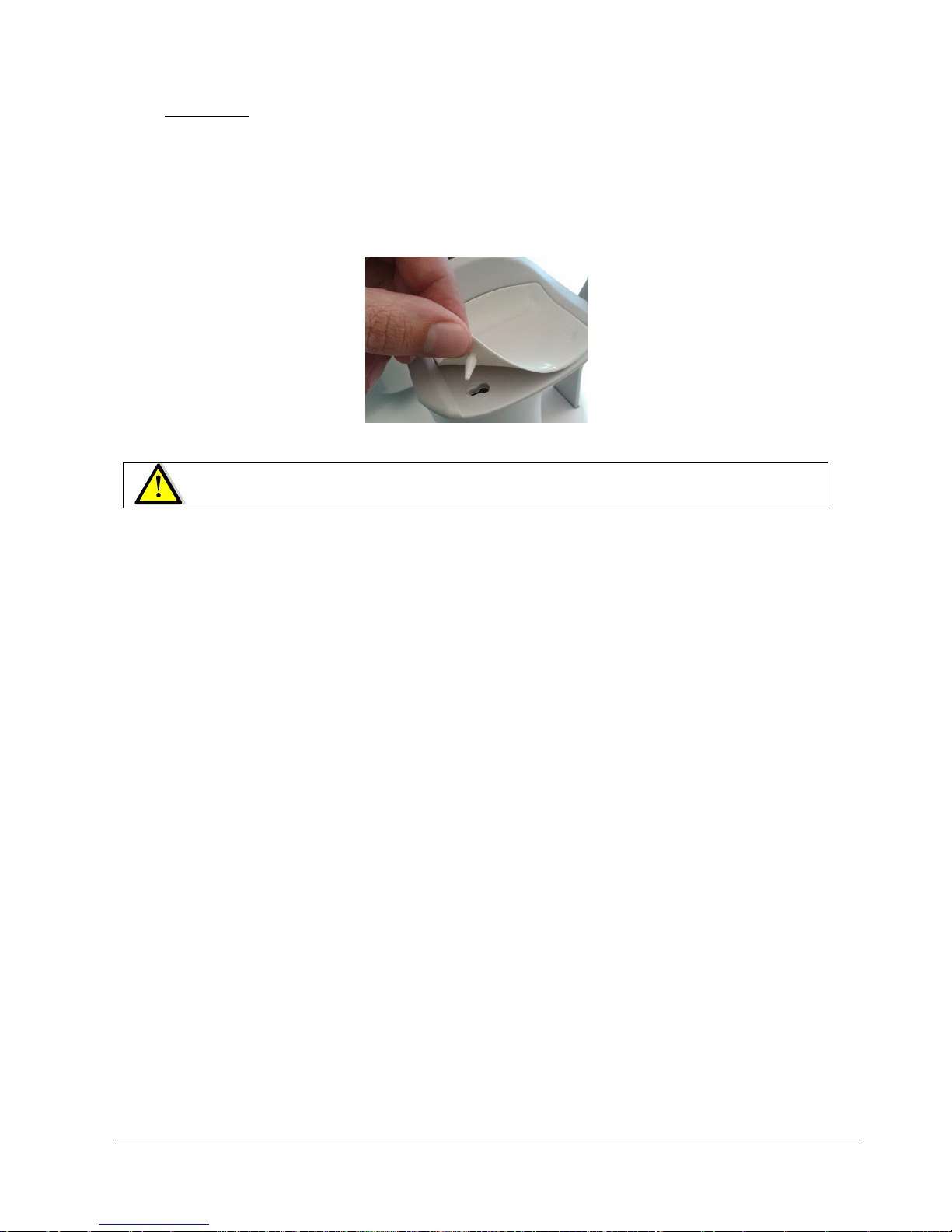

Fig. 41 - Removal of the chin rest silicon pad
Gently pull up and slide the chin rest pad to avoid breaking the retaining peg.
The front lens should be cleaned by using a small hand pump air blower, to blow away dust. Only if
really needed, for instance due to the presence of a fingerprint, the objective lens can be cleaned
by means of photographic cleaning paper and a suitable lens cleaning fluid.
The tablet display should be cleaned only with a cloth damped in water.
When cleaning the rest of device, the device must be off, and the power cord shall be
disconnected from mains. If needed, the external covers of the unit can be cleaned by means of a
slightly damp cloth.
Page 47
CenterVue
COMPASS Operating Manual
Pag. 47 di 53
16. TROUBLESHOOTING
Symptom
Possible cause(s)
Solution
1. COMPASS does not power on (no green
LED)
System is not powered
Plug the power supply into a properly
working socket then press the power
button for at least 3 seconds
2. System keeps failing alignment with
message “Eye not found”
Front lens cap is in place
Remove front lens cap
3. Message "Disconnected: cable not
connected or machine turned off" appears
when trying to access the instrument
USB cable is disconnected from tablet
and/or from device or system is off
Turn system on and7or connect USB
cable and login again
4. Message "Disconnected: tethering not
enabled" appears when trying to access the
instrument
Login was made with “Admin” user and
tethering was not enabled
Enable tethering or switch to “Doc”
user and login again
5. Bluish artifacts as in this example appear in
all newly acquired images
Front lens is dirty
Clean the front lens (see par. 15)
6. System is not usable with message “internal
error: device temporarily locked”
Malfunction of the rotating mirror or of
the infrared LED board for pupil
illumination
See par. 12.5 to reset the lock
condition. If the condition presents
frequently, contact authorized service
center
7. Tablet does not turn on and does not
recharge
Tablet is fully discharged and current
from device is not sufficient to initiate
recharge
Use the wall charger found in the
accessory box to charge the tablet
for at least one hour, then connect it
normally to the system
8. One or more dark areas appear in color
and/or IR pictures
Pupil is too small (< 2.5 mm)
Dark adapt or dilate subject
Page 48
CenterVue
COMPASS Operating Manual
Pag. 48 di 53
17. ELECTROMAGNETIC COMPATIBILITY
This device has been tested and found to comply with the limits for medical devices contained in
IEC60601-1-2 and Medical Device Directive 93/42/EEC. These limits are intended to provide
reasonable protection against harmful interference in a typical medical installation. This instrument
generates, uses and can radiate radio frequency energies and, if not installed and used in
accordance with these instructions, may cause harmful interference to other devices in the vicinity.
However, there is no guarantee that interference will not occur in a particular installation. If the
system does cause harmful interference to other devices, which can be determined by turning the
system off and on, try to eliminate the interference by adopting one or more of the following
measures:
reorient and/or relocate the receiving device;
increase the distance between the devices;
connect the system to an outlet on a different circuit than that to which the other devices is
connected;
consult the manufacturer or field service technician for help.
This device needs special precautions regarding EMC and needs to be installed and put into
service according to the EMC information provided within this document.
Portable and mobile RF communications equipment can affect the readings made by this device.
Page 49
CenterVue
COMPASS Operating Manual
Pag. 49 di 53
Manufacturers EMC Declaration to ISO 60601-1-2
The following tables provide specific information regarding compliance of COMPASS. COMPASS
is intended for use in the electromagnetic environment specified below. The customer or the user of
COMPASS should ensure that it is used in such an environment.
Emissions test
Compliance
Electromagnetic environment - guidance
RF emissions
CISPR 11
Group 1
COMPASS uses RF energy for its internal function.
Therefore, its RF emissions are very low and not likely
to cause any interference in nearby electronic
equipment.
RF emissions
CISPR 11
Class B
COMPASS is suitable for use in all establishments,
including domestic and those directly connected to the
public low-voltage supply network that supplies
buildings used for domestic purposes, providing the
following warning is heeded:
Warning: This equipment/system is intended for use
by healthcare professionals only. This
equipment/system may cause radio interference or
may disrupt the operation of nearby equipment. It
may be necessary to take mitigation measures, such as
re-orientating or re-locating COMPASS or shielding the
location.
Harmonic emissions
IEC 61000-3-2
Class A
Voltage fluctuations/
flicker emissions IEC
61000-3-3
Complies
Table 1: Electromagnetic Emissions
Page 50
CenterVue
COMPASS Operating Manual
Pag. 50 di 53
Guidance and manufacturers’ declaration – electromagnetic immunity
Immunity Test
IEC60601 test level
Compliance Level
Electromagnetic
environment guidance
Electro-static
discharge (ESD)
IEC 61000-4-2
±6 kV contact
±8 kV air
±4 kV contact
±4 kV air
Note:
ESD levels in excess of
±4kV applied to the
sensor input connectors
can damage the
sensitive measurement
electronics.
Floors should be wood,
concrete or ceramic tile.
If floors are covered
with synthetic material,
the relative humidity
should be at least 30%.
Avoid touching the
exposed conductive
parts of connectors
when handling the
device or connecting
cables.
Electrical fast
transient burst IEC
61000-4-4
±2 kV for power supply
lines
±1 kV for input/output
lines
±2 kV for power supply
lines
N/A for input/output
lines
Mains power quality
should be that of a
typical commercial or
hospital environment.
Surge
IEC61000-4-5
±1 kV line(s) to line(s)
±2 kV line(s) to earth
±1 kV line(s) to line(s)
N/A for lines to earth
Mains power quality
should be that of a
typical commercial
hospital environment.
Voltage dips, short
interruptions and
voltage variations
on power supply
input lines
IEC61000-4-11
<5% UT (>95% dip in UT)
for 0,5 cycle
40% UT (60% dip in UT)
for 5 cycles
70% UT (30% dip in UT)
for 25 cycles
<5% UT (>95% dip in UT)
for 5s
AC Power Port Dips of:
>95% for 0.5 cycle;
60% for 5 cycles;
30% for 25 cycles;
100% for 250 cycles of
Vnom repeated 10
times at 10 second
intervals.
Mains power quality
should be that of a
typical commercial or
hospital environment.
Power frequency
(50/60
Hz) magnetic
field IEC 61000-4-8
3A/m
3A/m
Power frequency
magnetic fields should
be at levels
characteristic of a
typical location in a
typical commercial or
hospital environment.
NOTE UT is the a.c. mains voltage prior to application of the test level
Table 2: Electromagnetic Immunity (ISO 60601-1-2:2007 5.2.2.1f)
Page 51
CenterVue
COMPASS Operating Manual
Pag. 51 di 53
Immunity Test
IEC60601 test
level
Compliance
Level
Electromagnetic environment guidance
Conducted RF
IEC61000-4-6
Radiated RF
IEC61000-4-3
3 Vrms
150KHz to
80MHz
3V/m
80MHz to
2.5GHz
3Vrms
3V/m
Portable and mobile RF equipment should be used
no closer to any part of COMPASS, including cables,
than the recommended separation distance calculated
from the equation applicable to the frequency of the
transmitter.
Recommended separation distance
d = 1.17√P
d = 1.17√P 80MHz to 800MHz d = 1.17√P 800MHz to
2.5GHz
Where P is the maximum output power rating of the
transmitter in watts (W) according to the transmitter
manufacturer and d is the recommended separation
distance in meters (m).
Field strengths from fixed RF transmitters, as
determined by an electromagnetic sight surveya,
should be less than the compliance level in each
frequency rangeb
Interference may occur in the vicinity of equipment
marked with the following symbol.
NOTE 1: At 80MHz and 800MHz, the higher frequency range applies.
NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by
absorption and reflections from structures, objects and people.
a
Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones
and land mobile radios, amateur radio, Am and FM radio broadcasts and TV broadcasts cannot be
predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF
transmitters, an electromagnetic site survey should be considered. If the measured field strength in the
location in which COMPASS is used exceeds the applicable RF compliance level above, COMPASS
should be observed to verify normal operation. If abnormal performance is observed, additional
measures may be necessary, such as re-orientating or relocating COMPASS.
B
Over the frequency range 150Khz to 80MHz, field strengths should be less than 3V/m.
Table 3: Electromagnetic Immunity (ISO 60601-1-2:2007 5.2.2.2)
Page 52
CenterVue
COMPASS Operating Manual
Pag. 52 di 53
COMPASS is intended for use in an electromagnetic environment in which radiated RF disturbances
are controlled. The customer or the user of COMPASS can help prevent electromagnetic interference
by maintaining a minimum distance between portable and mobile RF communications equipment
(transmitters) and COMPASS as recommended below, according to the maximum output power of the
communications equipment.
Rated maximum
output power of
transmitter
Separation distance according to frequency of transmitter
150 KHz to 80 MHz
d = 1.17√P
80 MHz to 800 MHz
d = 1.17√P
800MHz to 2.5 GHz
d = 1.17√P
0,01
0.12
0.12
0.12
0,1
0.37
0.37
0.37
1
1.17
1.17
1.17
10
3.70
3.70
3.70
100
11.70
11.70
11.70
For transmitters rated at a maximum output power not listed above, the recommended
separation distance d in meters (m) can be estimated using the equation applicable to the
frequency of the transmitter, where P is the maximum power rating of the transmitter in (W) according
to the transmitter manufacturer.
NOTE 1: At 80MHz and 800MHz, the higher frequency range applies.
NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is
affected by absorption and reflections from structures, objects and people.
Table 4: Recommended Separation Distances
FCC (USA) and IC (Canada) radio certification
The COMPASS contains a radio module that complies with regulations of the USA and Canada.
FCC ID: PPD-AR5BHB116
IC ID: 4104A-AR5BHB116
CMIIT ID: 2010AJ4574
These devices comply with part 15 of the FCC rules. Changes or modifications not expressly
approved by the party responsible for compliance could void user’s authority to operate the
equipment.
Operation is subject to the following 2 conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
Page 53
CenterVue
COMPASS Operating Manual
Pag. 53 di 53
18. DISPOSAL
This device is made of different materials, such as plastics, aluminum, electronic parts. In case of
instrument disposal, please separate the various materials and follow the laws and regulations
regarding disposal or recycling for each material effective in your own country.
Separate collection for electrical and electronic equipment
The European Directive 2002/96/EC establishes the separate collection for Waste of Electrical and
Electronic Equipment (WEEE). The users of Electric and Electronic Equipment (EEE) have not to
dispose of WEEE as unsorted municipal waste, they have to collect such WEEE separately. The
available return and collection system is defined by the local public administration, or in alternative
an authorized company can recycle the WEEE. Please refer to public administration about the
separate collection, if this information is not available, contact the manufacturer of the equipment.
Users have a fundamental role in contributing to reuse, recycling and recovery of WEEE. The
potentially dangerous substances contained in the WEEE can pollute the environment and produce
harmful effects to the human health. Below, there are a few indications of specific dangers of some
substances, which may leach in the environment and in the water system.
Lead: damages the nervous system of humans, it affects the endocrine system, the cardiovascular
system and kidneys. It accumulates and is very toxic for animals, plants and micro-organisms.
Cadmium: accumulates with a half-life of 30 years and can damage the kidneys and cause cancer.
Mercury: is easily accumulated in organisms and concentrates through the food chain. It has
chronic effects and can cause brain damage. Chromium (Hexavalent): easily absorbed into cells
with toxic effects. The results can be allergic reactions, asthma and it is considered to be genotoxic
(damages the DNA). Especially dangerous when incinerated.
Brominated Flame Retardants: widely used to reduce flammability (e.g. cables, connectors and
plastic cases).
Loading...
