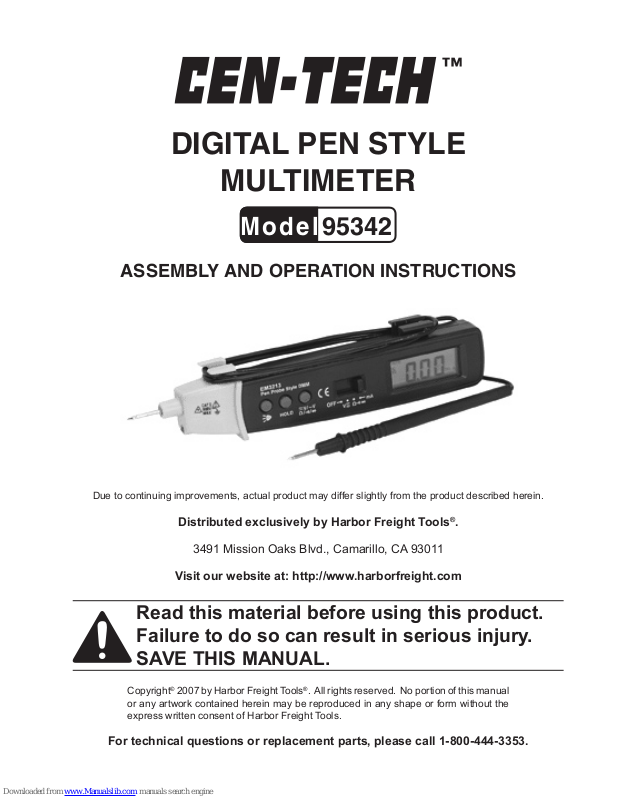

DIGITAL PEN STYLE
Model
95342
MULTIMETER
ASSEMBLY AND OPERATION INSTRUCTIONS
Due to continuing improvements, actual product may differ slightly from the product described herein.
Distributed exclusively by Harbor Freight Tools®.
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright© 2007 by Harbor Freight Tools®. All rights reserved. No portion of this manual
or any artwork contained herein may be reproduced in any shape or form without the
express written consent of Harbor Freight Tools.
For technical questions or replacement parts, please call 1-800-444-3353.
SPECIFICATIONS
Material ABS housing with LCD screen
Lead 29” lead with 5 7/8” Tip Probe
Maximum Input 600 VAC/600 VDC
Battery 3 V, CR2032 (included)
Fuse F250mA250V (Fast-acting 250 mA, 250 V) (Fast-acting 250 mA, 250 V)
Meter Functions AC/DC voltage, AC/DC current, resistance measurement,
diode/continuity testing
Save This Manual
You will need the manual for the safety warnings and precautions, assembly instructions, operating and maintenance procedures, parts list and diagram. Keep your invoice with
this manual. Write the invoice number on the inside of the front cover. Keep the manual and
invoice in a safe and dry place for future reference.
SAFETY WARNINGS AND PRECAUTIONS
WARNING: When using tool, basic safety precautions should always be followed to reduce
the risk of personal injury and damage to equipment.
Read all instructions before using this product!
In this manual:
WARNING indicates a potentially hazardous situation which, if not avoided, could result
in death or serious personal injury.
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in
a minor/moderate personal injury or damage to this tool or the unit being tested by it.
1.
2.
3.
4.
Keep your work area clean and well lit. Cluttered benches and dark areas invite
accidents.
Keep children away while operating the Digital Multimeter. Keep children out of
the work area. Not a toy. Keep away from children.
Stay alert. Do not operate the Digital Multimeter while tired or under the influence of
drugs, alcohol, or medication.
Use the correct tool for your application. Do not use it for applications other than
intended.
5.
6.
Maintain the Digital Multimeter with care. Do not use a damaged Digital Multimeter.
Tag a damaged Digital Multimeter “Do not use” until repaired.
Multimeter service must be performed only by qualified repair personnel. Service
or maintenance performed by unqualified personnel could result in a risk of injury.
SKU 95342 For technical questions please call 1-800-444-3353. Page 2
REV 07k
7.
Use eye and ear protection. Always wear ANSI-approved impact safety goggles and
work gloves.
8.
9.
10.
11.
12.
13.
Avoid working alone. If an accident happens, an assistant can bring help.
Avoid electrical shock. Use extreme caution when testing uninsulated conductors
or bus bars. Prevent body contact with grounded surfaces such as pipes, radiators,
ranges and cabinet enclosures when testing.
Maintain tools with care. Inspect the Multimeter before use. Make certain that
the Multimeter has a fresh battery. Pay special attention to the insulation protecting
the probes and lead.
Do not use the Multimeter if:
The test leads are damaged in any way
a.
The battery is low
b.
Any abnormal operation is detected (if in doubt about the condition of the Multimeter,
c.
have it serviced)
The battery cover is open.
d.
Check the leads for exposed metal, damaged insulation, and continuity. Replace
damaged test leads immediately, before use.
Do not test voltage on circuits higher than 600 volts AC or 600 volts DC.
14.
15.
16.
17.
18.
19.
1.
Do not test current on circuits higher than 200 mA (0.2 amps).
Do not expose to rain or wet conditions. Water entering will increase the risk of
electric shock.
Disconnect the multimeter from the power source before making any adjustments,
changing accessories, or storing the tool. Always cap the probe and test lead
before performing any inspection, maintenance, or cleaning procedures. Such
preventive safety measures reduce the risk of electric shock.
Do not operate in explosive atmospheres, such as in the presence of flammable
liquids, gases, or dust. Sparks may ignite the dust or fumes.
Do not switch between testing modes with the Multimeter connected to a cir-
cuit.
Cap the probe and test lead before performing maintenance, opening the case,
or the battery compartment.
SAFETY PRECAUTIONS
Use caution when working near voltages above 30 VAC rms, 42 VAC peak, or 60
VDC. Voltages this high present a risk of electric shock.
2.
Disconnect the circuit’s power before connecting the meter in series, when mea-
suring current.
SKU 95342 For technical questions please call 1-800-444-3353. Page 3
