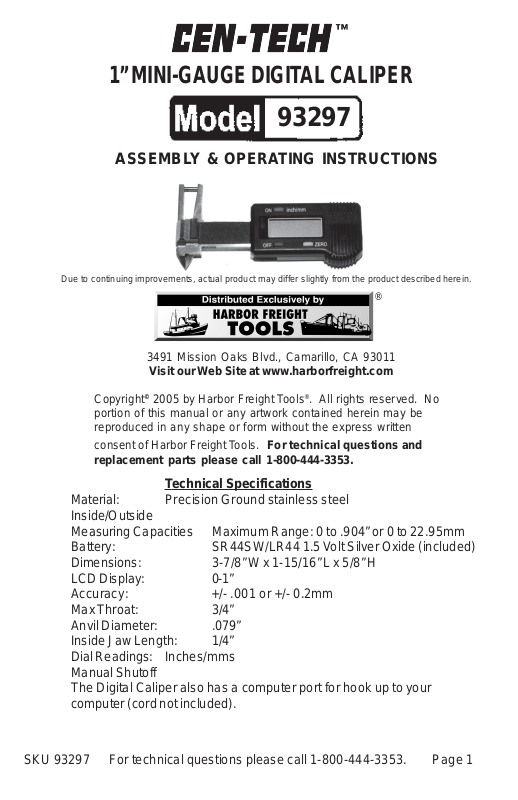

1” MINI-GA UGE DIGIT AL CALIPER
93297
ASSEMBLY & OPERATING INSTRUCTIONS
Due to continuing improvements, actual product may differ slightly from the product described herein.
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web Site at www .harborfreight.com
Copyright© 2005 by Harbor Freight Tools®. All rights reserved. No
portion of this manual or any artwork contained herein may be
reproduced in any shape or form without the express written
consent of Harbor Freight Tools.
replacement parts please call 1-800-444-3353.
For technical questions and
Technical Specifications
Materia l: Precision Ground stainless steel
Inside/Outside
Measuring Capacities Maximum Range: 0 to .904” or 0 to 22.95mm
Battery: SR44SW/LR44 1.5 V olt Silv er Oxide (included)
Dimensions: 3-7/8” W x 1-15/16” L x 5/8” H
LCD Display: 0-1”
Accuracy: +/- .001 or +/- 0.2mm
Max Throat: 3/4 ”
Anvil Diameter: .079”
Inside Jaw Length: 1/4 ”
Dial Readings: Inches/mms
Manual Shutoff
The Digital Caliper also has a computer port for hook up to your
computer (cord not included).
SKU 93297 For technical questions please call 1-800-444-3353. Page 1
Safety Warnings and Precautions
WARNING: When using product, basic safety precautions should always be
followed to reduce the risk of personal injury and damage to equipment.
1. Keep work area clean. Cluttered areas invite injuries.
2. Observe work area conditions. Keep work area well lighted.
3. Store idle equipment. When not in use , the Digital Caliper must be stored
in a dry location. Always lock up products and keep out of reach of
children.
4. Use the right product for the job. There are certain applications for
which the Caliper was designed. Do not modify the Digital Caliper and do
not use the Caliper for a purpose for which it was not intended.
5. Check for damaged parts. Before using an y product, any part that
appears damaged should be carefully checked to determine that it will
operate properly and perform its intended function. Check for any broken
or damaged parts and any other conditions that may affect its operation.
Replace or repair damaged or worn parts immediately.
6. Replacement parts and accessories. When servicing, use only identical
replacement parts. Use of any other parts will void the warranty.
7. Do not operate product if under the influence of alcohol or drugs.
Read warning labels on prescriptions to determine if your judgment or
reflexes are impaired while taking drugs. If there is any doubt, do not
operate the product.
8. Use eye protection. Always wear ANSI approved impact safety goggles.
9. Battery strength will affect performance. Use fresh batteries at all times.
Warning: The warnings, cautions, and instructions discussed in this instruction
manual cannot cover all possible conditions and situations that may occur. It must
be understood by the operator that common sense and caution are factors which
cannot be built into this product, but must be supplied b y the operator.
Unpacking
When unpacking your Digital Caliper , chec k to mak e sure that the product is intact
and undamaged. If an y parts are missing or broken, please call
HARBOR FREIGHT TOOLS at 1-800-444-3353.
Operation
Your Digital Caliper requires no assembly. It is important that you read the entire
manual to become familiar with the product BEFORE you use the Digital Caliper .
Do not bump or shock the tool when applying it to any work piece. Rough
treatment may damage the highly sensative mechanism.
Measuring the Outside of an Object
1. Push the “On” Button (see Figure 1) to “ON”. Use the thumb control to
separate the sides of the Caliper. Slide the object you wish to measure
in-between the pins on the Caliper or between the jaws on the Caliper-see
Figure 1.
SKU 93297 For technical questions please call 1-800-444-3353. Page 2
