Page 1
5
Turn ON
Vehicle Ignition
Approximate AC Charge Time
Initial Charge: 48 hours
Recharge: 30 hours
Wait 5 minutes!
AFTER TURNING
CLAMP POWER ON,
wait 5 minutes before
starting ignition.
THE VEHICLE WILL NOT
START IF YOU DON’T
WAIT 5 MINUTES!
5
MIN
4

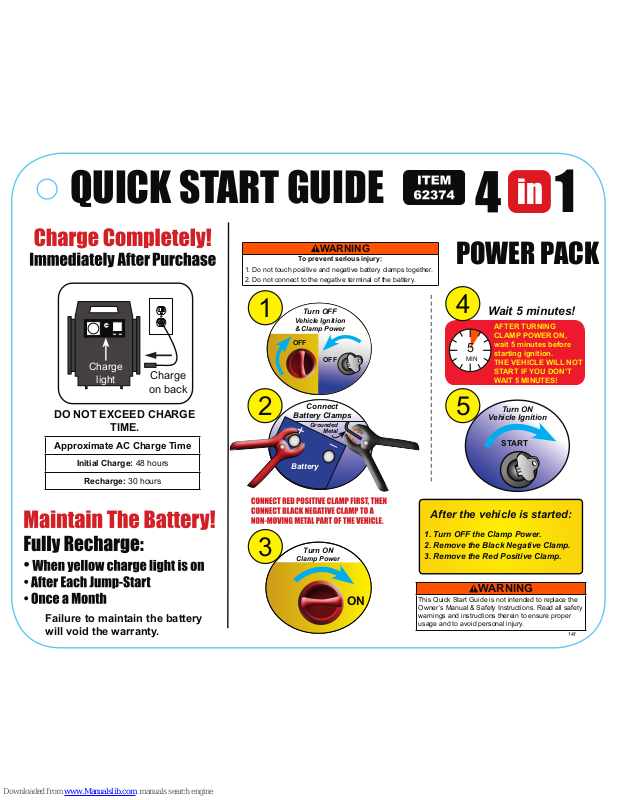

QUICK START GUIDE
2
Connect
Battery Clamps
Grounded
Metal
+
_
Battery
14f
WARNING
To prevent serious injury:
1. Do not touch positive and negative battery clamps together.
2. Do not connect to the negative terminal of the battery.
After the vehicle is started:
1. Turn OFF the Clamp Power.
2. Remove the Black Negative Clamp.
3. Remove the Red Positive Clamp.
WARNING
This Quick Start Guide is not intended to replace the
Owner’s Manual & Safety Instructions. Read all safety
warnings and instructions therein to ensure proper
usage and to avoid personal injury.
START
1
Turn OFF
Vehicle Ignition
& Clamp Power
OFF
OFF
POWER PACK
in
1
Charge
Light
Charge
light
Charge
on back
DO NOT EXCEED CHARGE
TIME.
Failure to maintain the battery
will void the warranty.
3
Turn ON
Clamp Power
ON
Page 2
Typical DC Appliances & Run Times
Appliance
Estimated
Power
(Watts)
Estimated
Lifetime
(Hours)
• Fluorescent Light
• Cell Phone
4 50
• Radio
• Fan
• Depth Finder
9 26
• Video Recorder
• Spotlight
15 14
• Small Power Tool
• Bilge Pump
24 8
Use this chart
as a guideline
only.
Actual power
usage may vary
based on the
model or brand
of the appliance.
Check the actual
wattage of your
appliances and
calculate the
amount of power
needed to start
and run them.
Open Air Hose
Compartment on
the back of the unit
and pull out the air
hose.
1
Position the Tire
Inflator over the
valve stem and
push down firmly.
Press down on the
lever.
2
Turn ON
Compressor
I
O
OFF
ON
4
Turn OFF
Compressor
I
O
3
Monitor the
Air Pressure
Gauge until the
proper inflation
level has been
reached.
1
Three adapters
are included
with the Power
Pack that can
be attached to
the Tire Inflator.
2
Attach the
proper
adapter, then
follow steps
2-4 above.
WARNING
To prevent serious injury:
1. Check the proper inflation level of the the object being inflated.
2. Monitor the Air Pressure Gauge on the front of the Unit.
3. Do not overinflate.
1
Turn OFF
Appliance
OFF
Turn ON
Appliance
ON
4
Plug
Appliance into
Outlet
DC
3
OFF
ON
2
Turn OFF
Clamp Power
OFF
