OPERATOR’S

MANUAL

Do not remove this

manual from this vehicle.

MANUAL NO. 671-102 Printed in Canada 2008/12/04

Telephone: (519) 662-2840, Fax: (519) 662-2421

Ontario Drive & Gear Limited

220 Bergey Court

New Hamburg, Ontario N3A 2J5

www.centaur8x8.ca

A MESSAGE FROM THE PEOPLE WHO BUILT YOUR CENTAUR

Thank you for selecting a CENTAUR off-road utility vehicle!

Ontario Drive & Gear Limited has been building off road vehicles since 1967. By listening carefully to our customers and responding to their needs, we have been constantly improving them and will continue to do so.

Over thirty thousand vehicles have provided reliable service all over the world. From Britain to the Far East, Alaska to the Antarctic, and from the tropical forests of South America to the deserts of Saudi Arabia. We are proud to provide you with a vehicle that represents the ultimate in all-terrain transportation.

Your safety and the safety of all CENTAUR users is of the greatest concern to us. You will nd numerous safety statements in this manual. Please read and follow them carefully. Always be safety conscious when you operate your CENTAUR and remember it is a motorized vehicle.

The CENTAUR is easy to drive and you will soon be tempted to take on new challenges. Please take the time to develop your driving skills before doing so. Observe the recommendations outlined in this Operator’s Manual and remember; some things are just impossible, even with a CENTAUR.

WELCOME TO THE WORLD WIDE CENTAUR FAMILY!

Centaur Service Manual

Ontario Drive & Gear has a service manual which provides the Centaur owner with step-by-step instructions on how to perform full service procedures on your vehicle. Everything from removal and replacement of brake pads to rebuilding the transmission. It’s all there. Removal and replacement of engines is included, however, engine overhaul is not. A separate overhaul manual is available for each engine from your Centaur dealer. Order the service manual on CD-ROM from your dealer.

Read this manual before you operate your CENTAUR. It contains safe operating instructions and warns the user about potential hazards that can result in personal injury.

Warnings are identied in the text by the following symbol:

Warning text warns the user about potential hazards that can result in personal injury or death.

Cautions are identied in the text by the following symbol:

Caution text contains cautions that can prevent damage to the vehicle.

This manual is based on the latest product information available at the time of printing. Ontario Drive & Gear Limited reserves the right to make changes at any time and without obligation.

Reproduction of any part of this publication is prohibited without prior written permission.

PREFACE

This manual describes the controls, operation and basic maintenance procedures for all CENTAUR vehicles. Please take the

time to read this manual carefully, for your safety and that of others. By following these instructions, you will ensure extended,

trouble free operation of your vehicle.

For maintenance and adjustment of the engine, refer to the engine manufacturer’s operation and maintenance manual included in your vehicle’s information package.

Before you drive your CENTAUR, make sure you understand how to use all controls, particularly the brakes and steering system. Learn how to drive your vehicle in an open level area, away from buildings, trees and other obstacles, until you are completely familiar with its operating characteristics. Drive very slowly until your driving skills improve, and drive with caution and

consideration at all times. The risk of accident or injury is greatest during the rst weeks of use. Take special care during this

period. ALWAYS RESPECT OUR ENVIRONMENT.

CAUTION TO THE CENTAUR OWNER/OPERATOR

• Make sure everyone who drives this vehicle receives proper operating instructions and reads this Operator’s Manual.

• No one under the age of 16 should be allowed to operate the CENTAUR. Children under the age of 16 may not have the

skills, abilities or judgement needed to operate the Centaur safely and may be involved in an accident causing severe injury or death.

• Never allow anyone under the inuence of alcohol or any other intoxicating substance to drive or ride in the vehicle.

• Wear an approved safety helmet and eye protection when driving or riding in the vehicle.

• Special operating and safety procedures described in this manual must be observed before and during operation.

• The use of approved hearing protection is recommended.

• Equip your vehicle with a re extinguisher and a rst aid kit.

• Equip your vehicle with basic tools for emergency repairs.

• Before starting your engine, check for spilled fuel and wipe any up immediately. Any fuel is a potentially explosive sub-

stance that can cause serious personal injury when ignited.

• Keep the oor pans secured in place at all times. Fingers, feet, animal tails or paws can be injured in the drive components beneath the oor pans. The oor pans also help keep damaging debris out of the drive components.

• Make sure all passengers remain seated while the vehicle is in motion. Advise your passengers to hold onto the vehicle at

all times.

• Wear seatbelts when riding in a vehicle equipped with a ROPS.

• Never overload your vehicle. Trying to steer an overloaded vehicle can damage the steering system. Overloading your vehicle can lead to costly damage to steering system, transmission, drive chains, axles or bearings. Follow the recommended

load capacity for your vehicle listed in Section 1.

• Do not drive the vehicle at high speeds over unfamiliar or rough terrain. Personal injury or vehicle damage may result.

• Certain terrain and steep hills cannot be traversed safely with the Centaur or any other vehicle. Do not attempt to drive over terrain that is questionable.

• Use common sense at all times when driving your vehicle.

IMPORTANT

Operate this vehicle with safety constantly in mind. Off-road vehicles face unpredictable and often hazardous terrain conditions. It is ultimately the operator’s responsibility to handle the vehicle safely within its limitations and to decide when and where to travel.

TABLE OF CONTENTS

SECTION PAGE

1.0 GENERAL INFORMATION

1.1 AMPHIBIOUS OPERATION ...................................................................................................................... 1

1.2 MAINTENANCE PROCEDURES ............................................................................................................. 1

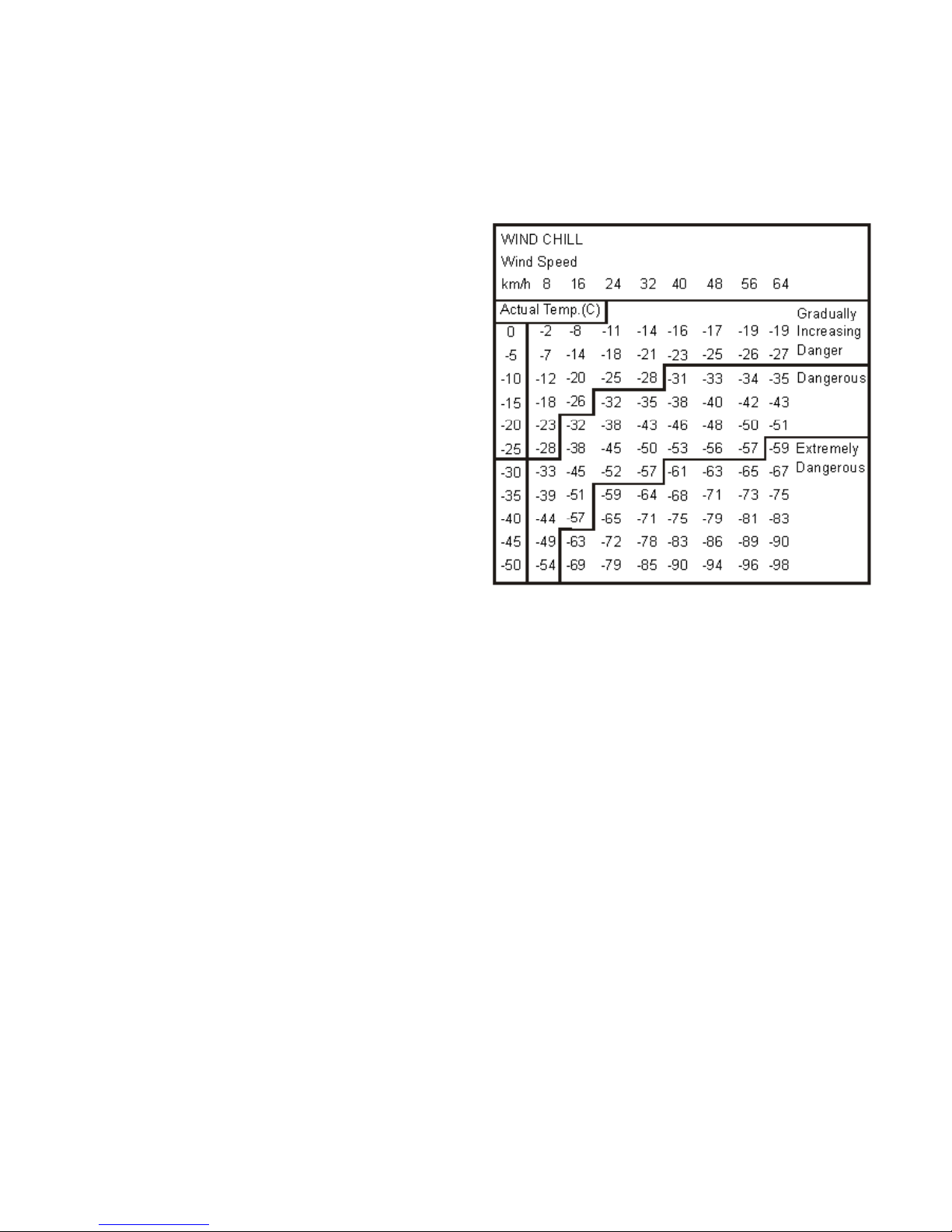

1.3 WIND CHILL FACTOR ............................................................................................................................... 1

1.4 MODEL IDENTIFICATION ........................................................................................................................ 1

1.4.1 Centaur Vehicle Capacity................................................................................................................ 3

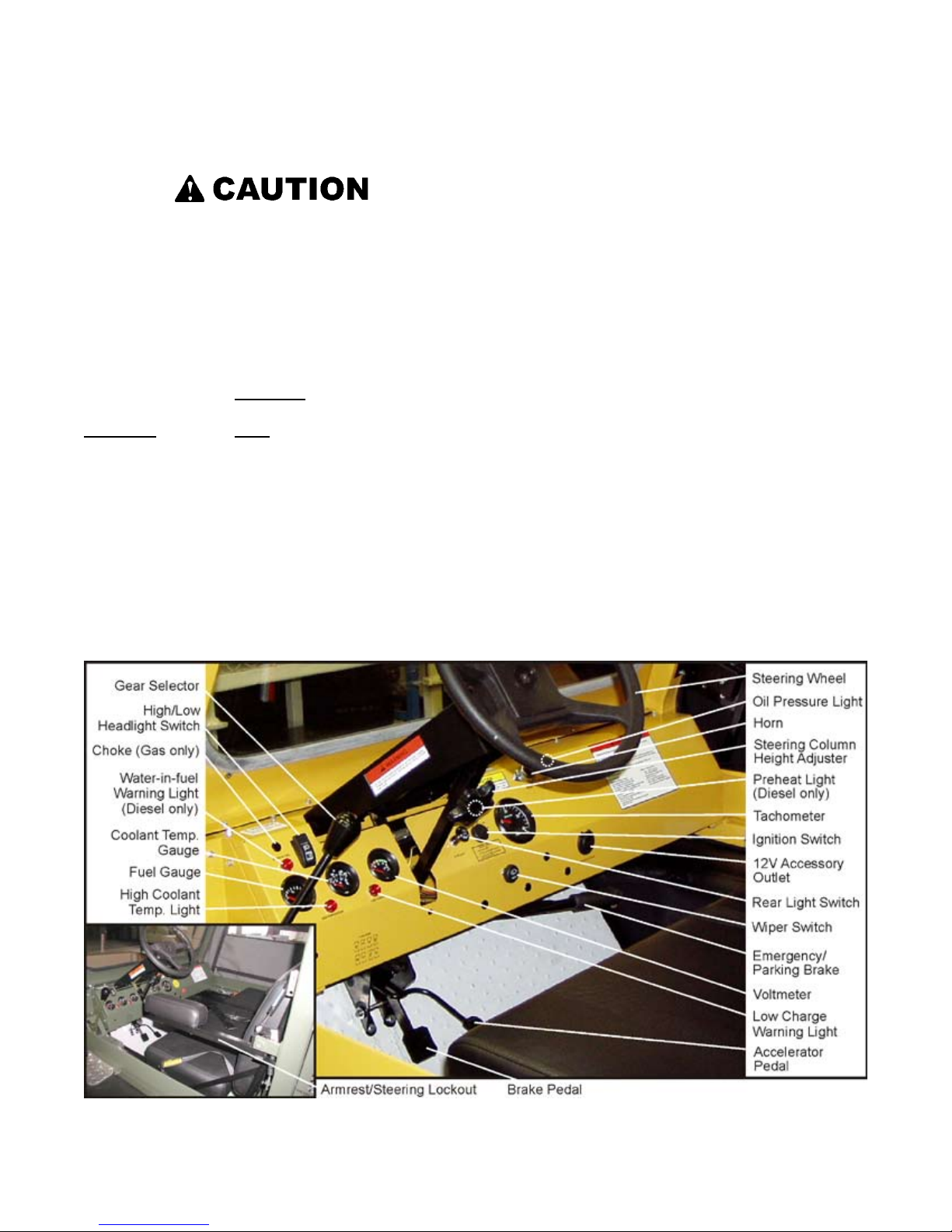

1.5 IDENTIFICATION AND LOCATION OF CONTROLS............................................................................. 3

1.6 CE MARKED CENTAURS.......................................................................................................................... 3

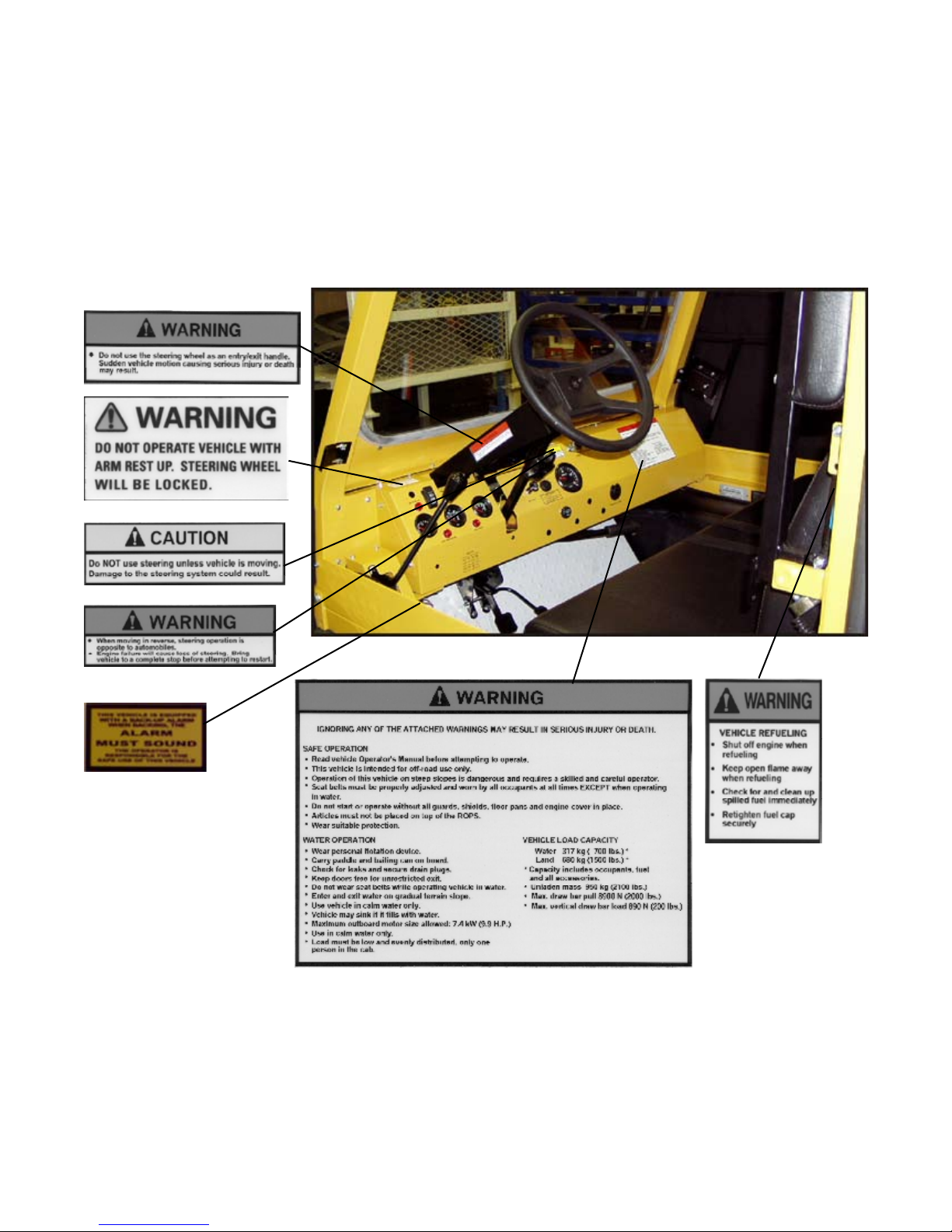

1.7 INFORMATION LABELS ........................................................................................................................... 4

2.0 GENERAL OPERATING INFORMATION

2.1 NEW VEHICLE “BREAK-IN” PROCEDURE .......................................................................................... 5

2.2 PRE-OPERATION CHECKS ...................................................................................................................... 5

2.3 CARRYING PASSENGERS AND CARGO ............................................................................................... 5

2.4 FUELING THE VEHICLE .......................................................................................................................... 5

Centaur 950 and 954 - Gasoline ................................................................................................................... 6

Centaur 950DT - Diesel ............................................................................................................................... 6

2.5 VENTED FUEL SYSTEM .......................................................................................................................... 6

3.0 OPERATING INSTRUCTIONS

3.1 STEERING .................................................................................................................................................. 7

3.2 BRAKES ....................................................................................................................................................... 7

3.3 PARKING/EMERGENCY BRAKE ............................................................................................................ 7

3.4 THROTTLE CONTROL ............................................................................................................................. 7

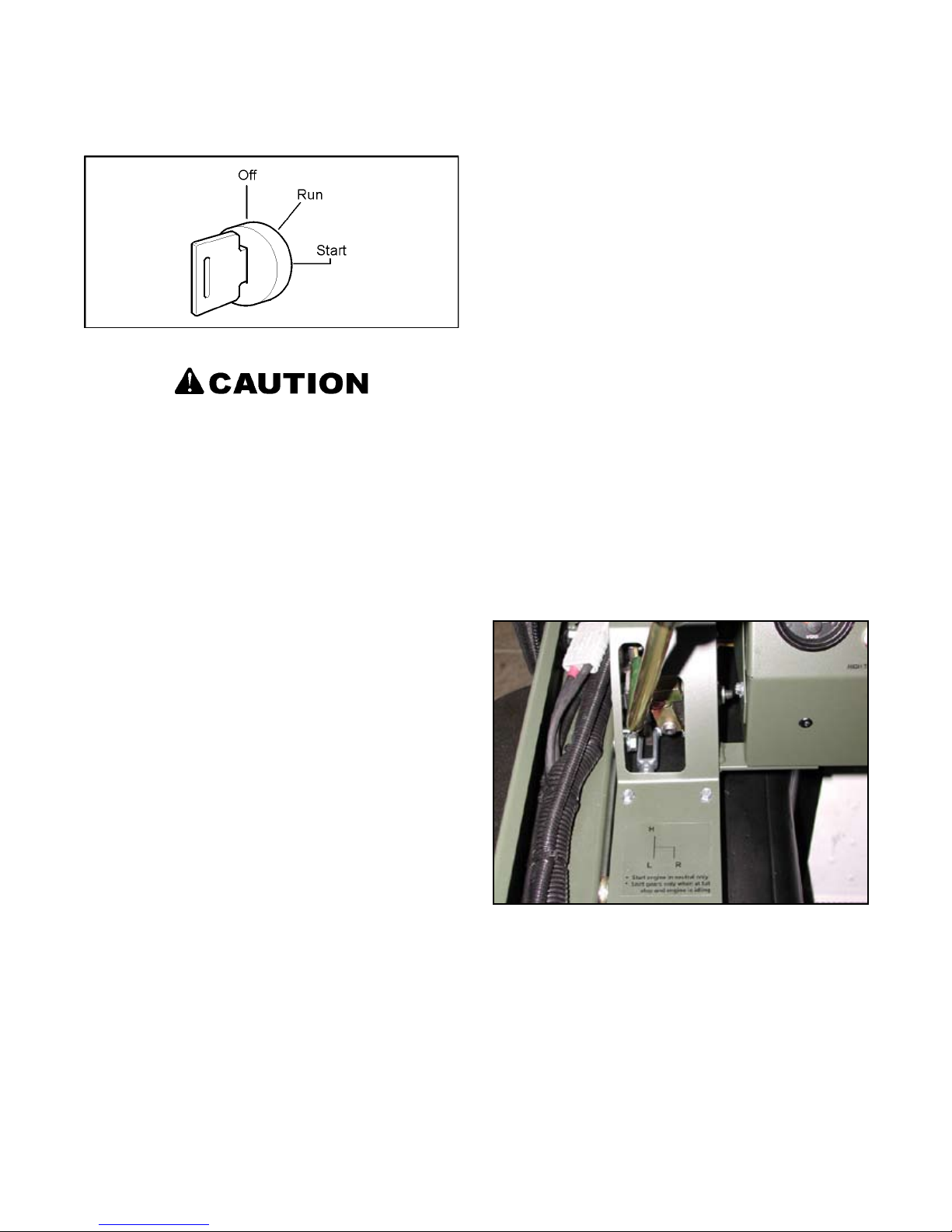

3.5 STARTING PROCEDURE .......................................................................................................................... 7

3.5.1 Gasoline Powered .......................................................................................................................... 7

3.5.2 Diesel Powered .............................................................................................................................. 8

3.6 STOPPING THE ENGINE .......................................................................................................................... 8

3.7 SELECTING AND CHANGING TRANSMISSION GEARS .................................................................... 8

3.8 HEADLIGHTS ............................................................................................................................................ 9

4.0 DRIVING PROCEDURES

4.1 DRIVING STRAIGHT AHEAD ............................................................................................................... 10

4.2 STOPPING THE VEHICLE ...................................................................................................................... 10

4.3 TURNING THE VEHICLE ....................................................................................................................... 10

4.4 BACKING THE VEHICLE UP ................................................................................................................. 10

4.4.1 Turning The Vehicle While Backing Up ....................................................................................... 10

5.0 DRIVING PROCEDURES IN UNUSUAL CONDITIONS

5.1 REMOTE AREA USE ................................................................................................................................11

5.2 ANGLE OF OPERATION ..........................................................................................................................11

5.3 UPHILL OPERATION ...............................................................................................................................11

5.4 DOWNHILL OPERATION ........................................................................................................................11

5.5 SIDE SLOPE OPERATION ........................................................................................................................11

5.6 WATER CROSSING - GENERAL ............................................................................................................ 12

5.6.1 Entering the Water ....................................................................................................................... 13

5.6.2 Driving Procedures in Water ........................................................................................................ 13

5.6.3 Driving Out of Water ................................................................................................................... 13

III

TABLE OF CONTENTS

SECTION PAGE

5.7 WINTER OPERATION ............................................................................................................................. 13

5.7.1 Use on Ice Covered Bodies of Water ............................................................................................ 13

6.0 OIL, FILTER AND LUBRICATION INFORMATION

6.1 ENGINE OIL INFORMATION ................................................................................................................. 14

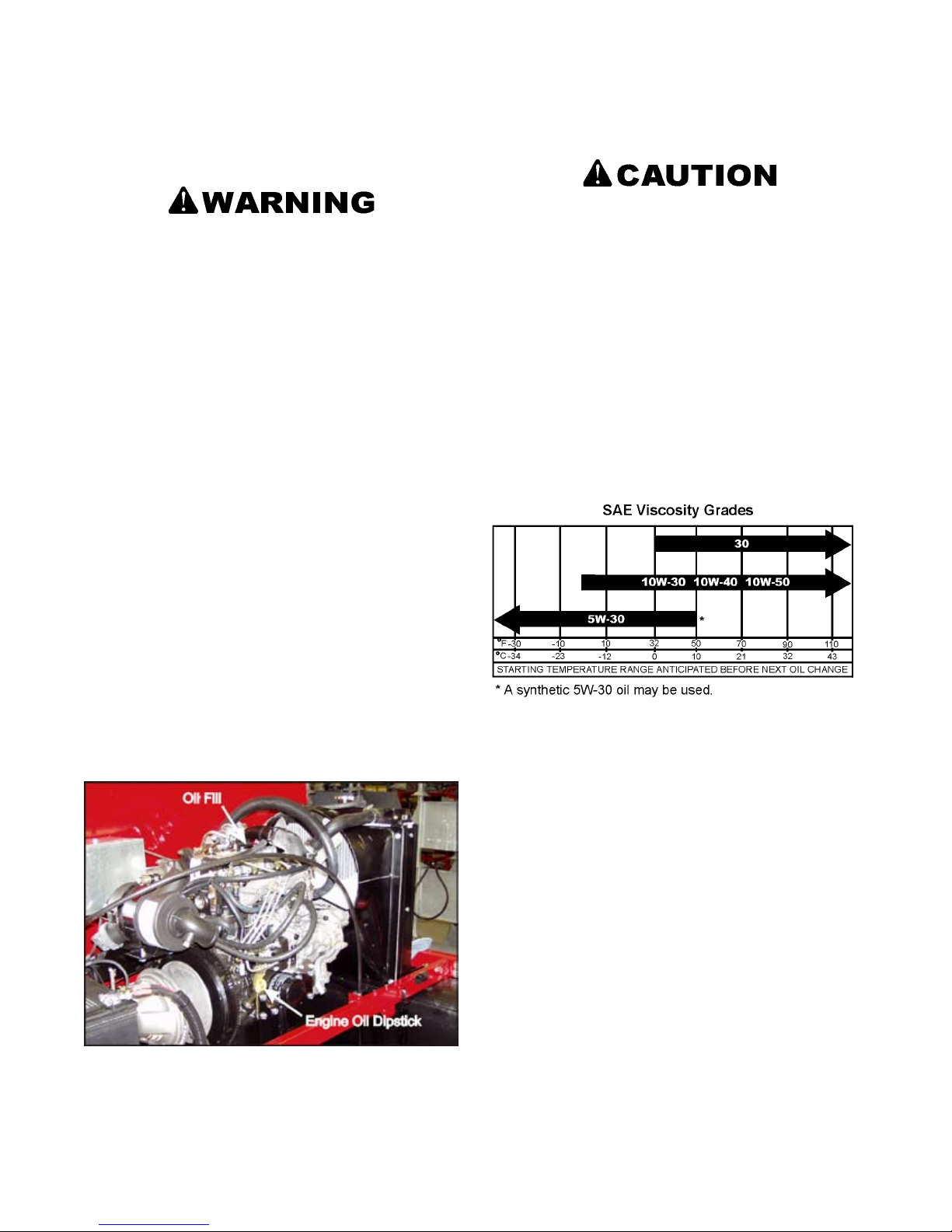

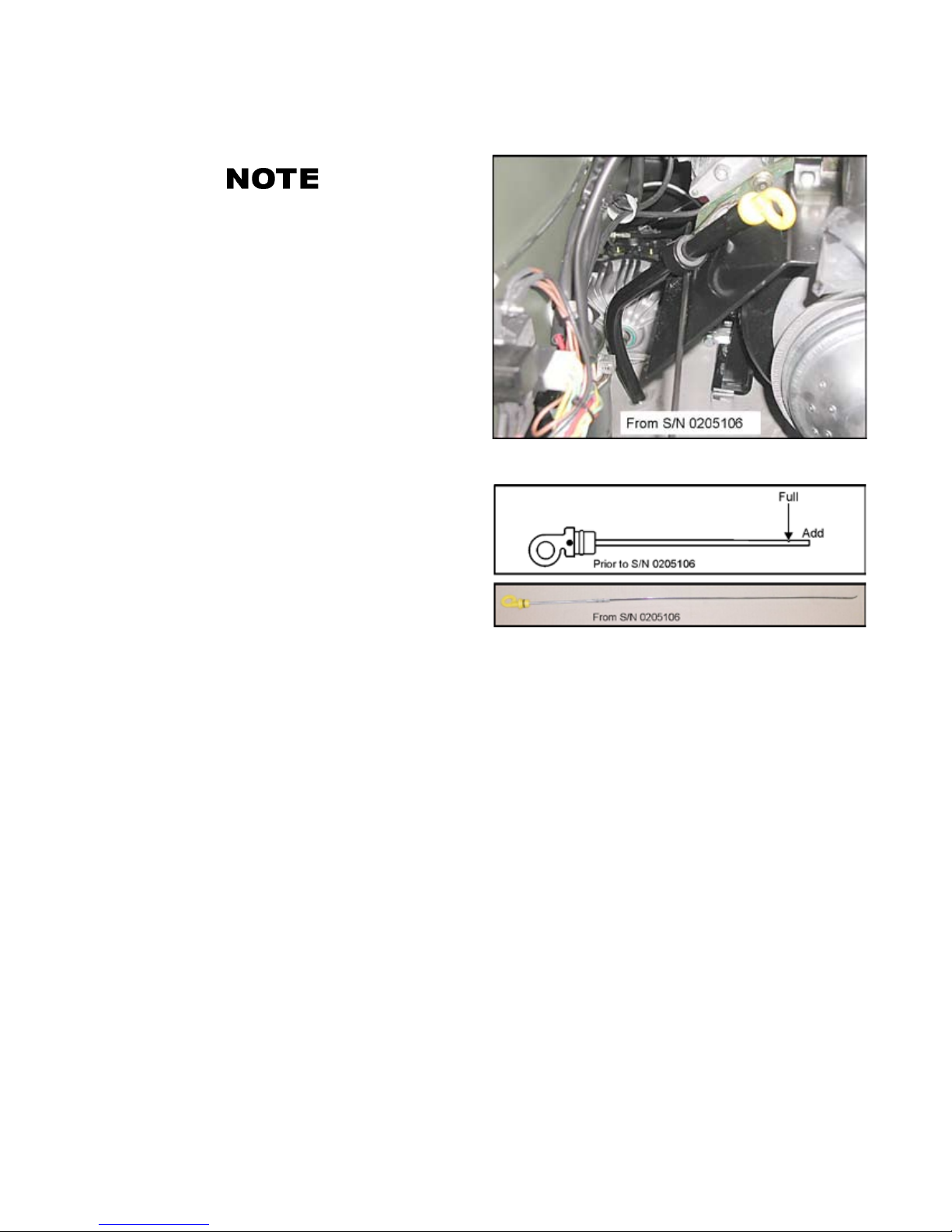

6.1.1 Checking the Engine Oil Level .................................................................................................... 14

6.1.2 Recommended Engine Oil ........................................................................................................... 14

6.1.3 Changing Engine Oil .................................................................................................................... 14

Draining the Engine Oil ................................................................................................ 14

Relling the Engine ....................................................................................................... 15

6.2 TRANSMISSION OIL INFORMATION ................................................................................................... 15

6.2.1 Checking the Transmission Oil Level .......................................................................................... 15

6.2.2 Changing the Transmission Oil .................................................................................................... 15

Relling the Transmission ............................................................................................. 15

6.3 FILTER INFORMATION .......................................................................................................................... 15

6.3.1 Air Filter ...................................................................................................................................... 15

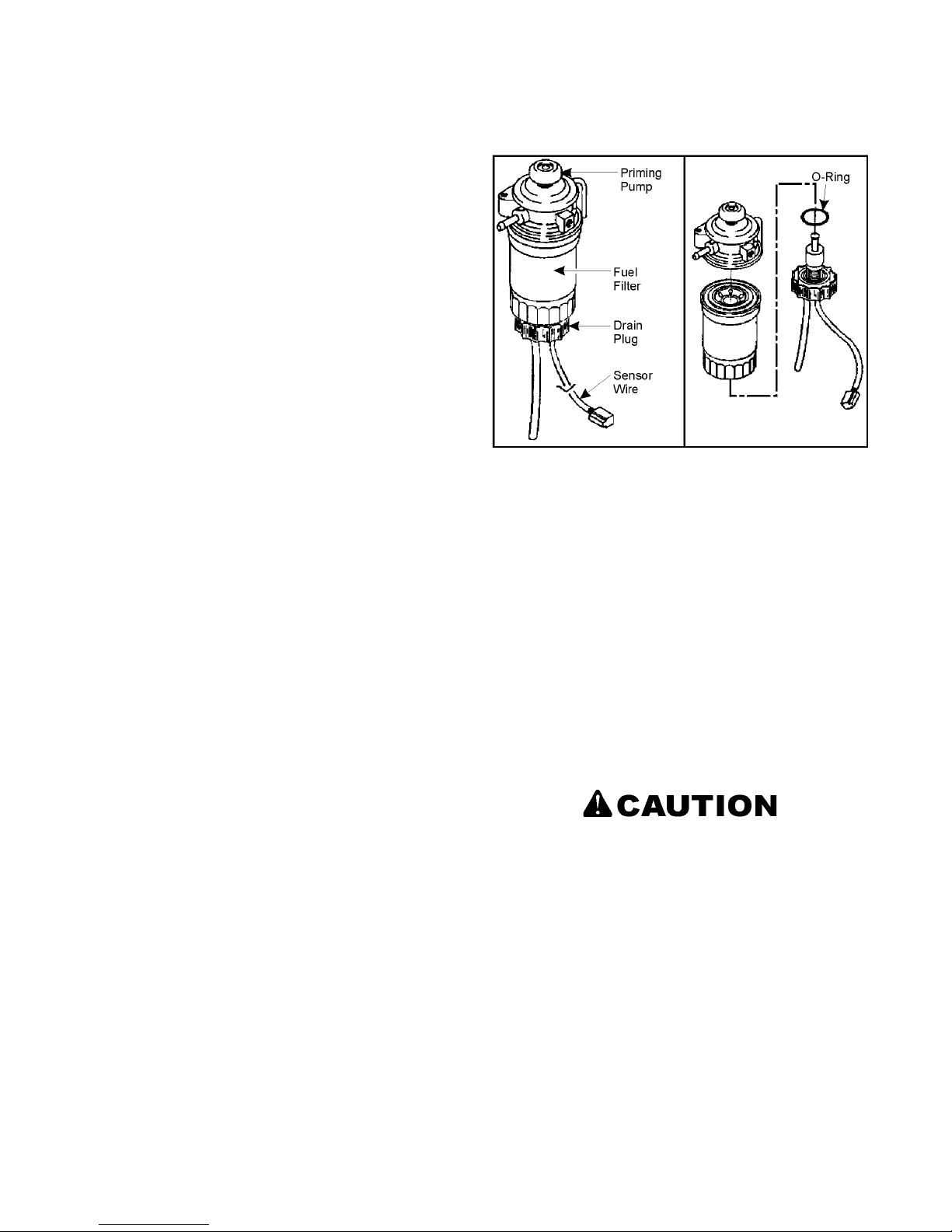

6.3.2 Fuel Filter ...................................................................................................................................... 16

950 .................................................................................................................................. 16

950DT and 954DT .......................................................................................................... 16

To replace fuel lter element .......................................................................................... 16

6.3.3 Engine Oil Filter .......................................................................................................................... 16

6.3.4 Transmission Oil Filter ................................................................................................................. 17

6.4 LUBRICATION INFORMATION ............................................................................................................. 17

6.4.1 General ......................................................................................................................................... 17

6.4.2 Drive Chain Lubrication ............................................................................................................... 17

6.4.3 Driven Clutch Maintenance ......................................................................................................... 17

6.4.4 Axle Bearing Lubrication ............................................................................................................ 17

7.0 MAINTENANCE INFORMATION

7.1 ELECTRICAL SYSTEM ........................................................................................................................... 18

7.1.1 General ......................................................................................................................................... 18

7.1.2 Battery ........................................................................................................................................... 18

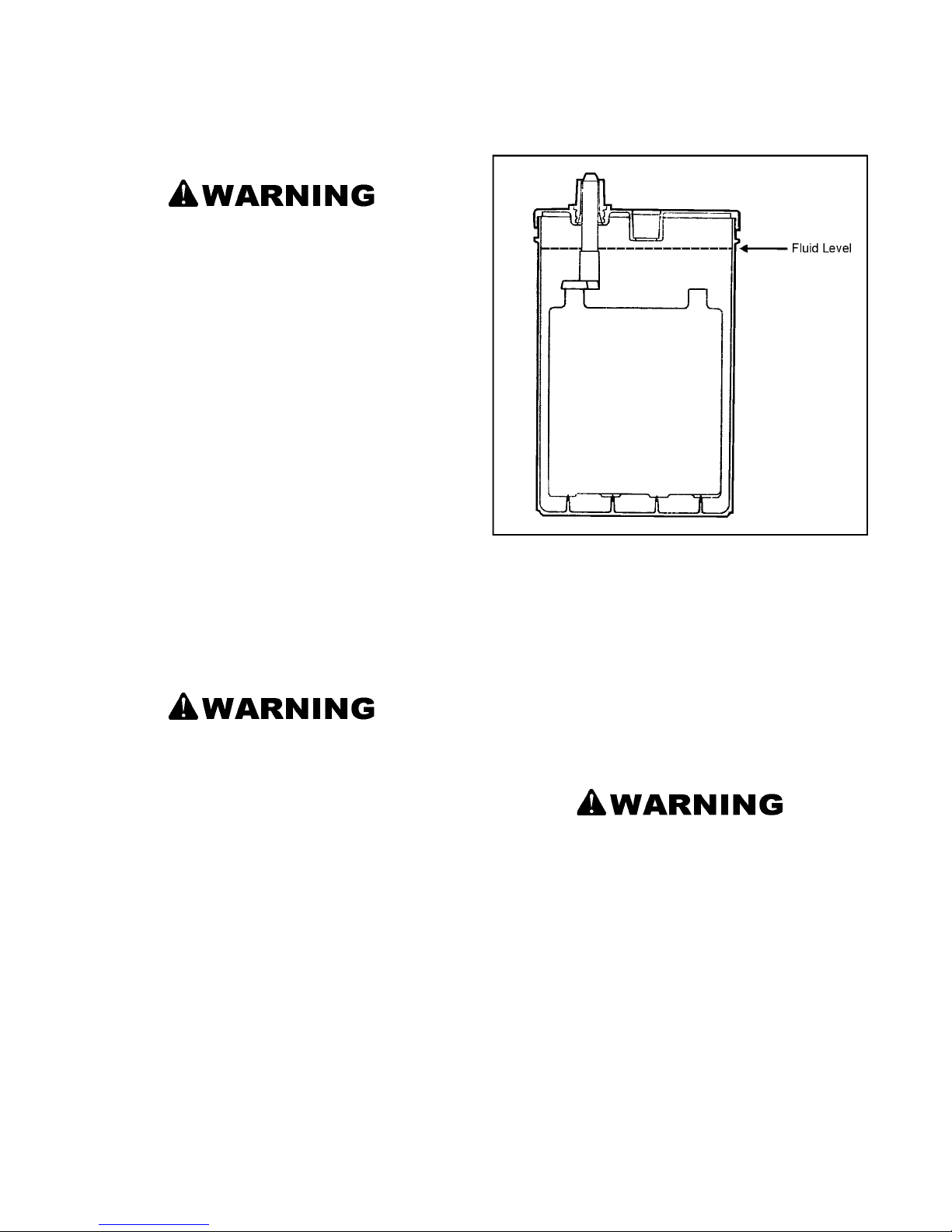

Checking Fluid Level .................................................................................................... 18

Charging the Battery ...................................................................................................... 18

Cleaning the Battery Terminals and Cable Connections ............................................... 18

Cleaning the Battery ....................................................................................................... 18

7.1.3 ELECTRICAL SYSTEM FUSES ............................................................................................... 19

7.1.4 SPARK PLUGS (GAS ENGINE) ................................................................................................ 19

7.2 DRIVE SYSTEM & TIRES ....................................................................................................................... 19

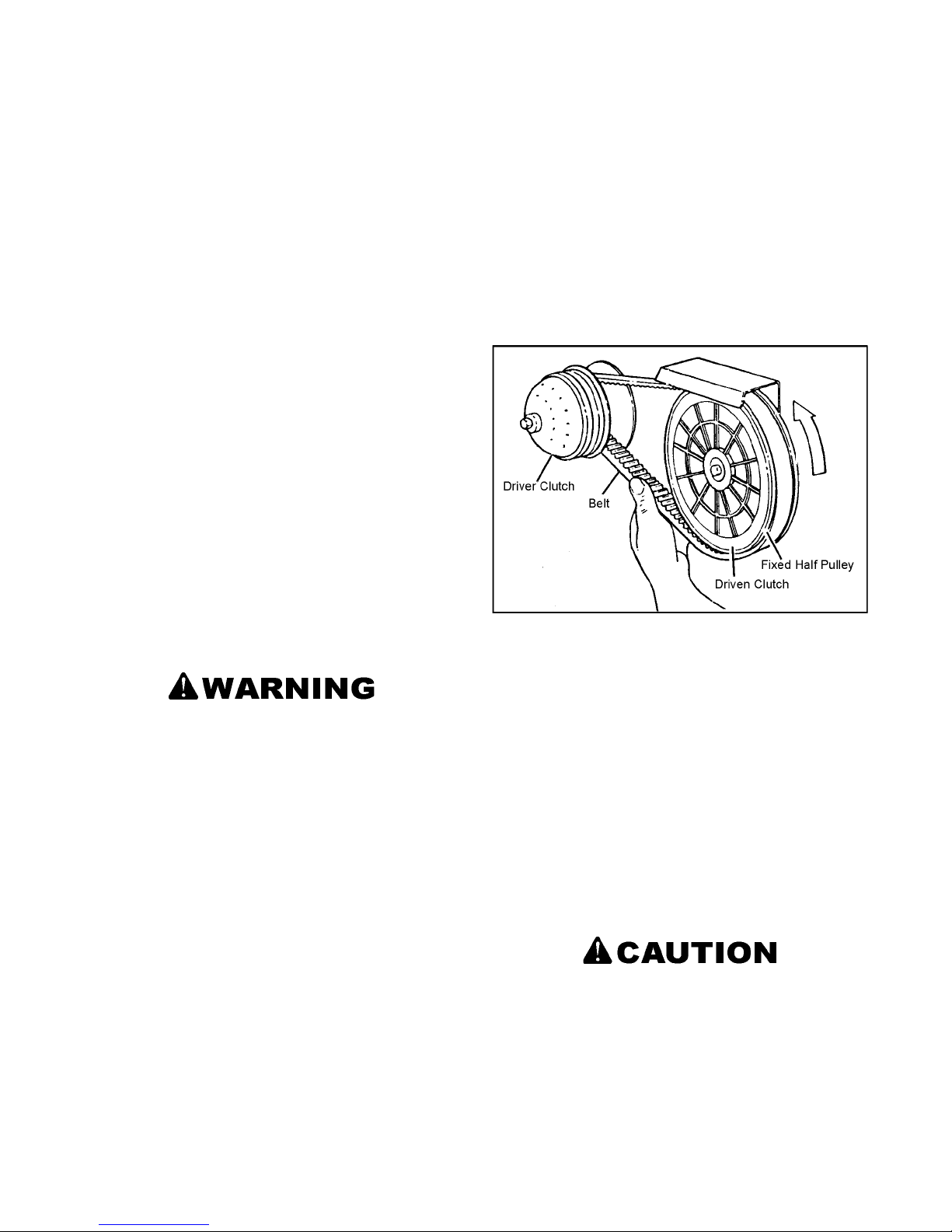

7.2.1 DRIVE BELT ............................................................................................................................... 19

To Remove the Drive Belt ............................................................................................. 19

To Install the Drive Belt ................................................................................................. 19

7.2.2 CLUTCH MAINTENANCE ....................................................................................................... 20

Clutch Inspection ............................................................................................................ 20

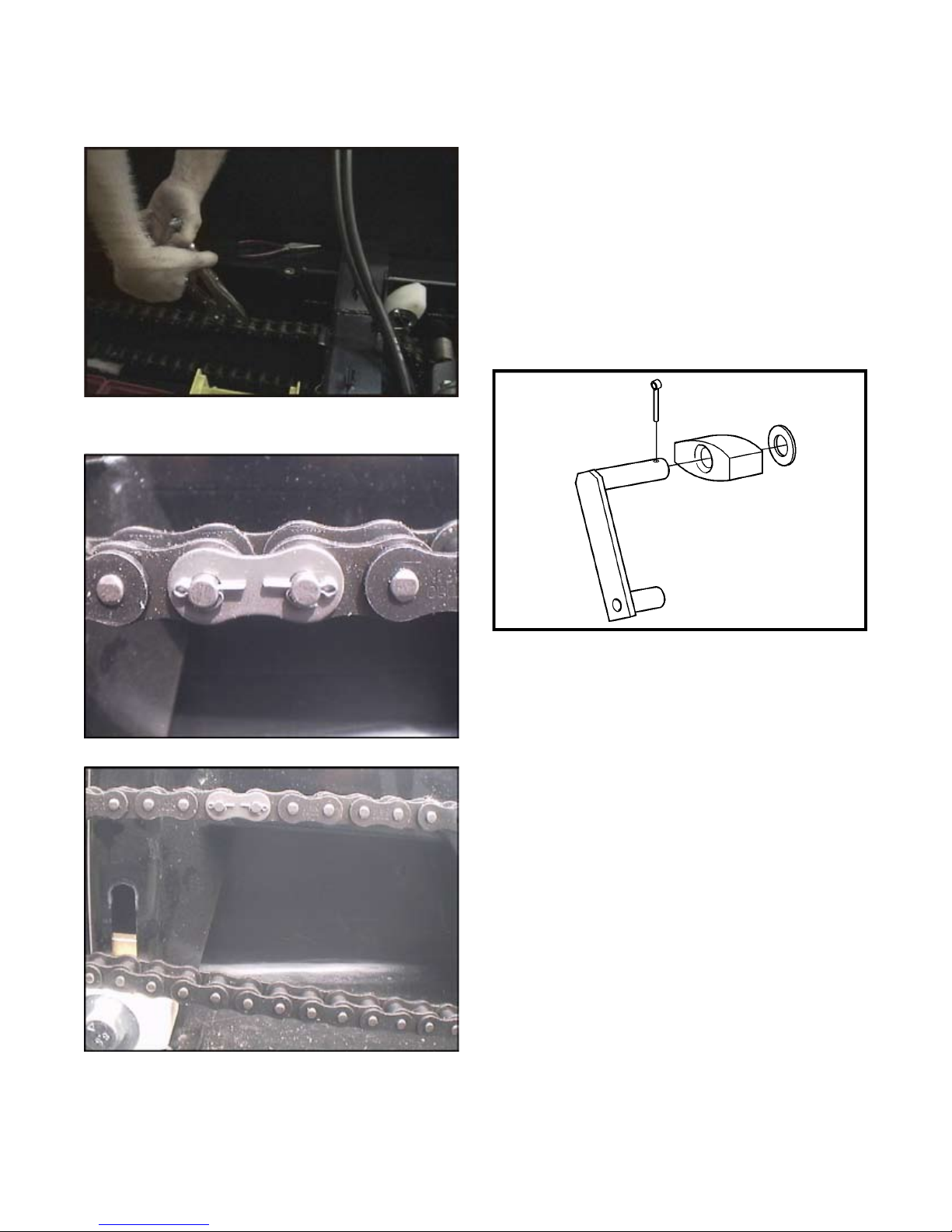

7.2.3 DRIVE CHAINS ......................................................................................................................... 20

To Remove the Drive Chains ......................................................................................... 20

To Install the Drive Chains ............................................................................................. 20

7.2.4 TO REPLACE A SLIDER BLOCK ............................................................................................. 21

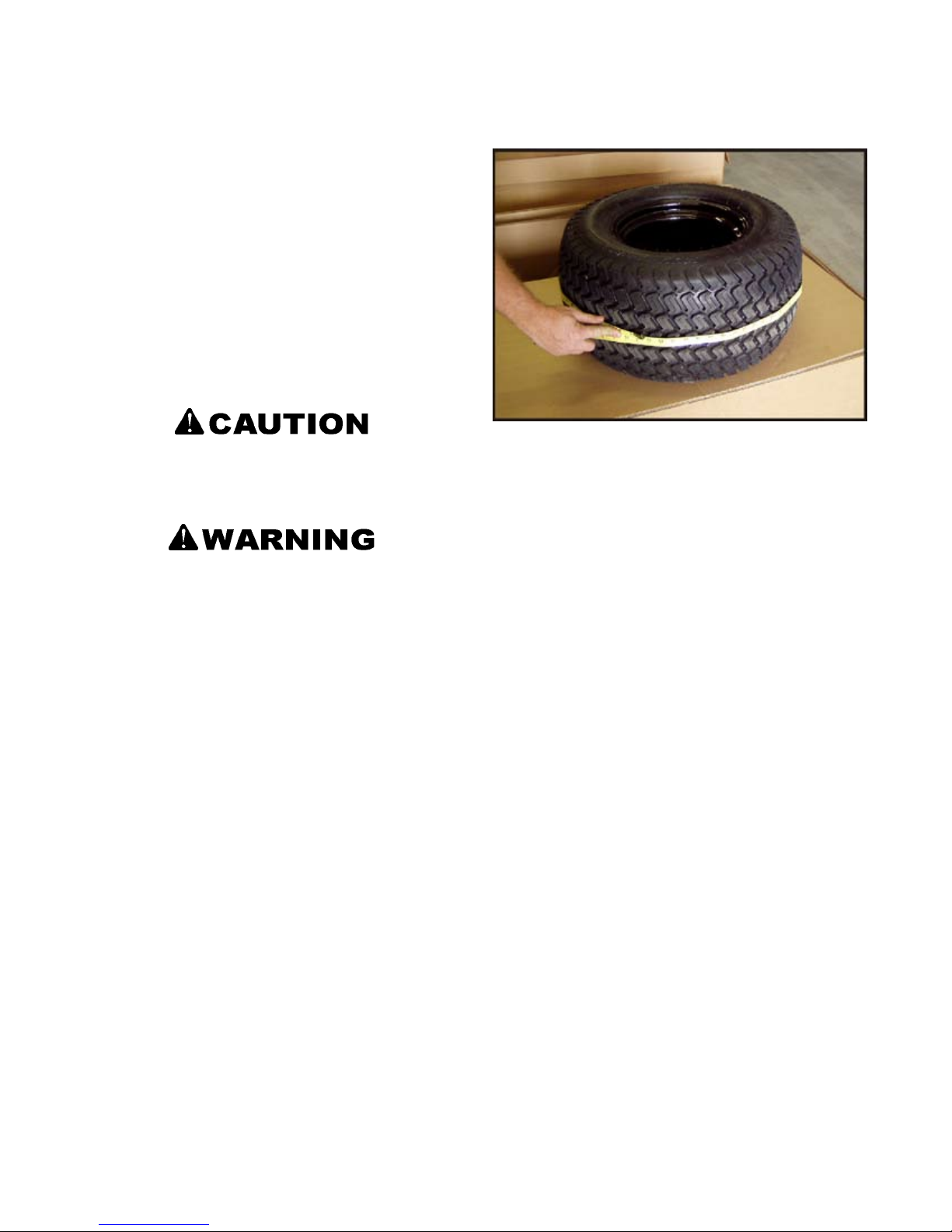

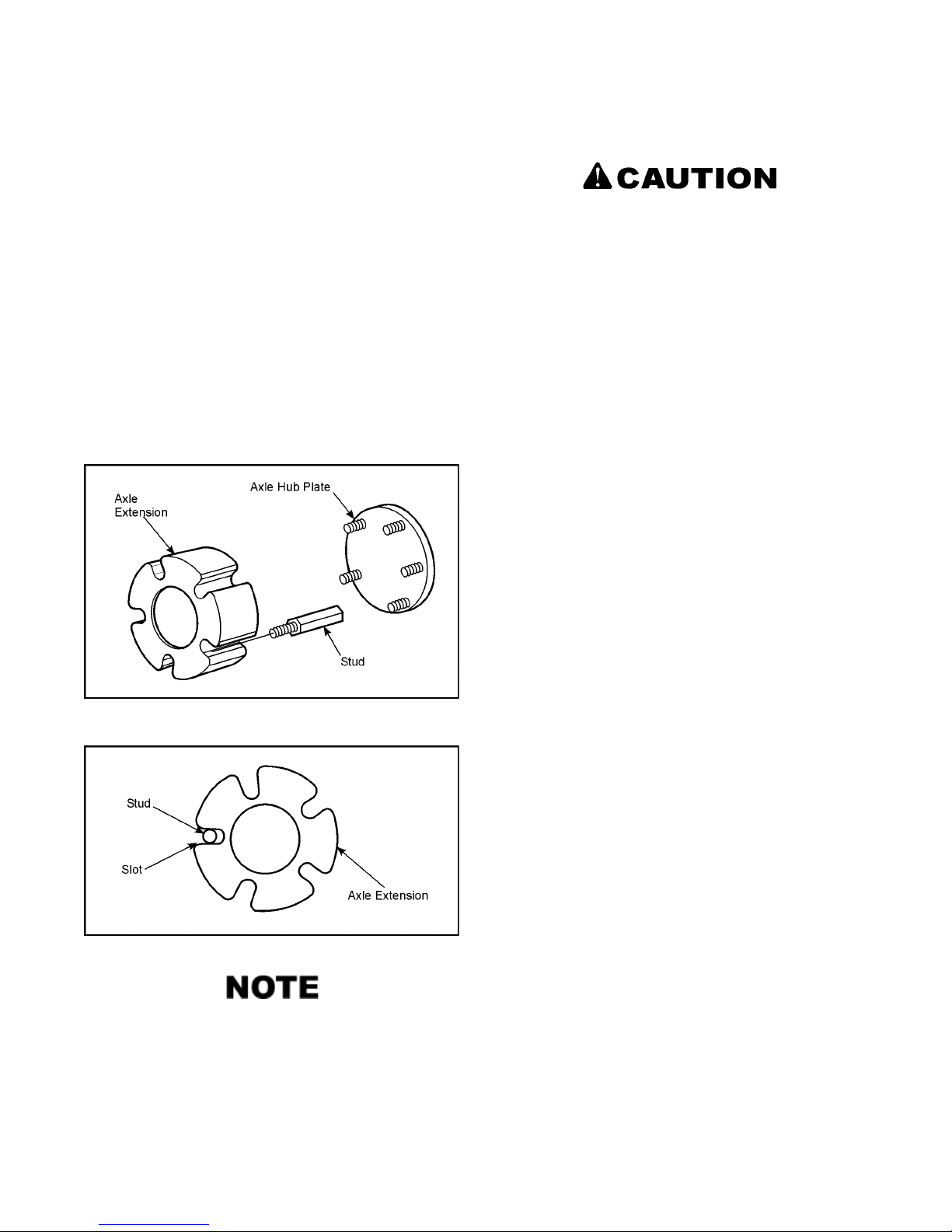

7.2.5 TIRE REPAIR AND REPLACEMENT ....................................................................................... 21

7.3 MECHANICAL PARKING/EMERGENCY BRAKE ............................................................................... 22

7.3.1 GENERAL .................................................................................................................................... 22

7.3.2 BRAKE CALIPER ADJUSTMENT ............................................................................................ 22

TABLE OF CONTENTS

SECTION PAGE

To adjust the brake caliper .............................................................................................. 22

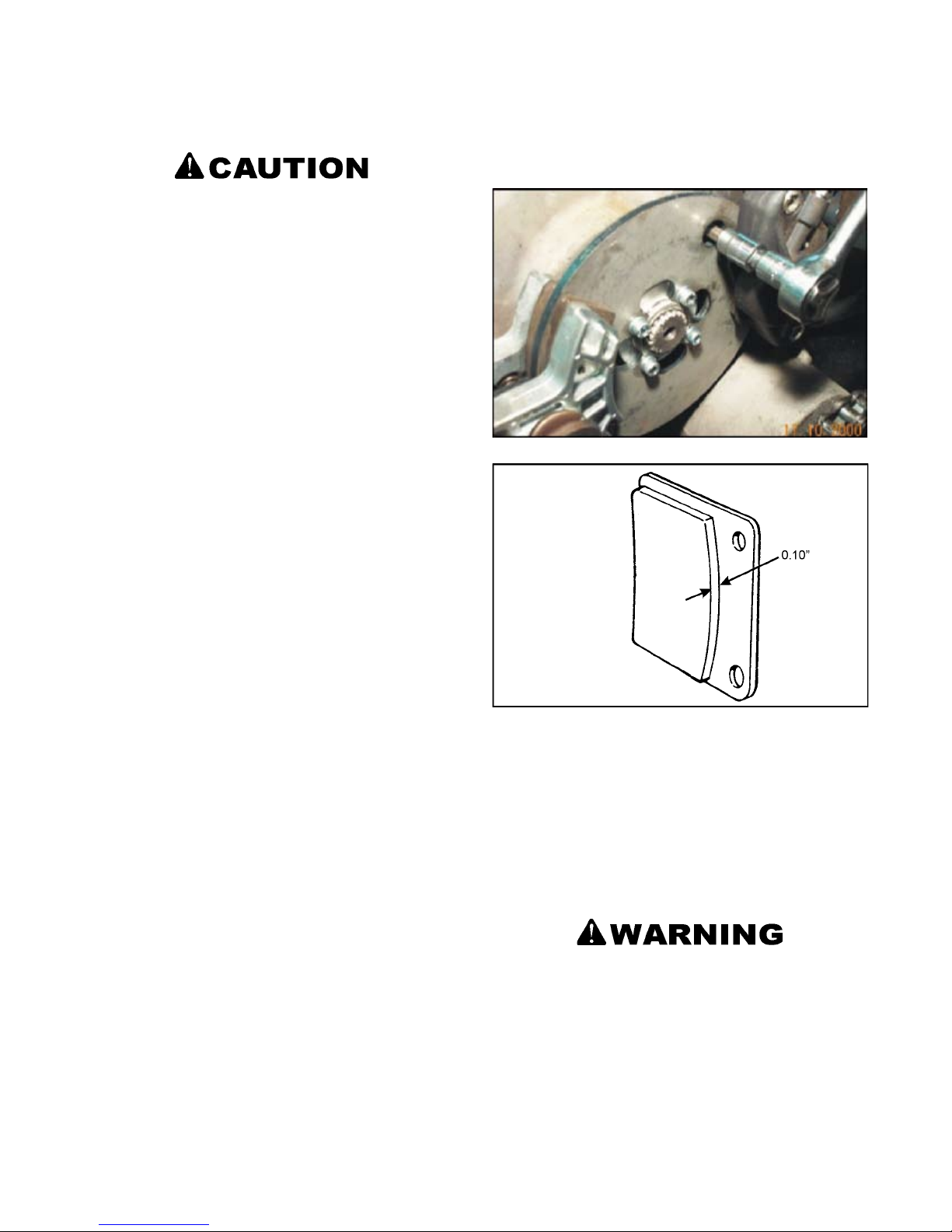

7.3.3 BRAKE PAD REPLACEMENT ................................................................................................. 22

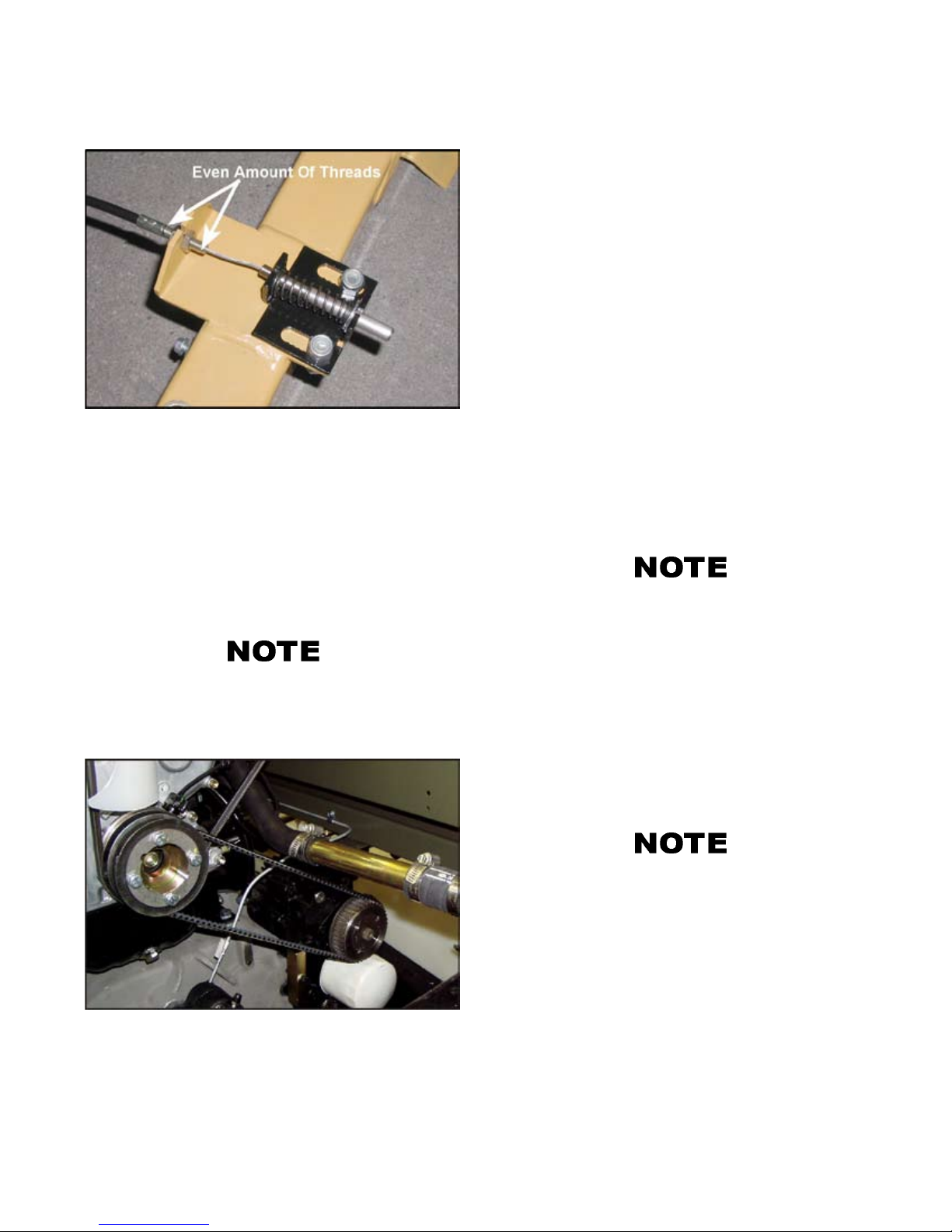

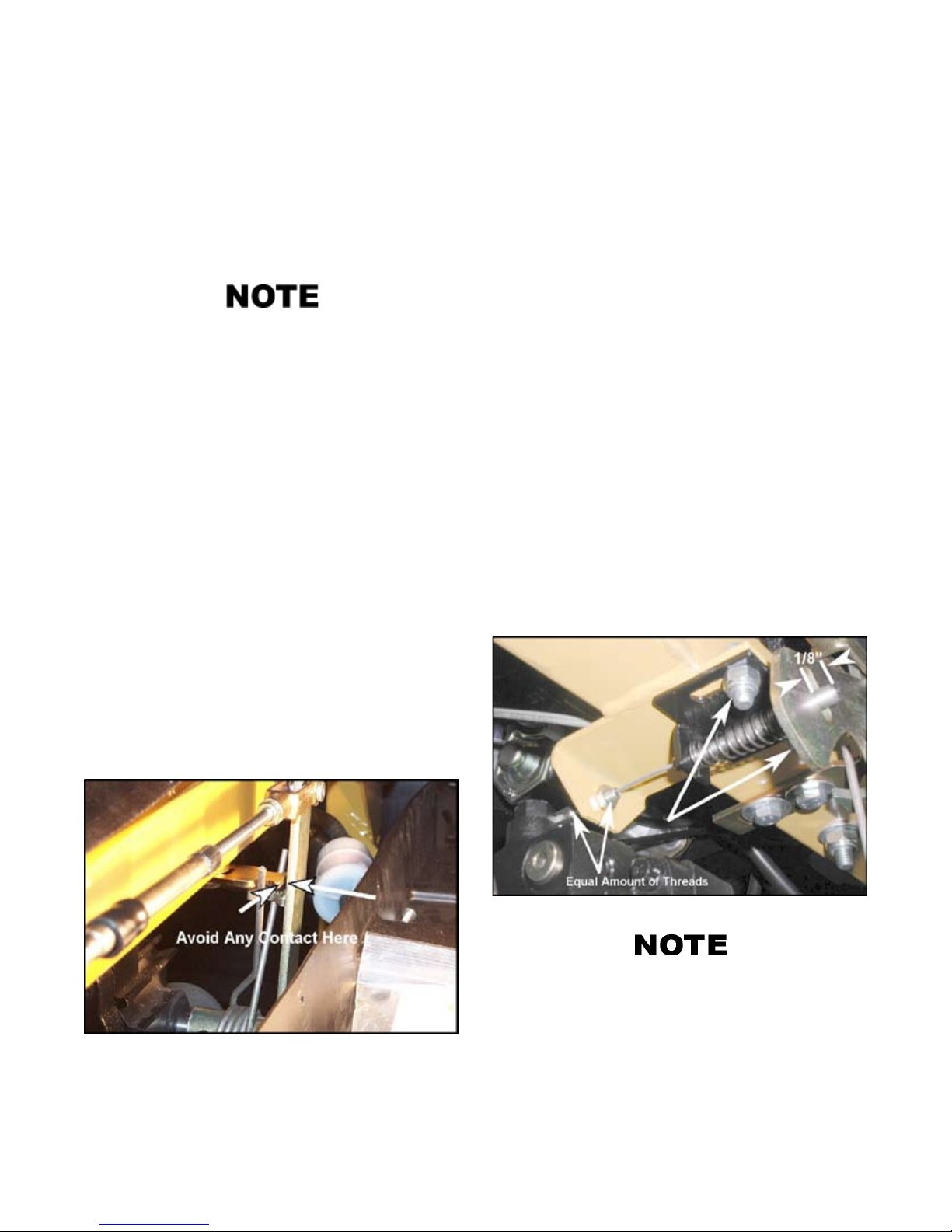

7.3.4 BRAKE CABLE ADJUSTMENT ................................................................................................ 23

To adjust the brake cable ................................................................................................ 23

7.4 HYDRAULIC BRAKE ............................................................................................................................... 23

7.4.1 GENERAL .......................................................................................................................... 23

7.4.2 BRAKE FLUID LEVEL ............................................................................................................. 23

7.4.3 CHANGING BRAKE FLUID ............................................................................................ 24

7.4.4 HYDRAULIC BRAKE PAD INSPECTION ....................................................................... 24

Brake Pad Inspection Procedure ......................................................................................... 24

To replace the brake pads .................................................................................................... 24

7.4.5 ENGINE COOLING & EXHAUST SYSTEM ................................................................... 24

7.5 STEERING SYSTEM ................................................................................................................................. 25

7.5.1 STEERING CENTERING ADJUSTMENT ....................................................................... 25

7.5.2 STEERING WHEEL & LOCK ADJUSTMENT ................................................................ 25

7.5.3 HYDROSTATIC TRANSMISSION DRIVE BELT ............................................................ 26

7.6 SHIFTING SYSTEM.................................................................................................................................... 26

7.6.1 SHIFT CABLE ADJUSTMENT ......................................................................................... 26

7.6.2 THROTTLE CABLE ADJUSTMENT ................................................................................ 26

7.7 MAINTENANCE SCHEDULE ................................................................................................................... 27

8.0 TROUBLESHOOTING ........................................................................................................................................ 28

9.0 CLEANING AND STORAGE

9.1 CLEANING THE VEHICLE ...................................................................................................................... 30

9.2 STORING THE VEHICLE .......................................................................................................................... 30

Clean the Vehicle ................................................................................................................................ 30

Drain the Fuel System ......................................................................................................................... 30

Prepare the Battery for Storage ........................................................................................................... 30

Protect the Electrical System .............................................................................................................. 30

Raise the Vehicle .................................................................................................................................. 30

Preparing the Engine for Storage ........................................................................................................ 30

10.0 POTENTIAL HAZARDS ..................................................................................................................................... 31

11.0 ACCESSORY INFORMATION

11.1 GENERAL .................................................................................................................................................... 35

11.2 REAR CARGO TIE DOWN BARS (Part No. 849-116) .............................................................................. 35

11.3 ALL SEASON TRACK KIT (Part No. 849-150) ......................................................................................... 35

11.3.1 Track Installation .......................................................................................................................... 35

11.3.2 Operating Precautions ................................................................................................................... 36

11.4 WINTER TRACK KIT (Part No.849-160) ................................................................................................... 37

11.4.1 Installing the Axle Extension ........................................................................................................ 37

11.4.2 Track Installation .......................................................................................................................... 37

11.4.3 Removal of Tracks ........................................................................................................................ 38

11.4.4 Operating Precautions ................................................................................................................... 38

11.5 ICE CLEAT KIT (Part No. 848-130) ............................................................................................................ 38

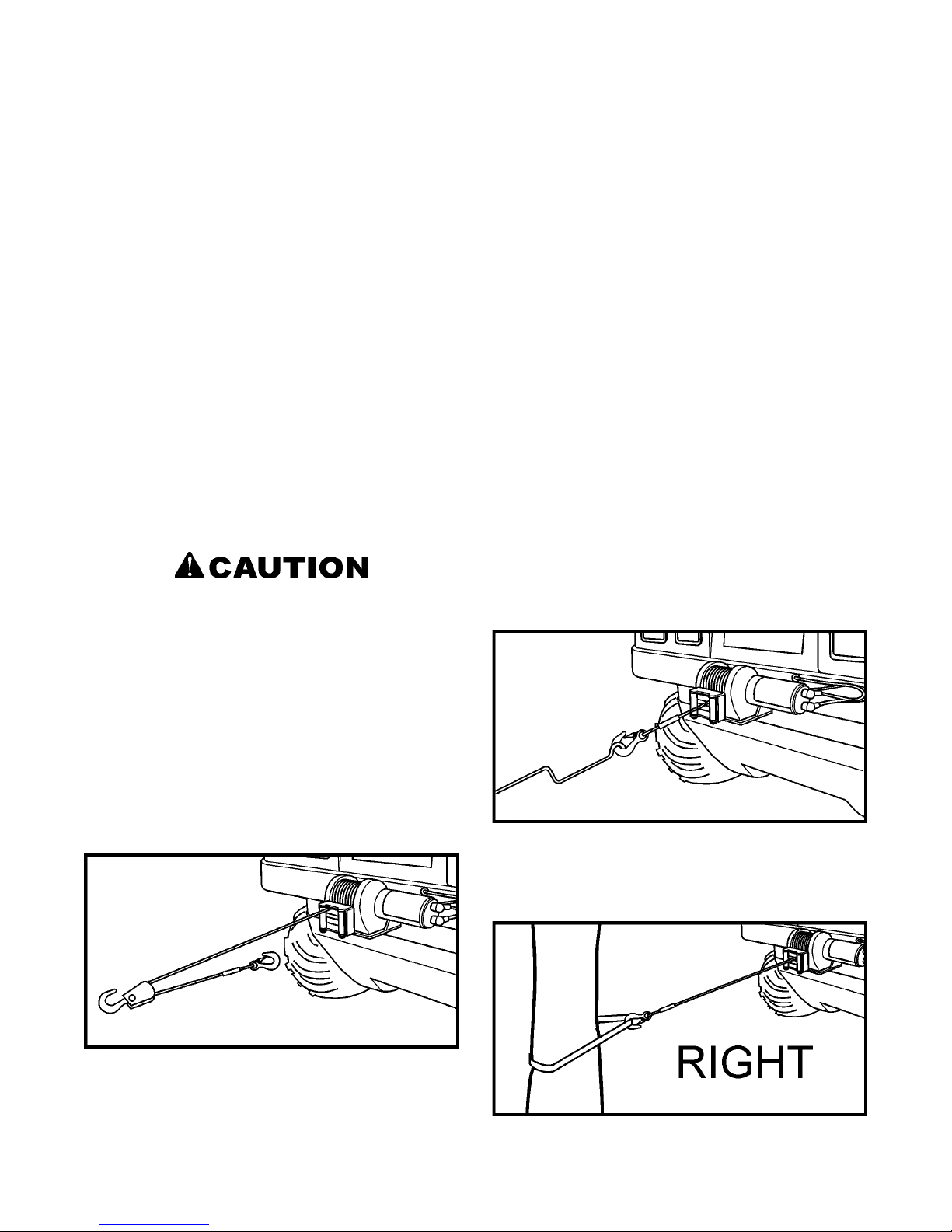

11.6 WINCH KIT (Part No. 849-114) .................................................................................................................. 39

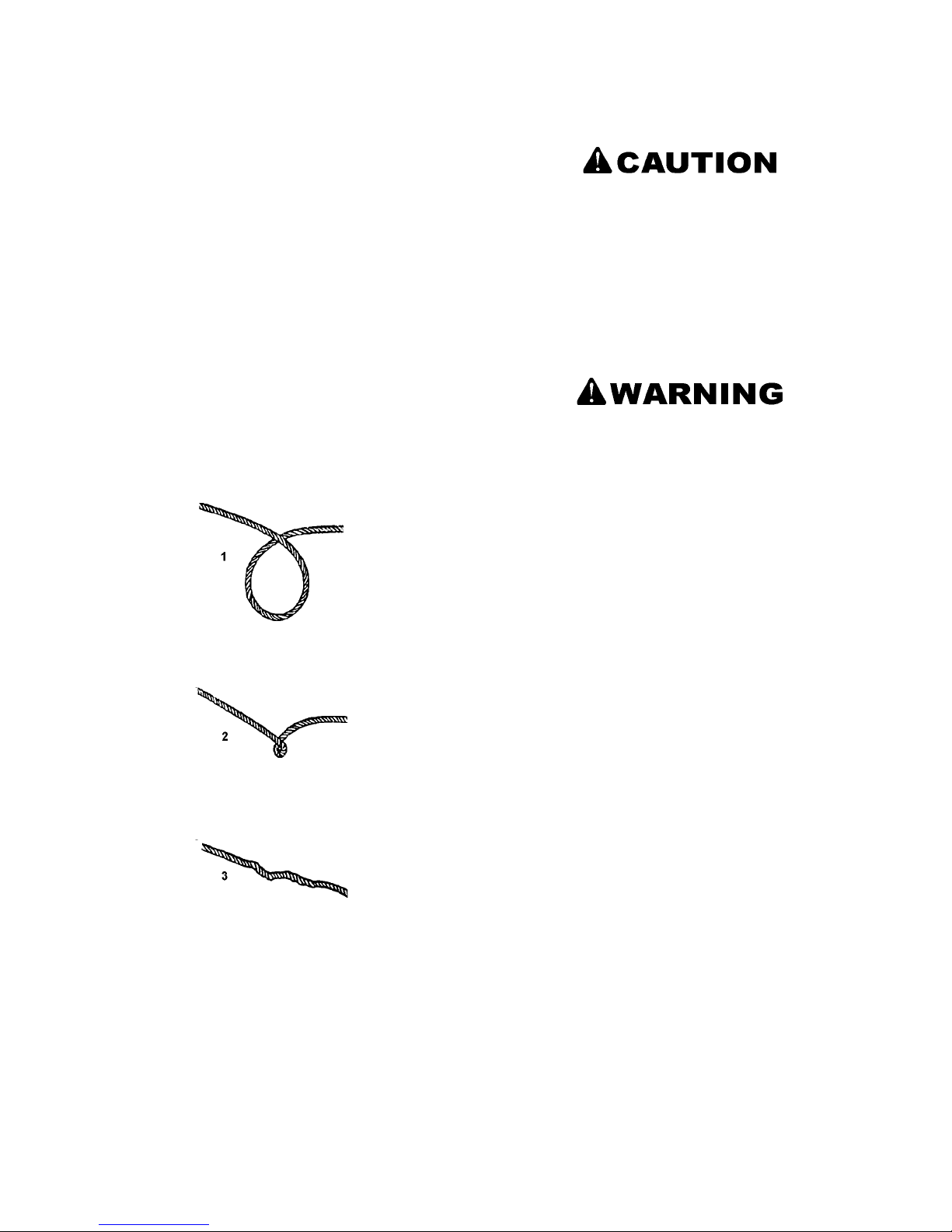

11.6.1 Rules For Safe Operation .............................................................................................................. 39

11.6.2 Tips for Extending the Life of Your Winch .................................................................................. 40

11.7 RECEIVER WINCH KIT (Part No. 849-123) .............................................................................................. 41

TABLE OF CONTENTS

SECTION PAGE

11.8 BILGE PUMP KIT (Part No. 849-146) ........................................................................................................ 41

11.9 SNOW PLOW KIT (Part No. 657-106) ........................................................................................................ 41

11.9.1 Operating Guidelines .................................................................................................................... 41

11.10 UTILITY TRAILER (Part No. 695-80BL) ................................................................................................... 41

11.10.1 Operating Precautions ................................................................................................................... 42

11.11 CAB HEATER (Part No. 848-110) ............................................................................................................... 42

11.12 DUMP BOX KIT (Part No. 835-100) ........................................................................................................... 42

11.13 CARGO LINER (Part No. 848-123) ............................................................................................................ 42

11.14 CENTAUR FOUR POINT LIFT KIT - (Part No. 848-121) ......................................................................... 42

11.15 LIGHT GUARD KIT (Part No. 849-134) .................................................................................................... 43

11.16 BRUSH GUARD KIT (Part No. 849-191) ................................................................................................... 43

11.17 MUD FLAP EXTENDERS (Part No. 821-105) ........................................................................................... 43

11.18 TRANSMISSION OIL HEATER (Part No. 613-103) .................................................................................. 43

11.19 SPEEDOMETER KIT (Part No. 849-165) ................................................................................................... 43

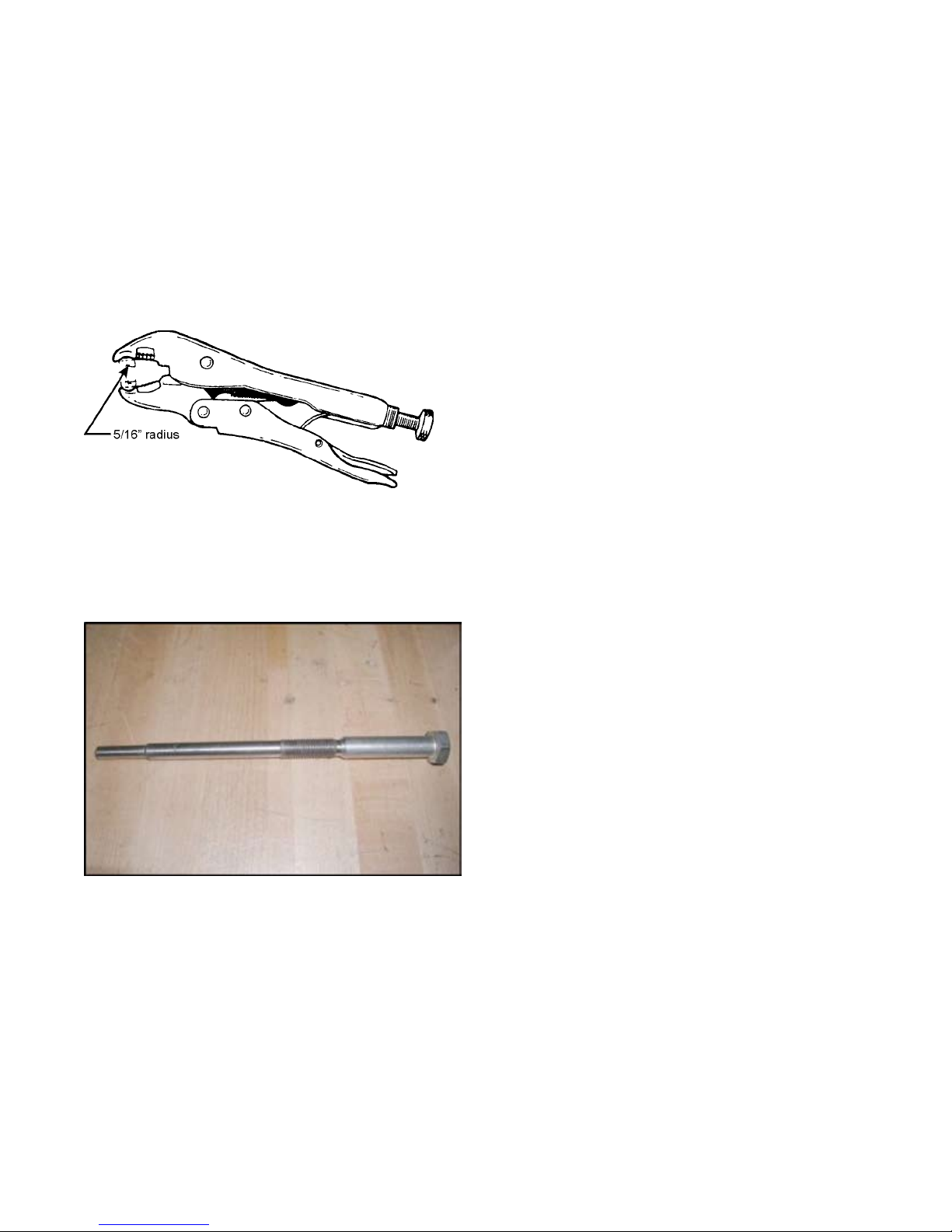

APPENDIX 1 SPECIAL TOOLS

10R VICE GRIP MODIFICATION ......................................................................................................................... 44

DRIVER CLUTCH REMOVAL TOOL 658-17 ....................................................................................................... 44

SECTION 1

GENERAL INFORMATION

1.1 AMPHIBIOUS OPERATION

While the Centaur has been designed with a one piece polyethylene sealed lower body, the vehicle is not intended to be used as an amphibious vehicle. Floating the Centaur across lakes, streams and ponds could cause the vehicle to take on water with the possibility of capsizing the vehicle, causing injury or drowning to the operator and passenger. Ontario

Drive & Gear does not recommend oating the Centaur across

any bodies of water.

1.2 MAINTENANCE PROCEDURES

Maintenance procedures described in this manual can be car-

ried out by the operator. These procedures include:

1. checking uid levels

2. changing the engine and transmission oil

3. cleaning and replacing lters

4. preventative maintenance

5. inspections, adjustments, repairs and trouble- shooting

If you perform your own maintenance, carefully follow the

lubrication and preventative maintenance schedule (Section

7.7). A Centaur Service Manual on CD-ROM or in print, is

available from your Centaur dealer.

Centaur operators should be aware of the wind chill factor.

Dress warmly and make sure exposed skin is protected. Pay

particular attention that young passengers are properly dressed with their hands and faces well protected.

1.4 MODEL IDENTIFICATION

Contact your CENTAUR dealer for a list of the services they offer to users of the CENTAUR.

The trouble-shooting chart (Section 8) contains information

for locating and correcting mechanical problems. In many

cases, potential problems can be identied by unusual noises,

sluggishness or vibration, before they result in a breakdown. Refer to the chart to identify these symptoms. Take immediate corrective action or take the vehicle to a CENTAUR dealer for service.

This manual does not provide detailed maintenance or servicing information for the engine. Refer to the engine manufac-

turer’s manual (supplied with each CENTAUR) for important

warranty, service and operating information.

If the engine requires servicing, take the vehicle to an authorized engine service outlet.

1.3 WIND CHILL FACTOR

Why does it feel much colder outdoors on a windy day than when there’s no wind, especially in winter? The cooling effect of the wind makes it feel like it’s colder than it really is. This combined effect of wind and low temperature is known

as the “wind chill factor”.

The vehicle identication plate is fastened to the upper frame

to the right of the passenger’s knee. The model and serial numbers are stamped into it.

SECTION 1

GENERAL INFORMATION

Carefully observe the maximum load capacity for your vehicle on land as listed in the following:

Model CENTAUR-G

Engine Make DM 954 G (Gasoline)

Briggs & Stratton Daihatsu

Type Naturally aspirated gasoline, in-line

CENTAUR-DT

DM 950 DT (Turbo Diesel)

Briggs & Stratton Daihatsu

Turbo Diesel, in-line 3 Cylinder, 4 cycle, liquid cooled

3 cylinder, 4 cycle, liquid cooled

Displacement 952 cc (58 cu. in.) Horsepower 34 @ governed 3800 rpm Torque 55 ft. lbs. @ 2200 rpm. Electrical 12 volt, 60 amp alternator, 600 CCA

battery, dash mounted manual choke

952 cc (58 cu. in.)

31 @ governed 3800 rpm 55 ft. lbs. @ 2400 rpm. 12 volt, 60 amp alternator, 960 CCA battery, dash

mounted glow-plug-on and water-in fuel indicators

Engine Option 34 hp @ governed 3800 rpm 34 hp @ governed 3800 rpm Torque 55 ft./lbs. @ 2200 rpm 58 ft./lbs. @ 2400 rpm Brakes Foot pedal operated hydraulic disc brakes with hand operated mechanical parking brake. Steering Skid steered via SAUER DANFOSS 15 Series Transmission Driver Controls Conventional automotive type steering wheel, brake pedal and foot throttle; dash mounted key oper-

ated ignition/starter switch, high/low beam headlamp switch, tachometer/hourmeter, fuel level and

coolant temperature gauges; warning lights for low oil pressure and low electrical charge rate.

Clutch & Transmission Continuously variable belt driven torque converter (CVT). High and low range forward, neutral

and reverse transmission controlled by a conventional shift pattern range selector.

Final Drive System RC80 roller chains from transmission to eight 1.59" (40mm) diameter axles. Automatically adjusted

tensioner for each drive chain. Tapered roller bearings in an oil bath support each axle.

Frame Powder coated, 3 inch tubular steel, lower body support pan, welded construction. FEA analyzed

for strength and durability.

Body Vacuum formed lower hull and standard full skid plate formed from high density polyethylene

(HDPE)

Load Capacity 1500 lbs/680 kg on land Towing Capacity* 2000 lbs/907 kg of drawbar pull. Seating Capacity Front bench seat for two persons Fuel Capacity 12.6 U.S. gal./48 litres providing approx. 10 hours of operation Speed** 28 mph/45 km/h on land Shipping Weight 2200 lb/1000 kg Tires Goodyear Rawhide III AT25 x 11.50 - 9 NHS Vehicle Weight 2520 lbs /1143 kg with Multi-Purpose Tracks – 2720 lbs /1234 kg with Snow Tracks Max Total Vehicle Weight 3600 lbs/1633 kg. Includes everything: vehicle, accessories, operator, fuel, etc. Ground Pressure Tires: Zero Penetration 5 PSI/ 34 kPa

Multi-purpose Tracks: Zero Penetration 1.5 PSI/ 10 kPa Laden: 2.2 PSI/ 15 kPa 3” of Penetration 1.0 PSI/ 6.8 kPa Laden: 1.4 PSI/ 9.5 kPa Snow Tracks: Zero Penetration 0.7 PSI/ 4.8 kPa Laden: 1.0 PSI/ 6.8 kPa 3” of Penetration 0.6 PSI/ 4.1 kPa Laden: 0.9 PSI/ 6.1 kPa

Ground Clearance 8"/200 mm to centre of lower body Operating Conditions All weather, all terrain, -40

F to +104oF (-40oC to + 40oC)

Transport Truck, trailer or helicopter lift

* Towing capacity is approximate and depends on type of surface, load on vehicle as well as incline.

** All speeds are approximate and depend on conditions.

Design and specications subject to change without notice. Options may not be exactly as shown. Please visit us at www.Centaur8x8.ca and www.odg.com for

updated information.

SECTION 1

GENERAL INFORMATION

1.4.1 Centaur Vehicle Capacity

Vehicle capacity includes occupants, cargo, fuel, and all accessories. Capacity for occupants and cargo is reduced by the weight of accessories as shown in the chart below.

Available vehicle capacity must be reduced if your vehicle is

equipped with any accessories. Reduce the available capacity by the total weight of accessories tted to your vehicle.

Reduce By Accessory On On Vehicle Land

Cab Heater 20 lbs. (9 kg) Winch Kit 45 (21) Brush Guard 20 (9) Cargo Liner 30 (14) Dump Box 240 (109) Snow Plow 150 (68) Multi-Purpose Tracks 310 (141) Winter Tracks 515 (234)

1.6 CE MARKED CENTAURS

CE marked Centaurs include:

• CE marked serial number label

• horn, activated from driver’s compartment

• the weighted root mean square value for vibration of

the vehicle does not exceed 2.5 m/s

• the weighted root mean square value for vibration to

which the body is subjected does not exceed 0.5 m/s

• airborne noise emissions do not exceed:

Drivers position, stationary - 95.7 dB(A) @ 3800 rpm

Drivers position, stationary - 104.4 dB(C) @ 3800 rpm

1.5 IDENTIFICATION AND LOCATION OF CONTROLS

SECTION 1

GENERAL INFORMATION

1.7 INFORMATION LABELS

There are labels on all models which indicate operating hazards and provide special operating instructions. Information about the operation of the vehicle, correct fueling procedures, and steering system use has been provided on distinctive yellow and black labels fastened to the various locations on the CENTAUR.

Figure 1.1 Location of Information Labels

SECTION 2

GENERAL OPERATING INFORMATION

2.1 NEW VEHICLE “BREAK-IN” PROCEDURE

To obtain long term, trouble free service from your vehicle,

observe the following break-in guidelines:

1. Vary the speed of the vehicle for the rst tank of fuel.

Avoid full power during break-in period.

2. Check engine and transmission oil levels daily during break-in period.

3. Change the transmission oil after initial 25 hours of operation. Failure to do so can result in damage to the transmission bearings or gear surfaces. Refer to Section

6.2.2 for transmission oil changing instructions.

4. Change the engine oil after the rst 25 hours of operation. Refer to Section 6.1.3 of this manual for oil change information.

5. Never overload your vehicle. Trying to steer an overloaded vehicle can over pressurize and damage the steering system. This will lead to a loss of steering control. Overloading the vehicle can lead to premature steering

system failure and costly damage to drive chains, axles

or bearings. Follow the recommended load capacity for the vehicle listed in Section 1.4.

2.2 PRE-OPERATION CHECKS

Carefully follow the engine manufacturer’s recommended

pre-operation/daily checks as well as the following:

1. Check the fuel level on the gauge.

tions. Clear any debris that has accumulated.

2.3 CARRYING PASSENGERS AND CARGO

1. Keep cargo as low as possible and evenly distributed.

2. Use extreme CAUTION when negotiating inclines with a

loaded vehicle. Heavy loads and high loads decrease the stability of the vehicle and may cause it to roll. Be prepared to shift occupant weight and load forward or have passengers get out of the vehicle to climb an incline.

3. Secure cargo to prevent it from shifting while driving.

2.4 FUELING THE VEHICLE

Gasoline and diesel fuel are extremely ammable and

can explode under certain conditions. Do not add fuel while the engine is running or hot. If fuel is spilled in, on or around the vehicle, wipe it up immediately. Flush out any fuel spilled in the vehicle with water and allow it to drain out through the drain plug holes. Do not smoke

when lling the fuel tank.

The Centaur is equipped with a 48 litre (10.6 Imp. Gal., 12.7 U.S. Gal.) polyethelene fuel tank located underneath the

driver’s seat. Depending on loading and driving conditions, a Centaur can be driven for 7 to 12 hours on one tank of fuel. Verify your vehicle’s actual fuel consumption before attempt- ing any long trips. Never travel in remote areas or set out on long trips without a full tank of fuel and adequate spare fuel

stored in approved watertight fuel containers.

2. Check the air pressure in all tires. All tires should be the same pressure. For light use with low payloads pressurize

to 5 psi (24 kPa). For heavy use with high loads use up to 7 psi (48 kPa.)

3. Test the operation of the gas pedal by pressing to the oor

and releasing it. The throttle must operate smoothly and return automatically to the fully closed position.

4. Test the operation of the steering lockout by lowering the driver’s armrest. The steering wheel should turn freely either way but be locked in the centre position when the armrest is in the raised position.

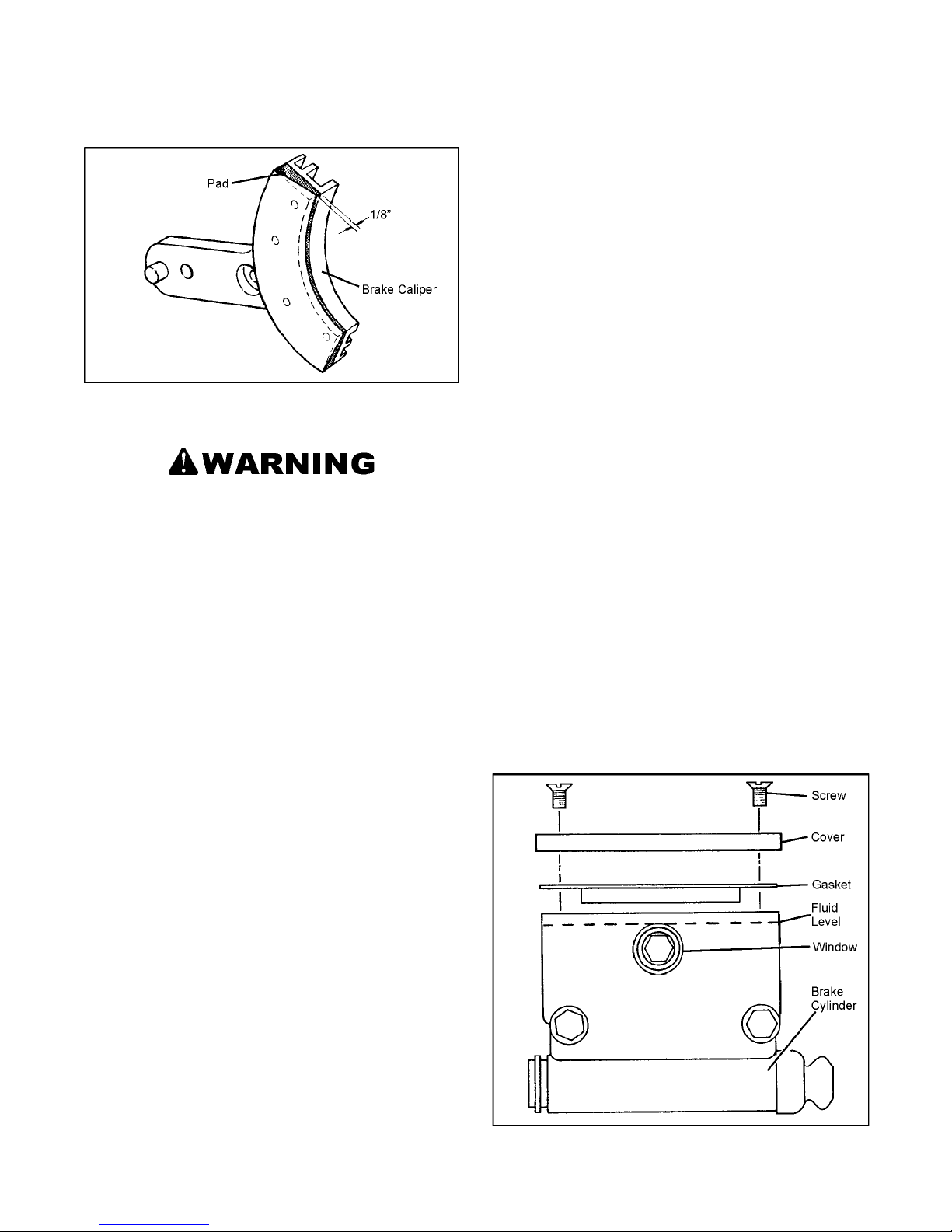

5. Check the brake travel by pressing on the pedal. See Section 7.3.4 for proper adjustment details.

6. Check the engine intake and exhaust screen for obstruc-

The fuel ller neck and fuel cap are located on the left side

of the vehicle behind the driver’s seat. Replace the fuel cap if fuel leakage occurs, or if moisture is detected in the fuel. Use ODG Part No. 126-46 fuel cap.

Never ll the tank to the point where the fuel level rises into the ller neck. If the tank is overlled, heat may cause the fuel to expand and overow through the vent.

Portable fuel containers may contain contaminants (dirt, water, etc.) that will cause engine operating problems. Use only

clean, approved fuel containers.

After lling the fuel tank, be sure the fuel cap is replaced

securely. Do not drive the vehicle unless the fuel cap is properly in place.

SECTION 2

GENERAL OPERATING INFORMATION

Never use untreated gasoline that has been stored for more than 45 days. Stale gasoline can cause gum deposits to form in the fuel lines and carburetor. These deposits clog the fuel system and cause engine starting and operating problems.

When storing the CENTAUR for 45 days or more, use ODG Part No. 125-85 Fuel Stabilizer to treat fuel in the fuel tank and fuel containers.

Do not use Bio Diesel with Parker Superex-FI fuel

hose equipped machines. Please contact manufacturer for alternative fuel hoses.

*Machines built before May '06 used fuel lines NOT

compatible with bio-diesel fuel.

Centaur 950 and 954 - Gasoline

Use clean, fresh, unleaded gasoline with a minimum of 85

octane. Purchase fuel in quantity that can be used within

30 days to assure fuel freshness. We recommend the use of Briggs & Stratton gasoline additive; ODG part no. 127-77. Leaded gasoline may be used if it is commercially available and unleaded is unavailable.

Keep fuel tank full. Do not over-ll. Allow space in tank for fuel expansion. Check for fuel leaks at fuel lter, injector

pump, fuel lines, etc.

If the fuel tank does run dry, use the priming pump on the fuel

lter to bleed the air from the fuel line then attempt to restart

the engine. You may have to bleed the system several times in order to restart engine.

2.5 VENTED FUEL SYSTEM

Centaur models have fuel tanks that are vented through a spe-

cial hose connected to the ller neck assembly that runs along the rewall to a position up under the engine cover.

Note: Some fuels, called oxygenated or reformulated gasolines, are gasolines blended with alcohols or ethers. Excessive

amounts of these blends can damage the fuel system or cause performance problems. Do not use gasoline which contains Methanol. If any undesirable operating symptoms occur, use gasoline with a lower percentage of alcohol or ether.

Keep fuel tank full. Do not over-ll fuel tank. Allow space for fuel expansion. Check for fuel leaks at fuel lter, carburetor,

fuel pump, etc.

Centaur 950DT - Diesel Turbo

Use clean, fresh diesel fuel with a minimum of 40 cetane.

Purchase fuel in quantity that can be used within 30 days to

assure fuel freshness.

Do not use kerosene or gasoline instead of diesel fuel. Failure to observe this caution will damage the engine and void manufactures warranty.

SECTION 3

OPERATING INSTRUCTIONS

3.1 STEERING

The steering wheel is used to turn the vehicle whenever the engine is running. When moving forward, steering is similar to an automobile. When moving in reverse, steering is opposite to an automobile, similar to backing up a trailer.

When moving in reverse, steering operation is opposite to automobiles. Practice driving backwards before taking the vehicle off road.

The steering system works whenever the engine is running, even when the gear selector is in neutral. The CENTAUR is a skid steer vehicle. During a turn, the rear of the vehicle swings outward as the vehicle pivots on the tires on the inside of the turn. To make a right hand turn, the rear of the vehicle skids out to the left. To make a left hand turn, the rear of the vehicle skids out to the right.

When turning, the back of the vehicle swings to the opposite direction of the turn. Always take care to avoid hitting persons or objects with the rear of the vehicle! Serious injury or death can result!

The steering system is powered by a hydrostatic transmission and works best when engine r.p.m. is higher than at idle. Avoid turning the steering wheel when engine is idling.

3.2 BRAKES

The Centaur has a foot operated brake pedal. To stop the

vehicle, press rmly on the brake pedal.

3.3 PARKING/EMERGENCY BRAKE

The Centaur is equipped with a parking/emergency brake.

The lever is located midpoint under the dash and is activated by pulling towards the driver. Release the brake by pushing the button on the end of the lever and pushing the lever as far forward as possible.

3.4 THROTTLE CONTROL

Vehicle speed is controlled by the accelerator pedal. To increase vehicle speed, press on the accelerator pedal. To decrease vehicle speed, remove pressure on the accelerator pedal.

3.5 STARTING PROCEDURE

Never start or run the engine in a closed building or

conned area. Engine exhaust gases contain poison-

ous carbon monoxide. Carbon monoxide is odourless, colourless and can cause serious personal injury or death.

All Centaur models are equipped with key operated, electric

start systems.

Do NOT use steering unless vehicle is moving. Do NOT use steering to assist in entering the vehicle. Damage to the steering system could result.

Centaur vehicles built after August 2001 have a steering lockout system. The armrest on the driver’s side is mechanically linked to the steering control. The steering wheel is locked in the center position when the armrest is in the raised position. When the armrest is in the lowered position, the steering is unlocked and ready for use.

Ensure armrest is lowered and steering wheel moves freely before driving the Centaur. If the steering lockout feature malfunctions, steering will be impaired which could cause an accident resulting in serious injury or death.

Centaur vehicles built after December 2001 have a neutral safety switch that prevents the vehicle from being started unless the vehicle gear selector is in neutral.

3.5.1 Gasoline Powered

1. Shift the transmission into neutral.

2. Use the choke if the engine is cold. Do not press down on the accelerator pedal if using the choke.

3. Turn the key to the “START” position.

SECTION 3

OPERATING INSTRUCTIONS

idle and turn ignition switch to the “OFF” position. Always

remove key from ignition switch when leaving the vehicle unattended.

3.7 SELECTING AND CHANGING TRANSMISSION

GEARS

The CENTAUR is equipped with a four position transmission.

The gearshift lever is located to the left of the dash.

Figure 3-1. Ignition Switch

Do not operate the starter continuously for more than 5 seconds or the starter may overheat. Wait 30 seconds between each operation of starter to let it cool and the battery power recover. Never attempt to restart the engine until it completely stops. Always remove key from switch when leaving vehicle unattended or when vehicle is not in use.

4. Release the key as soon as the engine starts: the key will automatically return to the “RUN” position.

5. Push the choke in halfway after the engine starts, and push it in all the way as the engine warms up.

6. If the engine fails to start, refer to the trouble-shooting chart in Section 8 for corrective action.

3.5.2 Diesel Powered

1. Shift the transmission into neutral.

* R (Reverse) - for backing up the vehicle

* Neutral - for starting the engine or idling

* L (Low) - for use when extra pulling power or very low

speed is required in rough terrain.

* H (High) - for general use at normal operating speeds.

Inside the transmission, there is a synchronizer system or clutch brake on the input shaft to allow for easier and more accurate shifts. When you apply force to the shift lever, it

is transmitted through push/pull cables to the transmission,

where it forces a gear to slide on the input shaft. The movement of the gear on the shaft is restricted by springs and balls within the input shaft so that extra force must be applied, allowing the synchronizer to brake the rotating shaft to a stop. This reduces gear grinding during shifting.

2. Turn the key to the “ON” position. The “DIESEL PREHEAT” light will come on for approximately ve

seconds.

3. When the “DIESEL PREHEAT” light goes out, turn the key to the “START” position.

4. Release the key as soon as the engine starts; the key will

automatically return to the “RUN” position.

5. If the engine fails to start, refer to the trouble-shooting chart in Section 8 for corrective action.

3.6 STOPPING THE ENGINE

Bring the vehicle to a complete stop. Release the accelerator pedal. Ensure that the steering wheel is positioned such that the vehicle doesn’t turn. Let the engine speed return to

Figure 3-2. Direction of gearshift travel and gear positions.

If the gear does not easily engage, it is possible that the teeth are clashing directly. If this is the case, pushing harder may not help. The input shaft must be allowed to start turning again and the shift attempt made over.

The shift box is designed to allow one lever to be used to

shift both high and low gears and reverse. There is a neutral position in which the lever can be moved side to side. The mechanism inside the transmission does not allow two gears to be engaged at one time. Access to low, high, or reverse is

SECTION 3

OPERATING INSTRUCTIONS

only possible from the neutral position. Shifting works best when the engine is running. To shift into high gear after the

engine is running:

1. Ensure that the lever is in neutral. Pause for a few seconds, and then;

2. Push rmly and quickly into the high gear position.

This works best if the brakes are NOT applied. If this doesn’t work, put the lever back into neutral, step on the gas pedal to

rev the engine briey (1500 rpm), let the engine idle down,

and then try the shift again. Repeat until it slides into gear.

If vehicle shifts hard into high, try shifting rst into low,

then into high and if the brakes are applied, the vehicle should shift better.

The technique to shift into low gear is identical to shifting

into high.

To shift into reverse, move the lever to the right and pull down

rmly. Less force is required to shift into reverse. Reverse

does not have a synchronizer so it is very important that the

engine is idling. If reverse gear does not engage the rst time, use the same technique as for shifting into high and low.

Do not attempt to move the gearshift from the neutral starting position until the engine idles down completely. The Centaur is equipped with an automatic clutch that is activated by engine speed. If the engine idle speed is too high, the transmission will grind during gear engagement.

3.8 HEADLIGHTS

The CENTAUR is equipped with 4 headlights that are operated through the dash mounted light switch. To turn the lights

on, push the light switch forward and down. The rst position turns on two lights with a ood pattern. The second position

turns on the other two driving lights in addition to the two

ood lights.

Do not leave the lights on for any length of time when the engine is not running. Leaving them on will drain the battery.

4.1 DRIVING STRAIGHT AHEAD

SECTION 4

DRIVING PROCEDURES

Ensure the driver’s armrest (if equipped) is in the lowered

position. Shift the transmission into LOW or HIGH. Press down on the accelerator pedal slowly until the clutch system engages and the vehicle moves forward.

4.2 STOPPING THE VEHICLE

Reduce pressure on the accelerator pedal. Press carefully on the brake pedal.

Do not apply brakes abruptly. The brakes are very effective and sudden braking may cause you or your passengers to be thrown from the vehicle and could result in serious injury or death. Never use excessive force on the brake pedal to apply the brakes. This can cause tremendous pressure in the master cylinder and brake caliper, resulting in component failure.

When driving the vehicle, do not “ride” the brakes. Keep your

foot off the brake pedal unless you are stopping the vehicle.

4.3 TURNING THE VEHICLE

When turning in reverse, steering operation is opposite to automobiles, similar to backing up a trailer.

The Centaur is a skid steer vehicle. The rear of the vehicle swings outward during a turn. Always take precautions when making turns to avoid hitting persons or objects.

The steering system is powered by a hydrostatic transmission and works best when engine r.p.m. is higher than at idle. Avoid turning the steering wheel when engine is idling.

Do not use steering unless vehicle is moving. Damage to the steering system could result.

4.4 BACKING THE VEHICLE UP

With the engine at idle, shift the transmission into reverse. Press on the accelerator pedal slowly until the clutch system engages and the vehicle moves backward. Increase speed by gradually increasing pressure on the accelerator pedal.

4.4.1 Turning The Vehicle While Backing Up

Carefully practice backing up and turning in an open area until you become accustomed to this procedure. Take precautions to avoid hitting persons or objects.

SECTION 5

DRIVING PROCEDURES IN UNUSUAL CONDITIONS

5.1 REMOTE AREA USE

When traveling in remote areas or when traveling long dis-

tances, the following items are essential:

• a rst aid kit

• a complete survival kit

• protective clothing and footwear

• waterproof safety matches

• candles

• emergency ares

• communications equipment

• adequate fuel supply in approved, watertight containers

• re extinguisher

• back-up battery

• basic mechanic’s tools and Centaur spare parts

Before venturing into remote areas, carry out all inspections, adjustments and lubrication checks detailed in this manual. Do not proceed unless your vehicle is in good working condition.

Inform someone of your departure and return plans and your route so that help can be dispatched if you do not return as scheduled. Do not travel into a remote area alone.

5.3 UPHILL OPERATION

Never accelerate or brake suddenly while driving up or down a hill. Sudden acceleration or braking can cause the vehicle to roll over, causing serious personal injury or death.

Never attempt to turn the vehicle around on a steep hill or grade. Turning the vehicle around on a hill can result in the vehicle rolling over and can result in serious injury or death.

Approach the hill head on to minimize the possibility of sliding sideways or rolling over. Accelerate slowly to prevent loss of traction. When traction is lost, the vehicle may slide sideways or backwards. If this occurs, apply the brakes gently and evenly to stop the slide. Allow the vehicle to coast back down to the bottom of the hill by carefully releasing the brakes.

Try to avoid steep hills. When a steep hill can’t be avoided, be prepared to shift cargo forward to prevent the vehicle from rolling over. As a general rule, driving up a steep hill greatly increases the possibility of rolling over.

Choose your equipment and supplies to meet the climate

and terrain conditions that you may encounter. Practice safe driving habits when traveling in remote areas. Avoid terrain that may be impassable.

5.2 ANGLE OF OPERATION

When operating the CENTAUR on an angle, (up and down

hills or across uneven terrain that causes the vehicle to tilt in any direction) the engine and transmission oil levels are affected. If the engine oil level falls below the oil pump intake or if the transmission oil level falls below the hydrostatic transmission intake port, damage will occur because of inad-

equate lubrication. To avoid premature engine or hydrostatic transmission damage and costly repairs:

• Do not operate your engine continuously on angles or in-

clines that are greater than 30 degrees in any direction.

• Make sure the engine oil level is near the “full” mark (However, do not overll.)

• Make sure the transmission oil level is between the two

marks on the dipstick.

5.4 DOWNHILL OPERATION

Always approach the hill head on to minimize the possibility of sliding sideways, or rolling over. Do not abruptly or forcefully apply brakes while travelling downhill. Sudden braking can cause the vehicle to roll over frontwards. Use engine braking by selecting low range and keeping the engine speed up just enough to keep the clutch engaged. If engine braking is not sufcient to control downward vehicle speed, then gently apply the brakes with your left foot while maintaining engine speed with your right foot.

Avoid steep declines when possible. When a steep decline cannot be avoided, shift cargo to the rear of the vehicle to prevent the vehicle from rolling over. As a rule, driving the vehicle down a steep decline greatly increases the possibility of rolling over.

5.5 SIDE SLOPE OPERATION

Do not drive your vehicle across the side of a hill. Side slope operation greatly increases the risk of rolling the vehicle over

sideways.

Prolonged side slope operation may cause engine damage. Observe the engine angle of operation limitations in Section

5.2.

SECTION 5

DRIVING PROCEDURES IN UNUSUAL CONDITIONS

5.6 WATER CROSSING - GENERAL

The CENTAUR will sink if lled with water. If water

starts entering the vehicle, head to the nearest shore immediately. Be prepared to abandon the vehicle if it

appears that the vehicle will ll with water before you

reach the shore. Be especially cautious when operating a loaded vehicle (cargo and/or passengers) when crossing water. Observe the capacity limits.

The Centaur vehicle is a land vehicle, capable of crossing

rivers, streams and swamps to a depth of 25 inches (635 mm), provided that the following precautions are observed:

1. Do not enter water if the vehicle is overloaded. Refer to Section 1.4 of this manual for recommended load capacity.

2. Do not use seat belts or any passenger restraining device while crossing shallow water. If an emergency arises, you and your passengers may have to leave the vehicle

quickly.

drain plug periodically. When removed, each drain plug remains attached to the hole opening to prevent loss or misplacement of the plug while the vehicle is draining.

(Figure 5-2).

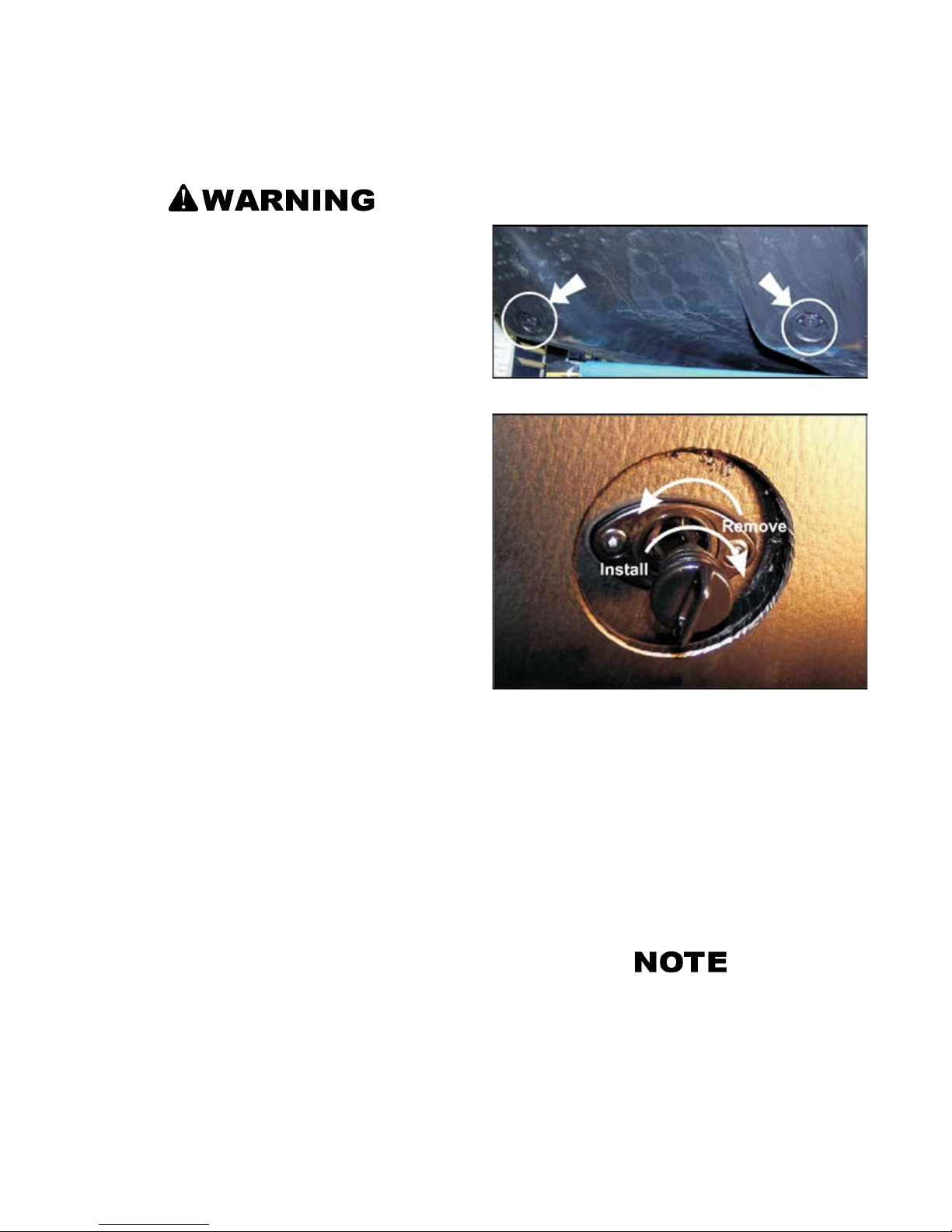

Figure 5-1. Location of the drain plugs.

3. Never attempt to cross large bodies of water.

4. Never attempt to navigate any body of water with a strong current.

5. Use extra caution when crossing cold water. Exposure to cold water signicantly reduces the chance of survival.

6. Care must be taken when encountering submerged obstacles that may upset the vehicle.

Observe the following safety precautions BEFORE entering

the water:

1. All occupants must wear an approved personal otation device (PFD) or life jacket while crossing water.

2. Equip the vehicle with rst aid kits and personal safety equipment. Optional bilge pump kits (Part No. 849-146)

are available from your Centaur dealer and are recommended for vehicles that will be crossing shallow streams or rivers.

3. Make sure both drain plugs in the rear of the lower body

(Figure 5-1) are in place and properly tightened. To

install, locate the drain plugs at the rear of the vehicle and thread each drain plug in a clockwise direction into

the plug tting ensuring a snug t. Check the O-ring on

Figure 5-2. Removing and installing the drain plugs.

4. Visually check the lower body of the vehicle for cuts, punctures or holes that will allow water to enter the vehicle.

5. Make sure that any cargo in the rear of the vehicle is evenly distributed and properly balanced.

6. Periodically inspect the t of the axle housings to the

lower body to ensure they are water tight. If there are signs of water leaking into the lower body, take corrective action before crossing shallow water again.

Always observe the recognized rules of boating while traveling in water.

5.6.1 Entering the Water

The point of entry should be free of rocks, stumps and other

obstacles. Enter the water from a rm, gradual slope whenever

possible. With the wheels partially submerged but still in

SECTION 5

DRIVING PROCEDURES IN UNUSUAL CONDITIONS

contact with the bottom, stop and check thoroughly for water entering the lower body.

If a leak is detected, drive back onto shore. Drain the vehicle and repair the leak before re-entering the water.

5.7.1 Use on Ice Covered Bodies of Water

5.6.2 Driving Procedures in Shallow Water

Avoid rocks, stumps or other obstacles that are below the surface of the water. Striking these obstacles may damage the bottom or upset the vehicle.

If your vehicle begins to ll with water, immediately head to

the nearest shore. Get the vehicle out of the water and drain it by removing both rear drain plugs. Correct the leak before crossing the water again.

Do not leave the vehicle in water for extended periods of time. Water could enter the axle seals or lower body and cause damage to the axle bearings, chains or sprockets.

5.6.3 Driving Out of Water

When driving out of water, choose an area of the shore that is

reasonably at and free of rocks, stumps and other obstacles.

Steer the vehicle so that both front wheels reach the shore at the same time. Accelerate slowly until the vehicle is out of the water.

5.7 WINTER OPERATION

Follow these precautions when operating the Centaur in winter

conditions:

Using the CENTAUR on ice-covered bodies of water is

potentially hazardous. Use extreme caution. Exposure to cold water reduces a person’s chance of survival. Protective clothing, such as a marine survival suit will

signicantly decrease the effect of exposure in frigid

water should the vehicle break through the ice and capsize.

Before venturing out onto ice-covered bodies of water, it is

extremely important to:

• Check the ice thickness and condition to be sure it will

support the vehicle.

• Take all precautions as in Section 5.6, particularly paragraph 3 referring to drain plugs.

• Consider taking along a cellular telephone or similar

device to call for help in case of emergency.

If the vehicle breaks through the ice, it may oat in the water,

provided that there are no leaks in the body, the drain plugs are in place and vehicle is not taking on water through any body openings. However, there is a risk of the vehicle tipping, particularly if the load is unbalanced. Be prepared to shift occupants’ weight for balance.

Getting back onto safe ice is virtually impossible! Be prepared to call for assistance and help.

Stay put and await rescue. This may be safer than trying to leave the vehicle to walk over thin ice.

• Equip the vehicle for remote area use, as listed in Section

5.1.

• Keep the battery fully charged and in good condition.

• Use the recommended winter grade of engine oil.

• Do not allow water or snow to accumulate in the vehicle.

Snow may melt during operation of the vehicle, collect

in the lower body and freeze around the chains and nal

drive components, immobilizing the vehicle.

• Store the vehicle indoors or under cover.

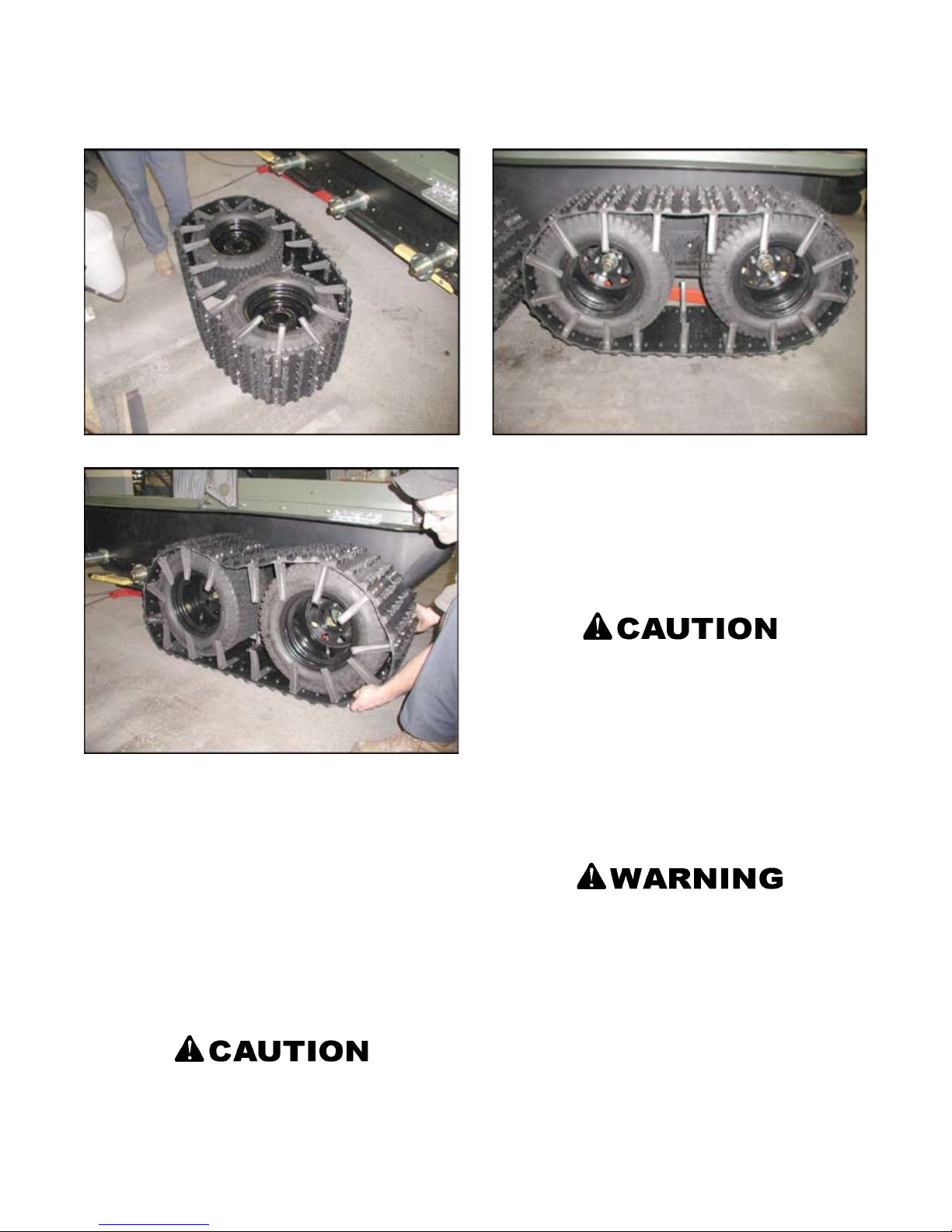

• Equip your vehicle with snow tracks for travel over deep

snow.

• Steep, snow-covered or icy hills may be more difcult to

ascend or descend.

• Never travel alone into a remote area. Leave your route

and arrival plans with someone who can send help if you fail to arrive as planned.

OIL, FILTER AND LUBRICATION INFORMATION

6.1 ENGINE OIL INFORMATION

Detailed information on standard workshop and safety procedures and general installation practices is not included in this manual. ODG assumes no responsibility or liability for PERSONAL INJURY or VEHICLE DAMAGE which results from any procedure performed, including those procedures outlined here. Before performing any procedure, an individual must have determined to his/ her satisfaction that personal injury or vehicle damage will not result from the procedure, working environment or tools selected.

6.1.1 Checking the Engine Oil Level

SECTION 6

Do not run the engine if the oil level is above the “F” mark or below the “L” mark. Premature engine damage or total engine failure can occur when the oil level is not properly maintained.

6.1.2 Recommended Engine Oil

Use a high quality detergent oil of API (American Petroleum Institute) service class as listed below. Choose the correct

viscosity of oil for seasonal driving conditions. For the

gasoline powered Centaur, use API service class “SH” or “SJ” or higher. For diesel powered Centaur use API service class “CF” or “CF-4”.

Check the engine oil level each day before operating the engine.

To check the oil during an operating period, shut the engine off, let it cool down and allow the oil time to drain into the sump before checking the oil level. Position the vehicle so the engine is level.

The BRIGGS & STRATTON DAIHATSU engine (Figure 6-1) is equipped with a dipstick and a separate oil ller cap.

To check the oil level, clean the area around the dipstick before removing. Remove the dipstick and wipe it with a clean cloth. Re-insert the dipstick and push it all the way into the tube. Remove the dipstick and check the oil level. The oil level should be between the marks. If the level has

dropped, add oil to bring the level up to the “F” mark. DO

NOT OVERFILL.

Oil capacity is approximately 3.3 litres, including the oil lter.

6.1.3 Changing Engine Oil

During the initial engine break-in period, change the oil after

the rst 25 hours of operation. After the break-in period,

change the engine oil every 150 operating hours, or more frequently if the vehicle is operated in dusty or dirty conditions.

Draining the Engine Oil

Each engine is equipped with a drain plug for draining the

oil. The drain plug location is shown in the engine owner’s

manual. Drain the oil from the engine as follows:

Figure 6-1. Oil ll and level location

Briggs & Stratton Daihatsu engine

1. Start and warm up the engine so the oil will drain easily.

2. Level the vehicle so the oil will drain completely.

3. Place a suitable container under oil drain of engine and remove drain plug with a wrench.

SECTION 6

OIL, FILTER AND LUBRICATION INFORMATION

There is limited space between the engine and transmission. Cut down an empty plastic container to the correct

height so it will t under the engine oil drain. Make sure

the container will hold the amount of oil in the engine.

A ziploc plastic bag makes a convenient oil container. It conforms to the space available and can be closed securely when the oil is drained, then lifted neatly out of the engine compartment.

PLEASE DISPOSE OF WASTE OIL PROPERLY TO CONSERVE OUR ENVIRONMENT.

4. When all the oil has been drained from the engine, clean

and replace the drain plug. MAKE SURE it is properly tightened before relling the engine.

5. See Oil Filter Replacement in Section 6.3.3.

Figure 6-2. Location of Transmission Dipstick

Relling the Engine

Rell the engine through the oil ll with the correct amount

and grade of oil as indicated in Section 6.1.2. As you add oil,

frequently check the level with the dipstick. Do not overll.

Start engine. Check for leaks. Stop the engine. Check the oil

level. Add oil only to the “F” mark on the dipstick.

6.2 TRANSMISSION OIL INFORMATION

6.2.1 Checking the Transmission Oil Level

Check the transmission oil level each day before operating

the Centaur. The Centaur is equipped with a transmission oil dipstick (Figure 6-2). Position the vehicle so the transmission

is level. Clean the area around the dipstick before removing. Remove the dipstick by pulling up.

The transmission oil level should be even with the mark on the dipstick as shown in Figure 6-3. Add Citgo Transguard Tractor

Hydraulic Fluid (or equivalent) through the transmission oil ll/dipstick hole until the transmission is lled to the correct level. When the oil level is at the lower notch, approximately

one litre can be added. DO NOT OVERFILL. Replace the dipstick securely.

Figure 6-3. Transmission Dipstick

6.2.2 Changing the Transmission Oil

Change the transmission oil after the rst 25 hours of operation. After this, change the transmission oil every 150 operating hours. Drain the transmission oil using an oil change pump

accessory (Part No. 638-02) by drawing the oil through the oil ll/dipstick hole. Dispose of the oil at a disposal site.

Relling the Transmission

Rell the transmission through the oil ll/dipstick hole with 12 L of Citgo Transguard Tractor Hydraulic Fluid (or equivalent). Alternately, Mobil Delvac 1, 5W30 synthetic oil may be used,especially if operating the Centaur under extreme cold

or hot weather conditions; this Mobil oil may be used in the

engine also. Start the engine and run for a minute to ll the oil lter and hydrostatic transmission. Check that the oil level

is even with the mark on the dipstick, after it has been seated fully in the dipstick hole. DO NOT OVERFILL.

6.3 FILTER INFORMATION

6.3.1 Air Filter

The Centaur is equipped with a lter element housed in an air

cleaner assembly located above the clutch.

SECTION 6

OIL, FILTER AND LUBRICATION INFORMATION

Check the paper air lter element every 100 hours of operation or more often under extremely dusty, dirty or wet

conditions.

For instructions to remove, clean and replace the air lter

components, refer to the air cleaner section of the engine owner’s manual.

6.3.2 Fuel Filter

950

The gasoline powered Centaur is equipped with an in-line fuel lter (Part No. 125-64).

The fuel lter is located in the fuel hose, next to the fuel

tank.

Replace the fuel lter after every 300 hours of operation or once a year. To replace the lter, loosen the gear clamps with

a standard screw driver and pull the rubber fuel lines off of the

lter. Install the new lter with the ow arrow pointing toward

the engine. Tighten the clamps securely. Start the engine and check for fuel leaks.

950DT and 954DT

The diesel powered Centaur is equipped with a fuel lter assembly comprised of a replaceable element, water separator bowl, and water level sensor.

If the fuel lter warning light comes on while engine is running, stop engine and drain water from fuel lter.

1. Stop engine.

2. Place a drain pan under fuel lter and loosen drain plug approximately 1 turn.

3. Water should drain. If necessary, operate priming pump

to drain water, but only until fuel ows from lter.

Figure 6-4. Fuel Filter

4. Tighten drain plug. Bleed air from fuel line.

5. Start engine. Make sure warning light goes out. Check for leaks.

To replace fuel lter element:

1. Disconnect sensor wire. Remove drain plug and discard O-ring.

2. Remove fuel lter with lter wrench.

3. Screw new lter on by hand until gasket contacts housing. Then tighten 1/3 turn more.

4. Install drain plug with new O-ring. Connect sensor wire.

5. Bleed air from fuel line. Start engine and check for leaks.

Do not operate the fuel injector pump dry. Ensure the pump is primed with fuel before starting to prevent damage to the pump.

6.3.3 Engine Oil Filter

During the initial engine break-in period, change the oil lter (Part No. 126-95 for gas engines & No. 820314 for diesel) when the oil is changed. After that, change the oil lter every

300 hours.

Before installing the new lter, lubricate the rubber lter gasket with fresh oil. Screw the lter on by hand until the gasket contacts lter adapter. Tighten 1/2 to 3/4 turn more.

Start and run engine to check for oil leaks. Stop engine and

re-check oil level. Add oil if required.

SECTION 6

OIL, FILTER AND LUBRICATION INFORMATION

6.3.4 Transmission Oil Filter

The hydrostatic transmission is equipped with a disposable, spin-on oil lter. Replace this lter with a new one whenever transmission oil is changed (Part # 610-114).

Before installing the new lter, lubricate the rubber lter gasket with fresh oil. Screw the lter on by hand until the gasket contacts lter adapter. Tighten 1/2 to 3/4 turn more.

Start and run engine to check for oil leaks. Stop engine and

re-check oil level. Add oil if required.

6.4 LUBRICATION INFORMATION

6.4.1 General

The drive chains require regularly scheduled lubrication to

prevent premature wear and replacement. Use the recommended lubricants listed in this section and carefully observe the recommended lubrication intervals.

6.4.2 Drive Chain Lubrication

Your Centaur is equipped with an auto lube system which provides lubrication to the Centaur drive chains at each axle. This requires maintaining the oil level in the system on a

regular basis.

Never use gasoline as a cleaning solvent. Gasoline is

extremely ammable and can explode if ignited, causing

serious personal injury.

Allow the chains to dry thoroughly, re-lubricate generously with Chain Lube and re-install.

Refer to Section 7.2.3 of this manual for drive chain removal and re-installation instructions.

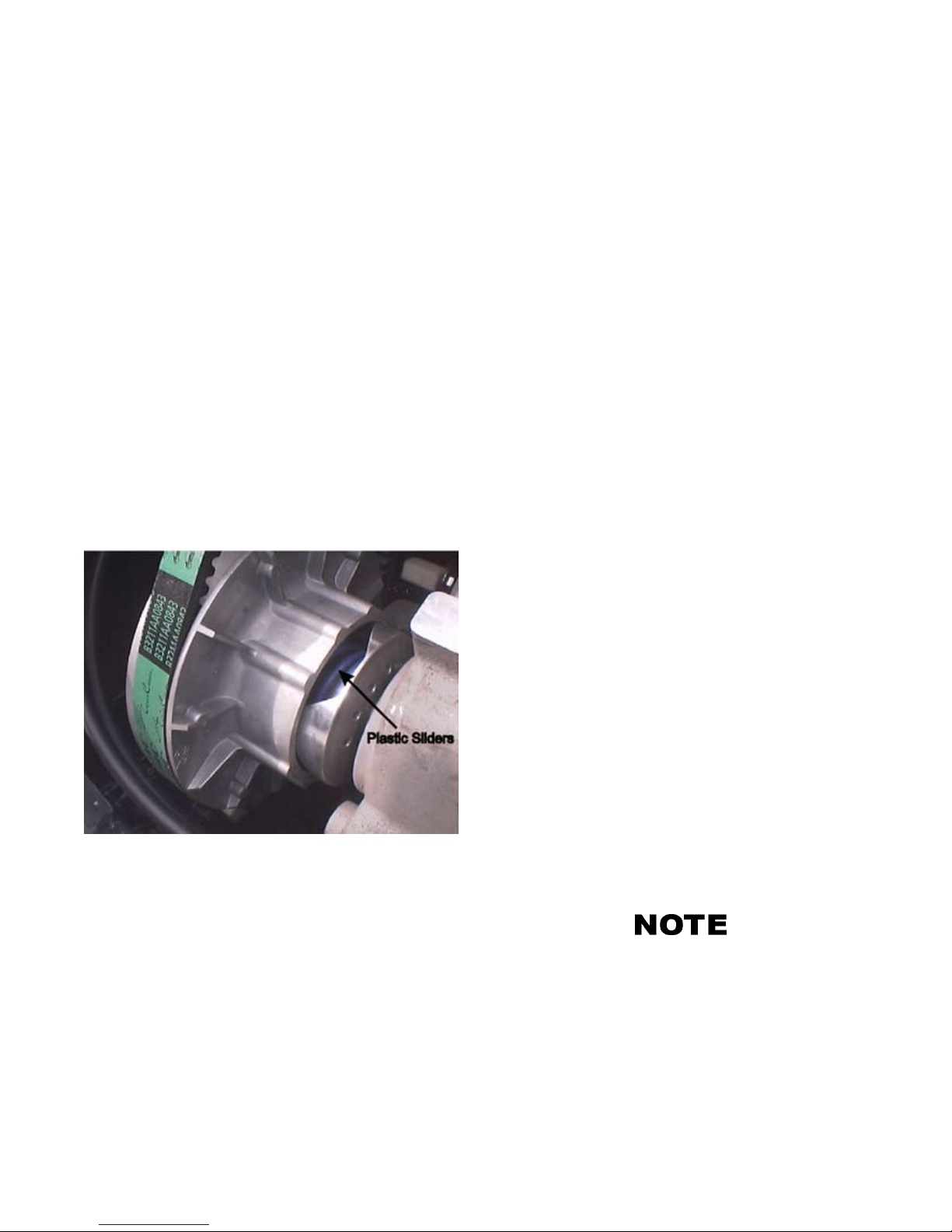

6.4.3 Driven Clutch Maintenance

The driven clutch uses dry slide bushings and should not be

lubricated. A complete service of the clutch units is required

after every 300 hours of operation. To perform this procedure, the clutches must be disassembled. Special tools are

required to disassemble the clutch units. We recommend

that you return your vehicle to a Centaur dealer to have the clutch units serviced.

6.4.4 Axle Bearing Lubrication

Recommended Chain Lube Oil

BEL-RAY® WATERPROOF CHAIN LUBRICANT

Bel-Ray Waterproof Chain Lubricant is a heavy-duty, long

lasting oil for chains and bearings operating in wet environ-

ments. It offers exceptional rust and corrosion protection, as well as water displacing benets that make it the ideal lubricant

for numerous wet applications.

P.O. Box 526 Farmingdale, New Jersey 07727 U.S.A. TEL (732) 938-2421 FAX (732) 938-4232

www.belray.com

An alternative to the above if not readily available is any oil ATF, light Hyd oil etc. or for the environmentally conscious, use Husqvarna VegOil. A vegetable-based chain oil that

has been carefully developed by Husqvarna to produce a

highly effective, environmentally compatible lubricant.

Biodegradable and economical – up to 40% less required than with conventional oils. Low viscosity even in extreme cold

and able to handle water contamination. Can be cleaned with common detergents.

After every 100 hours of operation, remove all the drive chains from the vehicle and clean them thoroughly in a suitable solvent, i.e. degreaser.

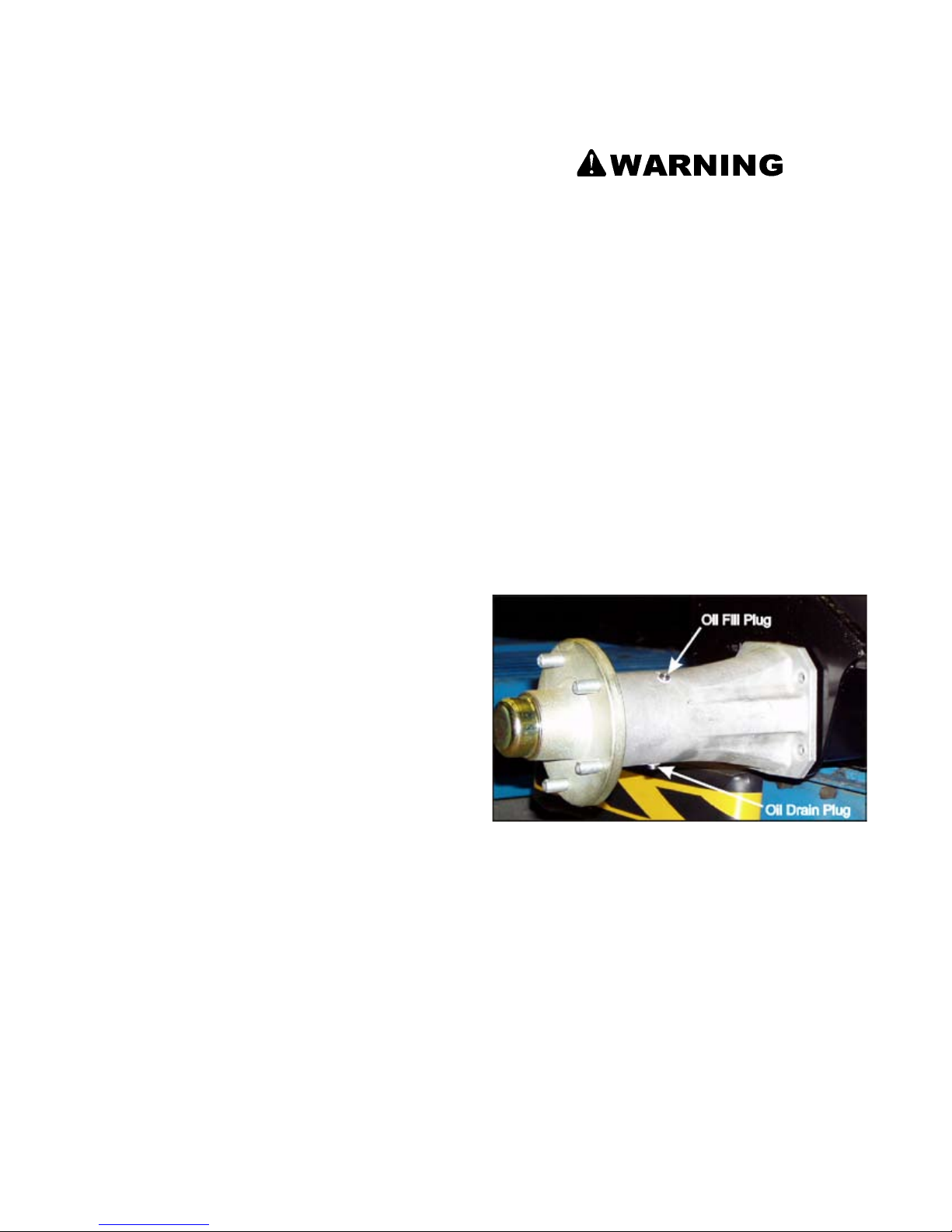

Figure 6-5. Axle Assemblies

The Centaur axle assemblies are lled with 300ml of 80W90 Gear Lube HYP0Y-C. At 25 hours:

1. The oil level should be checked by removing the side plug

on each axle housing. Fill the axle assembly until the oil

is level with this hole.

2. The bottom plug should be removed to check for water contamination. If water runs out or the oil has a milky

appearance, drain the oil and replace with 300 mL (10.2 ozs.) of 80W90 Gear Lube HYP0Y-C.

The oil in the axle housings should be replaced each 150

hours of operation.

SECTION 7

MAINTENANCE INFORMATION

7.1 ELECTRICAL SYSTEM

Detailed information on standard workshop and safety procedures and general installation practices is not included here. ODG assumes no responsibility or liability for PERSONAL INJURY or VEHICLE DAMAGE which results from any procedure performed, including those procedures outlined here. Before performing any procedure, an individual must have determined to his/ her satisfaction that personal injury or vehicle damage will not result from the procedure, working environment or tools selected.

7.1.1 General

To prevent damage to the electrical system:

• Never weld on the vehicle without rst disconnecting both

positive and negative battery cables. Make sure the part you are welding is properly grounded.

• Connect battery booster cables properly, positive to positive and negative to negative. Connect negative cable

last, disconnect rst.

• Connect switch terminals properly, especially the ground

wire.

7.1.2 Battery - 613-101

Battery uid contains sulphuric acid. If battery uid comes in contact with skin or eyes, ush thoroughly with

water. If swallowed, call physician or poison control centre immediately. KEEP AWAY FROM CHILDREN. Serious personal injury can occur. Always wear rubber gloves and safety glasses when servicing the battery.

Batteries can explode and cause serious personal injury

if exposed to ame or sparks. Never smoke while servic-

ing the battery.

Figure 7-1. Battery Fluid Level

Charging the Battery

If the battery loses its electrical charge, remove the battery from the Centaur and recharge it with a 12 volt battery charger

at the rate of 10-12 amps maximum. The battery should remain on charge until the specic gravity reaches 1.265 on

a hydrometer. Re-install the battery in the vehicle and try to start the engine. If the battery fails to perform properly, have it tested by a battery service dealer. Replace a defective battery with Part No. 613-101.

Ventilate area when charging. Keep away from spark,

heat, cigarettes or open ame.

Cleaning the Battery Terminals and Cable Connections

All models are equipped with a 12 volt, wet cell type battery.

The battery is located in the engine compartment, on the left side of the engine.

Checking Fluid Level

Check the uid level every 50 hours of operation. Remove the vents and make sure each cell is lled to the uid level as shown in Figure 7-1. If the uid has dropped below the ll well, add distilled water until the cell is lled to correct level.

DO NOT OVERFILL.

Clean the battery terminals and cable connections every 100

hours. Remove the black NEGATIVE (-) cables rst. Make sure you reconnect the NEGATIVE (-) cables to the NEGATIVE (-) post and the red POSITIVE (+) cables to the POSITIVE (+) posts. Damage to the electrical system will occur

if the cables are reversed.

Cleaning the Battery

Clean the top of the battery every 300 hours with a mixture of

baking soda and water. Before cleaning the battery, remove it from the vehicle and make sure the vents are in place. Soak a

SECTION 7

MAINTENANCE INFORMATION

cloth in the soda/water mixture and scrub the top of the battery. After the foaming has stopped, ush with clean water

and dry with a clean cloth.

7.1.3 ELECTRICAL SYSTEM FUSES

The Centaur is equipped with push-in type automotive fuses.

The fuses protect the electrical circuits of the vehicle. They are located in the fuse block, under the dash. Replace any blown fuses. Return your vehicle to a Centaur dealer for inspection

of the electrical circuit if a fuse blows repeatedly.

7.1.4 SPARK PLUGS (GAS ENGINE)

Remove and inspect the spark plugs after every 150 hours of operation. Clean the plugs and reset the gap as detailed in the engine owner’s manual.

Replace the spark plugs if the electrodes are corroded or damaged or if the insulator is cracked. Use the correct plug for the engine as detailed in the engine owner’s manual.

Re-install the spark plugs carefully, taking care to start the

threads properly. Torque the plugs to 10 - 15 ft. lbs (14 to 20 N·m). Do not over tighten.

7.2 DRIVE SYSTEM & TIRES

whenever there is a noticeable reduction in clutch performance. Replace the belt with Part No. 610-119 for Centaur 31 Gas or DT and Part No. 610-119SA for Centaur 34 Gas and

DT when:

• the top width of the belt has worn to 1-1/16" (27mm)

• cracks, fraying or shredding is apparent

• it becomes contaminated with oil or some other uid

To Remove the Drive Belt:

Figure 7-2. Removing the drive belt

1. Make sure ignition is turned off.

Do not attempt to adjust, repair or replace the drive belt, clutches or any moving part while the engine is running. Before servicing the vehicle, disconnect the battery to prevent accidentally starting the engine.

Keep the engine cover and clutch guard securely in place when the engine is running. Severe injury can result if the drive belt, clutch components or other moving parts come loose.

If engine compartment inspection is necessary while the engine is running, use EXTREME CAUTION! Keep engine RPM low. Avoid standing directly in line with moving components. Use a mirror to view the components.

7.2.1 DRIVE BELT

The drive belt transmits power from the driver clutch (on the engine) to the driven clutch (on the transmission). These

components are located on the left side of the engine compartment.

Check the drive belt after every 25 hours of operation, or

2. Remove the engine cover.

3. Place the transmission in N (neutral).

4. Ease the belt over the xed half pulley of the driven clutch

starting from the bottom of the clutch, while turning

the clutch counterclockwise until the belt is off (Figure 7-2).

5. Remove the belt from the driver clutch.

To Install the Drive Belt:

If this procedure is not carried out as described, the edge

of the xed face may cut or damage the drive belt.

1. Position the belt around the driver clutch rst.

2. Ease the belt over the edge of the xed face on the driven

clutch and at the same time, turn the inside, moveable face clockwise.

SECTION 7

MAINTENANCE INFORMATION

Drive Belt alignment and tension are pre-set at the factory and are not adjustable. They are critical for proper operation of the drive system. Return the vehicle to a CENTAUR dealer if rapid belt wear occurs.

7.2.2 CLUTCH MAINTENANCE

Disassembly and repair of the driver and driven clutch requires

special tools. Return the vehicle to a CENTAUR dealer if the clutch units need servicing. The following indicates that

clutch service is required:

• a drop in vehicle performance

• the clutch does not shift smoothly

• the clutch sticks during vehicle operation

• the drive belt wears rapidly

• the vehicle vibrates severely during operation

• the vehicle does not accelerate when the engine speed is

increased with the transmission in gear

• transmission will not shift smoothly into gear at engine

idle

7.2.3 DRIVE CHAINS

Roller chain “stretch” results from wear to the chain pins and

bushings because of the loss of lubricant.

To prevent sprocket damage and unnecessary breakdowns,

replace the chains when:

• the chain tensioner can no longer take up the chain

slack.

• the chain is seized due to rust and lack of lubrication.

• the chain climbs the sprocket teeth, especially noticeable

when turning.

To Remove the Drive Chains:

1. Place the gearshift in the neutral position.

2. Remove the oor pans.

3. Remove the chain tensioner torsion springs.

4. Roll the vehicle until the connecting link on one of the chains is visible.

Figure 7-3. Location of the Sliders

Clutch Inspection

Lubrication of the clutch parts is not required. Do not lubricate

the driven clutch.

Inspect the plastic sliders every 50 hours. The plastic sliders

are mounted in the driven clutch moveable pulley. (Figure 7-3).

When the clutch shifts, the cam moves on the nylon sliders. Replace the plastic sliders before there is aluminum to aluminum contact between the cam and the movable pulley.

Driven clutch disassembly is required to replace the nylon

sliders properly. Return the vehicle to a CENTAUR dealer for service.

5. Remove the cotter pins from the connecting link. Remove the outside plate and tap out the connecting link.

6. Remove the chain from the vehicle.

7. Repeat steps 3 to 6 until all drive chains are removed.

To Install the Drive Chains:

1. Feed the chain around each sprocket and clamp the free

end with a modied vice grip (ODG part # 658-38). Figure

7-4.

2. Install the connecting link (from the outside in) and cotter

pins, orienting and bending the cotter pins as shown in Figure 7-5.

Use a pair of modied 10R Vice Grips to hold the ends

of the chain together while inserting the connecting link. Some drive chains have no slack, and replacement of the

connecting link is difcult without this tool. Modied

Vice Grips can be ordered from your CENTAUR dealer

(Part No. 658-38) or refer to Appendix 1 for modica-

tion information.

MAINTENANCE INFORMATION

Figure 7-4. Holding chain together to

insert connecting link

SECTION 7

4. Repeat steps 1 to 3 until all chains are replaced.

7.2.4 TO REPLACE A SLIDER BLOCK

1. Remove the oor pans.

2. Pull up on the tensioner arm until slider block is not contacting chain.

3. Remove the cotter pin, washer and slider block from the tensioner arm. Figure 7-7.

Figure 7-5. Chain connection link components.

Figure 7-6. Installing the connecting link.

3. Replace the outside plate and cotter pins. Always use new cotter pins. Bend the pins towards the inside of the loop of chain.

Figure 7-7. Chain tensioner components.

4. Re-install new slider block, washer and cotter pin.

5. Replace the oor pans.

7.2.5 TIRE REPAIR AND REPLACEMENT

Repair a at tire by removing the tire completely from the rim. Proper tire changing equipment is necessary to remove

and remount the tire. Apply a radial tire patch on the inside of the tire over the puncture or hole.

Remount the tire on the rim using ONLY WATER as a bead lubricant. Spoon the tire onto the rim to prevent tire bead area damage. THE TIRE MAY EXPLODE IF OVER-INFLATED.

Place the tire and rim assembly in a protective cage to inate and to seat the beads. Never inate over 32 psi (220 kPa) to seat the bead. Once both beads are seated, deate to 3.5 psi (24 kPa), 5 psi (34.5 kPa) maximum operating pressure. A special, low pressure tire gauge (Part No. 619-10) is available

from your CENTAUR dealer.

Replace badly worn or damaged tires with original equipment

Goodyear tires. Consult your CENTAUR dealer if in doubt.

Any other tires (size, type or tread pattern), will affect the skid

steering characteristics of the vehicle.

SECTION 7

MAINTENANCE INFORMATION

7.3 MECHANICAL PARKING/EMERGENCY BRAKE

7.3.1 GENERAL

Periodic inspection and adjustment of the parking/emergency brake system is required to maintain performance.

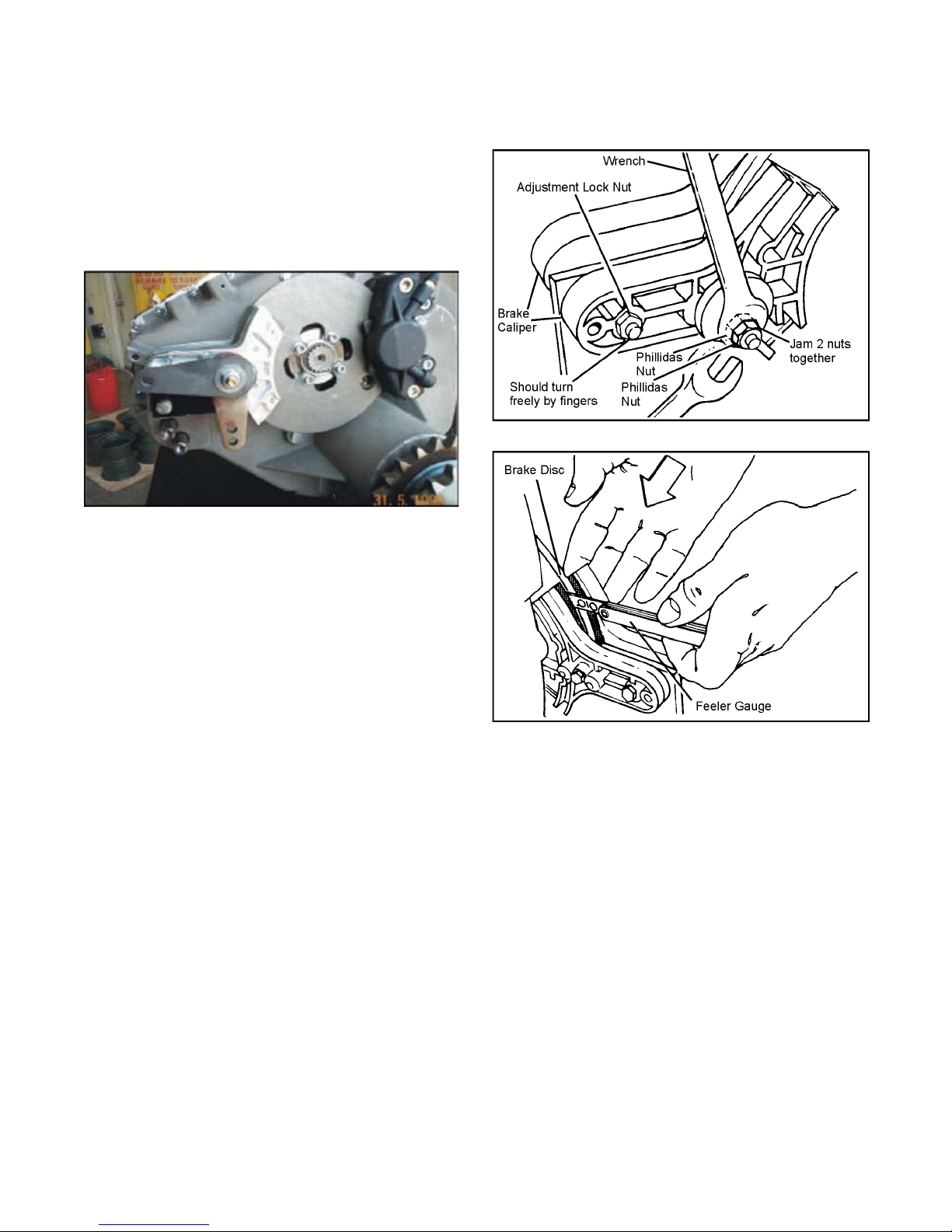

Figure 7-11. Mechanical parking/emergency brake

Figure 7-12. Tightening the lock nut.

7.3.2 BRAKE CALIPER ADJUSTMENT

With the engine cover and transmission cover removed, inspect the mechanical brake caliper assembly.

Adjust the calipers when:

• the brake adjustment nuts are tightened all the way but the parking brake cannot be rmly engaged using the

parking brake lever, or

• the total clearance between the brake pads and the brake disc exceeds .010".

To adjust the brake caliper:

1. Tighten the lock nut with a 1/2" open end wrench, no wider than the thickness of the lock nut (Figure 7-12). As

the lock nut is tightened, measure the clearance between the brake disc and pad as shown in Figure 7-13, using a .010" feeler gauge. .010" is the correct clearance between the left brake pad and the brake disc when the right pad is pressed against the disc.

2. Use another 1/2" open wrench to tighten the outer lock

nut to the inner one.

3. Tighten the adjustment lock nut with a 1/2" wrench so it is snug but the bolt can still be turned freely with ngers.

Figure 7-13. Brake pad wear, mechanical brakes.

7.3.3 BRAKE PAD REPLACEMENT

During the inspection of the brake pads, if they are:

• worn to 3 mm (1/8") thickness as shown in Figure

7-14;

• glazed and brake efciency is affected; or

• contaminated with lubricant and brake performance is

affected;

they are no longer serviceable and must be replaced.

To replace the brake pads:

Use an electric drill and 1/4" drill bit to remove the

the rivets holding the old pads to the remainder of the rivets from the calipers and install 100-56

brake pad set (2 pads) using 8 of 120-09 rivets and a pop

riveting tool to fasten the pad in place. A CENTAUR dealer will replace brake pads for you.

calipers. Clear the

heads of

SECTION 7

MAINTENANCE INFORMATION

8. Start up and drive the vehicle for 10 minutes. Stop the engine and check that the parking brake caliper has not been dragging. A strong ‘brake material’ smell and a very hot brake disk would indicate that the parking brake caliper is adjusted too tight. Readjust if necessary.

7.4 HYDRAULIC BRAKE

7.4.1 GENERAL

Although the hydraulic brake system is self adjusting, the

following require periodic attention:

Figure 7-14. Measuring the distance between the brake disc

and brake pad.

The use of an improperly adjusted parking/emergency brake is a serious safety hazard, and could lead to vehicle damage or personal injury.

7.3.4 BRAKE CABLE ADJUSTMENT

If, after adjusting the brake caliper, the parking brake lever

still does not rmly apply the parking brake, then brake cable adjustment is required.

To adjust the brake cable:

1. Adjust the brake caliper rst as described above.

2. The cable is adjusted by repositioning the parking brake lever assembly in it’s slotted mounting holes. Loosen the mounting bolts and reposition the assembly such that the cable has just about engaged the parking brake cam.

7.4.2 BRAKE FLUID LEVEL

After every 50 hours of operation, check the brake uid level

through the side mounted view window in the master cylinder

(Figure 7-15). The uid level must be above the top of the

view window.

If the brake uid is below this level:

1. Thoroughly clean the master cylinder cover and surrounding area.

2. Remove the two screws, lift off the cover and the gasket.

3. Add only fresh clean SILICONE - DOT 5 BRAKE FLUID (Part No. 126-19) to the correct level.

4. Replace the cover on the master cylinder, making sure the rubber gasket is properly seated before tightening the cover screws.

3. Re-tighten the mounting bolts.

4. Check that the gap between the parking brake caliper and the brake disk remains at .010".

5. Activate the parking brake lever several times and recheck the gap.

6. Reposition the parking brake lever assembly if necessary.

7. Start up and drive the vehicle carefully and ensure that the parking brake will bring the vehicle to a stop when coasting. Repeat several times, then check the gap between brake pad and the disk and readjust if necessary.

Figure 7-15. Hydraulic brake cylinder and uid level.

SECTION 7

MAINTENANCE INFORMATION

Do not overll the brake master cylinders. Fluid level must be at the top of the view window. Overlling can

cause seal damage.

Use only SILICONE - DOT5 BRAKE FLUID. Other brake uid may not be compatible with brake components and operating temperatures. Use of other uids

will void the warranty and can cause failure of the brake system/components.

7.4.3 CHANGING BRAKE FLUID

The inherent stability of Silicone DOT 5 Brake Fluid reduces

the need for frequent brake uid replacement. Inspect the uid for degradation (discolouration or particles) during normal uid level inspections. If discolouration has occurred, the brake uid system should be drained, ushed and re-lled with fresh brake uid. If particles are evident in the uid,

drain the system, overhaul the master cylinder and the brake

caliper before ushing and relling. A CENTAUR dealer will

perform these operations for you.

(or equivalent) removable compound on the threads of the

SHCS mounting bolts and tighten securely.

Figure 7-16. Hydraulic brake assembly

7.4.4 HYDRAULIC BRAKE PAD INSPECTION

Inspect the brake pads after every 50 hours of operation. Worn,

glazed or contaminated brake pads affect the efciency of the

brake system.

Brake Pad Inspection Procedure

With the engine cover removed, the hydraulic brake caliper is visible. The caliper has 2 brake pads which are secured by

cotter pins (Figure 7-16). Inspect both brake pads. Replace the pads when:

• the brake lining material molded to each metal backing plate is worn to 0.10" thickness. (Figure 7-17)

• the pads are glazed and brake performance is affected.

• the pads are contaminated with lubricant, and brake per-

formance is affected.

To replace the brake pads:

Remove both cotter pins from the brake caliper. Remove

the brake caliper from the transmission using a hex driver to

remove the two SHCS mounting bolts accessible through the brake disc hole as shown in Figure 7-16. Without disturbing the connection of the brake line, swing the caliper away from the brake disc to allow the removal of the brake pads. Install the brake pads into the caliper assembly. Insert two new cotter pins and bend the ends over to secure the pads in position.

Remount the caliper to the transmission, using #242 Loctite

Figure 7-17. Brake pad wear, hydraulic brakes.

Pump the brake pedal a few times to build up proper pressure and to locate the pads in the caliper assembly.

7.4.5 ENGINE COOLING & EXHAUST SYSTEM

Engine cooling air is drawn in on the right side of the engine

compartment and expelled on the left side. Keep all ducting

and screening in place.

If the vehicle is equipped with an enclosed cab of any sort, make sure there is plenty of ventilation to avoid exposure to exhaust and engine fumes. Engine exhaust contains carbon monoxide, an odourless, colourless toxic gas that will cause serious personal injury or death. Inspect the exhaust system periodically for worn or damaged components. Listen for a change in exhaust or engine noise that may indicate a dangerous exhaust leak. If a leak is detected, have the exhaust system repaired immediately before further use.

SECTION 7

MAINTENANCE INFORMATION

Check the area around the exhaust system periodically for accumulated debris, particularly when traveling through dry vegetation. Failure to inspect and clean

the exhaust system on a regular basis may create a re

hazard.

DO NOT ALLOW ANYONE TO TOUCH THE EXHAUST COMPONENTS. A SEVERE BURN CAN RESULT.

A complete check over of your CENTAUR vehicle is recommended once a year. This will reduce maintenance costs over the life of your vehicle and ensure it will function properly during use periods.

7.5 STEERING SYSTEM

7.5.1 STEERING CENTERING ADJUSTMENT

Remove the sheet metal covers covering the hydrostat control arm located under the seat. Lift the vehicle so that all drive wheels are off the ground.

With the gear shift in neutral, start engine and allow to idle at 1000 rpm. Loosen the steering spring centering plate located

under the ROPS cross tube (under the seat) and adjust to the

left or right until the wheels stop moving.

7.5.2 STEERING WHEEL & LOCK ADJUSTMENT

Adjust the steering cable so that the wheel will be centered when released. Ensure that the steering wheel has unrestricted rotation to the stops located at the bottom of the steering wheel housing. Adjust cable if necessary.

Tighten all nuts and bolts associated with the steering system. Ensure that all cotter pins and hair pins are secured and free from wear.

Vehicles produced from S/N 0108063 are equipped with

a steering lock. This lock system ensures that the steering wheel can not be turned until the armrest is in the lowered position.

With the armrest DOWN ensure that the steering lock pin is not engaged or making contact with the adjustable plate on

the hydrostat unit. Adjust if necessary for sufcient clearance

between the two.

To disconnect or adjust the spring pin end of the cable, remove or loosen the 2 fasteners securing the bracket to the welded tab on the upper cross brace assembly. Slide the bracket until

approximately 1/8” protrudes through the locking slide plate when the armrest is in the upright position (Figure 7-19).

Tighten the plate to 22 ft.lbs (30 N.m) and ensure that the

centering plate does not hit the steering arm when steering left or right. The plate should be positioned so there is at least a

1/8” gap between it and the steering arm ( Figure7-18). Turn

the steering wheel left and release. Turn the steering wheel right and release. The steering wheel should return to center each time. Once centred, the wheels should not rotate.

Figure 7-18. Position of steering spring plate.

Figure 7-19. Adjusting the spring pin end of the cable.

Generally, when the cable is fastened at the bracket on the upper cross brace assembly, if it is installed with an equal amount of threads on either side of the welded tab, the cable will be properly set. The bracket need only then be slid within the slots to achieve the 1/8” measurement required through the locking plate when the armrest is

in the up position (Figure 7-20).

MAINTENANCE INFORMATION

Figure 7-20. Positioning of cable at bracket.

SECTION 7

7.6 SHIFTING SYSTEM

7.6.1 SHIFT CABLE ADJUSTMENT

1. Locate the shift rods at the rear of the transmission on the passengers side.

2. Shift gear box into neutral, ensuring that the shift rods

are aligned.

3. At the shift box, locate the cables where they are fastened at the entry point of the shift box assembly.

4. Remove the shift gate on the shift box and check to make

sure that the shift blocks are aligned with the shift yoke assembly when in the neutral position.

7.5.3 HYDROSTATIC TRANSMISSION DRIVE BELT

Loosen the two bolts securing the hydrostat against the vehicle transmission. Rotate the hydrostat towards the engine to loosen the drive belt. Position a new belt over the engine pulley and then the hydrostat drive pulley. Rotate the hydrostat to tension the belt so that 6 lbs. of force (2.7 kg or 27N) causes

a deection of .21" (5.3 mm) at a point midway between pulleys. Torque bolts to 20 lb. ft. (N.m).

On Gas (31 HP only), the lower rad hose is positioned

above the hydrostat belt (Figure 7-21). On 34 DT, 34

Gas and 31 DT, the lower rad hose is positioned between the belt.

5. To adjust the shift cables, the shifting yokes threaded to

the end of the push/pull shift cables must be threaded

further onto the cable or else threaded out further. This is most easily done by loosening off the nuts from the

outside of the shift box and adjusting as needed.

You may need to rotate the clutch to allow the shifting mechanism within the transmission to permit the lever to move.

6. Install the shift gate temporarily and shift the gear lever into low gear. The gear lever should not be making any contact with the gate plate. There should be at least a

3/8” clearance between lever and gate.

7. For more detailed adjustment procedures, refer to the Centaur Service Manual, available from your Centaur dealer or else take the vehicle to an authorized Centaur dealer for adjustment.

If your vehicle is equipped with micro switches for the

neutral safety and back up alarm, you may need to re-

position these in their slotted mounts so they are not activated when the shifting lever is in neutral position.

Figure 7-21. Positioning of the lower rad hose for gas (31 HP

models only).

7.6.2 THROTTLE CABLE ADJUSTMENT

With the engine stopped, push accelerator to the oor plate

and secure. At the engine check that the throttle arm is fully open. Adjust throttle arm if necessary.

Operate accelerator a few times then recheck the throttle arm position. Ensure that all fasteners associated with the throttle cable are secure.

SECTION 7

MAINTENANCE INFORMATION

CHECK COOLANT LEVEL CHECK FAN BELT TENSION CHECK FUEL LEVEL CHECK TIRE INFLATION CHECK ACCELERATOR PEDAL OPERATION CHECK BRAKE PEDAL OPERATION CHECK STEERING WHEEL TRAVEL CHECK ENGINE INTAKE/EXH. FOR OBSTR. CHECK THAT DRAIN PLUGS ARE IN PLACE CHECK ENGINE OIL LEVEL CHECK TRANSMISSION OIL LEVEL CHANGE ENGINE OIL CHANGE ENGINE OIL FILTER CHANGE TRANSMISSION OIL AND FILTER CHECK, CLEAN/REPLACE AIR FILTER REPLACE FUEL FILTER SERVICE DRIVEN CLUTCH CHECK AXLE BEARING OIL LEVEL CHANGE AXLE BEARING OIL REMOVE, CLEAN & LUBE. DRIVE CHAINS *LUBRICATE DRIVE CHAINS EVERY 10 HRS CHECK BATTERY FLUID LEVEL & CAPS CLEAN BATTERY TERMINALS & CONNEC. CLEAN BATTERY CLEAN, ADJUST/REPLACE SPARK PLUGS CHECK THE DRIVE BELT CHECK PLASTIC SLIDERS - DRIVEN CLUTCH CHECK SLIDERS - CHAIN TAKE-UP SYSTEM INSPECT MECH. BRAKE PADS ADJUST PARKING BRAKE ADJUST PARKING BRAKE CABLE CHECK HYD. BRAKE FLUID LEVEL/COND. INSPECT HYDRAULIC BRAKE PADS CHECK/ADJUST STEERING CENTERING CHECK HYDROSTATIC TRANS. DRIVE BELT TENSION CHECK FUEL TANK CONNECTIONS/LINES INSPECT WIRING HARNESS

BEFORE

EACH

USE

AFTER INITIAL

10hrs. 25hrs. 25hrs. 50hrs. 100hrs. 150hrs. 300hrs.

X X X 2.2 X 2.2 X 2.2 X 2.2 X X 2.2 X 5.6 X 6.1.1 X 6.2.1 X X 6.1.3 X X 6.3.3 X X 6.2.2 X 6.3.1 X X 6.3.2 X 6.4.3 X X 6.4.4 X 6.4.4 X 6.4.2 X X 7.1.2 X 7.1.2 X 7.1.2 X 7.1.4 X 7.2.1 X 7.2.2 X X 7.2.4 X 7.3.3 X 7.3.2 X 7.3.4 X 7.4.2 X 7.4.4 X 7.5.1 X 7.5.3

X X

EVERY

SECTION

REF.

The intervals shown on the schedule are based on average operating conditions. Vehicles which are subject to more severe use, wet or dusty conditions, will require more frequent servicing. Use only Centaur replacement parts to ensure safe operation of the vehicle to comply with the warranty coverage.

We strongly recommend that a Centaur Dealer perform a complete check-over of your vehicle after the initial 25 hours of operation, then once each year. This will reduce maintenance costs over the life of your vehicle.

SECTION 8

TROUBLE SHOOTING

MALFUNCTION PROBABLE CAUSE CORRECTIVE ACTION (SYMPTOM)

Electric starter inoperative 1. Loose electrical connections 1. Clean and re-tighten electrical connections

2. Battery charge low or dead 2. Recharge battery or replace as necessary

3. Faulty starter motor 3. Return the vehicle to a CENTAUR dealer for servicing

4. Faulty ignition switch 4. Replace ignition switch

Engine turns over but will not 1. Engine is cold and choke is not 1. Pull out the choke and try to start

start pulled out (gas engine) again

2. Fuel tank is empty 2. Rell tank

3. Blocked fuel or air lter 3. Remove obstruction or replace lter as necessary

4. Spark plugs defective or fouled 4. Clean and re-gap or replace

(gas engine)

5. Ignition system inoperative 5. Have unit serviced by a properly

(gas engine) trained and equipped mechanic

6. Insufcient compression 6. Take the vehicle to a factory au-

thorized engine repair outlet

7. Gas engine fuel delivery system 7. Check that electric fuel pump is is faulty operating. Make sure fuel shut off solenoid is activated to allow fuel into carburetor.

Engine will not run 1. Refer to engine manual

Vehicle will not move and/or turn 1. Transmission in neutral or not 1. Place gear shift properly in gear

properly engaged in gear

2. Drive belt worn (see Section 7.2.1) 2. Replace belt if worn excessively

3. Clutch not engaging 3. Return the vehicle to a CENTAUR dealer for servicing

4. Transmission failure 4. Same as 3. above

5. Steering wheel lockout is engaged. 5. Lower arm rest and/or readjust/

replace lockout cable.

6. Hydrostat belt 6. Replace belt

7. Hydrostat faulty 7. Return to a CENTAUR dealer for servicing.

Severe vibration when vehicle 1. Loose engine mounts 1. Take vehicle to a CENTAUR is operated dealer for service.

2. Driver or driven clutch or engine 2. Same as above. defective

3. Wheel rim bent 3. Replace.

4. Worn or damaged drive belt 4. Replace. Clutch service may be

required.

SECTION 8

TROUBLE SHOOTING

MALFUNCTION PROBABLE CAUSE CORRECTIVE ACTION (SYMPTOM)

Water leaks into lower body 1. Leak has developed at the axle 1. Replace the ange seal. assembly

2. Lower body is cut or punctured 2. Repair or replace vehicle skid

plate and/or lower body.

3. Drain plugs not in place 3. Secure drain plugs.

Tire leaks air 1. Tire is punctured 1. Remove tire from rim and re- pair the hole with a radial tire patch or install a tube in the tire.

2. Tire is not properly seated on bead 2. Deate tire and carefully push

tire bead off the rim. Clean the rim bead area to remove dirt

and foreign matter. Re-inate tire.

3. Position of air leak is not obvious 3. Submerge tire and rim in a water tank. Air may be escaping through the rim halves or the valve stem.

Repair as required.

4. Defective valve 4. Replace defective valve.

Hydraulic brakes are spongy, 1. Air in hydraulic system 1. Have a CENTAUR dealer bleed

or there is excessive brake the brake system and add uid.

pedal travel

2. Leak in system 2. Have a CENTAUR dealer check all

ttings, hoses, calipers and seals

for loose connections or leakage.

Rell as needed.

Brakes ineffective 1. Pads have overheated and glazed 1. Have the pads cleaned by a CENTAUR dealer or replace.

2. Pads worn beyond 0.10" 2. Replace.

3. Pads are contaminated with 3. Have the pads cleaned by a lubricant CENTAUR dealer or replace pads.

There is a loud bang when the 1. Drive chains worn/loose 1. Adjust/replace drive chains as revehicle is turned right or left quired.

2. Engine and transmission mounts loose 2. Tighten all mounting points.

9.1 CLEANING THE VEHICLE

SECTION 9

CLEANING AND STORAGE

Wash the vehicle body with a household detergent and rinse with water. Flush dirt out of the lower body by using a high pressure sprayer or garden hose after removing the drain plugs. After the bottom of the vehicle is dry, lubricate the drive chains

with chain lube. Make sure the drain plugs are replaced.

9.2 STORING THE VEHICLE

When the vehicle is stored for an extended period, the following preparation is required:

Clean the Vehicle

Remove all dirt and water from the vehicle body as directed above.

Remove the drain plugs if the vehicle is not fully sheltered from the elements.

Any water accumulation in the vehicle will, over time, destroy chains and sprockets.

Do not store the battery near ames, sparks or any source of re. Batteries can explode if exposed to ames or

sparks, causing serious personal injury.

Recharge the battery monthly.

Protect the Electrical System

Spray the wiring harnesses and all the electrical connections with a silicone based lubricant (WD40 or equivalent) to prevent corrosion.

Carefully inspect the wiring for loose connections, bare wires or corrosion. Repair as necessary.

Drain the Fuel System - Gas Models Only

Insert a siphon hose into the gas tank through the ller neck

and drain the fuel. Start the engine and run it until all fuel in the system is consumed.

Add fuel stabilizer (Part No. 125-85) to the fuel tank and ll

with fresh fuel. Run the engine for a few minutes to allow

the treated fuel to reach the engine.

Prepare the Battery for Storage

Remove the battery from the vehicle. Clean it and charge it with a battery charger. Coat the battery terminals with a multi-purpose grease to prevent corrosion. Store the battery in a cool dry place.

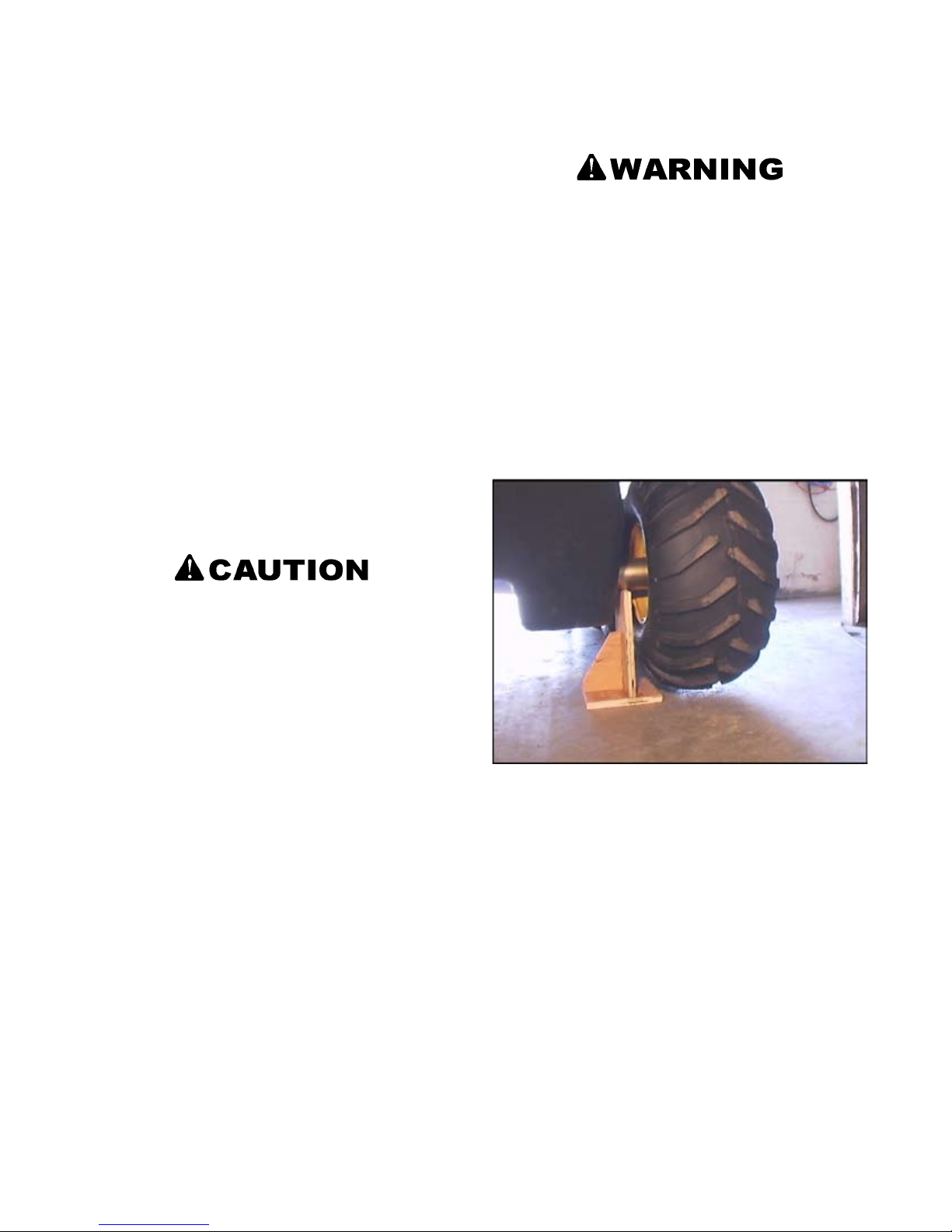

Figure 9-1. Correct placement of blocks

Raise the Vehicle

Place blocks under the front and rear axle assemblies of the

vehicle to raise the tires off the ground. The blocks must be

placed under the axle tubes to prevent body damage (Figure 9-1).

Preparing the Engine for Storage

Read the engine operator’s manual and carry out all recommended storage procedures.

SECTION 10

POTENTIAL HAZARDS

POTENTIAL WHAT CAN HAPPEN HOW TO AVOID THE HAZARD

HAZARD

Operating the Centaur wi tho ut readin g and understanding the Operator’s Manual

Allowing anyone under age 16 to operate this vehicle.

Op erat ing or ri ding as a passenger in the Centaur without wearing eye protection and protective clothing.

Operating the Centaur after or while consuming alcohol or drugs.

The risk of accident is greatly increased if the operator does not know how to operate the Centaur properly in different situations and on different types of terrain.

Children under the age of 16 may not have the skills, abilities, or judgement needed to operate the Centaur safely and may be involved in an accident causing severe injury or death.

Operating or driving without eye protection can result in an accident and increases your chances of a severe injury in the event of an accident.

Could seriously affect your judgement, cause you to react more slowly, and affect your balance and perception. This could result in an accident.

New or inexperienced operators should read and

understand the Operator’s Manual. They should

then regularly practice the operating techniques

described in this Operator’s Manual.

No one under the age of 16 should be allowed to operate the Centaur.

Wear an approved safety helmet and eye protection when driving or riding in the vehicle.

Never allow anyone under the inuence of alcohol or any other intoxicating substance to drive

or ride in the vehicle. Never use with drugs or alcohol.

Carrying passengers in

the dump box.

Operating the Centaur in water without dr ain plugs prop erly installed.

Operating the Centaur as an amphibious vehicle.

Operating or driving the Centaur in water without the occupants wearing an approved personal flotation de-

vice (PFD).

Riders can fall off and be killed.

Will cause the vehicle to ll with water, potentially

causing damage to chains, sprockets or other major components, which could result in injury or drowning to driver and passengers.

Fill with water and capsize. Never oat the Centaur across water.

If you lose control of the Centaur in water and it capsizes and sinks, the driver and passengers may be injured or drown.

No riders in the dump box.

Always make sure the drain plugs are properly installed in the Centaur as described in the Operator’s Manual.

All occupants must wear an approved personal otation device (PFD) or life jacket while travelling in water.

SECTION 10

POTENTIAL HAZARDS

POTENTIAL WHAT CAN HAPPEN HOW TO AVOID THE HAZARD

HAZARD

Failure to enter the water correctly.

Ca rryin g more th a n spec ifi ed number of people in a Centaur.

Overloading the vehicle.

You may cause waves, which will enter the Centaur and cause it to take in water, which could result in injury or vehicle damage.

Greatly reduces ability to balance and control the Centaur on land and could cause an accident, resulting in injury or death to driver and passengers.

Heavy loads and high loads decrease the stability of the vehicle and may cause it to roll.

Trying to steer an overloaded vehicle can damage the steering system. Overloading your vehicle can lead to costly damage to steering system, trans-

mission, drive chains, axles or bearings.

The point of entry should be free of rocks, stumps

and other obstacles. Enter the water from a rm,

gradual slope whenever possible. Be careful not to submerge the bumper as you enter the water.

Never exceed the load capacity of the Centaur.

Follow the recommended load capacity for your vehicle listed in Section 1.

Never exceed the load capacity of the Centaur.

Follow the recommended load capacity for your vehicle listed in Section 1.

Failure to fasten seat belts.

Failure to unfasten seat belts when the vehicle is in water.

Failure to inspect the Centaur before operating. Failure to properly maintain the Centaur.

Failure to keep doors fr ee fo r unr estr ict ed

exit when operating in

water.

If the Centaur overturns, the driver and passengers may be thrown from the vehicle and be seriously injured or killed.

If the Centaur capsizes or sinks the driver and passengers may be unable to unfasten their seat belts and may drown.

Increases the possibility of an accident or equipment damage.

If the Centaur capsizes or sinks, the occupants may be trapped inside and may drown.

Seat belts must be properly adjusted and worn by all occupants at all times EXCEPT when operating in water.

Do not use seat belts or any passenger restraining device while operating a Centaur in water.

Always inspect your Centaur each time you use it to make sure it is in safe operating condition. Always follow the inspection and maintenance procedures and schedules described in this Operator’s Manual.

Always ensure there is an unrestricted exit when

operating in water.

SECTION 10

POTENTIAL HAZARDS

POTENTIAL WHAT CAN HAPPEN HOW TO AVOID THE HAZARD

HAZARD

Operating the Centaur with improper tires or with improper or uneven tire pressure.

Operating the Centaur with improper modications.

Applying brakes sudde n l y w h en g oin g downhill.

Operating Centaur on public streets, roads or highways.

Never operate at excessive speeds.

Use of improper tires on the Centaur, or operation of the Centaur with improper or uneven tire pressure may cause loss of control increasing your risk of an accident.

Improper installation of accessories or modi-

cation of the Centaur may cause changes in

handling which in some situations could lead to an accident.

Sudden braking can cause the vehicle to roll over forward.

A collision can occur with another vehicle.

Personal injury or vehicle damage may result.

Always use the size and type tires specied in

this Operator’s Manual for this Centaur. Always maintain proper tire pressure as described in this Operator’s Manual.

Never modify the Centaur through improper installation or improper use of accessories. All parts and accessories added to this Centaur should be genuine Centaur components designed for use on the Centaur and should be installed and used according to instructions. If you have

questions, consult an authorized Centaur dealer

or contact Ontario Drive & Gear Limited at 1-519-662-4000

Gently apply the brakes to control downward vehicle speed. Do not jam on the brakes while travelling downhill.

Never drive on public roads.

Do not drive the vehicle at high speeds over unfamiliar or rough terrain. Never operate at speeds too fast for your skills or the conditions.

Fa ilur e to use extr a

care when operating the Centaur on unfamiliar terrain.

Fa ilu re to use extra

care when operating on rough, slippery or loose terrain.

Turning improperly. When turning, the back of the vehicle swings to

Driving on inclines with a loaded vehicle.

Going downhill improperly.

Personal injury or vehicle damage may result. Do not drive the vehicle at high speeds over

Could cause loss of traction or vehicle control, which could result in an accident, including an overturn.

the opposite direction of the turn, creating a risk of hitting persons or objects. Sharp turns, especially at high speeds or when heavily loaded, may cause the vehicle to roll over.

Heavy loads and high loads decrease the stability of the vehicle and may cause it to roll.

Sudden braking can cause the vehicle to roll over forwards.

unfamiliar or rough terrain.

Do not operate on rough, slippery or loose terrain until you have learned and practised the skills necessary to control the Centaur on such terrain.

Always take precautions when making turns to avoid rolling the vehicle or hitting persons or objects. Slow the vehicle down before making a turn. Do not apply the brakes too suddenly.

Use ext reme CAUTI ON when negotiatin g

inclines with a loaded vehicle. Be prepared to shift occupant weight and load forward or have passengers get out of the vehicle to walk up an incline.

Avoid steep declines when possible. When a steep decline cannot be avoided, shift occupant weight to the rear of the vehicle to prevent the vehicle from rolling over.

SECTION 10

POTENTIAL HAZARDS

POTENTIAL WHAT CAN HAPPEN HOW TO AVOID THE HAZARD

HAZARD

Im prop erly cros sing hills o r t u rning o n hills.

Side slope operation greatly increases the risk of rolling the vehicle over sideways. Prolonged side slope operation may cause engine damage.

Do not drive your vehicle across the side of a hill. Observe the engine angle of operation limitations in Section 5.2.

Stalling or rolling backwards while climbing a hill.

Improperly operating over obstacles.

Skidding or sliding.

Improperly operating in reverse.

Could cause loss of control which could lead to an accident including an overturn.

Personal injury or vehicle damage may result.

You may lose control of the Centaur. You may also

regain traction unexpectedly which may cause the

Centaur to overturn.

You could hit an obstacle or person behind you resulting in serious injury. When turning in reverse, steering operation is opposite to automobiles, similar to backing up a trailer.

Try to avoid steep hills. Maintain steady speed when climbing a hill. If you lose all forward

speed:

- keep vehicle pointed up hill

- gently apply the brake

- slowly coast backwards down the hill using the brake to control the descent

Before operating in a new area, check for obstacles. Never attempt to drive over large obstacles such as large rocks or fallen trees. When you go over obstacles always follow proper procedures as described in this Operator’s Manual.

Learn to safely control skidding or sliding by practising at slow speeds and on level, smooth

terrain. On extremely slippery surfaces, such

as ice, go slowly and be very cautious in order to reduce the chance of skidding or sliding out of control.

Carefully practice backing up and turning in an open area until you become accustomed to this procedure. Take precautions to avoid hitting persons or objects.

Running the engine in a clos ed buil din g or

conned area.

Adding fuel while the engine is running or hot.

Filling outboard motor fuel tanks while they are in the Centaur.

Engine exhaust gases contain poisonous carbon monoxide. Carbon monoxide is odourless, colour-

less and can cause serious injury or death.

Fuel is extremely ammable and can explode

under certain conditions, causing serious injury or death.

Gasoline is extremely ammable and can explode

if ignited, causing serious injury or death.

Never start or run the engine in a closed building

or conned area.

Do not add fuel while the engine is running or hot.

Fill outboard motor fuel tanks outside of the vehicle. Wipe up any spilled fuel immediately. Do not carry or store fuel tanks in a vehicle

equipped with a cab or convertible top unless adequate ventilation is provided.

SECTION 11

ACCESSORY INFORMATION

11.1 GENERAL

This section deals with accessories that have been specically

designed for the CENTAUR and can be purchased separately from your dealer. Special operating procedures and safety precautions must be observed before operating or using certain accessories.

11.2 REAR CARGO TIE DOWN BARS (Part No. 849-116)

Rear cargo tie down bars are mounted to the rear upper frame. They provide points to secure your load.

Never attempt to raise the vehicle by using the tie down bars as lifting points.

Never exceed gross vehicle weight. Never exceed the maximum rear compartment weight for Centaurs.

11.3 ALL SEASON TRACK KIT (Part No. 849-150)

Available in a 15” wide mud and snow application, the rubber

track system will allow for ultimate all terrain performance.

The track systems spread the weight of the vehicle over a larger area than the tires, thereby reducing the ground pressure and allowing the vehicle to stay on top rather than sinking into soft terrain.

11.3.1 Track Installation

1. Tires must be checked for size to ensure that equal size

pairs are installed in each track. If this is not done, chain windup will happen causing damage to the drive system

components. Tires can be sized this way: a. With the tires still off the machine, inate them all

to 10 psi. If the tires were just installed on rims or were left set under 5 psi, it is very important that the tires have a chance to sit for at least 24 hours while pressurized. Re-check the tire pressure and re-set to

10 psi if required.

b. Measure the circumference of each tire using a suit-

able tape measure, being sure to measure around the center-line of the tire. Figure 11-1. Write down the measurement on each tire.

Figure 11-1. Measuring the tire.

c. Try to put matched tire sizes in each track; i.e. From

the eight tires, pair them off so each two tires in a

pair have a circumference within 1/2" of each other

and then put the smaller of these two toward the front and the larger one toward the back of each track. Do the same for all 4 pieces of rubber track.

Two tires that measure the same circumference when at 10 psi, should always be the same circumference when at equal pressure. Check tire pressure every 10 hours and

adjust so that front and rear tires have equal pressure.

2. If tire sizing is strictly adhered to, all drive chains should be left connected to the drive train for optimum perform-

ance. If you are experiencing frequent drive chain windup,

remove tracks and recheck tires to ensure that front and

rear tire circumference is equal with equal tire pressure.

3. Release air pressure in the Multi Trac XT tires.

4. Put two deated tires into the track (Figure 11-2).

5. Manoeuver the assembly into position on two wheel hubs

and secure the wheel nuts (Figure 11-3).

SECTION 11

ACCESSORY INFORMATION

Figure 11-2. Deated tires into track

Figure 11-3. Positioning on wheel hubes.

6. Re-inate tires (to between 10 and 20 psi) until tracks are no longer loose. (But no less then 10 psi tire pressure.) (Figure 11-4).

Figure 11-4. Re-inating tires.

11.3.2 Operating Precautions

A Centaur equipped with tracks cannot be used in water or

over frozen bodies of water. Tracked Centaur models have a reduced capacity on land. Refer to Section 1.4.1 of this manual for additional information on operating capacities.

CAUTION should be observed when operating in winter conditions and a drop in temperature occurs. Snow and slush accumulation in the track could freeze, resulting in damage to the track system. Slush, snow and ice accumulation should be cleared from the axles and track

periodically to prevent build-up.

CAUTION should be observed when using any track system on a Centaur. Make sure the guides and backing plates are properly secured in each track. Failure to secure them can result in lower body damage.

7. These tires grow fairly dramatically with increased air

pressure:

The circumference of the tire is:

68.5" at 0 psi

70.2" at 5 psi

71.5" at 10 psi

72.4" at 15 psi

74.5" at 20 psi

DO NOT OVER INFLATE! Too much track tension can damage bearings and axle housings.

EXTREME CAUTION must be observed when using the track systems on icy surfaces. Steering and braking effectiveness will be reduced. Reduce speed.

EXTREME CAUTION must be observed when cross- ing ice-covered water. The vehicle will sink if it breaks through the ice surface and lls with water. Make sure

drain plugs are securely in place and do not overload the vehicle. Ice must be thick enough to support the fully loaded vehicle.

SECTION 11

ACCESSORY INFORMATION

11.4 WINTER TRACK KIT (Part No. 849-160)

Available in a ladder style, belted snow track, 22" wide for

minimal ground pressure, 1.85" steel grouser for maximum

snow penetration.

11.4.1 Installing the Axle Extension

1. Raise the vehicle off the ground and remove the wheels.

2. Install the extension studs on all of the vehicle wheel

studs and tighten securely.

3. Place the axle extension collars onto the extension studs and seat rmly against the axle hub plate. The small hole

must face away from the hub plate.

Damage to the extension studs, bolts, or axle extension may occur if the extension studs are not tightened correctly. Use good judgment when installing.

4. Tires must be checked for size to ensure that equal size

ones are installed on the front and rear where most of the traction is transmitted to the tracks. If this is not done, chain windup will happen causing damage to the drive

system components. Tires can be sized this way: a. With the tires still off the machine, inate them all

10 psi if required.

b. Measure the circumference of each tire using a suit-

able tape measure, being sure to measure around the center-line of the tire. Figure 11-1. Write down the measurement on each tire.

c. Try to put matched tire sizes on the front and rear

of each side; i.e. From the four tires on the left side,

choose two with a circumference within 1/2" of each

other and then put the smaller of these two on the front and the larger one on the back. Do the same on the right side of the Centaur.

Figure 11-5. Installing the Axle Extensions.

Figure 11-6. Check stud position in axle extension.

The extension studs have hexagonal sides and must sit properly within the slots on the axle extension. If the extension studs are misaligned with the slots of the axle extensions when installing, adjust each stud as necessary by tightening them further until alignment allows for the extension to slide on easily (by hand), up against the axle hub.

Two tires that measure the same circumference when at 10 psi, should always be the same circumference when at equal pressure. Check tire pressure every 10 hours and

adjust so that front and rear tires have equal pressure.

5. If tire sizing is strictly adhered to, all drive chains should be left connected to the drive train for optimum perform-

ance. If you are experiencing frequent drive chain windup,

remove tracks and recheck tires to ensure that front and

rear tire circumference is equal with equal tire pressure.

6. Install the Multi-Trac XT wheel assemblies. Use extreme care and allow extra installation time to protect the axle extensions from damage. Torque the wheel nuts to 65 ft-lbs. (88 Nm).

11.4.2 Track Installation

1. Lay the two assembled tracks on the ground in front of the vehicle so the open side of each grouser is forward.

2. Drive the vehicle forward onto the tracks until only three segments are in front of the tires.

SECTION 11

ACCESSORY INFORMATION

3. Pull the remaining track around the rear tire and forward to the front of the vehicle.

4. Deate the front and rear tires for easier installation of the nal track hinge bolts.

5. Join the two ends of the track and secure them in place

with C-Clamps, so that the hinges are lined up.

6. Install the track hinge bolts and secure each with a locknut. Remove the C-clamps.

7. Inate all tires to 10 psi (70 kPa).

8. Check track tension by raising the vehicle off the ground. The track under the wheels should sag between 3 and 6 inches. Add air pressure, up to 20 psi, to reduce the sag.

DO NOT SET THE TRACK TENSION TOO HIGH!

High track tension will cause excessive and premature wear of the tires and track system, and may cause axle, axle bearing and/or chain damage.

Allow the tires to reach the temperature of operating con-

ditions. Re-check the tire ination at operating conditions

before operation.

Under certain conditions, the tires may climb out of the

track system during a turn or side hill operation. Check

that all tires are correctly inated, and avoid sharp high

speed turns when the Centaur is heavily loaded.

11.4.3 Removal of Tracks

1. Use C-Clamps to take tension off of track hinge bolt.

If a Centaur is taken outdoors into freezing temperatures after the track system has been installed indoors at normal room temperature, the tires will lose air pressure. After the tires have cooled down to the outdoor temperature where the vehicle is to be operated, the tire pressure should be re-checked and

adjusted as required.

Do not allow the track to freeze up or become clogged with snow. Damage to the track system can occur. EXTREME CAUTION must be observed when using the track system on icy surfaces. Loss of steering and braking effectiveness will occur.

Extreme CAUTION is advised when crossing ice-covered water. The vehicle will sink if it breaks through the ice surface

and lls with water.

Under certain winter conditions, such as a rapid drop in temperature after a mild period, slush can build up on the track system to the point that the Centaur may be unable to move. Stop periodically to clean snow and ice from the

axles and track components to prevent build-up.

Do NOT use the Centaur when crossing shallow water with a snow track system installed.

11.5 ICE CLEAT KIT (Part No. 848-130)

CENTAUR ice cleats are stamped steel cleats that bolt to the all season rubber tracks to grip on hard pack snow and ice to improve traction and stopping.

2. Remove the locknuts from both track hinge bolts and remove both bolts.

3. Pull the track off the top of the tires and drive the vehicle out of the tracks.

Axle extensions are recommended for use only with

Centaur snow tracks and should be removed for tire-

only use.

11.4.4 Operating Precautions

This track system is not recommended for use on pavement, gravel, rocks or any other abrasive surface. Abrasion will cause damage to the track assembly.

Make sure all passengers riding in a Centaur equipped with ice cleats are informed to keep hands, feet and clothing inside the vehicle, well away from the tracks and ice cleats while the Centaur is in motion. Serious injury or death could result from getting caught by the ice cleats.

The Ice Cleats must be installed near the OUTSIDE edge of the track assemblies to prevent damage to the vehicle body.

SECTION 11

ACCESSORY INFORMATION

11.6 WINCH KIT (Part No. 849-114)

The 3500 lbs. winch mounts permanently to the front of the Centaur and can be used for self-recovery and to raise and

lower the snowplow blade (Part No. 657-100). The winch

has a free-wheeling feature that allows the 40 ft. steel cable to be pulled off the winch drum without using the winch’s 12 volt electric motor.

The electrical components and the wiring design of the winch kit prevent the use of the winch motor unless the ignition key is turned to the ‘on’ position. This is a safety feature that prevents the unauthorized use of the winch when the vehicle is parked.

After the installation of the winch kit is completed, test the electrical connections by moving the toggle switch control from side to side with the ignition switch removed. If the winch DOES NOT operate, the connections are correct. If the winch starts during this test, have the installer correct the wiring connections immediately.

11.6.1 Rules For Safe Operation

3. DO NOT “move” your vehicle to assist the winch in pulling a load. The combination of the winch and vehicle pulling together could overload the wire rope and the winch itself.

4. KEEP WINCHING AREA CLEAR. Do not allow people

to remain in the area during winching operations. Do not step over a taut wire rope or allow anyone else to do so. Do not stand between the winch and the load.

5. INSPECT WIRE ROPE AND EQUIPMENT FREQUENTLY. A frayed wire rope with broken strands should be replaced immediately. Always replace wire rope with the manufacturer’s identical replacement part, Superwinch Part No.1513.

6. USE HEAVY LEATHER GLOVES when handling wire rope. Do not let wire rope slide through your hands. A broken strand could seriously injure your hands.

7. Keep clear of winch wire rope and hook when operating winch. Never put your ngers through the hook when reeling in the last few feet of line. If your nger should become trapped in the hook, you could lose your nger. Use the HANDSAVER BAR (Figure 11-8) to guide the

hook within the last few feet. Never guide a wire rope onto the drum with your hand.

1. The winch is rated at 3,500 pounds (single-line) capacity. DO NOT OVERLOAD. DO NOT ATTEMPT PROLONGED PULLS AT HEAVY LOADS. DO NOT MAINTAIN POWER TO THE WINCH IF THE MO-

TOR STALLS. Overloads can damage the winch and/or

the wire rope and create unsafe operating conditions. For heavy loads, we recommend the use of the optional pul-

ley block and hook assembly (Superwinch Part No.1503) to double line the wire rope. (Figure 11-7) This reduces

the load on the winch and the strain on the wire rope by

approximately 50%.

Figure 11-7. Double Line.

2. Periodically check the winch installation to assure that all bolts are tight.

Figure 11-8. Using the Handsaver Bar.

8. NEVER HOOK THE WIRE ROPE BACK ONTO ITSELF. Use a nylon sling. (Figure 11-9). Hooking the wire rope onto itself can damage the rope (Figure 11-10).

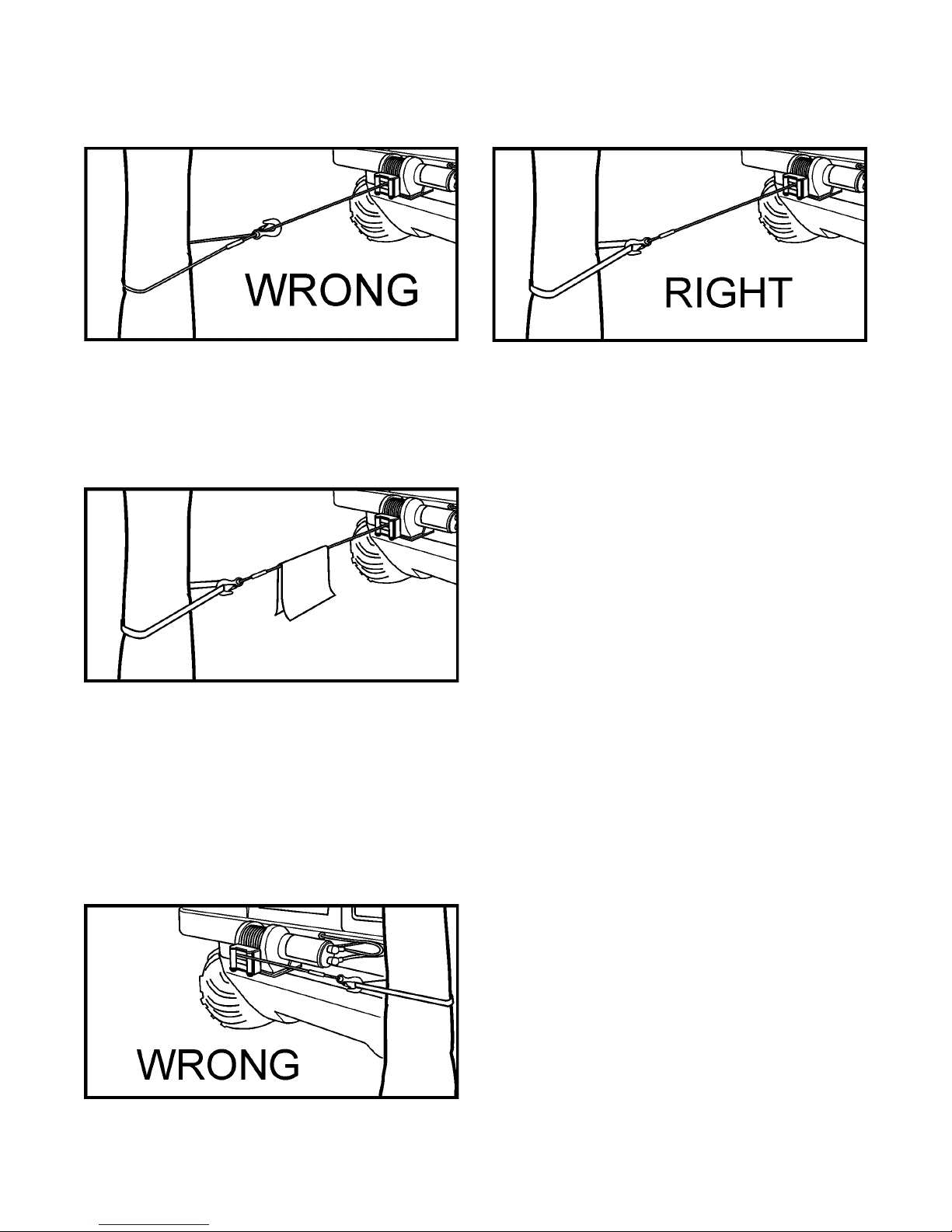

Figure 11-9. Correct hook-up.

SECTION 11

ACCESSORY INFORMATION

Figure 11-10. Incorrect hook-up.

9. It is a good idea to lay a heavy blanket or jacket over the wire rope near the hook end when pulling heavy loads

(Figure 11-11). If a wire rope failure should occur, the

cloth will act as a damper and help prevent the rope from whipping.

Figure 11-11. Using a cloth damper.

10. Your winch is not designed or intended for overhead hoisting operations. Never use your winch for lifting or moving people.

11. Avoid continuous pulls from extreme angles as this will

cause the wire rope to pile up at one end of the drum

(Figure 11-12 and gure 11-13). This can jam the wire

rope in the winch causing damage to the wire rope or the

winch itself.

Figure 11-12. Incorrect positioning for continuous pulls.

Figure 11-13. Correct positioning for continuous pulls.

12. Always operate the winch with an unobstructed view of the winching operation.

13. Do not operate the winch when under the inuence of

drugs, alcohol or medication.

14. Never work on or around the fairlead or winch drum when the winch is under load.

15. When using your winch to move a load, place the vehicle transmission in neutral, set vehicle parking brake, chock all wheels, and keep the engine running.

16. Do not use the winch to hold the Centaur in place during transportation. Use tie-down straps.

17. Maintain at least ve turns of wire rope around wire rope

drum to prevent the wire rope from pulling off under load.

18. Never run winch without circuit breakers in place. Dangerous overloads to mechanical and electrical components can result.

11.6.2 Tips for Extending the Life of Your Winch

1. Keep a tightly and evenly wound wire rope drum. Do not

allow the wire rope to become loosely wound. A looselywound spool allows a wire rope under load to work its way down into the layers of wire rope on the drum. When this happens, the wire rope may become wedged within the body of the windings damaging the wire rope. To prevent this problem, keep the wire rope tightly and evenly wound on the drum at all times. During winching, periodically check to see that the wire rope is winding on evenly. A good practice is to rewind the wire rope under tension after each use. One way to do this is to attach the hook to a stationary object at the top of a small hill or incline and winch your vehicle up the incline.

SECTION 11

ACCESSORY INFORMATION

2. Do not allow motor to overheat. Remember, the winch is only for intermittent use. During long or heavy pulls the motor will get hot. The internal parts will be hotter than the case. To check the motor temperature, stop winching and carefully touch the end of the motor. If the motor is uncomfortably warm, allow the motor to cool before continuing — keep the engine running to recharge the battery during this break.

3. Use a pulley block for heavy loads. To maximize winch and wire rope life, use a pulley block (Superwinch Part No. 1503) to double line heavier loads.

4. The pull required to start a load moving is often much greater than the pull required to keep it moving. Avoid frequent stopping and starting during a pull.

5. Prevent kinks before they occur.

(1) This is the start of a kink. At this time, the wire rope

should be straightened.

(2) The wire rope was pulled and the loop has tightened to

a kink. The wire rope is now permanently damaged and must be replaced.

The pump is not designed to run dry. Use only when water has collected in the vehicle.

11.9 SNOW PLOW KIT (Part No. 657-106)

The snow plow assembly attaches to the front mainframe as-

sembly of the Centaur. The plow blade is an 81” (2 m) steel

blade suitable for straight or angled use. The power winch

option is required to raise and lower the snow plow blade.

DO NOT STAND BETWEEN THE PLOW BLADE AND THE FRONT OF THE CENTAUR. Injury could result if the blade is raised.

The vehicle operator must observe caution when operating the vehicle and snow plow in the presence of others. Injury could result if a bystander is struck when the vehicle swings to turn or the blade is lowered onto someone’s foot. Always be aware of the area being plowed. Although there is a blade trip mechanism feature of the blade, damage or operator injury could result from hitting rocks, stakes or curbs hidden under the snow being plowed.

11.9.1 Operating Guidelines

(3) The result of kinking is that each strand pulls a different

amount, causing the strands under greatest tension to break and reduce load capacity of the wire rope. The wire rope must be replaced.

11.7 RECEIVER WINCH KIT (Part No. 849-123)

The receiver option incorporates a winch brush guard, front

and rear receiver mounting brackets and quick disconnect

cables.

11.8 BILGE PUMP KIT (Part No. 849-146)

The bilge pump kit is recommended when the vehicle will be used to cross shallow ponds, streams or rivers. The Centaur

utilizes two centrally located pumps to quickly remove water.

It includes a dash mounted switch and wire harness.

1. Do NOT operate the Centaur on open or frozen bodies of water.

2. For quick removal of the snowplow unit, disconnect the

rear hitch points of the upper boom from the mounting brackets, unhook and rewind the winch cable.

3. The knives are specially designed to be reversible and interchangeable with each other once the leading edge has worn.

11.10 UTILITY TRAILER (Part No. 695-80BL)

The Centaur Four Wheel Utility Trailer has been designed for use as an additional cargo carrier with any Centaur Off Road Vehicle. It is NOT intended for transporting people.

Become familiar with the trailer’s handling characteristics, especially in hilly conditions, BEFORE using it in unfamiliar terrain or fully loaded.

The trailer tongue is designed to swivel, much like a universal joint, even in the roughest terrain.

SECTION 11

ACCESSORY INFORMATION

11.11 CAB HEATER (Part No. 848-110)

DO NOT exceed maximum load capacity for your specic

application. Exceeding the load capacity could cause trailer or tow vehicle to damage and personal injury could be incurred.

11.10.1 Operating Precautions

Observe the following recommendations for safe and trouble

free operations:

• Trailer load capacity - 600 lbs. (270 kg.). Trailer weight

- 385 lbs. (175kg.)

• Keep tire pressure at 4 psi.

• Cargo must be kept low and centered in the trailer at

all times. Be aware that loads may shift when trailer is operated in uneven terrain.

• Keep both drain plugs in place and tightly sealed. Remove oorboard for access to plugs. To tighten plugs, turn lever

clockwise. To loosen, turn counter clockwise. To remove, lift lever and pull up on plug.

• Caution - Asphalt or concrete surfaces will cause excessive tire wear.

The Centaur can be tted with a 17000 BTU cab heater. It is equipped with a 3-speed dual fan motor. This will provide

operator comfort in the harshest winter conditions.

11.12 DUMP BOX KIT (Part No. 835-100)

The dump box is mounted to the mainframe. It improves the

load carrying versatility of the Centaur.

• Keep hands and arms clear when lowering box.

• No riders in box; riders can fall off and be killed.

• Installation of dump box reduces vehicle capacity by 109

kg (240 lbs). (Capacity includes: occupants, cargo and

fuel.)

• Tie loads down. Spread loads evenly.

• Operators should use caution when turning in conned

spaces and close to bystanders. The dump box decreases the rear clearance of the Centaur.

• Never operate dump while moving.

• Operate dump on level ground only.

• The dump box decreases the vehicle stability. Operate the

vehicle with extra precautions when on uneven terrain.

• Do not use in fast owing or rough water. Operator

discretion is advised.

• Do not stop suddenly when pulling a loaded trailer down

hill as it may run ahead or into the back of the vehicle pulling it.

Keep ngers clear of tongue swiveling components.

• Do not step on or place loads on the edge of the body

over the trailer wheels. This area of the trailer body is intended only as a mud guard.

• Keep the outer axle bearing anges and inner bearings

lled with Shell Alvania 2 grease, or equivalent, as this provides extra protection for the bearings from dirt and

water.

• Remove water and debris from the trailer frequently.

This will prevent premature rusting of the frame and contamination of the bearings.

11.13 CARGO LINER (Part No. 848-123)

Made from welded steel, the cargo liner is an extension to the existing oor plates and increases lower body protection.

11.14 CENTAUR FOUR POINT LIFT KIT - (Part No. 848-121)

Designed for remote reghting, search and rescue and surveying. This optional retrotable kit mounts to all Centaur

models.

• Do not lift the Centaur with people aboard.

• Maximum lift weight of the Centaur is 2500lbs (1134kg) which

is equivalent to the shipping weight + approximately 500lbs.

(227kg)

• Brackets are designed to be used with four equal length straps a

minimum length of 12 ft. (3.66m) each and shackles. Each strap and shackle should be rated for 2000lbs (907.2kg) minimum.

SECTION 11

ACCESSORY INFORMATION

11.15 LIGHT GUARD KIT (Part No. 849-134)

The light guards prevent brush and tree limbs from making direct contact with the vehicle driving lights. It can be installed as a stand alone item or combined with the brush guard.

11.16 BRUSH GUARD KIT (Part No. 849-191)

The brush guard is frame mounted and designed to prevent brush and tree limbs from damaging the lights and windshield.

11.17 MUD FLAP EXTENDERS (Part No. 821-105)

For use with Snow or Multi-Purpose Tracks. Mud ap extenders bolt onto the upper frame assembly and help to keep mud and snow out of the cargo compartment.

11.18 TRANSMISSION OIL HEATER (Part No.

613-103)

Recommended for use in cold temperatures. This heater plugs into a 110V power supply and heats the transmission oil by using a submergible 150 watt heating element.

11.19 SPEEDOMETER KIT (Part No. 849-165)

3" diameter analog dash mounted gauge, magnetic pick-up from front drive sprocket.

APPENDIX 1

SPECIAL TOOLS

10R VICE GRIP MODIFICATION

As detailed in Section 7, a pair of modied 10R Vice Grips (Part No. 658-38) is required to hold the ends of the drive chain

together while inserting the connecting link. This tool can also be used to hold the ends of the idler chain together while inserting the connecting link. Grind the undercut and sides of

the vice grip jaw to t over 2 chain rollers. The undercut is approximately 5/16" radius as shown below.

DRIVER CLUTCH REMOVAL TOOL 658-17

Part No. 658-17, Clutch Removal Tool, can be used to assist in removal of the driver clutch from the engine. Alternately, a

6” length of 3/8” steel rod can be used with a 9/16”-18x1-1/8”

bolt.

NOTES

Centaur New Vehicle Limited Warranty

The warranty period is limited to 12 months or 750 hours of operation from the date of retail sale, with the fol-

lowing exceptions:

Engine: 24 months from the date of retail sale separately by the engine manufacturer’s service net-

work

Exide Battery: 12 months free replacement from the date of retail sale by the battery manufacturer service

network, 950 CCA-36 months total pro-rated, 600 CCA-60 months total pro-rated

Tires: 3 months from the date of retail sale

Ontario Drive & Gear Limited hereby warrants to the original retail purchaser that each new and unused CENTAUR

is free from any defect in material or workmanship for the warranty period specied, under normal use and service

by the original purchaser.

This warranty is void unless a Warranty Registration and Pre-Service Checklist Form 670-36 have both been properly completed and returned to Ontario Drive & Gear Limited within 10 days of the date of retail sale.

This warranty is not transferable unless an application of transfer has been approved by Ontario Drive & Gear Limited and a new warranty card has been issued.

This warranty shall not apply to used or demonstrator CENTAUR vehicles or to such units delivered to a distributor or dealer more than 12 months before its retail sale, unless a warranty validation is obtained from Ontario Drive

& Gear Limited by written notice specifying the vehicle in question.

This warranty does not cover the following items:

1. Machines or parts lost or damaged during shipment.

2. Normal maintenance or adjustments after initial pre-servicing is completed.

3. Normal replacement of service items.

4. Accessory items not supplied by Ontario Drive & Gear Limited.

5. Damages resulting from:

• misuse, accident, theft or re

• use of improper or insufcient fuel, uids or lubricants

• use of parts other than genuine CENTAUR parts

• modications, alteration, tampering or improper repair performed by parties other than an authorized

CENTAUR dealer. Any device or accessories installed by parties other than an authorized CENTAUR

dealer. Modications or alterations must be pre-authorized in writing by Ontario Drive & Gear prior

to installation

6. Batteries that fail due to improper charging or installation; broken container, cover or terminal sulphation

or dehydration; damage caused by re, excessive heat, wreckage, explosion, freezing, the addition of any

chemical or solution other than the battery grade sulphuric acid.

This shall constitute the complete and only warranty given by Ontario Drive & Gear Limited, and, except as specically set forth in the foregoing, Ontario Drive & Gear Limited shall not, in any event, be liable for any losses, damages or costs, whether special, incidental, consequential or otherwise, in any way related to any vehicle or its sale. No warranty, expressed, implied or statutory, as to merchantability, tness for a particular purpose, description, quality or any other matter is given in connection with any CENTAUR vehicle or its sale and no agent, employee

or other person has any authority to vary any of the foregoing provisions. Provided, however, that this clause shall be severable where voided by application of the Consumer Protection Act.

CENTAUR RETAILER... Please complete this page at the time of sale to the new owner so your customer has all pertinent information that may be required.

CENTAUR MODEL ______________________________________________

CENTAUR SERIAL NO. ____________________________________________

ENGINE SERIAL NO. ______________________________________________

TRANSMISSION SERIAL NO. _______________________________________

SOLD TO: _______________________________________________________

STREET ADDRESS: _______________________________________________

CITY OR TOWN: ___________________ PROV/STATE: ___________________

POSTAL/ZIP: _____________________________________________________

DATE OF SALE: __________________________________________________

WARRANTY PERIOD EXPIRES: _____________________________________

DEALER NAME: __________________________________________________

PHONE: _________________________________________________________

ADDRESS: ______________________________________________________

CITY/TOWN: ______________________ PROV/STATE: __________________

CENTAUR PRODUCTS MANUFACTURED BY:

Ontario Drive & Gear Limited 220 Bergey Court New Hamburg, Ontario N3A 2J5 Canada Phone: (519) 662-2840 Fax: (519) 662-2421 www.centaur8x8.ca
