Page 1

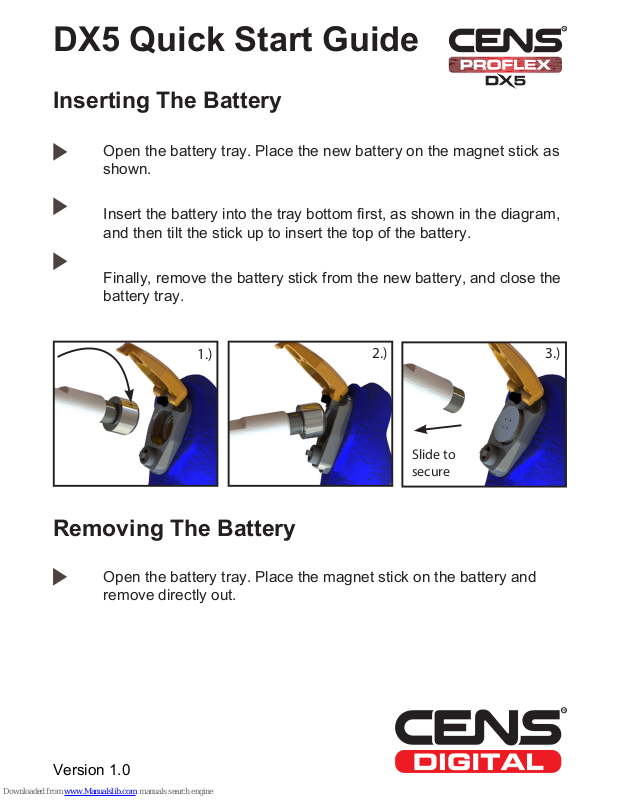

Inserting The Battery
Open the battery tray. Place the new battery on the magnet stick as
shown.
Insert the battery into the tray bottom first, as shown in the diagram,
and then tilt the stick up to insert the top of the battery.
Finally, remove the battery stick from the new battery, and close the
battery tray.
Removing The Battery
Open the battery tray. Place the magnet stick on the battery and
remove directly out.
Slide to
secure
3.)
2.)
1.)
DX5 Quick Start Guide
Version 1.0
Page 2
Push and release once to toggle on and off (Mute).
The on/off button is located at the top of the electronic module.
Short press up - increases the volume level
Short press down - decreases the volume level
Long press up - increments program select
Long press down - decrements program select
The multi-function rocker switch is located at the bottom of the electronic
module.
On/Off (mute)
Functions
Programs:
1. Game Mode
2. Clay Mode
3. Range Mode
4. Wireless Comms
5. Hunter Mode
Volume & program auto-save
DX5 will remember your last set volume control level and program
setting even when switched off or the battery is removed
