C. E. Niehoff & Co

.

BRUSHLESS ALTERNATORS

1. Install regulator bracket as shown in Figure 1.

2. Apply thread adhesive such as Loctite® 222 to screws before installing.

Regulator

#10-32 screw — torque to 7.4 Nm/65 lb. in.
(3 places)

➛

➛

#8-32 x 0.75 screw —
torque to 3.4 Nm/30 lb. in.

➛

(2 places)

Bracket

Regulator Bracket Assembly

N9637

for N1380-4 Alternators

Installation Instructions

#8-32 x 0.38 screw —
torque to 3.4 Nm/30 lb. in.
(2 places)

➛

➛

Cover plate

Alternator front housing

➛

➛

#8-32 x 0.50 screw —
torque to 3.4 Nm/30 lb. in.
(4 places)

➛

➛

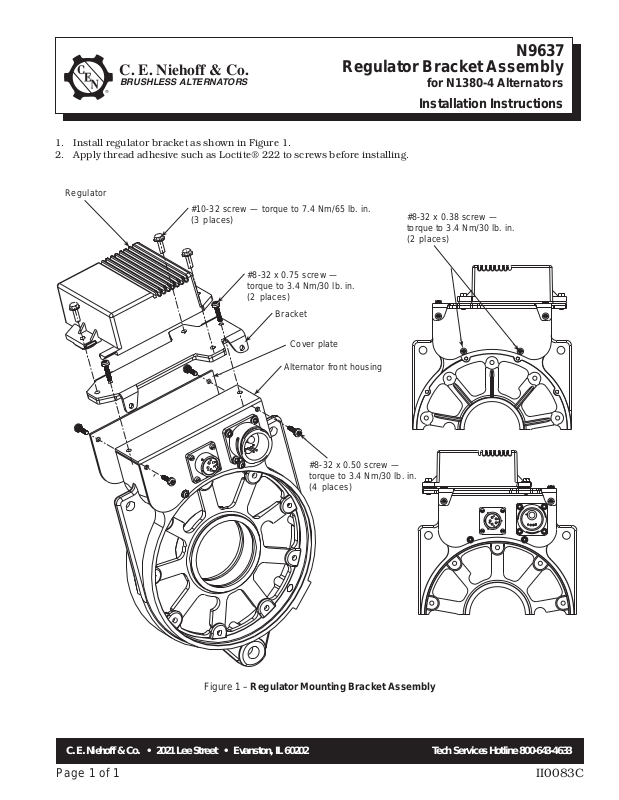

Figure 1 – Regulator Mounting Bracket Assembly

C. E. Niehoff & Co. • 2021 Lee Street • Evanston, IL 60202 Tech Services Hotline [phone]

II0083CPage 1 of 1
