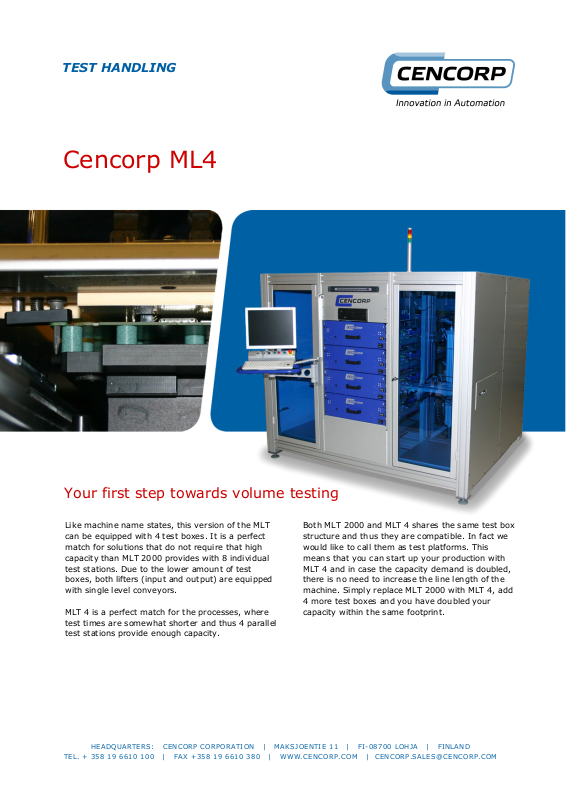

Page 1
TEST HANDLING

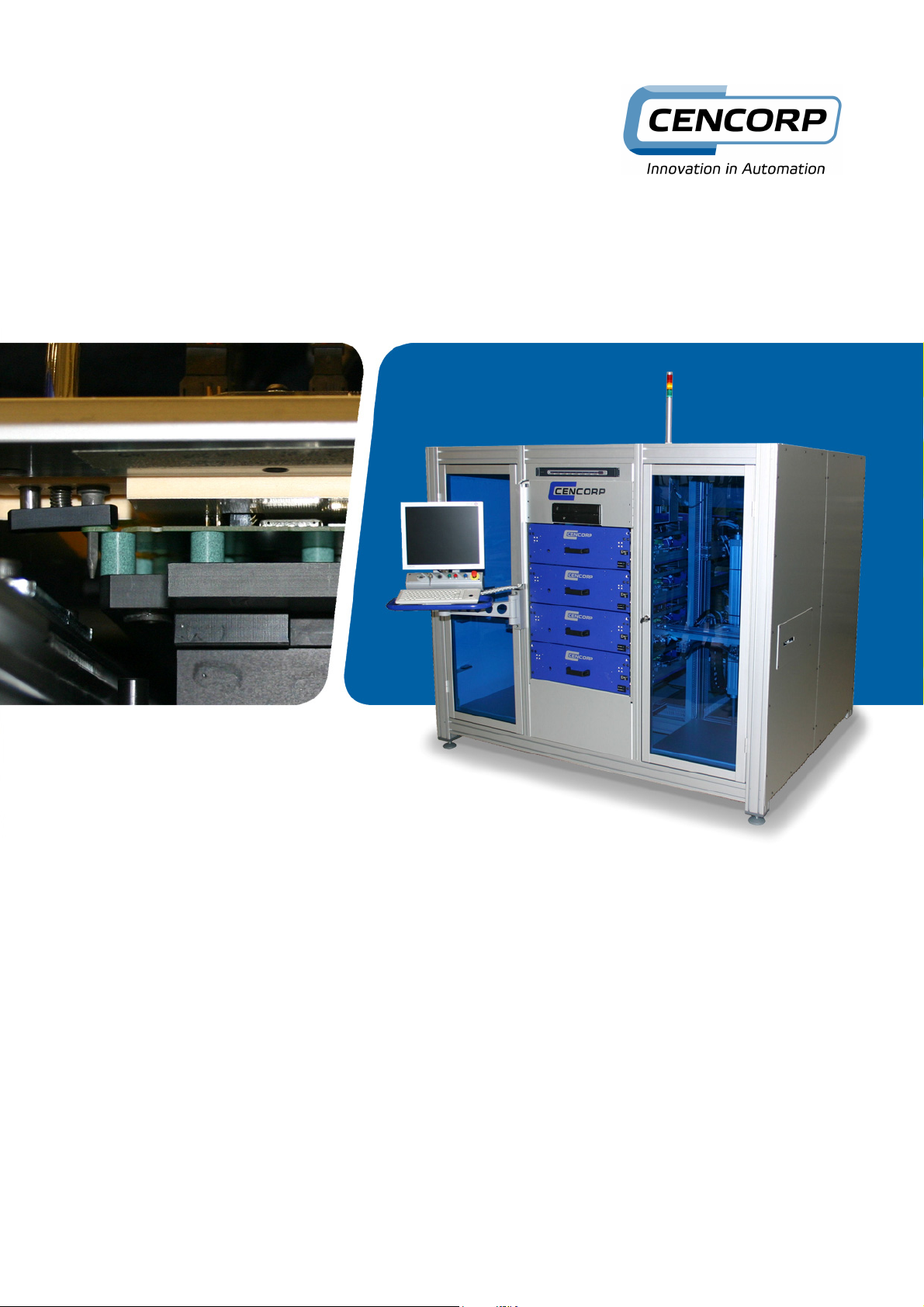

Cencorp ML4
Your first step towards volume testing
Like machine name states, this version of the MLT
can be equipped with 4 test boxes. It is a perfect
match for solutions that do not require that high
capacity than MLT 2000 provides with 8 individual
test stations. Due to the lower amount of test
boxes, both lifters (input and output) are equipped
with single level conveyors.
MLT 4 is a perfect match for the processes, where
test times are somewhat shorter and thus 4 parallel
test stations provide enough capacity.
Both MLT 2000 and MLT 4 shares the same test box
structure and thus they are compatible. In fact we
would like to call them as test platforms. This
means that you can start up your production with
MLT 4 and in case the capacity demand is doubled,
there is no need to increase the line length of the
machine. Simply replace MLT 2000 with MLT 4, add
4 more test boxes and you have doubled your
capacity within the same footprint.
HEADQUARTERS: CENCORP CORPORATION | MAKSJOENTIE 11 | FI-08700 LOHJA | FINLAND
TEL. + 358 19 6610 100 | FAX +358 19 6610 380 | WWW.CENCORP.COM | [email protected]
Page 2
TEST HANDLING
Technical data ML4
Base Standards
Multiple test PC control: Switch Unit
Graphical User Interface
Operating system: Windows XP
USB memory: Standard
Touch screen: Optional
Ethernet card: Standard
Dual Monitors: Optional
Board Handling
Min. PCB size: 60 x 70 mm
Max: PCB size: 290 x 500 mm
Width easy to adjust
Thickness: 0.6 – 4.0 mm
PCB transfer time: <1.5 s
Transfer protocol: SMEMA
Transfer height: 900±30 mm
Bottom clearance: 30 mm
Top clearance: 70 mm
Edge clearance: 3 mm
Palette Handling
Max. Palette size: 400 x 500 mm
Easy adjustable width: 60 – 400 mm
Machine Control
PLC: OMRON
Servo: OMRON
Lifter speed: 300 mm/s

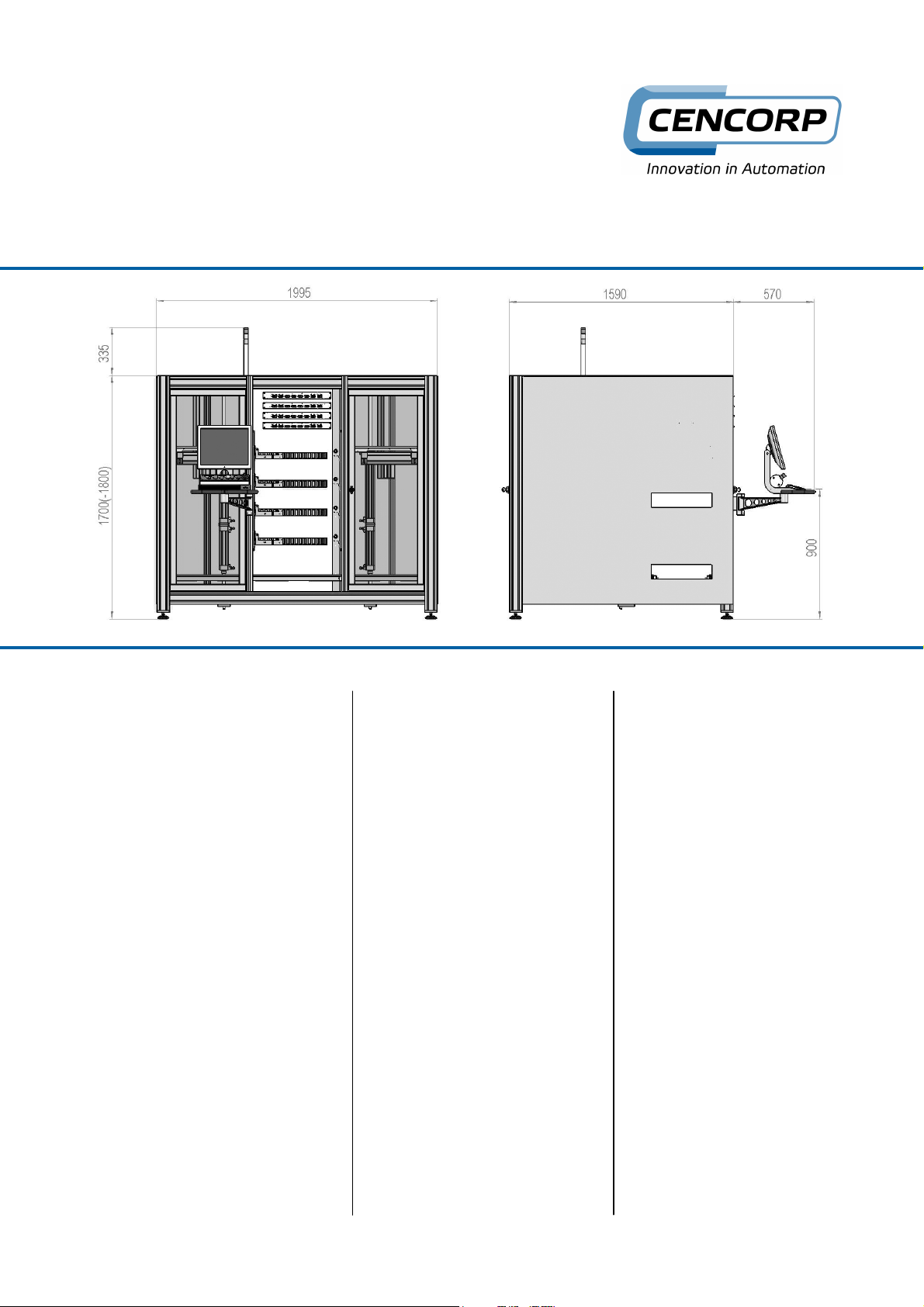

Machine Dimensions
Width: 1995 mm
Depth: 1590 mm
Height: 1700 mm
Weight: 600 kg
Electrical Service Requirements
Voltage EU (USA): 230 (110)
VAC 10%
Frequency EU (USA): 50 (60) Hz
Branch circuit size: 16 A
Average power cons.: 600 VA
(Depending e.g. on test)
Pneumatic service requirements
Pressure: 5 -7 bar±10%, Dry clean air
Approx. air consumption: 100 l/min
Environmental Requirements
Operating temperature: 10…40 °C
Operating humidity: 30…85 %
Test Fixture Box
Width: 656 mm
Depth: 200 mm
Height: 850-1250 mm
Weight: 42kg
Fixture specification
Connection to tester: ODU/MAC
Conveyor speed: 20 m/min
Connection module: Changeable
Fixture control: PLC
Handshaking: Device Net
Options
Barcode support: 1D or 2D
