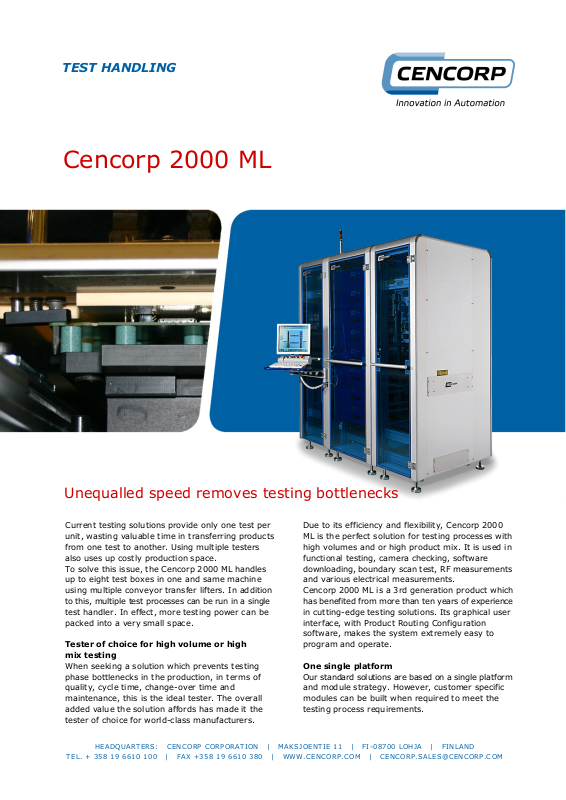

TEST HANDLING
Cencorp 2000 ML
Unequalled speed removes testing bottlenecks
Current testing solutions provide only one test per
unit, wasting valuable time in transferring products
from one test to another. Using multiple testers
also uses up costly production space.

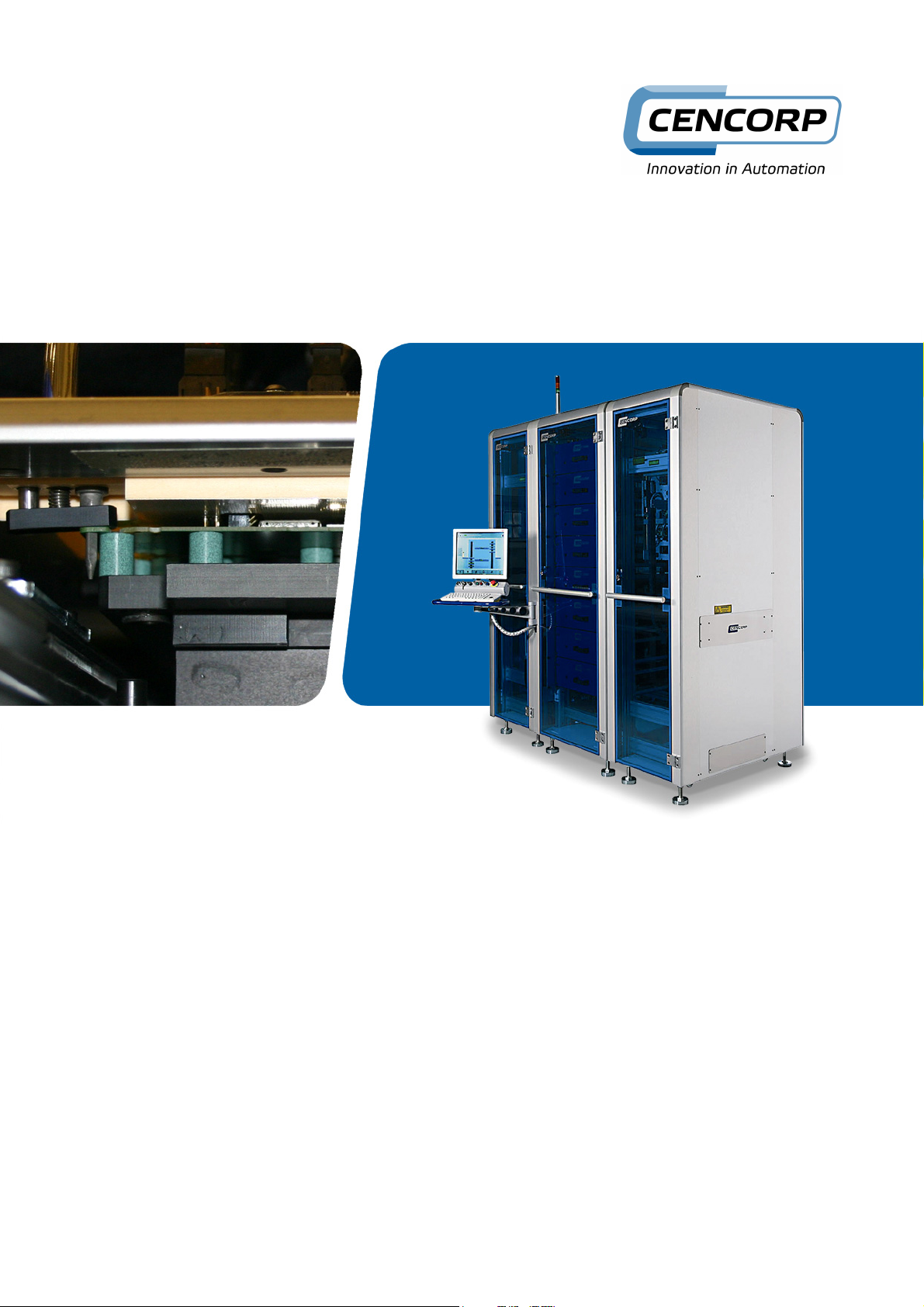

To solve this issue, the Cencorp 2000 ML handles
up to eight test boxes in one and same machine
using multiple conveyor transfer lifters. In addition
to this, multiple test processes can be run in a single
test handler. In effect, more testing power can be
packed into a very small space.
Tester of choice for high volume or high
mix testing
When seeking a solution which prevents testing
phase bottlenecks in the production, in terms of
quality, cycle time, change-over time and
maintenance, this is the ideal tester. The overall
added value the solution affords has made it the
tester of choice for world-class manufacturers.
Due to its efficiency and flexibility, Cencorp 2000
ML is the perfect solution for testing processes with
high volumes and or high product mix. It is used in
functional testing, camera checking, software
downloading, boundary scan test, RF measurements
and various electrical measurements.
Cencorp 2000 ML is a 3rd generation product which
has benefited from more than ten years of experience
in cutting-edge testing solutions. Its graphical user
interface, with Product Routing Configuration
software, makes the system extremely easy to
program and operate.
One single platform
Our standard solutions are based on a single platform
and module strategy. However, customer specific
modules can be built when required to meet the
testing process requirements.
HEADQUARTERS: CENCORP CORPORATION | MAKSJOENTIE 11 | FI-08700 LOHJA | FINLAND
TEL. + 358 19 6610 100 | FAX +358 19 6610 380 | WWW.CENCORP.COM | [email protected]
Page 2
TEST HANDLING
Technical data 2000 ML
Base Standards
Multiple test PC control: Switch unit
PC
Graphical User Interface
Operating system: Windows XP
USB memory: Standard
Touch screen: Optional
Ethernet card: Standard
Dual Monitors: Optional
Board Handling
Min. PCB size: 60 x 70 mm
Max. PCB size: 290 x 500 mm
Width easy to adjust
Thickness: 0.6-4.0 mm
PCB transfer time: <1.5 s
Transfer protocol: SMEMA
Transfer height: 900 ±30 mm
Bottom clearance: 30 mm
Top clearance: 70 mm
Edge clearance: 3 mm
Palette Handling
Max. palette size: 350 x 500 mm
Easy adjustable width: 60 – 350 mm
Machine Control
PLC: OMRON
Servo: OMRON
Lifter speed: >1 m/s

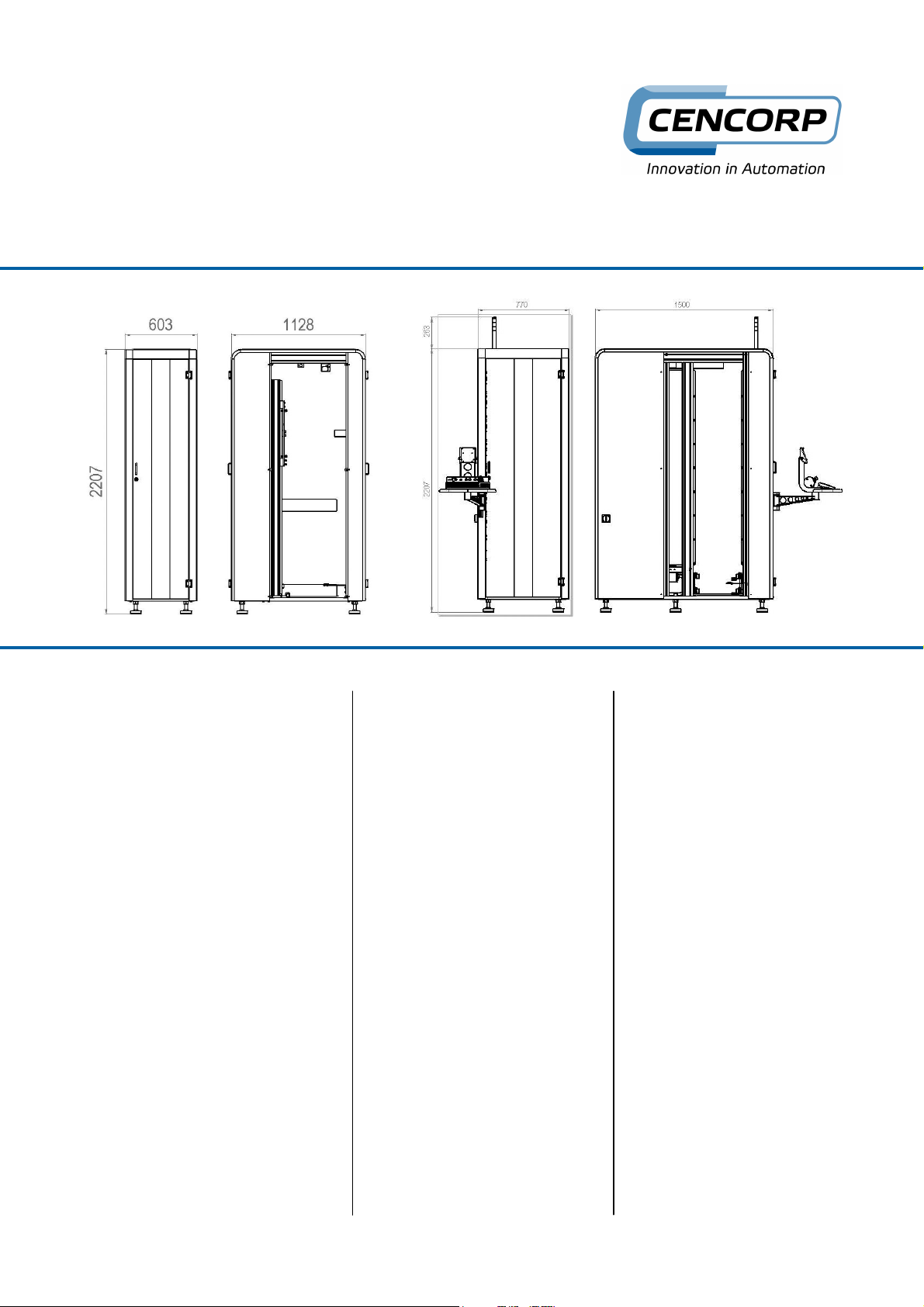

Machine Dimensions
Width: 2000 mm
Depth: 1550 mm
Height: 2210 mm
Weight: 1750 kg
Electrical Service Requirements
Voltage EU (USA): 400 (208)
VAC10%
Frequency EU (USA): 50 (60) Hz
Branch circuit size: 16 A
Average power cons.: 2500 VA
(Depending e.g. on test)
Pneumatic Service Requirements
Pressure: 5–7 bar ±10%, dry clean air
Approx. air consumption: 100 l/min
Environmental Requirements
Operating temperature: 10 … 40 °C
Operating humidity (RH): 30% … 85%
Test Fixture Box
Width: 656 mm
Height: 200 mm
Length: 850–1250 mm
Weight: 42 kg
Fixture Specification
Connection to tester: ODU MAC
Conveyor speed: 13 m/min
Connection module: Changeable
Fixture control: PLC
Handshaking: DeviceNet
Options
Barcode support: 1D or 2D
Specifications subject to periodic review and
change without notice
