THERMAL TRANSFER PRINTER
THERMAL TRANSFER PRINTER
09 M 103 E
1
Certified Quality
Management System
Certified Environmental
Management System
Certified Occupational
Health & Safety
Management System
ENGLISH
OPERATION AND MAINTENANCE
MANUAL
2
marking system from Cembre is designed for the volume printing of cables markers and adhesive
labels.
Robust and quiet, Rolly2000 provides reliable, intensive operation in ofce or factory combined with the facility to optimise
printer set-up according to the media.
Print area: maximum width 105 mm - maximum length 2000 mm
The printer is equipped with a power unit suitable for supply voltages 230 V~ / 50 Hz or 115 V~ / 60 Hz without adjustment.
Printer size and weight
Width Height Length Weight
242 mm 274 mm 446 mm 9 kg
MINIMUM SYSTEM REQUIREMENTS:
• PC with dual Core processor or equivalent
• 2 Gb RAM memory
• 2 Gb of available space on the hard disc
• 1280x1024 SVGA monitor resolution.
• Windows XP SP3, VISTA, 7 and 8 operating systems.
• USB Port for local installation
• Ethernet Port for network installation
Trademark
Centronics
®
Microsoft
is a registered trademark of the Microsoft Corporation.
Windows XP
®
is a registered trademark of the Data Computer Corporation.
®
, Vista®, 7®, 8® are registered trademarks of the Microsoft Corporation.
Table of Contents
1 Introduction ............................................................................................................................................ 4
1.1 Instructions ............................................................................................................................................... 4
1.2 Intended Use ............................................................................................................................................ 4
1.3 Safety Instructions .................................................................................................................................... 4
1.4 Environment ............................................................................................................................................. 5
2 Installation .............................................................................................................................................. 6
2.1 Device overview ....................................................................................................................................... 6
2.2 Unpacking and setting-up the printer ....................................................................................................... 8
2.3 Connecting the device .............................................................................................................................. 8
2.3.1 Connecting to the power supply ......................................................................................................... 8
2.3.2 Connecting to a computer or computer network................................................................................. 8
2.4 Powering up the device ............................................................................................................................ 8
3 Control panel .......................................................................................................................................... 9
3.1 Structure of the control panel and language setting ................................................................................. 9
3.1.1 Key functions ...................................................................................................................................... 9
3.1.2 Setting the different language ............................................................................................................ 9
3.2 Symbol displays ....................................................................................................................................... 9
3.3 Printer states .......................................................................................................................................... 10
3.4 Key functions ...........................................................................................................................................11
4 Loading material .................................................................................................................................. 12
4.1 Loading labels from roll ( TTL...; TPM-ROLL...: KM-ROLL...; TTF...) ..................................................... 12
4.1.1 Removing and installing the core adapters ...................................................................................... 12
4.1.2 Positioning the label roll on the roll retainer...................................................................................... 13
4.1.3 Inserting a label strip into the printhead............................................................................................ 13
4.1.4 Setting the label sensor .................................................................................................................... 14
4.1.5 Setting the head locking system ....................................................................................................... 15
4.2 Loading ribbon ....................................................................................................................................... 16
4.3 Setting the feed path of the ribbon ......................................................................................................... 17
3
5 Cleaning ................................................................................................................................................ 18
5.1 Cleaning information .............................................................................................................................. 18
5.2 Cleaning the print roller .......................................................................................................................... 18
5.3 Cleaning the printhead ........................................................................................................................... 18
5.4 Cleaning the label sensor ....................................................................................................................... 19
6 Troubleshooting ................................................................................................................................... 20
6.1 Types of errors ....................................................................................................................................... 20
6.2 Problem solution .................................................................................................................................... 20
6.3 Error messages and fault correction ...................................................................................................... 21
7 Media ..................................................................................................................................................... 23
7.1 Media dimensions .................................................................................................................................. 23
7.2 Device dimensions ................................................................................................................................ 24
7.3 Reex mark dimensions ......................................................................................................................... 25
7.4 Cut-out mark dimensions ....................................................................................................................... 26
8 Conformity ............................................................................................................................................ 27
9 Warranty ................................................................................................................................................ 27
10 Return to Cembre for repair ................................................................................................................ 27
11 Accessories .......................................................................................................................................... 27
!
!
1 Introduction
4
1.1 Instructions
Important information and instructions in this documentation are designated as follows:
Danger!
Draws your attention to an exceptionally grave, impending danger to your health or life.
Warning!
Indicates a hazardous situation that could lead to injuries or material damage.
Attention!
Draws attention to possible dangers, material damage or loss of quality.
Notice!
Gives you tips. They make a working sequence easier or draw attention to important working processes.
i
Environment!
Gives you tips on protecting the environment.
Handling instruction
Reference to section, position, illustration number or document.
Option (accessories, peripheral equipment, special ttings).
Time
Information in the display.
1.2 Intended use
• The device is manufactured in accordance with current technological status and recognised safety rules.
However, danger to the life and limb of the user or third parties and/or damage to the device and other tangible
assets can arise during use.
• The device may only be used for its intended purpose and if it is in perfect working order, and it must be used with
regard to safety and dangers as stated in the operating manual.
• The device is intended exclusively for printing suitable materials that have been approved by the manufacturer.
Any other use or use going beyond this shall be regarded as improper use. The manufacturer/supplier shall not be
liable for damage resulting from unauthorised use; the user shall bear the risk alone.
• Usage for the intended purpose also includes complying with the operating manual, including the manufacturer‘s
maintenance recommendations and specications.
Notice!
The complete documentation is included in the CD, and can also be found the Internet.
i
1.3 Safety instructions
• The device is congured for voltages of 100 to 240 V AC. It only has to be plugged into an earthed socket.
• Only connect the device to other devices which have a protective low voltage.
• Switch off all affected devices (computer, printer, accessories) before connecting or disconnecting.
• The device may only be used in a dry environment, do not expose it to moisture (sprays of water, mists, etc.).
• Do not use the device in an explosive atmosphere.
• Do not use the device close to high-voltage power lines.
• If the device is operated with the cover open, ensure that people‘s clothing, hair, jewelry etc. do not come into
contact with the exposed rotating parts.
• The device or parts of it can become hot while printing. Do not touch during operation, and allow to cool down
before changing material and before disassembly.
1 Introduction
• Risk of crushing when closing the cover. Keep ngers outside when moving the device cover.
• Perform only those actions described in this operating manual.
Work going beyond this may only be performed by trained personnel or service technicians.
• Unauthorised interference with electronic modules or their software can cause malfunctions.
• Other unauthorised work on or modications to the device can also endanger operational safety.
• Always have service work done in a qualied workshop, where the personnel have the technical knowledge and
tools required to do the necessary work.
• There are various warning stickers on the device. They draw your attention to dangers.
Warning stickers must therefore not be removed, as then you and other people cannot be aware of dangers and
may be injured.
• The maximum sound pressure level is less than 70 dB(A).
Danger!
Danger to life and limb from power supply.
Do not open the device casing.
1.4 Environment
Obsolete devices contain valuable recyclable materials that should be sent for appropriate processing.
The modular construction of the printer enables it to be easily disassembled into its component parts.
Send the parts for recycling.
5
Following information applies in member states of the European Union:
USER INFORMATION in accordance with “Directives 2002/95/EC and 2002/96/EC regarding the reduction
of hazardous substances in electrical and electronic equipment, including the disposal of waste”.
The 'Not in the bin' symbol above when shown on equipment or packaging means that the equipment must, at the
end of its life, be disposed of separately from other waste.
The separate waste collection of such equipment is organised and managed by the manufacturer.
Users wishing to dispose of such equipment must contact the manufacturer and follow the prescribed guidelines
for its separate collection.
Appropriate waste separation, collection, environmentally compatible treatment and disposal is
intended to reduce harmful environmental effects and promote the reuse and recycling of materials contained in
the equipment.
Unlawful disposal of such equipment will be subject to the application of administrative sanctions provided by
current legislation.
The electronic circuit board of the device is equipped with a lithium battery.
Take old batteries to appropriate collection centres.
2 Installation
6
2.1 Device overview
1 Cover
2 Core adapter
3 Margin stop
1
4 Roll retainer
5 Ribbon supply hub
6 Ribbon take-up hub
7 Print mechanics
8 Mounting area for accessories incl.
peripheral connector
9 Navigator pad
2
10 Display
10
9
8
Fig. 1 Overview
12
13
14
15
17
18
3
4
5
6
7
12 Ribbon guide
13 Printhead locking screw
14 Printhead retainer with printhead
15 Print roller
16 Allen key
17 Printhead locking lever
18 Plate
19 Axle with guide ring
20 Label sensor
Fig. 2 Print mechanics
19
20
16
2 Installation
Fig. 3 Connections
23
24
25
26
27
28
29
30
7
23 Power switch
24 Power connection socket
25 Slot for PC Card Type II
26 Slot for CompactFlash memory card
27 Ethernet 10/100 Base-T
28 2 USB master ports for keyboard,
scanner or service key
29 USB high-speed port
30 Serial RS-232 C port
2 Installation
!
!
8
2.2 Unpacking and setting-up the printer
Lift the label printer out of the box via the straps.
Check label printer for damage which may have occurred during transport.
Place the printer on a level surface.
Check delivery for completeness.
Contents of delivery:
• Label printer
• USB cable
• Power cable
• Black printer ribbon type TPS-060 842112 already tted into the printer
• Protective cover
• Operating software on "GENIUSPRO" CD
• Documentation
Notice!
Please keep the original packaging in case the printer needs to be returned or transported.
i
Attention!
The device and printing materials will be damaged by moisture.
Set up label printers only in dry locations protected from splash water.
2.3 Connecting the device
The standard available interfaces and connectors are shown in gure 3.
2.3.1 Connecting to the power supply
The printer is equipped with a power unit suitable for supply voltages 230 V~ / 50 Hz or 115 V~ / 60 Hz without
adjustment.
Check that the device is switched off.
1. Plug the power cable into the power connection socket (6).
2. Plug the power cable into an earthed socket.
2.3.2 Connecting to a computer or computer Network
Attention!
Inadequate or no earthing can cause malfunctions during operations.
Ensure that all computers and cables connected to the label printer are grounded.
Connect the label printer to a computer or network an appropriate cable.
2.4 Powering up the device
When all connections have been made:
Switch the printer on at the power switch (23).
The printer performs a system test, and then shows
the system status ready in the display (11).
If an error occurs during the system test, the symbol
and type of error are displayed.
23
Fig. 4 Power-on
1
In Linea
6
6
3 Control panel
3.1 Structure of the control panel
The user can control the operation of the printer with the control panel.
The control panel consists of a graphic display (1) and the navigator pad (2) with ve
integrated keys.
Ready
1
2
Fig. 5 Control panel
6
3.1.1 Key functions
The navigator pad (2) allows access to menus for perameter setting.
The graphic display indicates the current status of the printer and the print job,
indicates faults and shows the printer settings in the menu.
9
2
Fig. 6 Navigator pad
Keys Menu Parameter setting
Parameter choice Numeric value
Return from a submenu - Increase the number at the
Jump into a submenu - Decrease the number at the
Menu option to the left left Cursor shift to the left
|
Menu option to the right right Cursor shift to the right
Start of a selected menu option
Hold 2 s: Leaving the ofine menu
Table 2 Key functions
Conrmation of the selected value
Hold 2 s: Abort without changing the value
cursor position
cursor position
3.1.1 Setting the different language
As default the display is set the ENGLISH language.
To set a different language, make use of the navigator pad and select:
Menu >
Setup > Local settings > Country >
... Language >
3 Control panel
10
3.2 Symbol displays
The symbols shown in the following table may appear in the status line of the display, depending on the printer
conguration. They enable the current printer status to be seen quickly.
Symbol Description Symbol Description Symbol Description
Clock
Date
Date/time digital
Ethernet link status
Temperature of the
printhead
PPP funds
User memory in the clock
circuit
Used memory
Input buffer
Table 2 Symbol displays
Ribbon supply
Wi-Fi signal strength
3.3 Printer States
State Display Description
Ready Ready
Printing label Printing label
Pause
Recoverable error
Irrecoverable error
Critical error
Power Save Mode
Table 3 Printer states
Debug window for abc
programs
Control of the lower
and congured symbol displays,
such as time
and the number of the printed label
in the print job.
Pause and the symbol
and the type of error
and the number of labels still to be
printed.
and the type of error and the
number of labels still to be printed.
and the type of error
and the key lighting is switched off
and date
display line is handed
over to an abc
program
Access to memory card
Printer is receiving data
The printer is in the ready state and can receive data.
The printer is currently processing an active print job.
Data can be transmitted for a new print job.
The new print job will start when the previous one
has nished.
The printing process has been interrupted by the
operator.
An error has occurred that can be rectied by the
operator without interrupting the print job.
The print job can be continued after the error has
been rectied.
An error has occurred that cannot be rectied without
interrupting the print job.
An error occurs during the system test.
Switch the printer off and then on again at the
power switch or
Press cancel key.
Call Cembre if the fault occurs persistently.
If the printer is not used for a lengthy period, it
automatically switches to power save mode.
To exit power save mode: Press any key on the
navigator pad.
3 Control panel
3.4 Key functions
The key functions depend on the current printer state:
- Active functions: Labels and symbols on the navigator pad keys light up.
- Active functions light up white in print mode (e. g. menu or feed).
- Active functions light up orange in the ofine menu (arrows, key ).
Key Display State Function
menu lights
feed lights
pause lights
ashes
cancel lights
ashes
Ready
Ready
Ready
Printing label
Pause
Ready
Printing label
Pause
Ready To the ofine menu
Ready Feeds a blank label
Ready After the end of a print job,
reprint the last label
Printing label Interrupt print job,
printer goes into "Pause" state
Pause Continue the print job,
printer goes into "Printing label" state
Recoverable error Continue the print job after rectifying the error,
printer goes into "Printing label" state
Ready Delete internal memory,
the last label can no longer be reprinted.
Printing label
Pause
Recoverable error
Irrecoverable error
Short press g cancels the current print job
Longer press g cancels the current print job
and deletes all print jobs
11
lights
Table 3 Key functions in the print mode
Error Call Help - Concise information for rectifying the
fault will be displayed
4 Loading material
12
4.1 Loading labels from roll
4.1.1 Removing and installing the core adapters
Core adapters are mounted for better guidance of the label roll on the roll retainer when using label rolls with a core
diameter ≥ 75 mm.
Remove core adapters for smaller label rolls as follows.
1
2
3
Fig. 8 Core adapter unxed (left)
and xed (right)
6
4
5
7
5
2
2
Fig. 7 Core adapters and margin stop
Removing the core adapters
1. Open cover.
2. Turn ring (5) at the margin stop (4) counterclockwise, so that the arrow (7) points to the symbol
release the margin stop.
3. Remove the margin stop (4) from the roll retainer (2).
4. Turn the rings at the adapters (1,3) counterclockwise and thus release the adapters.
5. Remove the adapters (1,3) from the roll retainer (2).
6. Re-mount the margin stop (4) onto the roll retainer (2), turn ring (5) clockwise, so that the arrow (7) points to the
symbol
, and thus x the margin stop (4) on the roll retainer.
Fig. 9 Margin stop unxed (left)
and xed (right)
, and thus
Installing the core adapters
1. Open cover.
2. Turn ring (5) at the margin stop (4) counterclockwise, so that the arrow (7) points to the symbol
release the margin stop.
3. Remove the margin stop (4) from the roll retainer (2).
4. Align the guide lugs (6) in the core adapters (1,3) with the grooves in the roll retainer (2) an push the adapters
onto the roll retainer.
5. Slide rst core adapter (1) to the chassis until it stops and x the adapter by turning the ring clockwise.
6. Place second core adapter (3) matching to the roll width and x it by turning the ring clockwise.
7. Re-mount the margin stop (4) onto the roll retainer (2), turn ring (5) clockwise, so that the arrow (7) points to the
symbol
, and thus x the margin stop (4) on the roll retainer.
, and thus
4 Loading material
4.1.2 Positioning the label roll on the roll retainer
Attention!
To guarantee good condition of the labels it is suggested to keep the rolls in their original packing at a
!
normal, even temperature; do not touch the underside of the print head with ngers or pointed objects.
Remove labels from the packing only when used and do not expose the materials to humidity for a
long period.
9
8
13
1
2
3
4
7
6
Fig. 10 Loading labels from roll
1. Open cover (9).
2. Turn ring (2) at the margin stop (1) counterclockwise, so that the arrow points to the symbol
the margin stop.
3. Remove the margin stop (1) from the roll retainer (4).
4. Load label roll (3) on the core adapters ( 4.1.1 on page 12) in such a way that the labels can be inserted into the
printhead in the right position. The printing side of the labels must be visible from above.
5. Re-mount the margin stop (1) onto the roll retainer (4). Push the margin stop (1) to the roll until it stops.
6. Turn ring (2) clockwise, so that the arrow (10) points to the symbol
retainer (4).
, and thus x the margin stop (1) on the roll
, and thus release
4.1.3 Inserting a label strip into the printhead
1. Turn lever (8) counterclockwise to lift the printhead.
2. Push red guide ring on to axle (6) all the way out.
3. Guide label strips below the axle (6) and through the label sensor (7) in such a way that it exits the print
unit between the printhead and the print roller.
4. Push guide ring on to axle (6) against the outer edge of the label strip.
4 Loading material
14
4.1.4 Setting the label sensor
Attention!
Adjustment of the label sensor is essential to the correct advancement of the printing material.
!
1
2
3
1
Fig. 11 Setting the label sensor
The sensor case (2) can be shifted perpendicular to the direction of material ow for adaptation to the label medium.
The label sensor (1) is visible from the front through the print unit and is marked with a indentation in the case
retainer.
Position label sensor with tab (3) in such a way that the sensor (1) can detect the label gap or a join reex or
perforation.
In Figures 12 and 13 there are some examples showing the right positioning of the label sensor (1) depending on the
type of material being printed.
KM-ROLL..... (*)
ETF-ROLL.....
TTL.....
TPM-ROLL.....
LABEL SENSOR
POSITION
Fig. 12 Examples of label sensor setting
(*) Some versions of cable markers KM-ROLL are equipped with a transversal black line mark instead the lateral perforation mark, in such a
case position the label sensor centrally on a marker.
LABEL SENSOR
POSITION
LABEL SENSOR
POSITION
LABEL SENSOR
POSITION
4 Loading material
LABEL SENSOR
POSITION
LABEL SENSOR
POSITION
LABEL SENSOR
POSITION
LABEL SENSOR
POSITION
TTL.....
TPM-ROLL.....
ETF-ROLL.....
KM-ROLL..... (*)
In case of continuous lm TTF or continuous strip STRIP-ROLL, position the label sensor (1) at any point on the
material.
For non-recangular labels (e.g. TTL circular), position the label sensor (1) on the central axis.
15
TTF...
LABEL SENSOR
POSITION
Fig. 13 Examples of label sensor setting
4.1.5 Setting the print head locking system
Attention!
Usually no adjustment is required, so proceed with caution as incorrect setting may move the plungers
!
printhead from its optimum position, reducing print quality and possibly damaging the printer.
STRIP-ROLL...
LABEL SENSOR
POSITION
TTL....
LABEL SENSOR
POSITION
The printhead has a three point locking system which is factory set in order to:
• achieve even print quality across the entire label width
• prevent creases in the feed path of the ribbon
• prevent premature wearing of the print roller and printhead.
1
2
3
Fig. 14 Setting the print head locking system
4 Loading material
16
4.2 Loading ribbon
Notice!
The printer is supplied with a ribbon already installed, to replace it proceed as follow.
i
5
1 3 4
2

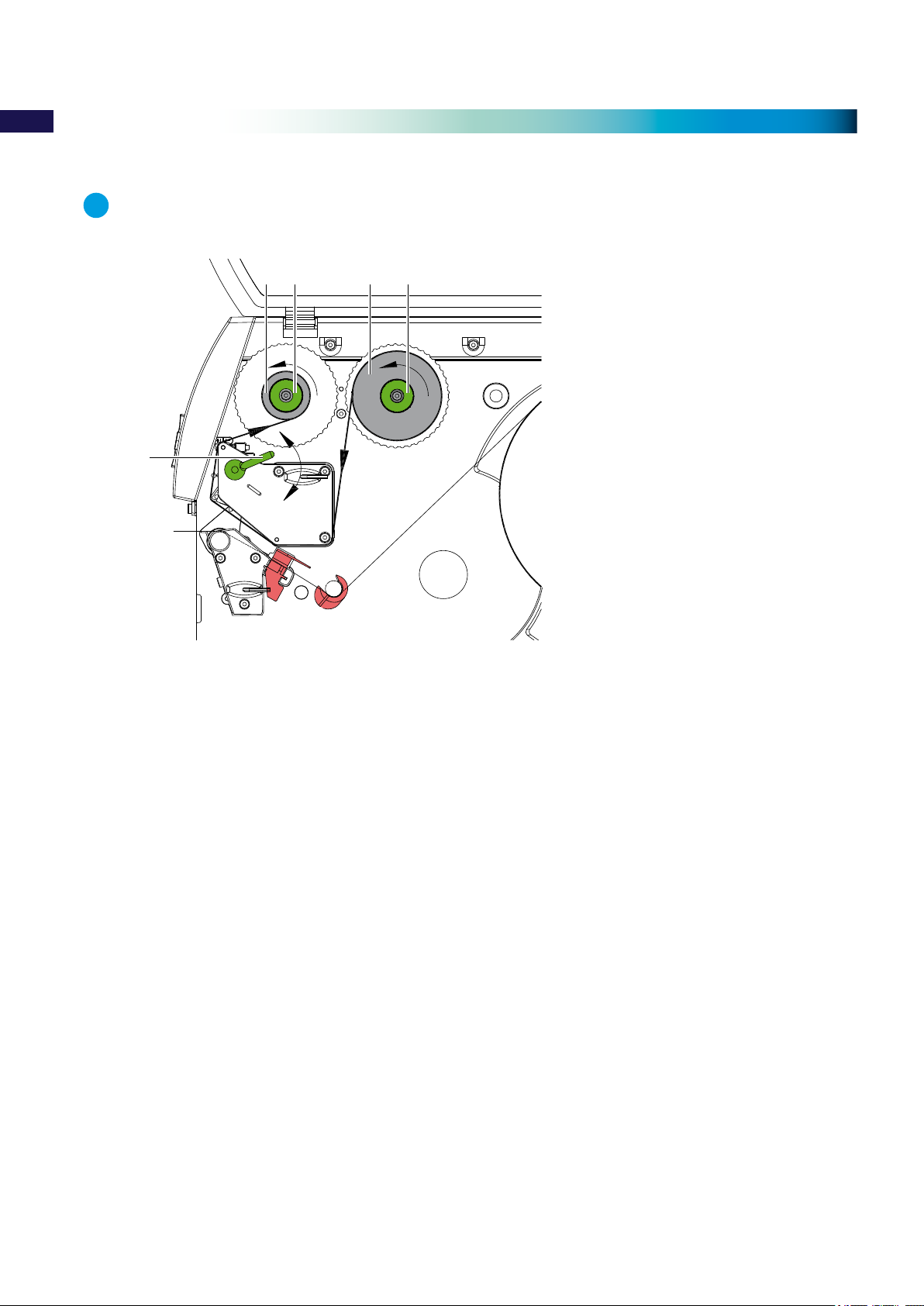

Fig. 15 Feed path of the ribbon
1. Clean printhead before loading the ribbon ( 5.3 on page 18).
2. Turn lever (5) counterclockwise to lift the printhead.
3. Slide ribbon roll (3) onto the ribbon supply hub (4) until it stops and so that the colour coating of the ribbon faces
downward when being unwound.
4. Hold ribbon roll (3) rmly and turn knob on ribbon supply hub (4) counterclockwise until the ribbon roll is secured.
5. Slide suitable transfer ribbon core (1) onto the ribbon take-up hub (2) and secure it in the same way.
6. Guide ribbon through the print unit as shown in Fig. 15.
7. Secure starting end of transfer ribbon to the transfer ribbon core (1) with adhesive tape. Ensure counterclockwise
rotation direction of the transfer ribbon take-up hub.
8. Turn ribbon take-up hub (2) counterclockwise to smooth out feed path.
9. Turn lever (5) clockwise to lock the printhead.
4 Loading material
4.3 Setting the feed path of the ribbon
Creases in the ribbon can cause printing problems. Adjust the ribbon guide to minimise creasing.
Notice!
Adjustment of the head locking system may also prevent ribbon creasing ( 4.1.5 on page 15).
i
1
2
17
Fig. 16 Setting the feed path of the ribbon
Notice!
Adjustment is best carried out during printing.
i
1. Read current setting on the scale (1) and record if necessary ( Fig. 16).
2. Adjust screw (2) with Allen key and observe the behavior of the ribbon.
In the + direction, the inner edge of the ribbon is tightened, the outer edge is tightened in the - direction.
The printer is ready for operation when all connections have been made and labels and the transfer ribbon have been
loaded.
Attention!
Printhead damage can be caused by incorrect handling!
!
Do not touch the underside of the printhead with the ngers or sharp objects.
Ensure that the labels are clean.
Ensure that the label surfaces are smooth. Rough and uneven media will reduce the service life of the
printhead.
Print with the lowest possible printhead temperature.
!
5 Cleaning
18
5.1 Cleaning information
Danger!
Risk of death via electric shock!
Disconnect the printer from the power supply before performing any maintenance work.
The printer requires very little maintenance.
It is important to clean the printhead regularly to acheive a consistently good print quality and minimise premature
wear of the printhead.
Otherwise, the maintenance is limited to keeping the device clean, both inside and out.
Attention!
The printer can be damaged by aggressive cleansers.
!
Do not use abrasive cleaners or solvents for cleaning the external surfaces.
Remove dust and debris from the print area with a soft brush or vacuum cleaner.
The cover of the printer can be cleaned with a standard cleanser.
5.2 Cleaning the print roller
Accumulation of dirt on the print roller may impair the media ow and the print quality.
Lift the printhead.
Remove media and ribbon from the printer.
Remove deposits with roller cleaner and a soft cloth.
If the roller appears damaged, replace it Contact Cembre.
5.3 Cleaning the printhead
Cleaning frequency: every ribbon change
Contamination may accumulate on the printhead during printing and adversely affect print, e.g. differences in contrast
or vertical stripes.
Attention!
Printhead can be damaged!
!
Do not use sharp or hard objects to clean the printhead.
Do not touch protective glass layer of the printhead.
Attention!
Risk of injury from the hot printhead.
Ensure that the printhead has cooled down before cleaning it.
Lift the printhead.
Remove media and ribbon from the printer.
Clean printhead surface with special cleaning pen or a cotton swab dipped in pure alcohol.
Allow printhead to dry for 2–3 minutes before recommencing printing.
5 Cleaning
5.4 Cleaning the label sensor
Attention!
Label sensor can be damaged!
!
Do not use sharp or hard objects or solvents to clean the label sensor.
The label sensor can become contaminated. This can adversely affect label detection.
19
1
2
3
4
Fig. 17 Cleaning the label sensor
1. Turn lever (1) counterclockwise to lift the printhead.
2. Remove media and ribbon from the printer.
3. Press the latch (3) and slowly pull label sensor outward via the tab (4). Ensure that the label sensor cable is not
stretched during this operation.
4. Clean label sensor and sensor units (2) with brush or cotton swab soaked in pure alcohol.
5. Push label sensor back via tab (3) and set it ( 4.1.4 on page 14).
6. Reload media and ribbon.
6 Troubleshooting
20
6.1 Types of error
The diagnostic system indicates on the screen if an error has occurred. The printer is set into one of the three
possible error states according to the type of error.
State Display Key Remark
Recoverable error
Irrecoverable error
Critical fault
Table 5 Error states
6.2 Problems and solutions
Problem Cause Remedy
Ribbon creases Ribbon guide not adjusted Adjust the ribbon guide.
Print has smears or voids Printhead is dirty Clean the printhead
Printer does not stop after
ribbon runs out
Printer prints a sequence
of characters instead of the
label format
Printer transports media, but
ribbon does not move
Printer only prints every
second label
Vertical white lines in the
print
Horizontal white lines in the
print
Print is irregular, one side is
lighter
Printhead locking system not adjusted Adjust the printhead locking system.
Transfer ribbon too wide Use a transfer ribbon slightly wider than
Temperature too high Decrease temperature via driver.
Incompatible combination of media and
ribbon
Thermal printing driver selected Set the printer to "Thermal transfer" via
Printer is in ASCII dump mode Cancel ASCII dump mode.
Ribbon incorrectly inserted. Check and, if necessary, correct the
Incompatible combination of media and
ribbon
Setting of size in the software is too large. Change the size in the software.
Printhead is dirty Clean the printhead
Printhead is defective (failure of heat
elements)
Printer is used with the
backfeed > smart in the cut or
peel-off mode
Printhead is dirty Clean the printhead
Head locking system not adjusted Adjust the head locking system.
pause ashes
cancel lights
cancel ashes
-
3.4 on page 11
4.3 on page 17
4.1.5 on page 15
the width of label.
5.3 on page 26
Use only Cembre media and ribbon.
driver.
ribbon web and the orientation of the
media.
Use only Cembre media and ribbon.
5.3 on page 18
Change the printhead.
please contact Cembre
Set the backfeed > always in
setup.
5.3 on page 18
4.1.5 on page 15
Table 6 Problems solutions
6 Troubleshooting
6.3 Error messages and fault correction
Error message Cause Remedy
ADC malfunction
Battery low
Buffer overow
Card full
Cutter blocked
Cutter jammed
Device not conn.
File not found
FPGA malfunction
Head error
Head open
Head too hot
Invalid setup
Memory overow
Name exists
No DHCP server
No label found
No label size
No Link
No record found
Hardware error Switch the printer off and then on.
Battery the PC card is at Replace battery on the PC card.
The input buffer memory is full and the
computer is still transmitting data.
No more data can be stored on the memory
card
Cutter cannot return to its home position
and stays in an undened position
No cutter function Switch the printer off and then on.
The cutter is unable to cut the labels but is
able to return into its home position
Programming addresses a non-existent
device
Requested le is not on the memory card Check the contents of the memory card.
Hardware error Switch the printer off and then on.
Hardware error Switch the printer off and then on.
Printhead not locked Lock printhead.
Printhead is overheated After pausing, the print job will be continued
Error in the conguration memory Re-congure printer.
Current print job contains too much information, e.g. selected font, large graphics
Duplicate usage of eld name in the direct
programming
The printer is congured for DHCP, but
there is no DHCP server, or the DHCP
server is not currently available.
There are labels missing on the label
material
The label format as set in the software
does not correspond with the real label
format
Printer is loaded with continuous material,
but the software is set on labels
The size of the label is not dened in the
program.
No network link Check network cable and connector.
Refers to the optional memory card;
database access error
21
If error recurs call Cembre.
Use data transmission via protocol
(preferably RTS/CTS).
Replace card.
Switch off the printer. Remove material.
Switch on the printer. Restart print job.
Change material.
If error recurs call Cembre.
Press the cancel key.
Change material.
Either connect this device or correct the
programming.
If error recurs call Cembre.
If error recurs replace printhead.
automatically. If the fault recurs repeatedly,
decrease head temperature (darkness
option) or the print speed via driver.
If error recurs call Cembre.
Cancel current print job.
Reduce amount of data to be printed.
Correct programming
Switch off DHCP in the conguration, and
assign a xed IP address.
Please contact your network administrator.
Press pause key repeatedly until printer
recognizes the next label on the material.
Cancel current print job.
Change the label format set in the software.
Restart print job.
Cancel current print job.
Set the sensor type --> continuous via
driver.
Restart the print job.
Check program.
Please contact your network administrator.
Check program and card contents.
6 Troubleshooting
22
Error message Cause Remedy
No SMTP server
No Timeserver
Out of paper
Out of ribbon
Protocol error
Read error
Remove ribbon
Structural err.
Unknown card
USB error
Device stalled
USB error
Too much current
USB error
Unknown device
Voltage error
Write error
Write protected
Wrong revision
The printer is congured for SMTP, but
there is no SMTP server, or the SMTP
server is not currently available.
Timeserver is selected in the conguration, but there is no Timeserver, or the
Timeserver is not currently available.
Media has run out Load media.
Check paper feed.
Ribbon has run out Insert new ribbon.
Ribbon melted during printing Cancel current print job.
Printer has received an unknown or invalid
command from the computer.
Read error when reading from the memory
card
Transfer ribbon is loaded although the
printer is set to direct thermal printing
Error in the le list of the memory card,
data access is uncertain.
Card not formatted,
Type of card not supported
A USB device has been detected, but it is
not working.
The USB device consumes too much
current.
Failure to detect USB device Do not use the USB device.
Hardware error Switch the printer off and then on.
Hardware error Repeat the write process, reformat card.
PC card write protection is activated. Deactivate write protection.
Firmware not compatible with the hardware
version
Switch off SMTP in the conguration.
Caution! Disable sending a warning by
e-mail (EAlert).
Please contact your network administrator.
Switch off Timeserver in the conguration.
Please contact your network administrator.
Change the head temperature via driver
(darkness option).
Clean the printhead 5.3 on page 18
Load ribbon
Restart print job.
Press the pause key to skip the command or
press the cancel key to cancel the print job.
Check data of the card.
Backup data, reformat card.
Set the printer to "Thermal transfer" via
driver.
Format memory card.
Format card, use different type of card.
Do not use the USB device.
Do not use the USB device.
If error recurs call Cembre.
Voltage at failure is shown. Please note.
please contact Cembre
Table 7 Error Messages and fault correction
7 Media
7.1 Media dimensions
Labels Continuous material
Fig. 18 Label / continuous material dimensions
Dim. Designation Dim. en mm
B Label width 4 - 116
H Label height 4 - 1000
- Tear-off length > 30
- Cut length
with cutter
with perforation cutter
- Perforation length > 2
A Label distance > 2
C Width of liner or continuous material 25 - 120
Dl Left margin ≥ 0
Dr Right margin ≥ 0
E Media thickness 0,025 - 0,7
F Liner thickness 0,03 - 0,1
G Thickness of media with liner 0,055 - 0,8
Q Thickness continuous material 0,03 - 0,8
V Label feed > 6
• Small label sizes, thin materials or strong adhesive can lead to limitations.
Critical applications should to be tested before production.
• Note the bending stiffness ! Material must be exible to follow the radius of the print roller !
23
Feed direction
> 2
> 12
Table 8 Label / continuous material dimensions
7 Media
24
7.2 Device dimensions
& Reective sensor
Fig. 19 Device dimensions
Dim. Designation Dim. en mm
IP Distance printhead - peel-off edge 13,5
IC Distance printhead - cut edge 18,8
IT Distance printhead - tear-off edge 13,5
J Distance 1st printing point - material edge 2
K Print width with printhead 300 dpi 105,6
SX Distance gap/reective sensor -
SY Distance gap/reective sensor -
Gap sensor
Printhead
Peel-off edge
Tear-off edge
Cut edge
5 - 53
material edge
i.e. permissible distance of reex or cut-out
marks to the material edge
46,0
printhead
Feed direction
Table 9 Device dimensions
7 Media
7.3 Reex mark dimensions
Labels with reex marks Endless material with reex marks
25
virtual label front edge
reex mark
Fig. 20 Reex mark dimensions
Dim. Designation Dim. en mm
A Label distance > 2
L Width of reex mark > 5
M Height of reex mark 3 - 10
X Distance mark - material edge 5 - 53
Z Distance virtual label front edge - actual label front edge
Adjust software settings
• Reex marks must be on the liner side of the material.
• Specication is valid for black marks.
• Recognition of colorued marks may fail. Preliminary tests are needed.
Feed direction
0 up to A /
recomm. : 0
Table 10 Reex mark dimensions
7 Media
26
7.4 Cut-out mark dimensions
Labels with cut-out marks Continuous material with cut-out marks
for marginal cut-out marks minimum liner thickness 0,06 mm
Fig. 21 Cut-out mark dimensions
Dim. Designation Dim. in mm
A Label distance > 2
N Width of cut-out mark
for marginal cut-out
P Height of cut-out mark 2 - 10
X Distance mark - material edge 5 - 53
Y Sensor recognised virtual label front edge with gap sensor Rear edge cut-out
Z Distance recognised front edge - actual label front edge
Adjust software settings
Feed direction
> 5
> 8
0 up to A-P
Table 11 Cut-out mark dimensions
Marginal cut-out
Fig. 26 Samples for cut-out marks
Long hole cut-out Rectangular cut-out
Circular cut-out
Not recommended !
Cut-out
between the labels
Not recommended !
8 Conformity
• CE marked in compliance with 2006/42/EC, 2006/95/EC and 2004/108/EC European directives
• FCC Requirements of the FCC regulations part 15 for class A computers.
Under disadvantageous circumstances, the operation of these devices may cause interference with radio or TV
reception, which has to be eliminated by the operator.
9. Warranty
Rolly2000 is guaranteed for one year against inherent faults and defects.
The print head and the print roller are classed as consumable items and not covered by the guarantee.
The guarantee is void if non-Cembre original items are used in this printer.
10. Return to Cembre for repair
In the case of a breakdown contact our Area Agent who will advise on the problem and provide the necessary instructions
on how to dispatch the printer to our nearest Service Centre; if possible, attach a copy of the Test Certicate supplied by
Cembre together with the printer or, if no other references are available, indicate the approximate purchase date and serial
number.
11. Accessories
Rolly2000-cutter 990856: ts to front of printer.
Automatically cuts to length continuous TTL... and exible
TTF material
27
TPS-060 printer ribbons: premium quality ribbon provide
resin based indelible print in accordance with the scratch and
abrasion resistance requirements of CEI 16-7.
Lenght 200 m, Width 112 mm. Print width 105 mm.
Colour Description Code
black
blue
red
green
white
silver
Re. PANTONE® Black C
Ref. PANTONE® 2935 C
Ref. PANTONE® 186 C
Ref. PANTONE® 354 C
842112
842113
842115
842114
842122
842116
28
This manual is the property of Cembre: any reproduction is forbidden without written permission.
Loading...
