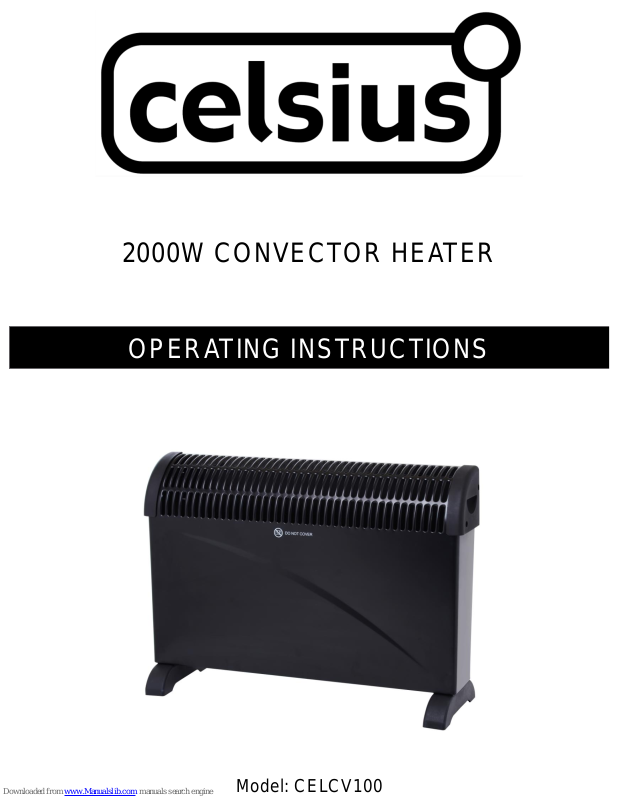

Celsius CELCV100 Operating Instructions Manual

Model: CELCV100

2000W CONVECTOR HEATER

OPERATING INSTRUCTIONS

1. Use only the voltage specified on the rating label
of the appliance.

2. Keep all objects at least 1 metre from the front,
sides and rear of the appliance. Do not place
appliance close to radiant heat source.

3. Do not operate in areas where petrol, paint or
other flammable liquids are used or stored.

4. Do not insert or allow foreign objects to enter

any ventilation or exhaust opening, as this may

cause an electric shock, fire or damage to the
appliance. Do not sit on the appliance.

5. Do not operate this appliance with a damaged
cord, plug or after the appliance malfunctions or
has been dropped or damaged in any manner.
Return to a qualified electrical person for
examination, electrical service or repair.

6. This appliance is intended for household use
only and not for commercial or industrial use.

7. Use this appliance only as described in this

manual. Any other use is not recommended by
the manufacturer and may cause fire, electrical
shock or injury.

8. The common cause of overheating is deposits of
dust or fluff in the appliance. Ensure these
deposits are removed regularly by unplugging
the appliance and vacuum cleaning the air vents
and grills.

9. Do not use abrasive cleaning products on this

appliance. Clean with a damp cloth (not wet)

rinsed in hot soapy water only. Always remove
plug from the mains supply before cleaning.

10. Do not connect the appliance to mains supply
until completely assembled and adjusted.

11. Switch off and use handles provided when
moving.

12. Do not operate with cord set coiled up as a heat
build up is likely, which could be sufficient to
become a hazard.

13. It is recommended that this heater is plugged

directly into the wall socket. Power boards are
not rated to supply power to high wattage
appliances.

14. A correctly specified, undamaged extension
cord may be used with this heater provided it is
used in a safe manner.

15. Do not remove plug from power socket until the
appliance has been switched off.

16. Do not remove plug from power socket by
pulling cord; always grip plug.

17. Always unplug appliance when not in use.

18. Do not locate the heater directly below any

power socket during operation.

19. Do not twist, kink or wrap the cord around the
appliance, as this may cause the insulation to
weaken and split. Always ensure that all cord
has been removed from any cord storage area
and is unrolled before use.

20. This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities or lack

of experience and knowledge, unless they are

supervised or have been given instruction
concerning the use of the appliance by a person
responsible for their safety.

21. Do not use this appliance in the immediate
surrounds of a bath, a shower, or a swimming
pool or other liquids. The appliance must not be
immersed in any liquids.

22. When the appliance has been unpacked, check
it for transport damage and ensure all parts have

been delivered. If parts are missing or the

appliance has been damaged, contact the
Celsius Customer Services Team.

23. If your appliance does not work, or is not
working properly, contact the place of purchase
or the Celsius Customer Services Team. Repair
work on the appliance by unqualified persons
can cause serious risk to the user.

24. There are no user serviceable parts installed in
the unit.

25. Do not place the unit in wardrobes or other

enclosed spaces as this may cause fire hazards.

26. This unit is not supposed to be used in or
around locations where foodstuffs, works of art
or delicate articles of science, etc are stored.

27. Indoor use only.

28. Children should be supervised to ensure that
they do not play with the appliance.

29. Ensure heater is on a flat, stable, heat-resistant
surface.

30. It is important that you do not cover this heater.

WARNINGS AND SAFEGUARDS

Celsius – New Zealand

Monday – Friday 8am-5pm
Phone [phone]
Phone [phone]

[email protected]

Celsius – Australia
Monday – Friday 8am-5pm
Phone [phone]

Phone [phone]

[email protected]

SUPPORT AND TECHNICAL ADVICE

COMPONENTS

Remove the packing. Check to ensure that all parts of this heater, cord and plug are not damaged. Confirm
all parts before disposing of carton. Do not leave packaging materials like bags and staples within reach of
children or animals.

1 x Convector Heater
2 x Feet
4 x Screws (taped to one of the feet)

WARNING: Do not use this heater if it has been dropped or damaged in any way or if the supply cord is
damaged.

ASSEMBLY

Each foot supplied with this heater (supplied separately in the carton) requires only 2 screws to attach them
securely to the heater. Holes are pre-drilled in the base of the heater.
The screw pack to attach the feet to your heater will be taped to either one of the feet for your heater, or
taped to the plug head.
TIP: Slightly angle the screws into the holes when you insert them. As you tighten them up, they will
straighten and secure the feet.
The foot comes with 4 pre-drilled holes. It does not matter which way round you mount them.
The pictures below show the location of pre-drilled holes on the heater base.

Screw holes in base of heater

Screws in position once fitted to heater

OPERATING INSTRUCTIONS

Always choose a safe location for the heater, keeping in mind the safety precautions outlined. Ensure all
packaging has been removed from the unit before use. This appliance requires no installation, it should be
used solely as a portable appliance.

CONTROLS

The control switch positions are:

Check that the On/Off switch is set to Off position before plugging the heater into the mains supply.

For greater economy, use the High Heat setting initially and then switch to the Low Heat setting.

THERMOSTAT

Turn the thermostat knob clockwise until you reach the maximum temperature on the graduated scale.
When the desired room temperature is reached, slowly turn the knob anti-clockwise until the heater turns off
(you will hear a click). The heater will now cycle on and off to maintain the set temperature.

SAFETY DEVICES

This appliance has two protection devices: The first device automatically disconnects & reconnects the
appliance at a pre-set temperature. The second device disconnects the appliance permanently in case of

overheating, by means of a thermal fuse (it is non resettable).

Do not use this heater with a programmer, external timer, separate remote-control system or any other
device that switches the heater on automatically.

WARNING Keep all objects at least 1 metre from the front, sides and rear of the appliance.
CAUTION: The heater generates heat during use. Proper precautions must be taken to prevent the risk of

burns, scalds, fires or other damage to persons.

IMPORTANT! NEVER COVER THIS HEATER!

• “750W” - Low heat

• “1250W” - Medium heat

• “2000W” - High Heat (Press 750W & 1250W switches together)

TECHNICAL SPECIFICATIONS

Model No: CELCV100
Supply: 220-240VAC 50Hz
Wattage: 1800-2000W

PROOF OF PURCHASE

To receive warranty retain receipt as proof of purchase. (Refer to back of booklet).

CARE AND CLEANING

The heater requires regular cleaning to ensure trouble free operation:
Unplug the heater from the mains supply before cleaning.
Ensure that the heater has been allowed to cool down completely before cleaning.
Use a damp cloth (not wet) to wipe the exterior of the heater to remove dust and dirt.
Use a vacuum cleaner to remove dust and fluff from around the grills.

Never use solutions such as benzene, thinners or polishing agents.

Ensure the heater is dry before plugging back into the mains supply.
Do not attempt to dismantle the heater. There are no user serviceable parts. For service or repair, contact

an authorised electrical service technician.

Thank you for purchasing this Celsius product. Your product is warranted against faults and manufacture when used in
normal domestic use for a period of one year. In non-domestic use Celsius limits the voluntary warranty to three

months.

Celsius undertake to repair or replace this product at no charge if found to be defective due to a manufacturing fault during
the warranty period.

This warranty excludes damage caused by misuse, neglect, shipping accident, incorrect installation, or work carried out by
anyone other than a qualified electrical service technician.

PLEASE KEEP YOUR RECEIPT AS THIS WILL HELP VERIFY YOUR WARRANTY.
The benefits given to you by this warranty are in addition to other rights and remedies available to you under law in

relation to the goods or services to which this warranty relates.

In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are

entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or
damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.

In New Zealand this warranty is additional to the conditions and guarantees of the Consumers Guarantee Act (1993).

One Year Warranty

Celsius One Year Warranty (IMPORTANT: Please complete and retain this warranty card)

Name

Address

Place Of Purchase Date Of Purchase

Name Of Product Model Number

Attach a copy of the purchase receipt to this warranty card

Due to continual design improvements, the product illustrated in this User Manual may differ slightly from the actual product.
