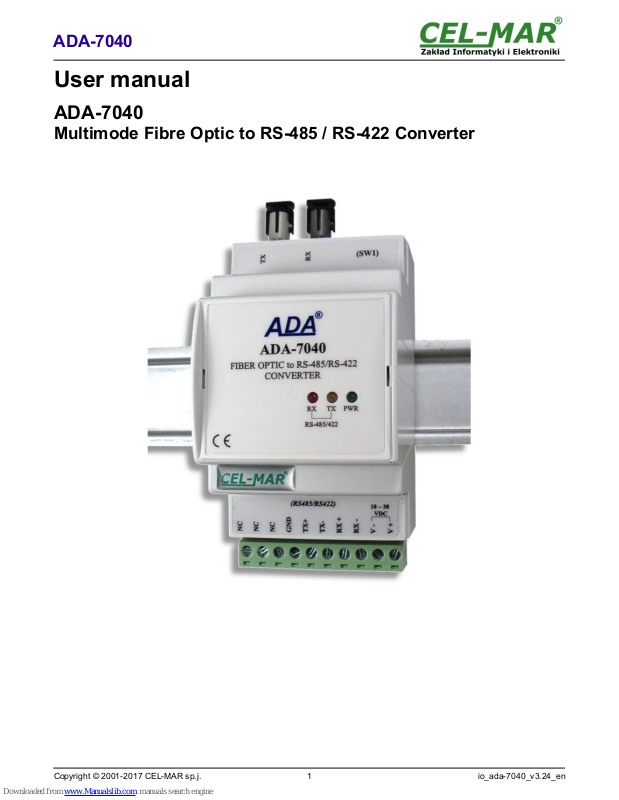

User manual
ADA-7040
Multimode Fibre Optic to RS-485 / RS-422 Converter
1
io_ada-7040_v3.24_en
ADA-7040
Copyright © 2001-2017 CEL-MAR sp.j.
Contents
1. GENERAL INFORMATION...................................................................................................................................................................... 3
1.1. WARRANTED INFORMATION.......................................................................................................................................................3
1.2. GENERAL CONDITIONS FOR SAFE USE....................................................................................................................................3
1.3. CE LABEL....................................................................................................................................................................................... 3
1.4. ENVIRONMENTAL PRESERVATION............................................................................................................................................ 3
1.5. SERVICE AND MAINTENANCE..................................................................................................................................................... 3
1.6. PACK CONTENTS.......................................................................................................................................................................... 3
2. PRODUCT INFORMATION.....................................................................................................................................................................3
2.1. PROPERTIES................................................................................................................................................................................. 3
2.2. DESCRIPTION................................................................................................................................................................................ 4
2.3. ISOLATION..................................................................................................................................................................................... 5
3. INSTALLATION....................................................................................................................................................................................... 5
3.1. ASSEMBLING.................................................................................................................................................................................5
3.2. CONNECTION TO RS485/RS422 NETWORK............................................................................................................................... 5
3.2.1. CONNECTION TO 4-WIRE RS422 NETWORK....................................................................................................................5
3.2.2. CONNECTION TO 4-WIRE RS485 NETWORK....................................................................................................................6
3.2.3. CONNECTION TO 2-WIRE RS485 NETWORK....................................................................................................................6
3.2.4. LINE TERMINATION Rt ON RS485/RS422 BUS..................................................................................................................6
3.3. CONNECTION FIBRE-OPTIC BUS................................................................................................................................................6
3.4. POWER SUPPLY CONNECTION.................................................................................................................................................. 7
4. CONFIGURATION................................................................................................................................................................................... 7
4.1. SETTING OF OPERATING MODE................................................................................................................................................. 7
4.2. DEFAULT SETTING....................................................................................................................................................................... 7
5. ACTIVATION........................................................................................................................................................................................... 7
5.1. LEDS DESCRIPTION..................................................................................................................................................................... 7
6. VERSIONS.............................................................................................................................................................................................. 8
7. SPECIFICATION..................................................................................................................................................................................... 8
2
ADA-7040
1. GENERAL INFORMATION
Thank you for your purchase of CEL-MAR Company product. This product has been completely tested and is covered by a two year
warranty on parts and operation from date of sale.
If any questions or problems arise during installation or use of this product, please do not hesitate to contact Technical Support at +48
41 362-12-46 or e-mail support@cel-mar.pl.
1.1. WARRANTED INFORMATION
ADA-7040 converter is covered by a two year warranty from date of sale. In case of being damaged it will be repair or the damaged
component will be replace. The warranty does not cover damage caused from improper use, materials consumption or any
unauthorized changes. If the product does not function (is damaged), or not operate in accordance with the instructions, will be
repaired.
All warranty and no warranty repairs must be returned with paid transport and insuring to the CEL-MAR Company.
CEL-MAR Company under no circumstances won't be responsible for ensuing damage from improper using the product or as a result
of random causes: the lightning discharge, the flood, the fire and the like.
CEL-MAR Company is not be held responsible for damages and loss including : loss of profits, loss of data, pecuniary losses ensuing
from using or the impossibility of using this product.
In specific cases CEL-MAR Company discontinue all warranties and in particular do not follow the user manual and do not accept
terms of warranty by the user.
1.2. GENERAL CONDITIONS FOR SAFE USE
The device should be installed in a safe and stable places (eg, electroinstallation cabinet), the powering cable should be arranged so
as not to be exposed to trampling, attaching, or pulling out of the circuit.
Do not put device on the wet surface.
Do not connect devices for nondescript powering sources,
Do not damage or crush powering wires.
Do not make connection with wet hands.
Do not adapt, open or make holes in casings of the device!
Do not immerse device in water or no other liquid.
Do not put the fire opened on device sources: candles, an oil lamps and the like.
Complete disable from the supply network is only after disconnecting the power supply circuit voltage.
Do not carry out the assembly or dis-assembly of the device if it is enabled. This may result to short circuit and damage the device.
The device can not be used for applications that determine human life and health (eg. Medical).
ATTENTION!!!
The device is equipped in the laser transmitter.
The radiation emitted by the laser transmitter is harmful to the eyes!
Under no circumstances should never look to at the uncovered slot, to which it is not connected the fiber optic
connector .
The manufacturer is not responsible for used not in accordance with the instruction manual.
The user manual is an integral part of the device and with it is delivered to users.
1.3. CE LABEL
The CE symbol on the device CEL-MAR means compatibility with electromagnetic compatibility Electromagnetic
Compatibility Directive EMC 2014/30/WE. Declaration of Conformity is available by contact with Technical Service
(email: support@cel-mar.pl; phone: +48 41 362-12-46).
1.4. ENVIRONMENTAL PRESERVATION
This sign on the device inform about putting expended device with other waste materials. Device should send to the
recycling. (In accordance with the act about the Electronic Appliance Expended from day 29 of July 2005)
1.5. SERVICE AND MAINTENANCE
ADA-7040 converter does not require the servicing and maintenance.
Technical support is available at number +48 41 362-12-46 in 8.00-16.00, from Monday to Friday or e-mail support@cel-mar.pl.
1.6. PACK CONTENTS
The converter is delivered with the user manual and resistors: Rt=120W (2 pcs).
2. PRODUCT INFORMATION
2.1. PROPERTIES
● Fibre Optic to RS485 / RS422 conversion,
● Fibre Optic connection via two fibre connectors type: ST® * or SC – transmitter and receiver for an optical wavelength from 792nm
to 865 nm or SMA – transmitter and receiver for an optical wavelength from 640nm to 675nm.
● Fibre Optic line: 2 mutimode optical fibres eg. type 50/125 mm, 62,5/125 mm, 100/140 mm, 200 mm HCS, 1mm POF,
● Transmission of RX,TX signals,
● Baud rate up to 500kbps,
● Operating on RS-485 network 2 or 4 wire,
● Automatic direction data flow control on RS485 network,
● Transparent for all protocols: MODBUS, DNP, PROFIBUS and other,
3
ADA-7040
● External power supply 10 - 30 VDC stable min. 3W,
● 1kV= or 3kV= galvanic isolation between RS485/RS422 interface and power supply,
● 5kV= optoisolation between FO and RS485/RS422 in the signal channels,
● Connection RS485/RS422 network and power supply via screw terminal block,
● Connection Fiber Optic network via 2 fibres optic connectors type: ST® *(850nm) , SC(850nm), SMA(650nm)
● Protection against power supply reverse connection,
● Implemented sovervoltage protection on RS422/485 network,
● DIN 43880 standard - mounting in typical electro-installation unit,
● Rail mounting according to DIN35 / TS35 standard,
● Dimensions (W x D x H) 53mm x 62mm x 90mm.
2.2. DESCRIPTION
Fibre Optic ADA-7040 is a device used to connect units with RS485/RS422 interface without interfering with the data format. The use
of fibre-optic provides complete isolation between connected devices and resistance to interference on the transmission bus. The fibre
connection is implemented by a line consisting of two fibres - one fiber for the TX signal and one for RX signal. Using two this type
converters, can be use for communication with devices quite distant from each other eg. Computers, controllers etc.
ADA-7040 is equipped with screw terminal block for RS485/422 and power connections. The converter supports data rates of up to
2Mbps by four or two pairs of twisted pair connected to the screw terminals. The device use to operate lines RX +, RX-, TX +, TX-.
To RS485/422 bus built on the ADA-7040 can be connected 32 devices operating in half duplex mode or full duplex mode.
Overvoltage protection was made on base safety diodes and fuses on each RS485/RS422 lines.

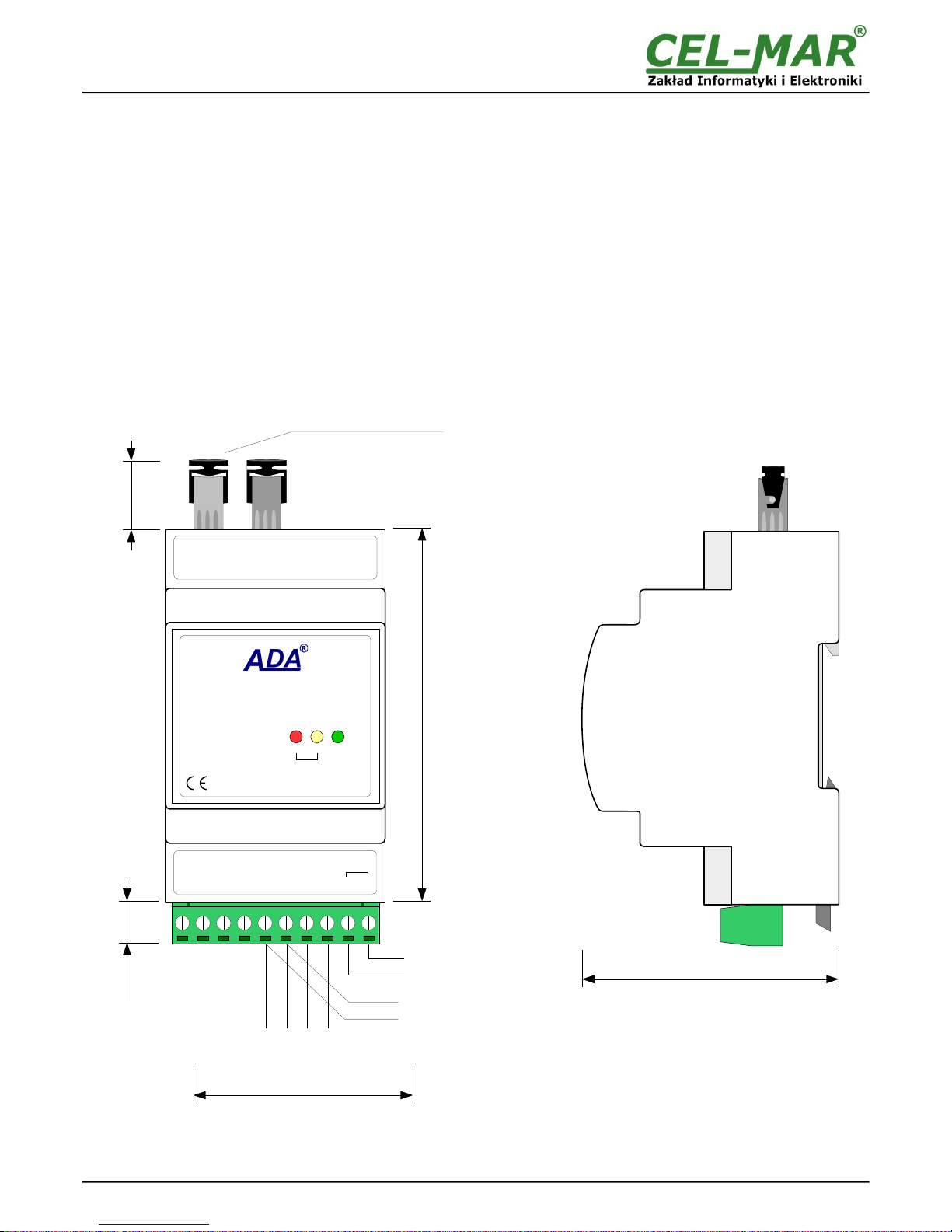

Fig. 1. View of ADA-7040
4
ADA-7040
62mm
Power Supply
10 - 30 VDC
90mm
53mm
10mm
17mm
Multimode Fiber Optic
(SW1)
TX
RX
NC
NC
NC
GND
TX+ /A
TX- /B
RX +
RX -
(RS485/RS422)
V -
V +
10 – 30
VDC
PWRTXRX
ADA-7040
FIBER OPTIC to RS-485/RS-422
CONVERTER
RS-485/422
RS-485
2-wires
RS-485 4-wires
or RS-422
2.3. ISOLATION
Converter ADA-7040 has 3-way galvanic isolation on the levels 1kV= or 3kV=, depend on version described in section VERSIONS.

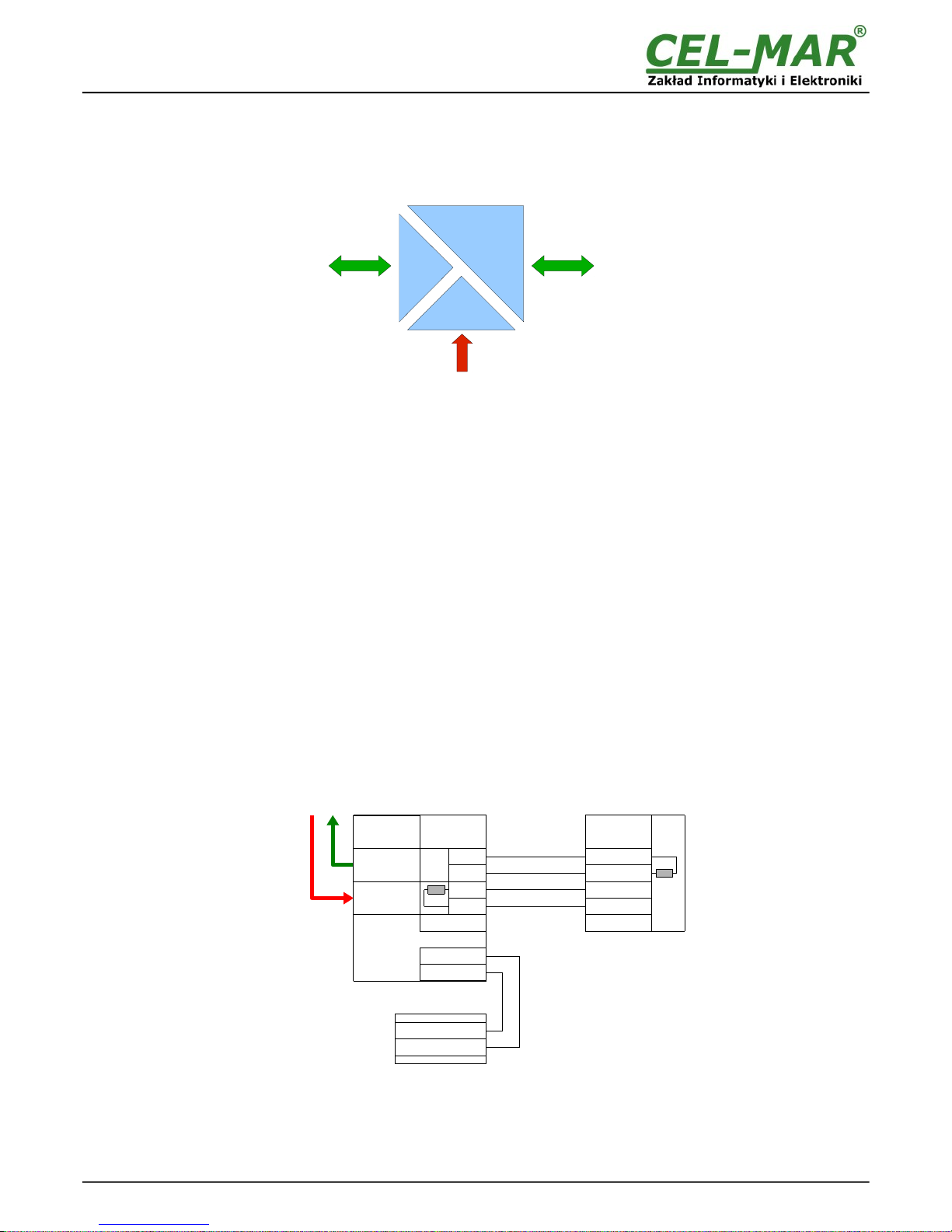

Fig. 2. Isolation structure
3. INSTALLATION
This chapter will show how to connect ADA-7040 to RS485/422 bus, Fibre-Optic and power supply and how to use it.
In the purpose of minimization of disruptions from environment is being recommended to:
● apply multipair type shielded cables, which shield can be connected to the earthing on one end of the cable,
● arrange signal cables in the distance not shorter than 25 cm from powering cables,
● apply cable of adequate cross-section due to voltage drops for converter powering,
● use Interference suppression filters for power supply converters that are installed within a single object.
● not supply converter from power circuit device that generates large impulse interference such as transmitters, contactors,
3.1. ASSEMBLING
The ADA-7040 converter case is adapted to assembly on TS-35 (DIN35) rail. To install converter should mount device on the rail
upper part of the case then press bottom part to hearing characteristic „Click” sound.
3.2. CONNECTION TO RS485/RS422 NETWORK
RS485/RS422 interface at ADA-7040 converter is available on terminal block described as: Tx+/A, Tx-/B, Rx+, Rx-. ADA-7040 support
operating on RS422 bus and RS485. Both buses need proper cabling.
3.2.1. CONNECTION TO 4-WIRE RS422 NETWORK
Fig. 3. Example connection of RS422 or RS485(4W) device to ADA-7040
5
ADA-7040
RS422 interface
device
RS422
connector
TX+
TX-
RX+
RX-
Rt
FO
connector
Rt
RX+
RX-
GND
TX+
TX-
Vss+
Vss-
V -
V +
RS422
connector
Power Supply
ADA-7040
Multimode the
optical fibers,
types:
50/125um,
62,5/125 um,
100/140um,
200umHCS,
plastic POF/1mm,
GND
TX
RX
POWER SUPPLY
10 - 30VDC
FO RS485/RS422
3-WAY ISOLATION
3.2.2. CONNECTION TO 4-WIRE RS485 NETWORK
Fig. 4. Example connection of RS485(4W) device to ADA-7040
3.2.3. CONNECTION TO 2-WIRE RS485 NETWORK
Most of RS485 devices use 2-wire RS485 network for data transmission, example of connection ADA-7040 to 2-wire RS485 network is
shown below.
Fig. 5. Example connection of RS485(2W) device to ADA-7040
3.2.4. LINE TERMINATION Rt ON RS485/RS422 BUS.
The application of Line Termination (terminator) Rt = 120 W will reduce electrical reflection in data line at high baud rate. It is not
needed below 9600Bd. Should be used the Line Termination resistor if the distance is over 1000m @ 9600Bd or 700m @ 19200Bd
transmission. Example connection of Rt are shown on Fig. 3, 4 & 5. Two resistors Rt =120W , are supplied with ADA-7040 converter,
free of charge.
3.3. CONNECTION FIBRE-OPTIC BUS
The multimode Fibre-Optic with connectors type: ST® , SC or SMA, connect into their corresponding converter's connectors type: ST®
, SC or SMA like on the Fig. 6. Connecting the fiber optic cables should be cautious and careful not to damage them or dirty. If it is
necessary to lay the cable at an angle, must be created the appropriate bends
6
ADA-7040
FO
connector
Multimode the
optical fibers,
types:
50/125um,
62,5/125 um,
100/140um,
200umHCS,
plastic POF/1mm,
RS485(4W) interface
devices
TX
RX
Rt
RX+
RX-
GND
TX+ / A
TX- / B
Vss+
Vss-
V -
V +
RS485(4W)
connector
Power Supply
ADA-7040
Rt
Multimode the
optical fibers,
types:
50/125um,
62,5/125 um,
100/140um,
200umHCS,
plastic POF/1mm,
RS485(2W) interface
devices
RX+
RX-
GND
TX+ / A
TX- / B
Vss+
Vss-
V -
V +
RS485(2W)
connector
Power Supply
ADA-7040
Rt
TX
RX
FO
connector
Fig. 6. Example connection of ADA-7040 converters by the use of Fibre-Optic line.
3.4. POWER SUPPLY CONNECTION
The power supply to the ADA-7040 converter should be DC (regulated) from 10 V= to 30V=. Nominal power is typically 2W, e.g. ZS12/250 or DR-15-24. Power cable from DC power supplies to device must not be longer than 3m.
Observe the polarity, connect positive (+) of DC power supplies to V+ and negative (-) end to V- screw terminal block. ADA-7040 has
the protection from opposite connection power supply. If after power, on the front panel is not lit green LED PWR, check the power
connection (polarity).
4. CONFIGURATION
The operating mode of the ADA-7040 converter is set by the use 6-position SW1 switch. This switch is located near the Fibre-Optic
connectors (see Fig.1). To set the SW1 should remove the terminal cover and using small, flat screwdriver make correct setting.
4.1. SETTING OF OPERATING MODE
All available operating modes are shows in table below.
If there are any additional questions, please contact with technical support: suppor@cel-mar.pl or on the phone: +48 41 362-12-46.
Table 1. RS422 or RS485 operating mode.
SW1-1 SW1-2 SW1-3 SW1-4 SW1-5 SW1-6 Description Operating mode
OFF OFF OFF OFF OFF OFF RS-422 bus
4-wire RS422 network.
Full duplex or half duplex
transmission.
ON ON ON ON ON ON
RS-485 bus,
automatic data flow control
2-wire and 4-wire RS485 network.
Full duplex or half duplex
transmission.
4.2. DEFAULT SETTING
The ADA-7040 converter is being set in RS485 mode during production as in the table below.
Table 2.
SW1-1 SW1-2 SW1-3 SW1-4 SW1-5 SW1-6
ON ON ON ON ON ON
5. ACTIVATION
Converter can be powered after proper connection according to steps above.
If connection was made properly green LED PWR on front panel of converter should light, if not check polarization of power
connection. During proper data transmission through converter the LEDs Tx and Rx should blink.

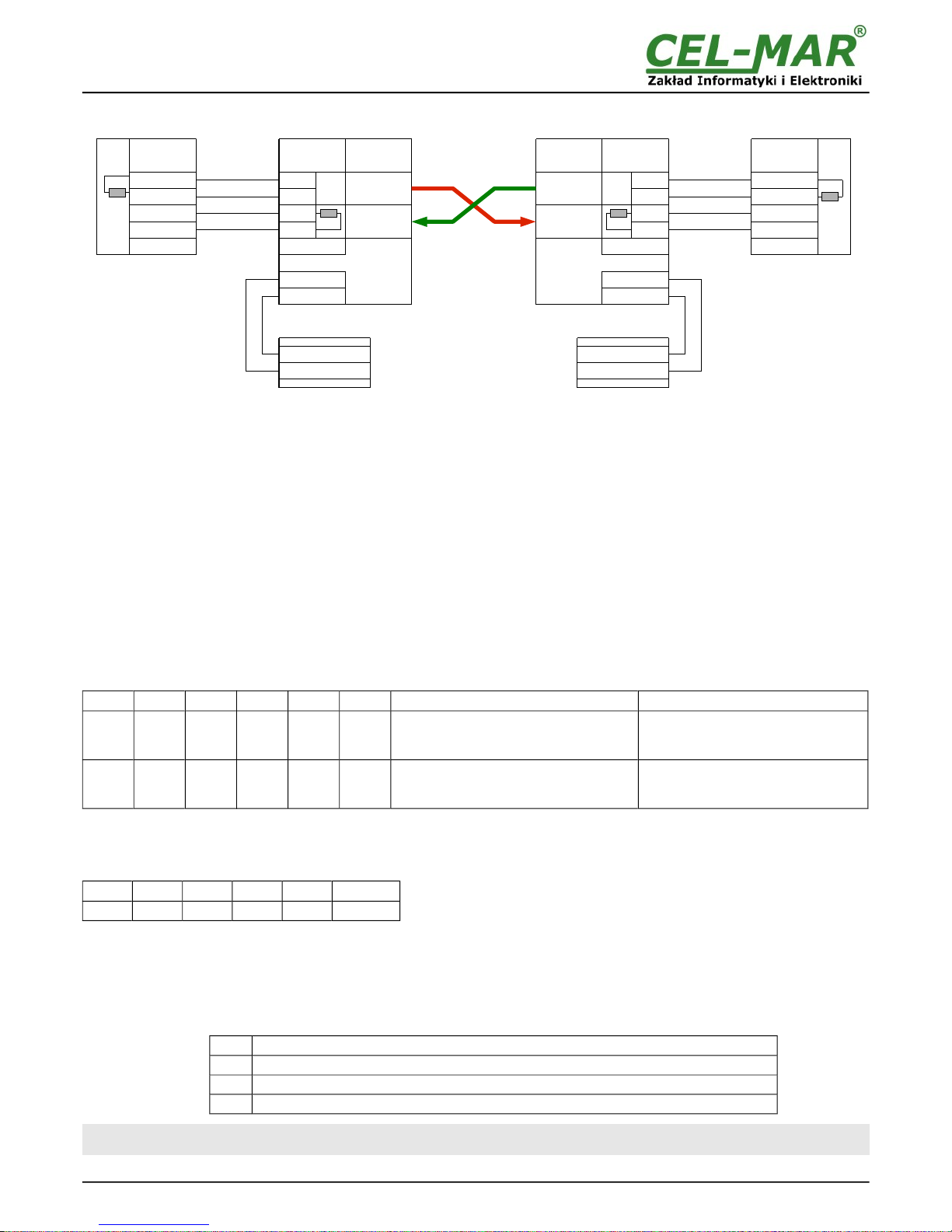

5.1. LEDS DESCRIPTION
LED Description
PWR Signalization of Power Supply
RX Signalization of data receiving by the ADA-7040 from RS485 / RS422 port
TX Signalization of data transmission from the ADA-7040 through RS485/ RS422 port
ATTENTION !!!
AT BAUD RATE OVER 38.400 BPS, THE LEDS WILL LIGHT WEAKLY DURING DATA TRANSMISSION.
7
ADA-7040
Multimode the
optical fibers,
types:
50/125um,
62,5/125 um,
100/140um,
200umHCS,
plastic POF/1mm,
Power Supply
FO
connector
RS422 interface
device
RS422
connector
TX+
TX-
RX+
RX-
Rt
TX
RX
Rt
RX+
RX-
GND
TX+
TX-
Vss+
Vss-
V -
V +
RS422
connector
ADA-7040
GND
Rt
RX+
RX-
GND
TX+
TX-
Vss+
Vss-
V -
V +
RS422
connector
ADA-7040
RS422
connector
TX+
TX-
RX+
RX-
Rt
GND
TX
RX
Power Supply
FO
connector
RS422 interface
device
6. VERSIONS
ADA-7040 - - - -
Order example:
Product symbol: ADA-7040-1-2-3-1
1 – basic electronic version,
2 – galvanic isolation 1kV=,
3 – cover without inlets, plug-in screw terminal block,
1 – ST-type 850nm fibre connectors,
Electronic version:
Basic
1
Special version
2
Galvanic isolation:
1kV=
2
3kV=
3
Terminal & Terminal Cover:
Cover without inlets, screw terminal block
1
Cover with inlets, screw terminal block
2
Cover without inlets, plug-in screw terminal block
3
Fibre connectors:
ST – type 850nm 1
SC – type 850nm 2
SMA – type 650nm 3
7. SPECIFICATION
TECHNICAL DATA
Transmission Parameters
Interface Fibre-Optic RS-485/RS-422
Connector
ST® * type - transmitter and receiver for an optical
wavelength from 792nm to 865nm,
SC type - transmitter and receiver for an optical wavelength
from 792nm to 865nm,
SMA type - transmitter and receiver for an optical
wavelength from 640nm to 675nm.
Screw terminal, wire max.
Ø 2,5mm2.
Line length
- up to 2000m for fibre type 50/125 mm, optical power
budget Tx/Rx 9,6[dB],
- up to 2500m for fibre type 62,5/125 mm, optical power
budget Tx/Rx 15[dB],
- up to 2000m for fibre type 100/140 mm, optical power
budget Tx/Rx 15[dB],
- up to 1500m for fibre type 200 mm HCS, optical power
budget Tx/Rx 20[dB],
- up to 20m for fibre type POF/1mm
1200 m
Maximum number of connected device
1 32 / 2
Transmission line
Two multimode fibres:
- connectors ST-850, fibres type 50/125 mm,62,5/125 mm,
100/140mm, 200mm HCS.
- connectors SC-850 fibres type 50/125 mm, 62,5/125 mm,
100/140mm, 200mm HCS.
- connectors SMA-650 plastic fibres type POF/1mm.
1-pair, 2-pair or 4-pair
twisted cable eg UTP cat.
5e, shield inside large
interferences eg STP cat.
5e.
Standards EIA-485/422, CCITT V.11
Maximum baud rate
up to 500kbps, baud rate depend on length of the RS-485/RS-422 bus.
Transmission type Asynchronous half duplex or full duplex
Optical signalization
• PWR – green LED power supply,
• RX - red LED data receiving from RS-485/RS-422,
• TX - yellow LED data transmission through RS-485/RS-422 interface.
Electrical Parameters
Power requirements
10 - 24 – 30 V DC
Power cable
Recommended length of power cable < 3m
Power
< 3W
8
ADA-7040
Protection from reverse power polarization YES
Galvanic isolation
1kV= or 3kV= between power circuit and signal lines FO & RS-485/RS-422
Optoisolation
5kV – between signal lines FO and RS-485/RS-422
Electromagnetic compatibility
Resistance to disruptions according to the standard PN-EN 55024.
Emission of disruptions according to the standard PN-EN 55022.
Safety requiring
According to the PN-EN60950 norm.
Environment
Commercial and light industrial.
Environmental Parameters
Operating temperature
-30°C ÷ 60°C
Humidity
5 ÷ 95% - non-condensing
Storage temperature
-40 ÷ +70°C
Casing
Dimensions
53 x 90 x 58mm,
Material
ABS/PC
Degree of casing protection
IP40
Degree of terminal protection
IP20
Weight
0,10 kg
According to standards
DIN EN50022, DIN EN43880
Location during work
Free
Mounting method
On the rail compliant with DIN35 / TS35 standard.
* ST is a trademark of AT&T company.
9
ADA-7040
10
ADA-7040
11
ADA-7040
12
ADA-7040
Dear Customer,
Thank you for purchasing CEL-MAR Company products.
We hope that this user manual helped connect and start up ADA-7040 converter. We also wish to inform you that we are a
manufacturer of the widest selections of data communications products in the world such as: data transmission converters with
interface RS232, RS485, RS422, USB, Current Loop, Fibre-Optic Converters and Ethernet or Wi-Fi.
Please contact us to tell how you like our products and how we can satisfy you present and future expectation.
CEL-MAR sp.j.
Zakład Informatyki i Elektroniki
str. Ściegiennego 219C
25-116 Kielce, POLAND
Tel....................................................: +48 41 362-12-46
Tel/fax..............................................: +48 41 361-07-70
Web.................................................: http://www.cel-mar.pl/en
Office...............................................: office@cel-mar.pl
Sales department........................... .: s al es @cel-mar.pl
Technical information ..................... : support@cel-mar.pl
Loading...
