CEL-MAR ADA-13040MG User Manual

User manual

ADA-13040MG

ETHERNET to RS485/RS422 Converter
with MODBUS GATEWAY

1

io_ada-13040MG_en_v0.10

ADA-13040MG

Copyright © 2001-2013 CEL-MAR sp.j.

Contents

1. GENERAL INFORMATION...................................................................................................................................................................... 4

1.1. WARRANTED INFORMATION ......................................................................................................................................................4

1.2. GENERAL CONDITIONS FOR SAFE USE.................................................................................................................................... 4

1.3. CE LABEL....................................................................................................................................................................................... 4

1.4. ENVIRONMENTAL PRESERVATION............................................................................................................................................ 4

1.5. SERVICE AND MAINTENANCE..................................................................................................................................................... 4

2. PRODUCT INFORMATION.....................................................................................................................................................................4

2.1. PROPERTIES................................................................................................................................................................................. 4

2.2. DESCRIPTION................................................................................................................................................................................ 5

2.3. ETHERNET NETWORK COMMUNICATION................................................................................................................................. 5

2.3.1. TCP/UDP SOCKED MODE COMMUNICATION....................................................................................................................5

2.3.2. COMMUNICATIONS IN THE VIRTUAL SERIAL PORT MODE (RealPort)...........................................................................5

2.3.3. COMMUNICATIONS IN THE SERIAL BRIDGE MODE.........................................................................................................6

2.3.4. COMMUNICATIONS IN THE INDUSTRIAL AUTOMATION MODE (Modbus Gateway).......................................................6

2.3.5. OTHER COMMUNICATION TYPES......................................................................................................................................6

3. INSTALLATION....................................................................................................................................................................................... 6

3.1. ASSEMBLING.................................................................................................................................................................................6

3.2. ETHERNET NETWORK................................................................................................................................................................. 6

3.2.1. CONNECTING TO NETWORK ADAPTER OF PC................................................................................................................7

3.2.2. CONNECTING FOR REALPORT MODE FUNCTIONING..................................................................................................... 7

3.2.3. CONNECTION FOR FUNCTIONING IN TCP & UDP SERIAL BRIDGE MODE....................................................................8

3.2.4. CONVERTERS CONNECTION AS MODBUS GATEWAY....................................................................................................9

3.3. RS485/RS422 BUS.......................................................................................................................................................................10

3.3.1. CONNECTION TO 4-WIRE RS422 BUS.............................................................................................................................10

3.3.2. CONNECTION TO 4-WIRE RS485(4W) BUS.....................................................................................................................10

3.3.3. CONNECTION TO 2-WIRE RS485 BUS ............................................................................................................................10

3.3.4. LINE TERMINATION............................................................................................................................................................ 11

3.4. POWER SUPPLY CONNECTION................................................................................................................................................ 11

4. ACTIVATION......................................................................................................................................................................................... 11

5. CONFIGURATION................................................................................................................................................................................. 11

5.1. RS485/ RS422 OPERATING MODE............................................................................................................................................ 12

5.2. PRELIMINARY CONFIGURATION USING ADAFINDER SOFTWARE.......................................................................................12

5.2.1. ADAFINDER INSTALLATION.............................................................................................................................................. 12

5.2.2. NETWORK SETTING.......................................................................................................................................................... 12

5.3. CONFIGURATION AND MANAGEMENT WITH USE OF INTERNET BROWSER.....................................................................13

5.3.1. NETWORK CONFIGURATION............................................................................................................................................14

5.3.2. SERIAL PORT CONFIGURATION....................................................................................................................................... 14

5.3.2.1. PORT PROFILE (OPERATING MODE)...................................................................................................................... 14

5.3.2.1.1. REALPORT (VIRTUAL PORT ).......................................................................................................................... 15

5.3.2.1.2. TCP SOCKETS...................................................................................................................................................15

5.3.2.1.2.1. TCP SERVER AND CLIENT ..................................................................................................................... 16

5.3.2.1.2.2. 'ENABLE TCP KEEP-ALIVE' CONFIGURATION....................................................................................... 16

5.3.2.1.2.3. SERIAL PORT TRANSMISSION PARAMETERS......................................................................................17

5.3.2.1.3. UDP SOCKETS..................................................................................................................................................17

5.3.2.1.3.1. UDP CLIENT & SERVER CONFIGURATION IN CASE OF MASTER DEVICE........................................17

5.3.2.1.3.2. UDP CLIENT & SERVER CONFIGURATION IN CASE OF SLAVE DEVICE..........................................18

5.3.2.1.3.3. SERIAL PORT TRANSMISSION PARAMETERS......................................................................................18

5.3.2.1.4. SERIAL BRIDGE................................................................................................................................................. 18

5.3.2.1.4.1. SERIAL PORT TRANSMISSION PARAMETERS......................................................................................19

5.3.2.1.5. INDUSTRIAL AUTOMATION (MODBUS GATEWAY)........................................................................................ 19

5.3.2.1.5.1. COMMUNICATION WITH DEVICES MODBUS-MASTER TYPE..............................................................20

5.3.2.1.5.2. CONFIGURATION FOR COMMUNICATION WITH MODBUS-SLAVE TYPE DEVICE............................22

5.3.2.1.5.3. SERIAL PORT TRANSMISSION PARAMETERS......................................................................................22

5.3.3. SYSTEM SETTINGS............................................................................................................................................................ 23

5.3.4. USERS CONFIGURATION..................................................................................................................................................23

5.3.4.1. CHANGING USER MANE AND PASSWORD ...........................................................................................................23

5.3.4.2. ADDING NEW USER W ITH LIMITED PERMISSIONS ASSOCIATED ......................................................................23

5.3.5. MANAGMENT...................................................................................................................................................................... 23

5.3.5.1. SERIAL PORTS MANAGEMENT................................................................................................................................23

5.3.5.2. CONNECTIONS MANAGMENT..................................................................................................................................23

5.3.6. ADMINISTRATION............................................................................................................................................................... 23

5.3.6.1. FILE MANAGEMENT................................................................................................................................................... 23

5.3.6.2. BACKUP & RESTORE CONFIGURATION ................................................................................................................ 24

5.3.6.3. FIRMWARE UPDATE.................................................................................................................................................. 24

5.3.6.4. FACTORY DEFAULT SETTINGS...............................................................................................................................24

5.3.6.5. SYSTEM INFORMATION............................................................................................................................................24

5.3.6.6. REBOOT...................................................................................................................................................................... 24

5.3.6.7. LOGOUT – ENDING THE MANAGEMENT................................................................................................................. 24

2

ADA-13040MG

6. USING VIRTUAL PORT SERVICE [REALPORT] ................................................................................................................................ 24

6.1. VIRTUAL PORT DRIVER INSTALLATION IN WINDOWS XP....................................................................................................24

6.2. REALPORT CONFIGURATION IN WINDOWS XP...................................................................................................................... 25

7. FACTORY DEFAULT............................................................................................................................................................................ 26

8. PROBLEMS...........................................................................................................................................................................................26

9. VERSIONS............................................................................................................................................................................................ 27

10. DANE SPECIFICATION......................................................................................................................................................................27

3

ADA-13040MG

1. GENERAL INFORMATION

Thank you for your purchase of CEL-MAR Company product. This product has been completely tested and is covered by two year
warranty on parts and operation from date of sale.
If any questions or problems arise during installation or use of this product, please do not hesitate to contact Technical Support at +48
41 362-12-46 or e-mail [e-mail].

1.1. WARRANTED INFORMATION

The ADA-13040MG converter is covered by a two year warranty from date of sale. In case of being damaged it will be repair or the
damaged component will be replace. The warranty does not cover damage caused from improper use, materials consumption or any
unauthorized changes. If the product does not function (is damaged), or not operate in accordance with the instructions, will be
repaired or replaced.
All warranty and no warranty repairs must be returned with paid transport and insuring to the CEL-MAR Company.
CEL-MAR Company under no circumstances won't be responsible for ensuing damage from improper using the product or as a result
of random causes: the lightning discharge, the flood, the fire and the like.
CEL-MAR Company is not be held responsible for damages and loss including : loss of profits, loss of data, pecuniary losses ensuing
from using or the impossibility of using this product.
In specific cases CEL-MAR Company discontinue all warranties and in particular do not follow the user manual and do not accept
terms of warranty by the user.

1.2. GENERAL CONDITIONS FOR SAFE USE

The device should be installed in a safe and stable places (eg, electroinstallation cabinet), the powering cable should be arranged so
as not to be exposed to trampling, attaching, or pulling out of the circuit.
Do not put device on the wet surface.
Do not connect devices for nondescript powering sources,
Do not damage or crush powering wires.
Do not make connection with wet hands.
Do not adapt, open or make holes in casings of the device!
Do not immerse device in water or no other liquid.
Do not put the fire opened on device sources: candles, an oil lamps and the like.
Complete disable from the supply network is only after disconnecting the power supply circuit voltage.
Do not carry out the assembly or dis-assembly of the device if it is enabled. This may result to short circuit and damage the device.

1.3. CE LABEL

CE symbol on organizing the company CEL-MAR a conformity of the device to the directive of the electromagnetic EMC
2004/108/WE (Electromagnetic Compatibility Directive). The declaration of the agreement is accessible through the

contact with the technical service at the address e-mail: [e-mail] or on the phone at the [phone].

1.4. ENVIRONMENTAL PRESERVATION

This label on the device inform about putting expended device with other waste materials. Device should send to the
recycling. (In accordance with the act about the Electronic Appliance Expended from day 29 of July 2005)

1.5. SERVICE AND MAINTENANCE

The ADA-13040MG converter does not require the servicing and maintenance.
Technical support is available at number [phone] in 8.00-16.00, from Monday to Friday or e-mail [e-mail].

2. PRODUCT INFORMATION

The Converter is delivered with: User Manual, antenna and ADANet software CD.

2.1. PROPERTIES

● Functioning on ETHERNET network- IEEE 802.3 standard,

● 10/100BaseT physical layer,

● Baud rate 10/100Mbps (auto-sensing),

● Full or half duplex (auto-sensing) operates mode,

● Protocols: TCP, UDP, DHCP, SNMP, SSL/TLS, Telnet, Rlogin, LPD, HTTP/HTTPS, SMTP, ICMP, IGMP, ARP,

● Integrated WWW sever for converter configuration,

● Configuration of net services according to user personal setting,

● Static or dynamic IP address (added by DHCP verver),

● Diagnostics of serial and network port,

● Encoded transmission: DES (56-bit), 3DES (168-bit), AES (128/256-bit),

● Functioning in modes: virtual serial port, serial bridge TCP, serial bridge UDP, TCP sockets, UDP sockets, MODBUS Data

Gateway,

● Functioning on 2 and 4 wire line on RS485 network,

● Functioning on 4 wire line on RS422 network,

● RS485/RS422 baud rates (bps): 50, 75, 110, 134, 150, 200, 300, 600, 1200, 1800, 2400, 4800, 9600, 14400, 19200, 28800,

38400, 57600, 115200, 230400,

● RS485/422 data format - Number of data bits: 5, 6, 7, 8; Parity checking: None, Odd, Even, Constantly 1, Constantly 0; Stop Bits:
1, 2,

● Transparent for all protocols, which the data format is compatible with the above specifications of RS485/422 interface eg
MODBUS, DNP, PROFIBUS and others,

● Integrated protocols converter MODBUS-TCP to MODBUS-RTU/ASCII (MODBUS Data Gateway),

4

ADA-13040MG

● Functioning in modes: MODBUS-RTU Master/Slave and MODBUS-ASCII Master/Slave,

● Power supply 10 - 30 VDC stable min. 3W,

● ~ 3000V= optoizolation in signal channel between ETHERNET and RS485/RS422 interface,

● 1000V= or 3000V= galvanic isolation between ETHERNET interface and power supply - depends on version,

● 1000V= or 3000V= galvanic isolation between RS485/RS422 interface and power supply - depends on version,

● Connection RS485/RS422 interface via screw terminal block,

● Implemented short circuit protection and over-voltage protection on RS485/RS422 network,

● Protection against power supply reverse connection,

● DIN 43880 standard - mounting in typical electro-installation unit,

● Rail mounting according to DIN35 / TS35 standard,

● Dimensions (W x D x H) 53mm x 58mm x 90mm.

2.2. DESCRIPTION

The ADA-13040MG converter is used for data transmission between devices equipped with RS485/ RS422 interface via LAN/WAN
network. In the ETHERNET network converter can operate in Virtual Serial Port mode, TCP serial bridge mode, UDP serial bridge
mode, TCP sockets, UDP sockets and MODBUS Data Gateway . The MODBUS Data Gateway converts MODBUS-RTU master/slave
and MODBUS-ASCII master/slave protocol to MODBUS-TCP and inversely. This allows for integrate MODBUS-RTU/ASCII with
MODBUS-TCP devices within one network.
Converter uses protocols: TCP, UDP, DHCP, SNMP, SSL/TLS, Telnet, Rlogin, LPD, HTTP/HTTPS, SMTP, ICMP, IGMP, ARP. It has a
built-in WWW web server what allow you to configure and menage it via internet browser. The ADA-13040MG supports the baud rate
230,4 kbps via RS485/RS422 interface and use RX+,RX-,TX+(A),TX-(B) signals. It is possible to connect 32 devices operating in half
duplex mode to RS485 network constructed on the ADA-13040MG.
The Converter is adapted to supply an external voltage source fron 10V to 30V and power 3W. ADA-13040MG has implemented
protection against opposite polarization of power supply and over-voltage protection on RS485/RS422 network. Converter has
galvanic isolation between ETHERNET and RS485/RS422 interface and power supply and optoisolation in signal channel between
ETHERNET and RS485/RS422 interface.
We provide with converter the drivers which installed in the operating system (Windows 98ME,2000,XP,2003,Vista,7), will create an
additional COM port. This port is the next free number eg COM3, can be used like a standard COM port. However it is not the real port
existing in a computer, but only a virtual, created by the system, therefore some programs running under DOS and links to this COM
port may not function properly.

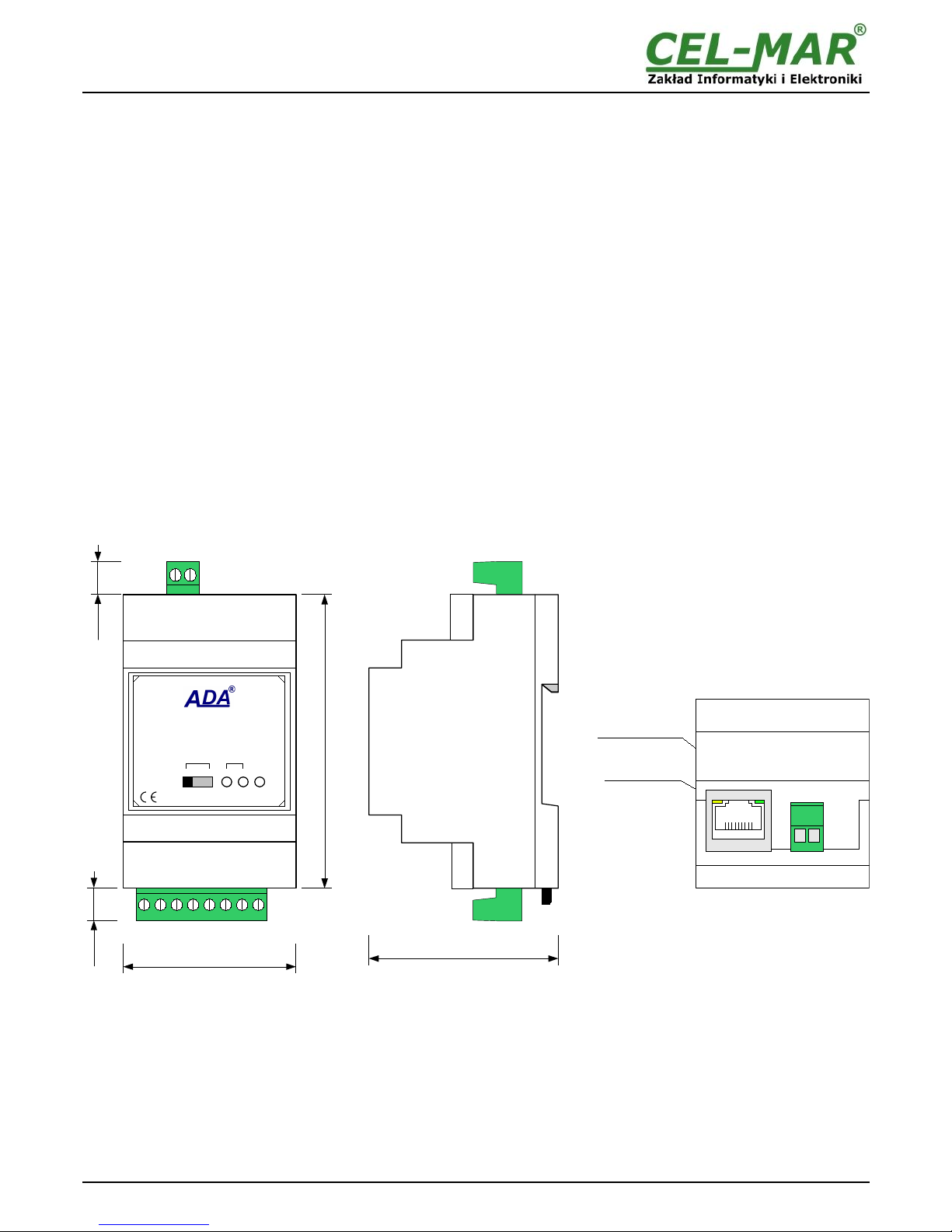

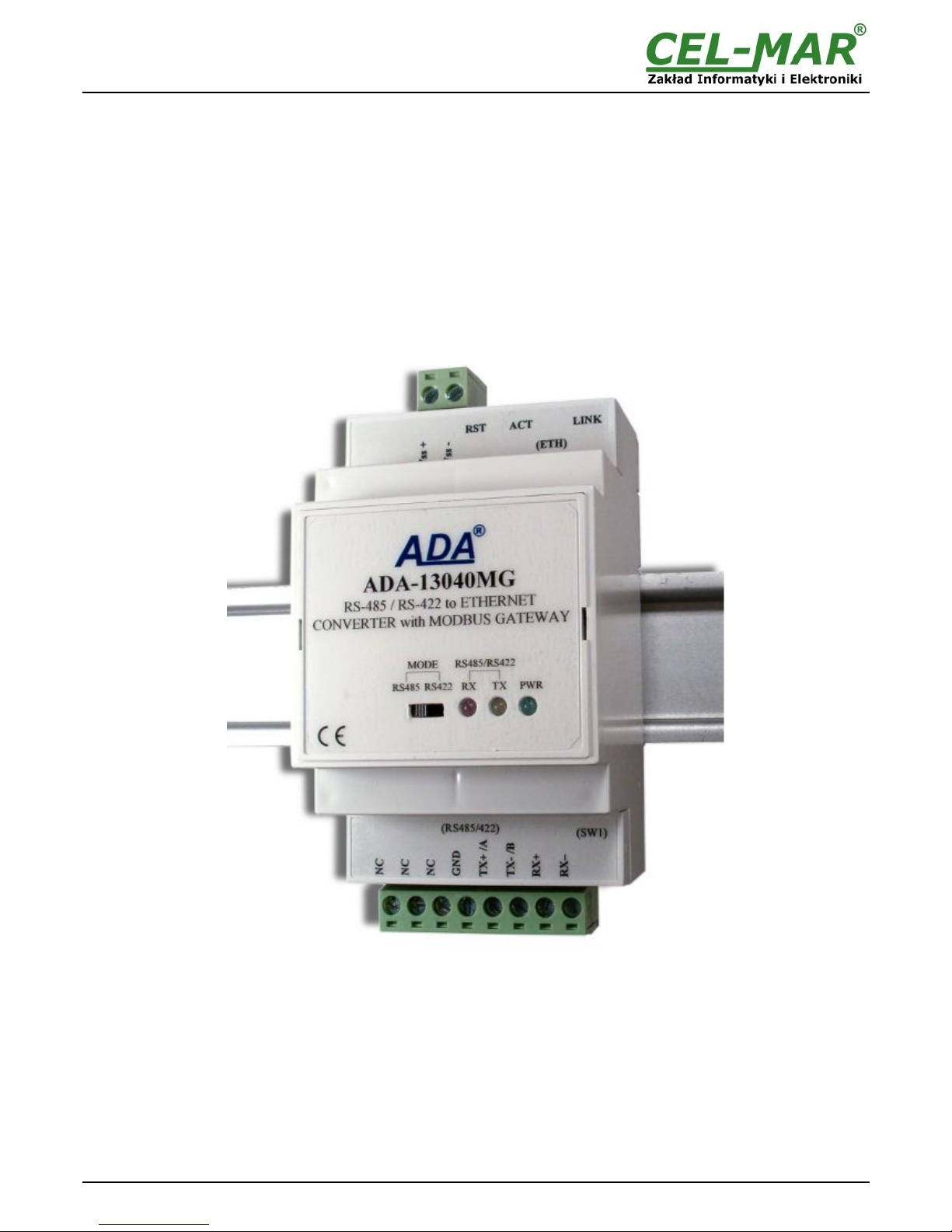

Fig 1. View of ADA-13040MG Fig 2. View of the ETHERNET RJ45 connector

2.3. ETHERNET NETWORK COMMUNICATION

2.3.1. TCP/UDP SOCKED MODE COMMUNICATION

Communication in the mode TCP/UDP sockets allows an application (SCADA, MMI) to transfer data to the serial port of ADA­13040MG via Ethernet network by the use of client and server TCP/UDP services.

2.3.2. COMMUNICATIONS IN THE VIRTUAL SERIAL PORT MODE (RealPort)

Communication in the virtual serial port mode allows an application (SCADA, MMI) to transfer data to the serial port of ADA-13040MG
via Ethernet network, by the use virtual COM port , created in an operating system.

5

ADA-13040MG

Network activity
transmitting / receiving

Connection activity

8

1

- +

58mm

(RS485/RS422)

NCNCNC

GND

Tx + /A

Tx - /B

Rx +

Rx -

90mm

53mm

10mm

Vss-

Vss+

LINK

RST

(ETH)

ACT

10mm

ADA-13040MG

RS-485 / RS-422 to ETHERNET

CONVERTER with MODBUS GATEWAY

PWR

TXRX

RS485/RS422MODE

RS485 RS422

2.3.3. COMMUNICATIONS IN THE SERIAL BRIDGE MODE

Communication in the serial bridge mode allows to transfer data via Ethernet network between serial port of the Servers ports in one­to-one topology or one-to-many by the use of client and server TCP/UDP services.

2.3.4. COMMUNICATIONS IN THE INDUSTRIAL AUTOMATION MODE (Modbus Gateway)

Communication in the MODBUS Gateway (IA) allows conversion of MODBUS-RTU master/slave protocol and MODBUS-ASCII
master/slave protocol to MODBUS-TCP protocol and inversely. It's let to integrate MODBUS-RTU/ASCII devices with MODBUS-TCP
devices in a single network.

2.3.5. OTHER COMMUNICATION TYPES

The ADA-13040MG converter can be configured in other communication types, like:
– terminal mode,
– modem emulation mode,
– console mode,
– user mode.

However, in the case of RS485/RS422 converter, it will not be able to work properly in these modes, as they relate to the full
RS232 interface.

3. INSTALLATION

This chapter will show how correctly connect ADA-13040MG to RS485/422 network, LAN/WAN network and power supply.
To reduce disturbance from environment, it is recommended to:
– use shielded twisted multipair type cables, which shield should be connected to the grounding on one end of the cable,
– lay signal cables at a distance not less than 25 cm from power cables,
– use suitable diameter cable for power supply on account of voltage drop,
– use the interference eliminators for powering the converters installed in the range of some building,
– not powering the converters form power-circuit of devices generate large impulse disturbance like contactors, relays,inverters.

3.1. ASSEMBLING

The ADA-13040MG converter case is adapted to assembly on TS-35 (DIN35) rail. To install the device on TS-35 should be the upper
part of the casing put hooks on the terminal and then press the bottom of the cover until you hear a characteristic "Click" sound.

3.2. ETHERNET NETWORK

The ADA-13040MG has to be connected to ETHERNET network by the use of the switch, the HUB or directly to the PC network
adapter.
The table below shows preparing of the straight cable for Converter connection to switch or hub.

Table 1. The straight cable.

RJ45 Pin

No.

Signal Wire Color

EIA/TIA 568B

Straight cable

UTP 4x2x0,5

Wire Color

EIA/TIA 568B

Signal RJ45 Pin

No.

1 TX+ White-Orange

2 TX- Orange

3 RX+ White-Green

4 Not used Blue

5 Not used White-Blue

6 RX- Green

7 Not used White-Brown

8 Not used Brown

White-Orange TX+ 1

Orange TX- 2

White-Green RX+ 3

Blue Not used 4

White-Blue Not used 5

Green RX- 6

White-Brown Not used 7

Brown Not used 8

The table below shows preparing of cross-over cable for Converter connection to PC network adapter or connections converters
together for functioning as point-to-point serial bridge.

Table 2. The cross-over cable.

RJ45 Pin

No.

Signal

Wire Color

EIA/TIA 568B

Cross-Over Cable

UTP 4x2x0,5

Wire Color

EIA/TIA 568B

Signal

RJ45 Pin

No.

1 TX+ White-Orange

2 TX- Orange

3 RX+ White-Green

4 Not used Blue

5 Not used White-Blue

6 RX- Green

7 Not used White-Brown

8 Not used Brown

White-Green TX+ 1

Green TX- 2

White-Orange RX+ 3

Blue Not used 4

White-Blue Not used 5

Orange RX- 6

White-Brown Not used 7

Brown Not used 8

6

ADA-13040MG

In the modular socket ETHERNET interface of converter, are implemented two LED's (Fig. 2):

– Green ACT signaling state of sending or receiving data,
– Orange LINK signaling active network connection.

The ADA-13040MG converter can function in the ETHERNET network as:

– virtual serial bridge [RealPort],
– TCP serial bridge,
– UDP serial bridge.

Additional information about Ethernet connection will be describe in chapters below.

3.2.1. CONNECTING TO NETWORK ADAPTER OF PC

If there is not the switch or the HUB, it is possible to connect the ADA-13040MG directly to a network adapter of PC using the cross­over cable (Table 2). This connection can be used for converter configuration.

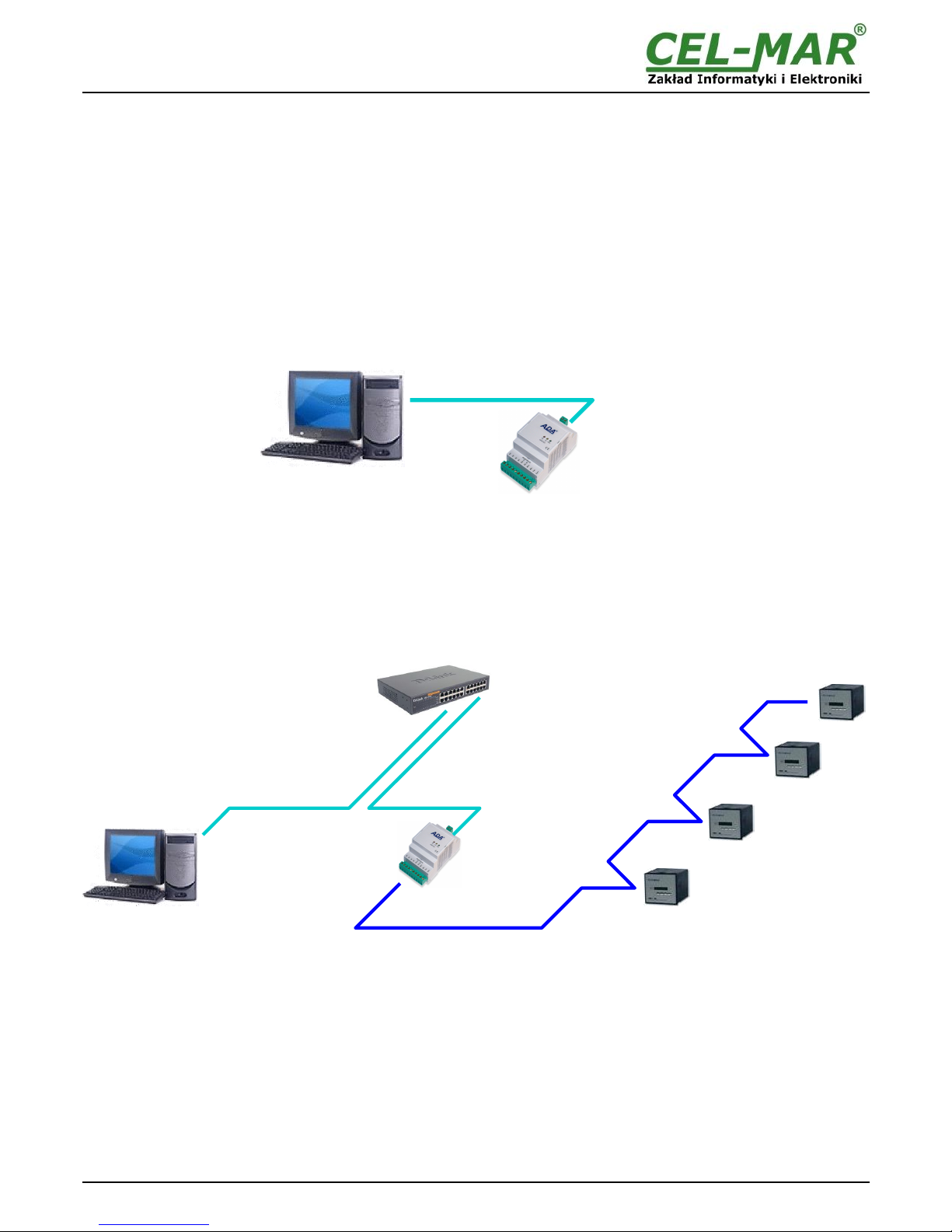

Fig 3. Direct connection to PC

3.2.2. CONNECTING FOR REALPORT MODE FUNCTIONING

Fig. 3 (above) and 4, 5 below show how correctly connect the ADA-13040MG to LAN, WAN network or PC to functioning in virtual
serial port mode (RealPort).
For direct connection of the converter to PC network adapter, use the cross-over cable (see Table 2) and for connection by the use of
switch or HUB use the straight cable (see Table 1).

Fig 4. The LAN connection to functioning in the Real Port mode

7

ADA-13040MG

Computer with a
network adapter
Static IP address

ADA-13040MG

Static IP address

ETHERNET

Cross-Over Cable

(Table 2)

RS485 interface

devices

Computer with a
network adapter

Static IP address

ADA-13040MG
Static IP address

ETHERNET
Straight cable
(Table 1)

Local Network

ETHERNET

base on switch

RS485 network

Fig 5. The WAN connection to functioning in the Real Port mode

3.2.3. CONNECTION FOR FUNCTIONING IN TCP & UDP SERIAL BRIDGE MODE

Fig. 6, 7 below show how correctly connect the ADA-13040MG to ETHERNET network to functioning in TCP and UDP serial bridge
mode.
For connection by the use of network devices (router, switch or HUB) use the straight cable (see Table 1).

Fig 6. The LAN connection to functioning in the TCP/UDP serial bridge mode, one-to-one

8

ADA-13040MG

Computer with a
network adapter
Static IP address

ADA-13040MG
Static IP address

ETHERNET
Straight cable
(Table 1)

RS485 network

ROUTER

Public IP address

INTERNET

ETHERNET
Straight cable
(Table 1)

ROUTER

Public IP address

RS485 interface

devices

RS485 interface

devices

ADA-13040MG
Static IP address

ETHERNET
Straight cable
(Table 1)

Local Network

ETHERNET

base on switch

RS485 network

MASTER device with
RS485 interface

SLAVE devices with
RS485 interface

RS485 network

ADA-13040MG
Static IP address

Fig 7. The LAN connection to functioning in the UDP serial bridge mode, one-to-many

3.2.4. CONVERTERS CONNECTION AS MODBUS GATEWAY

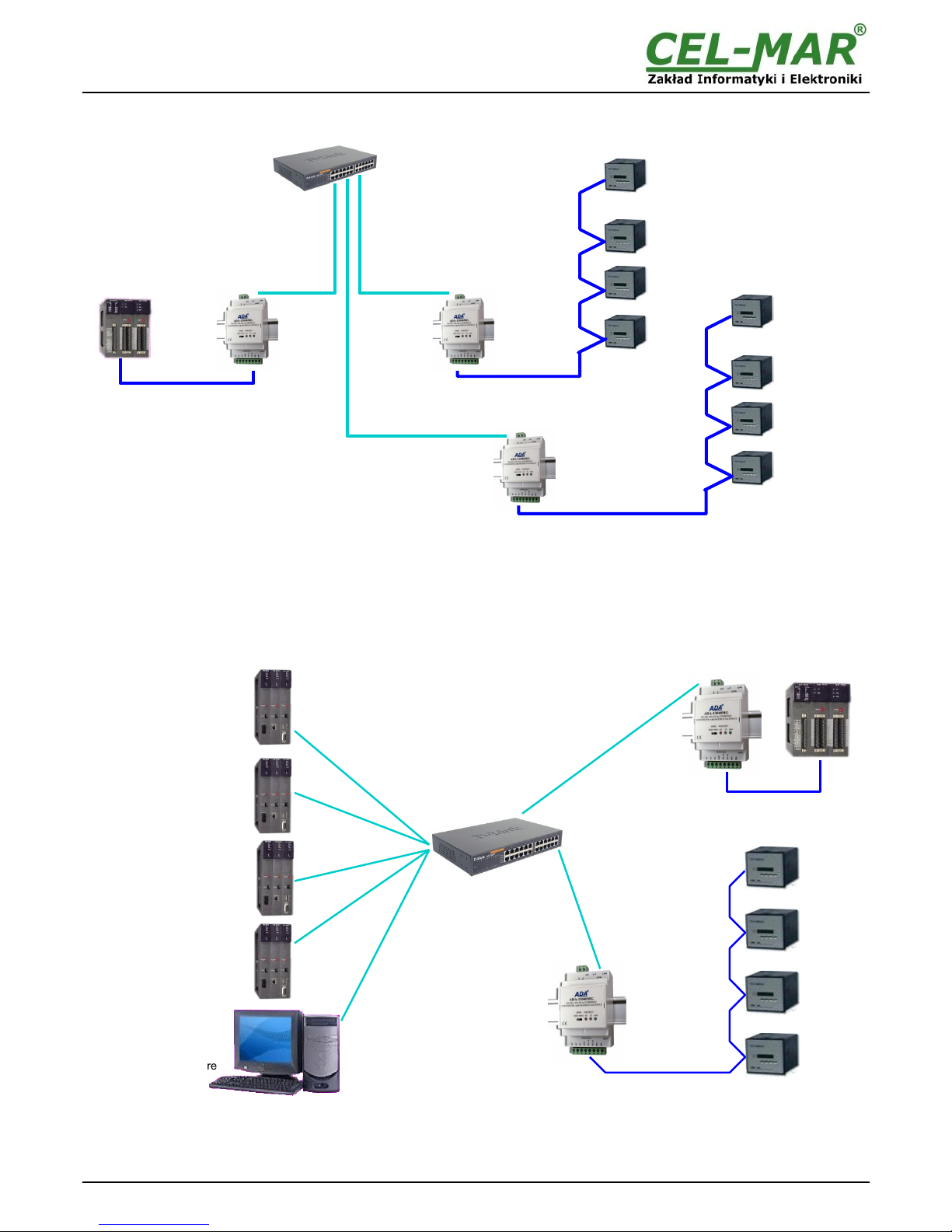

Figure 8 shows correct connection of ADA-13040MG to ETHERNET network Wi-Fi (LAN) to functioning in Industrial Automation
Mode (MODBUS Gateway). This type of connection allows to integrate MODBUS-TCP devices and MODBUS-RTU/ASCII devices in

one network.

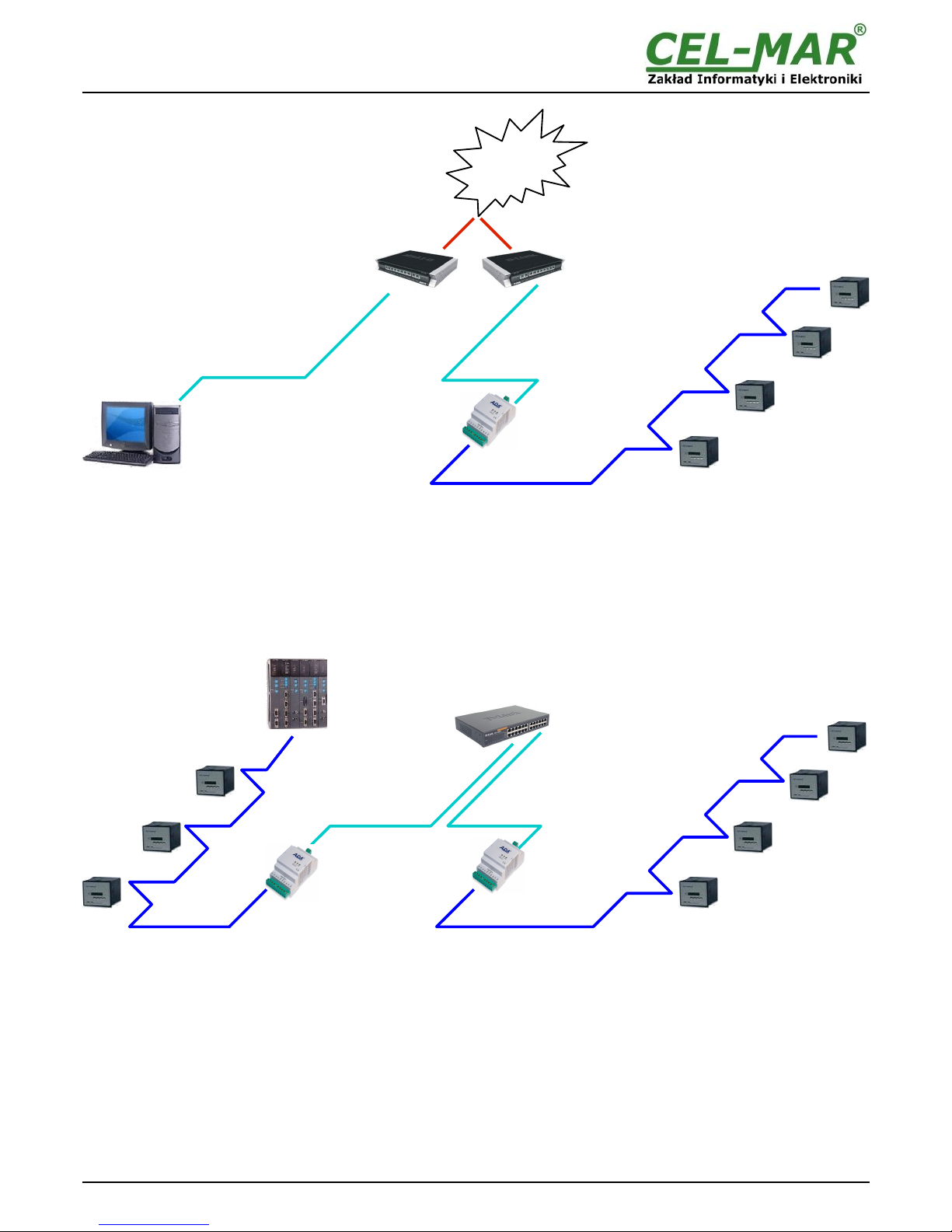

Fig 8. Integration of Modbus-TCP MODBUS-RTU/ASCII into a single network using the ADA-13040MG

9

ADA-13040MG

RS485 Bus
MODBUS-RTU/ASCII

SWITCH - ETHERNET

PC with

SCADA / HMI software

M

O

D

B

U

S

-

T

C

P

ADA-13040MG
MODBUS Gateway

ADA-13040MG
MODBUS Gateway

RS485
MODBUS-RTU/ASCII

PLC
MASTER

M

O

D

B

U

S

-

T

C

P

M

O

D

B

U

S

-

T

C

P

M

O

D

B

U

S

-

T

C

P

M

O

D

B

U

S

-

T

C

P

M

O

D

B

U

S

-

T

C

P

LAN ETHERNET

M

O

D

B

U

S

-

T

C

P

LAN NETWORK

ETHERNET

Straight cable

(Table 1)

Local Network

ETHERNET

base on switch

ADA-13040MG
Static IP address

ETHERNET

Straight cable

(Table 1)

RS485 Network

MASTER device with
RS485 interface

RS485 network

SLAVE devices with
RS485 interface

ADA-13040MG
Static IP address

RS485 network

SLAVE devices with
RS485 interface

ADA-13040MG
Static IP address

3.3. RS485/RS422 BUS

The RS485/RS422 interface is available in the ADA-13040MG on screw terminal block, labelled as: Tx+/A, Tx-/B, Rx+, Rx-.
The ADA-13040MG allows functions on the RS422 and RS485 Bus. Both buses require proper wiring.

3.3.1. CONNECTION TO 4-WIRE RS422 BUS

Before connection 4-wire RS422 Bus, should be set the MODE switch on the front panel of ADA-13040MG in RS422 mode. Connect
wires of bus to terminals TX+/A, TX-/B, RX+, RX-, like below.

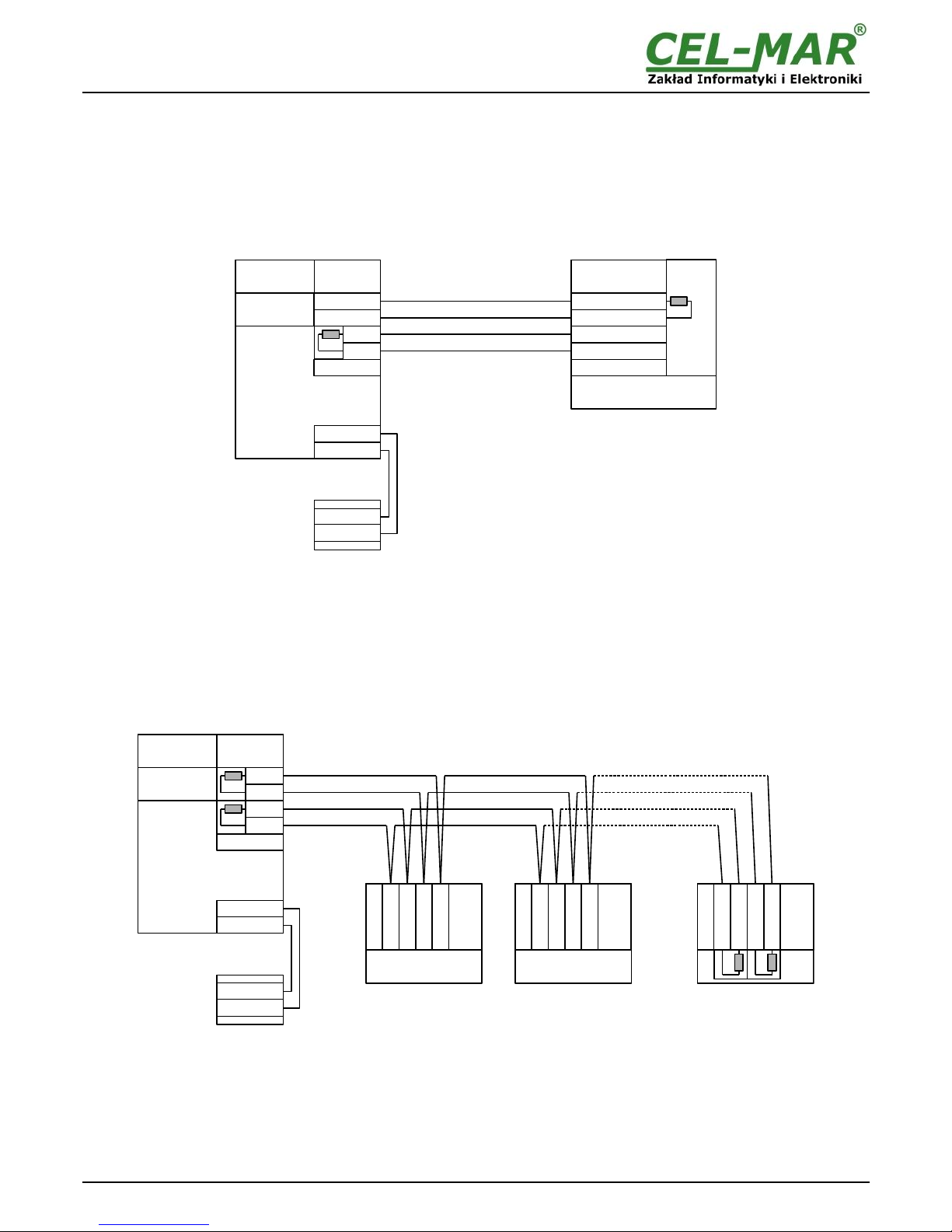

Fig 9. Connection of the RS422 device to ADA-13040MG.

3.3.2. CONNECTION TO 4-WIRE RS485(4W) BUS

Before connection 4-wire RS485 Bus, should be set the MODE switch on the front panel of ADA-13040MG in RS485 mode. Connect
wires of bus to terminals TX+/A, TX-/B, RX+, RX- , like below.

Fig 10. Connection of the RS485(4W) devices to ADA-13040MG.

3.3.3. CONNECTION TO 2-WIRE RS485 BUS

Most of the devices with RS485 interface, use 2-wire RS485 Bus for data transmission.
Before connection 2-wire RS485 Bus, should be set the MODE switch on the front panel of the ADA-13040MG in RS485 mode.
Connect wires of bus to the terminals TX+/A, TX-/B, like below.

10

ADA-13040MG

ADA-13040MG

RS485/422

terminal

Vss+

Vss-

Power
Supply

ETHERNET

connector

V -

V +

RJ 45

Tx + / A

Tx - / B

Rx +

Rx -

Device with RS422

RS422

Terminal

GND

Tx +

Tx -

Rx +

Rx -

Rt

Rt

GND

R
S
4

8
5
(

4
W

)

t

e
r

m
i

n
a
l

G
N
D

RS485/422

terminal

Vss+

Vss-

Power
Supply

V -

V +

Tx+ /A

Tx- /B

Rx +
Rx -

T
x

+
/

A

T
x

-

/

B

R
x
+

R
x

-

R
S
4

8
5
(

4
W

)

t

e
r

m
i

n
a
l

G
N
D

T
x

+
/

A

T
x

-

/

B

R
x
+

R
x

-

R
S
4

8
5
(

4
W

)

t

e
r

m
i

n
a
l

G
N
D

T
x

+
/

A

T
x

-

/

B

R
x
+

R
x

-

Rt

Rt

RtR

t

RS485(4W) Network

1200m

ADA-13040MG

ETHERNET

connector

RJ 45

GND

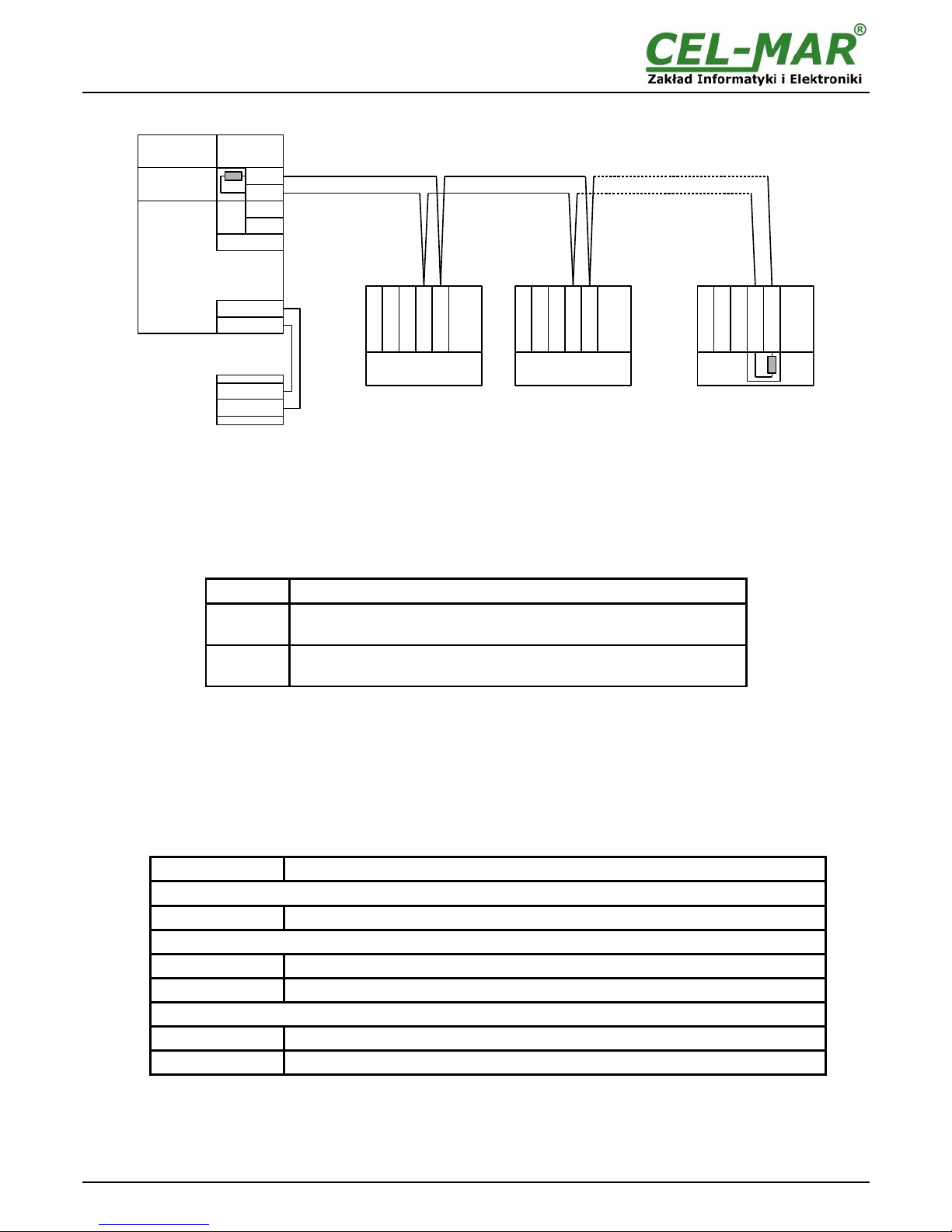

Fig 11. Connection of the RS485(2W) devices to ADA-13040MG

3.3.4. LINE TERMINATION

The application of Line Termination (terminator) Rt = 120 ohms on the ends of the Bus, will reduce electrical reflection in long data line
at high baud rate. It is not needed below 9600Bd. For over 1000m @ 9600Bd or 700m @ 19200Bd the line termination should be
used, if there are problems with proper transmission.

Example connection of Rt are shown on Fig. 9, 10, 11. The resistor Rt = 120 Ω.

The ADA-13040MG Converter has two implemented terminators, connected to terminals Tx+/A – Tx-/B and Rx+ - Rx- by the use SW1
microswitch (see table below).

SW1 Description

SW1-1

ON – enable the terminator 120 Ω to terminals Tx+/A and Tx-/B
OFF – disable the terminator 120 Ω to terminals Tx+/A and Tx-/B

SW1-2

ON – enable the terminator 120 Ω to terminals Rx+ and Rx­OFF – disable the terminator 120 Ω to terminals Rx+ and Rx-

3.4. POWER SUPPLY CONNECTION

The power supply to the ADA-13040MG should be DC (regulated) from the scope 10 V= to 30V= and nominal power more then 3W.
Power cable from DC power supplies to device must not be longer than 3m. Observe the polarity, connect positive (+) of DC power
supplies to V+ and negative (-) end to V- terminal. ADA-13040MG has the protection from opposite connection of power supply.

4. ACTIVATION

If connection was made properly green LED PWR on front panel of converter should lit, if not check polarization of connected power.
When data is transmitted the ACT LED on RJ45 connector and RX, TX LED's on front panel should blink. This LED are show below:

LED Description

Power

green PWR Signalization of Power Supply

RS485/RS422 interface

red RX Signalization of data receiving by ADA-13040MG from RS485/RS422 port

yellow TX Signalization of data transmission from ADA-13040MG through RS485/RS422 interface

ETHERNET interface

yellow LINK Signaling a valid connection to the network

green ACT Signaling data transmission

5. CONFIGURATION

Should be configured network services and network setting of the ADA-13040MG converter. Below are described the stages of
software installation and network setting configuration of converter.

11

ADA-13040MG

R
S
4

8
5
(

2
W

)

t

e
r

m
i

n
a
l

G
N
D

RS485/422

terminal

Vss+

Vss-

Power
Supply

V -

V +

Tx+/A

Tx-/B

Rx+

Rx-

-

-

A

B

R
S
4

8
5
(

2
W

)

t

e
r

m
i

n
a
l

G
N
D

-

-

A

B

R
S
4

8
5
(

2
W

)

t

e
r

m
i

n
a
l

G
N
D

-

-

A

B

R
t

Rt

RS485(2W) Network

1200m

ADA-13040MG

ETHERNET

connector

RJ 45

GND

5.1. RS485/ RS422 OPERATING MODE

The MODE switch (fig.1) on front panel of converter, should be configured by switching in RS485 or RS422 mode.

5.2. PRELIMINARY CONFIGURATION USING ADAFINDER SOFTWARE

5.2.1. ADAFINDER INSTALLATION

The preliminary configuration of network setting at the converter can be made by using ADAFinder or ADAWiz software. The
installation is automatically after insert the CD (compact disc) to CD-ROM drive. If the autorun doesn't start, should run the file
setup.exe located in main CD catalogue. After installation the software ADAFinder and ADAW iz are available in Start->Programs-

>CEL-MAR->ADANet.

Before running ADA Finder software should be set the option [Obtain an IP address automatically] in TCP/IP protocol configuration
of Wi-Fi network adapter - it let find the Wireless Serial Server in WLAN network. Run ADAFinder software.

5.2.2. NETWORK SETTING

Before running the ADAFinder should be disabled the System FireWall!
After running, the program is searching local network and if find ADA-13040MG, will add them to the list of available port servers

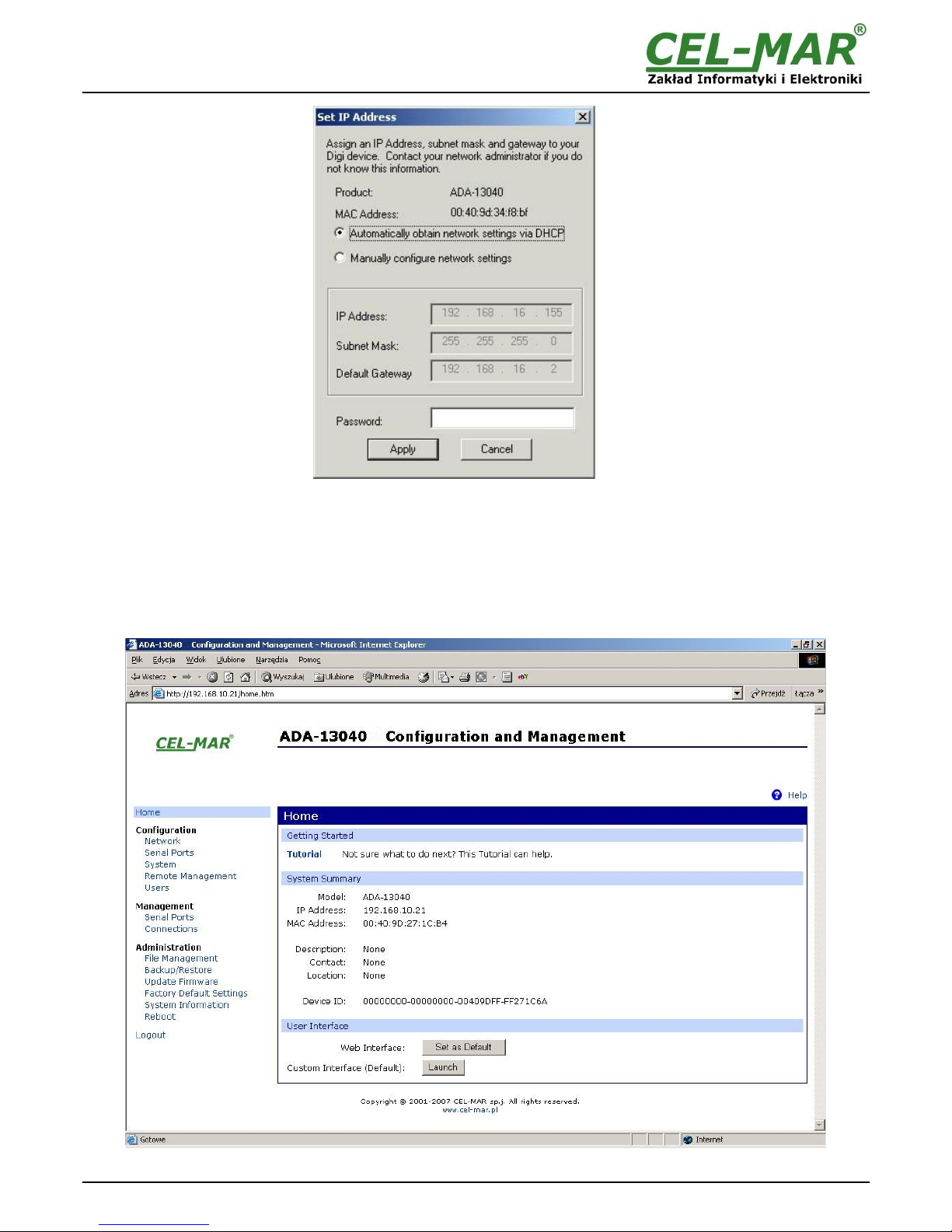

[Devices:] Fig.12.
To change the network setting of ADA-13040MG, should:

- select the Converter from the list [Devices:] and press [Configure IP Settings ],

- in windows [Set IP Address] select option 'Automatically obtain network settings via DHCP' (default setting) or 'Manually
configure network setting'. In case of manual configuration should be enter IP Address of the converter, Subnet Mask, Default
Gateway and the Password (default: dbps) of the ADA-13040MG administrator for authorization of changes.

- press [Apply], configuration will be saved to the converter and will restart. After message 'Operation made successfully' , press
[Refresh List] in ADAFinder window. The lists [Devices:] will be refreshed.

Other buttons of the program main menu:

– selecting the converter from the list and pressing [Reboot Device], will make programmable reset of the converter – new

configuration of network setting will be activated,

– selecting the converter from the list and pressing [Device Information], will show an information about setting of the

converter,

– selecting the converter from the list and pressing [Open Web Interface], will run Internet browser and open the configuration

page of the converter

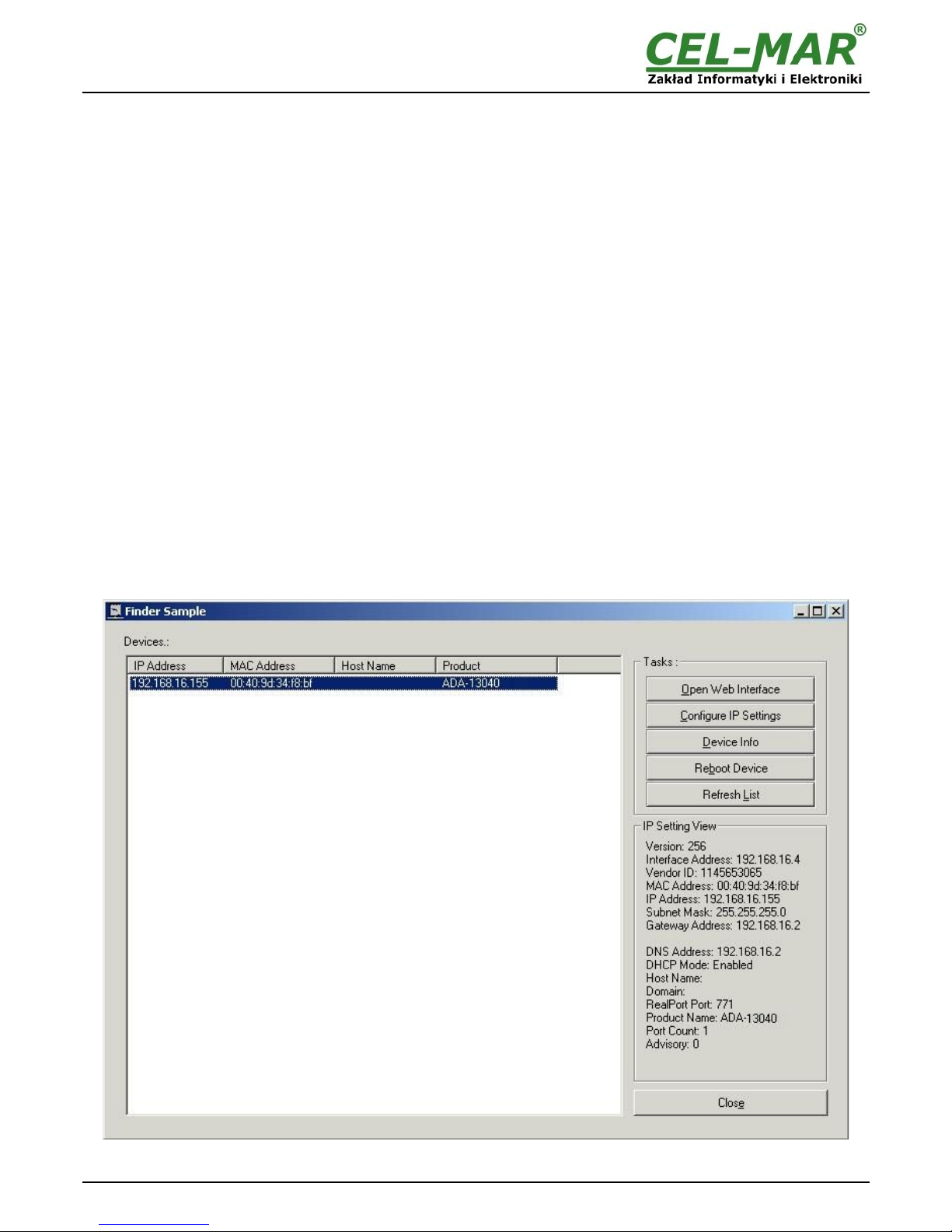

Fig 12. Base configuration network by the use ADAFinder software

12

ADA-13040MG

Rys 13. View of ADAFinder configuring IP address windows

5.3. CONFIGURATION AND MANAGEMENT WITH USE OF INTERNET BROWSER

Integrated WWW server to ADA-13040MG enable to easy configuration and diagnostics of LAN and W AN network devices with use
Internet browser.
For configuration open the Internet Browser and type the address http://<converter-ip-address>/admin/administration.htm. The
login windows will open. Enter User name and Password as follow:

Username: root
Password: dbps

If the the Username and the Password are correct will open the page as below.

Fig 14. The page for configuration and management of ADA-13040MG by the use internet browser

13

ADA-13040MG

5.3.1. NETWORK CONFIGURATION

To make a changes of default setting or new configuration of ADA-13040MG, select on left panel Configuration -> Network and then
on right [IP Settings] (Fig.15) and make the selection: Obtain an IP address automatically using DHCP or Use the following IP

address (in this case, enter IP Address of the converter, Subnet Mask, Default Gateway), press [Apply] for save. After the message
Changes have been saved successfully, from left menu select Administrator -> Reboot on right press [Reboot], will be

programmable reset of the converter and new configuration of network setting will be activated.

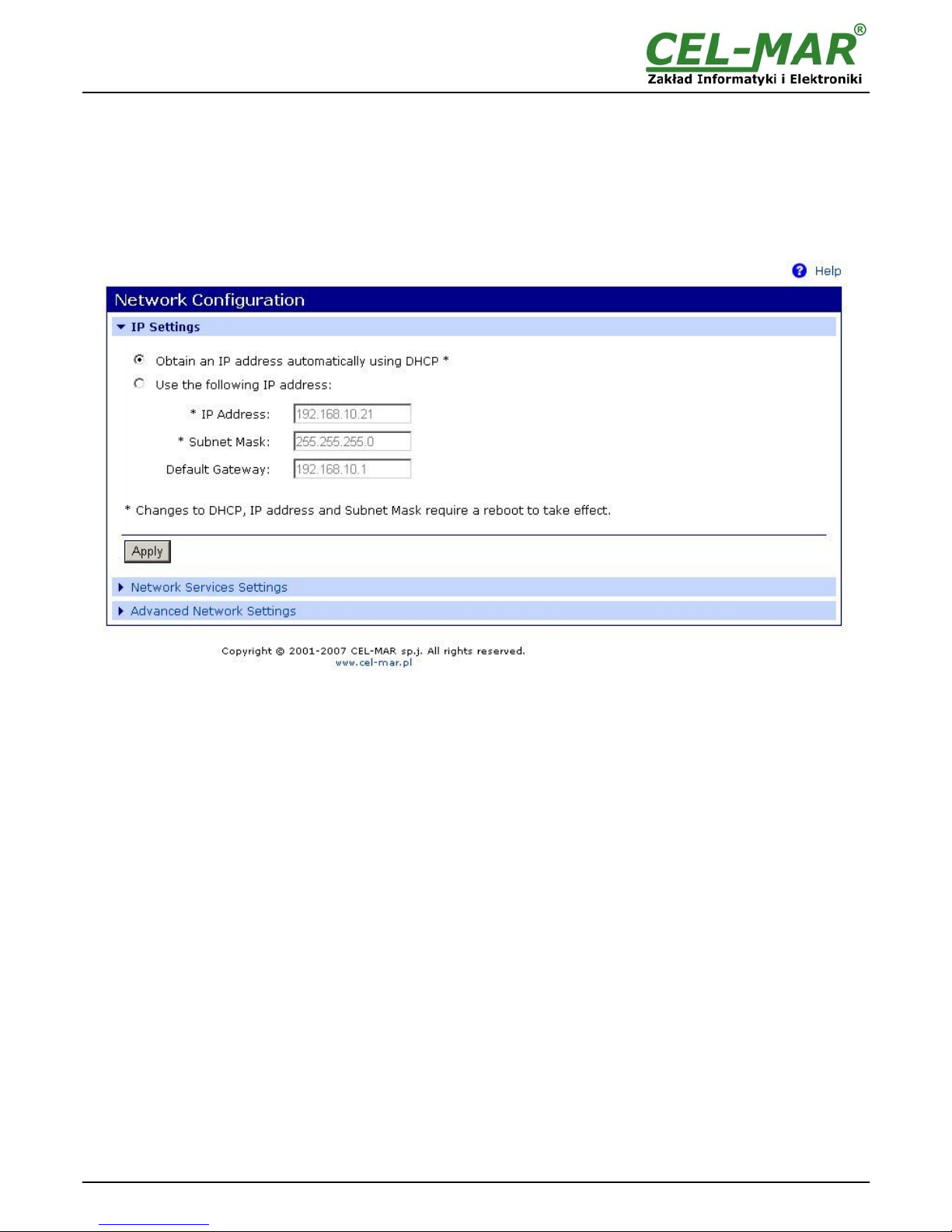

Fig 15. Network setting

5.3.2. SERIAL PORT CONFIGURATION

The configuration of serial port of the ADA-13040MG converter includes: port description, setting of port profile (operating mode) and
setting of serial transmission parameters (baud rate, data bits, parity, stop bits).
Select on left panel Configuration -> Serial Ports and then on right [Port 1], will open the configuration details page, includes:

- Port Profile Settings,

- Basic Serial Settings,

- Advanced Serial Settings,

5.3.2.1. PORT PROFILE (OPERATING MODE)

Select on right panel Serial Port Configuration -> Port Profile Settings and then press Change Profile... will open the page Select
Port Profile for selection of port profiles (fig. 16).

Configuration of profile used in typical solutions will be presented in next chapters.

The ADA-13040MG functions properly in profiles as follow:

- RealPort

- TCP Sockets

- UDP Sockets

- Serial Bridge

-Industrial Automation (Modbus Gateway)
Configuration of profile used in typical solutions will be presented in next chapters.

14

ADA-13040MG

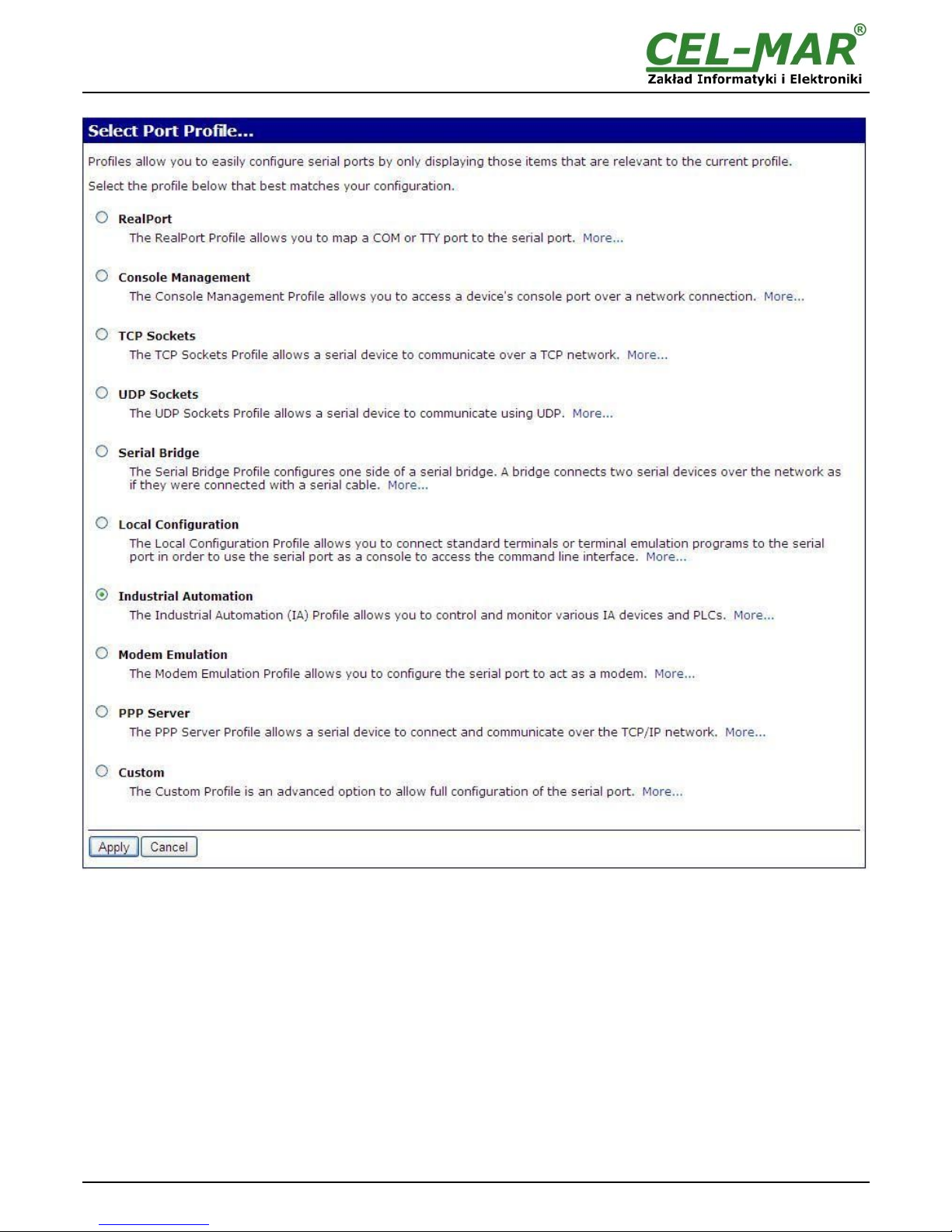

Fig 16. Selection serial port profile page

5.3.2.1.1. REALPORT (VIRTUAL PORT )

Choosing RealPort (Virtual Port, Fig. 16) is configured the serial port of ADA-13040MG, for communication with virtual port COM of
computer. Press [Apply] for save. After installing drivers of virtual port COM in operating system, data sending by application to this
port are transferred through WLAN/WAN to ADA-13040MG converter and are present on his serial port. The drivers RealPort
installation is presented in chapter 6. Normally RealPort service allows for one connection through WLAN/WAN, between computer
and server port.
Connection from other computers to the server will be not taken, what will cause the error message.

5.3.2.1.2. TCP SOCKETS

Choosing TCP Sockets is configured the serial port of ADA-13040MG, for communication with PC by the use of TCP socked. Data
sending by application to TCP socked are transferred through network. to ADA-13040MG converter and are present on his serial port
Press [Apply] for save.

15

ADA-13040MG

5.3.2.1.2.1. TCP SERVER AND CLIENT

After saving the TCP Sockets profile, will open section TCP Server Settings (picture below), includes configuration of:

– port for Telnet service; standard 2001,
– port for serial port service; standard 2101 (through this port are transferred data to serial port of converter),
– port for security access to serial port service; standard 2601 (through this port are transferred data to serial port of converter),

and possibility of selection Enable TCP Keep Alive – connection will be kept, even if the data is not transmitted over the network.

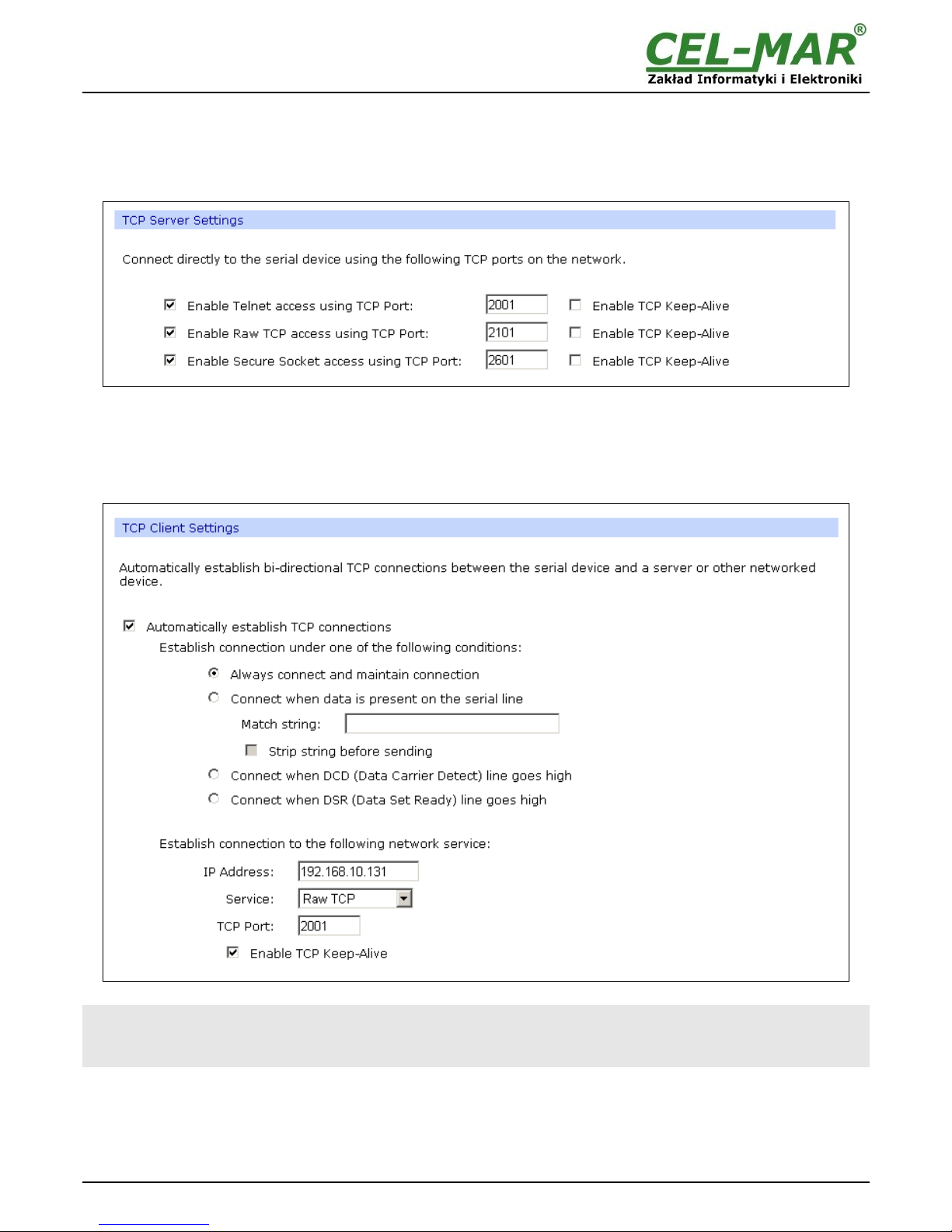

Fig 17. Example configuration TCP server

For configuration of TCP Client Settings (Fig 18), select Automatically establish TCP connections, connection between client and
TCP server will be automatically. Then select Always connect and maintain connection option and in section Establish
connection to the following network service enter IP address of device to which TCP client will send data, select service and enter
port. There is also possible to select an option Enable TCP Keep-Alive – connection will be kept, even if the data is not transmitted
over the network.
For saving the configuration press [Apply].

Fig 18. Example configuration of TCP client

Attention !

Default port of serial port service is 2101.

If on the local network conflict with other network service using the same port, change number of port into another for the

service server of serial bridge and client in the server port configuration.

5.3.2.1.2.2. 'ENABLE TCP KEEP-ALIVE' CONFIGURATION

Option Enable TCP Keep-Alive keeps connection between server and client, even if the data is not transmitted over the network and
reconnection in case of interruption.
Configuration of this option can be made by selection Configuration > Network > Advanced Network Settings > TCP Keep-Alive
Settings. In this section can be configured:

16

ADA-13040MG

- Idle Time – specifies the period of time (scope 10 sec. - 24 hours) that a TCP connection has to be idle before a keep-alive is sent.

- Probe Interval – the time in seconds between each keep-alive probe (scope 10 – 75 sec.),

- Probe Count – the number of times TCP probes the connection to determine (scope 5 – 30 trials).

5.3.2.1.2.3. SERIAL PORT TRANSMISSION PARAMETERS

For proper operation of ADA-13040MG with device connected to his RS485/RS422 serial port, should be set the same transmission
parameters for both devices.
Select Basic Serial Settings and enter Baud Rate, Data Bits, Parity, Stop Bits, the same parameter like has device connected to
the Wireless Serial Server.

5.3.2.1.3. UDP SOCKETS

Choosing UDP Sockets is configured the serial port of ADA-13040MG converter for direct communication with PC or other device
connected to the network by the use of TCP socked. Data sending by application or other device/s to this port are transferred through
WLAN/WAN to ADA-13040MG converter and are present on his serial port. Press [Apply] for save.

5.3.2.1.3.1. UDP CLIENT & SERVER CONFIGURATION IN CASE OF MASTER DEVICE

After saving the UDP Sockets profile, will open section UDP Server Settings with operating parameters like on picture below. Set an
access to UDP server on e.g. 2101 port. Then select Automatically send serial data in section UDP Client Settings, this
automatically send received data by the use UDP client service to the SLAVE device connected to LAN/WAN through e.g. ADA­13020, ADA-13028L, ADA-13040MG, ADA-13110, ADA14040, ADA-14040.
On lists Send data to the following network services are addresses of network devices and ports to which will be send data. In
field:

- Description - enter e.g. location of the converter and SLAVE device,

- Send To - enter IP address of e.g. converter, connected to SLAVE device,

- UDP Port - enter the number of port on which is working UDP Server of converter connected to SLAVE device and press [Add]

In the section Send data under any of the following conditions is recommended to set parameters like on picture bellow.
For saving the configuration of UDP client and server for MASTER device, press [Apply].

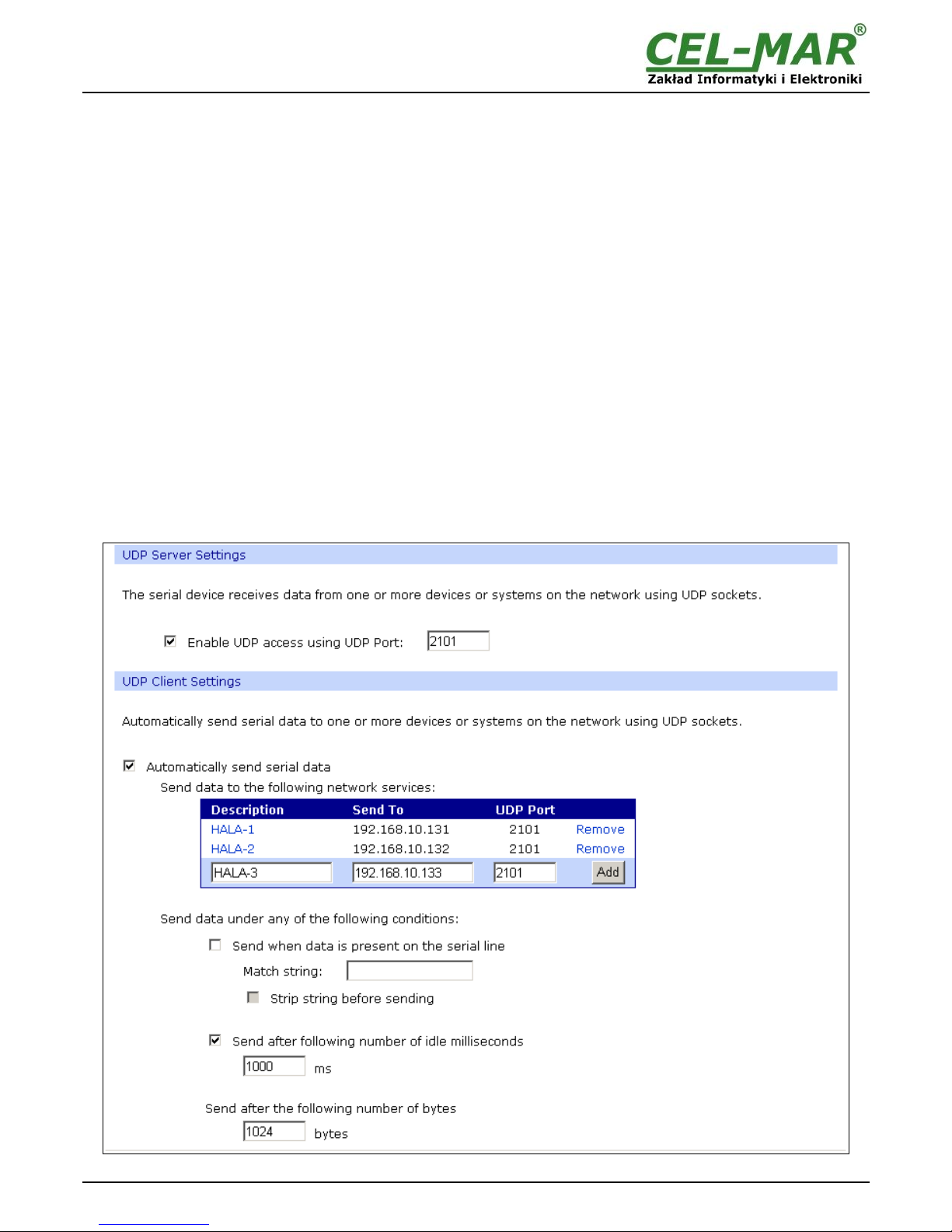

Fig 19. Example configuration of the UDP server&client on converter connected to MASTER device

17

ADA-13040MG

5.3.2.1.3.2. UDP CLIENT & SERVER CONFIGURATION IN CASE OF SLAVE DEVICE

Set operating parameters of UDP server for SLAVE device connected via serial port to ADA-13040MG, eg like on picture below. Set
an access to UDP server on e.g. 2101 port. Then select Automatically send serial data in section UDP Client Settings, this
automatically send received data by the use UDP client service to t he MASTER device connected to LAN / WAN through e.g.
ADA-13020, ADA-13028L, ADA-13040MG, ADA-13110, ADA14040, ADA-14040.
On lists Send data to the following network services are addresses of network devices and ports to which will be send data. In
field:

-Description - enter e.g. location of the converter and MASTER device,

-Send To - enter IP address of e.g. converter, connected to MASTER device,

-UDP Port - enter the number of port on which is working UDP Server of converter connected to MASTER device and press [Add]

In the section Send data under any of the following conditions is recommended to set parameters like on picture bellow.
For saving the configuration of UDP client and server for SLAVE device, press [Apply].

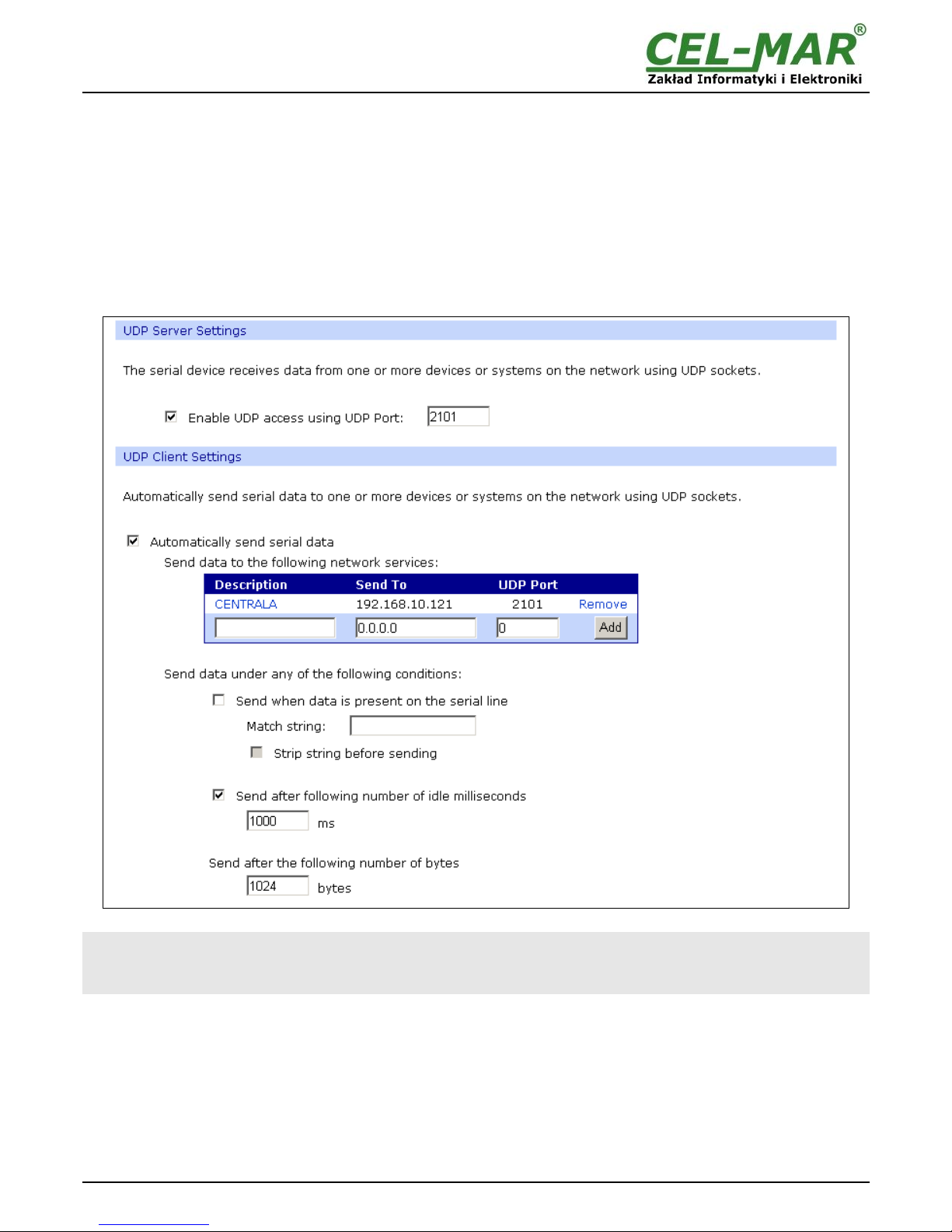

Fig 20. Example configuration of the UDP server&client on converter connected to SLAVE device

Attention !

Default port of serial port service is 2101.

If on the local network conflict with other network service using the same port, change number of port into another for the

service server of serial bridge and client in the server port configuration.

5.3.2.1.3.3. SERIAL PORT TRANSMISSION PARAMETERS

For proper operation of ADA-13040MG with device connected to his RS485/RS422 serial port, should be set the same transmission
parameters for both devices.
Select Basic Serial Settings and enter Baud Rate, Data Bits, Parity, Stop Bits, the same parameter like has device connected to
the Wireless Serial Server.

5.3.2.1.4. SERIAL BRIDGE

Choosing the Serial Bridge profile enable direct communication between two devices connected to two ADA- 13040MG converters
over the network as if they were connected with a serial cable. A properly configured ADA-13040MG will start automatically
communication with each other.

18

ADA-13040MG

After saving the Serial Bridge profile, will open section Serial Bridge Settings with operating parameters like on picture below. Select
Initiate serial bridge to the following device option and enter IP address and 2101 Port of ADA-13040MG with which to create the

serial bridge over the network. Additionally can be selected [Enable TCP Keep-Alive] option which keeps connection even if the data
is not transmitted. Select Allow other devices to initiate serial bridge and enter 2101 port on which other the converter will
automatically start communication and can be set also [Enable TCP Keep-Alive] option which keeps connection even if the data is
not transmitted.

Fig 21. Example configuration of TCP Serial Bridge

Attention !

Default port of serial port service is 2101.

If on the local network conflict with other network service using the same port, change number of port into another for the

service server of serial bridge and client in the server port configuration.

5.3.2.1.4.1. SERIAL PORT TRANSMISSION PARAMETERS

For proper operation of ADA-13040MG with device connected to his RS485/RS422 serial port, should be set the same transmission
parameters for both devices.
Select Basic Serial Settings and enter Baud Rate, Data Bits, Parity, Stop Bits, the same parameter like has device connected to
the Wireless Serial Server.

5.3.2.1.5. INDUSTRIAL AUTOMATION (MODBUS GATEWAY)

Choosing the Industrial Automation (Modbus Gateway, Fig.16) profile, will be possible to configure ADA-13040MG for
communication by the use of MODBUS-RTU master/slave or MODBUS-ASCII master/slave protocol. The Converter converts frames
of MODBUS-RTU/ASCII protocol to MODBUS-TCP and send via WLAN/LAN/WAN to devices with MODBUS-TCP protocol or other
servers ( ADA-14040, ADA14110, ADA-13040MG, ADA-13110MG) operating in Industrial Automation (MODBUS Gateway) mode
with connected MODBUS-RTU/ASCII devices. Press [Apply] for saving this profile.

Fig 22. Example configuration for operating with MODBUS-MASTER devices

19

ADA-13040MG

5.3.2.1.5.1. COMMUNICATION WITH DEVICES MODBUS-MASTER TYPE

In section Industrial Automation Settings, press [Change Protocol] link. Then in section Select IA Protocol (figure below) select
type of device, connected to serial port of ADA-13040MG, as Serial Master and MODBUS-RTU or MODBUS-ASCII protocol for
communication between connected devices. Press [Apply] for saving configuration.

Fig 23. Example configuration for communication with MODBUS-MASTER devices

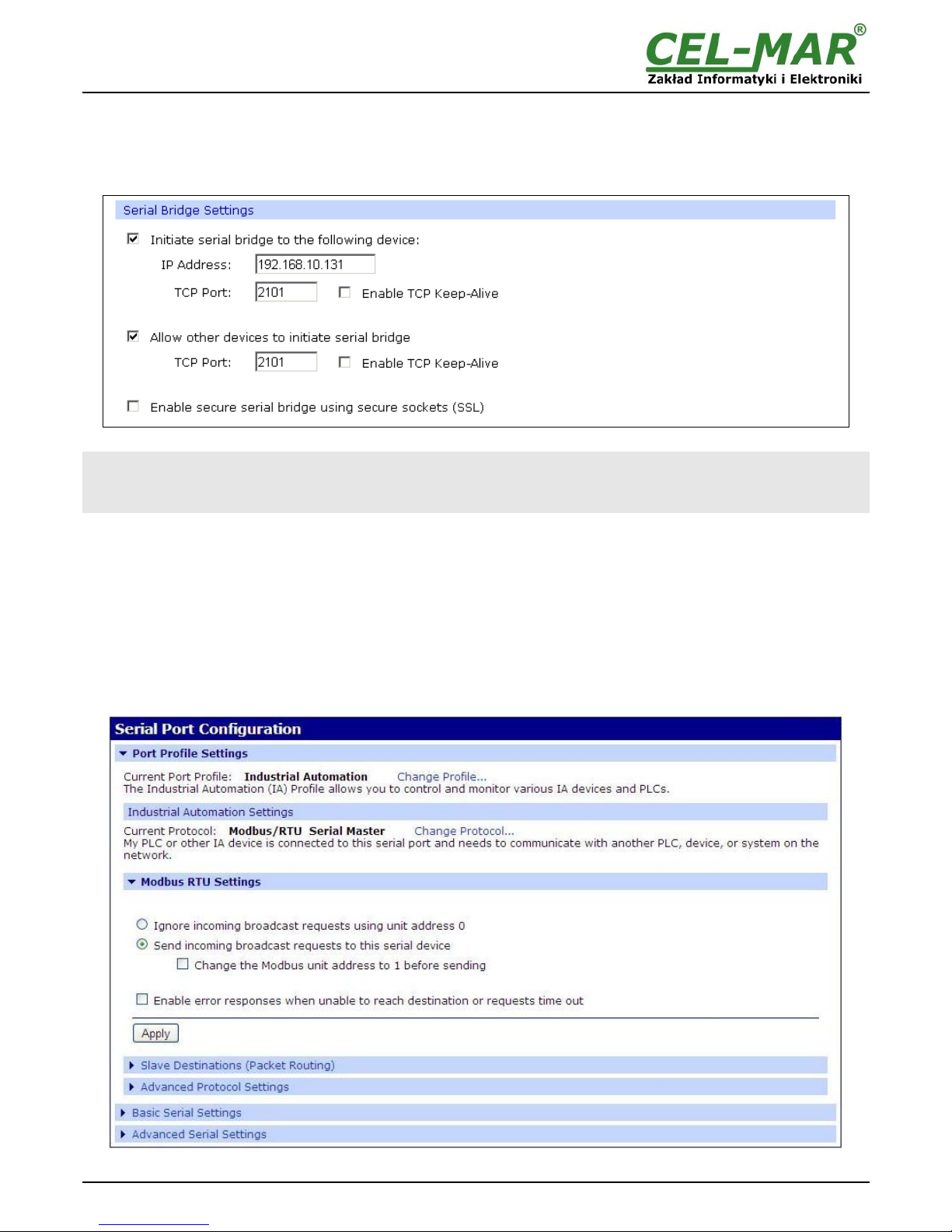

Set the options in section Modbus RTU Settings like on Fig.22 and press [Apply].

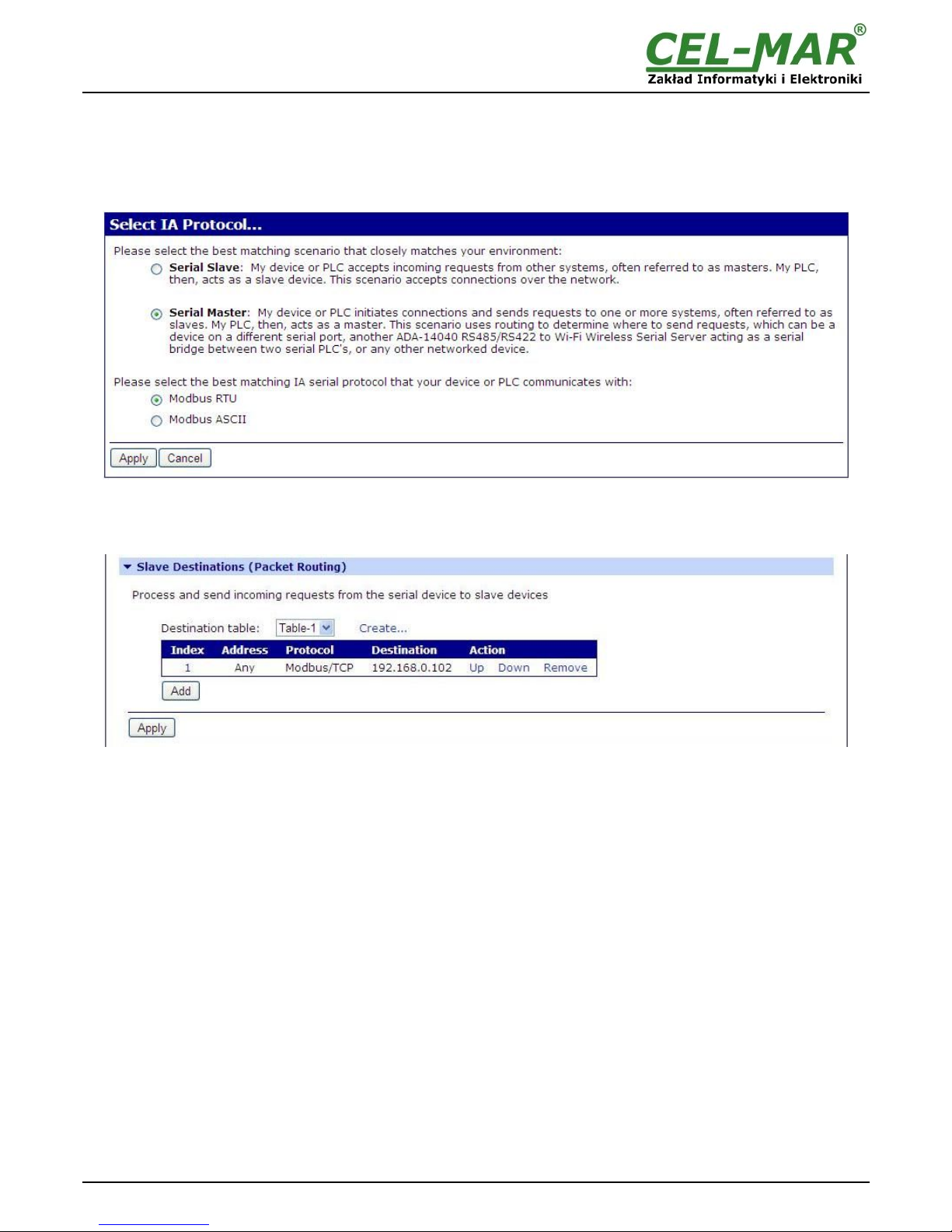

Then select section Slave Destinations (Packet Routing) – fig below; and press [Add]. Section Destination Settings will open.

Fig 24. Example configuration for communication with MODBUS-MASTER devices – type of device and protocol

In section Destination Settings (fig. below) set the options of inquires from Master device to Slave device, in fields:

- Host name - enter IP address of Slave device.

- Protocol - set protocol which will be send to Slave device – in this case will be Modbus/TCP.

- Transport - set TCP protocol .

- Network port - set port 502.

Press [Apply] for saving. Then press again [Add] for adding another Slave device.
When all Slave devices are added and set press [Apply].

20

ADA-13040MG

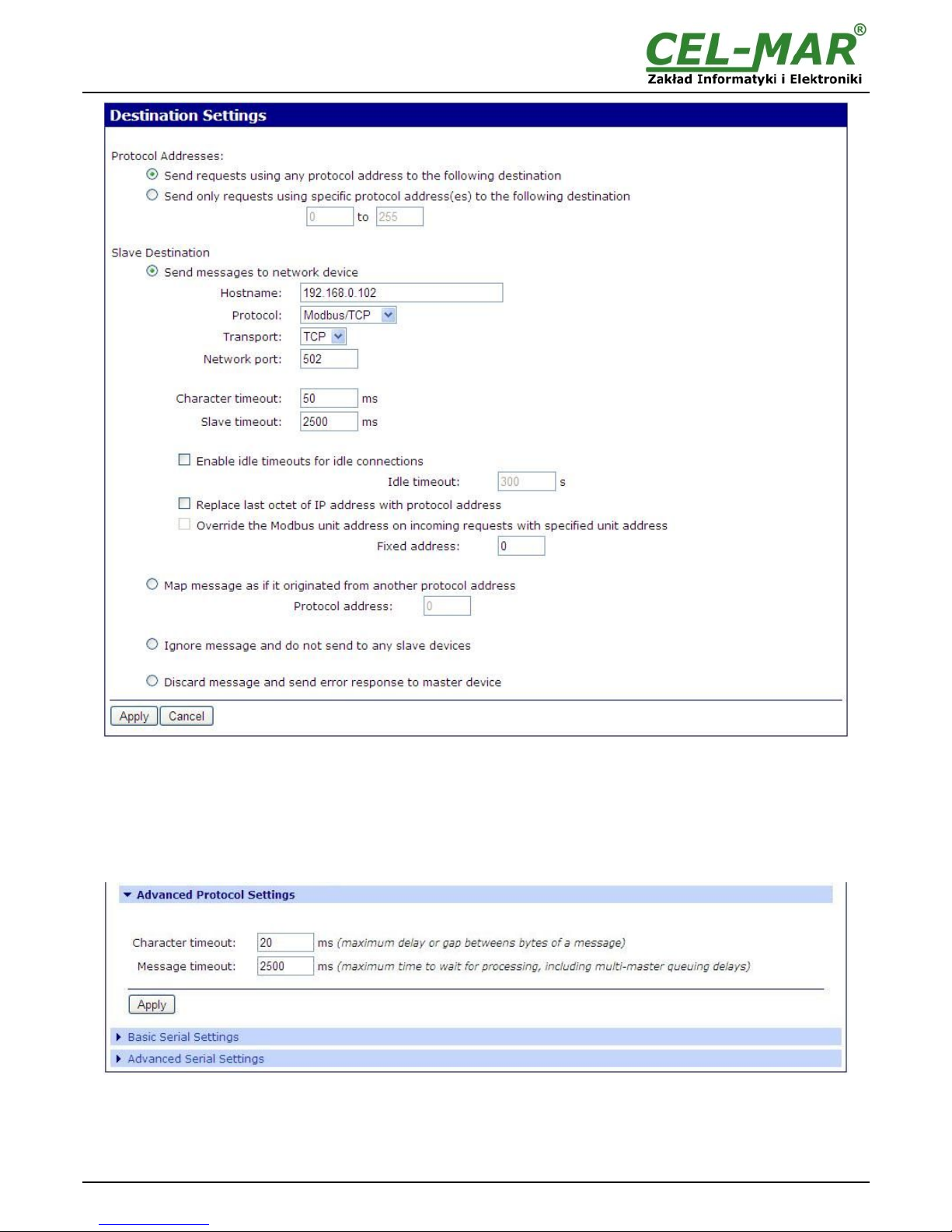

Fig 25. Example configuration for communication with MODBUS-MASTER devices - type of devices and protocol

Next section is Advanced Protocol Settings (fig. below), set the time outs :

- Character timeout - value in ms., maximum delay or gap betweens bytes of a message – default 20 ms.

- Message timeout - value in ms., maximum delay or gap betweens bytes of a message – default 2500ms; this time must be

less than the Timeouts set on SLAVE and MASTER MODBUS-RTU devices.
For saving the Advanced Protocol Settings press [Apply].

Fig 26. Example configuration for communication with MODBUS-MASTER devices – setting of Timeouts

21

ADA-13040MG

5.3.2.1.5.2. CONFIGURATION FOR COMMUNICATION WITH MODBUS-SLAVE TYPE
DEVICE

In section Industrial Automation Settings, press [Change Protocol] link. Then in section Select IA Protocol (figure 23) select
type of device, connected to serial port of ADA-13040MG, as Serial Slave and MODBUS-RTU or MODBUS-ASCII protocol for
communication between connected devices. Press [Apply] for saving configuration.
In section Modbus RTU Settings set option e.g. as figure below and press [Apply].

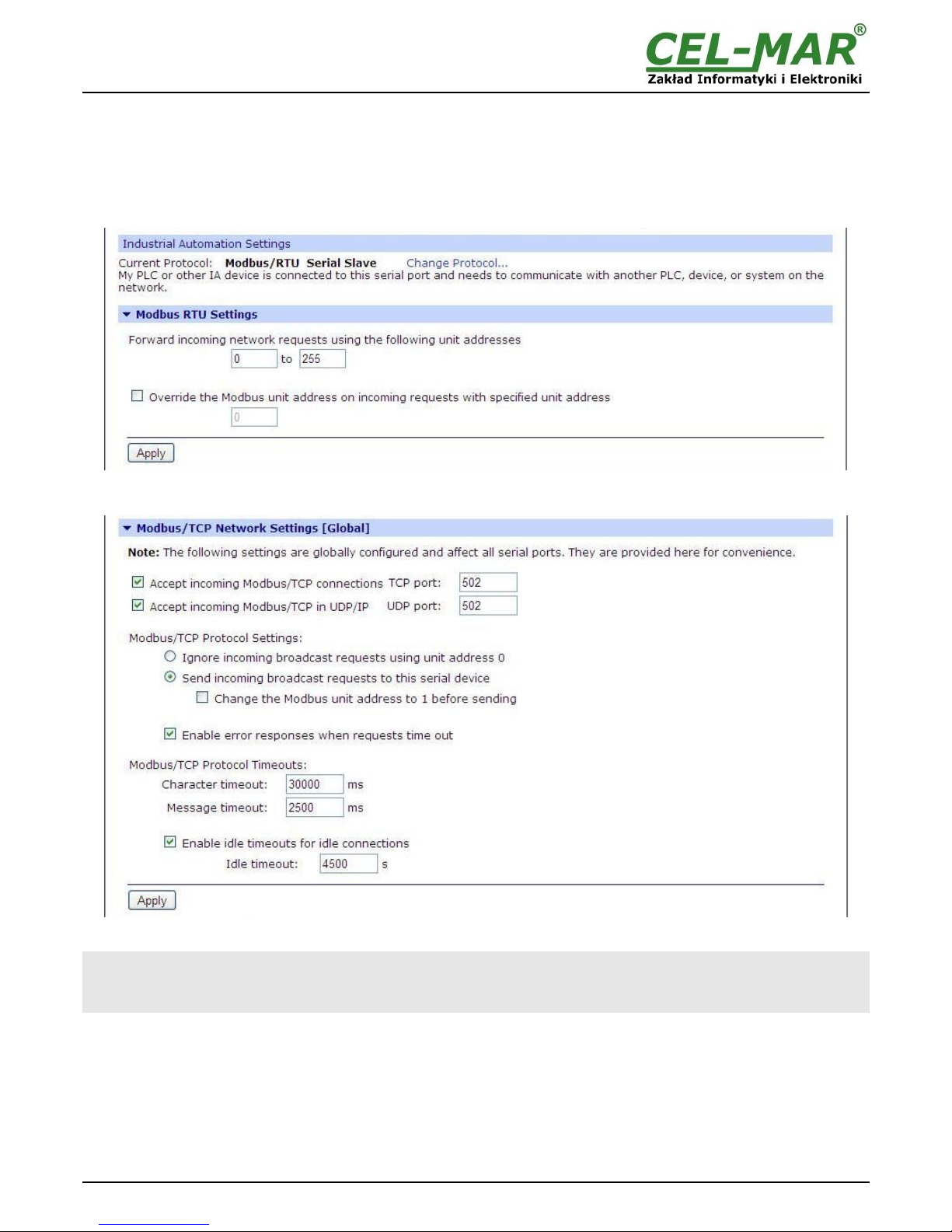

Fig 27. Example configuration for communication with MODBUS-SLAVE

Select section Modbus/TCP Network Settings [Global], and set option e.g. as figure below and press [Apply].

Fig 28. Example configuration for communication with MODBUS-SLAVE

Attention !

Default port of Industrial Automation (Modbus Gateway) is 502.

If on the local network conflict with other network service using the same port, change number of port into another for the

service server of serial bridge and client in the server port configuration.

5.3.2.1.5.3. SERIAL PORT TRANSMISSION PARAMETERS

For proper operation of ADA-13040MG with device connected to his RS485/RS422 serial port, should be set the same transmission
parameters for both devices.
Select Basic Serial Settings and enter Baud Rate, Data Bits, Parity, Stop Bits, the same parameter like has device connected to
the Wireless Serial Server.

22

ADA-13040MG

5.3.3. SYSTEM SETTINGS

Select on left panel menu Configuration -> System and then on right will be selections as follow:

– Device Identity Settings,
– Date and Time Settings,
– Simple Network Managment Protocol Settings (SNMP).

All those sections and are described in Help For ADA-13040MG Configuration and Management .

5.3.4. USERS CONFIGURATION

Select on left panel menu Configuration -> Users and then on right will be selection Users Configuration, where are options &
sections :

- Enable user logins - when this option is disabled, all users have equal access to the device without any authentication.

- Configure Users section where can be: added additional user, changed password, configured access and permissions.

5.3.4.1. CHANGING USER MANE AND PASSWORD

Changing the default user root and password, can be done as follow :

1. press user mane root in section Users Configuration->Configure Users,

2. enter new user name and password.

3. press [Apply] for saving.

5.3.4.2. ADDING NEW USER WITH LIMITED PERMISSIONS ASSOCIATED

For adding new user with limited permissions associated follow the steps below:

1. In section Users Configuration->Configure Users, press [New...],

2. Enter user mane and password – twice, and press [Apply],

3. New user will be added to the lists User name.
Now it is possible to configure of this new user :

1. Press the new user name on the list, will open User Configuration with three sections: User Configuration, User Access, User

Permissions:

A/ User Configuration – possibility of rename user and password,
B/ User Access - method of access to serial server from the network:

Allow command line access – allow this user to have system access using the Command Line Interface - telnet,
Allow web interface access - allow this user to access the web interface for system configuration and management.

C/ User Permissions - user permissions associated with various services and configuration settings

None - user will not have permission to execute setting.
Read Self - user will be able to display their own settings, but not those of other users.
Read - user has permission to read the setting for all users, but does not have permission to modify or write the setting.
Read/Write Self - user has permission to read and write their own setting, but not those of other users.
Read All/Write Self - user has permission to read the setting for all users and can modify their own setting.
Read/Write - user has full permission to read and write the setting for all users.
Execute - user has full permission to execute this setting.

4. All changes are saved by pressing [Apply].

5.3.5. MANAGMENT

On left panel in menu Management are to sections :

- Serial Ports

- Connections

5.3.5.1. SERIAL PORTS MANAGEMENT

Section Serial Ports allows to identification connections/disconnection to the serial port of ADA-13040MG through the network.

5.3.5.2. CONNECTIONS MANAGMENT

Section Connections allows to identification connections/disconnection to the ADA-13040MG through the network.

5.3.6. ADMINISTRATION

The menu Administration on left panel allows :

- delete/upload files,

- backup/restore configuration to/from a file ,

- update Firmware,

- restore the factory default settings ,

- to get detailed system information,

- reboot the ADA-13040MG .

5.3.6.1. FILE MANAGEMENT

Section File Management enables upload and delete Web and Java Applets provided by manufacturer. Uploaded index.htm or
index.html allows to automatically run the page in the web browser after entering http://address-ip-convertera/FS/WEB/index.htm
and login to ADA-13040MG.

23

ADA-13040MG

5.3.6.2. BACKUP & RESTORE CONFIGURATION

Section Backup/Restore enables backup or restore the user configuration to/from a file on PC or server.

5.3.6.3. FIRMWARE UPDATE

Section Update Firmware enables to make the update firmware form the file. Firstly should be done update the POST before
updating the firmware – more details available after contact with the Service by e-mail: [e-mail]

5.3.6.4. FACTORY DEFAULT SETTINGS

The converter was configured by the manufacturer.
Restoring the factory default settings will clear all current settings and automatically reboot the converter.

5.3.6.5. SYSTEM INFORMATION

Section System Information has section:

- General – device model , MAC address, firmware version, Boot version, POST version and more.

- GPIO – not applicable ADA-13040MG .

- Serial – port description, current settings of serial port, status of controlling lines and the statistics data transfer through the serial
port.

- Network – show statistics of ETHERNET interface for IP, TCP, UDP, ICM protocols.

5.3.6.6. REBOOT

Section Reboot allows to make software reset of ADA-13040MG. Pressing [Reboot] will start rebooting of server during 1 min.

5.3.6.7. LOGOUT – ENDING THE MANAGEMENT

If all the configuration were done, press Logout on left panel.

6. USING VIRTUAL PORT SERVICE [REALPORT]

6.1. VIRTUAL PORT DRIVER INSTALLATION IN WINDOWS XP

The installation of virtual serial port drivers should be done for the CD, by choosing:

- Drivers/Win98SEME – for W indows 98, Windows 98SE, Windows ME Operating systems,

- Drivers/Win2000 – for Windows2000 Operating systems,

- Drivers/WinXP2003Vista_x86_x64 – for Windows XP, Windows Server2003, Windows Vista Operating systems.

Installation of Virtual serial port drivers is as follow:

1. Connect ADA-13040MG to ETHERNET (see p.3.2.1) and power (see p.3.2.6),

2. Press [Start] and select [Run...]

3. in the dialog window [Run] press [ Browse ]

4. select „My computer” and CD-Rom with „ADANET_DRV”.

5. select catalog Drivers/WinXP2003Vista_x86_x64.

6. select file „Setup32.exe” for 32-bits system or „Setup64.exe” for 64-bits and press [Open].

7. when the installation window will appear press [Next] .

8. the searching will start for converters in the network, found devices will be added to the list.

9. select the converter from the list for installation of virtual port driver and press [Next].

10. in window Describe the device select or not the Starting Com port and press [Finish]. The driver will be installed.

The Virtual serial port drivers can be installed without connection of ADA-13040MG to ETHERNET ETHERNET and it is as
follow:

1. press [Start] button, select [Run...]

2. in the dialog window [Run] press [ Browse ]

3. select „My computer” and CD-Rom with „ADANET_DRV”.

4. select catalog Drivers/WinXP2003Vista_x86_x64.

5. select file „Setup32.exe” for 32-bits system or „Setup64.exe” for 64-bits and press [Open].

6. when the installation window will appear press [Next] .

7. the searching for converters in the network will start.

8. if no devices were not found press [Next].

9. in the window Describe the device should be set:
– IP address for converter,
– number of installing COM port (No. Ports)
– Starting COM
and press [Finish]. The driver will be installed.

In this way installed virtual port can require the configuration in case of connecting the converter to network.

24

ADA-13040MG

6.2. REALPORT CONFIGURATION IN WINDOWS XP

After installation of RealPort drivers can be done configuration by the use the Device Manager of Windows and it is as follow:

1. Press [ Start ], select [ Properties/Setting ], press [ Control Panel ].

2. Double click icon [ Administrative Tools] and [ Device Manager ]

3. Press [Ports (COM & LPT)]. On fig. 29 is shown available serial ports COM1, COM2 and COM3 marked as ADA-13040MG which
was create after installation of RealPort driver.

4. Then select [Multi-port Serial Adapter], there will be the name ADA-13040MG.

5. Double click the name and the window [Properties] will appear.

6. Select [Advanced] and press [Properties].

7. New name of virtual port for converter. In the window [Advanced Properties] click [ADA-13040MG] and then select
[Properties], press [Rename Ports], now it is possible to change the name of driver virtual port for example COM5, COM11 etc. To
accept the changes press [OK].

8. Select IP address, MAC, DNS server for communication with virtual port driver. In the window [ Advanced Properties] click
[ADA-13040MG] and then select [Network] (Fig. 30), and set the IP address, MAC Address or DNS name.

9. In the next window press [OK] to accept the changes.

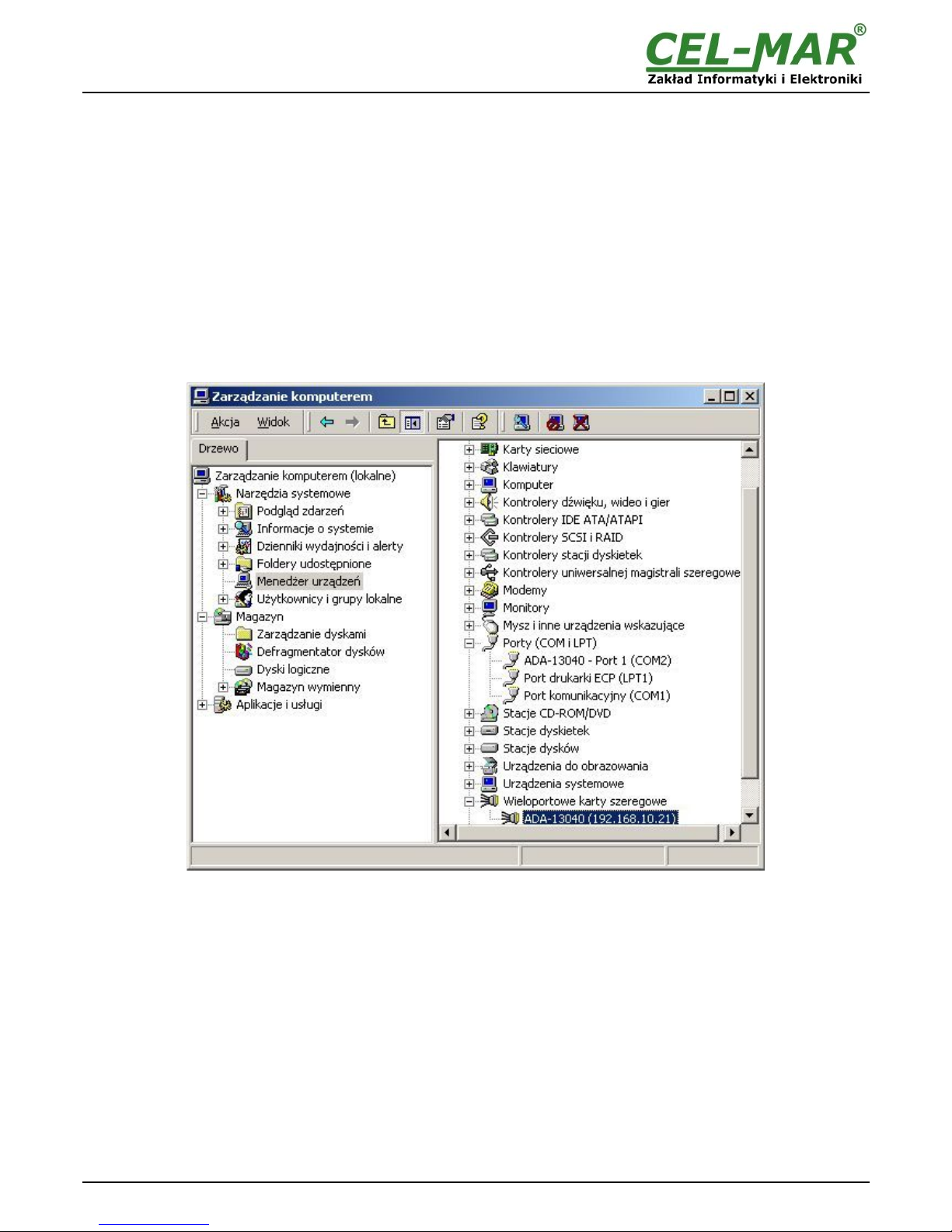

Fig 29. Devices view on Windows XP

25

ADA-13040MG

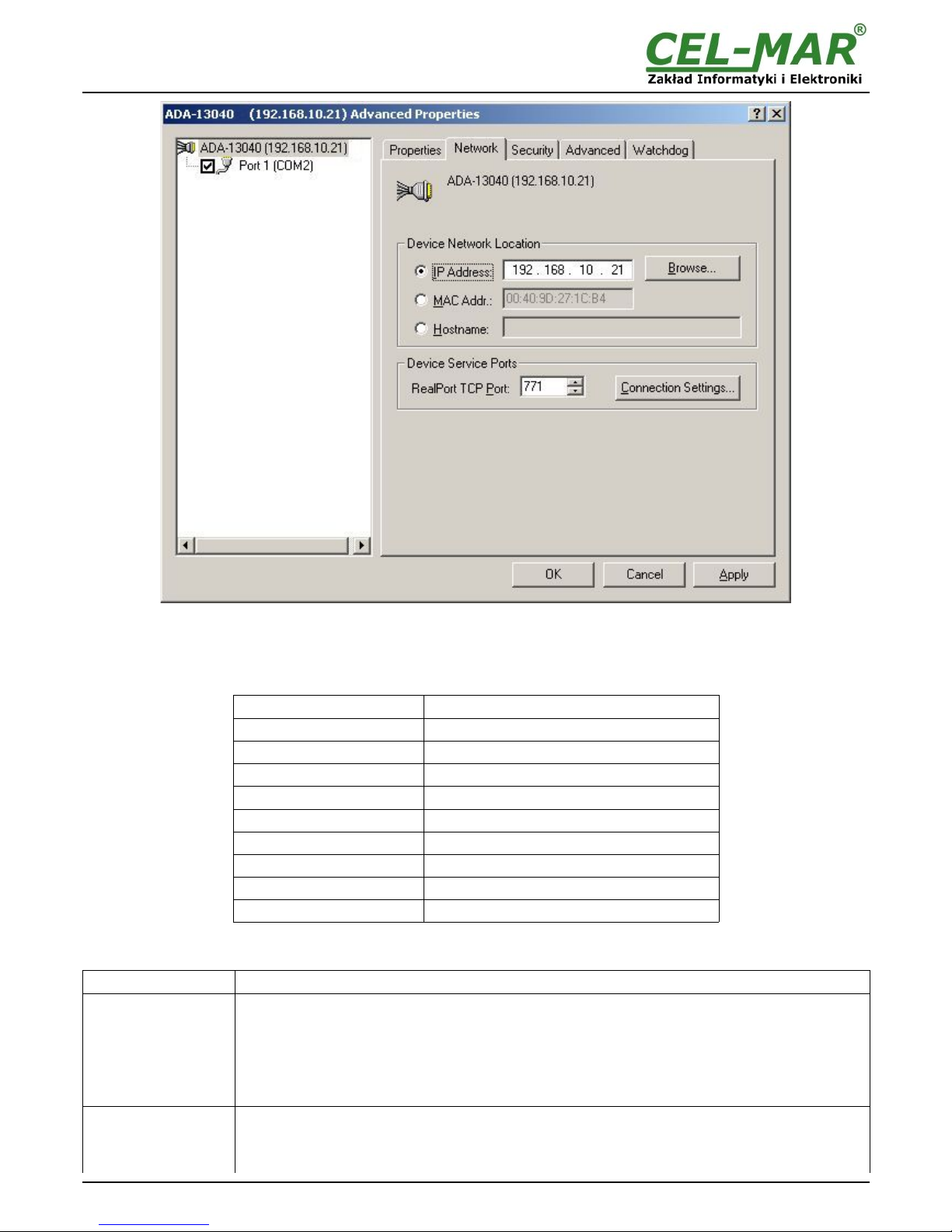

Fig 30. Example configuration of multi-port serial adapter

7. FACTORY DEFAULT

Parameter Value

User name root

Password dbps

IP address

Obtain an IP address automatically using DHCP

Operating mode RealPort

Bout rate[bits/sec] 9600

Number of data bits 8

Parity Control no

Number of stop bits 1

Flow Control no

8. PROBLEMS

Problem Solution

I forgot the password Restoring Default Settings according to steps below:

1. Power OFF the ADA-13040MG

2. Remove the cover of Serial Server Wi-Fi connector,

3. Press RESET “RST” and holding the button turn the power on of ADA-13040MG,

4. Release the button and after 20 sec. the Serial Server will start with Default Settings (sec. 7).
Restoring Default Settings deletes existing configuration and the proper configuration should be loaded
form the backup.

I changed the
configuration and the
converter isn't
functioning.

1. Enter in the Internet browser http://address-ip-server,

2. From menu [Factory Default Settings] press [Restore].

26

ADA-13040MG

9. VERSIONS

ADA-13040MG - - -

Order example:

Product Symbol: ADA-13040MG-1-23-3

1 – basic version of electronic,,

23 - galvanic isolation 1kV= (3-way),

3 - cover without inlets, plug-in screw terminal block,

Electronic versions:

Basic

1

Galvanic isolation:

1kV DC (2-WAY)

2

3kV DC (2-WAY)

3

1kV DC (3-WAY)

23

3kV DC (3-WAY)

33

Terminal & Terminal Cover:

Cover without inlets, screw terminal block

1

Cover without inlets, screw terminal block

2

Cover without inlets, plug-in screw terminal block

3

10. DANE SPECIFICATION

Parameters

ETHERNET RS485/RS422

Connector RJ45 Screw terminal block - max. Ø 2,5mm

2

Max. Line length

LAN up to 150 m 1200 m

Max. number of connected device Depend on addressing type in network 32

Max. baud rate

10/100 Mbit/s do 230,4 kbps

Transmission line

4-pair twisted cable, UTP 4x2x0,5 (24AWG),
shield inside large interferences STP 4x2x0,5
(24AWG)).

2-pair twisted cable, UTP Nx2x0,5
(24AWG), shield inside large
interferences STP Nx2x0,5(24AWG).

Standards

IEEE 802.3, EIA-485, CCITT V.11

Transmission line Asynchronism half duplex or full duplex,

Optical Signalization

• PWD – green LED power supply,

• RX - red LED data receiving on RS485/RS422,

• TX - yellow LED data transmission via RS485/RS422.

Nominal Operating Conditions

Power requirements

10 – 30 V DC

Power Cable

Recommended length – up to 3m

Power

3W

Protection from reverse power polarization yes

Galvanic Isolation

1kV or 3kV and 2-WAY or 3-WAY

Operating temperature

0 ÷ +23 ÷ +50°C

Humidity

5 ÷ 95% - non-condensing

Location during work

Free

Mounting

Rail mounting according to DIN35 standard / TS35.

Electromagnetic compatibility

Resistance to disruptions : PN-EN 55024.
Emission of disruptions : PN-EN 55022 A class,
PN-EN 301 489-3 v1.4.1:2006, PN-EN 300 328 v1.7.1:2007.

Safety requiring

According to the PN-EN60950 norm.

Environment

Commercial and light industrial.

Casing

Dimensions

52,8 x 90 x 58mm,

Material

Noryl UL. 94 V-O

Degree of casing protection

IP40

Degree of terminal protection

IP20

27

ADA-13040MG

Weight

0,10 kg

According to standards

DIN EN50022, DIN EN43880

Storing and Transportation

Storage temperature

-40 ÷ +70°C

Humidity

5 ÷ 95% - non-condensing

28

ADA-13040MG

Dear Customer,

Thank you for purchasing CEL-MAR Company product.
We hope that this user manual helped connect and start up the ADA-13040MG Converter with MODBUS GATEWAY. We also wish

to inform you that we are a manufacturer of the widest selections of data communications products in the world such as: data
transmission converters with interface RS232, RS485, RS422, USB, Ethernet, Wi-Fi, Current Loop, Fibre-Optic Converters and
other.

Please contact us to tell how you like our products and how we can satisfy you present and future expectation.

CEL-MAR sp.j.

Computers Science and Electronic Factory
str Sciegiennego 219C
25-116 Kielce, POLAND

Tel...................................................: [phone]

Tel/fax..............................................: [phone]

Web.................................................: http://www.cel-mar.pl

Office...............................................: [e-mail]

Sales department........................... : [e-mail]

Technical information .....................: [e-mail]
