Page 1
User manual
ADA-1040
RS-232 to RS-485 / RS-422 Converter
1
io_ada-1040_v3.28_enCopyright © 2001-2017 CEL-MAR sp.j.
ADA-1040
Page 2
Contents
1. GENERAL INFORMATION...................................................................................................................................................................... 3
1.1. WARRANTED INFORMATION.......................................................................................................................................................3
1.2. GENERAL CONDITIONS FOR SAFE USE....................................................................................................................................3
1.3. CE LABEL....................................................................................................................................................................................... 3
1.4. ENVIRONMENTAL PRESERVATION............................................................................................................................................ 3
1.5. SERVICE AND MAINTENANCE..................................................................................................................................................... 3
1.6. PACK CONTENTS.......................................................................................................................................................................... 3
2. PRODUCT INFORMATION.....................................................................................................................................................................3
2.1. PROPERTIES................................................................................................................................................................................. 3
2.2. DESCRIPTION................................................................................................................................................................................ 4
2.3. CONVERSION OF TX, RX, DTR, DSR SIGNALS OF RS232 INTERFACE...................................................................................4
2.4. ISOLATION..................................................................................................................................................................................... 5
3. INSTALLATION....................................................................................................................................................................................... 5
3.1. ASSEMBLING.................................................................................................................................................................................5
3.2. CONNECTION OF DEVICES WITH RS232 PORT........................................................................................................................5
3.2.1. CONNECTION OF DEVICES WITH RS232 PORT - DTE TYPE (COMPUTER)...................................................................5
3.2.2. CONNECTION OF DEVICES WITH RS232 PORT - DCE TYPE (MODEM).........................................................................6
3.3. CONNECTION TO RS485/RS422 NETWORK............................................................................................................................... 7
3.3.1. POINT-TO-POINT CONNECTION DEVICE WITH RS422 OR RS485(4W) INTERFACE.....................................................7
3.3.2. MULTI-POINT CONNECTION RS485(4-WIRE) DEVICES...................................................................................................7
3.3.3. CONNECTION OF RS485(2-WIRE) DEVICES.....................................................................................................................8
3.3.4. EXTENSION OF RS232 PORT..............................................................................................................................................8
3.3.5. GND TERMINAL CONNECTION........................................................................................................................................... 8
3.3.6. LINE TERMINATION.............................................................................................................................................................. 8
3.4. POWER SUPPLY...........................................................................................................................................................................9
4. CONFIGURATION................................................................................................................................................................................... 9
4.1. OPERATING MODE SETTING....................................................................................................................................................... 9
4.2. FACTORY DEFAULT...................................................................................................................................................................... 9
4.3. START-UP...................................................................................................................................................................................... 9
4.4. SIGNALLING LEDS........................................................................................................................................................................ 9
4.5. PROBLEMS.................................................................................................................................................................................. 10
5. RS232 INTERFACE – PIN DESCRIPTION OF DSUB-9F-DCE SOCKET............................................................................................10
6. VERSIONS............................................................................................................................................................................................ 10
7. SPECIFICATION................................................................................................................................................................................... 11
2
ADA-1040
Page 3
1. GENERAL INFORMATION
Thank you for your purchase of CEL-MAR Company product. This product has been completely tested and is covered by a two year
warranty on parts and operation from date of sale.
If any questions or problems arise during installation or use of this product, please do not hesitate to contact Technical Support at +48
41 362-12-46 or e-mail [email protected].
1.1. WARRANTED INFORMATION
The ADA-1040 converter is covered by a two year warranty from date of sale. The warranty does not cover damage caused from
improper use, materials consumption or any unauthorized changes. If the product does not function (is damaged), or not operate in
accordance with the instructions will be repaired.
All warranty and no warranty repairs must be returned with paid transport and insuring to the CEL-MAR Company.
CEL-MAR Company under no circumstances won't be responsible for ensuing damage from improper using the product or as a result
of random causes: the lightning discharge, the flood, the fire and the like.
CEL-MAR Company is not be held responsible for damages and loss including: loss of profits, loss of data, pecuniary losses ensuing
from using or the impossibility of using this product.
In specific cases CEL-MAR Company discontinue all warranties and in particular do not follow the user manual and do not accept
terms of warranty by the user.
1.2. GENERAL CONDITIONS FOR SAFE USE
The device should be installed in a safe and stable places (eg, electroinstallation cabinet), the powering cable should be arranged so
as not to be exposed to trampling, attaching, or pulling out of the circuit.
Do not put device on the wet surface.
Do not connect devices for nondescript powering sources,
Do not damage or crush powering wires.
Do not make connection with wet hands.
Do not adapt, open or make holes in casings of the device!
Do not immerse device in water or no other liquid.
Do not put the fire opened on device sources: candles, an oil lamps and the like.
Complete disable from the supply network is only after disconnecting the power supply circuit voltage.
Do not carry out the assembly or dis-assembly of the device if it is enabled. This may result to short circuit and damage the device.
The device can not be used for applications that determine human life and health (eg. Medical).
1.3. CE LABEL
The CE symbol on the device CEL-MAR means compatibility with electromagnetic compatibility Electromagnetic
Compatibility Directive EMC 2014/30/WE. Declaration of Conformity is available by contact with Technical Service
(email: [email protected]; phone: +48 41 362-12-46).
1.4. ENVIRONMENTAL PRESERVATION
This sign on the device inform about putting expended device with other waste materials. Device should send to the
recycling. (In accordance with the act about the Electronic Appliance Expended from day 29 of July 2005)
1.5. SERVICE AND MAINTENANCE
The ADA-1040 converter does not require the servicing and maintenance.
Technical support is available at number +48 41 362-12-46 in 8.00-16.00, from Monday to Friday or e-mail [email protected].
1.6. PACK CONTENTS
The converter is delivered with the user manual and resistors: 120W (2 pcs.).
2. PRODUCT INFORMATION
2.1. PROPERTIES
● Operating on 2 or 4-wire network in Point-to-Point and Multi-Point mode,
● Conversion TX, RX signals to RS485/RS422 standard,
● Conversion DTR an DSR additional signals to RS422 standard,
● Operating of up to 32 devices on RS485 network,
● Baud rate up to 230,4 kbps,
● Automatic data flow control on RS485 network,
● Transparent for all protocols: MODBUS, DNP, PROFIBUS and other,
● Any format of bit, defined with the specification of RS232 interface,
● Power supply 10 - 30 VDC stable min. 2W,
● 5kV= optoisolation in signal channel between RS232 and RS485/RS422 interface,
● 1kV= or 3kV= galvanic isolation between RS232 interface and power supply,
● Implemented short circuit protection and over-voltage protection on RS485/422 network,
● Connection RS485/422 network and power supply via screw terminal block,
● DIN 43880 standard– mounting in typical electro-installation unit,
● Rail mounting according to DIN35 / TS35 standard,
● Dimensions (W x D x H) 52,8mm x 62mm x 90mm.
3
ADA-1040
Page 4
2.2. DESCRIPTION
Many devices such as PLCs, measuring transducer, sensors, cash registers and electronic scales are equipped with RS232
communication port. However, the standard 232 has limitations on cable length (the distance at which transmission functioning
properly is 15m). Solution to this problem is to use the RS485/422 data transmission standard. It lets connect together distant devices
at 1200m.
ADA-1040 converts RS232 standard to RS485/RS422 without interfering with format of transmitted data. Converter does not require
power supply from RS232 port and support the asynchronous transmission data with baud rate 230,4 kbps.
ADA-1040 has DB-9F connector (DCE type) to connecting RS232 interface in use of RS232 extension cable (a typical modem cable)
without interleaving of Tx with Rx, RTS with CTS and DTR with DSR. Converter has also screw terminal block for connection of
RS485/422 network and power supply. This device use Rx, Tx and GND signals for operating and additionally DTR, DSR in extended
version. Galvanic isolation and optoisolation (in signal channel) separates RS232 interface from RS485/422 interface and protect a
device connected to RS232 port from overvoltage on RS485/422 network and power supply. Overvoltage protection was made on
base safety diodes and fuses on each RS485/RS422 lines.
ADA-1040 should be powered from stabilised power pack with minimum power output 2W and voltage form the scope 10 – 30VDC.

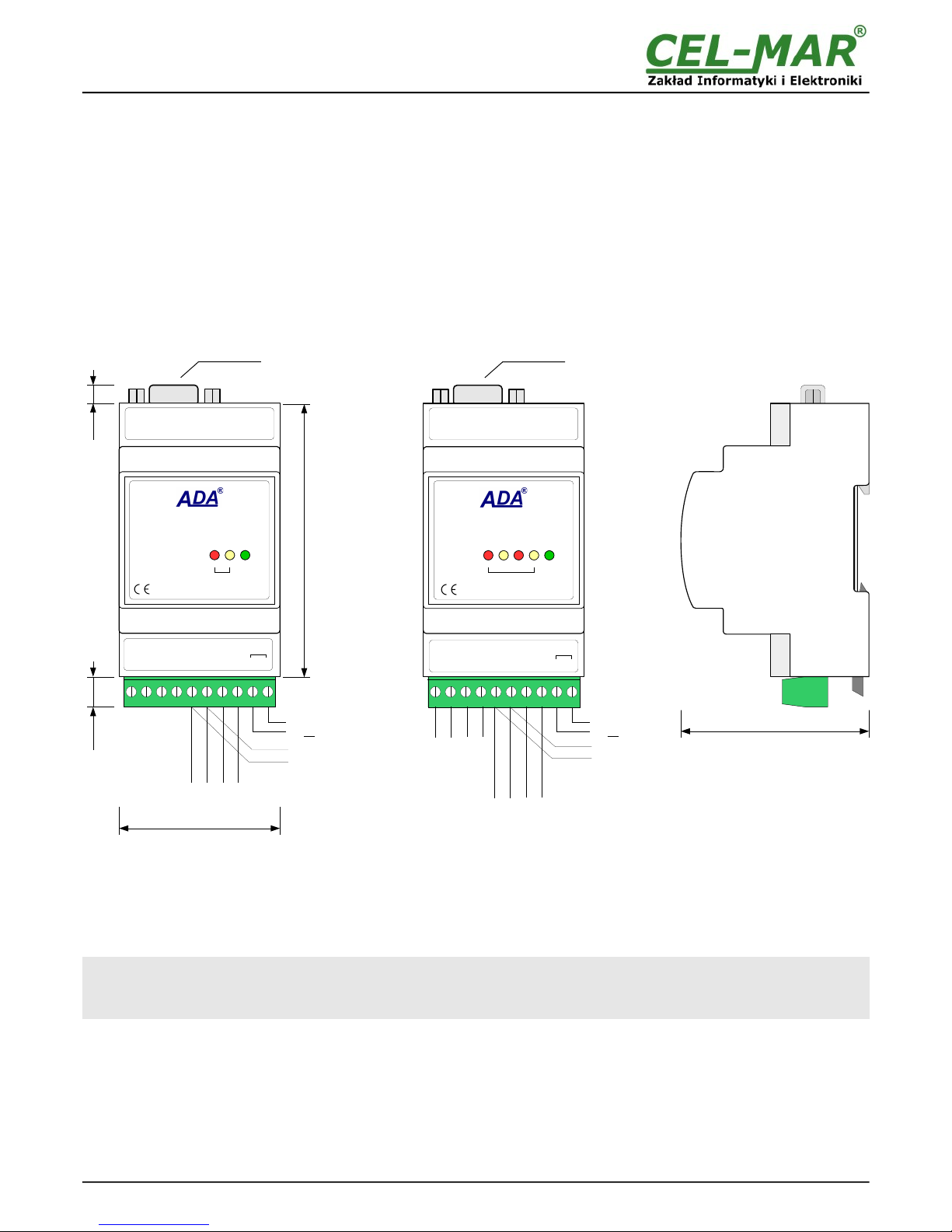

Fig 1. View and SW1 location Fig 2. View with additional signals and SW1
2.3. CONVERSION OF TX, RX, DTR, DSR SIGNALS OF RS232 INTERFACE
In additional version ADA-1040(x-2-x-x) can convert DTR, DSR or RTS, CTS signals of RS232 interface to RS485/422 in POINT-TOPOINT operating mode. Those additional signals are being connecting to ADA-1040 through DB-9 socket to 4-DTR and 6-DSR pins.
ATTENTION!
If the signals RTS and CTS need to be converted, should be solder wires at DB-9M plug as below:
RTS – PIN7 to PIN 4
CTS – PIN 8 to PIN6.
4
ADA-1040
(RS-232)
(SW1)
NCNCNC
GND
TX+ /A
TX- /B
RX +
RX -
(RS485/RS422)
V -
V +
10 – 30
VDC
62mm
RS-232 interface
DB-9F connector
Power supply
10-24-30 VDC
53mm
10mm 6mm
90mm
RS-485
2-wires
RS-485 4-wires
or RS-422
Additional
signals in
RS422 standard
PWRTXRX
ADA-1040
RS-232 to RS-485/RS-422
CONVERTER
RS-485/422
(RS-232)
(SW1)
RS-232 interface
DB-9F connector
Power supply
10-24-30 VDC
PWRTXRX
ADA-1040
RS-232 to RS-485/RS-422
CONVERTER
RS-485/422
DSR DTR
DTR +
DTR -
DSR -
DSR +
TX+ /A
TX- /B
RX +
RX -
(RS485/RS422)
V -
V +
10 – 30
VDC
RS-485 4-wires
or RS-422
RS-485
2-wires
Page 5
2.4. ISOLATION
Converter ADA-1040 has 2-way or 3-way and 1kV= or 3kV= galvanic isolation (depend on version), this will be described in section
VERSIONS.

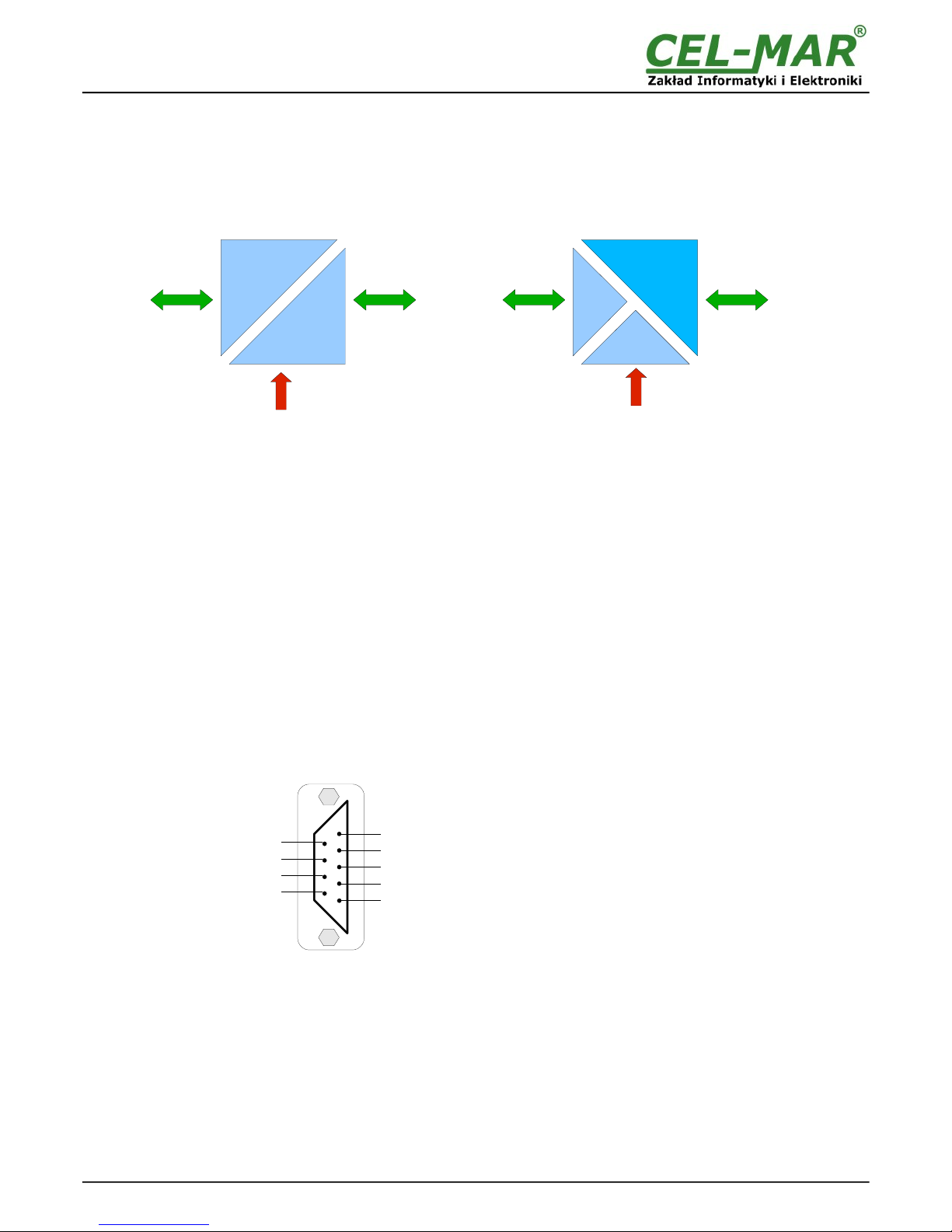

Fig 3. Isolation structure
3. INSTALLATION
This chapter will show how to connect ADA-1040 to RS485/422 bus, devices with RS232 interface and power supply.
To reduce disturbance from environment, it is recommended to:
– use multipair type shielded cables, which shield can be connected to the earthing on one end of the cable,
– use the suitable diameter cable for power supply on account of voltage drop,
– use the powering cable with a suitable section because of the voltage drops,
– use the interference eliminators for powering the converter,
– lay signal cables at a distance of not less than 25 cm away from power cables,
– not powering the converters form the power-circuit of devices generate large impulse disturbance like contactors, relays, inverters.
3.1. ASSEMBLING
ADA-1040 converter case is adapted to assembly on TS-35 (DIN35) rail. To install converter should mount device on the rail upper
part of the case then press bottom part to hearing characteristic „Click” sound.
3.2. CONNECTION OF DEVICES WITH RS232 PORT
Fig 4. RS232 interface signals of DB-9F (female) connector.
3.2.1. CONNECTION OF DEVICES WITH RS232 PORT - DTE TYPE (COMPUTER)
In purpose of connecting ADA-1040 to RS232 port of computer, should be used the RS232 extension cable CAB-DB9F/DB9M-S1,8m (available in CEL-MAR offer). Example connection is shown below.
5
ADA-1040
Power Supply
10 - 30VDC
RS232 RS485/RS422
Power Supply
10 - 30VDC
RS485/RS422R232
3-WAY ISOLATION2-WAY ISOLATION
4 DSR
For version without additional signals DTR,DSR :
1. Connected are DTR – DSR – DCD
2. Connected are RTS – CTS
For version with additional signals DTR, DSR :
1. Connected are DTR – DCD
2. Connected are RTS - CTS
2 TX
5 GND
RI 9
RTS 8
CTS 7
DTR 6
3 RX
1 DCD
Page 6

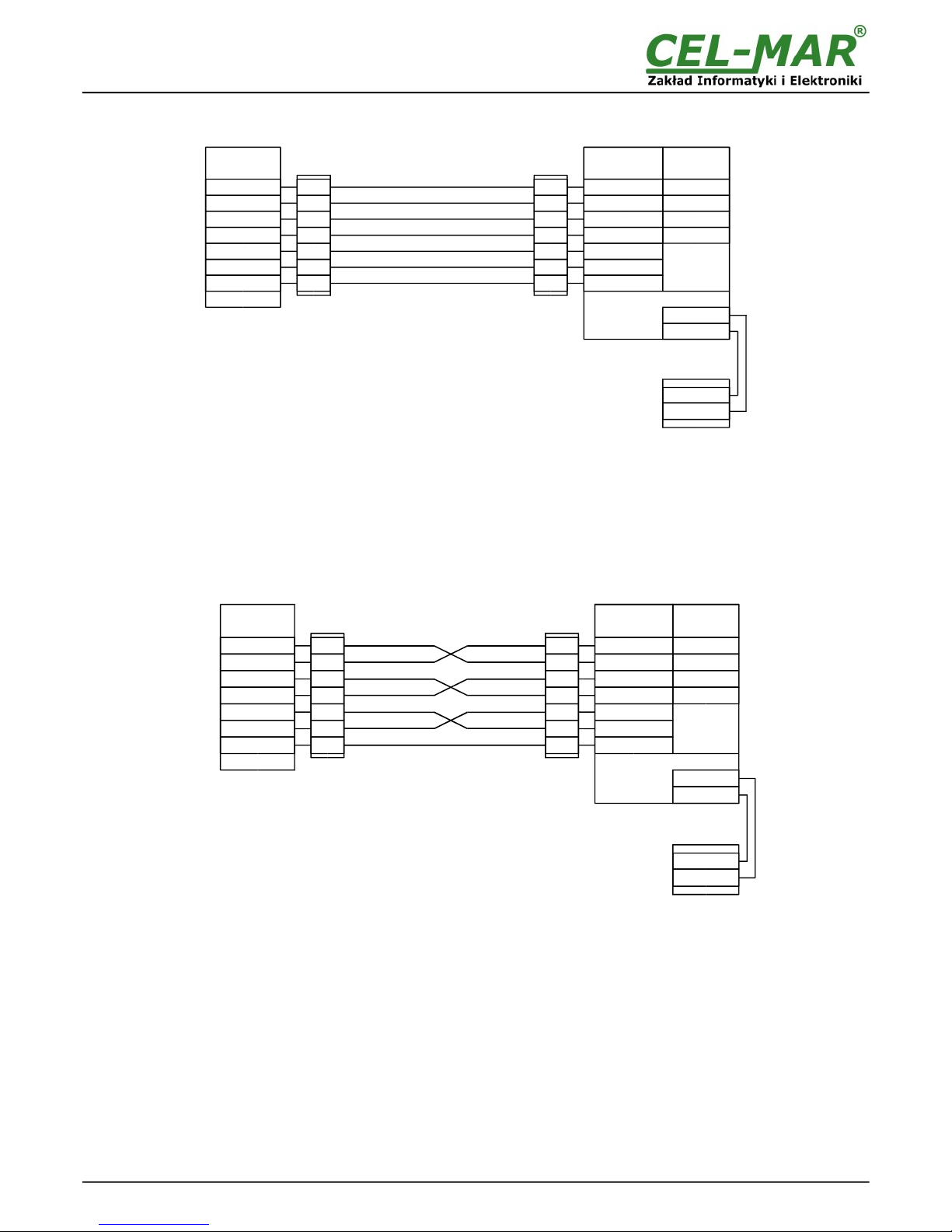

Fig 5. Connection to RS-232 computer port
3.2.2. CONNECTION OF DEVICES WITH RS232 PORT - DCE TYPE (MODEM)
In purpose of connecting ADA-1040 to RS232 port type DCE (eg modem), should be used the RS232 cable CAB-DB9M/DB9M-C1,8m (available in CEL-MAR offer). Example connection is shown below.
Fig 6. Connection to device with RS232 type DCE
6
ADA-1040
RxD - 2
TxD - 3
DTR - 4
DSR - 6
RTS - 7
CTS - 8
PC
SG -5
RS232 port
DTE/DB-9M
ADA-1040
RS485/422
socket
Vss+
Vss-
Power
supply
RS232
DCE/DB-9F
CTS -7
RTS -8
GND -5
Vss-
Vss+
Tx -2
Rx -3
DSR -4
DTR -6
Tx +
Tx -
Rx +
2
3
4
6
7
8
5
CAB-DB 9F/DB9M-S-1,8m
cable
DB-9F
socket
2
3
4
6
7
8
5
DB-9M
plug
Rx -
TxD - 2
RxD - 3
DSR - 4
DTR - 6
CTS - 7
RTS - 8
Device with RS232
port (DCE type)
eg. Modem
SG -5
RS232 port
DCE/DB-9M
ADA-1040
RS485/422
terminal
Vss+
Vss-
Power
Supply
RS232
DCE/DB-9F
CTS -7
RTS -8
GND -5
Vss-
Vss+
Tx -2
Rx -3
DSR -4
DTR -6
2
3
4
6
7
8
5
Cable / Adapter
CAB-DB9M/BD9M-C-2m /
ADP-DB9M/DB9M-C
DB-9F
socket
2
3
4
6
7
8
5
DB-9M
plug
Tx +
Tx -
Rx +
Rx -
Page 7

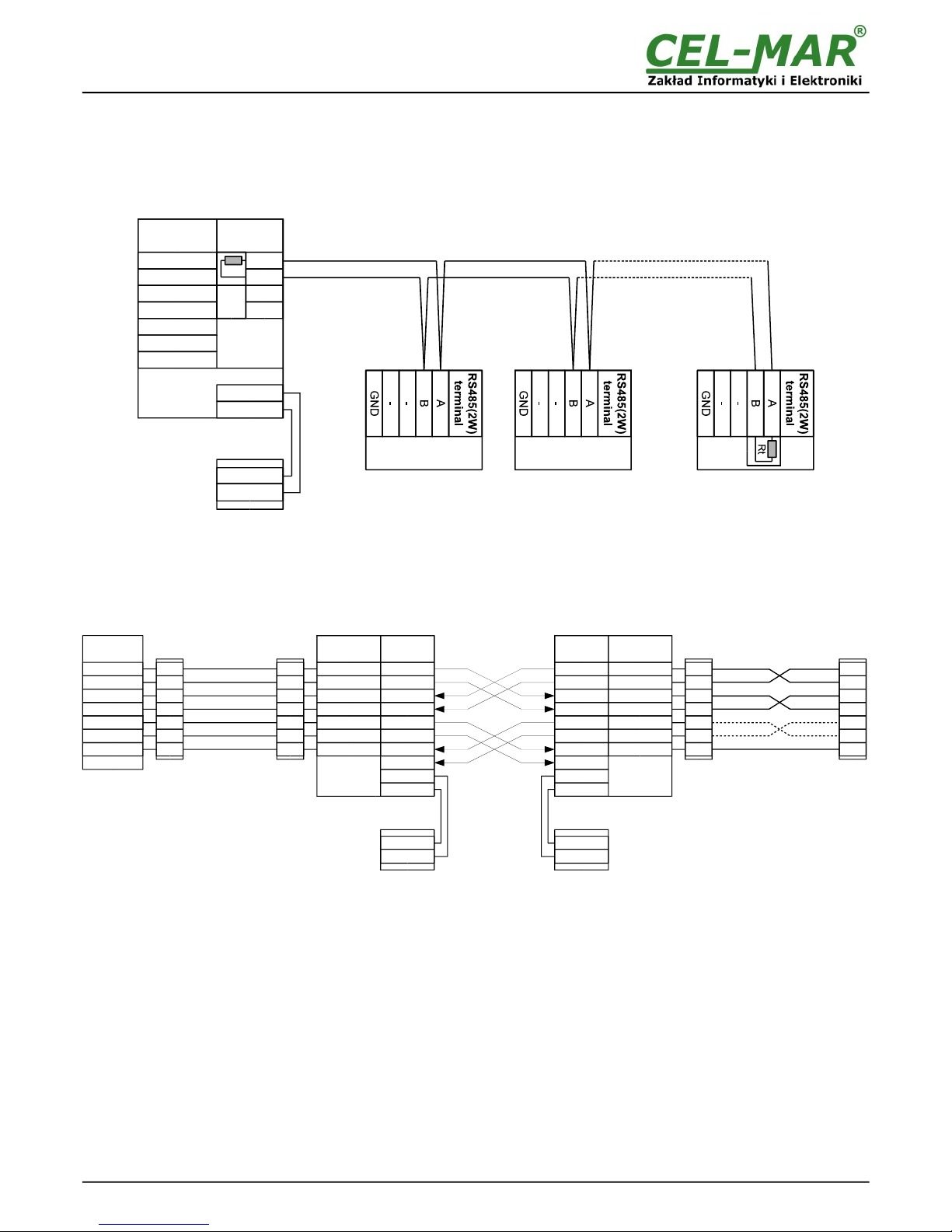

3.3. CONNECTION TO RS485/RS422 NETWORK
RS485/RS422 interface in ADA-1040 converter is available on screw terminal block described as:
Tx+, Tx-, Rx+, Rx-, GND.
The way of connection the converter to RS485(4W) / RS422 bus, is shown below.
3.3.1. POINT-TO-POINT CONNECTION DEVICE WITH RS422 OR RS485(4W) INTERFACE
Example connection is shown below.

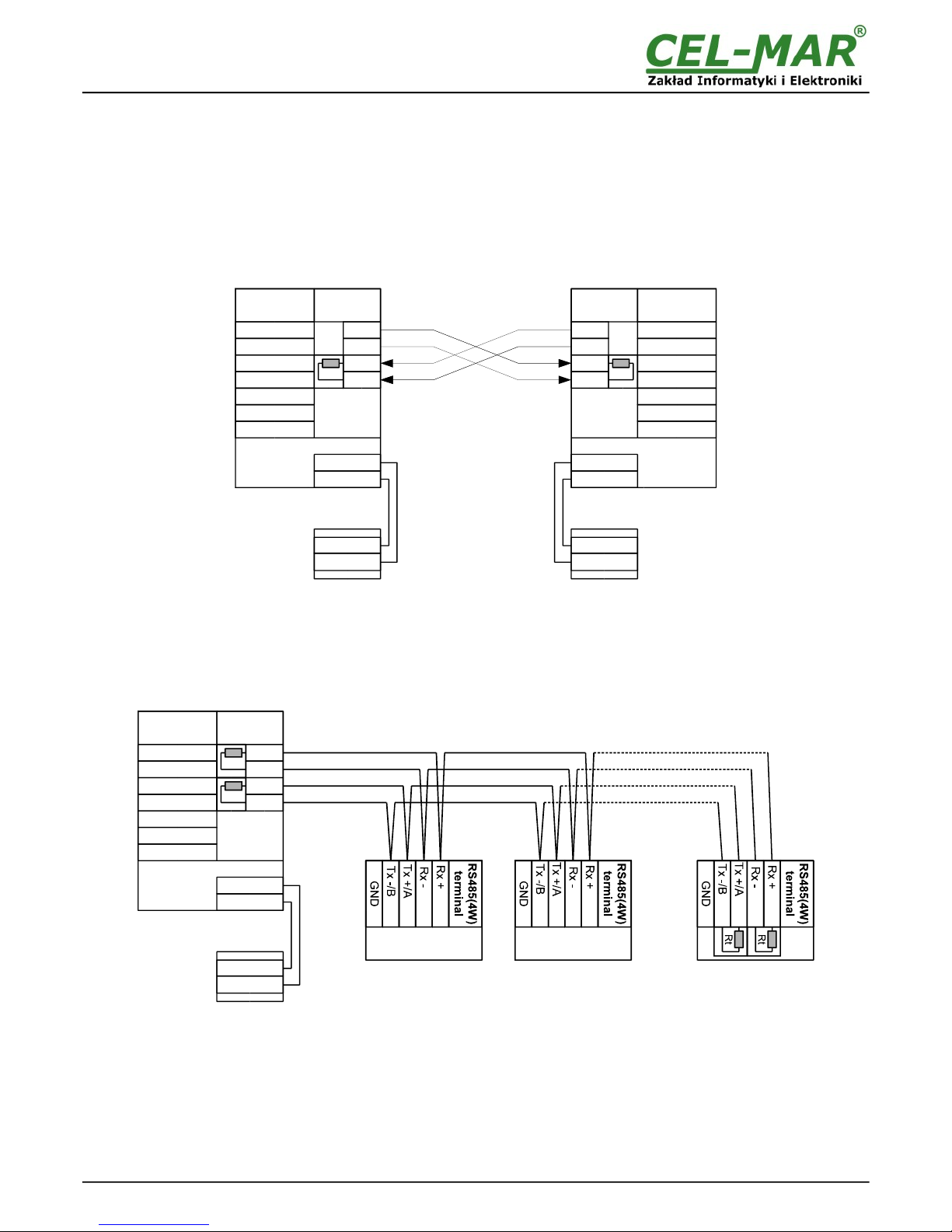

Fig 7. Example point-to-point connection to RS422 device
3.3.2. MULTI-POINT CONNECTION RS485(4-WIRE) DEVICES
Example connection is shown below
Fig 8. Example multi-point connection to RS485(4W) devices
7
ADA-1040
RS485(4W)/RS422
Network (up to 1200m)
ADA-1040
RS485/422
terminal
Vss+
Vss-
Power
Supply
RS232
DCE/DB-9F
CTS -7
RTS -8
GND -5
Vss-
Vss+
Tx -2
Rx -3
DSR -4
DTR -6
Tx +
Tx Rx +
Rx -
Device with RS422
RS422
Terminal
Vss+
Vss-
RS232
DCE/DB-9F
CTS -7
RTS -8
GND -5
Vss-
Vss+
Tx -2
Rx -3
DSR -4
DTR -6
Tx +
Tx -
Rx +
Rx -
Rt Rt
Power
Supply
ADA-1040
RS485/422
terminal
Vss+
Vss-
Power
Supply
RS232
connector
Vss-
Vss+
Tx +
Tx -
Rx +
Rx -
Rt
Rt
CTS -7
RTS -8
GND -5
Tx -2
Rx -3
DSR -4
DTR -6
RS485(4W) / RS422 Network
1200m
Page 8
3.3.3. CONNECTION OF RS485(2-WIRE) DEVICES
Most of RS485 devices use 2-wire RS485 network for data transmission.
Example of connection ADA-1040 to 2-wire RS485 network (multipoint topology) is shown below.
Fig 9. Connection to RS485(2W) devices
3.3.4. EXTENSION OF RS232 PORT
Example connection of two ADA1040 in purpose of extend the signals Tx, Rx, DTR, DSR of RS232 computer port, is shown below.
Fig 10. RS232 Extension type connection
3.3.5. GND TERMINAL CONNECTION
Connection of GND terminals of RS485/422 interfaces, devices connected to RS485/422 bus, should be done in the case of a
potential difference of the signals grounds on interfaces RS485 / RS422, which prevents proper data transmission.
Cannot connect to the GND terminal - cables screens, PE circuit of electrical installation, signals grounds of other devices.
3.3.6. LINE TERMINATION
The application of Line Termination (terminator) Rt = 120 ohms will reduce electrical reflection in data line at high baud rate. It is not
needed below 9600Bd. The Line Termination resistor should be used if the distance is over 1000m @ 9600Bd or 700m @ 19200Bd
transmission, the resistor can be necessary if there are problems with the transmission correctness. The terminators/resistors are
connected to the terminal block of ADA-1040 on the RS485/RS422 interface. Example connection of Rt are shown on Fig. 7, 8 & 9.
8
ADA-1040
ADA-1040
RS485/422
terminal
Vss+
Vss-
Power
Supply
RS232
connector
Vss-
Vss+
Tx+/A
Tx-/B
Rx+
Rx-
Rt
CTS -7
RTS -8
GND -5
Tx -2
Rx -3
DSR -4
DTR -6
RS485(2W) Network
1200m
1200m Network
RS485(4W)/RS422
4-pair twisted cab.
RxD - 2
TxD - 3
DTR - 4
DSR - 6
RTS - 7
CTS - 8
PC
SG -5
RS232 port
DTE/DB-9M
ADA-1040
RS485/422
connector
Vss+
Vss-
Power
Supply
RS232
DCE/DB-9F
CTS -7
RTS -8
GND -5
Vss-
Vss+
Tx -2
Rx -3
DSR -4
DTR -6
Tx +
Tx -
Rx +
2
3
4
6
7
8
5
CAB-DB 9F/DB9M-S-1,8m
cable
DB-9F
socket
2
3
4
6
7
8
5
DB-9M
plug
Rx -
DTR +
DTR DSR +
DSR -
ADA-1040
RS485/422
connector
Vss+
Vss-
Power
Supply
RS232
DCE/DB-9F
CTS -7
RTS -8
GND -5
VssVss+
Tx -2
Rx -3
DSR -4
DTR -6
Tx +
Tx -
Rx +
Rx -
DTR +
DTR DSR +
DSR -
2
3
4
6
7
8
5
Cable / Adapter
CAB-DB9M/BD9M-C-2m /
ADP-DB9M/DB9M-C
DB-9F
socket
2
3
4
6
7
8
5
DB-9M
plug
Page 9
3.4. POWER SUPPLY
The power supply to ADA-1040 should be DC (regulated) from the scope 10 V= to 30V= and nominal power more then 2W. The power
cable from DC power supplies to the device must not be longer than 3m. Observe the polarity, connect positive (+) of DC power
supplies to V+ and negative (-) end to V- terminal. ADA-1040 has the protection from opposite connection power supply.
If after power, on the front panel is not lit green LED PWR, check the power connection (polarity).
4. CONFIGURATION
For configuration of ADA-1040 operating mode use a six-position dipswitch SW1.
The SW1 is located next to DB-9 connector (Fig.1) under the cover. For setting, remove the cover and use small, flat screwdriver.
4.1. OPERATING MODE SETTING
The setting of SW1 dipswitch for operating mode of ADA-1040 is shown in the Table 1 (below).
In case of any questions, contact the support: [email protected].
Table 1.
SW1-1 SW1-2 SW1-3 SW1-4 SW1-5 SW1-6 Description Operation mode
OFF OFF OFF OFF OFF OFF RS-422 Bus
RS422 bus 4-wire.
Transmission full duplex or half
duplex
ON ON ON ON ON ON RS485 Bus automatic data flow control
RS485 bus 2-wire and 4-wire.
Transmission full duplex or half
duplex.
4.2. FACTORY DEFAULT
During production ADA-1040 converter is configured to operating in RS485 mode as in table below.
Table 2.
SW1-1 SW1-2 SW1-3 SW1-4 SW1-5 SW1-6
ON ON ON ON ON ON
4.3. START-UP
Converter can be powered after proper connection according to steps above.
If connection was made properly green LED PWR on front panel of converter should light, if not check polarization of power
connection. When data are present the LEDs Tx and Rx should blinking.
4.4. SIGNALLING LEDS
LED Description
PWR Signalling of Power Supply
RX Signalling of data receiving through ADA-1040 converter from RS485/422 port.
TX Signalling of data transmitting from ADA-1040 converter through RS485/22 port.
DTR Signalling of DTR signal transmitting from ADA-1040 converter through RS422 port.
DSR Signalling of DSR signal receiving through ADA-1040 converter from RS485/422 port
ATTENTION!
At baud rate above 38.4 kbps the LED's Tx, Rx will light weakly during data transmission
9
ADA-1040
Page 10
4.5. PROBLEMS
Problem Solutions
PWR LED is not lights. Check polarization and parameters of connected power supply.
Rx LED lights continuously
RS485(4W) /RS422 bus. Wrong polarization on Rx+, Rx- terminals. Change polarization.
RS485(2W) bus. Wrong polarization on Tx+/A, Tx-/B terminals. Change polarization.
No transmission,
Tx LED is blinking
RS485(4W) /RS422 bus. Check the correctness of connection to Tx, Rx terminals according
to chapter 3.
RS485(2W) bus. Check the correctness of configuration setting according to chapter 4.
5. RS232 INTERFACE – PIN DESCRIPTION OF DSUB-9F-DCE SOCKET
Pin Signal Description ADA-1040
1 (DCD) Level of receiver signal Connected with DSR
2 (TxD) Data transmission via ADA-1040 Transmitter
3 (RxD) Data receiving via ADA-1040 Receiver
4 (DSR) Readiness of receiving via ADA-1040
Receiver (in ADA-1040-x-2-x-x)
Connected with DTR (in ADA-1040-x-1-x-x)
5 (SG) Signal ground GND
6 (DTR) Readiness of data receiving/ transmission from ADAI1040
Receiver (in ADA-1040-x-2-x-x)
Connected with DSR (in ADA-1040-x-1-x-x)
7 (CTS) Readiness of transmission to ADA-1040 Connected with RTS
8 (RTS) Demand of transmission from ADA-1040 Connected with CTS
9 (RI) Call rate
Connected with +5VDC of converter's in versions:
ADA-1040-x-19-x-x,
ADA-1040-x-29-x-x.
Not connected in other versions.
6. VERSIONS
ADA-1040 - - - -
Order example:
Product Symbol: ADA-1040-1-1-23-3
1 – basic version of electronic,
1 – TX, RX signals
23 - galvanic isolation 1kV=, 3-way
3 - cover without inlets, plug-in screw
terminal block,
Electronic versions:
Basic,
1
Special,
2
Signals:
TX, RX
1
TX, RX . +5VDC on 9 pin of RS232 DB-9F connector
19
TX, RX, DTR, DSR – only in version 2-way isolation
2
TX, RX, DTR, DSR +5VDC on 9 pin of RS232 DB-9F connector
– only in version 2-way isolation
29
Galvanic isolation:
1kV= 2-way
2
1kV= 3-way
23
3kV= 2-way
3
3kV= 3-way
33
Terminal & Terminal Cover:
Cover without inlets, screw terminal block
1
Cover with inlets, screw terminal block
2
Cover without inlets, plug-in screw terminal block
3
10
ADA-1040
Page 11
7. SPECIFICATION
TECHNICAL DATA
Transmission Parameters
Interface
RS-232 RS-485/RS-422
Connector DSUB-9 Female Screw terminal block - max. Ø 2,5mm
2
Max. Line length
15 m 1200 m
Max. number of connected device 1 32 / 2
Transmission line
DB9F/DB9M multicore cable 9x0,34
shielded or 9-pair twisted cable, UTP
9x2x0,5 (24AWG) shield inside large
interferences STP 9x2x0,5 (24AWG).
1-pair or 2-pair twisted cable, UTP
Nx2x0,5 (24AWG), shield inside large
interferences STP Nx2x0,5 (24AWG)
Standards
EIA-232, CCITT V.24 EIA-485, CCITT V.11
Max. baud rate 230,4 kbps
Transmission line
Asynchronous full duplex, half duplex.
Optical Signalization
• PWD – green LED power supply,
• RX - red LED data receiving on RS485/RS422,
• TX - yellow LED data transmission via RS485/RS422.
Electrical Parameters
Power requirements
10 - 24 – 30 V DC
Power Cable Recommended length of power cable – up to 3m
Power
<2W
Protection from reverse power polarization YES
Galvanic Isolation
1kVDC or 3kVDC - between power circuit and RS-232 signal line
Optoisolation 5kV - between signals lines RS-485/422 and RS-232
Electromagnetic compatibility
Resistance to disruptions according to the standard PN-EN 55024.
Emission of disruptions according to the standard PN-EN 55022.
Safety requiring
According to the PN-EN60950 norm.
Environment Commercial and light industrial.
Environmental Parameters
Operating temperature
-30 ÷ 60°C
Humidity 5 ÷ 95% - non-condensing
Storage temperature
-40 ÷ 70°C
Casing
Dimensions 53 x 90 x 62mm
Material
Noryl UL. 94 V-O
Degree of casing protection IP40
Degree of terminal protection
IP20
Weight 0,10 kg
According to standards
DIN EN50022, DIN EN43880
Location during work Free
Mounting method
On the rail compliant with DIN35 / TS35 standard.
11
ADA-1040
Page 12
12
ADA-1040
Dear Customer,
Thank you for purchasing CEL-MAR Company products.
We hope that this user manual helped connect and start up the ADA-1040 converter. We also wish to inform that we are a
manufacturer of the widest selections of data communications products in the world such as: data transmission converters with
interface RS232, RS485, RS422, USB, Current Loop, Fibre-Optic Converters and Ethernet or Wi-Fi.
Please contact us to tell how you like our products and how we can satisfy you present and future expectation.
CEL-MAR sp.j.
Zakład Informatyki i Elektroniki
str. Ściegiennego 219C
25-116 Kielce, POLAND
Tel....................................................: +48 41 362-12-46
Tel/fax.............................................. : +48 41 361-07-70
Web................................................. : http://www.cel-mar.pl/en
Office............................................... : [email protected]
Sales department........................... .: [email protected]
Technical information ..................... : [email protected]
Loading...
