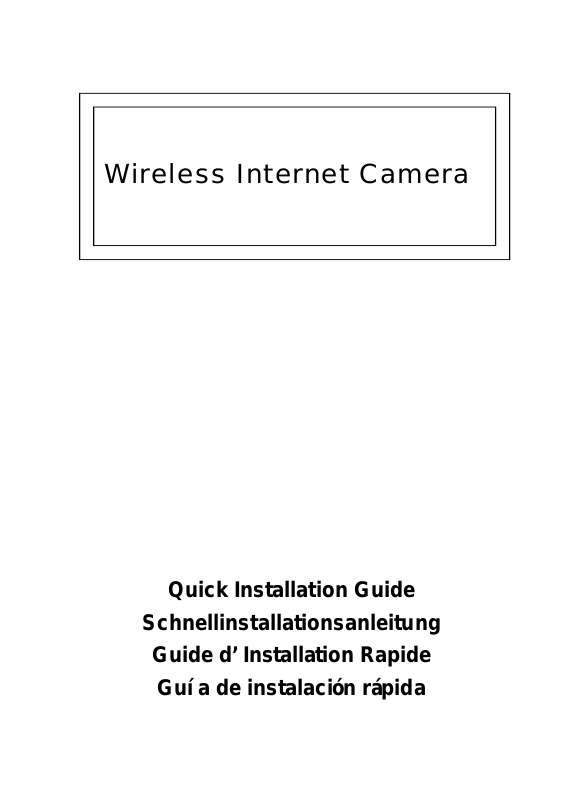

Cellvision Systems CAS10001 Users Manual
Wireless Internet Camera
Quick Installation Guide
Schnellinstallationsanleitung
Guide d’Installation Rapide
Guía de instalación rápida
FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device
must accept any interference
received, including interference that may cause undesired operation.
CE Mark Warning
This is a Class B product. In a domestic environment, this product
may cause radio interference, in which case the user may be
required to take adequate measures.
NOTE
RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED
MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS
COULD VOID THE USER’S AUTHORITY TO OPERATE THE
EQUIPMENT.
:
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY
CAUTION:
To comply with the FCC RF exposure compliance requirements, a
separation distance of at least 20 cm must be maintained between the antenna
of the Wireless Camera and all persons. Use only the supplied antennas.
Unauthorized antennas, modifications, or attachments could damage the
transmitter and may violate FCC Regulations.
1
Wireless Internet Camera
Quick Installation
Guide
Rev. 01 (Dec, 2001)
Q20011204
Printed In Taiwan
2
Table of Content
INTRODUCTION............................................................................. 4
SYSTEM REQUIREMENT.............................................................. 5
WIRELESS INTERNET CAMERA............................................................ 5
Network:.................................................................................... 5
Recommended PC or Notebook to Access the Wireless Internet
Camera...................................................................................... 5
PHYSICAL DESCRIPTION............................................................6
FRONT PANEL ................................................................................. 6
Power LED................................................................................ 6
LAN/WLAN LED........................................................................ 6
REAR PANEL................................................................................... 7
Network Cable Connector .......................................................... 8
DC Power Connector................................................................. 8
Reset Button............................................................................... 8
Slide Switch ............................................................................... 9
I/O Connector............................................................................ 9
Antenna Connector..................................................................... 9
TOP PANEL...................................................................................... 9
Screw Hole............................................................................... 10
BOTTOM PANEL ............................................................................ 10
Screw Hole............................................................................... 10
HARDWARE INSTALLATION.................................................... 11
1 ATTACH WIRELESS ANTENNA..................................................... 11
2 CONFIGURE NETWORK COMMUNICATION.................................... 11
3 CONNECT AN ETHERNET CABLE .................................................. 12
4 ATTACH THE EXTERNAL POWER SUPPLY ...................................... 12
SOFTWARE INSTALLATION......................................................13
WEB CONFIGURATION................................................................... 13
3
IPVIEW APPLICATION INSTALLATION................................. 21
INSTALLATION .............................................................................. 21
APPENDIX...................................................................................... 28
4
Introduction
Thank you for the purchase of the Wireless Internet Camera
connecting directly to an Ethernet or Fast Ethernet network and
also supported by the wireless transmission based on the IEEE
802.11b standard. It is different from the conventional PC
Camera, the Wireless Internet Camera is a standalone system with
built-in CPU and web-based solutions providing a low cost
solution that can transmit high quality video images for
monitoring. The Wireless Internet Camera can be managed
remotely, accessed and controlled from any PC/Notebook over
the Intranet or Internet via a web browser. The simple installation
procedures and web-based interface offers easy integration to
your network application environments coupled with many
applications such as remote monitoring for a cost-effective
solution.
5
System Requirement
Wireless Internet Camera
Network:
Local Area Network: 10Base-T Ethernet or 100Base
TX Fast Ethernet
Wireless Local Area Network: IEEE 802.11b Wireless LAN
Recommended PC or Notebook to Access the
Wireless Internet Camera
Web Browser:
System requirement:
CPU: Pentium II, 266 MHz or above
Memory Size: 32 MB (64 MB recommended)
VGA card resolution: 800x600 or above
• Internet Explorer 5.0 or above (ActiveX & JAVA Mode –
Image View for Windows OS and JAVA Mode – Image
View for other OS)
• Netscape 6.0 or above (JAVA Mode – Image View)
IPView Application:
Support OS: Win 98, Win 98 SE, Win 2000, Win Me, Win XP
System requirement for IPView:
CPU: Pentium III, 450 MHz or above
Memory Size: 128 MB (256 MB recommended)
VGA card resolution: 800x600 or above
6
Physical Description
This section describes the features and benefits of the Wireless
Internet Camera
Front Panel
Power LED LAN/WLAN LED
Power LED
The Power LED is positioned on the right side of the Wireless
Internet Camera’s lens while facing the Wireless Internet Camera.
Steady blue confirms the Wireless Internet Camera is powered on.
Note:
There are three settings for the Power LED to control the light
illumination for monitoring purpose from Normal / Off / Dummy.
Please refer to the Web Configuration section for detailed
information and usage in the User’s Guide.
LAN/WLAN LED
The LAN/WLAN LED is positioned on the right side of the
Wireless Internet Camera’s lens while facing the Wireless
Internet Camera. It is located right of the Power LED
7
Network Cable
DC Power
I/O Connector
Reset Button
Steady orange confirms good connection to LAN or WLAN
connectivity.
Dependent on the data traffic the LED will begin to flash to
indicate that the Wireless Internet Camera is
receiving/transceiving from/to the LAN or WLAN network.
Note:
There are three settings for the LAN/WLAN LED to control the
light illumination for monitoring purpose from Normal / Off /
Dummy. Please refer to the Web Configuration section for
detailed information and usage in the User’s Guide.
Rear Panel
Antenna Connector
Connector
Slide Switch
Antenna Connector
8
Network Cable Connector
The Wireless Internet Camera’s rear panel features an RJ-45
connector for connections to 10Base-T Ethernet cabling or
100Base-TX Fast Ethernet cabling (which should be Category 5
twisted-pair cable). The port supports the NWay protocol,
allowing the Wireless Internet Camera to automatically detect or
negotiate the transmission speed of the network.
DC Power Connector
The DC power input connector is located on the Wireless Internet
Camera’s rear panel and is labeled DC 5V with a single jack
socket to supply power to the Wireless Internet Camera. Power
will be generated when the power supply is connected to a wall
outlet.
Reset Button
Reset will be initiated when the reset button is pressed once and
Power LED begins to flash.
Factory Reset will be initiated when the reset button is pressed
continuously for three seconds or when Power LED begins to
light up. Release the reset button and the Power LED will begin
to flash indicating the Wireless Internet Camera is changing to
factory reset. When factory reset is completed the Wireless
Internet Camera will be set to default on channel 11 and EES -ID
is set as “NULL String” (This default setting will let the Wireless
Internet Camera connect to ANY access point on the
infrastructure network). The IP address will also return to the
default setting as 192.168.0.20.
9
Slide Switch
The slide switch permit user’s to determine the type of network
communication media for the Wireless Internet Camera and is
positioned on the rear panel. The three settings are as follows:-
• LAN (Local Area Network)
• LAN/WLAN (Local Area Network/Wireless Local Area
Network)
• WLAN (Wireless Local Area Network)
I/O Connector
There are four I/O connectors, two for input and two for output
situated on the rear panel. The I/O connectors provide the
physical interface to send and receive digital signals to a variety
of external alarm devices. Please refer to the User’s Guide
appendix for detailed information.
Antenna Connector
There are two SMA type antenna connectors located at the rear
panel of the Wireless Internet Camera providing connection for
two high sensitivity antenna included with the device.
Top Panel
Screw Hole
10
Screw Hole
Located on the top panel of the Wireless Internet Camera the
screw hole is used to connect the camera stand onto the Wireless
Internet Camera by attaching the screw head on the camera stand
into the screw hole of the Wireless Internet Camera.
Bottom Panel
Screw Hole
Located on the bottom panel of the Wireless Internet Camera the
screw hole is used to connect the camera stand onto the Wireless
Internet Camera by attaching the screw head on the camera stand
into the screw hole of the Wireless Internet Camera.
Screw Hole
11
Hardware Installation
This section describes the Hardware installation procedure for the
Wireless Internet Camera.
1 Attach Wireless Antenna
From the rear panel of the Wireless
Internet Camera screw the 2 external
Antenna that came with the Wireless
Internet Camera into the antenna
connector..
2 Configure Network Communication
From the rear panel of the Wireless
Internet Camera select the desired
Network communication for the
Wireless Internet Camera from the
Slide Switch. Position the Slide Switch
to the setting required either LAN or
LAN/WLAN position.
Please refer to the Physical Description
section for detailed information.
12
3 Connect an Ethernet cable
Connect an Ethernet cable to the
network cable connector located
on the Wireless Internet Camera’s rear
panel and attach it to the network.
4 Attach the external power supply
Attach the external power
supply to the DC power input
connector located on Wireless
Internet Camera’s rear panel and
is labeled DC 5V and connect
it to your local power supply.
Note:
Confirm power source is supplied
from the LED indicators label Power
is illuminated.
13
Software Installation
This section describes the Software installation procedure of the
Wireless Internet Camera for Web Configuration and IPView
application.
Web Configuration
The Wireless Internet Camera must be configured through its
built-in Web -based Configuration.
Extensive knowledge of LAN will be helpful in setting up the
Wireless Internet Camera
From the web browser enter the default IP address to access the
Welcome screen of the Wireless Internet Camera to configure
your Wireless Internet Camera type http ://192.168.0.20 in the
address box. The number is the default IP address of your
Wireless Internet Camera. Press Enter.
Note:
The PC’s IP address must correspond with the Wireless
Internet Camera’s IP address in the same segment for the two
devices to communicate.
14
The Welcome screen will appear with a still image as
illustrated below. Select “System Administration” to
configure the Wireless Internet Camera.
There will be several options in the systems menu bar to choose
from to set your Wireless Internet Camera. You need to select
“System” to continue.
In the System screen as illustrated below you are required to
input key details to set-up the Wireless Internet Camera and they
are as follow:
15
Click on “Home” to
return to Welcome
Screen
16
IP Assignment:
Important Information
Access to the Wireless Internet Camera is done through assigning a
proper IP address. Please make sure to use a vacant IP address when
you assign the IP address for the Wireless Internet Camera. This will
prevent errors from occurring if the IP address is overlapped.
There are two options to select from the IP Assignment either
Manually Assign or Assign Automatically Using.
Manually Assign
You can click “Manually Assign” and directly enter the IP
address.
The default settings are as follows:
• Default IP – 192.168.0.20
• Subnet Mask – 255.255.255.0
• Default Gateway – 0.0.0.0
Assign Automatically Using
If your network is using RARP, BOOTP or DHCP server you can
click “Assign Automatically Using” and click on “RARP”,
“BOOTP” or “DHCP”. Under this setting the Wireless Internet
Camera will automatically assign an IP address from RARP,
BOOTP or DHCP server. Each time the Wireless Internet
Camera starts up be sure the RARP, BOOTP or DHCP server is
setup as assign a static IP to your Wireless Internet Camera.
17
If your application requires direct connection from an ADSL
modem through the Wireless Internet Camera’s RJ-45 LAN port
and you also have an ISP PPPoE account. Click on “PPPoE”
option and enter the Service Name, User ID and Password into
the respective fields.
The Wireless Internet Camera will get an IP address from the ISP
each time the Wireless Internet Camera starts up.
Wireless Interface:
Connection Mode:
Use the Connection Mode to determine the type of wireless
communication for the Wireless Internet Camera. There are three
choices of Infrastructure mode, 802.11 Adhoc mode and
Adhoc mode. The default setting for the Connection Mode is
Infrastructure.
Note:
Keep in mind after setting the Wireless Interface make sure to
check the Slide Switch on the rear panel is positioned to either
LAN/WLAN or WLAN setting for the wireless communication to
take effect.
Network Name:
This field is used to setup which wireless network (ESS-ID
Extended Service Set ID) the Wireless Internet Camera is to be
connected for communication. The ESS-ID is a unique identifier
shared among all points in a wireless network environment.
The default Network Name is blank space (NULL String), this
default setting will let the Wireless Internet Camera connect to
ANY access point under the infrastructure network mode.
18
To connect the Wireless Internet Camera to a specific access
point on the network make sure to set the ESS-ID of the Wireless
Internet Camera to correspond with the access point’s ESS-ID for
communication. Type any string up to 32 characters long (spaces,
symbols, and punctuation are not allowed) in the Network Name
box.
To connect the Wireless Internet Camera to an Ad-hoc wireless
workgroup make sure to set the same wireless channel and ESSID to match with the PC/Notebook wireless channel and ESS-ID
for direct wireless communication under the Ad-hoc wireless
workgroup (ad-hoc and 802.11 ad-hoc modes).
Note :
The Wireless Internet Camera ad-hoc mode supports two modes
(802.11 ad-hoc mode and proprietary ad-hoc mode). Which
option of the ad-hoc mode required depends on the operation of
your Wireless Internet Camera. It depends on which ad-hoc
mode is supported by your wireless card driver on the
PC/Notebook. Some driver supports both modes, however, some
driver support only one of the modes. The names of each ad-hoc
mode may not be consistent between each wireless card vendor
therefore you may need to try each of the ad-hoc mode (802.11
mode and proprietary mode) and select the mode that can
communicate with each other.
Wireless Channel:
The pull down menu provides the wireless channel for
communication. A "channel" is a range of frequencies to be used
in communication between the Wireless Internet Camera and
Access Point in infrastructure mode or the Wireless Internet
Camera and PC/Notebook in Ad-hoc mode. Select the
19
appropriate channel from the list provided depending on the
regulatory region which the unit is sold. The default setting is at
channel 11.
Encryption WEP Key:
Wireless network communications are easily intercepted. WEP
(Wired Equivalent Privacy) is an encryption method specified by
the IEEE 802.11b standard to make any intercepted
communications extremely difficult to interpret by unauthorized
parties.
To enable WEP Encryption, first decide which WEP key format
will be applied. Click on ASCII or HEX check box to select
input format as ASCII format or HEX format, and then input
WEP key. To Confirm the WEP key you must enter the data
once again in the Confirm WEP Key field.
On the Confirm WEP Key field, input the same characters as the
Encryption Code field.
Make sure the Encryption Code is the same with the access
point’s encryption code that the Wireless Internet Camera is to be
connected under Infrastructure mode. Your PC/Notebook’s
encryption code also needs to be setup the same with the Wireless
Internet Camera's encryption code under either Infrastructure
mode or Ad-hoc mode.
The default setting for the Encryption Key is Disable therefore, to
secure the wireless transmission be sure to Enable the Encryption
Key by entering the relevant data.
20
Note:
Carefully input Encryption Code, any error setting will cause
communication link to fail.
Save/Cancel:
After making sure all settings in the System are correct, click on
the “Save” icon to store the settings for the Wireless Internet
Camera. You can alternatively click on the “Cancel” icon to
restore all settings to the values last saved to or retrieved from the
Wireless Internet Camera.
Once the configuration is completed click on “Home” to return to
the Welcome screen and select the desired Viewing Image either
through ActiveX Mode or Java Mode as described in the User’s
Guide.
Then position the Wireless Internet Camera to the desired
location appropriately for your purpose. Followed by the
adjustment of the Wireless Internet Camera focus, done manually
by turning the lens clockwise or anti-clockwise to the desired
image quality.
Please refer to the appendix for detailed information regarding
Adjust Internet Camera Focus and Replacing the Lens in the
User’s Guide.
21
IPView Application Installation
Installation
Insert the CD-ROM into the CD-ROM drive to initiated the autorun program. Once completed a menu screen will appear as
follows:
To install the IPView application click on the "IPView" button
to activate the installation procedure for the application program.
22
Once executed a prompt will appear requesting the input of the
desired language selection. Make the desired selection and click
on “OK” to continue.
The Welcome screen will appear. Click on the “Next” button to
proceed with the installation.
23
The License Agreement prompt will appear as below. Read the
details carefully and click on the “Yes” icon to continue with the
installation procedure.
A prompt will appear and in the Destination Location dialog box,
you may click on “Next” to accept the recommended destination
location or click on “Browse” to select another location. After
specifying the desired destination location, click on “Next” to
proceed further.
24
The Select Program Folder prompt will appear providing
information of where the IPView application will be located,
click on “Next” to continue. If you wish to modify your settings,
click on “Back” to return to the previous screens.
25
Please wait until one of the two dialog box to appear, select either
“Yes, I want to restart my computer now” and click on the
“Finish” icon to restart the computer to complete the installation
procedure.
or click on the “Finish” icon to complete the installation
procedure
26
After successfully installing the IPView, the application program
for the Wireless Internet Camera is automatically installed to
\Programs\Files Directory.
To start running the IPView click on windows Start
Menu/Programs/IPView/IPView
Once IPView is executed a Login prompt will appear, you must
enter the default User Name: admin into the respective field and
click on “OK” to log into the application.
27
Once login, the IPView application is executed and the IPView
interface will appear as follows in the default List View format:
Please refer to the User’s Guide for detailed information
regarding IPView application.
28
Appendix
A Specification
Video specification
Resolution: 640 x 480 pixel
Sensor: 1/3” color CMOS sensor
Gain control: Automatic
Exposure: Automatic
White Balance: Automatic
Shutter: Electronics 1/60 ~ 1/15000 sec
Minimum Illumination: 2.5lux@f1.4, 3000K color
Focal Length: 6.0 mm
Aperture: F=1.8
Focus Extent: 20 cm -
Lens mounting: Fixed board lens, CS-mount type
Image (Video Setting)
Image compression: JPEG
Frame rate: 30fps@QSIF, 20fps@SIF,
3fps@VGA
Compression Rate selection: 5 level (Very Low, Low,
Medium, High, Very High)
Frame rate setting: 1, 5, 7, 15, 20, auto (depends on
the video format)
Video resolution: 160x120, 320x240, 640x480
Brightness control: Range 1- 128
Contrast control : Range 1- 128
Hue control: Range 1- 128
Loading...
