USER GUIDE
1
Chap. 1 - Introduction |
3 |
1.1 Presentation |
3 |
1.2 Warnings |
3 |
1.3 Main specifications |
3 |
1.4 Package contents |
3 |
Chap. 2 - Getting started |
4 |

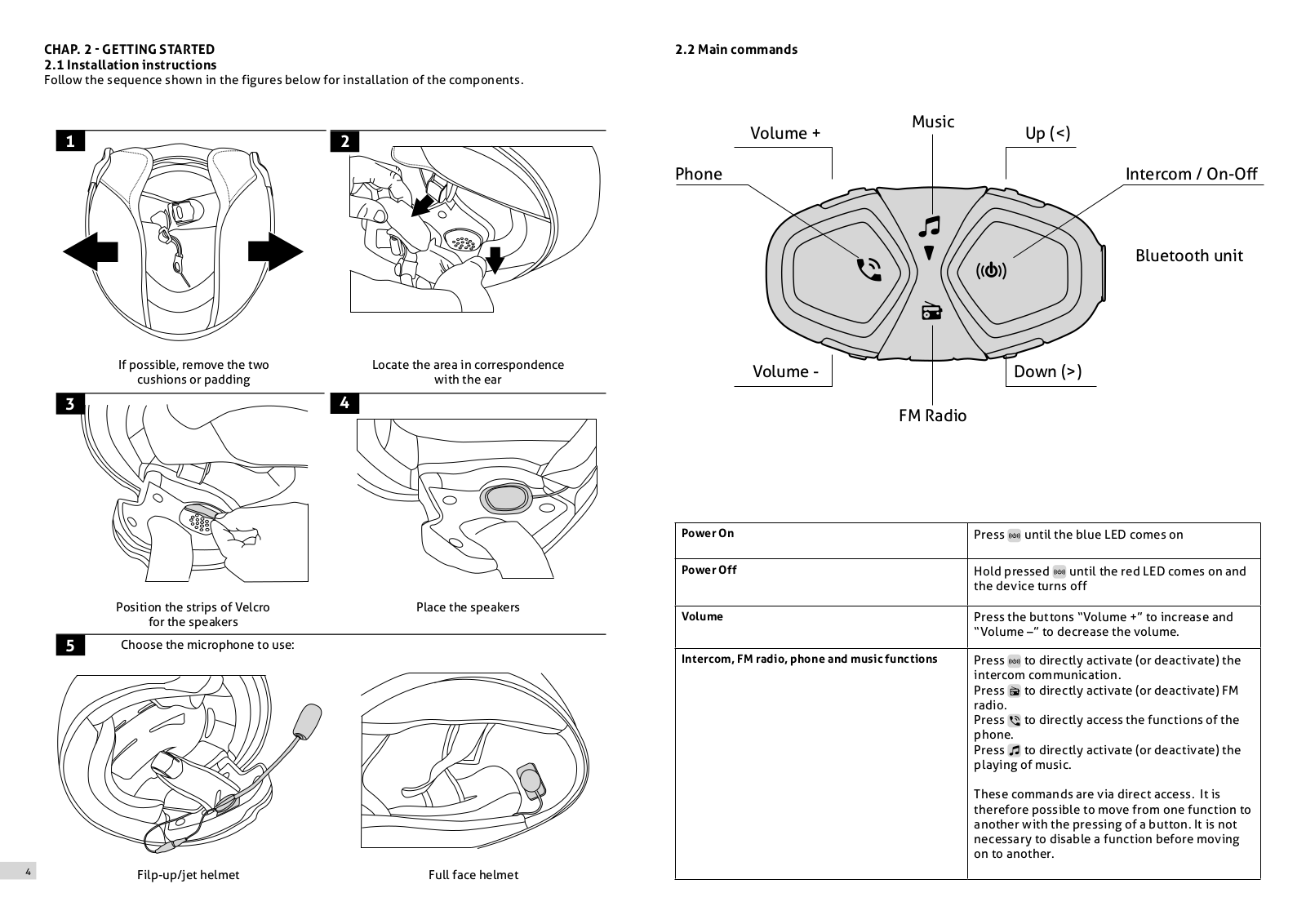

2.1 Installation instructions |
4 |
2.2 Main commands |
4 |

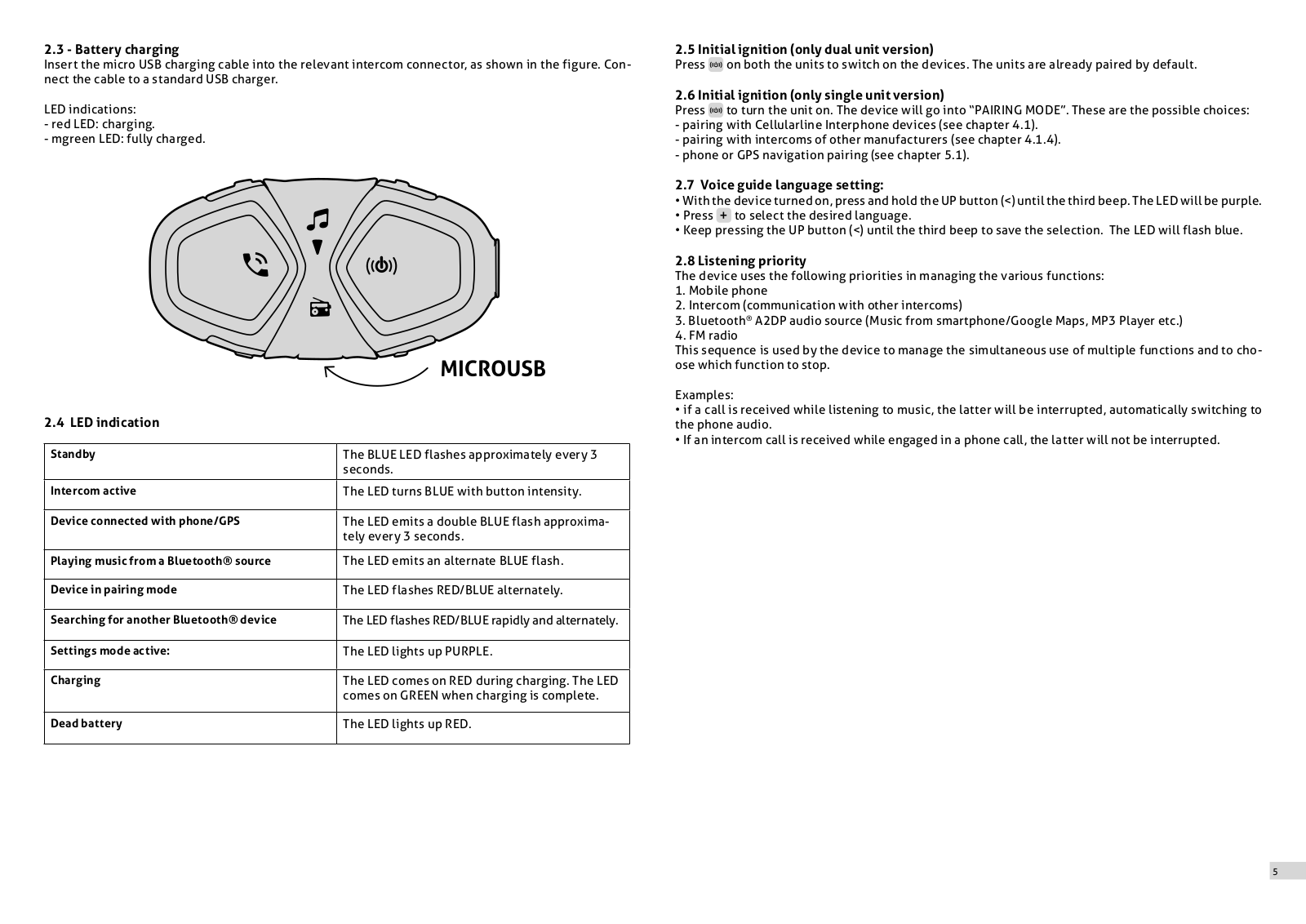

2.3 - Battery charging |
5 |
2.4 LED indication |
5 |
2.5 Initial ignition (only dual unit version) |
5 |
2.6 Initial ignition (only single unit version) |
5 |
2.7 Voice guide language setting: |
5 |
2.8 Listening priority |
5 |

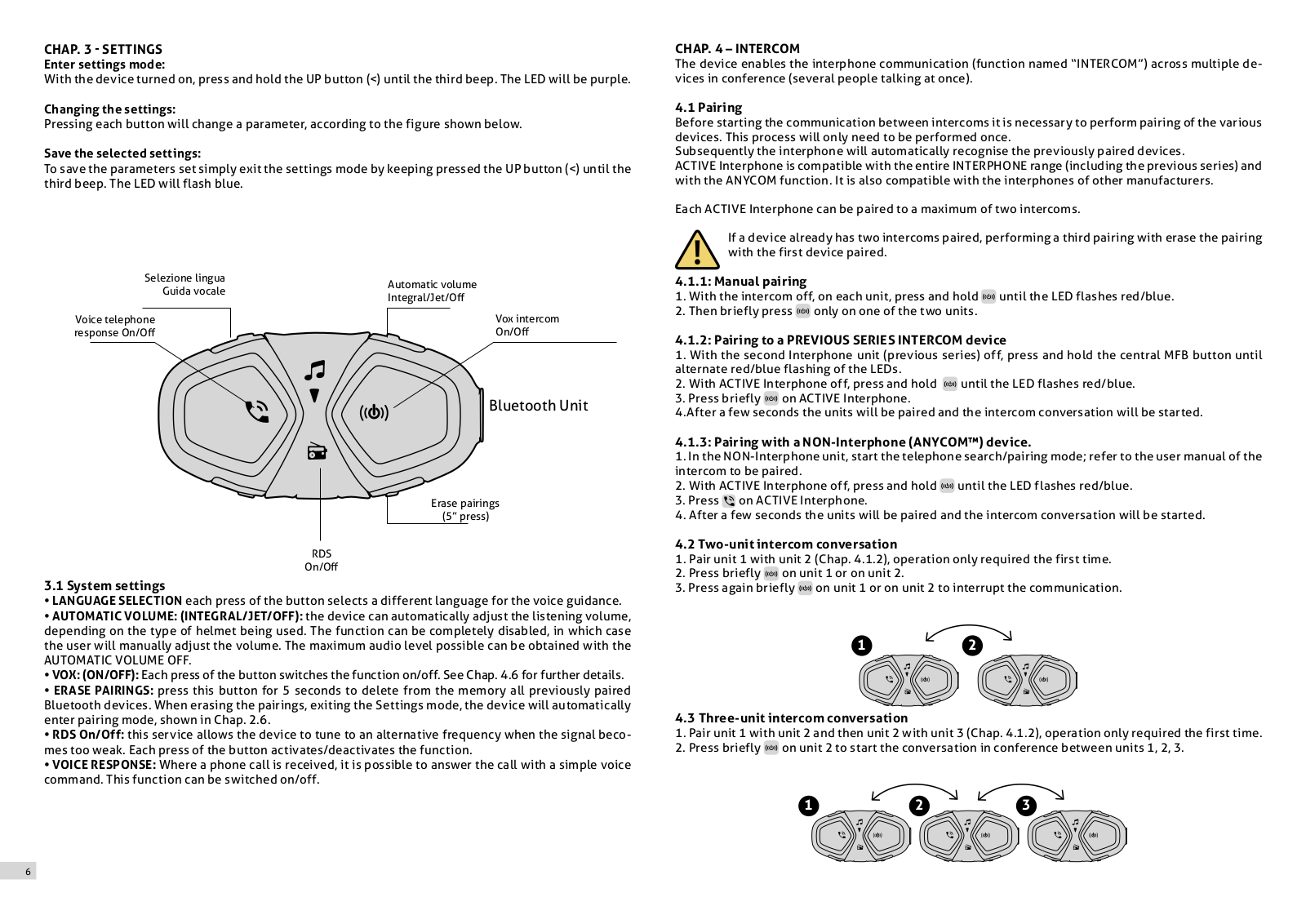

Chap. 3 - Settings |
6 |
3.1 System settings |
6 |
Chap. 4 – Intercom |
6 |
4.1 Pairing |
6 |
4.1.1: Manual pairing |
6 |
4.1.2: Pairing to a PREVIOUS SERIES INTERCOM device |
6 |
4.1.3: Pairing with a NON-Interphone (ANYCOM™) device |
6 |
4.2 Two-unit intercom conversation |
6 |
4.3 Three-unit intercom conversation |
6 |

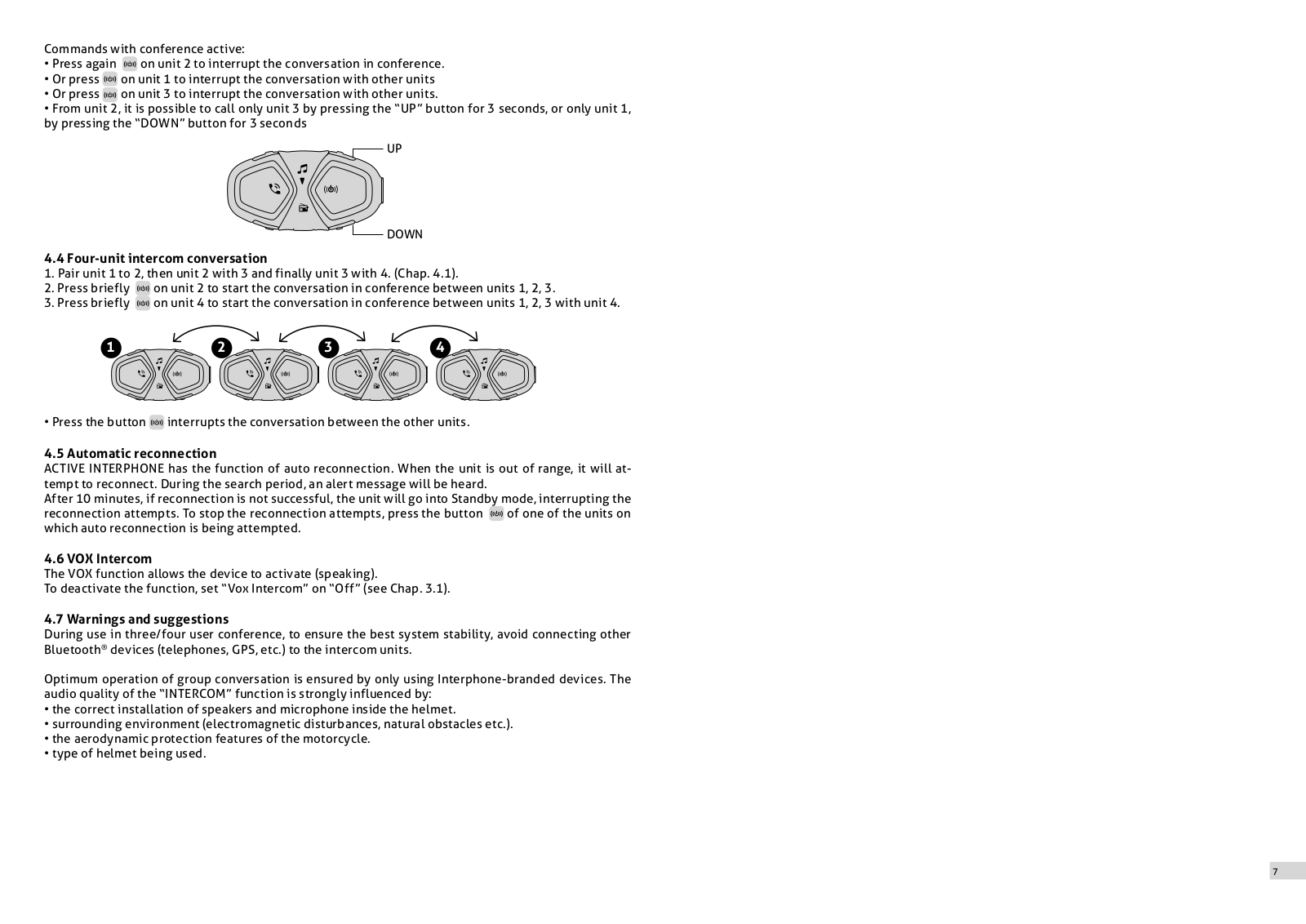

4.4 Four-unit intercom conversation |
7 |
4.5 Automatic reconnection |
7 |
4.6 VOX Intercom |
7 |
4.7 Warnings and suggestions |
7 |

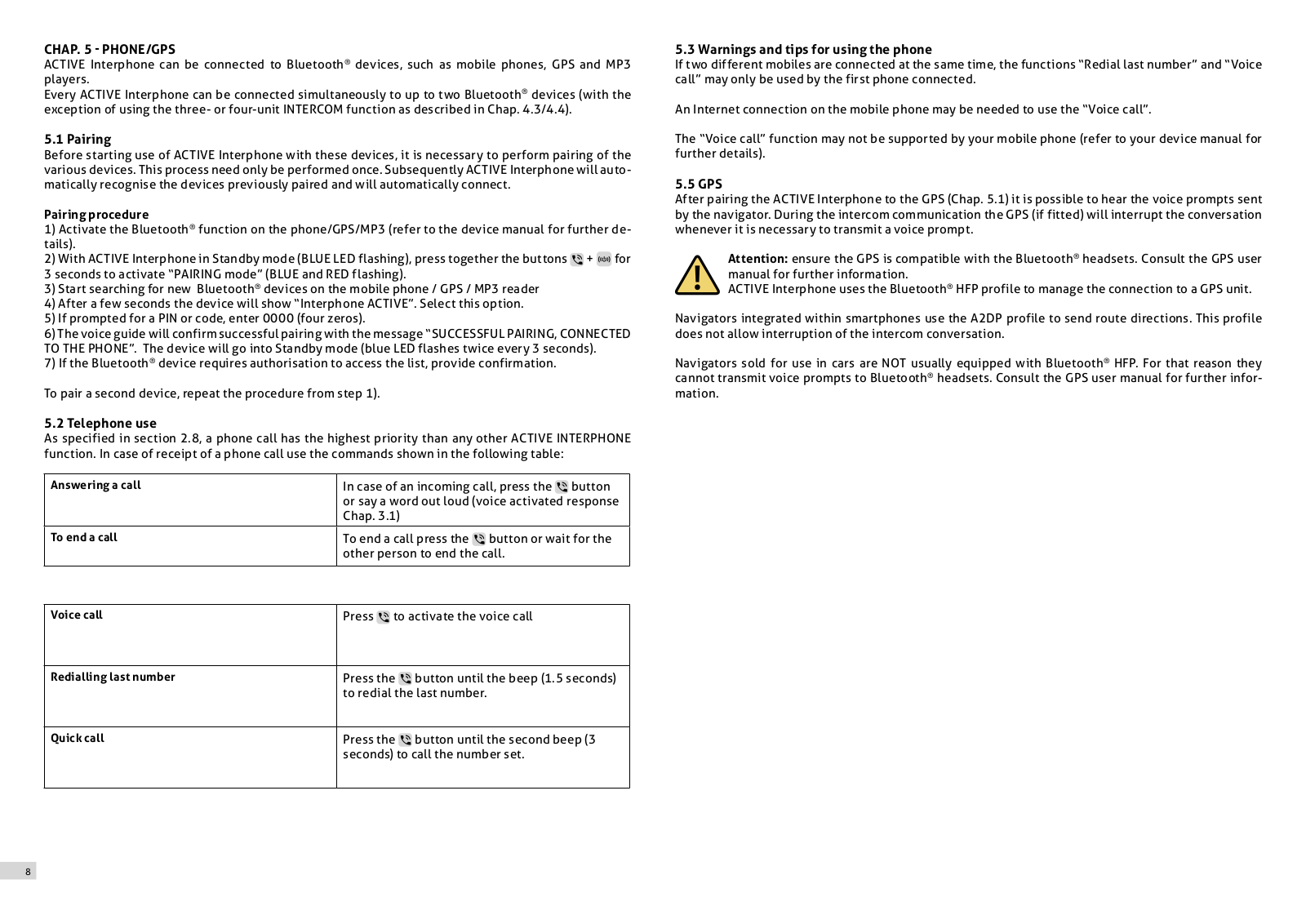

Chap. 5 - Phone/GPS |
8 |
5.1 Pairing |
8 |
5.2 Telephone use |
8 |
5.3 Warnings and tips for using the phone |
8 |
5.4 GPS |
8 |

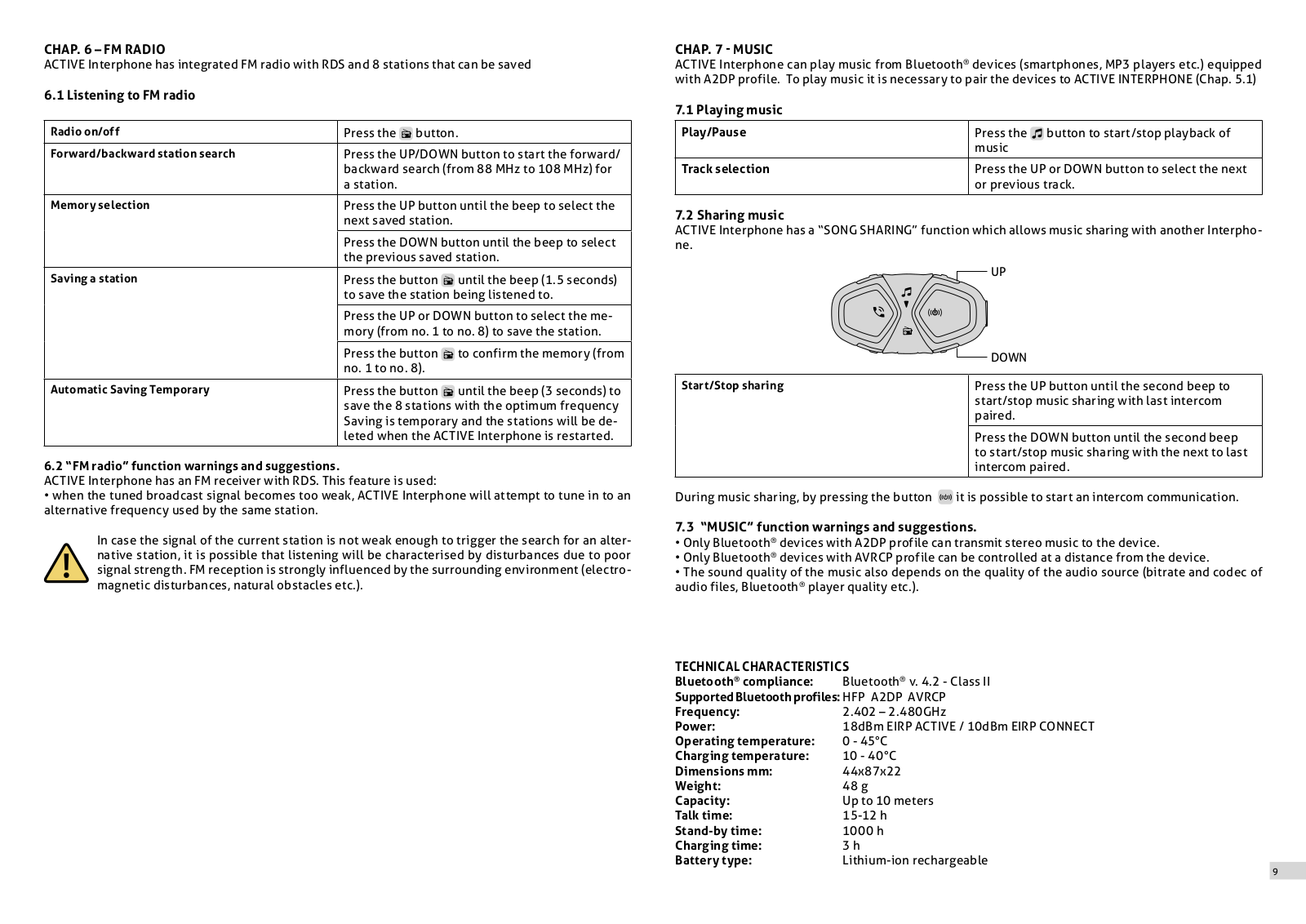

Chap. 6 – FM RADIO |
9 |
|
|
6.1 Listening to FM radio |
9 |
6.2 “FM radio” function warnings and suggestions |
9 |
Chap. 7 - Music |
9 |
|
|
7.1 Playing music |
9 |
7.2 Sharing music |
9 |
7.3 “MUSIC” function warnings and suggestions |
9 |
2
CHAP. 1 - INTRODUCTION
1.1 Presentation
Thank you for choosing this product. ACTIVE Interphone is a Bluetooth® helmet device for wireless entertainment and communication between multiple motorcyclists.
ACTIVE Interphone can be installed on most helmets with a quick attachment/detachment bracket. ACTIVE Interphone is certified to withstand harsh weather, with “IP67” protection level.
1.2Warnings
BATTERY
Fully charge the battery before using the product for the first time.
Do not store the Product without charging it. Failure to do so may cause irreversible damage to the battery capacity. Charge the battery every TWO months.
IMPERMEABILITY
The external unit (control unit), connected to the audio kit, is classified IP67 according to the IEC60529 standard. The control unit, connected to the audio kit, can therefore be immersed in a metre of fresh water for a maximum of 30 (thirty) minutes.
Despite this classification, the device is not immune to greater stress, such as prolonged immersions or high pressure water jets.
Using the product during intense meteorological phenomena, at high speeds, may be equivalent to subjecting the product to a high pressure jet.
FOLLOW ALL SUGGESTIONS CAREFULLY TO AVOID DAMAGING THE DEVICE:
Do not immerse the product in fresh water which is more than a metre deep for more than 30 minutes. Do not store the product when still wet: dry it with a clean, soft cloth. Dry any water or moisture present in the connector of the control unit and/or audio kit with hot air for at least 10 minutes, so as to prevent the oxidation of the contacts.
Do not expose the product to salt water or ionised water, drinks or other liquids. If the device is exposed to liquids other than fresh water, wash the device with cold fresh water and dry it carefully with a clean, soft cloth.
Do not expose the product to high pressure water jets.
Make sure that the audio kit connector is completely inserted in the control unit. If not, complete protection against water and dust is not guaranteed.
1.3Main specifications
•Intercom: ACTIVE Interphone allows communication between two motorcyclists of up to a maximum distance of 1 km (in open field). The communication between three or four motorcyclists in conference is also possible.
•Telephone/GPS: ACTIVE Interphone can be connected simultaneously to a maximum of two devices (mobile phone/GPS navigators).
•Radio FM: ACTIVE Interphone has an integrated FM-RDS receiver for the 88-108 MHz band. It is possible to store up to 8 stations.
•Music: ACTIVE Interphone can play music from Bluetooth® devices, through A2DP and AVRCP profiles (smartphones, MP3 player etc.).
•Quick touch™: ACTIVE Interphone features a Quick touch™ interface consisting of four keys for direct access to the functions. The single pressing of a button will activate the corresponding function, quickly and intuitively, without the need for a menu.
1.4 Package contents
Speaker kit
Microphone for flip-up/jet
USB cable for charging and data
Adhesive bracket |
Clamp bracket |
Velcro and spare sponges
X 2
QUICK GUIDE
CHECK FOR SOFTWARE UPDATES ON WEBSITE
www.interphone.com
In the dual version, the material shown in the red box is present in the quantities of two pieces for each component.
3
