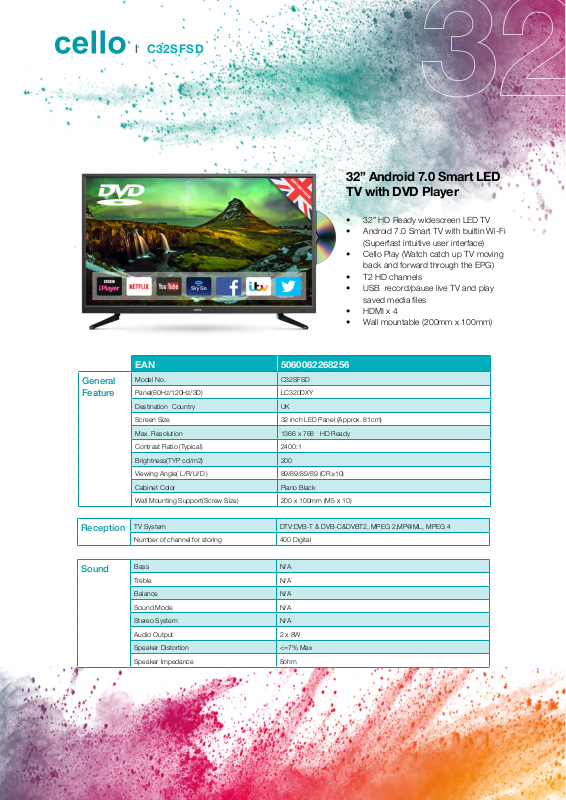

Cello Consignment C32SFSD Product Data Sheet
l C32SFSD
32” Android 7.0 Smart LED
TV with DVD Player
• 32” HD Ready widescreen LED TV
• Android 7.0 Smart TV with builtin Wi-Fi
(Superfast intuitive user interface)
• Cello Play (Watch catch up TV moving
back and forward through the EPG)
• T2 HD channels
• USB record/pause live TV and play
saved media les
• HDMI x 4
• Wall mountable (200mm x 100mm)
General
Feature
Reception
Sound
EAN 5060062268256
Model No. C32SFSD
Panel(60Hz/120Hz/3D) LC320DXY
Destination Country UK
Screen Size 32 inch LED Panel (Approx. 81cm)
Max. Resolution 1366 x 768 HD Ready
Contrast Ratio (Typical) 2400:1
Brightness(TYP cd/m2) 200
Viewing Angle( L/R/U/D ) 89/89/89/89 (CR≥10)
Cabinet Color Piano Black
Wall Mounting Support(Screw Size) 200 x 100mm (M5 x 10)
TV System DTV:DVB-T & DVB-C&DVBT2, MPEG 2,MP@ML, MPEG 4
Number of channel for storing 400 Digital
Bass N/A
Treble N/A
Balance N/A
Sound Mode N/A
Stereo System N/A
Audio Output 2 x 8W
Speaker Distortion <=7% Max
Speaker Impedance 8ohm
l C32SFSD
Connectors
Jack
Android
RF Antenna 1
HDMI YES x 4 (ver2.0)
CVBS N/A
PC In N/A
Audio In N/A
Scart N/A
YPbPr N/A
Digital Audio out YES × 1
Earphone Out YES × 1
USB YES × 2 (Multi Media & Wireless Mouse and Keyboard)
CI N/A
RCA YES × 1
RJ45 YES × 1
Micro SD card YES × 1
SOC AMLogic 962, ARM Cortex A53 quad core CPU @1.5GHz
RAM 1GB DDR4
GPU 5 core ARM Mali-450
Built-in Flash 8GB
Wi-Fi 802.11 b/g/n
OS Android 7
DVD
Other
Features
Power
DVD Loader FORYOU
DVD Solution MTK-MTK1389
DVD/DVD-R/DVD+R/DVD-RW/DVD+RW/
CD/MP3/JPEG playback
DVD Reverse Play YES
Skip Forward/Reverse YES
DVD Multi-Speed Scan/Slow YES
Slot-Load Type Vertical Play DVD
Mechanism
APS DVBT, DVBC storage in capture order
OSD Language English, Deutsch, Francais, Espanol, Portugese, Italian.
EPG (Electronic Program Guide) 7 days
Automatic Tuning YES
Wi on Android YES
Hotel Mode N/A
Power Supply AC 100V-240V~ 50Hz/60Hz
Operation Power Consumption 34W
KWh/annum 50kWh
Max power Consumption 60W
Standby Power Consumption <0.5W
Energy Eciency Class A
YES
YES
Accessories
Dimension
Specications correct at time of
publication, subject to minor change
QSG YES x 1
Remote Control YES x 1
Power Cable YES x 1
Warranty YES x 1
Battery 1.5V (AAA)×2
Unit Dimension With Stand (W x D x H mm) 731 x 196 x 475
Unit Dimension Without Stand (W x D x H mm) 731 x 103 x 437
Weight of unit(kg) 5.5
