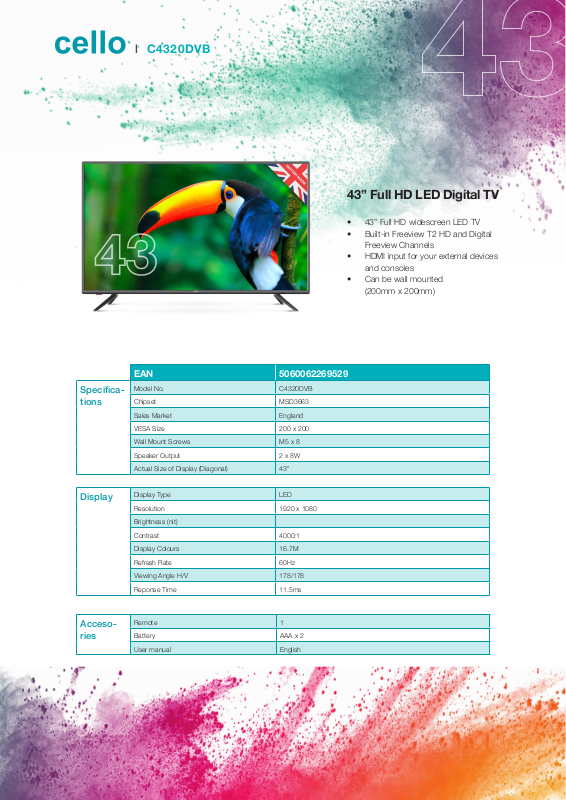

l C4320DVB
43” Full HD LED Digital TV
• 43” Full HD widescreen LED TV
• Built-in Freeview T2 HD and Digital
Freeview Channels
• HDMI input for your external devices
and consoles
• Can be wall mounted
(200mm x 200mm)
Specications
Display
Accesories
EAN 5060062269529
Model No. C4320DVB
Chipset MSD3663
Sales Market England
VESA Size 200 x 200
Wall Mount Screws M5 x 8
Speaker Output 2 x 8W
Actual Size of Display (Diagonal) 43”
Display Type LED
Resolution 1920 x 1080
Brightness (nit)
Contrast 4000:1
Display Colours 16.7M
Refresh Rate 60Hz
Viewing Angle H/V 178/178
Reponse Time 11.5ms
Remote 1
Battery AAA x 2
User manual English
Page 2
l C4320DVB
Terminals
Features
HDMI Input 3
RCA Component + AUDIO Input 1
RCA Composite + AUDIO Input 1
12-PIN VGA + AUDIO Input 1
RF Input 1
Optical Digital AUDIO Input 1
Coaxial Digital AUDIO Input 0
Analog AUDIO Output 0
3.5mm Headphone Output 1
DVD No
DVB-S Without
DVB-S2 Without
DVB-T+C With
DVB-T2+C With
CI With
3D Digital Comb Filter + 3D Noise Reduction
Automatic Volume Control Yes
Sleep Timer Yes
NO Signal Shut Down Yes
Adjustable Bass & Treble Controls Yes
Adjustable Balance Control Ye s
Picture Modes Standard/Dynamic/Soft/User
Preset Sound Modes Standard/Music/Movie/User
OSD Menu Language English/French/Spanish/Italy/Germany/Portugal
Aspect Ratio Modes Wide/Zoom/Cinema/Normal
PVR Function Recording standby, time-shift
Yes
EPG recording reservation
Power
Dimension
Specications correct at time of
publication, subject to minor change
Power Supply AC120-230,50-60Hz
Power Consumption 100W
Standby Consumption <0.5W
Unit Dimensions w Stand 971 x 210 x 609
Unit Dimensions w/o Stand 971 x 89 x 566
