Cello C3298DVB-IP User Manual

LCD digital colour TV

C3298DVB-IP

USER GUIDE

LCD Screen

Although the LCD screen is made with high-precision technology and

99.99% or more of the pixels are effective, black dots may appear or
bright points of light (red, blue or green) may appear constantly on the
LCD screen and is not a malfunction.

If you have any problem setting up this Television, trouble getting a
signal or difficulties with the operation of the Iplayer.
Please Contact our Helpline where we will be able to assist you.
Call 0871 288 7345

HELP

Unit and Accessories
Getting Started

Front View
Rear View

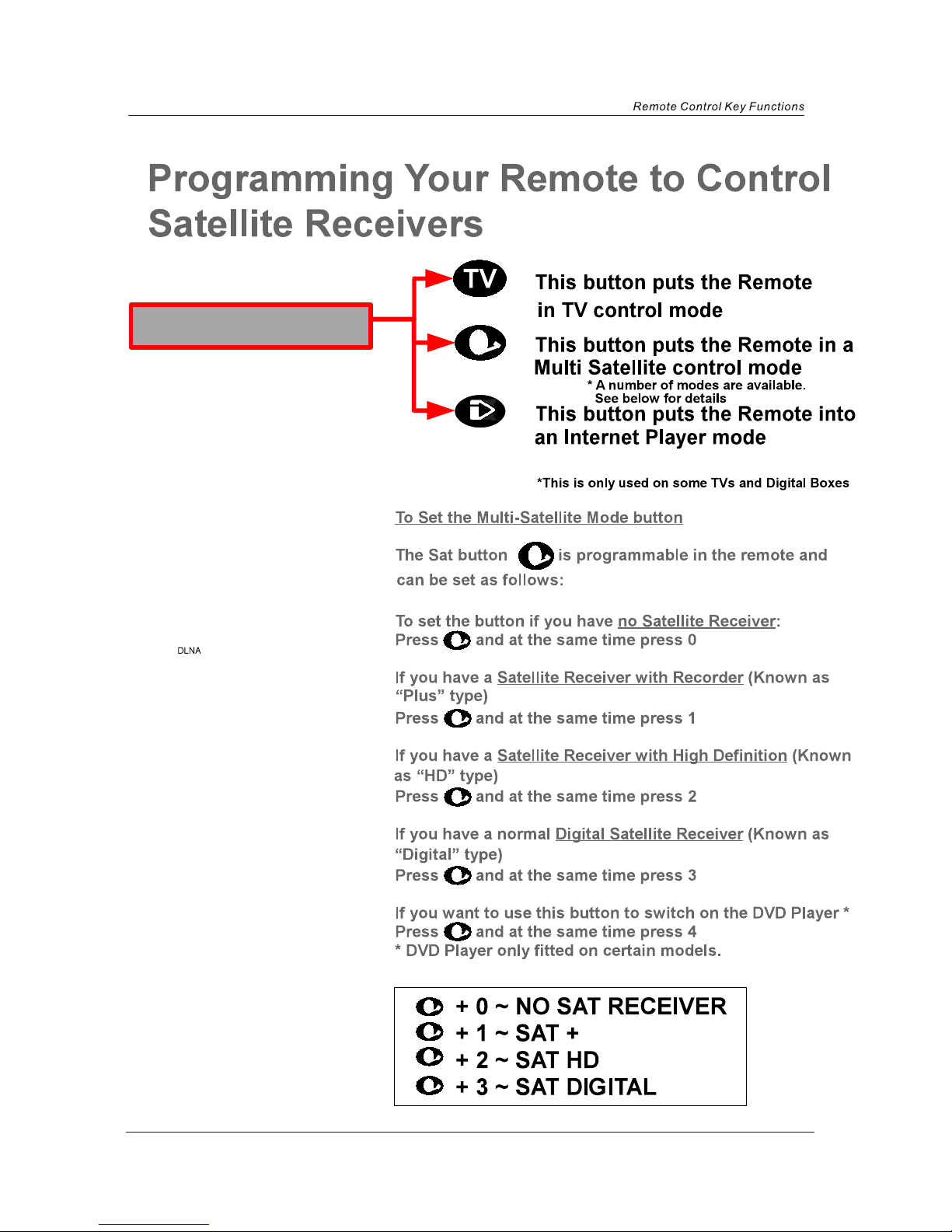

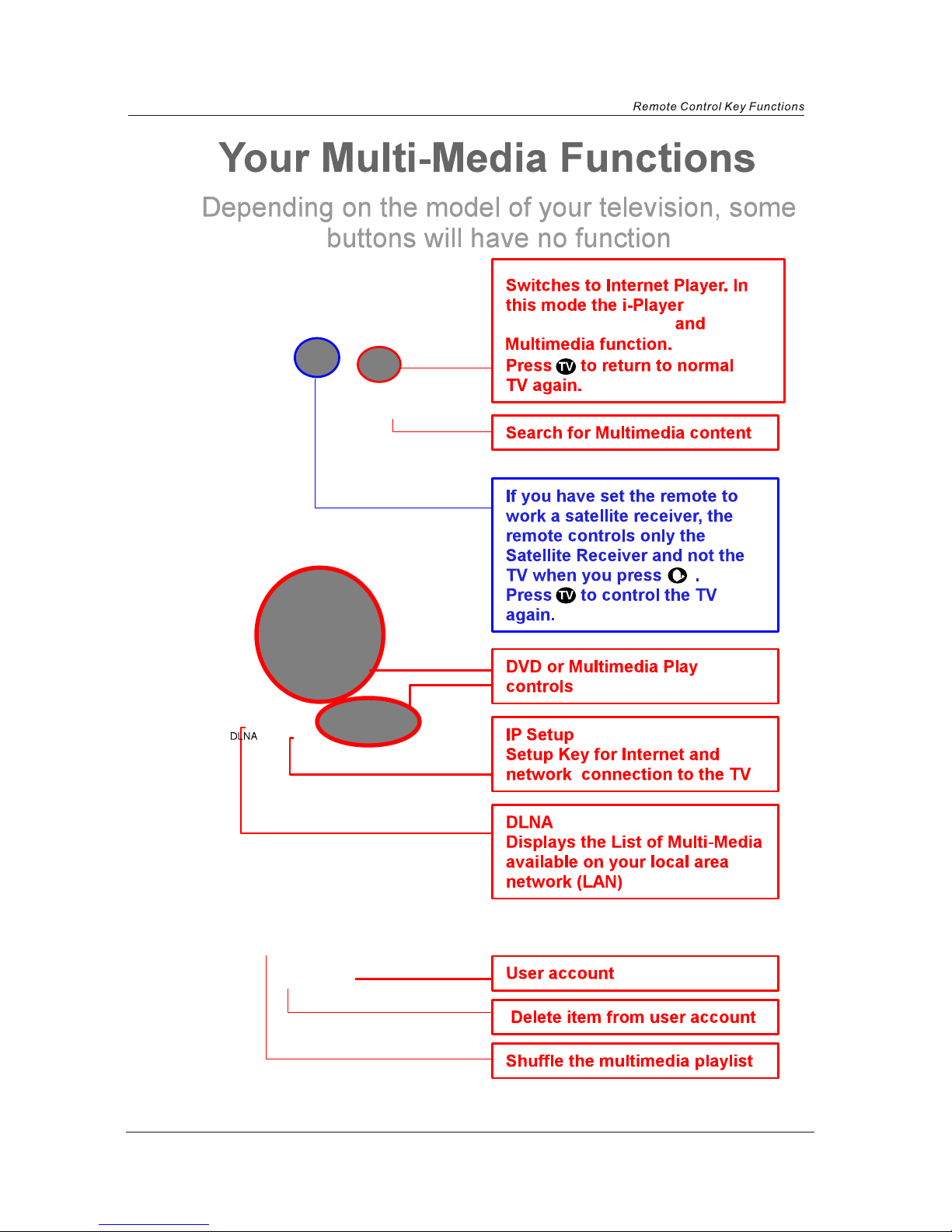

Remote Control Key Functions
Menu Operation

Basic TV operation
PICTURE menu options
SOUND menu options
TIMER menu options
FUNCTION menu options
SETUP menu options

3
4

4
5
6-8
9
9-10
11
12
12
13
14-15

SimpleTroubleshooting
Techincal Specifications

16
17

1
2

Caution
Safety Information

caution

Caution

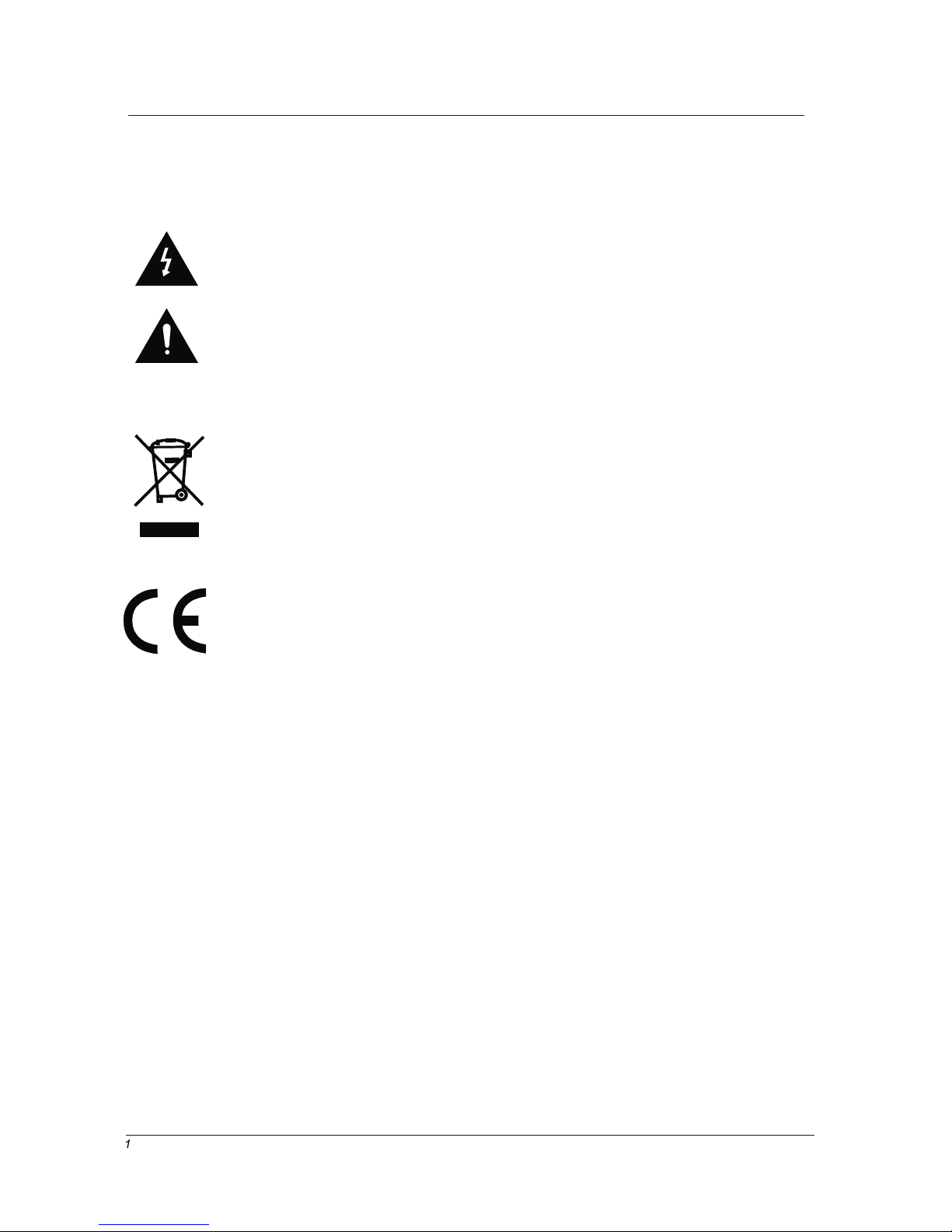

The lightening flash with arrowhead symbol, within an equilateral triangle is
intended to alert the user to the presence of un-insulated "dangerous voltage"
within the products enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to the persons.

The exclamation point within an equilateral triangle is intend to alert the user to
the presence of important operating and maintenance (servicing) instructions in
the literature accompanying the appliance.

Correct disposal of this Product

This appliance complies with European Safety and Electrical
directives

“Correct Disposal of Product”
Produced after 13 August 2005. Waste electrical should not be disposed of with
household waste. Please recycle where facilities exist. Check with your local
authority or retailer for recycling advice.
On 1st July 2007, The Waste Electrical and Electronic Equipment (WEEE)
Regulations were implemented in the UK in order to reduce the quantity of
electronic waste being sent to landfill and thereby protect our environment.

Safety Information

Safety Information

To ensure reliable and safe operation of this equipment, please read carefully all the
instructions in this user guide, especially the safety information below.

Electrical safety

x The TV set should only be connected to a mains supply which matches that stated on

the label on the mains adaptor

x To prevent overload, don't share the same mains supply socket with too many other

items of equipment.

- Do not place any connecting wires where they may be stepped on or tripped over.

- Do not place heavy items, which may damage the leads, on them.

- Hold the Mains plug, not the wires, when removing from a socket.

- During a thunderstorm or while leaving the TV for long periods, disconnect the
aerial (if outdoor) and mains adaptor from the supply.

- Do not allow water or moisture to enter the TV or mains adaptor. Do NOT use in
wet or moist areas such as Bathrooms, steamy kitchens or near swimming pools.

x Pull the plug out immediately, and seek professional help if:

- the mains plug or cable is damaged

- liquid is spilt onto the set, or if it is accidentally exposed to water or moisture

- anything accidentally penetrates the ventilation slots

- the set doesn't work normally.

- Do NOT remove the safety covers. There are no user serviceable parts inside. You
may invalidate the warranty. Qualified personnel must only service this apparatus.

- To avoid battery leakage, remove exhausted batteries from the remote control
handset, or when not using for a long period.

- Do NOT break open or throw exhausted batteries on a fire.

Physical safety

x Do NOT block ventilation slots in the back cover. You may place the TV in a cabinet,

but ensure at least 5cm (2") clearance all around.

x Do NOT tap or shake the TV screen, you may damage the internal circuits. Take good

care of the remote control, do not drop.

x To clean the TV use a soft dry cloth. Do NOT use solvents or petrol based fluids. For

stubborn stains, you may use a damp soft cloth with dilute detergent.

Unit and Accessories

Power cable RJ45 cable

Sky Remote User Guide

Sky Remote User Guide

Web TV user Guide

Web TV user Guide

EASY START GUIDE

EASY START GUIDE

USER GUIDE

USER GUIDE

Unit and Accessories

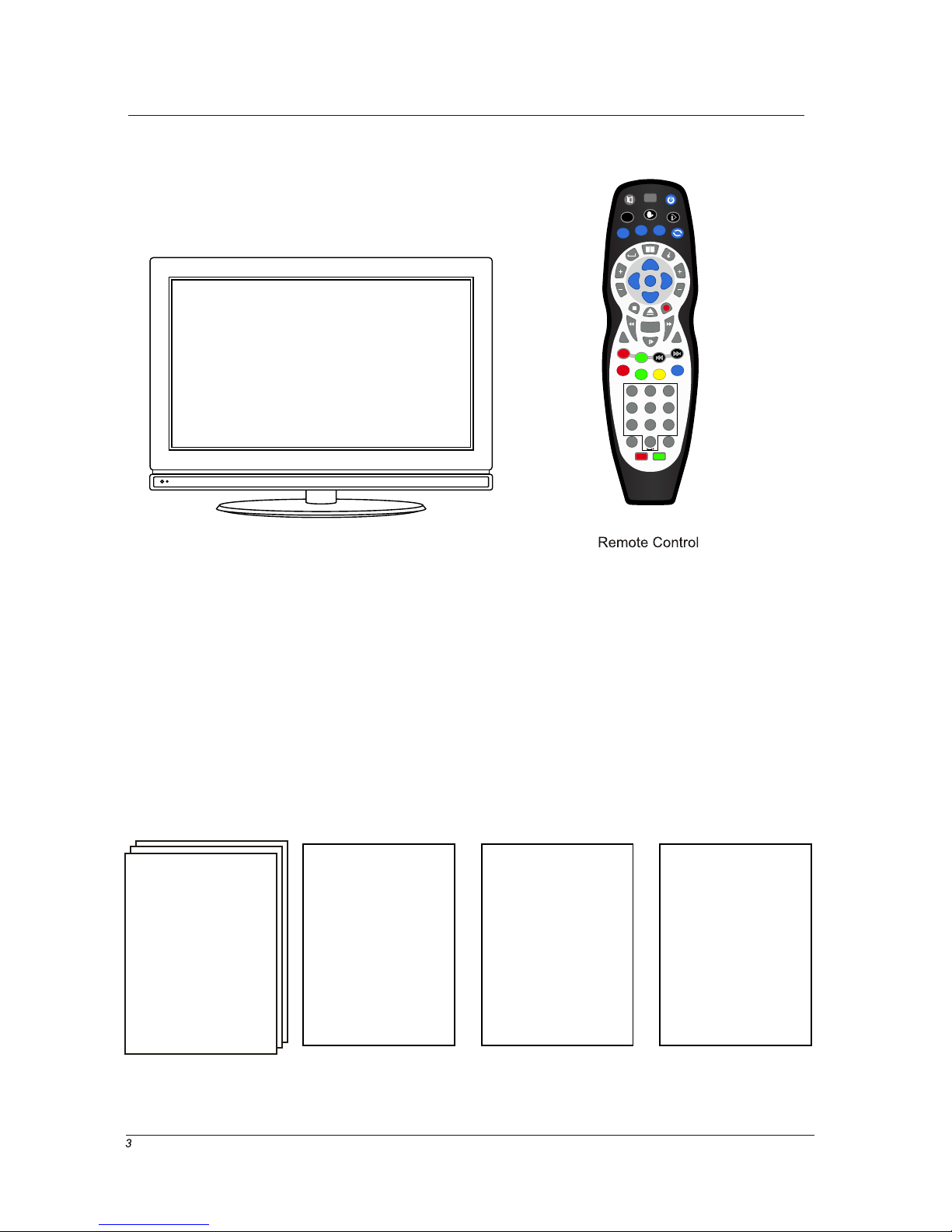

TV set

Batteries

Source

Menu

Help

Quick
Start

Guide

OK

Search

InfoExit

VOL


IP Setup

Sound

-Day

abc def

ghi jkl mno

pqrs tuv wxyz

+Day

CH

DVD
Menu

1 2 3
4 5 6

7 8 9

0

SUB TXT

SD1

IP

P S

TV

Delete User

RCC005

Shuffle Text

R

TV/Radio

I-Player

@

Getting Started

Getting Started

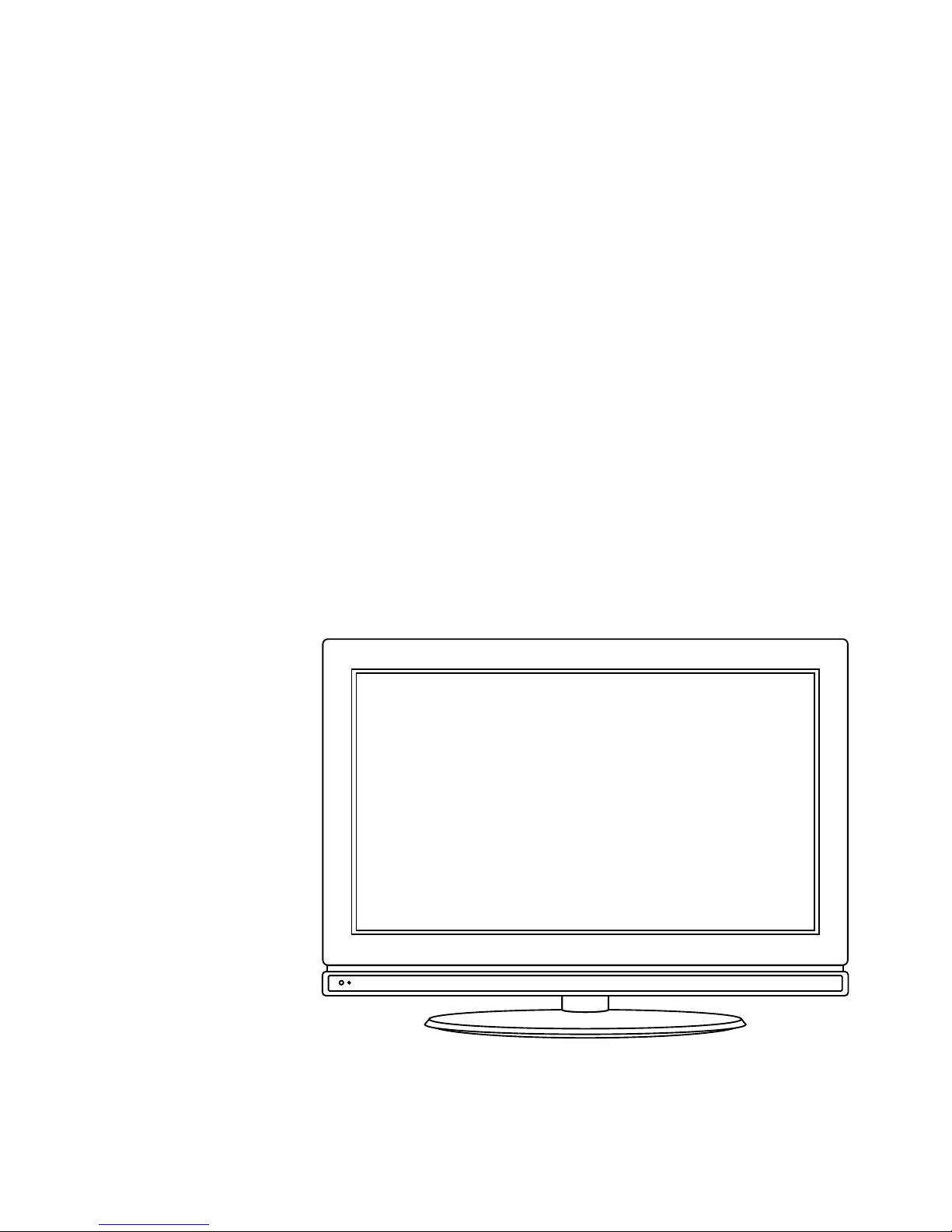

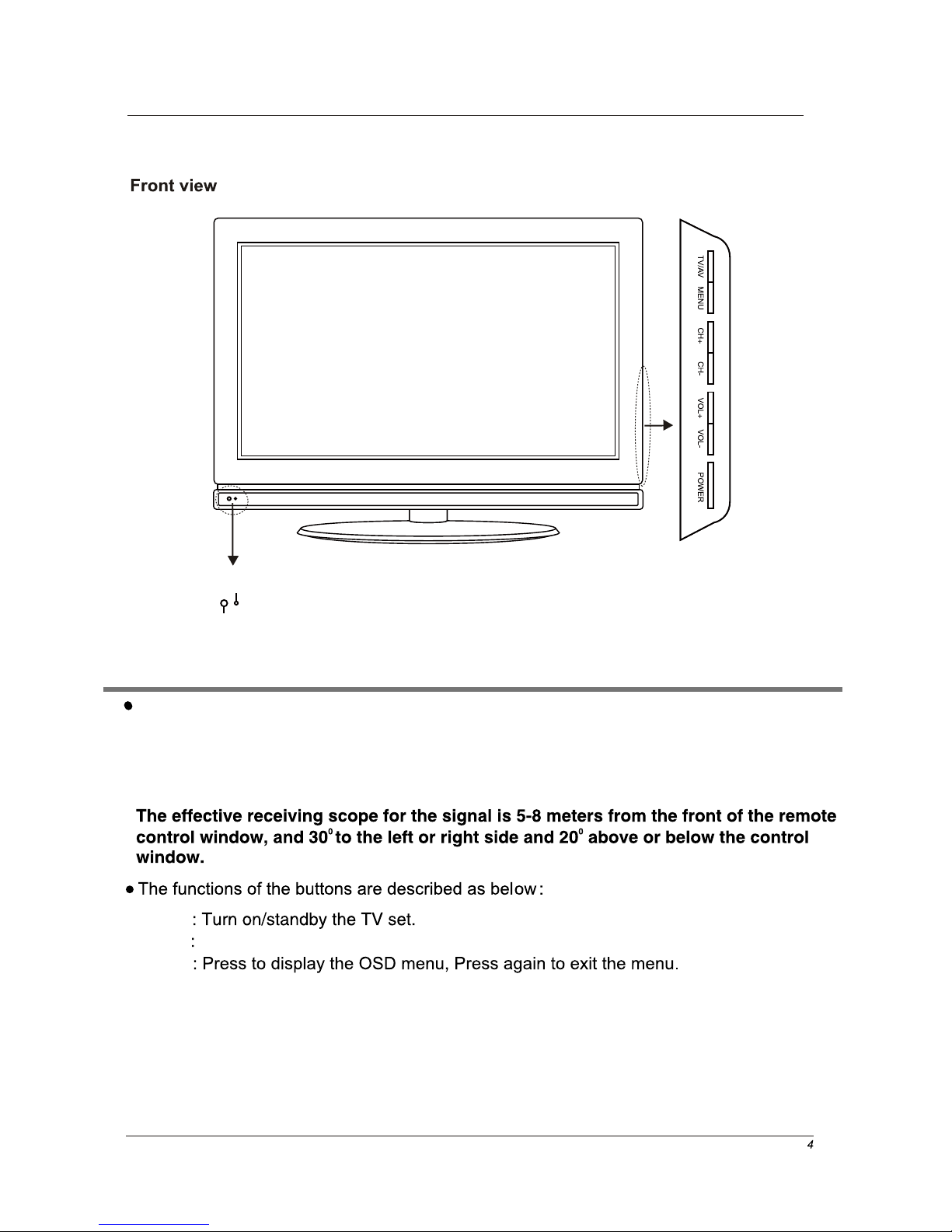

(IR) Infrared Receiver: Receives IR signals from the remote control.
(Power on/Standby) LED Indicator: Press POWER to turn on and off,

Indicator on(RED) Standby mode
Indicator on(GREEN) Power on mode

Power

MENU

TV/AV

Press to display the input source menu.

LED Indicator

Remote Control Window

CH+/- : press to increase (CH+) or decrease (CH-) channel number.
VOL+/-: press to increase (VOL+) or decrease (VOL-) the volume level.

5

Getting Started

- To turn on the LCD TV

Power on

Power off

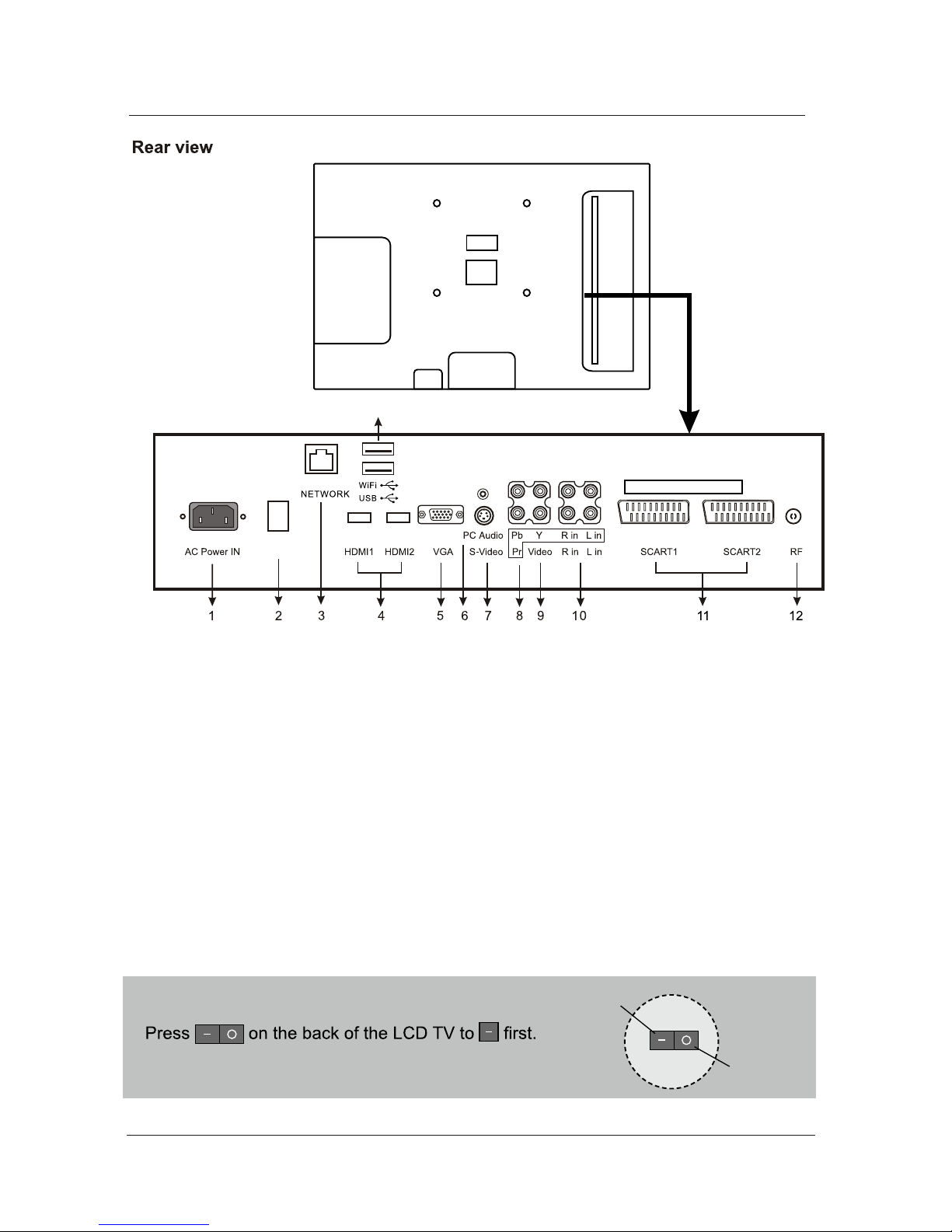

1. AC POWER INPUT: 100-240V AC 50/60Hz.

2. POWER SWITCH: Switch the power supply on/off.

3. NETWORK: Connect to network.

4. HDMI 1 / 2: (High definition multimedia interface) Connect to the HDMI output on external equipment.

5. VGA: (Video Graphics Adaptor) connect to the VGA on a PC to display PC graphics.

6. PC AUDIO: Connect PC audio cable for PC sound.

7. S-VIDEO: Connect to the S-Video output on external equipment.

8. YPbPr: Connect the cables to the YPbPr output of external equipment.
L/R in: Connect to the audio output of external equipment using YPbPr.

9. VIDEO (CVBS): Connect to the Video output of external equipment

10. L/R in: Connect to the audio output of external equipment.

11. SCART 1/2: Connect to scart connectors of dvd players or similar equipment.

12. RF: TV tuner input, 75Ω coaxial socket.

13. WiFi USB: Connect USB jack.

Common Interface

SWITCH

13

6

(see

separate handbook)

7

8

(separate handbook)

9

Menu Operation

1. Press VOL+/- to adjust the volume.

2. If you want to switch the sound OFF, press the MUTE

3. You can cancel this function by pressing MUTE or VOL+ button.

Basic TV operation

First time installation

NOTE: When you initially use the TV, you will see the “First Time Installation” menu as below:

TURN ON LCD TV

TURN OFF LCD TV

1.Connect power cable to mains supply and turn on the power by using the “ Switch” on the
left side of the set. The standby indicator on the front of the TV will light up in red.

2. Press the

POWER button on the right hand side of the TV or the button on the remote

control to turn on the TV, the indicator will light green.

Using the CH+/- on the front panel or on the remote control.

Press CH+ to increase channel number

Press CH- to decrease channel number.

1. Press the Power button on the right hand side of the TV or the button on the remote

control to turn the TV off into standby mode, the indicator will light red.

2. To turn off the TV completely, set the SWITCH on the left side of the TV to the position 0, the

indicator light will extinguish.

Ensure that the aerial is plugged in to the TV,
Make sure your Remote is in TV mode (by
pressing button), switch on the TV by
pressing . You will see the first time
installation menu.

Press the button on the remote control to
start the tuning procedure. This process will
find all available ATV and DTV channels and
store them.

By pressing the Quick Start button the first
time installation can be recalled at any time.

TV

10

Press the MENU button to display the main menu.
Use

/ buttons to select menu, and press button to enter the menu.

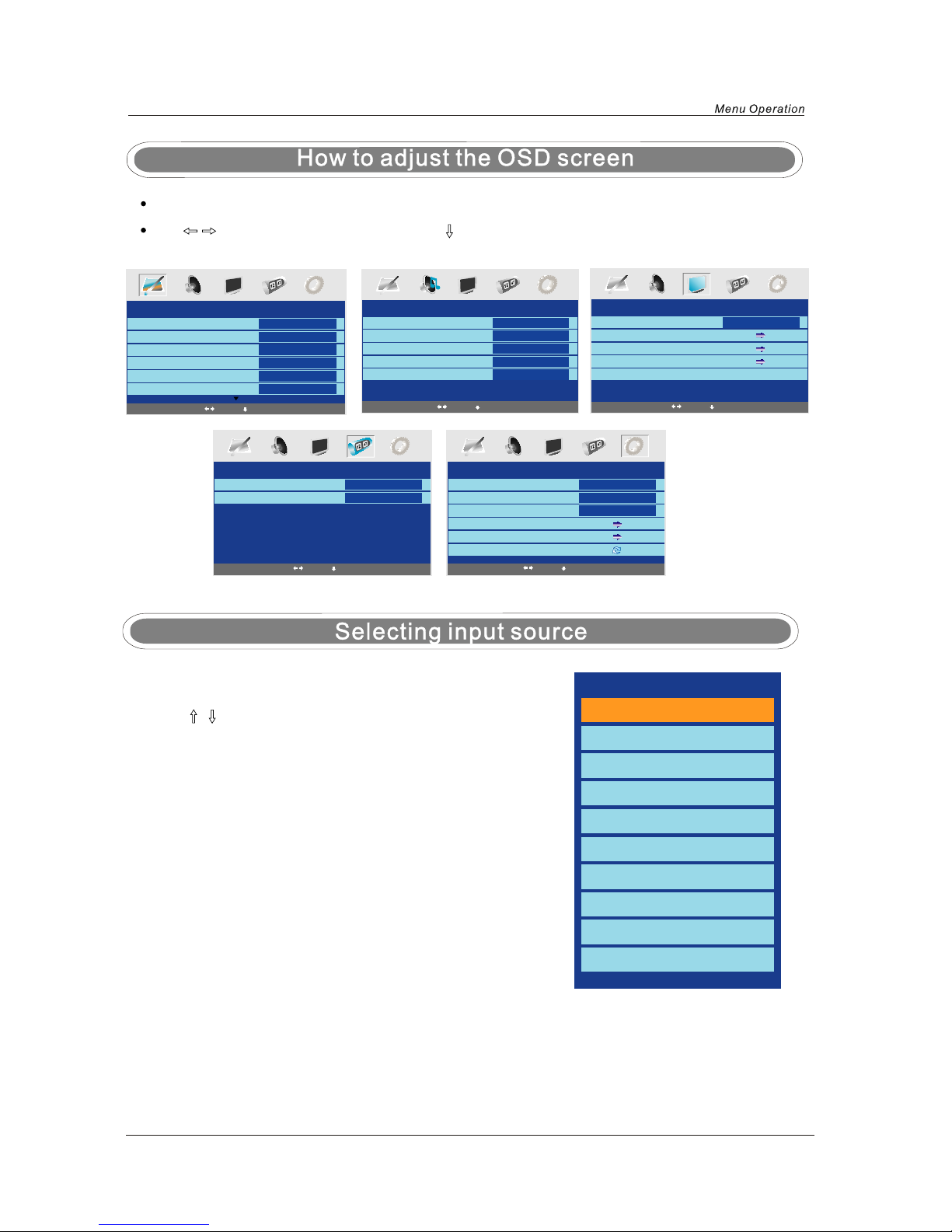

You can display the input source menu by pressing the Source
button on the remote control or the TV/AV button on the TV,
press

/ button

to select, and press OK button to confirm.

TIMER

Sleep Timer
OSD Timer

0 Min

30Sec

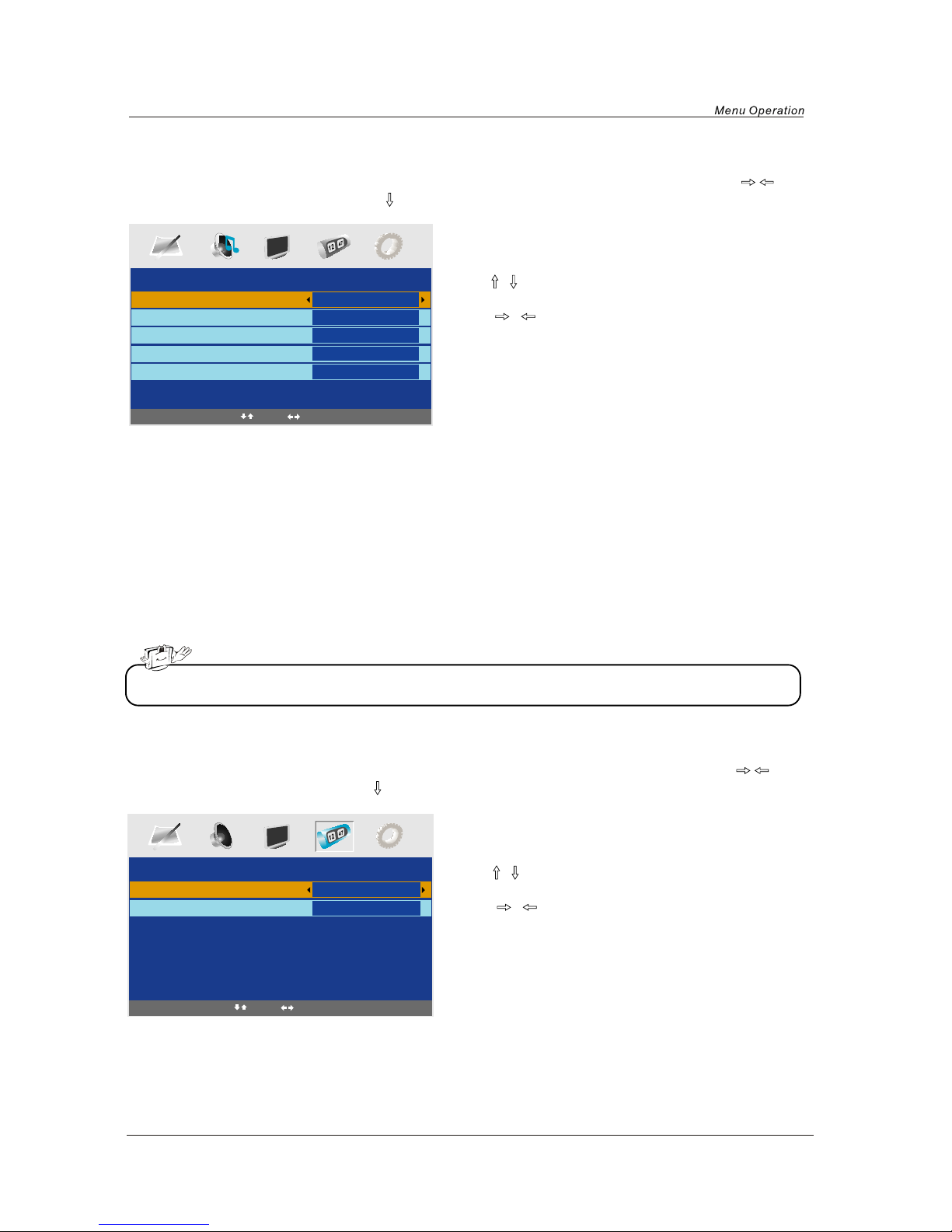

SOUND

Volume
Sound Mode
Bass
Treble
Balance

20

Music

60
52
50

SETUP

Country
Auto tuning
Manual tuning
Program Edit
Common interface

UK

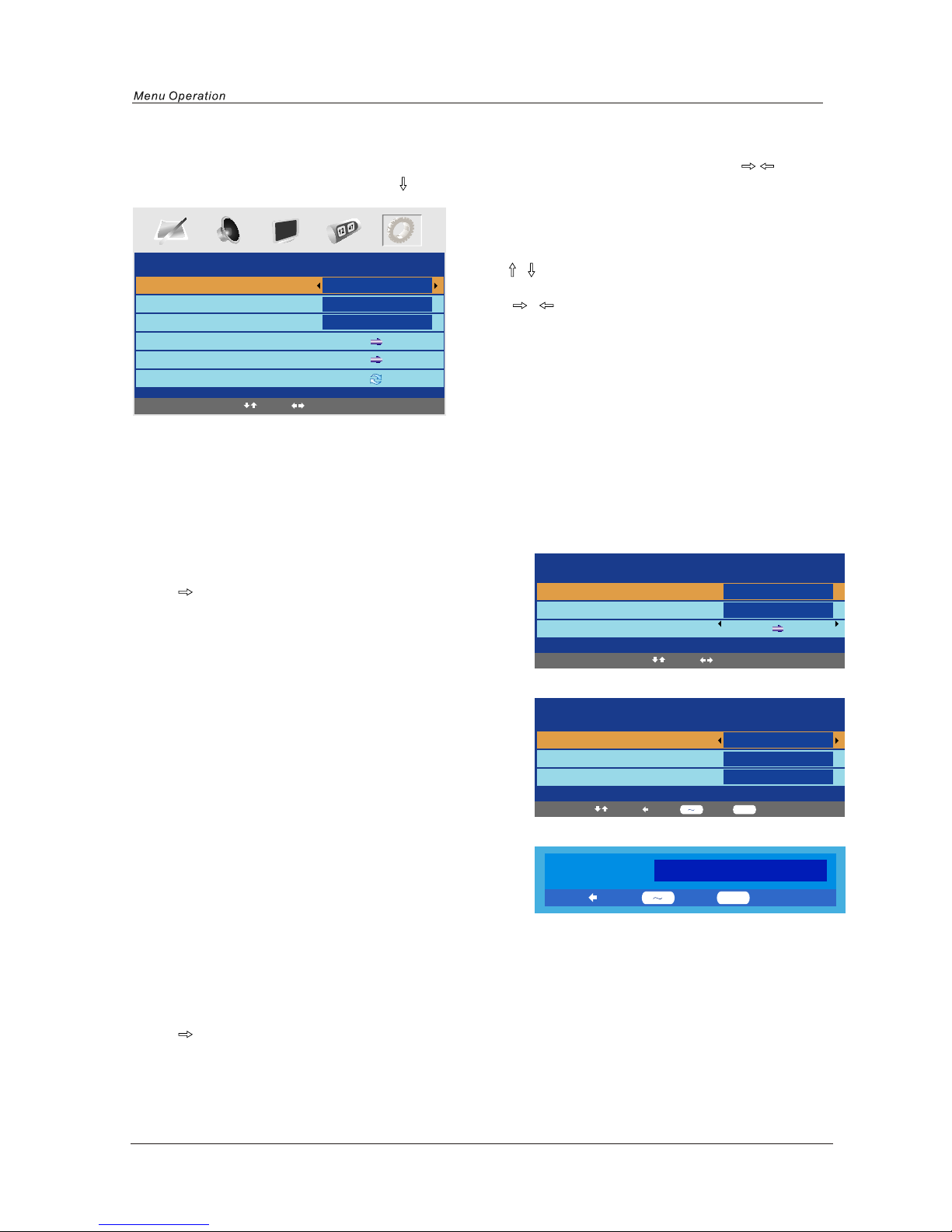

FUNCTION

Language
Video Size
Blue Screen
Child Lock
First Time Installation
Reset

English

Auto

On

Select

Enter

Select

Enter

Select

Enter

Select

Enter


Picture Mode
Contrast
Brightness
Color
Sharpness

Personal

50
50
50

Normal

Colour temperature

Normal

Select

Enter

TV
SCART1
SCART2
CVBS
S-VIDEO
YPbPr
VGA
HDMI1
HDMI2

DTV

11

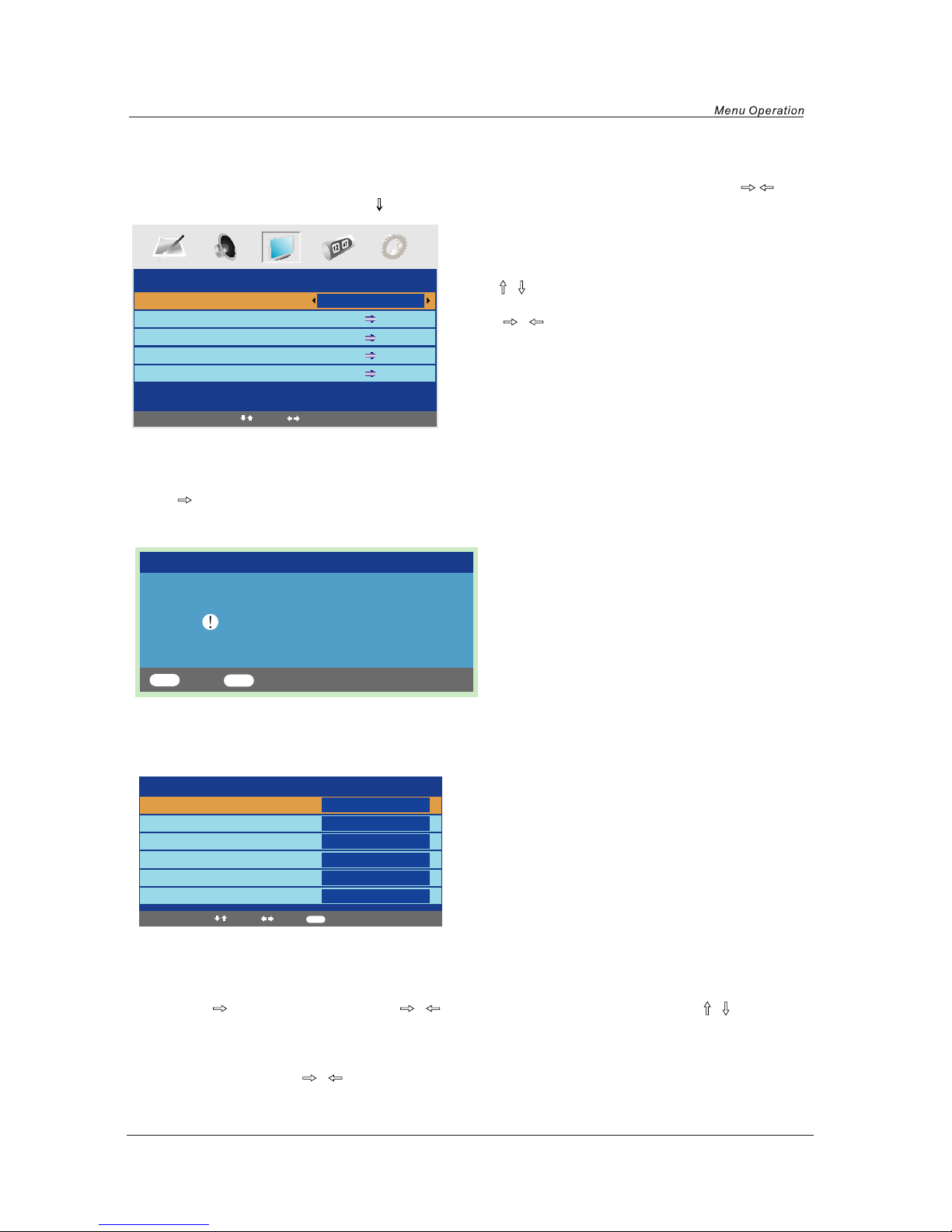

1. Use / button to select what you want to
adjust in the Picture menu.

2. Press

/ button to Adjust.

3. When you are satisfied with your adjustment, press

MENU button.

Picture Mode

Select the type of picture which best corresponds to your viewing requirements by selecting Picture Mode in
Picture menu. You may select the picture mode directly by pressing the PICTURE button on the remote
control.

Contrast

Adjust the contrast of the picture.

Brightness

Adjust the brightness of the picture.

Colour

Adjust the colour of the picture.

NOTE: This option is invalid in PC mode, and it will be shown in gray.

Sharpness

Select sharpness mode of the picture.

Colour Temperature(in VGA mode)

Select an optimum color temperature mode to suit your eyes for viewing among Normal, Warm and Cold.

DNR

If the broadcast signal received is weak, you can select the DNR option to reduce the video noise level
between Off, Low, Mid and High.

In this manual, the OSD (On Screen Display) may be different from your TV's because it is just
example to help the TV operation.

PICTURE menu options


Picture Mode
Contrast
Brightness
Colour
Sharpness

Personal

50
50
50

Normal

Off

Normal

Normal

Select

Adjust

Colour temperature

DNR

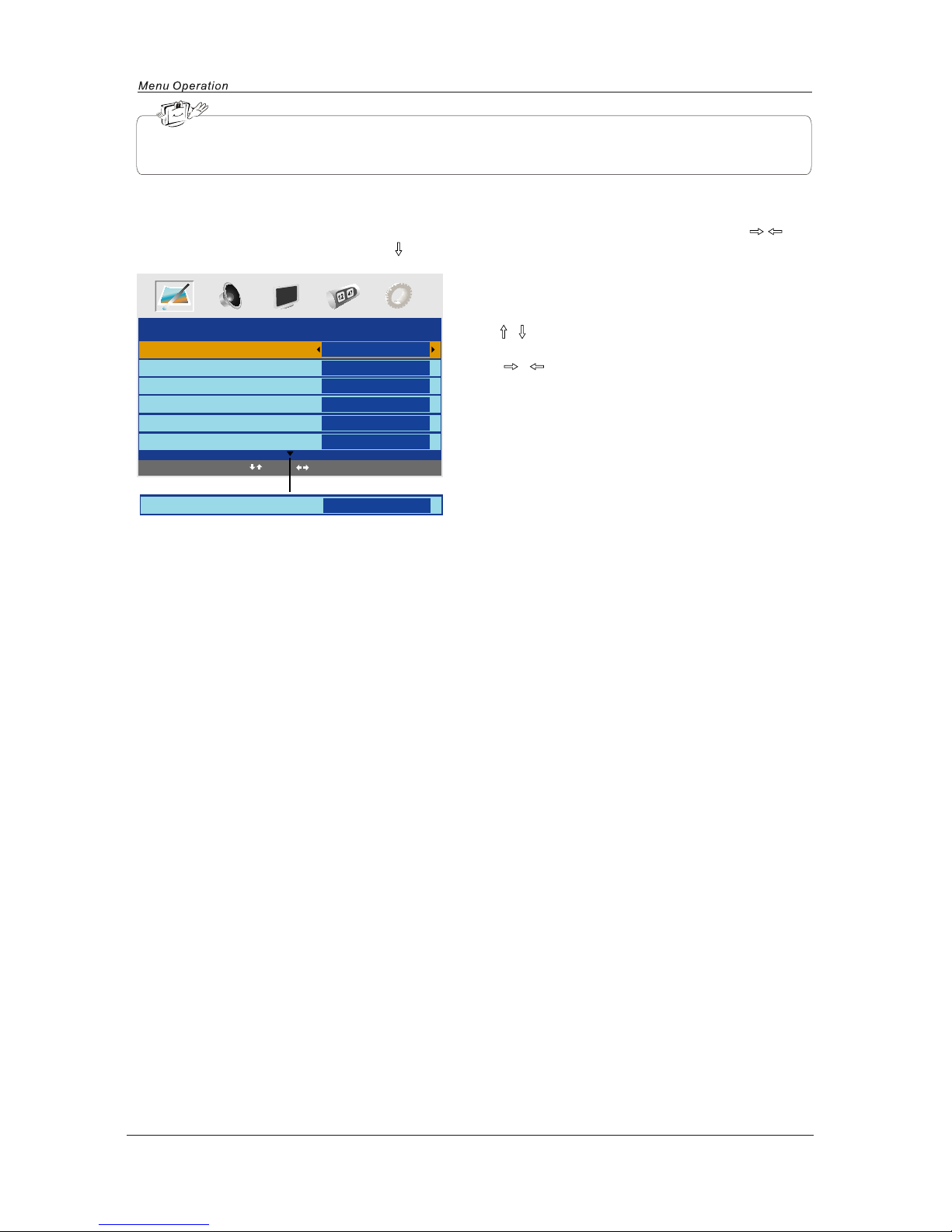

Press the MENU button on the right of your tv or the MENU button on the remote control then use /
button to select the picture menu, press to enter the menu. (see picture below).

12

1. Use / button to select what you want to
adjust in the Sound menu.

2. Press

/ button to Adjust.

3. When you are satisfied with your adjustment, press
MENU button.

1. Use

/ button to select what you want to

adjust in the Timer menu.

2. Press

/ button to Adjust.

3. When you are satisfied with your adjustment, press

MENU button.

Volume

Adjust the volume.

Sound Mode

Select the type of sound which best corresponds to your listening requirements by selecting Sound
Mode in Sound menu. You may select the Sound mode directly by pressing the SOUND button on
the remote control.

Bass

Adjust the level of the lower-pitched sounds.

Treble

Adjust the level of the higher-pitched sounds.

Balance

Adjust the audio output between left and right speakers.

Sleep Timer

Select the sleep time to put automatically the TV in standby mode. Timer can be selected as 15,30,45,60,
75,90,105,120 and 0 Min(Off). You may select the sleep time by pressing SLEEP repeatedly.

OSD Timer

You can select the time when the OSD display on the screen such as: 5Sec,10Sec,15Sec,20Sec,25Sec,
30Sec.

SOUND menu options

TIMER menu options

SOUND

Volume
Sound Mode
Bass
Treble
Balance

20

Music

60
52
50

TIMER

Sleep Timer
OSD Timer

0 Min

30Sec

Select

Adjust

Select

Adjust

NOTE: The Treble and bass levels can only be adjusted when the sound setting Personal is selected.

Press the MENU button on the right of your tv or the MENU button on the remote control then use /
button to select the sound menu, press to enter the menu. (see picture below).

Press the MENU button on the right of your tv or the MENU button on the remote control then use

/

button to select the Timer menu, press to enter the menu. (see picture below).

13

FUNCTION

Language
Video Size
Blue Screen
Child Lock
First Time Installation
Reset

English

Full Screen

On

1. Use / button to select what you want to
adjust in the Function menu.

2. Press

/ button to Adjust.

3. When you are satisfied with your adjustment, press

MENU button.

Language

Select the language of the OSD menu.

Video Size

Select the screen display mode.
Note: The available aspect modes may differ from one input source to another.

Blue Screen

To turn on/off the function, when the function is turned on, the screen background will turn blue at very weak
or no signal condition.

Child Lock

Press

button to enter the Child Lock menu as below:
Child Lock: Turn on/off the child lock function.
Key Lock: This option allows you to lock the buttons on
the TV set, so that a child may not accidentally
change your viewing preferences.

Change PIN Code: Set pin code.

Old PIN Code: The default is no password, press

OK to confirm. If the Pin code has been changed you must
New PIN Code: Enter the new password.

Enter Again: Enter the new password and press

OK to complete the change.

FUNCTION menu options

Select

Adjust

Child Lock

Child Lock
Key Lock
Change PIN Code

Off
Off

Select

Adjust

Change PIN Code

Old PIN Code
New PIN Code
Enter Again

Select

Delete Input Confirm

0 9 OK

If you turn on the Child Lock function, and set the PIN
Code, you have to enter the program edit option in Menu Setup (page 14) to lock one or more channels.
If the quick start button is pressed you will also be prompted for the child lock Password.

Note: If the pin code is changed and the number forgotten or lost, please call the helpline.

Reset

Press

button to reset the setup.

Delete Input Enter

0 9 OK

PIN Code:

enter the present code.

Press the MENU button on the right of your tv or the MENU button on the remote control then use /
button to select the Function menu, press to enter the menu. (see picture below) .

14

1. Use / button to select what you want to
adjust in the Setup menu.

2. Press

/ button to Adjust.

3. When you are satisfied with your adjustment, press

MENU button.

Country

This option allows you to select the country.

Auto Tuning

Press

button to start auto tuning.

Note: Before you perform Auto Tuning, you must choose the country where you are by selecting
COUNTRY option.

Manual Tuning

Note: Before you perform Manual Tuning, you must choose the country where you are by selecting
Country option.

SETUP menu options

(used in TV/DTV source)

Manual Tuning

Program
Sound System
Colour System
Program Lable
AFT
Manual Search

99

I

PAL

Off

471.43MHz

Select

Adjust

Input

SETUP

Country
Auto Tuning
Manual Tuning
Program Edit
Common Interface

UK

Select

Adjust

Auto tuning

Press OK key to start

Enter

Return

OK

MENU

Program: Select the current channel.
Sound System: Select a corresponding sound system(In the UK select Pal I ).
Color System: Select a corresponding color system.
Program Label: Name the current channel, you can also rename the program which you have named.
Press

button to enter, and press / button to select the position, then press /

button or 0-9 button to enter the character, press OK button to confirm.
AFT: Due to weak signals or a wrong antenna configuration, some of the channels may not be turned
to the best reception condition. AFT function allows you to fine tune channel selected.
Manual Search: Press

/ button to search.

0-9

Manual Tuning in TV mode

Press the MENU button on the right of your tv or the MENU button on the remote control then use /
button to select the setup menu, press

to enter the menu. (see picture below).

15

Manual Tuning

Channel
Start Search

Service Found
Signal Quality
Signal Strength
Frequency

32

Begin

0
0%
0%

474.00MHz

Select

Enter

Channel: Select the current channel.
Start Search: press

button to begin searching, and it will display “Search”, after a few second,

it will display “Finished”.

Manual Tuning in DTV mode

Common interface(For DTV mode)

Please contact your "Pay per View" provider e.g. Setanta who can supply a viewing card and cam unit and
instructions for their use.

Program Edit

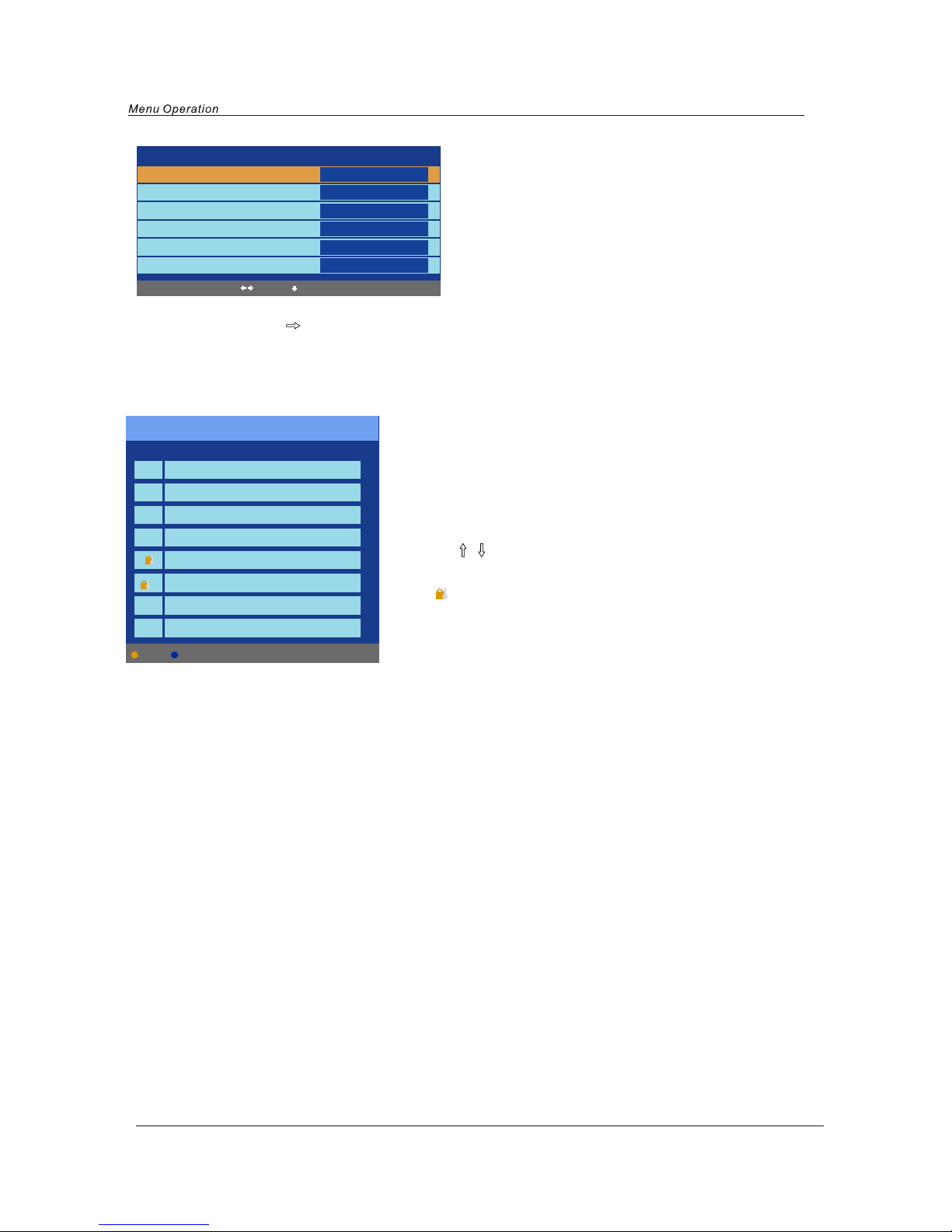

Channel list

Flags

X
X

X

X

X

1.BBC1

2.BBC2

3.ITV1

4.CHANNEL 4

5.FIVE

6. ITV2

7.BBC3

Delete Lock

Delete: Delete the channel, the channel will be deleted.
Lock: Lock the channel, you have to enter the code(PIN code in

Child Lock menu--Function menu) to view the channel.
Use

/ button to select the channel, and press the

blue button on the remote control to set, and there will be a
“ ” on the channel, press the blue button again to cancel.
Such as channel 5 and 6.

16

TSimple roubleshooting

Simple Troubleshooting

SYMPTOM REMEDY

GENERAL

Dead. No LED Lit No power to the TV.

Check all connections to the TV.

Dead Led lit red Set still in standby.

Press either the Power button or on the Remote
control.

No signal.

Blue screen.

Incorrect source
selected.

Press Source button to select correct source.

Noisy, snowy,
ghosting picture

(TV)

Poor aerial signal.

If using an indoor aerial, try moving the
aerial. Check aerial connections.

Volume set too low.

Check volume settings.

No sound

External leads not
connected "if used".

Check all external leads are connected.

Turn sound "Mute" OFF.

Sound "Mute".

If the display or performance fails check the TV in accordance with the following instructions. If the
TV still fails to function correctly contact your dealer for assistance.

Remote control does
not work

Remote are not in the
correct status

Ensure remote is in
TV mode by pressing
TV button.

17

Techincal Specifications

Techincal Specifications

AC 100-240V 50/60Hz 180WPowerConsumption

11.4kgWeight

TV

TVSystem PAL/SECAM, BG/DK/I
Screen size 32"(diagonal)
Resolution 1920x1080 pixels
Aerial input 75

(unbalanced)

Audio output power

Remote control

Type
Control distance
Control angle
Batteries
Dimensions
Weight

infrared
5m
30° (horizontal)
2 x 1.5 V, size AA
60 x 204 x 32mm
140g(without battery)

2x10 W

c

ustom

er service

T

e

l 0871 288 7345

Your Guarantee

Your Cello product* is covered by a guarantee for 2 years from the date

of purchase. TV’s with larger screens (26” or above) have a 5 year guarantee. In either
case, you should retain your till receipt in order to validate the date of purchase.

If you simply change your mind about your purchase we are happy to exchange or refund
items that still have their tamper proof seal intact, along with a receipt and within 35 days
of purchase.

Once the tamperproof seal on your technology product is broken, refunds can only be given
in accordance with your legal rights. Remember your legal rights do not extend to cover any
returns or refunds if you simply change your mind, or if you damage the goods after you
buy them.

If a fault develops during this period then please call our customer service centre on 0871
288 7345, who will advise you on the best course of action.This could be technical support

from our helpline, arranging for repair or outlining the process for returning the product.
Should a repair not be possible, we will exchange the product for new or nearest equivalent
product. In the unlikely event of being unable to exchange we will offer a full refund.

Should the advice be to return the product to one of our UK/Channel Island stores (excluding
Outlets and Simply Food Stores) then the helpline will also issue you with a “Returns
Authorisation Number” (RAN) to ensure a faster process once you are in store.

This Guarantee is only valid within the United Kingdom, Republic of Ireland and/or Channel
Islands. This warranty excludes faults caused by accident, neglect, misuse, not following the
instructions or normal wear and tear. This guarantee is in addition to your legal rights and
supersedes any guarantee or warranty that is with the product.

Guarantee does not apply to Software and technology accessories.
