Cello C16230F User Manual

LED

&)/('

7- 8

14-15

16-17

3 4 5 6

9 9

10 10

11

11 12 12

13

15 15 15 15

18 18 18

Channel Management Favorite Management

Country Auto Search DTV Manual Search ATV Manual Search

Feature Setting

Lock

Language

Clock

Sleep Time

Auto Standby

Hearing Impaired

CI Info

PVR/Time Shift

Setup Setting

OSD Time

PC Setup Blue Screen

Home Mode

Reset TV Setting

19

19 19 20 20 21 21

22 22 22 23 23 23 23 24 25

26 26 26 26 26 26

1

DVD Operation

Basic Operation

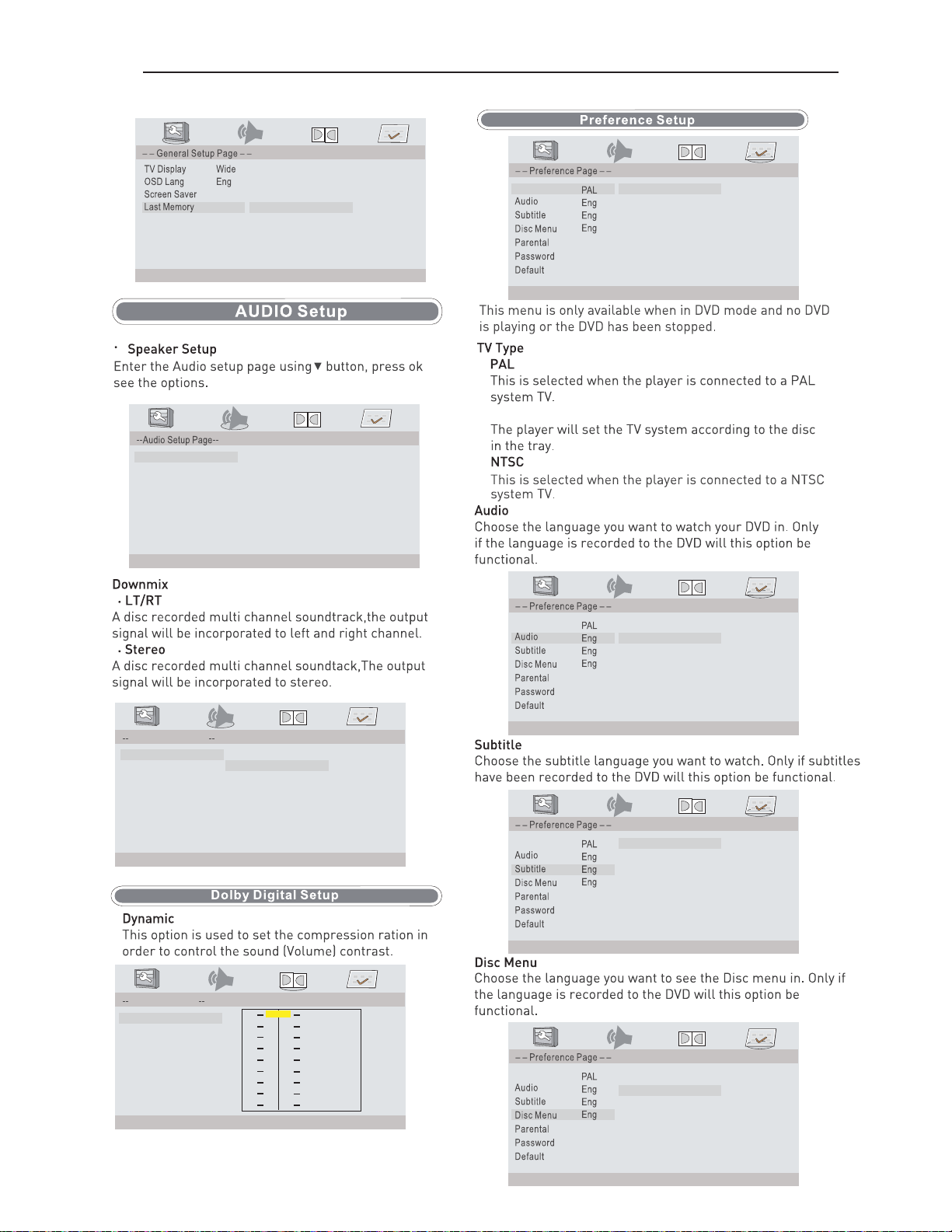

DVD Setup Menu Enter the DVD Setup Menu

General Setup Audio Setup

Dolby Digital Setup

Preference Setup Disc Care

27 27 27 27

27-28

28 28

28-29

29

30 30 31 31 31 31

32

33 33-34 34-35

35

36

37

38

39

39-40

41

42

43-44

45

2

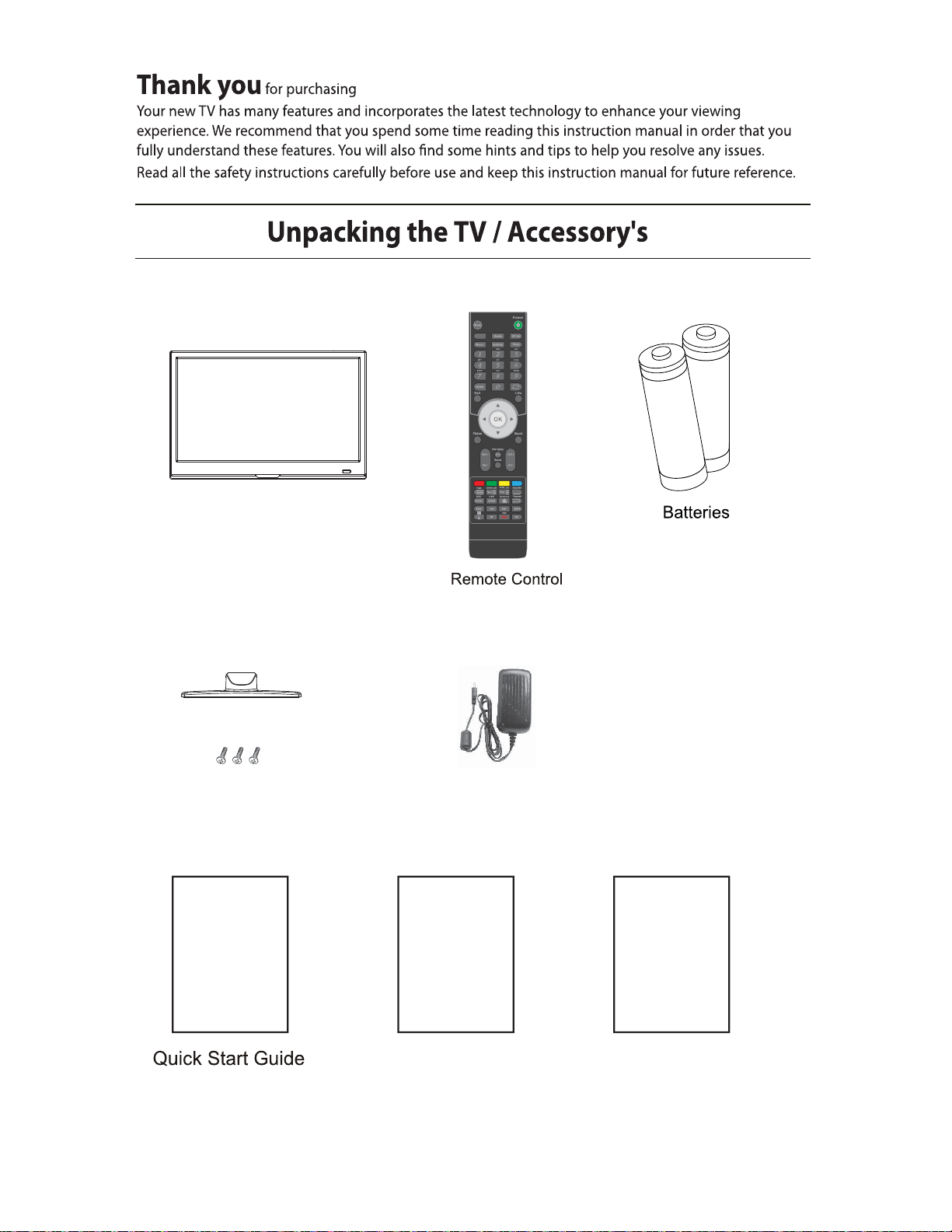

TV set

your new

16"

HD LED TV.

SaorView

FreeView

Stand

Stand fixing screws

QUICK START GUIDE

Adapter

WARRANTY CARD

Warranty Card

Gold Care

3

LED

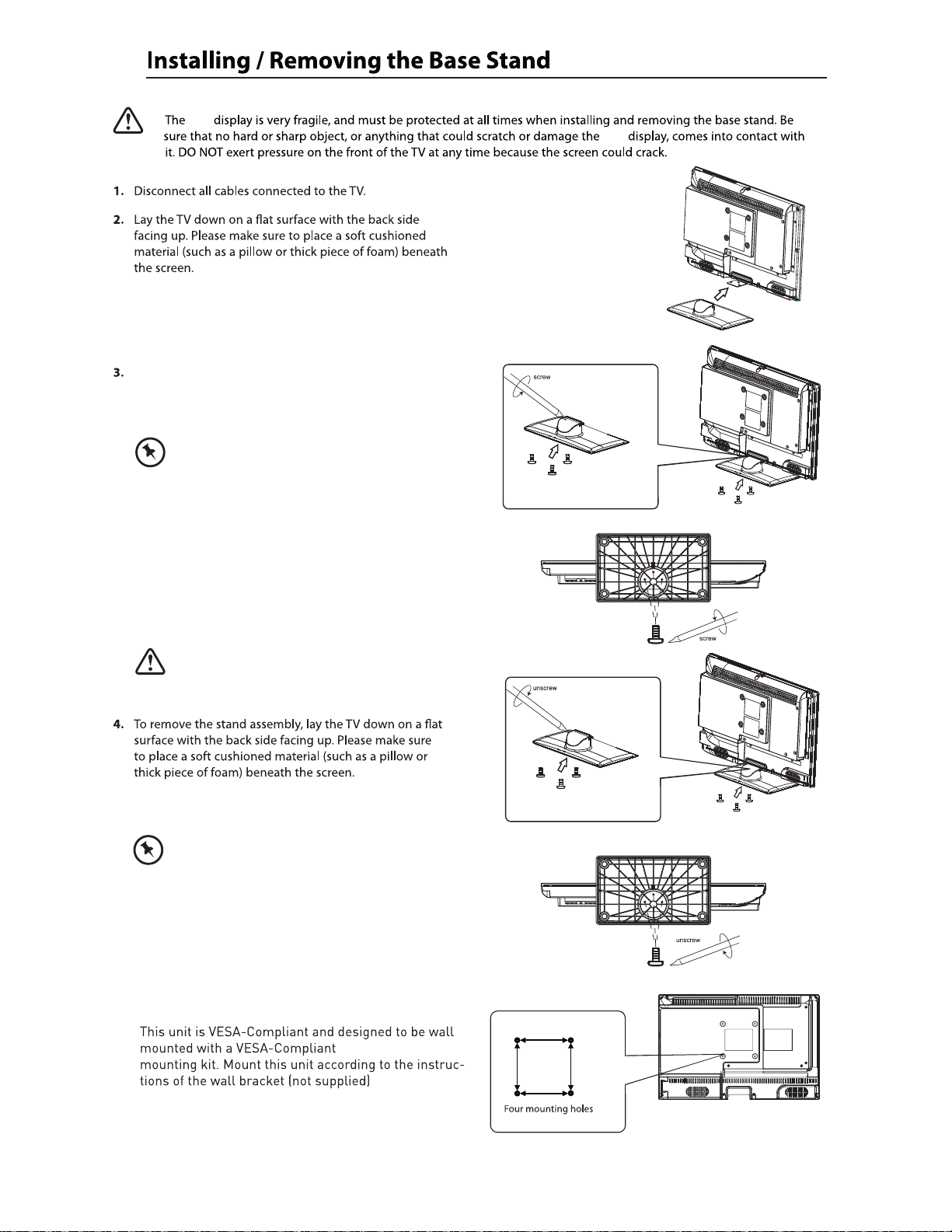

To install the base stand first make sure you position the front of the base stand facing towards the front of the TV and then use the 3 supplied screws to fix the base stand to the TV.

The screw holes will only align if the front of the base stand is facing towards the front of the TV

LED

Remove the stand base before wall mounting the TV.

Remove the 3 screws that secure the stand base to the TV. Remove the stand base by sliding it out.

Keep all the screws in a safe place, should you want to attach the stand base at a later date.

mmxmm

75mm

(Screw size M4 x 8)

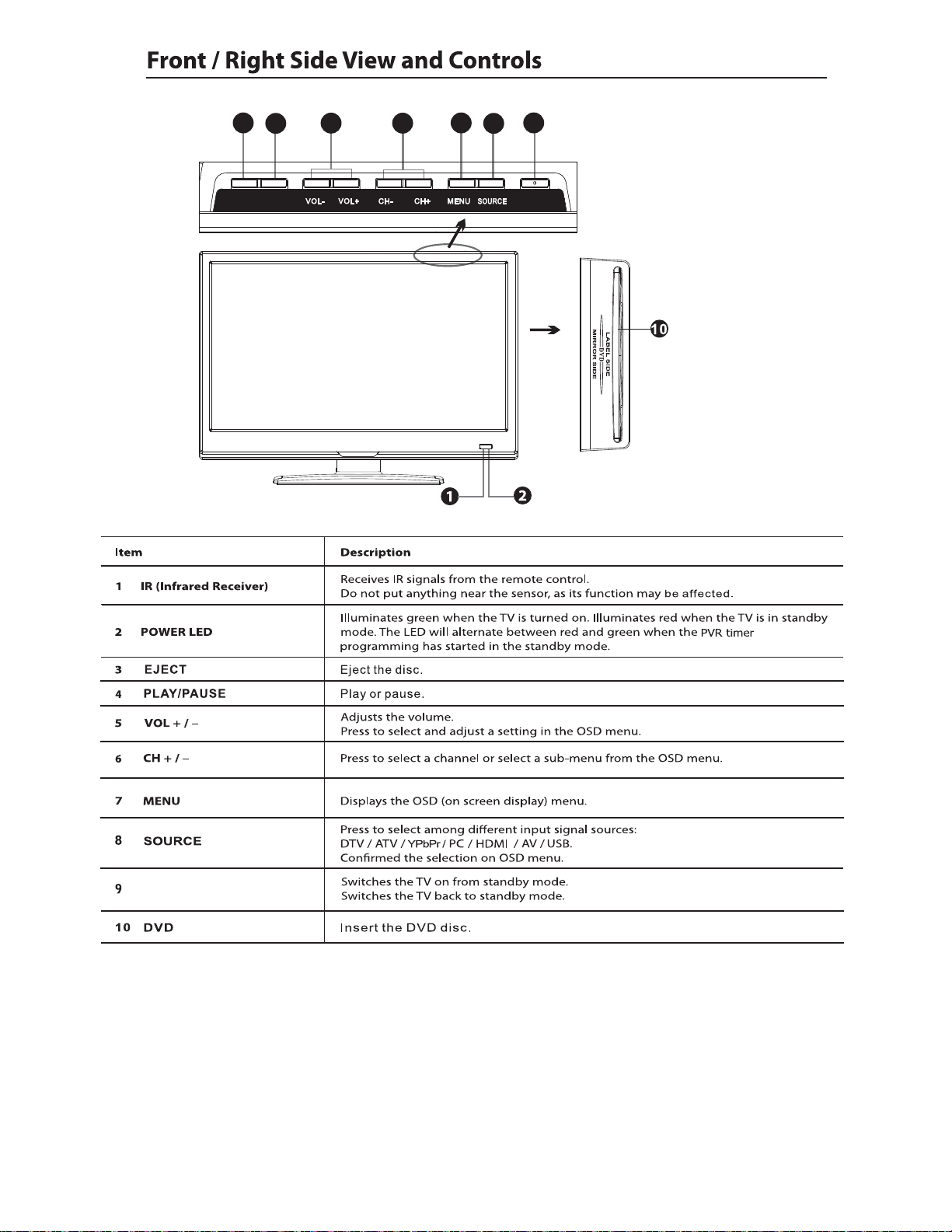

4

3

EJE CT

PLAY /

PAUS E

STAN DBY

EJE CT

PLAY /

PAUS E

STAN DBY

45 6 789

STANDBY

5

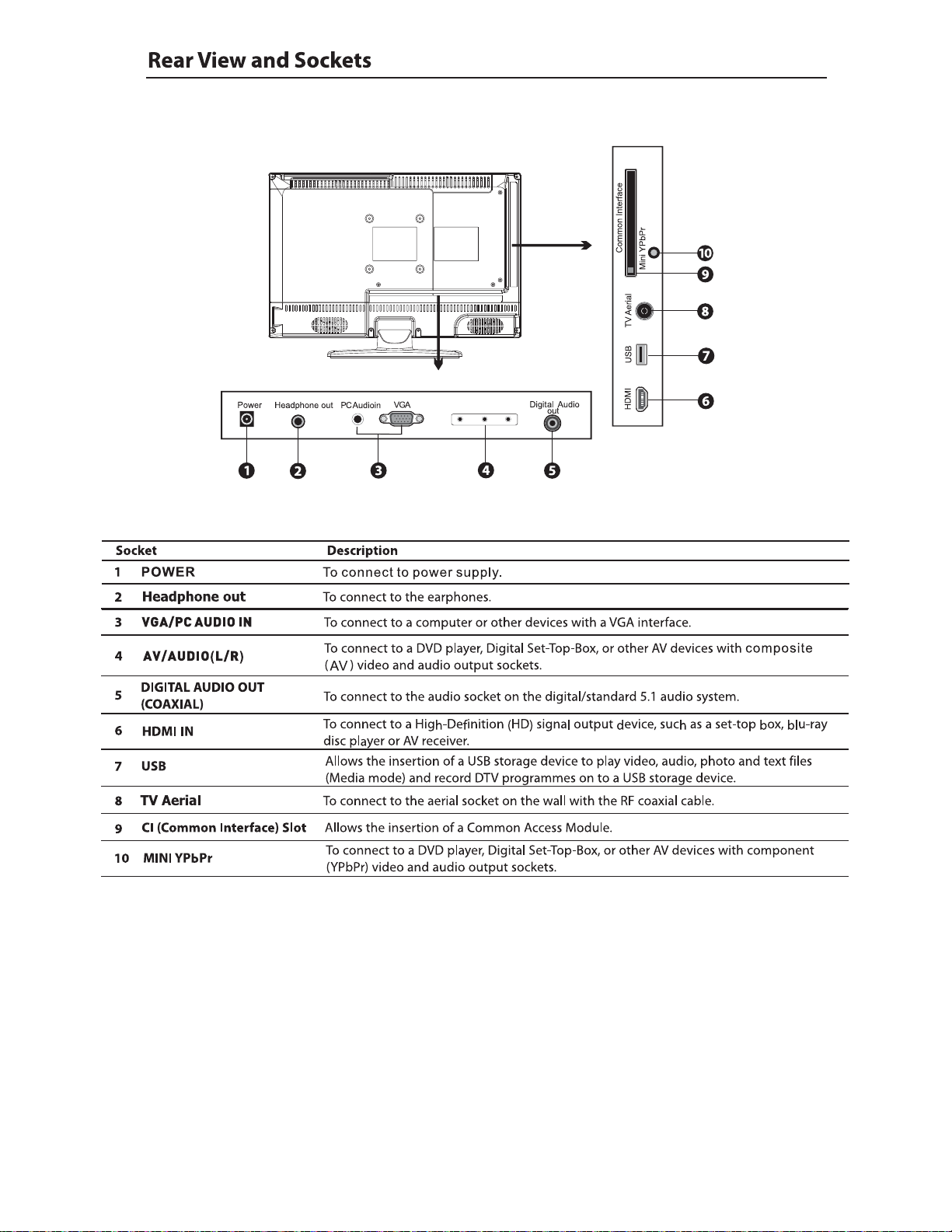

Video

Audio

L in

Audio

R in

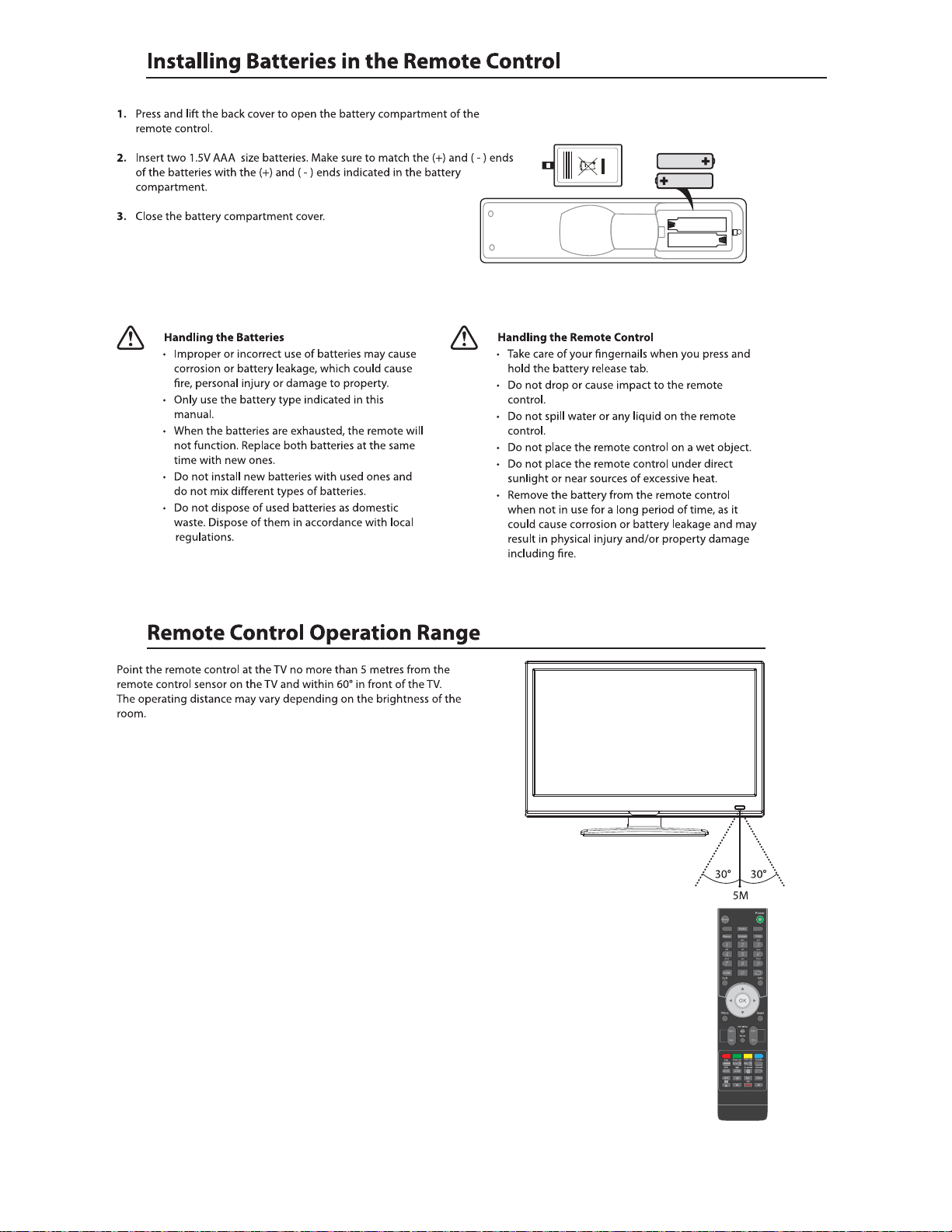

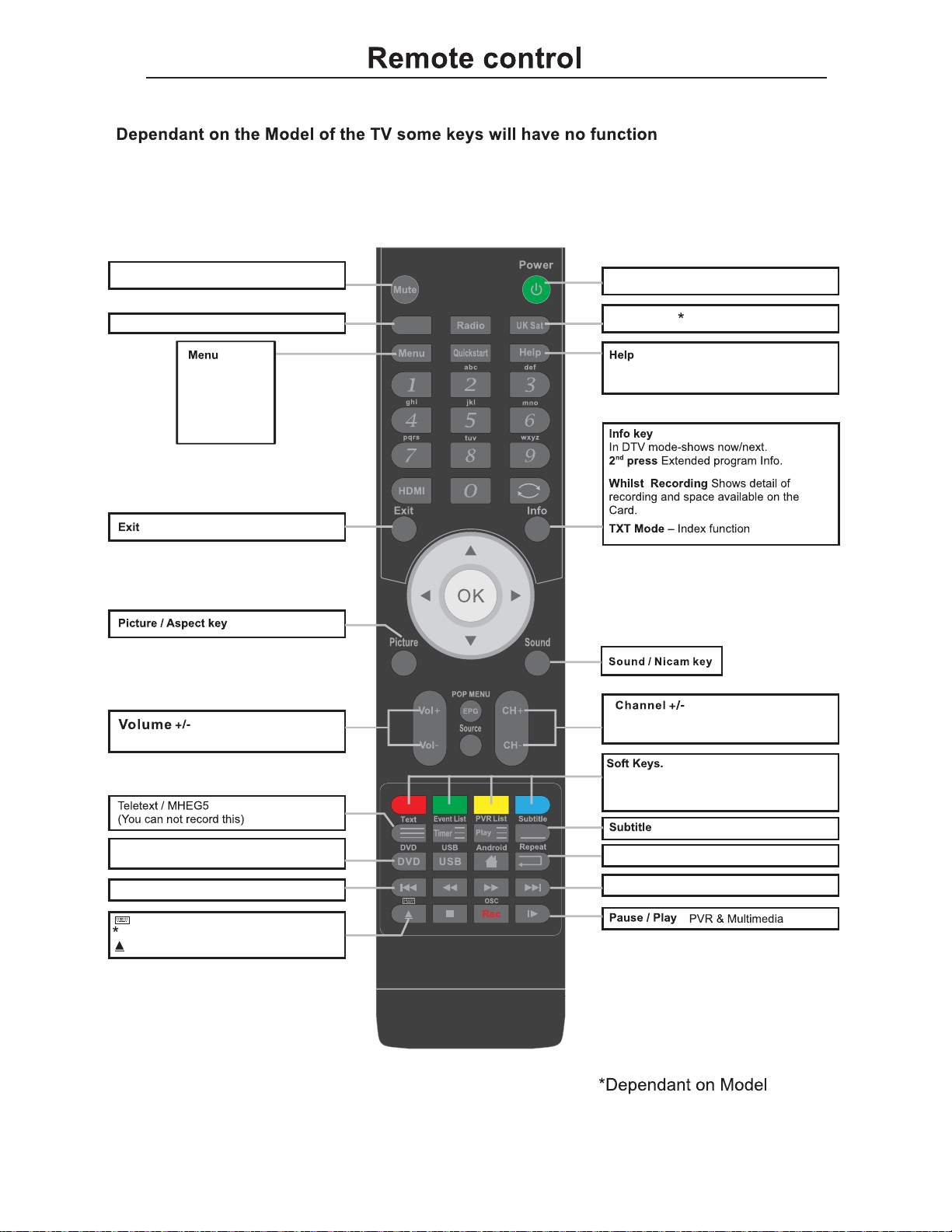

6

Mute Mute sound

Power Turn on or standby

Digital TV

Picture Sound Channel Feature Setup

Exit from any menu

Increase and decrease the volume

SaorView

FreeView

UK Satellite

This displays a page that gives telephone numbers for service.

Increase and decrease the channel number

DVD

Switch to DVD mode DVD menu in DVD mode

Prev Track, File, Day.(Media, PVR)

Show the keyboard in android mode

DVD Eject

The action is shown on the menu and changes for each menu. Reserved for MHEG in DTV

DVD and DTV mode only

Repeat

Select the repeat mode

Next Track, File, Day.(Media, PVR)

7

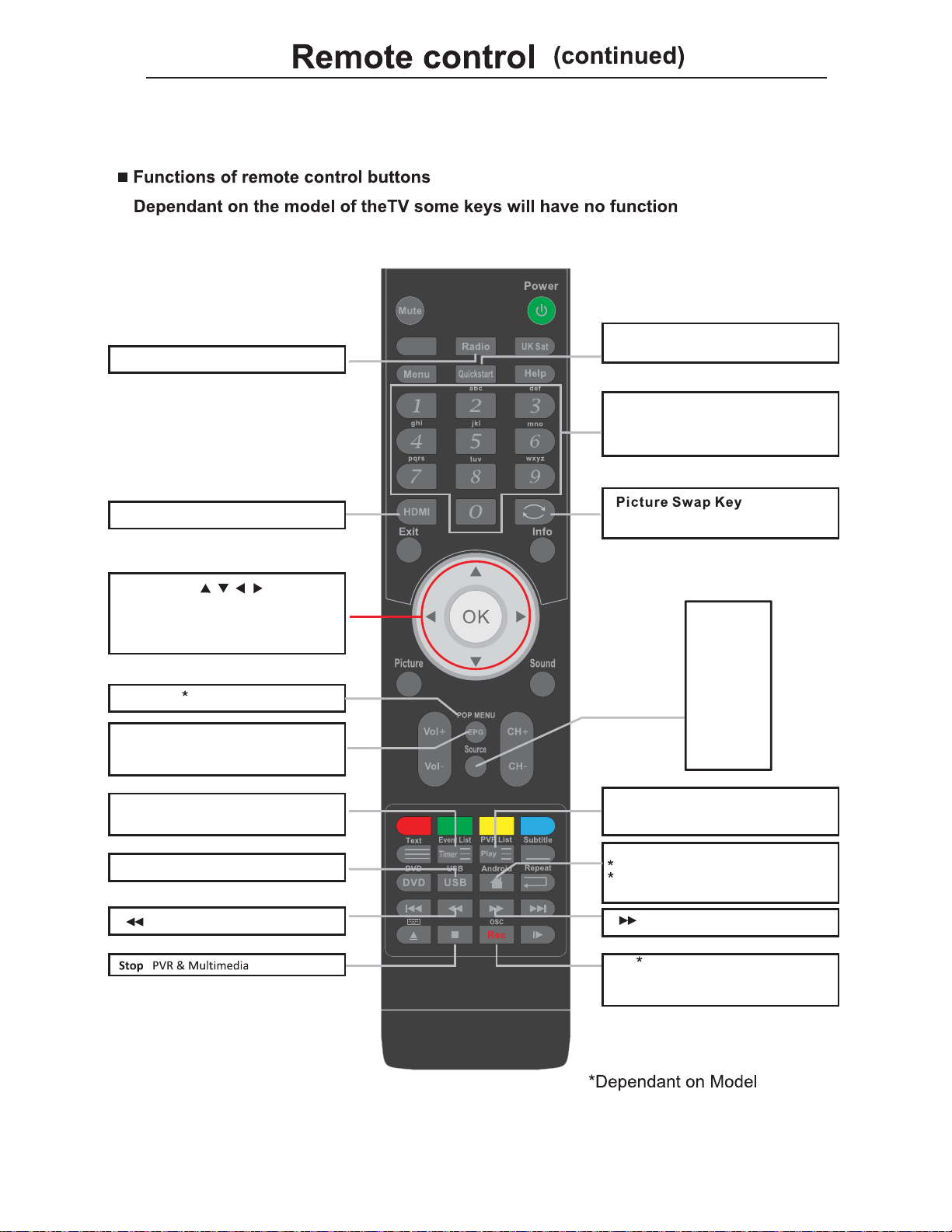

Radio Switch between DTV and Radio.

SaorView

FreeView

Quickstart

Recall the First Time Installation.

NUMBER BUTTONS

Press 0-9 to select a TV channel directly when you are watching TV. The channel change after 2 seconds.

HDMI Select the HDMI mode directly.

Thumb stick (

/ / / / OK)

Allows you to navigate the on-screen menus and adjust the system settings to your preference.

POP MENU in blu-ray DVDPOP MENU

EPG

Press to enter the EPG,and press again to exit

Timer

Show the Schedule list. (DTV mode)

USB Switch to USB mode

Fast reverse

Back to last channel

Input

DTV

ATV AV

YPBPR

HDMI

PC

Media

DVD

PVR List

Display List of Recorded Programms (DTV mode)

Android

Switch to Android Android homepage in Android mode

shortcut to DVB-C source.

Fast forward

OSC Show the OSC menu in blu-ray DVD

Rec Start recording

8

DTV

ATV

9

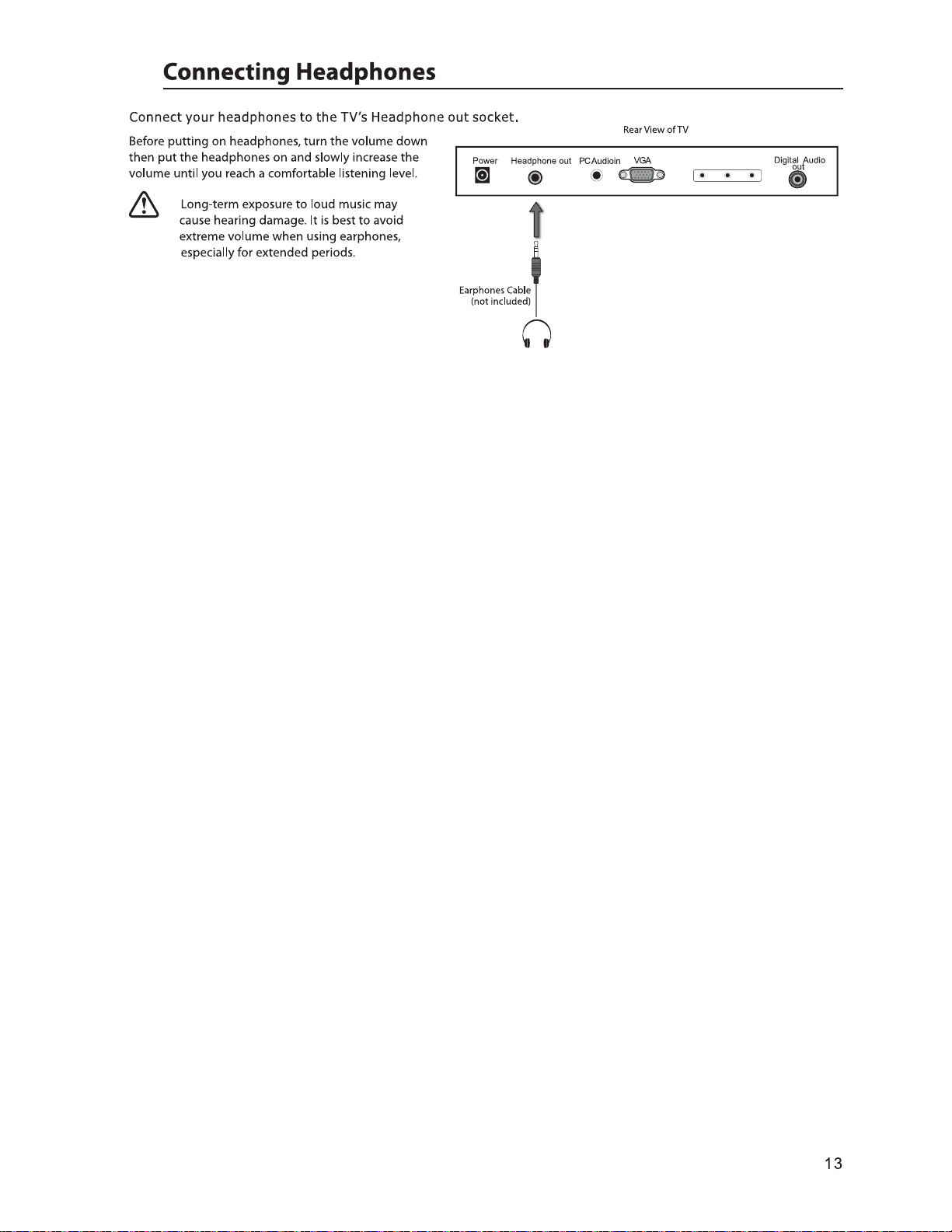

Video

Audio

L in

Audio

R in

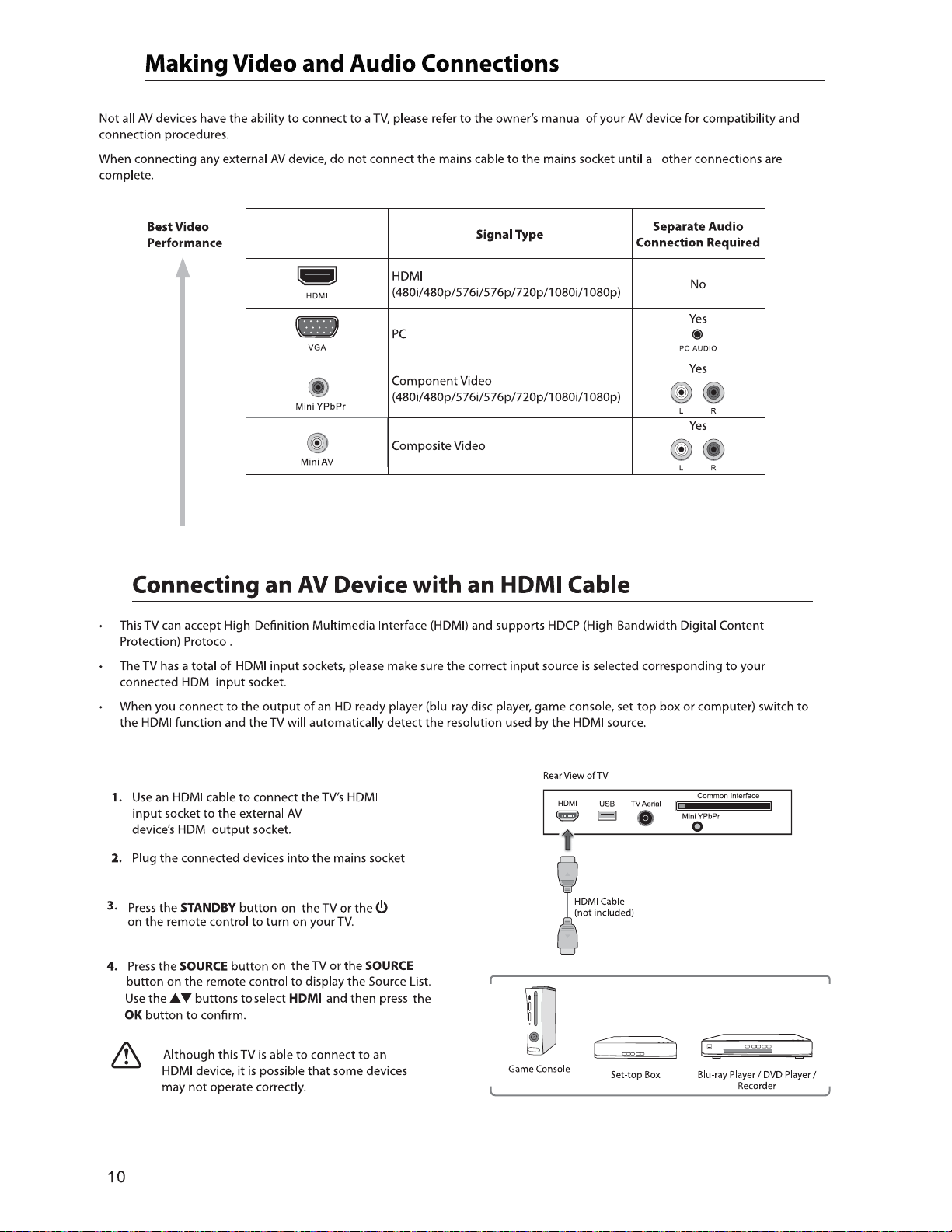

Video

Audio

L in

Audio

R in

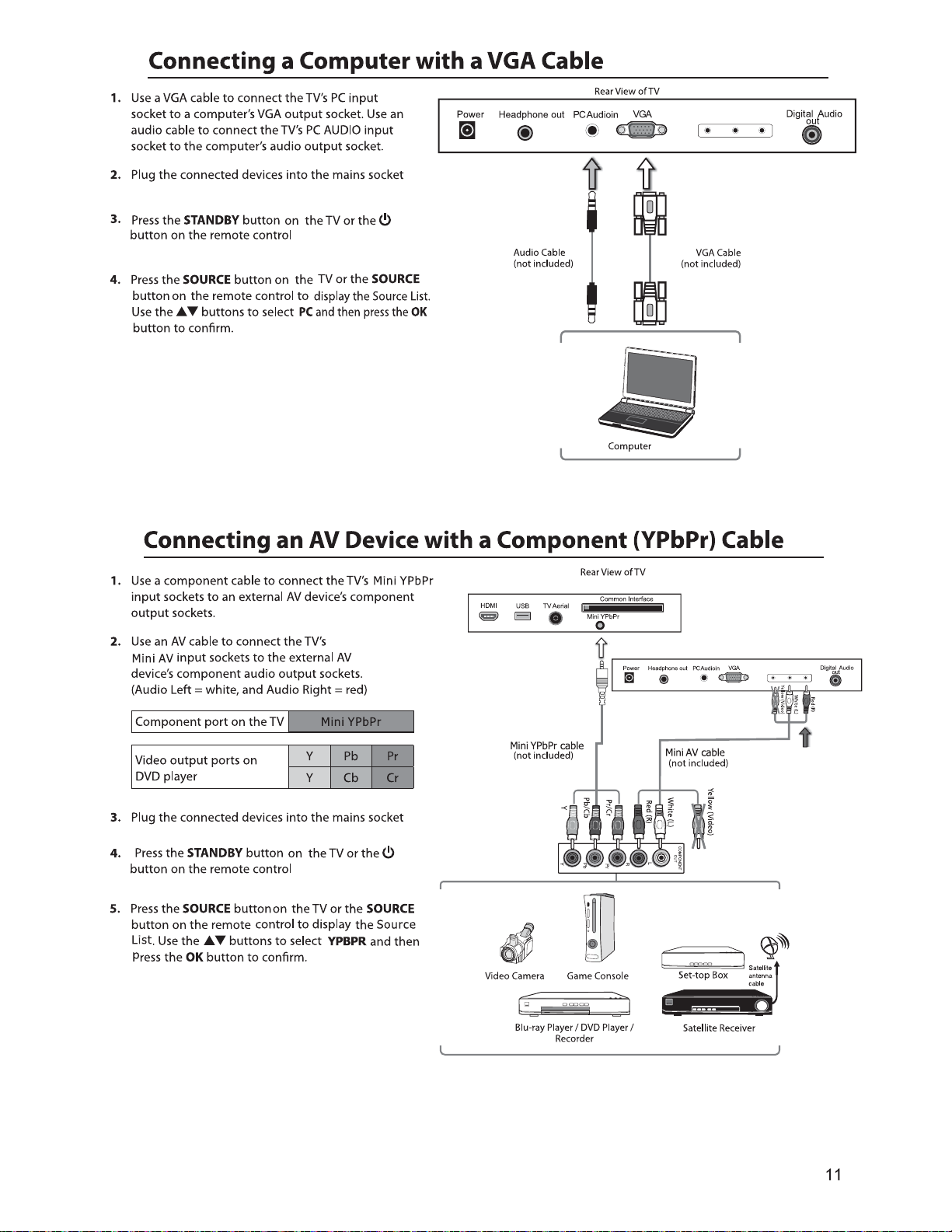

Video

Audio

L in

Audio

R in

Video

Audio

L in

Audio

R in

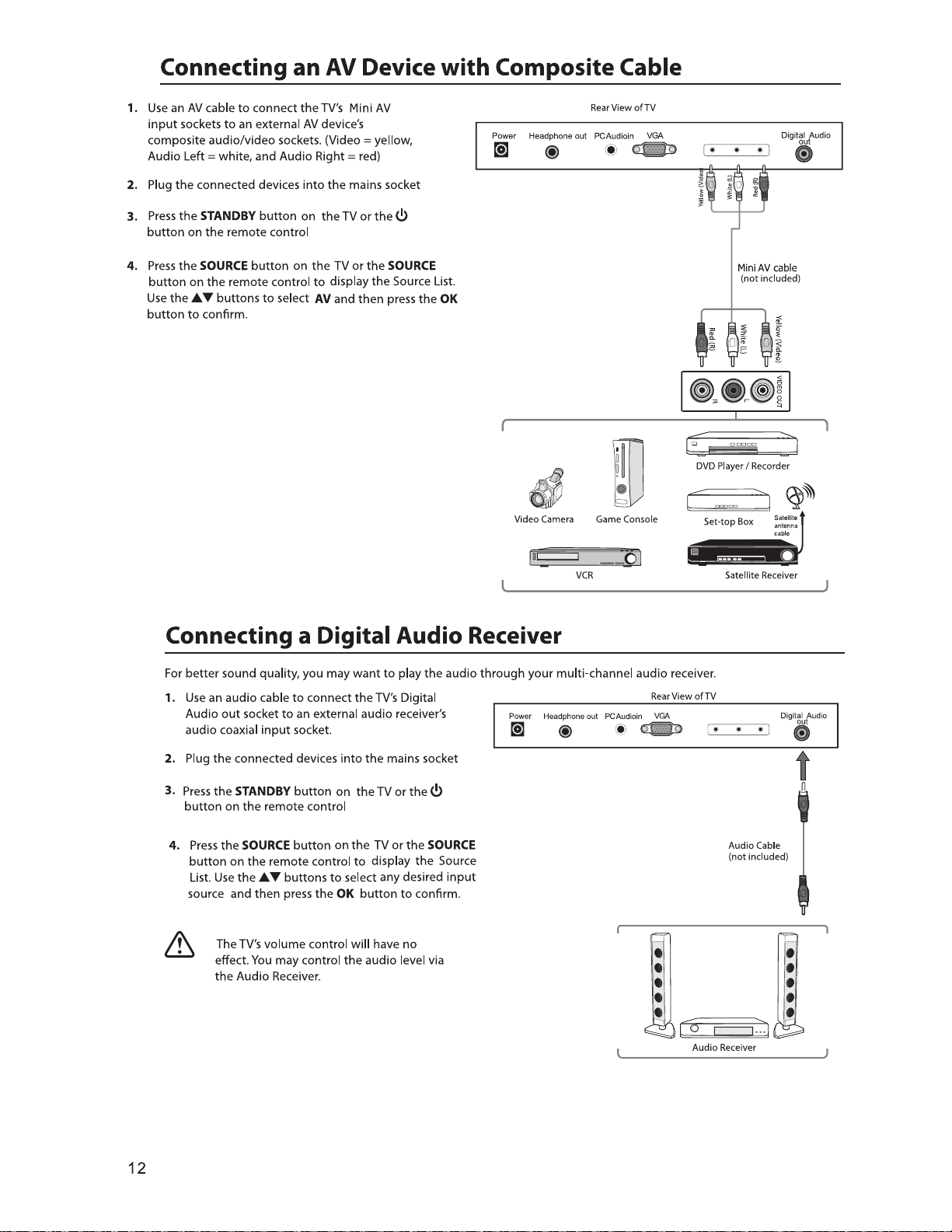

Video

Audio

L in

Audio

R in

Video

Audio

L in

Audio

R in

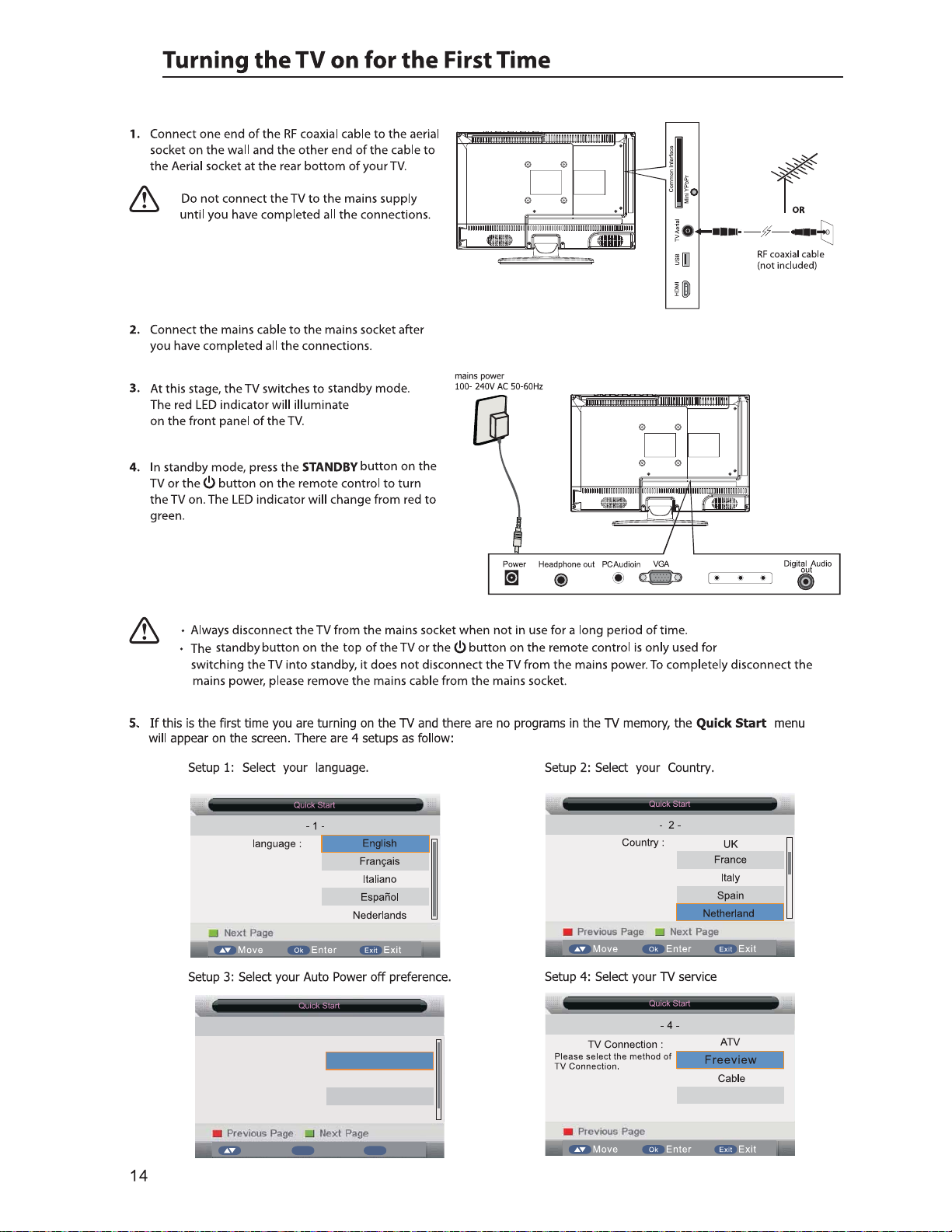

$XWR3RZHU2II 

7KH79ZLOODXWRPDWLFDOO\ VZLWFKRIIDIWHUWKHVHOHFWHG WLPHKDVHODSVHG 7KLVVHWWLQJFDQDOVREH FKDQJHGLQWKHPDLQPHQX

0RYH

2N



(QWHU

1HYHU

+RXUV

([LW

6. Ensure your aerial, cable or dish is plugged in to the TV and then press OK.

The TV will start to install the service you have selected. This could take some time depending on your selected service. You can tune an additional service at any time by pressing the Quick Start button.

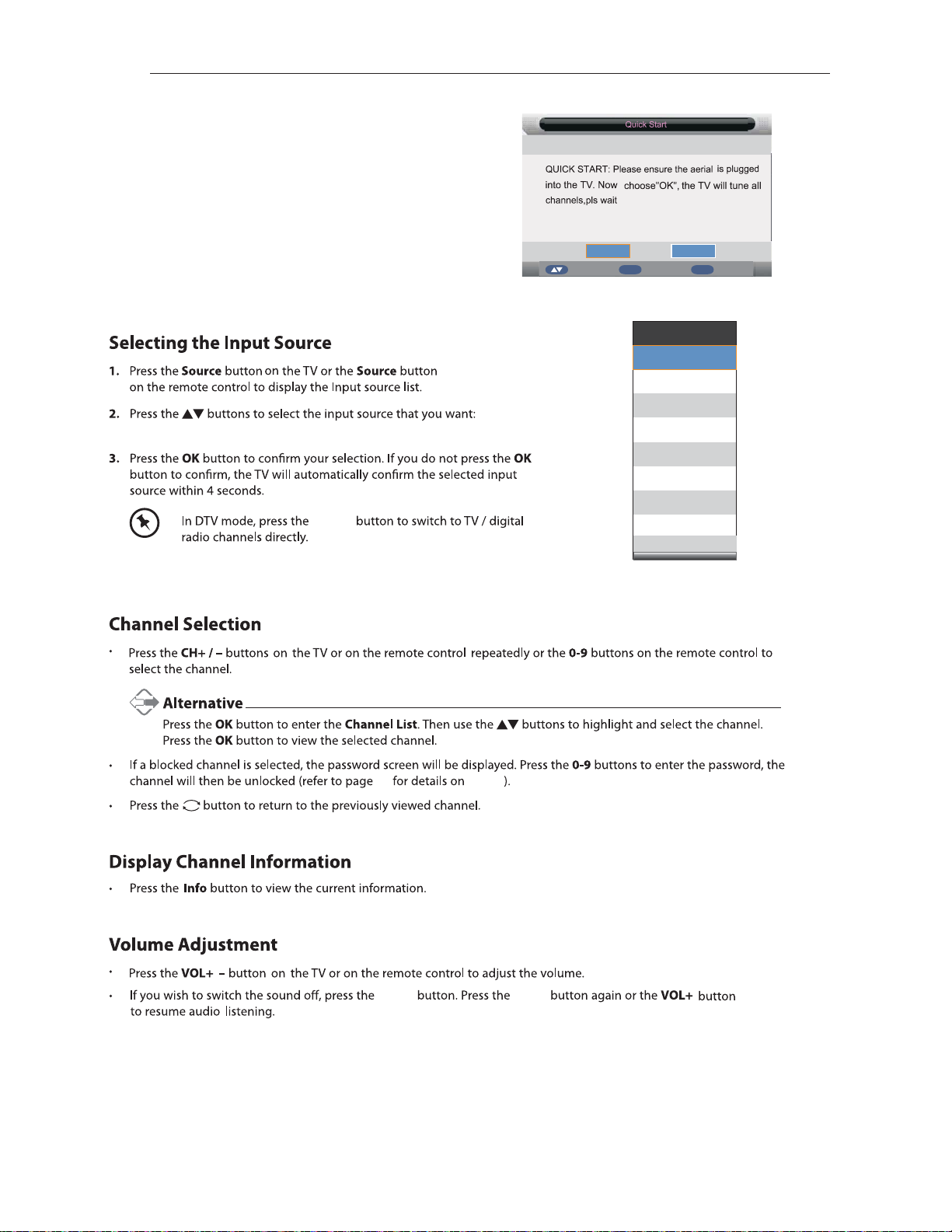

DTV, ATV, AV, YPBPR, HDMI, PC, Media, DVD.

Radio

OK

Cancel

Ok

Enter

Exit

ExitMove

Input

DTV

ATV

AV

YPBPR

HDMI

PC

Media

DVD

22

LOCK

/

Mute Mute

15

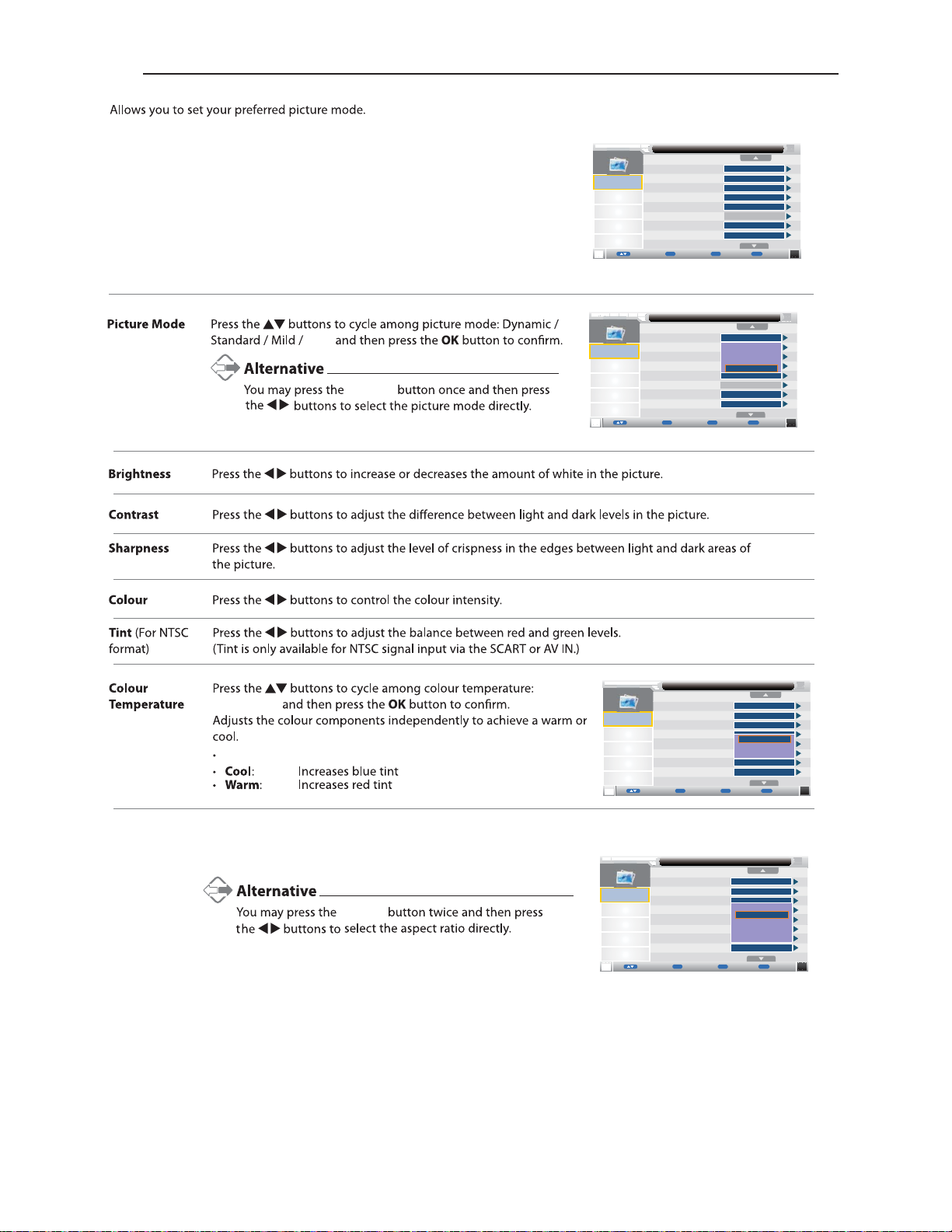

Picture Setting

1. Press the Menu button and then press the ▲▼ buttons to select the Picture menu.

2. Press the OK or

the following picture options ress the OK button.

►button and then press the to select

s

▲▼ buttons

and then p

User


Sound

Channel

Feature

Setup


Sound

Channel

Feature

Setup

Colour Temperature

OK

Move

Colour Temperature

Aspect Ratio

OK

Move

(for User mode)

Picture Mode

Brightness

Contrast

Sharpness

Colour

Tint

Aspect Ratio

Enter

Picture Mode

Brightness

Contrast

Sharpness

Colour

Tint

Enter


Exit


Exit

User

50

60

50

Standard

16:9

Menu

Return

Exit

User

Dynamic

50

Standard

50

Mild

User

50

Standard

16:9

Menu

Return

Exit

Aspect Ratio

(for User mode)

Standard /

Cool / Warm

Standard

Press the ▲▼ buttons to cycle among aspect ratio: 4:3 / 16:9Auto / Full /Zoom1 /Zoom2 /Cinema/Just scan and then press the OK button to confirm.


Sound

Channel

Feature

Setup


Sound

Channel

Feature

Setup

Move

(for User mode)

Picture Mode

Brightness

Contrast

Sharpness

Colour

Tint

Colour Temperature

Aspect Ratio

OK

Enter

Picture Mode

Brightness

Contrast

Sharpness

Colour

Tint

Colour Temperature

Aspect Ratio

OK

Enter


Exit


Exit

User

50

Standard

50

Cool

50

Warm

Standard

16:9

Menu

Return

Exit

User

50

4:3

16:9

50

Full

50

Zoom1 Zoom2

Standard

16:9

Menu

Return

Exit

16

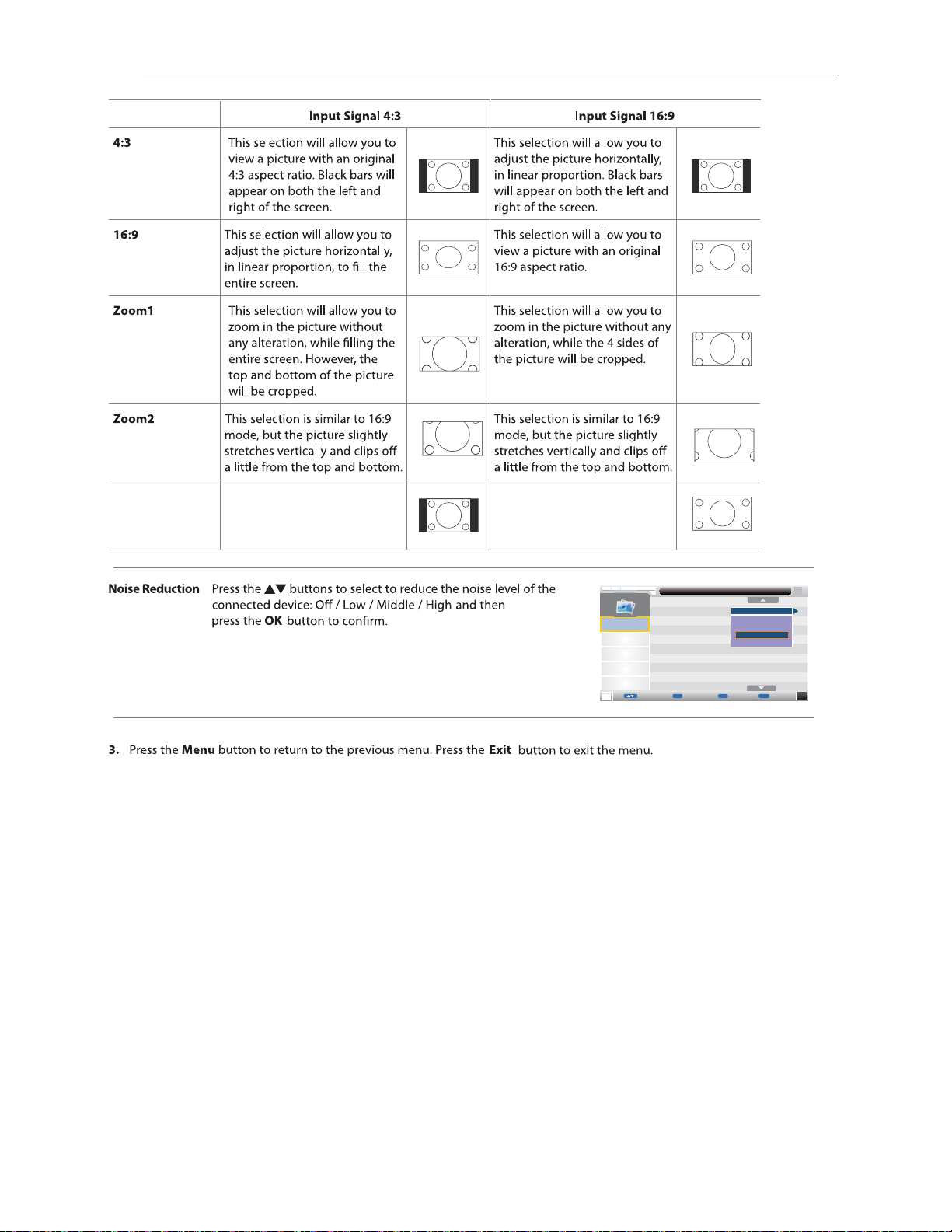

Picture Setting

Just scan (in HDMI mode only)

This selection will detect the resolutionof the HDMI signal and display an image. with the same number of pixels

This selection will detect the resolution of the HDMI signal and display an image. with the same number of pixels


Sound

Channel

Feature

Setup

Noise Reduction

OK

EnterMove


Exit

Middle

Off

Low

Middle

High

Menu

Return

Exit

17

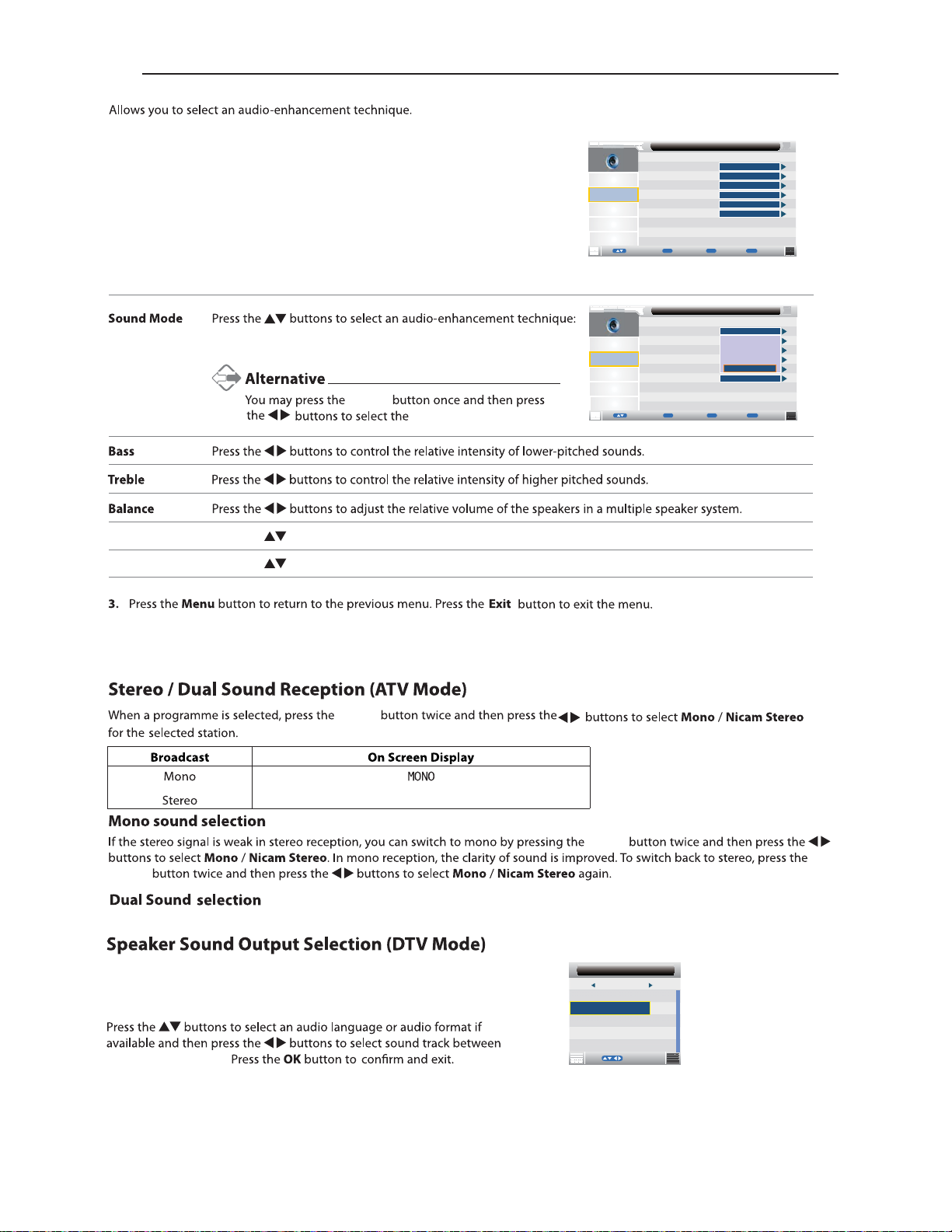

Sound Setting

1. Press the Menu button and then press the ▲▼ buttons to select the Sound menu.

2. Press the OK or s

the following sound options ress the OK button.

►button and then press the to select

▲▼ buttons

and then p

Standard / Movie / Music / Speech / User and then press the OK button to confirm.

Sound

sound mode.


Sound

Channel

Feature

Setup


Sound

Channel

Feature

Setup

Sound Mode

Surround Off

OK

Move

Sound Mode

OK

Move

()for user mode

Bass

Treble

Balance

SPDIF

Enter

Bass

Treble

Balance

Surround

SPDIF

Enter

Sound

Exit

Sound

Exit

User

50

0

Auto

Menu

Return

Exit

User

Standard

Movie Music

Speech

User

Auto

Menu

Return

Exit

Surround

SPDIF

Press the buttons to turn on / off the surround function by selecting “On” or “Off”.

Press the buttons to select among Off, PCM, Auto and Multi .

Sound

NICAM STEREO

Sound

When a bilingual programme is received,you can switch among DUALI, DUALII and DUAL I+II.

While watching a DTV programme ,you can press the Sound button to display the audio language list (only applicable when the TV programme has this feature).

Multi-Audio

Stereo

Italian

OTH

Left, Right and Stereo.

18

Move

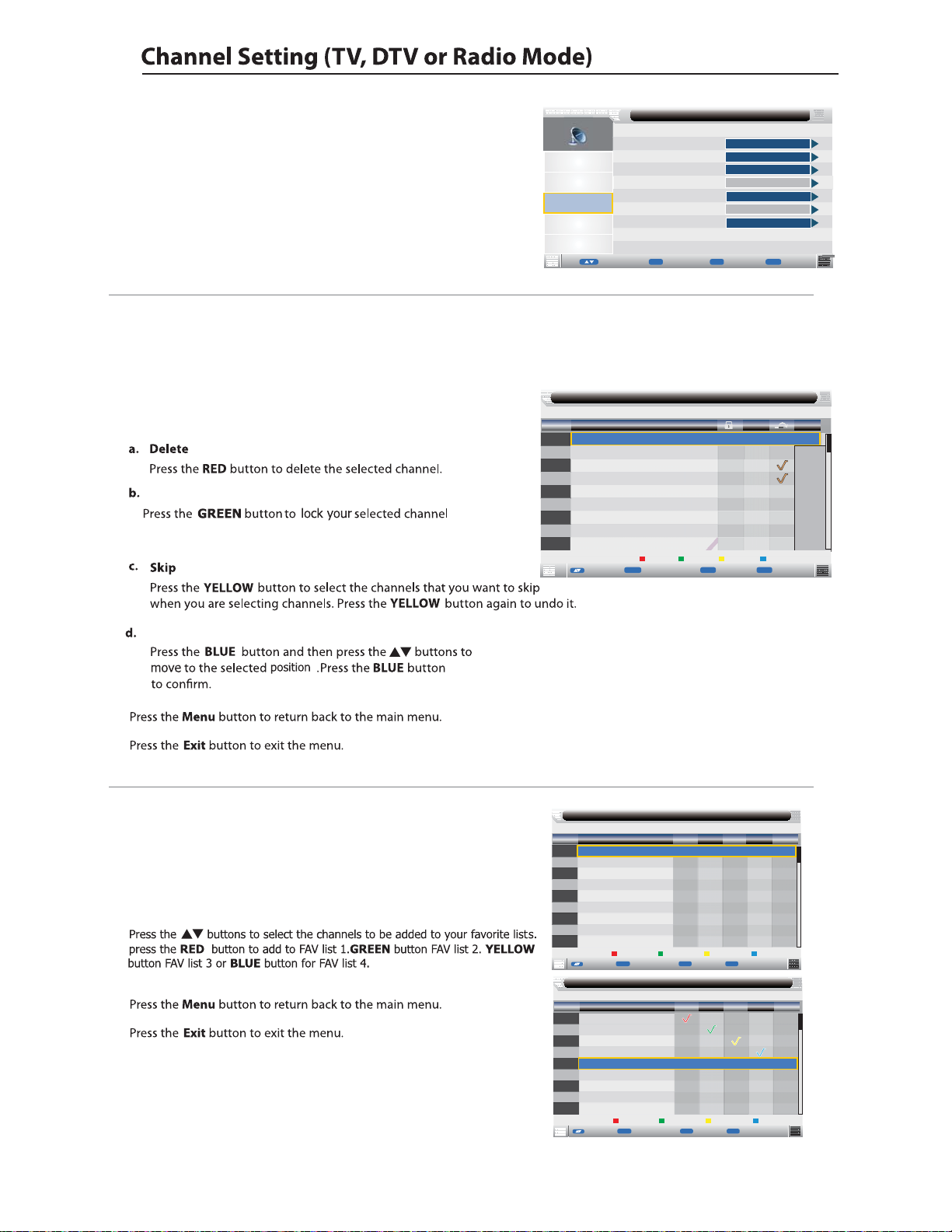

Allows you to set up a variety of channel options.

×

Channel

1. Press the Menu button and then press the ▲▼ buttons to select the Channel menu.

2. Press the OK or s ▲▼ buttons the following sound options ress the OK button.

►button and then press the to select

and then p

Channel Managemen t

To manage (Delete / Rename / Lock / Skip) all channels.

1. Press the buttons to Channel Management then press the OK button to confirm.

2. A channel management screen will pop up, press the select the channel you want to edit.

▲▼

▲▼buttons to

Lock

No.

0001

0002

0003

0004

0005


Sound

Channel

Feature

Setup

Program Name

BBC1

C02

S02

C12

C21

Move

Channel Management

Favorite Management

Country

TV Connection

Auto Search

DTV manual Search

ATV Manual Search

OK

Enter

Channel - Channel Manager

Page + -

CH+-

ENTER

UK

Freeview

ENTER

Exit

Menu

Return

Type

atv

atv atv

MoveSkip

Menu

Return

Exit

LockDel

Exit

Move (this function for ATV mode only)

3.

4.

Favorite Management

To manage (Add / ) favorite channels.Delete

1. Press the buttons to favorite Management then press the OK button to confirm.

2. A channel management screen will pop up.

3.

4.

5.

▲▼

No.

0001

0002

0003

0004

0005

0006

0007

0008

0009

No.

0001

0002

0003

0004

0005

0006

0007

0008

0009

Program Name

BBC1

C02

S02

C12

S11

C21

Move

Program Name

BBC1

C02

S02

C12

S11

C21

Move

Channel - Favorite Manager

Page + -

CH+-

Channel - Favorite Manager

Page + -

CH+-

Favorite 2Favorite 1

Fav1 Fav2

Exit

Fav1 Fav2

Exit

Fav3

Menu

Fav3

Menu

Return

Fav4

Type

atv

Favorite 4Favorite 3

Type

atv

Favorite 4Favorite 3

19

Country

Press the ▲▼ buttons to select the country and then press the OK button to confirm.

Auto Search

To select auto search mode (All / Digital / Analogue).


Sound

Channel

Feature

Setup

Move

Channel Management

Favorite Management

Country

TV Connection

Auto Search

DTV manual Search

ATV Manual Search

OK

Enter

Channel

Exit

ENTER

UK

Germany

UK

France

Italy

Spain

Menu

Return

1. Press the ▲▼ buttons to Auto Search then press the OK button to confirm.

2. Select Auto Search item to enter auto search user operation interface as following.

All Mode:

Select All to scan all available DTV and ATV channels and store them. To skip the ATV search press the Menu button. To exit the Tuning menu press Exit.

DTV Mode:

Select DTV to scan all available DTV (Freeview/Cable) channels and store them.

ATV Mode:

Select ATV to scan all available Analogue Channels and store them. To exit the tuning menu press Exit.


Sound

Channel

Feature

Setup


Sound

Channel

Feature

Setup

Move

Cable

Process

Channel - Auto Search

All

DTV

ATV

OK

Enter

Channel Tuning

ATV channels found:

DTV channels found:

Radio channels found:

ENTER

Exit

Menu

Exit

Return

0

0%

Exit

20

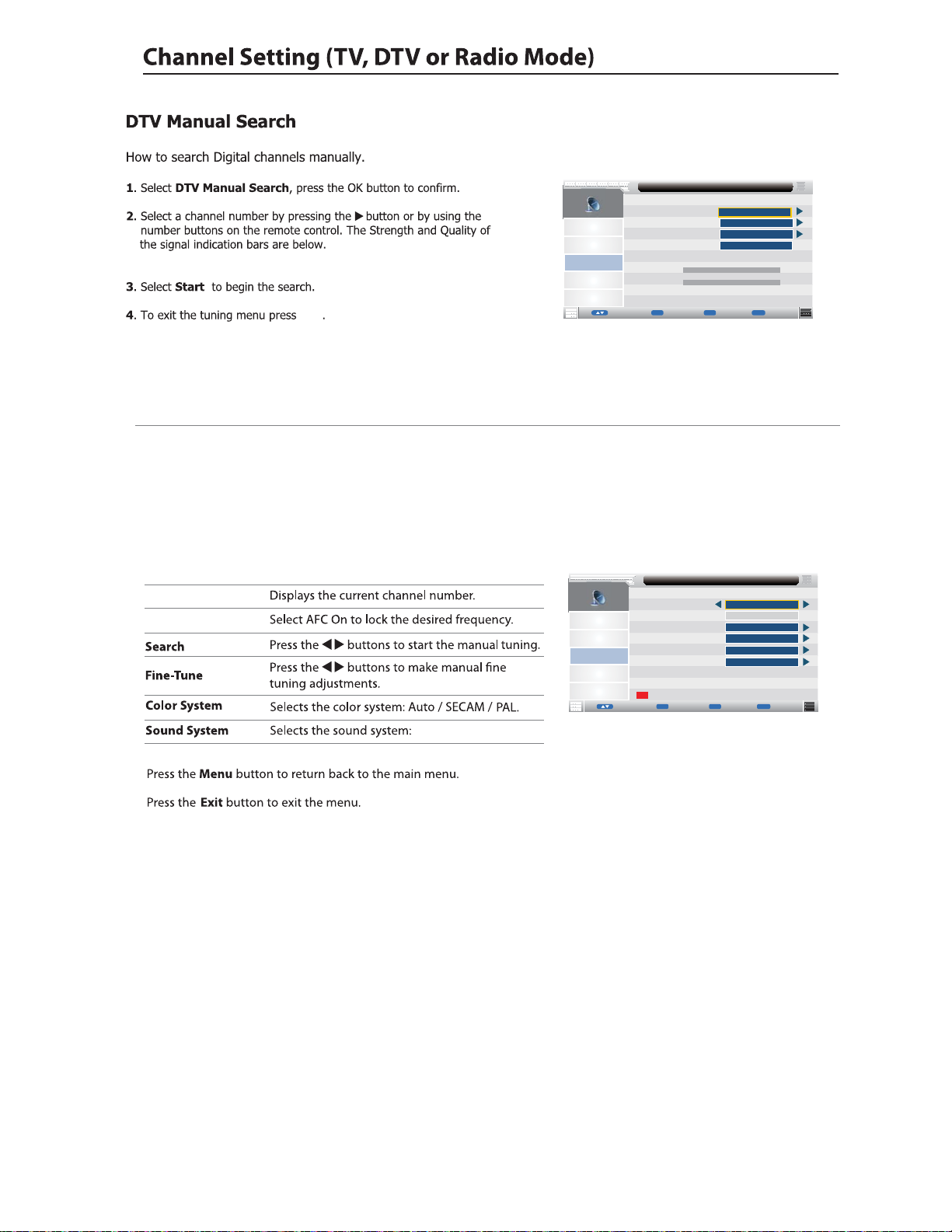

3.

4.

Exit

ATV Manual Search

To search analogue channel by entering parameters manually.

1. Press the ▲▼ buttons to ATV Manual Search then press the OK button to confirm.

2. Select ATV manual search item to enter air channel manual search

in ATV source and the user operation interface as following.

Current Channe

Frequency


Sound

Channel

Feature

Setup


Sound

Channel

Feature

Setup

Move

Channel - DTV Manual Search

Frequency(KHz)

SymbolRate(KS/s)

Modulation(QAM)

Strength

Quality

OK

Enter

Current Channel

Frequency

Search

Fine Tune

Color System

Sound System

Save

OK

Enter

107500

6875

64QAM

Start

Exit

Menu

001

48.25MHz

ENTER

PAL

Exit

Channel - ATV manual Search

0%

Return

DK

Menu

Return

BG / DK / I .

3.

4.

21

Feature Setting

Allows you to set up a variety of feature options.

1. Press the Menu button and then press the ▲▼ buttons to select the

Feature menu.

2. Press the OK or s ▲▼ buttons the following feature options ress the OK button.

►button and then press the to select

and then p

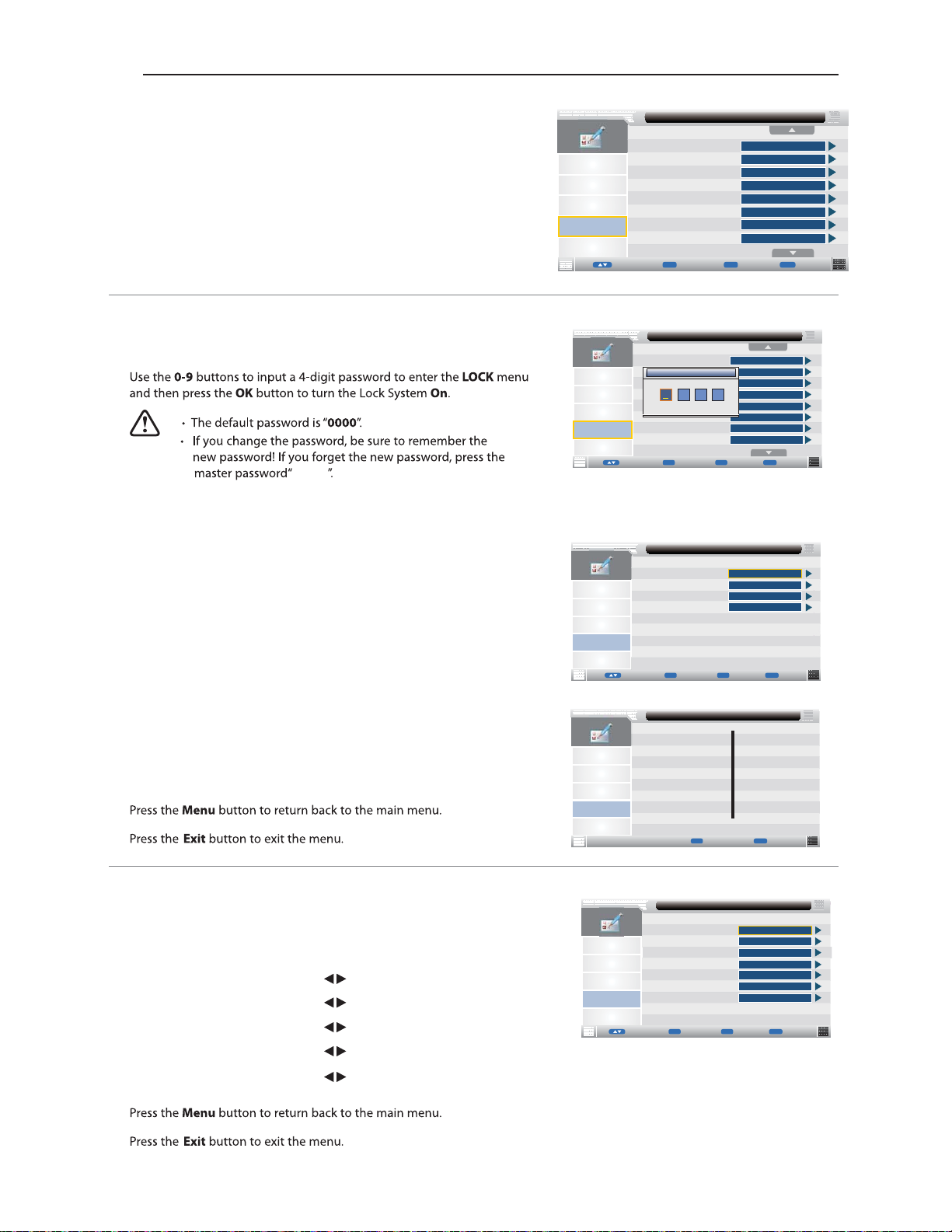

Lock

.

1. Press the

2.

Lock Channel:

Parental Guidance:

Change Pin Code:

3.

4.

buttons to Lock then press the OK button to confirm.

▲▼

8899

ON: Turns on the Lock options. (This option must be set to ON for the channel management Lock option to function) Once the Lock option is activated (ON). To view any locked channels you will need to give a password. For Auto, Manual tune and TV reset a password will also be needed. OFF: Turn off the LOCK options. (All functions of the TV will be available)

Off: turn off Parental Lock 4-18: turn on Parental Lock and set the age level that are permitted to watch the program.

Press the OK or s to enter the pin code

►button

changing page.


Sound

Channel

Feature

Setup


Sound

Channel

Feature

Setup


Sound

Channel

Feature

Setup


Sound

Channel

Feature

Setup

Move

Lock

Language

Clock

Sleep Timer

Auto Standby

Hearing Impaired

CI Info

PVR/Pause TV

OK

Enter

Lock

Language

Password

Clock

Sleep Timer

Auto Standby

Hearing Impaired

CI Info

PVR/Pause TV

OK

Enter

Feature - Lock

Lock Channel

Parental Guidance

Change Pin Code

Hotel Mode

OK

Enter

Feature - Change Pin Code

Old Password

New Password

Confirm New Password

Exit

Feature

Exit

ENTER

Off

Never

Off

ENTER

Exit

____

ENTER

Off

Never

Off

ENTER

Menu

On

Off

ENTER

Menu

Return

Menu

Return

Exit

Language

System language setting, includes OSD Language, Preferred Subtitle, Preferred Audio, Digital Teletext Language, Anglog Teletext Language.

1. Press the ▲▼ buttons to Language then press the OK button to confirm.

OSD Language

Preferred Subtitle

Preferred Audio

DTV Teletext Language

ATV Teletext Language

3.

4.

22

Press the buttons to select the menu language.

Press the buttons to select the Preferred Subtitle.

Press the buttons to select the Preferred Audio.

Press the buttons to select the DTV Teletext Language.

Press the buttons to select the ATV Teletext Language.


Sound

Channel

Feature

Setup

Move

Feature - Language

OSD Language

1st Preferred Subtitle

2nd Preferred Subtitle

1st Preferred Audio

2nd Preferred Audio

DTV Teletext Language

ATV Teletext Language

OK

Enter

English

West

Exit

Menu

Exit

Return

Feature Setting

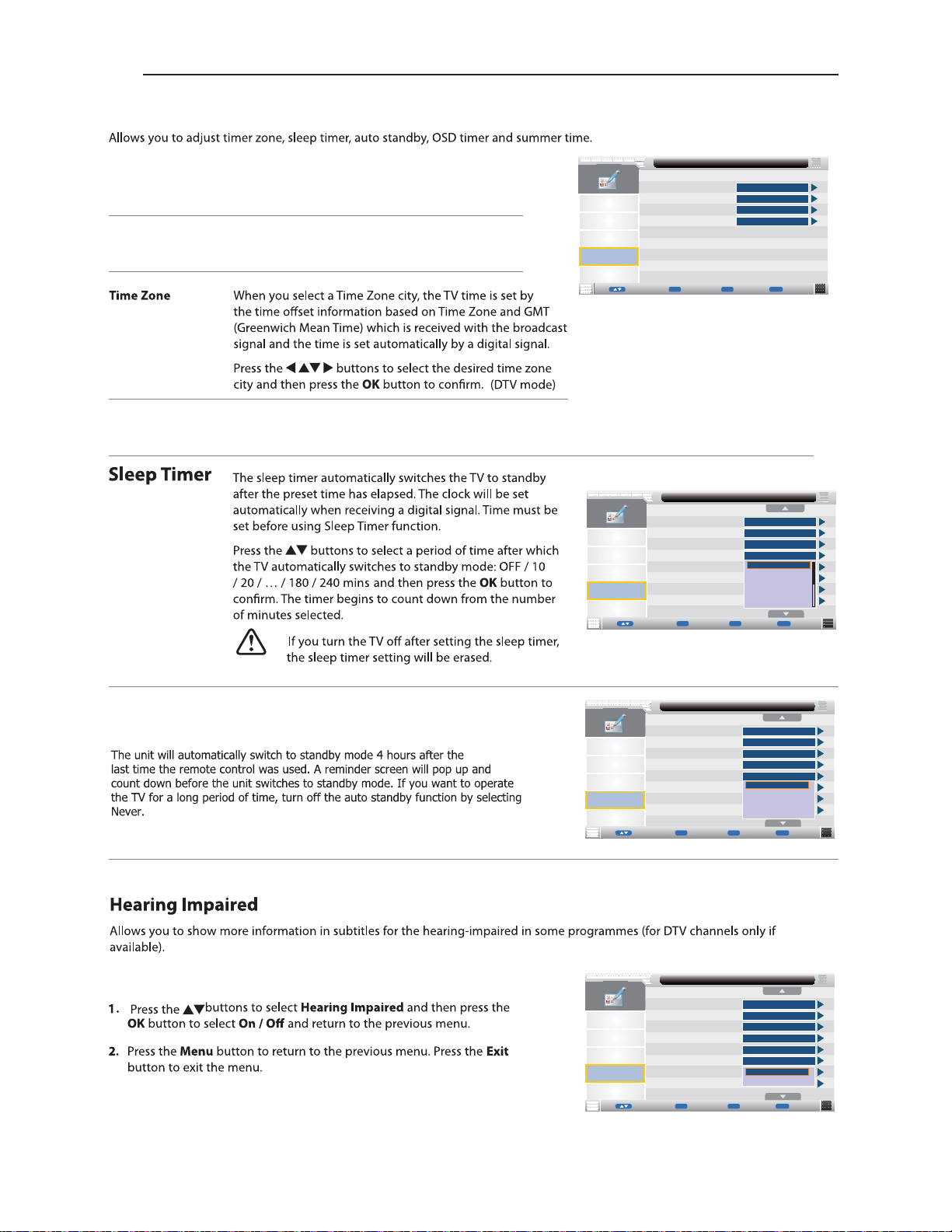

Clock

1. Press the ▲▼ buttons to Clock then press the OK button to confirm.

Date

Time

DST (daylight saving time)

Press the OK buttons to set date.

Press the OK buttons to set time.

)

(The Date and Time option are not available in UK. The Time and Date are automatically set by the Digital TV signal.)

[On, Off] if it's On, it'll be an hour earlier than the GMT. If Time Zone is set to Auto, it's not available.


Sound

Channel

Feature

Setup


Sound

Channel

Feature

Setup

Move

Date

Time

Time Zone

DST

OK

Enter

Lock

Language

Clock

Sleep Timer

Auto Standby

Hearing Impaired

CI Info

PVR/Pause TV

OK

Enter

Feature - Clock

Exit

Feature

Exit

06/11/2012

11:02

+8:00

Off

Menu

ENTER

Off

10 Mins

20 Mins

30 Mins 60 Mins

Menu

Return

Auto Standby


Sound

Channel

Feature

Setup


Sound

Channel

Feature

Setup

Move

Lock

Language

Clock

Sleep Timer

Auto Standby

Hearing Impaired

CI Info

PVR/Pause TV

OK

Enter

Lock

Language

Clock

Sleep Timer

Auto Standby

Hearing Impaired

CI Info

PVR/Pause TV

OK

Enter

Feature

Exit

Feature

Exit

ENTER

Off

Never

1 Hour

2 Hour

4 Hour

Menu

ENTER

Off

Never

Off

On

Return

Menu

Return

Exit

23

Feature Setting

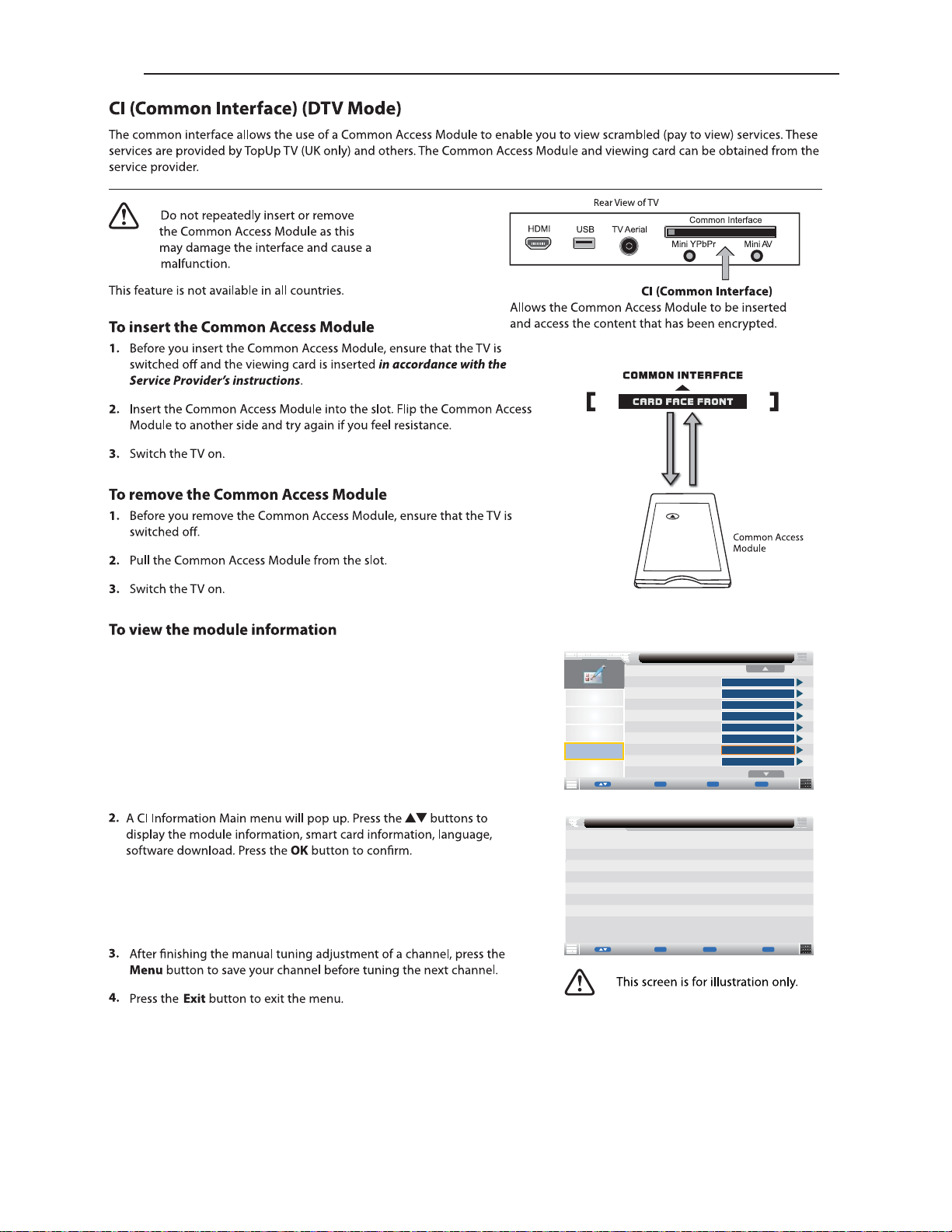

1. Press the ▲▼ buttons to CI Info then press the OK button to confirm.


Sound

Channel

Feature

Setup

Hearing Impaired

Move

No CI Module inserted

Move

Lock

Language

Clock

Sleep Timer

Auto Standby

CI Info

PVR/Pause TV

OK

Enter

Common Interface

OK

Enter

Feature

Exit

Menu

Exit

Return

ENTER

Off

Never

Off

ENTER

Menu

Exit

Return

Exit

24

Feature Setting

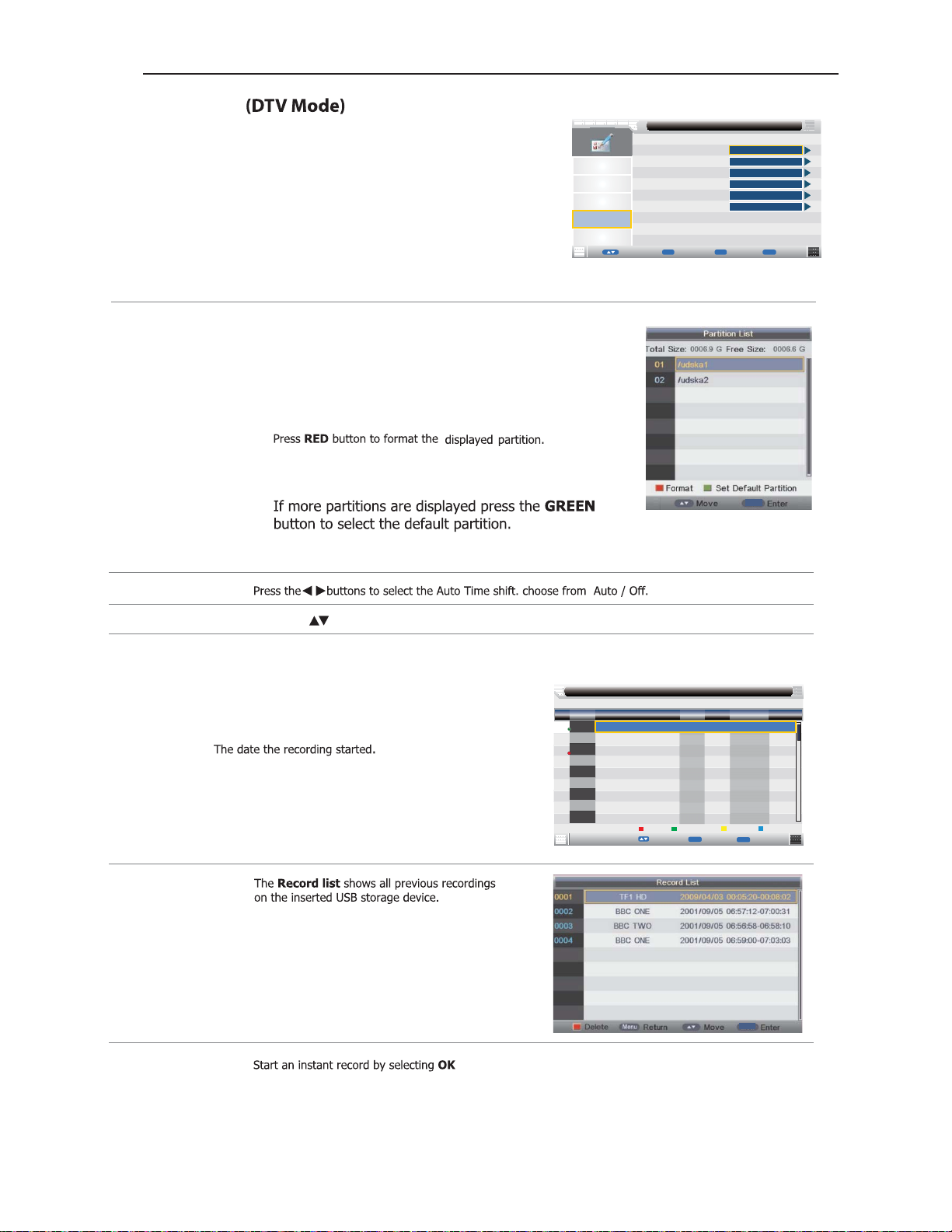

PVR/Time shift

Allows you to select your preferences in the PVR/Timeshift

1. Press the ▲▼ buttons to select PVR/Timeshift then press the OK button

to confirm.


Sound

Channel

Feature

Setup

Move

Feature - PVR/Timeshift

Partition Select

Auto Timeshift

Pause TV Buffer

Timer

Record List

Recorder Start

OK

Enter

ENTER

Off

Auto

ENTER

Exit

Menu

Exit

Return

Partition Select

Press the OK buttons to select the Partition Select menu. Display partition’ s infomation / Format partition function / Set default partition function.

Partitions

Partitions' property

The list in the menu shows the partitions connected to system.

Total size and Free size.

Format Partition

Set default partition

Auto Time shift

Pause TV Buffer

Timer

Press the buttons to select the Timer shift buffer: Auto / 30Mins / 1hr / 2hr.

Press the OK button to select the Timer menu.

CH NO. Channel number. Channel Channel name. Start Start recording time. Duration The total recording time. Date Mode Record Mod.e

On the left top of menu is current date and time .

OK

Timer

No.

Channel

Ch No.

0031

01

ITV2 +1

02

Film4

0029

000503

YLE FST

R

Start Duration

21:00 21:15

22:40 23:15

--:--

11:30

12/01/2008 18:02:25

Mode

Date

12/04/2009 Once

Record List

Recorder Start

Move

Edit

Del AllDel

Add

Exit

Menu

Exit

Return

OK

25

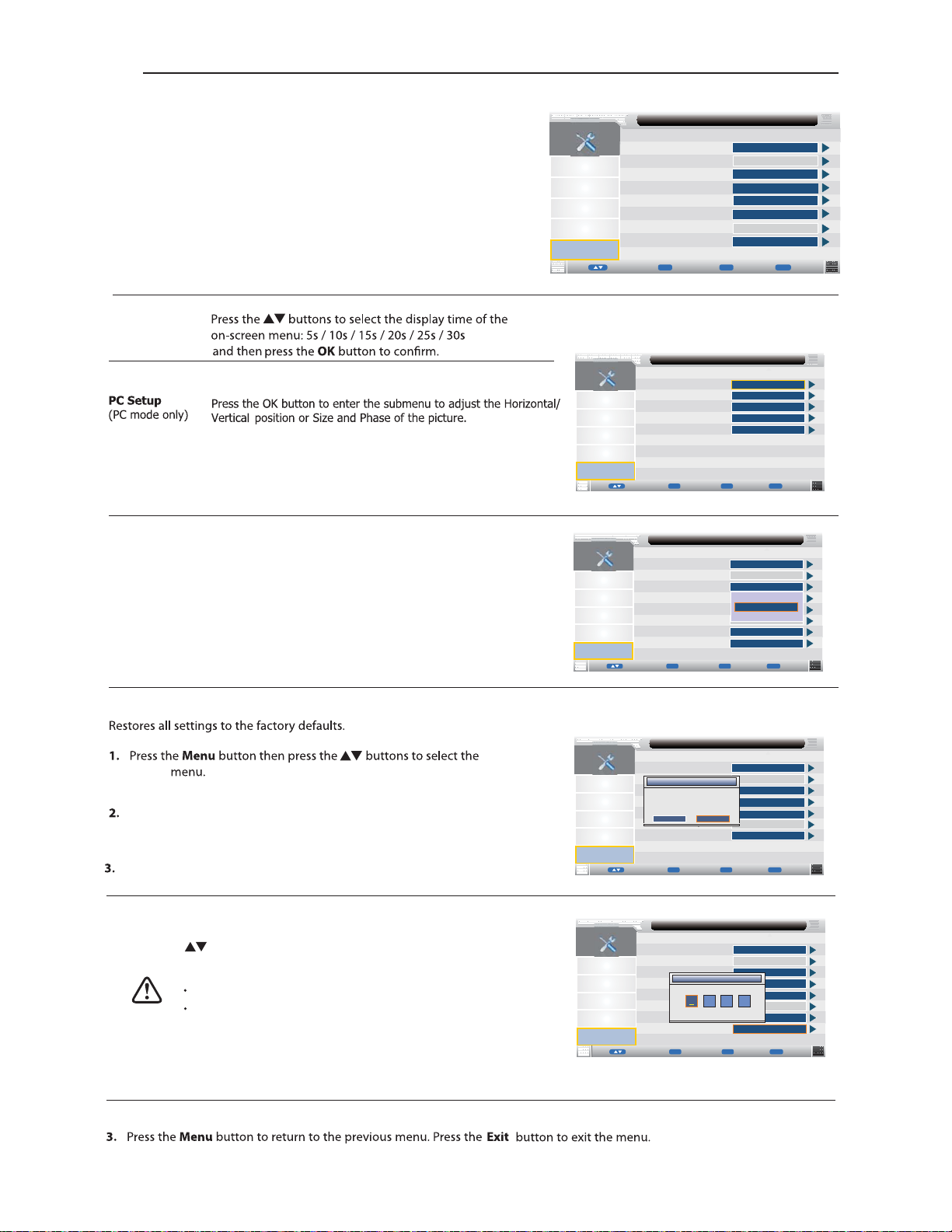

Setup Setting

Allows you to set up a variety of setup options.

1. Press the Menu button and then press the ▲▼ buttons to select the

Setup menu.

2. Press the OK or s ▲▼ buttons the following setup options ress the OK button .

►button and then press the to select

and then p

OSD Time

/ Never

Home Mode

Press the ▲▼ buttons to select the Home Mode: Max Brightness / Home / Max Economy and then press the OK button.


Sound

Channel

Feature

Setup


Sound

Channel

Feature

Setup


Sound

Channel

Feature

Setup

Move

Reset TV Setting

Software Upgrade

Move

OSD Timer

PC Setup

Home Mode

OTA Upgrade

DVD Setup

Factory Reset

OK

Enter

Auto Adjust

H Position

V Position

Phase

Clock

OK

Enter

OSD Timer

PC Setup

Home Mode

Reset TV Setting

Software Upgrade

OTA Upgrade

DVD Setup

Factory Reset

OK

Enter

Setup

Exit

Setup - PC Setup

Exit

Setup

Exit

30 Seconds

ENTER

Home

ENTER

Menu

ENTER

0

3

0

Menu

30 Seconds

ENTER

Home

Max Brightness

Home

Max Economy

ENTER

Menu

Return

Reset TV Setting

Setup

Press the OK or ubuttons and then press the pqbuttons to select Reset TV Setting and then press the OK button.

When activated the factory default settings will be applied to all user settings. (No Channels will be lost)

Factory Reset

press the button to then press the OK button to confirm.Factory Reset

the default password is “0000" If you change the password, be sure to remember the new password! If you forget the new password, press the master password “8899"


Sound

Channel

Feature

Setup


Sound

Channel

Feature

Setup

Do you want to reset Database to default?

Move

OSD Timer

PC Setup

Message

Home Mode

Reset TV Setting

Software Upgrade

OK Cancel

DVD Setup

Factory Reset

OK

Enter

OSD Timer

PC Setup

Home Mode

Password

Reset TV Setting

Software Upgrade

OTA Upgrade

DVD Setup

Factory Reset

OK

Enter

Setup

Exit

Setup

Exit

30 Seconds

ENTER

Home

ENTER

Menu

30 Seconds

ENTER

Home

ENTER

Menu

Return

26

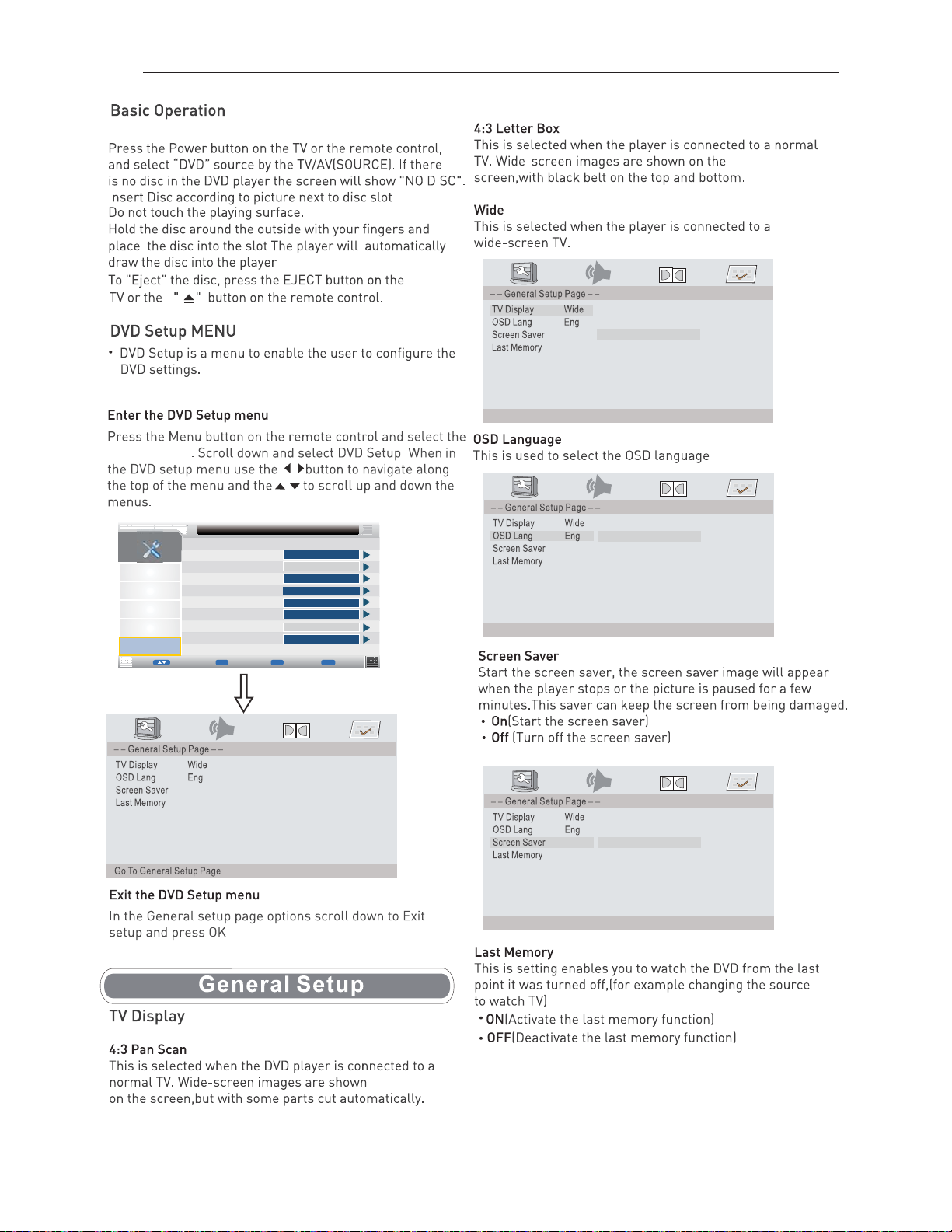

DVD Operation

Setup menu

Exit Setup

Set TV Display Mode

ON

Dolby

4:3 Pan Scan 4:3 Letter Box Wide

Dolby

Exit Setup


Sound

Channel

Feature

Setup

Move

Reset TV Setting

Software Upgrade

ON

OSD Timer

PC Setup

Home Mode

OTA Upgrade

DVD Setup

Factory Reset

OK

Enter

Setup

Exit

Dolby

30 Seconds

ENTER

Home

ENTER

Menu

Return

Exit Setup

Set OSD Language

Exit Setup

Screen Saver

English

ON

French German

ON

Spanish Italian Portuguese

Dolby

ON

Off

27

DVD Operation

Dolby

Exit Setup

Set Last Memory State

Speaker Setup

Go To Speaker Setup Page

Speaker Setup Page

Downmix STR

ON

TV System

Off

PAL Multi NTSC

Set TV Standard

Dolby

Multi

Dolby

TV System

English French German Spanish Italian

Dolby

Portuguese

Preferred Audio Language

LT/RT Stereo

Set Downmix Mode

Dolby Digital Setup

Dynamic

Set DRC To Full

28

Dolby

Full

3 / 4

1 / 2

1 / 4

OFF

TV System

Preferred Subtitle Language

TV System

Preferred Menu Language

Dolby

English French German Spanish Italian Portuguese Off

Dolby

English French German Spanish Italian Portuguese

DVD Operation

TV System

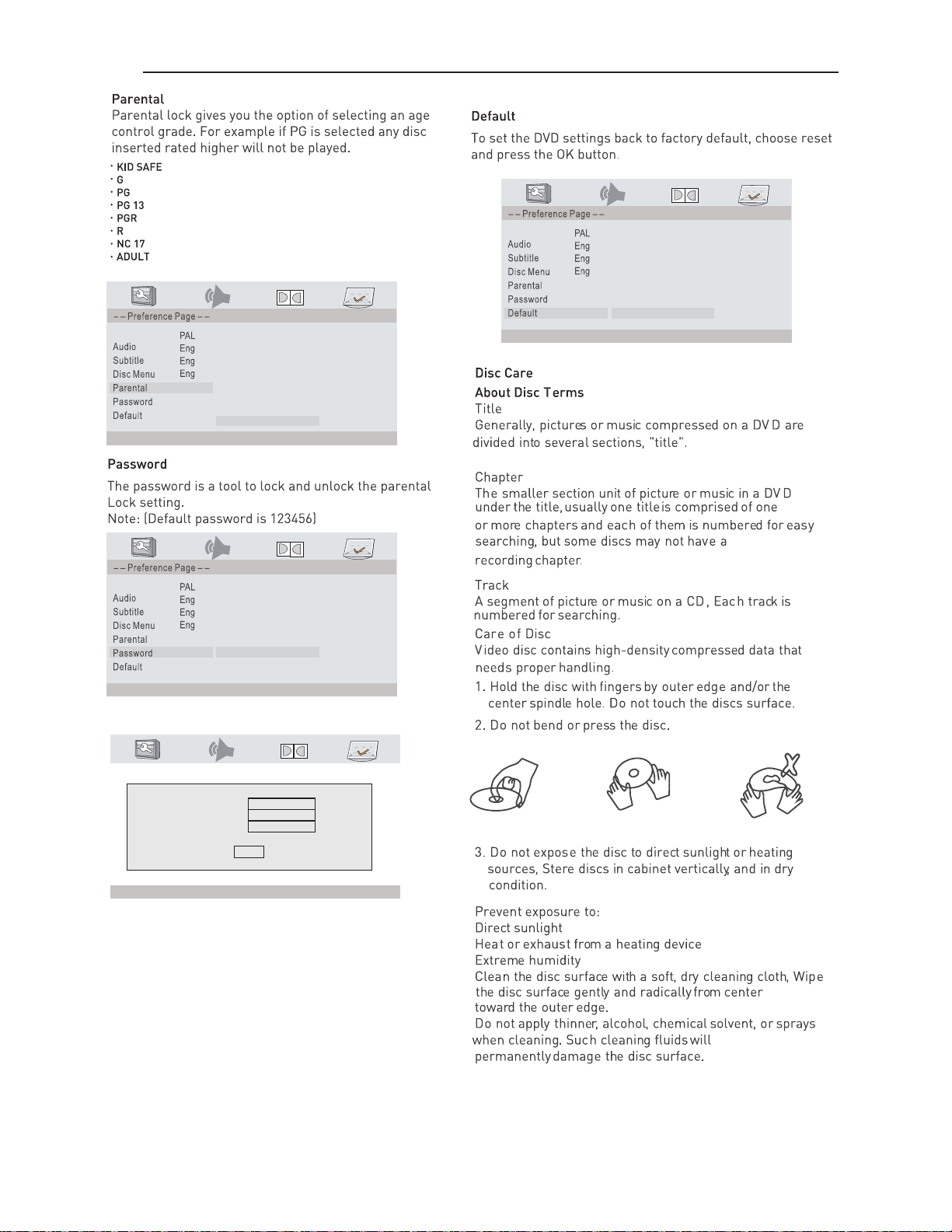

Set Parental Control

1 KID SAF 2 G 3 PG 4 PG 13 5 PGR 6 R 7 NC 17 8 ADULT

Dolby

TV System

Dolby

Reset

Load Factory Setting

TV System

Change Password

Old Password

New Password Confirm PWD

Dolby

Change

Dolby

OK

29

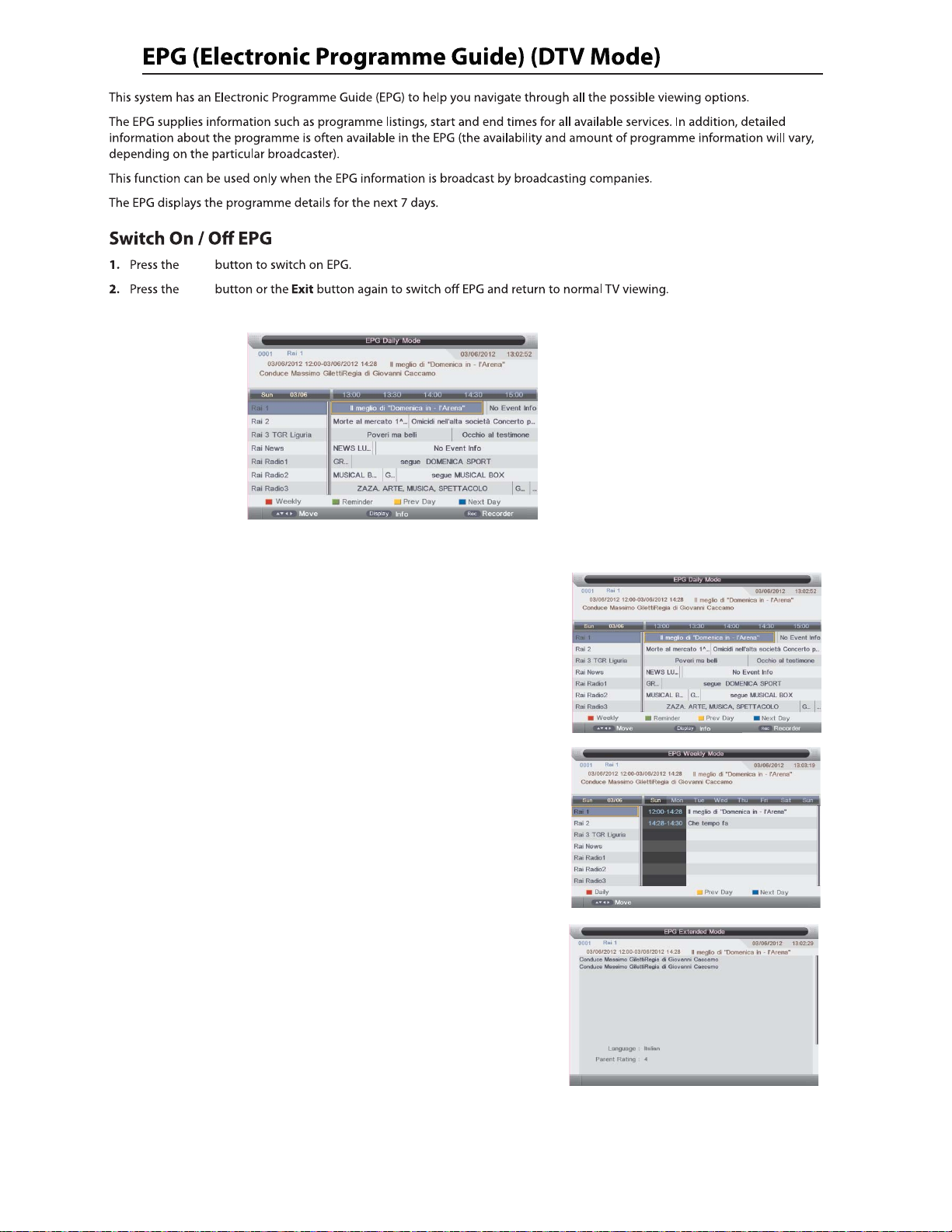

EPG

There are 3 modes of EPG menu：

Daily mode: shows the information of the programs to be broadcasted in daily mode.

RED (Weekly) Change to weekly mode. GREEN (Reminder) YELLOW (Prev Day) Update the program information of the current 7 channels in the channel

list to the previous day and the start time keeps the same. BLUE (Next Day) Update the program information of the current 7 channels in the channel list to the next day and the start time keeps the same.

Weekly mode: shows the information of the programs to be broadcasted in weekly mode.

RED (Daily) Change to Daily mode. YELLOW (Prev Day) If the cursor lies on the right event list, update the right event list to

display the event information of the previous day and move the cursor to the same place in the updated page. BLUE (Next Day) If the cursor lies on the right event list, update the right event list to display the event information of the next day and move the cursor to the same place in the updated page.

Extended mode:

shows the detailed information of each program Extended detailed programme information can be displayed by pressing the info button on the remote control.

30

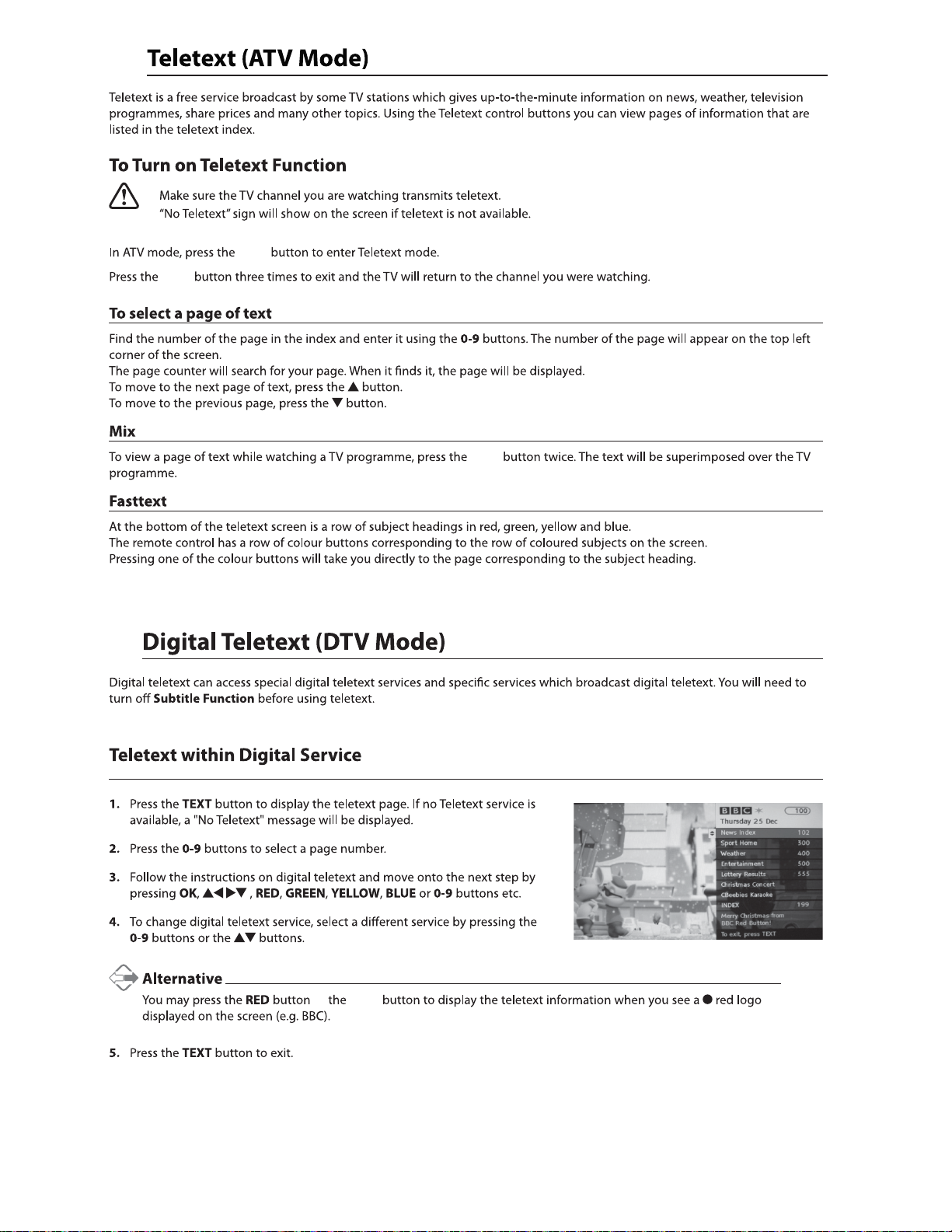

Text

or

31

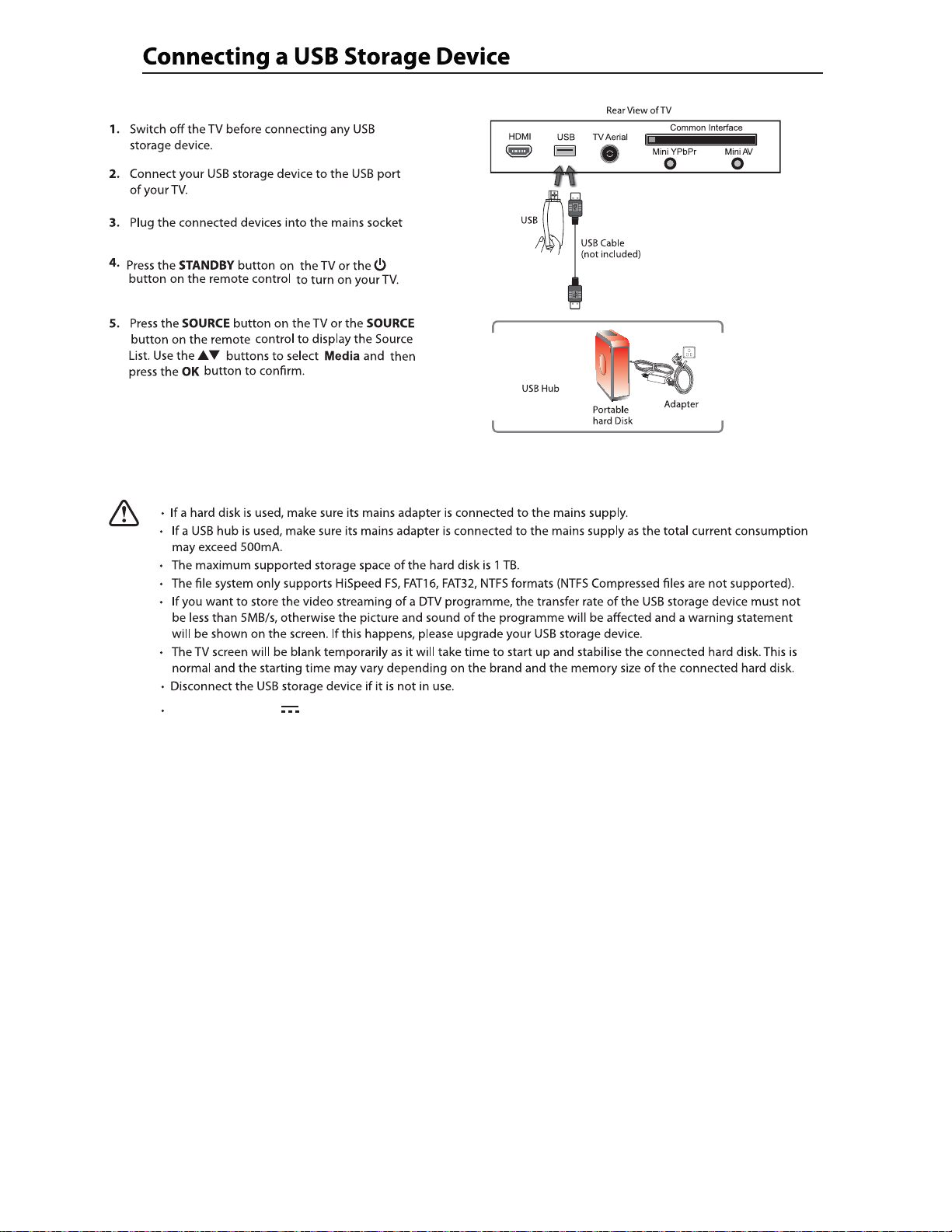

USB output: DC 5V 500mA

32

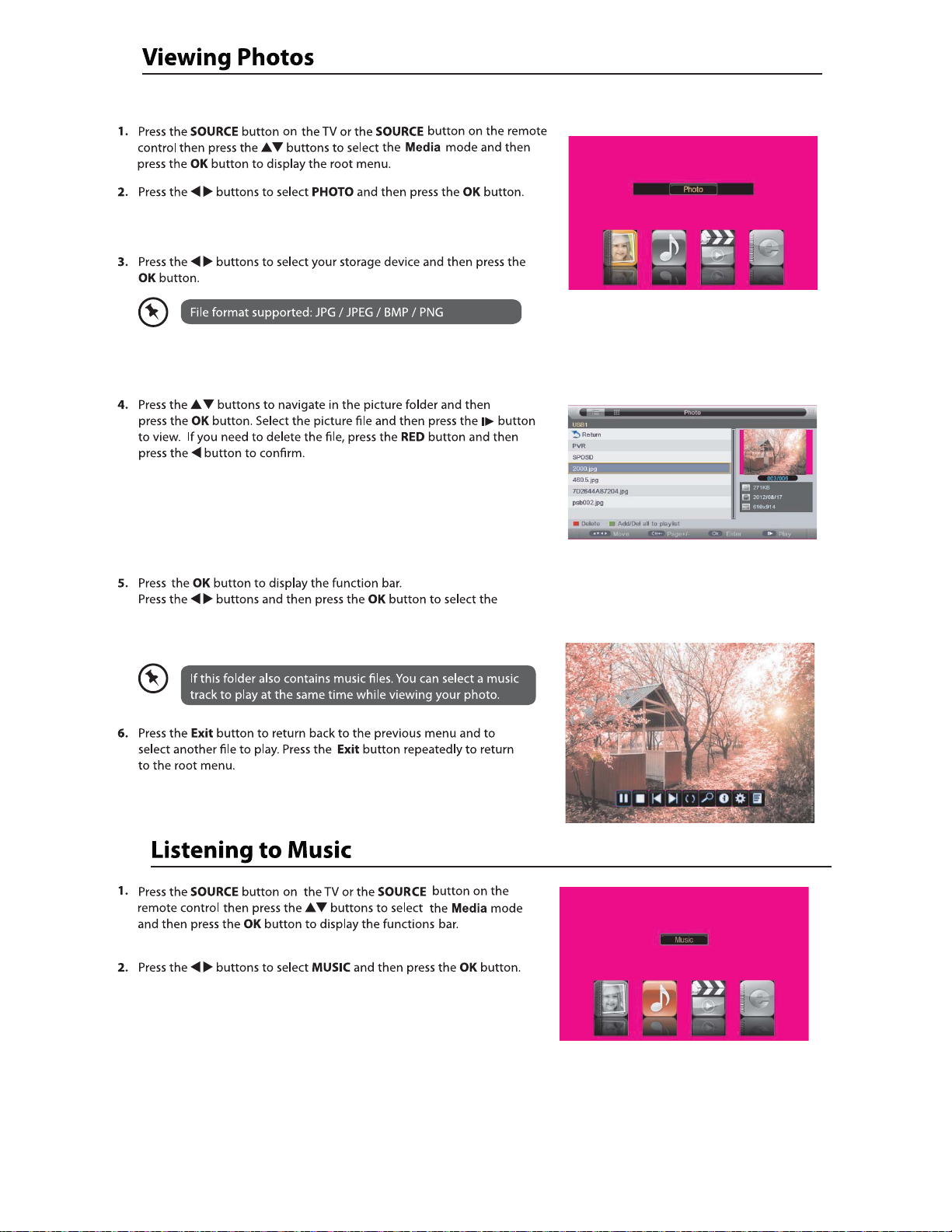

/ GIF / TIFF.

function: Play / Pause / Stop / Prev. / Next / Rotate / Zoom / Info / Photo Setup / Play list.

33

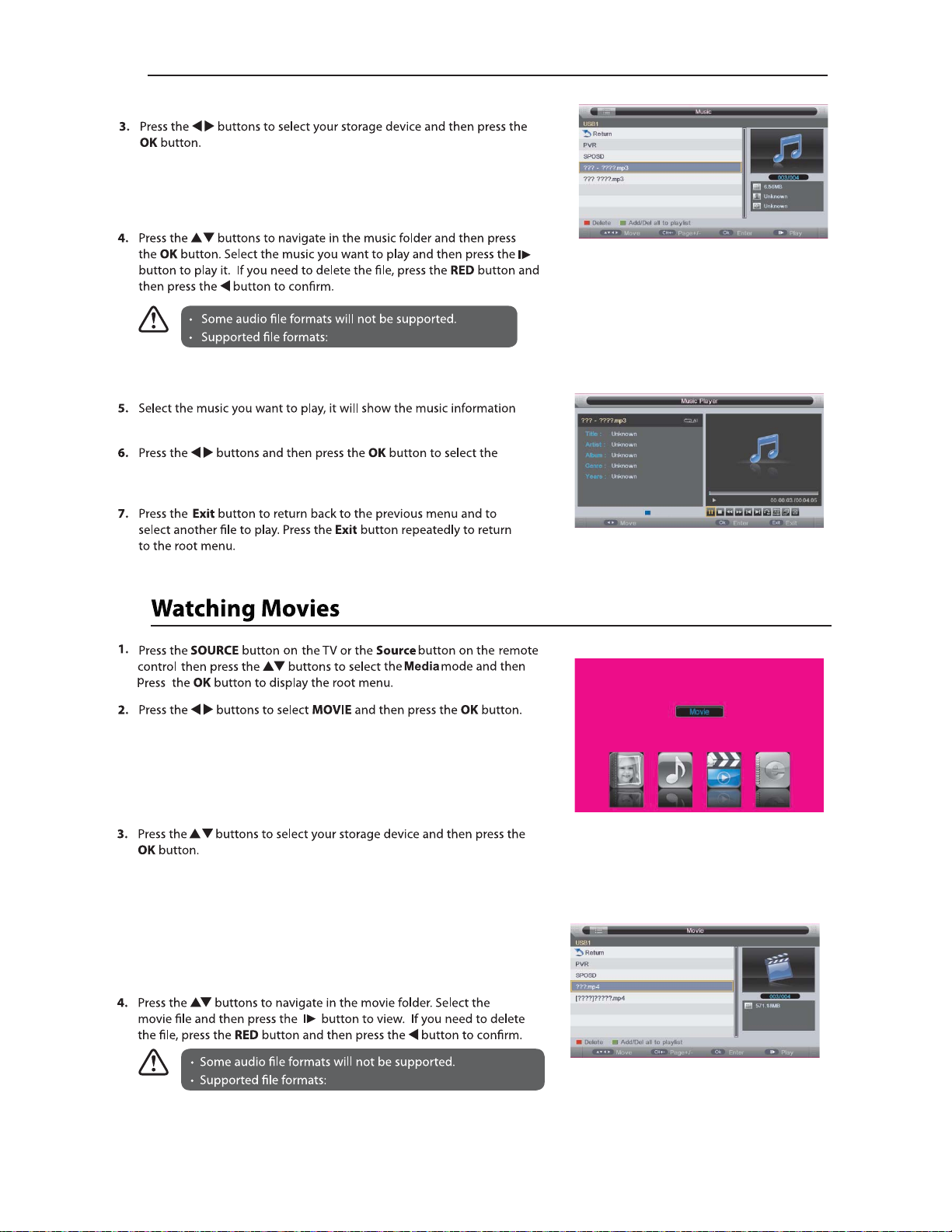

WAVE / WMA / AAC / AC3 / MPEG.

(Title / Artist / Album / Genre / Year).

function: Play / Pause / Stop / FB / FF / Prev. / Next / Goto Time / Repeat All / Play list / Music.

Backlight Off

34

AVI / MPEG1/2 / MPEG4 / WMV / H.264.

function: Play / Pause / Stop / FB / FF / Slow mode / Step mode / Repeat A-B / Prev. / Next / Play list / Info / Movie Setup / Goto Time.

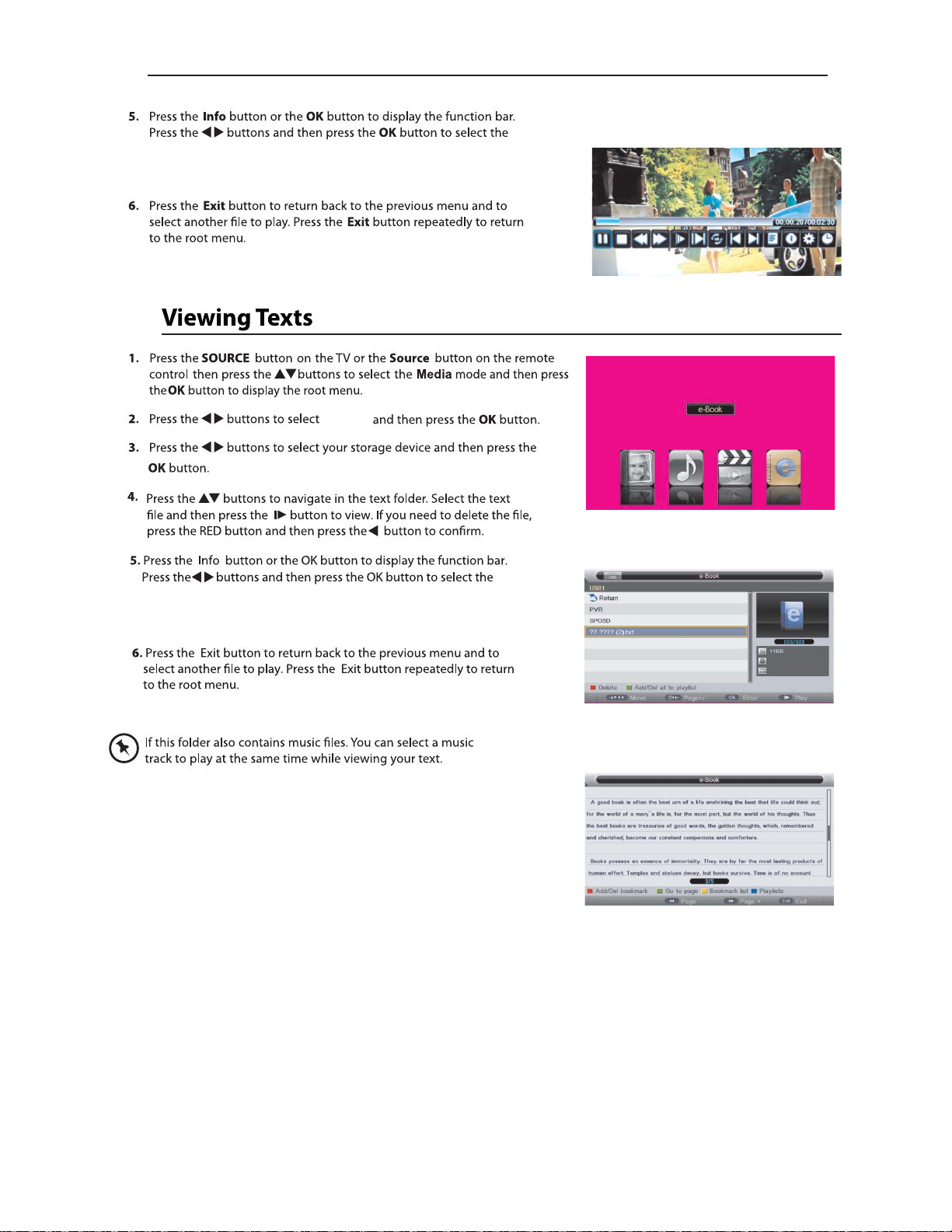

e-Book

35

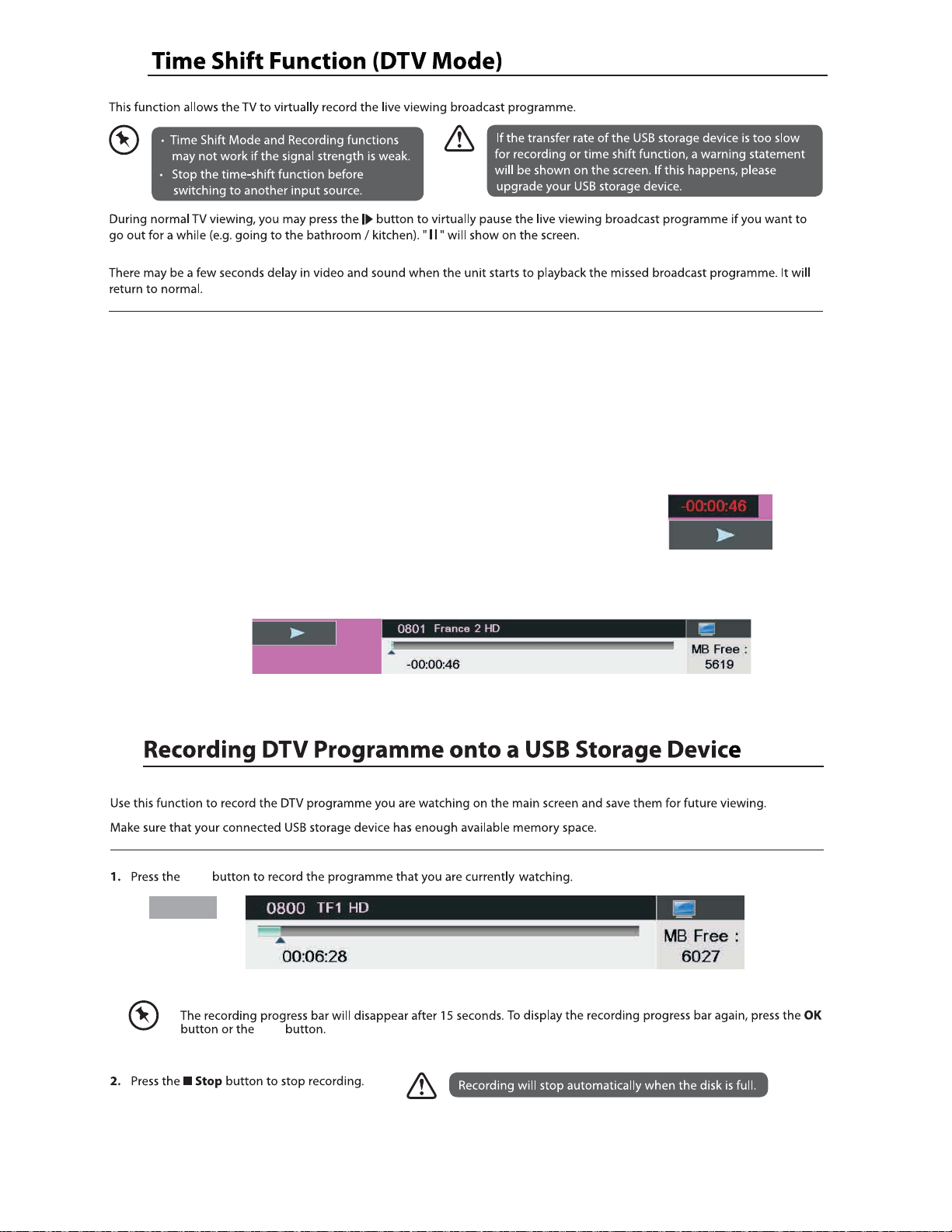

Time shift input info menu:

Information Time shift input info menu displays as a flag of Time shift. After Time shift start this menu displays

all the time until. Time shift stop (except there is some other menu exist) .

Enter method A fter Time shift start, it will display automatically.

Time shift info banner menu:

Information T ime shit info banner shows some current Time shift information.

Enter method A fter Time shift start, press Info to show the menu .

Function explain :

a Time is equal to current play time minus current recording time.

Progress bar is for current recording length compared with the disk free space when REC start.

b

The black triangular icon is for current play length compared with current recording length.

c MB Free is the disk instantaneous free space.

d The right red time menu has the same function with the time in info banner menu(only when info banner menu closed it showed).

Time shift info menu

Time shift time menu

36

Rec

REC

REC info menu

Rec

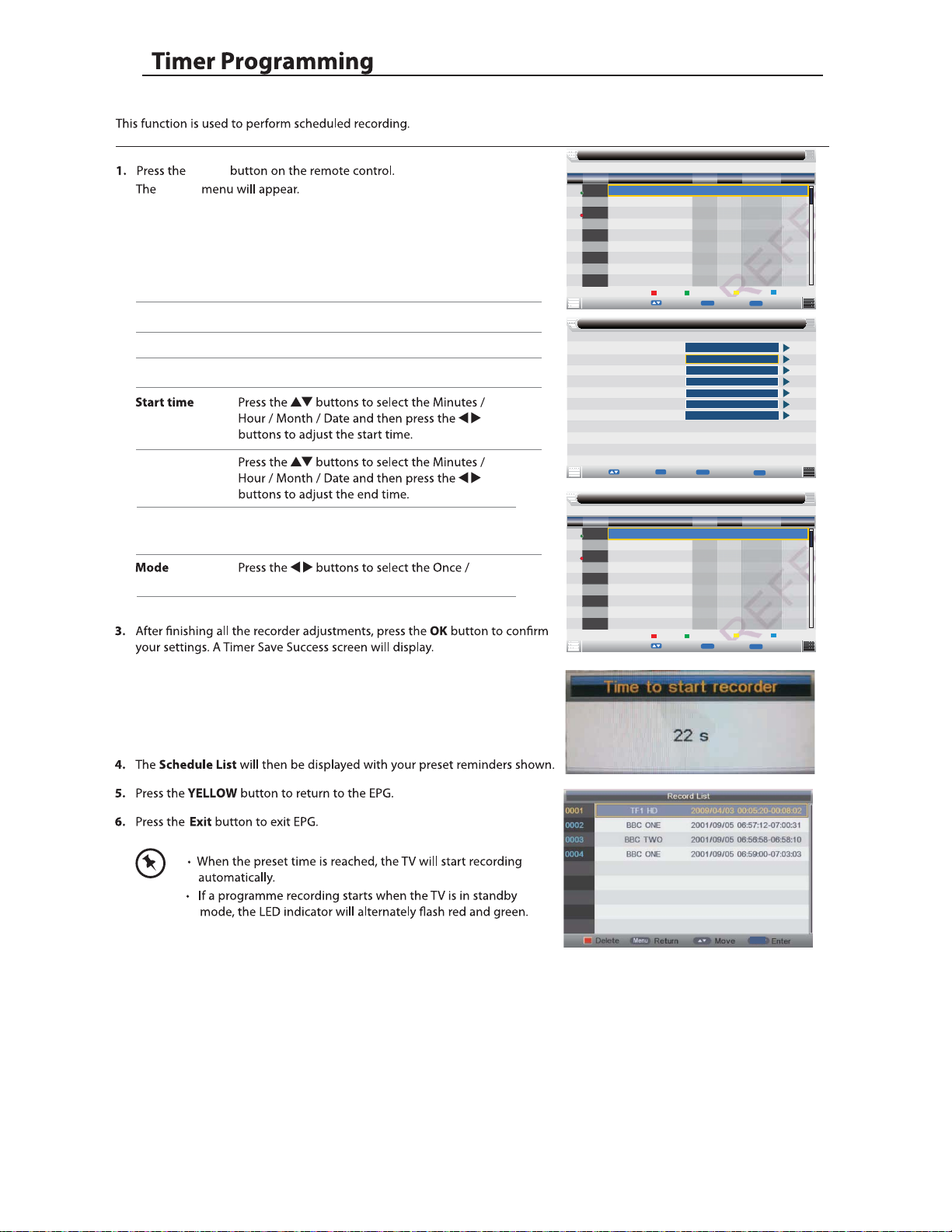

Timer

2. Press the YELLOW button enter the Time Edit menu for the channel.

Recorder Press the ▲▼ buttons to select the Recorder On or Off.

Type Press the ▲▼ buttons to select the Type

Channel Press the ▲▼ buttons to select the

Timer

No.

Channel

Ch No.

0031

01

ITV2 +1

02

Film4

0029

000503

YLE FST

R

Del AllDel

Move

Timer Edit

Recorder

Type

Channel

Start Time

Duration

Date

Mode

12/01/2008 18:02:25

Start Duration Date

21:00 21:15

22:40 23:15

11:30

--:--

Exit

On

DTV

BBC ONE

09:35

10:15

13/01/2008

Once

12/04/2009 Once

Add

13/01/2008 18:02:25

Mode

Edit

Menu

Return

Duration

Date Press the ▲▼ buttons to select the date of starting

recording, Format is day / month / year.

Daily / Monthly ./ Weekly

0~9

Move

No.

Channel

Ch No.

0031

01

ITV2 +1

02

Film4

0029

000503

YLE FST

R

0~9

Move

OK

Enter

Timer

Start Duration Date

21:00 21:15

22:40 23:15

--:--

11:30

Del AllDel

Exit

Menu

Save

12/01/2008 18:02:25

Mode

12/04/2009 Once

Edit

Add

Menu

Return

OK

37

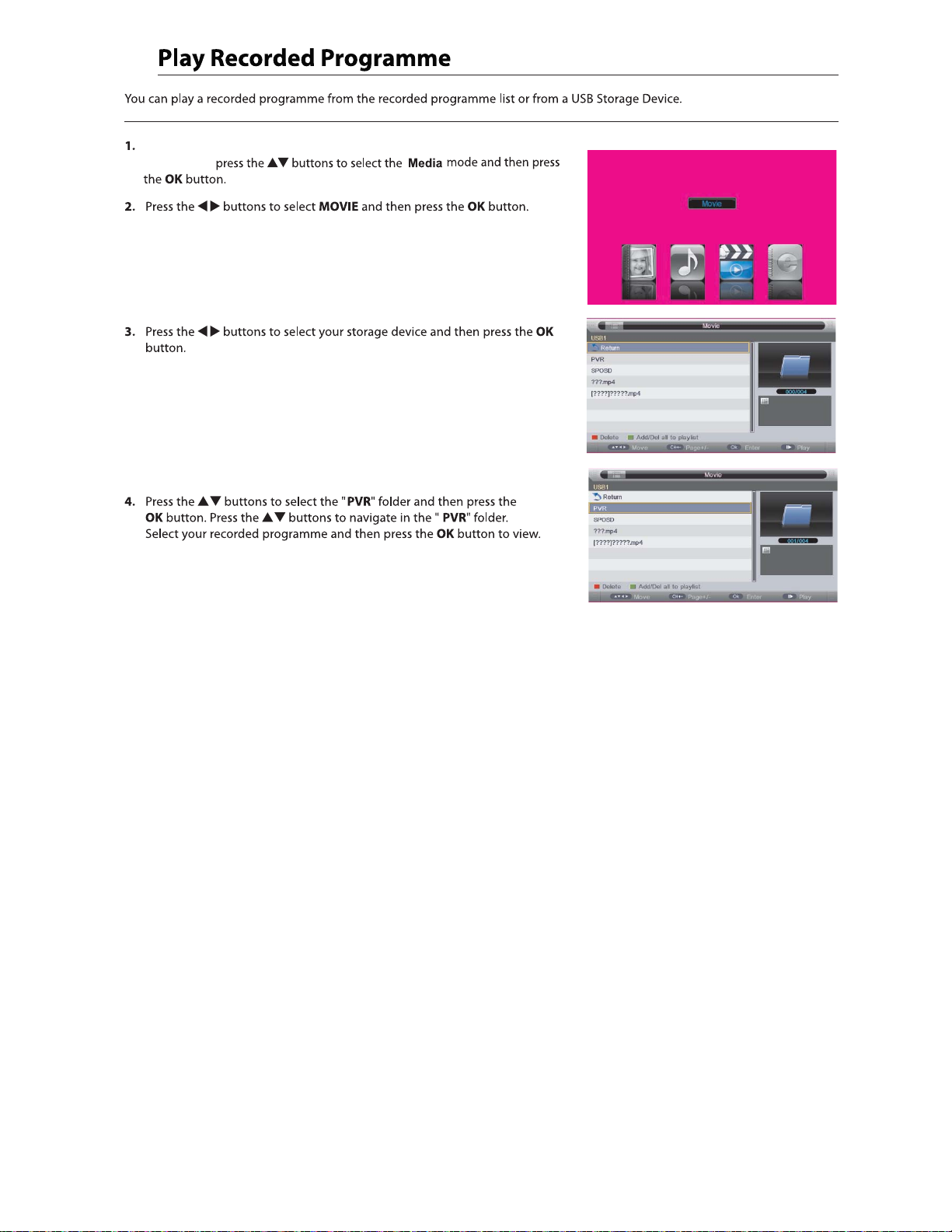

Press the SOURCE button on the TV or the SOURCE button on the remote control then

38


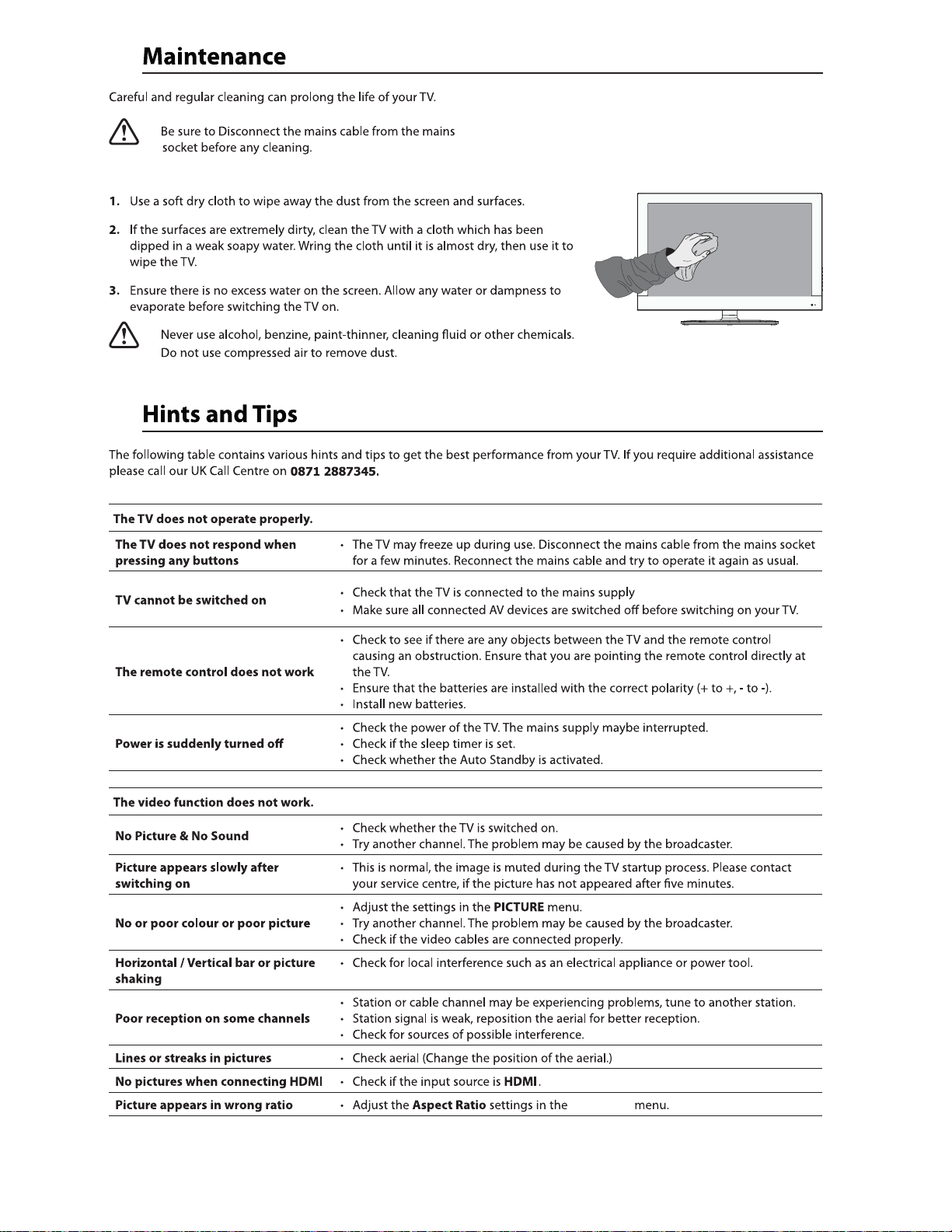

39

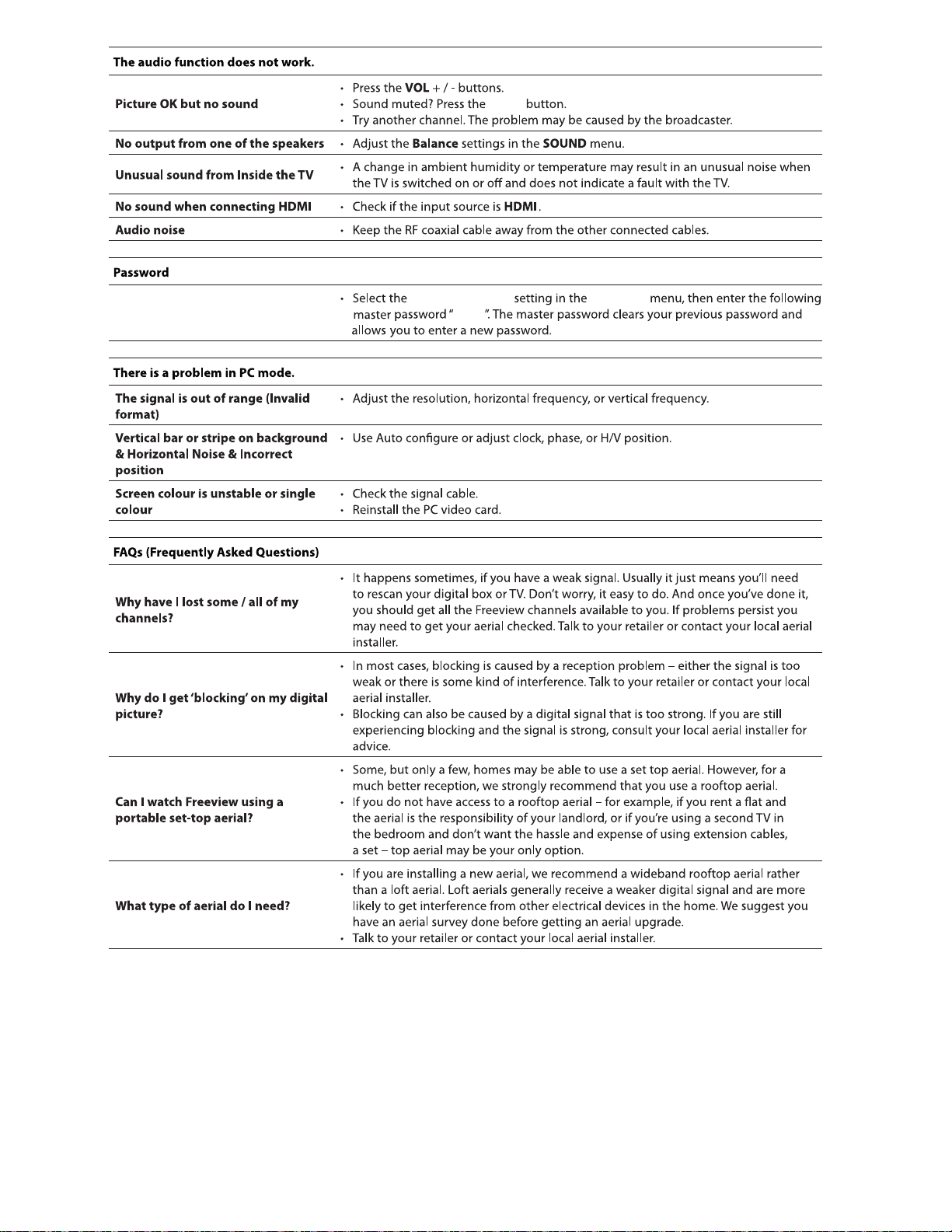

Mute

Lost Password

Change Pin Code

8899

FEATURE

40

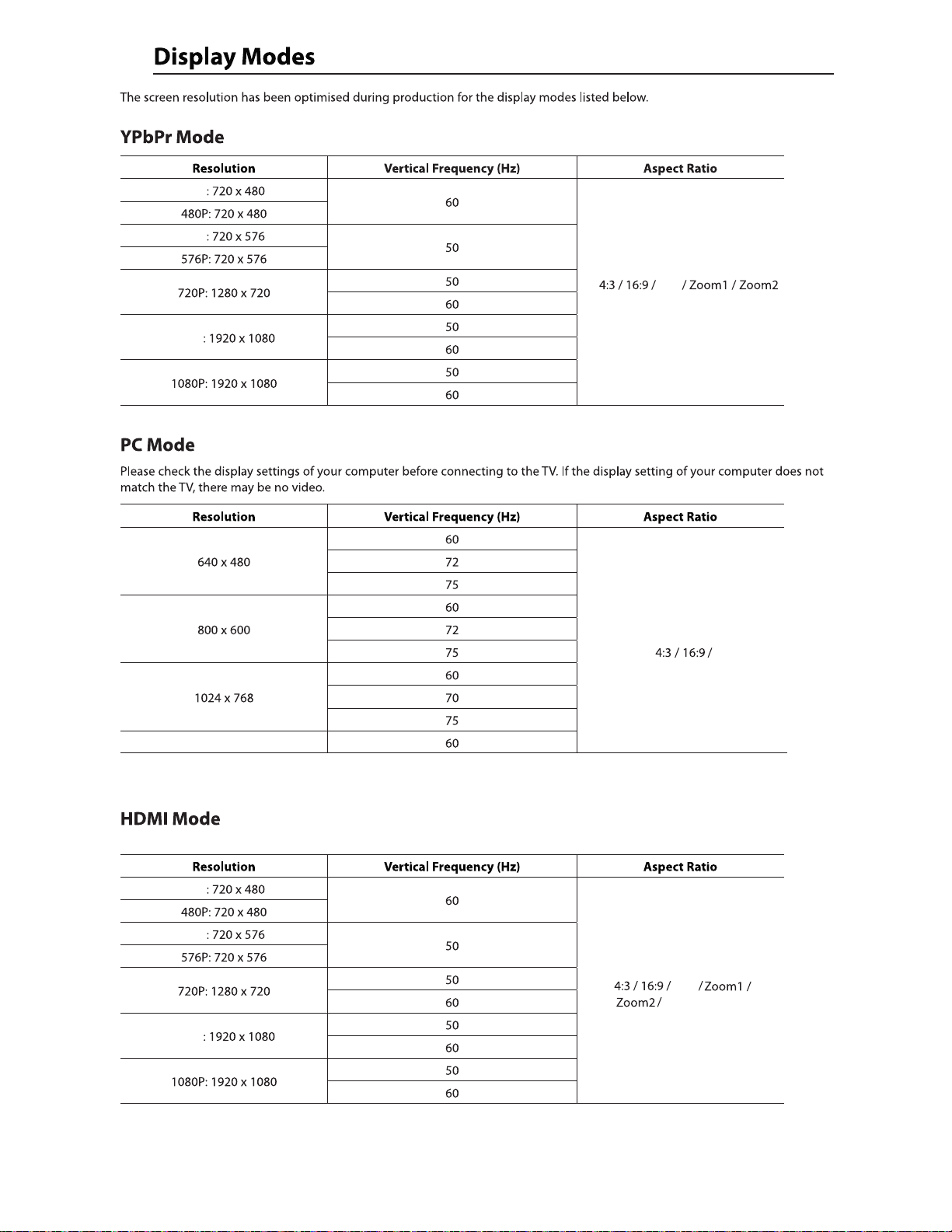

480i

576i

1080i

Full

1360 x 768

480i

576i

1080i

Full

Just Scan

41

&)/('

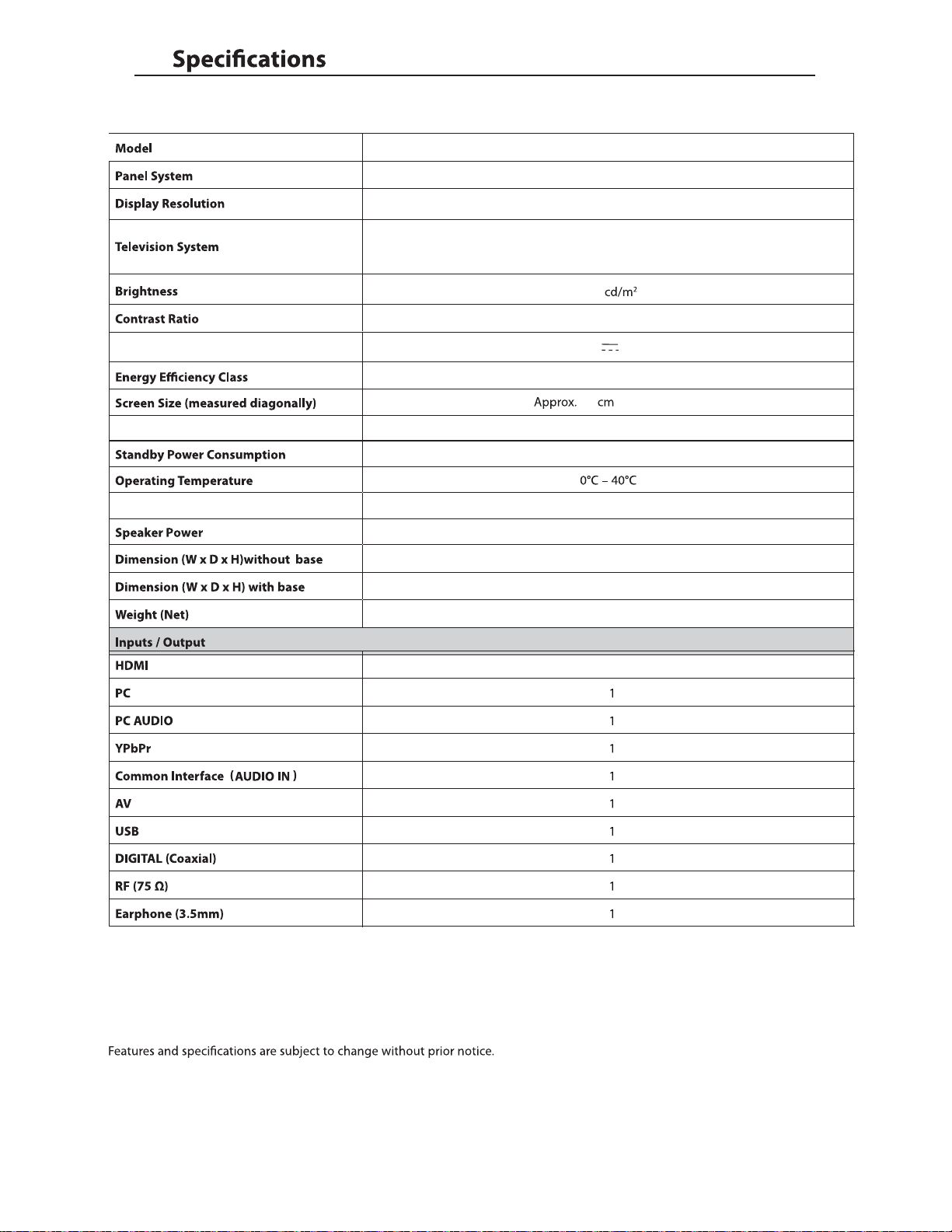

16 inch LED Panel

1366 (H) x 768(V) pixels

PAL I / BG / DK

SECAM BG / DK

200

500:1

Power Source

Operating Power consumption

Vesa Wall mounting size / Screw size

12V 3A

A

40 (15.6 inch)

9

W

< 0.5 W

75 x 75 mm / M4x 8

2.5 W + 2.5W

374 x 48 x 244 mm

374 x 120 x 274 mm

1.7 kg





LED

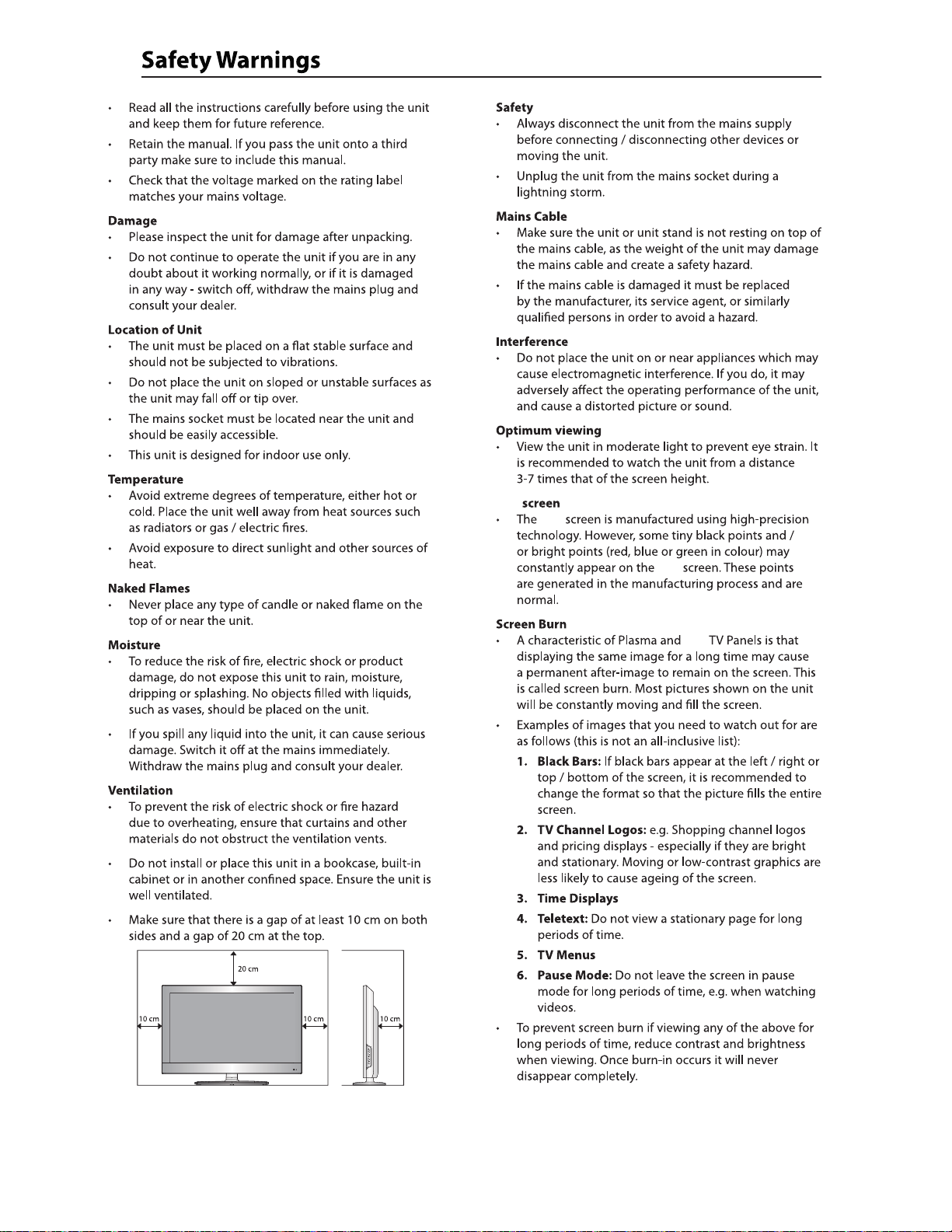

43

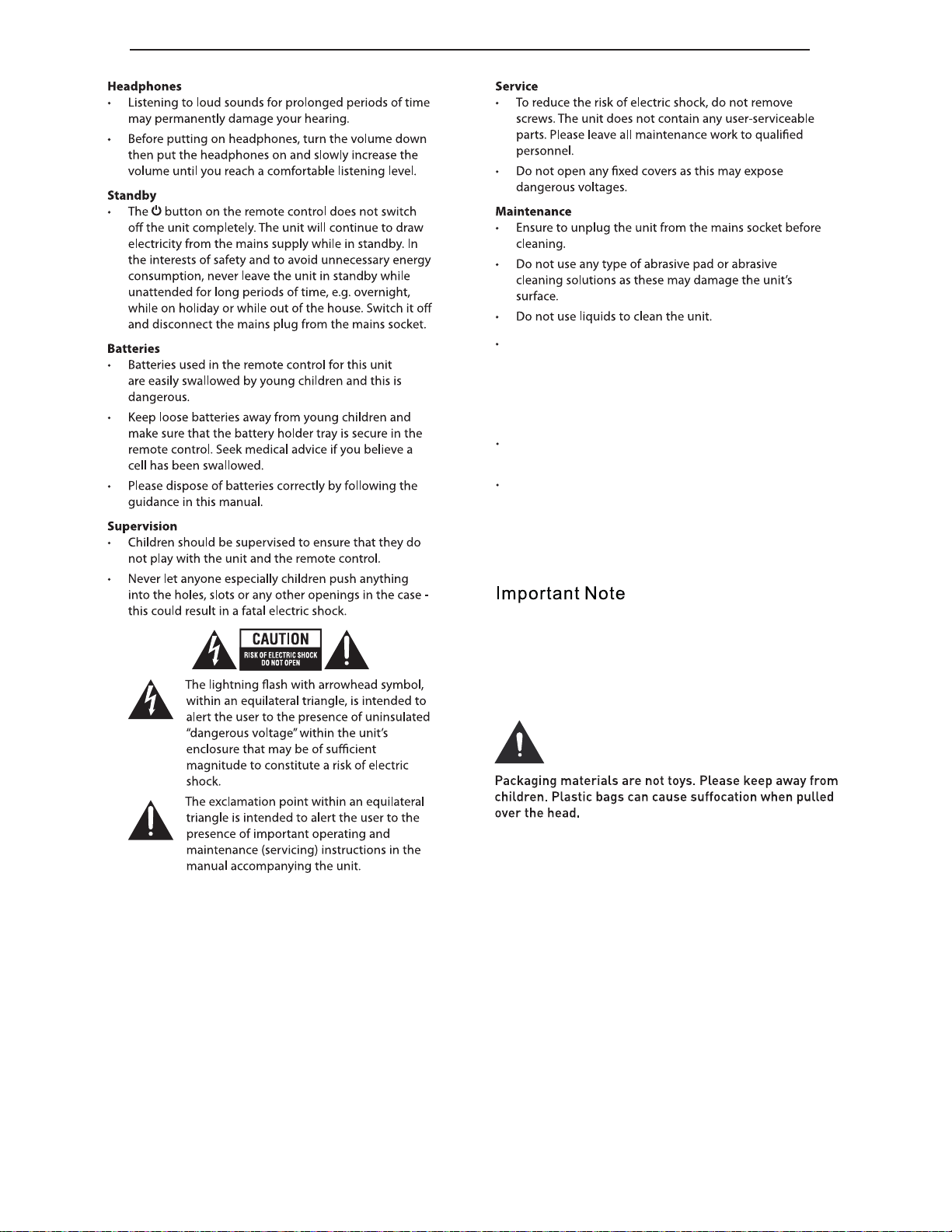

For MAINS powered apparatus and for apparatus producing internal voltages greater than 35 V(peak) a.c. or d.c., having no protection against splashing water, the apparatus shall not be exposed to dripping or splashing and no objects filled

with liquids, such as vases, shall be placed on the apparatus.

To ensure correct and safe installation and interconnection of the apparatus in multimedia systems

Where the MAINS plug or an appliance coupler is used as the

disconnect device, the disconnect device shall remain readily operable;

This TV is fitted with the latest ECO friendly power saving technology. If whilst viewing the TV remote control is not used for a period of 4 hours, the Auto Standby feature will operate and power down the TV. A warning message will be displayed to inform you that the TV is about to power down.

44

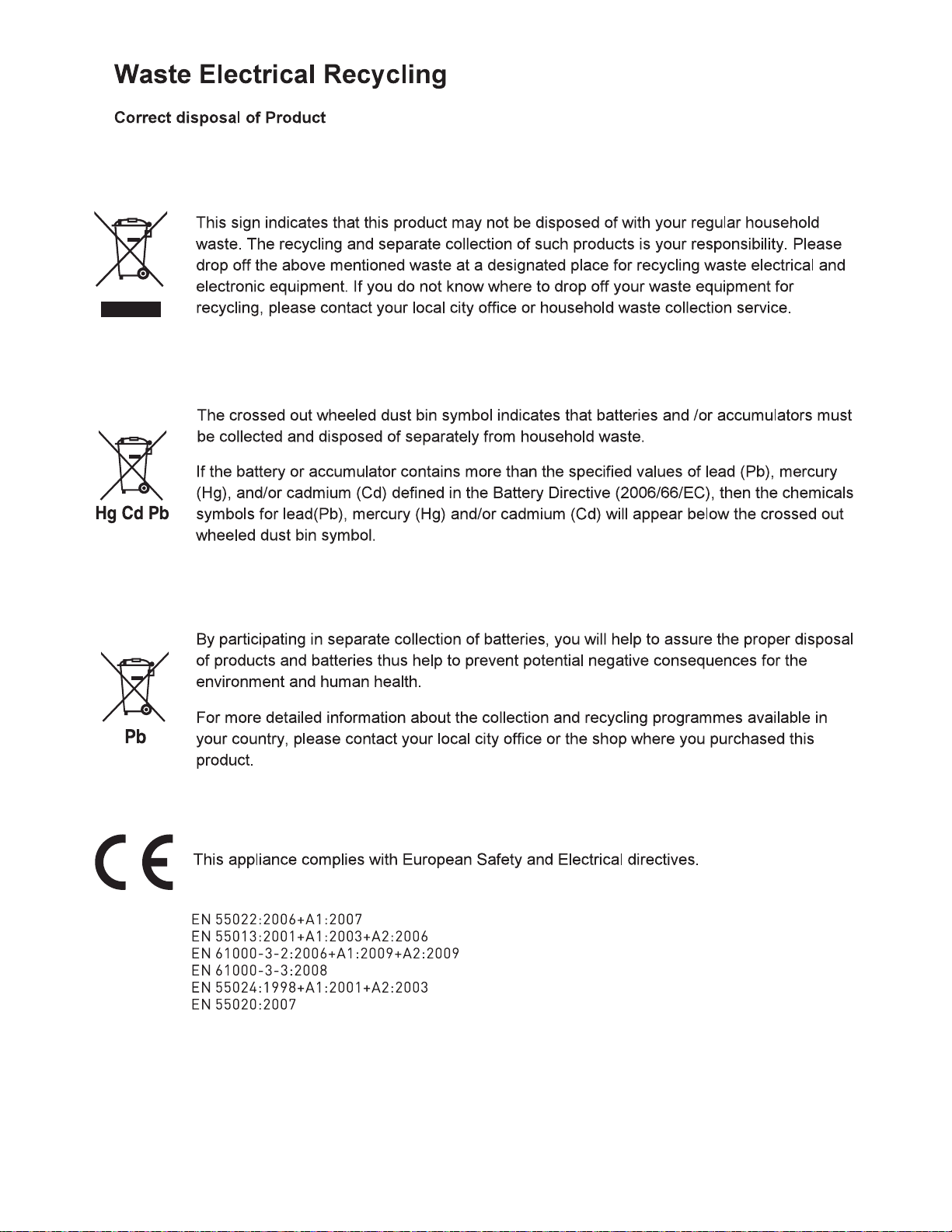

It fullfils the following EU regulatio :ns

45

Cello C16230F User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
