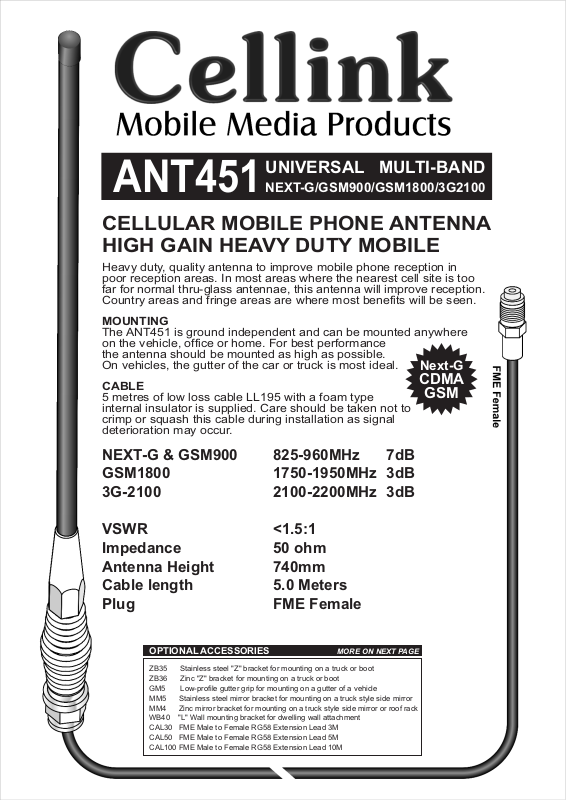

UNIVERSAL MULTI-BAND
ANT451
NEXT-G/GSM900/GSM1800/3G2100
CELLULAR MOBILE PHONE ANTENNA
HIGH GAIN HEAVY DUTY MOBILE
Heavy duty, quality antenna to improve mobile phone reception in
poor reception areas. In most areas where the nearest cell site is too
far for normal thru-glass antennae, this antenna will improve reception.
Country areas and fringe areas are where most benefits will be seen.
MOUNTING
The ANT451 is ground independent and can be mounted anywhere
on the vehicle, office or home. For best performance
the antenna should be mounted as high as possible.
On vehicles, the gutter of the car or truck is most ideal.
CABLE
5 metres of low loss cable LL195 with a foam type
internal insulator is supplied. Care should be taken not to
crimp or squash this cable during installation as signal
deterioration may occur.
NEXT-G & GSM900 825-960MHz 7dB
Next-G
CDMA
GSM
GSM1800 1750-1950MHz 3dB
3G-2100 2100-2200MHz 3dB
VSWR <1.5:1
Impedance 50 ohm
Antenna Height 740mm
Cable length 5.0 Meters
Plug FME Female
OPTIONAL ACCESSORIES
ZB35 Stainless steel "Z" bracket for mounting on a truck or boot
ZB36 Zinc "Z" bracket for mounting on a truck or boot
GM5 Low-profile gutter grip for mounting on a gutter of a vehicle
MM5 Stainless steel mirror bracket for mounting on a truck style side mirror
MM4 Zinc mirror bracket for mounting on a truck style side mirror or roof rack
WB40 "L" Wall mounting bracket for dwelling wall attachment
CAL30 FME Male to Female RG58 Extension Lead 3M
CAL50 FME Male to Female RG58 Extension Lead 5M
CAL100 FME Male to Female RG58 Extension Lead 10M
MORE ON NEXT PAGE
PLUGS & ADAPTORS AVAILABLE
P801
Cigarette lighter
plug
P810
Cigarette lighter
plug/fuse holder
J800 cigarette
J802
50WCOAX 5mm
Multi-strand with braided copper shield.
Equiv. RG58U
Code RG58AU
50WCOAX 10mm MIL-C-17D
HEAVY DUTY with UV-Resistance
Tinned Multi-Strand High-shielding
MIL-C-17D Specs.
Code RG213U
100M
SMA230
SMA male - BNC female
SMA male - TNC female
100M
FER59 RG59 type
FER65 RG6 type
STRAIN RELIEF BOOT
58SRB Suit RG58U Cable
59SRB Suit RG59U Cable
SMA150
50WCOAX 5mm MIL-C-17
Mobile communications and
Tinned Multi-Strand High-shielding
MIL-C-17 Specs.
Code RG58CU
100M
GOLD PINS
Suit BNC,TNC,etc. 10 pcs.
BNP7 0.7mm hole
BNP9 0.9mm hole
BNP12 1.2mm hole
CRIMP FERULES
Suit crimp plugs. 10pcs
FER58 RG58 type
SMA male crimp, RG58U
TNC232
FME100
FME158
FME Male RG58
FME Female crimp RG58
TNC chassis mount.
CJ500
Coax cable joiner
Screw terminating
SMF58
SMA female crimp type
suit RG58U cable.
SMA58
In-line socket
TNC218
TNC thread-on plug
lighter jack
TNC28
TNC45
TNC panel mount
crimp type RG58U.
TNC99
TNC female crimp type
to suit RG58U cable.
TNC crimp type, RG58U
SMA451
SMA430
SMA452
TNC240
TNC male to female
90 deg. adaptor.
TNC246
TNC female to female
with mounting nut.
TNC254
TNC female to
BNC plug adaptor.
TNC262
TNC female to female
inline adaptor.
TNC268
TNC male to
BNC female adaptor.
FME250
FME®Mini UHF
Female to female
FME265
FME®Mini UHF
Male to Male
FME160
FME®“N”
Male to male
FME259
FME Male to
PL259 Male
SMA319
Mini UHF-SMA F/F
TNC “T” adaptor
FME140
FME150
FME®Mini UHF
Male to male
FME®BNC Male/male
TNC75
TNC female to TNC
male push on adaptor
TNC224
TNC F/Male-SMA F/Male
FME130
FME®TNC Male/male
BNC Male - SMA Female
FME120
FME®FME Male/male
SMA female - TNC Male
FME110
FME®TNC Female/female
SMA male - female R/A
TNC274
TNC male adaptor to
mini-UHF M259 female
TAC165
Twin axial “T” type
adaptor all female.
SMA291
SMA female to female
Panel Mountable.
SMA390
