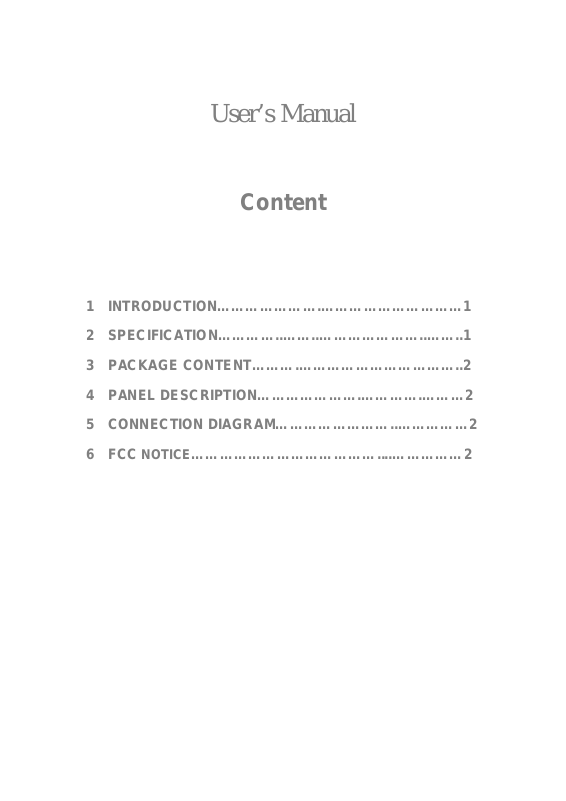

User’s Manual
Content
1 INTRODUCTION………………….…………………………1 2 SPECIFICATION…………..……..…………………..……..1 3 PACKAGE CONTENT……….……………………………..2 4 PANEL DESCRIPTION………………….………….………2 5 CONNECTION DIAGRAM……………………..……………2
6 FCC NOTICE…………………………………....……………2
Wireless charging pad
Input
DC 5V,1A~3A
Output voltage
4.75-5.0V
Size
100(DIA)*30.8mm(Height)
Output port
USB A Type
Operating Temperature Range
0~45°C
Storage Temperature Range
20 ~ 85°C
High Humidity Operation
+40 C and 90 ~ 95%
Color
White+Grey
Weight
145 g
Overload protection
Yes
Short circuit protection
Yes
5w Wireless Charging Pad
DEAR CUSTOMER
Thank you for purchasing this product. For optimum performance and safety,
please read the following instructions carefully before connecting, operating or
using this product. Please keep this manual for future reference.
1. INTRODUCTION
1.1 Product Description
This is a high performance 5w Wireless Charging Pad, which allows you to
charge your phone without plugging the cable, just need to put the phone on
the charging Pad. Suitable for all the Qi wir eless charg ing capabl e phone, such
as S4, S3(9300/9308), NOTE2(7100/7102), NOKIA Lumia 920/820/720,
Nexus4, HTC 8X, IPHONE5/4S/4,etc.
1.2 Features
This product has many features that enable it to perform in a superior manner.
Among those features you will find:
Qi wireless charging Standard compatible.
Rounded design suitable for various mobile phones with different shape.
Can charge for two phones at the same time, only one of them can us e the
wireless way.
Thanks to the antiskid design of surface and bottom, the charging pad
compatible well with the phone with different surface material.
Intelligent inductive charging.
Can be directly connected to the desktop or laptop and mobile phone
adapter to get power supply.
Bevel design, can instead of the phone stand holder, support charging
while playing the phone.
2. SPECIFICATION
Output current 0.1~1A max
Input port Micro USB
1
Wireless charging pad
Efficiency:
>65%
Life span
50000 Hours
Limited Warranty
1 Year
User Manual
English Version
Note: Specifications are subject to change without notice.
3. PACKAGE CONTENT
Before using this unit, please check the packaging and make sure the
following items are contained in the shipping carton:
1×Main unit
1×User's Manual
4. PANEL DESCRIPTION
A
1E APower in, DC 5V
○
A
2E AUSB A Type port: charging for your phone use one USB cable;
○
A
3E AIndicator: When the product powered on, the indicator will glow blue and
○
red lights and flash three times; When your phone charging, the indicator will
glow red light. After the product finish chargi ng, the indicator will glow blue light.
When an a ccident appeared, the indicator will glow alternating red and blue
light.
A
4E AThe surface is for wireless charging.
○
5. CONNECTION DIAGRAM
2
Wireless charging pad
6.FCC NOTICE
The product may cause potential interference to your home electronic product.
During operation the user must keep a minimum separation distance of 10cm with the RF devices
Please do not put any metal substance like coin when charging. It can cause product damage and
serious burns
Unplug the device USB and when unused for extended periods of time
Troubleshooting:
Adopt following measures by the user itself once the product is interfered.
1. Turning the equipment OFF and ON
2. Reorient or relocate the receiving antenna.
3. Increase the separation between the equipment and receiver
Note：
Changes or modifications to this unit not expressly approved by
CE-LINK may cause interference and void the user authority to
operate the eq ui pme nt.
FCC ID: A4X-WPC02
P/N7006
