Page 1
For best performance make sure there is 50cm of metal plane
around the base of the antenna.
I

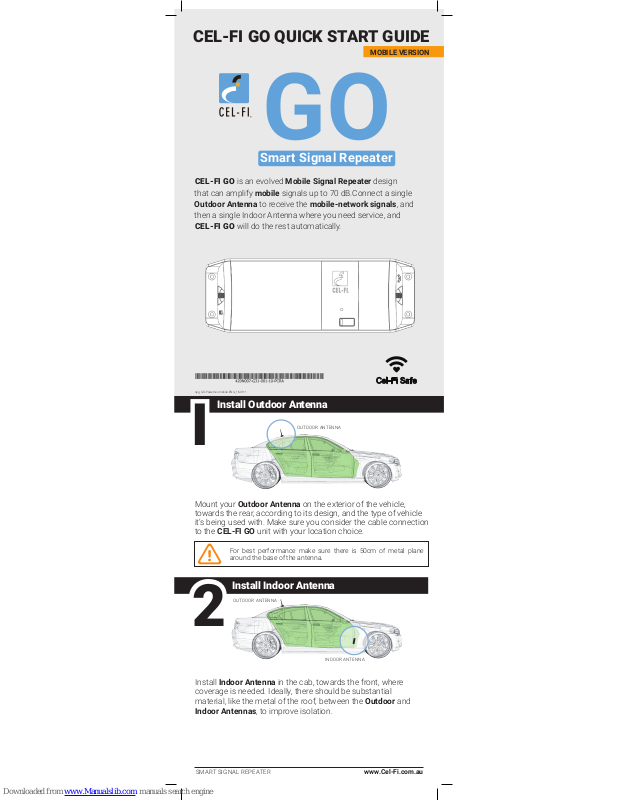

CEL-FI GO QUICK START GUIDE
CEL-FI GO is an evolved Mobile Signal Repeater design
that can amplify mobile signals up to 70 dB.Connect a single
Outdoor Antenna to receive the mobile-network signals, and
then a single Indoor Antenna where you need service, and
CEL-FI GO will do the rest automatically.
Mount your Outdoor Antenna on the exterior of the vehicle,
towards the rear, according to its design, and the type of vehicle
it’s being used with. Make sure you consider the cable connection
to the CEL-FI GO unit with your location choice.
2
Install Outdoor Antenna
Install Indoor Antenna
Install Indoor Antenna in the cab, towards the front, where
coverage is needed. Ideally, there should be substantial
material, like the metal of the roof, between the Outdoor and
Indoor Antennas, to improve isolation.
SMART SIGNAL REPEATER www.Cel-Fi.com.au
MOBILE VERSION
OUTDOOR ANTENNA
INDOOR ANTENNA
qsg_GO-Powertec-mobile-ENG_16-0111
OUTDOOR ANTENNA
Smart Signal Repeater
Page 2
CEL-FI GO
OPTIONAL
LOCATION
Press the MODE button on the unit
to select desired scanning mode.
Status Indicator will blink during the
setup process, and may take a few
minutes to complete.
(OPTIONAL: use your smartphone
to select mode. Download the
CEL-FI WAVE app, and follow the
on-screen instructions.)
4
Connect Outdoor & Indoor Antennas
to the CEL-FI GO Unit
5
Plug in CEL-FI GO & Select Mode
6
Tips & Tricks
7
CEL-FI WAVE
3
Mount CEL-FI GO
Find a good mounting location
in your vehicle. Location
should have some airow,
and be safe from bumps and
external objects.
Make sure the unit is within
cable range of the 12V power
supply on your vehicle.
Best to make sure all cable
lengths support the intended
mounting location BEFORE
permanent mounting.
DO NOT plug in at this time.
• Keep Outdoor and Indoor Antennas separated/
isolated from each other for best performance
• For best performance, the cable between the
Outdoor Antenna and GO unit should be as short as
possible
• Use sealant if any connections are exposed to
elements
For more CEL-FI GO features, go to App Store or Google
play and download the mobile CEL-FI WAVE app.
(NOTE: If you do not have a compatible smartphone,
go to cel-.com/wave to download the Desktop app.)
LEFT SIDE: Indoor Antenna Connector
RIGHT SIDE: Outdoor Antenna Connector
SMART SIGNAL REPEATER www.Cel-Fi.com.au
(*NOTE: if Error, go to troubleshooting
at cel-.com/support)
AUTO
3G
4G/4GX
MODE
SELECT
BUTTON
MODE
Boosting 3G
Boosting 4G
Error*
STATUS
INDICATOR
STATUS
INDICATOR
NETWORK STRENGTH
12V POWER SUPPLY
OUTDOOR ANTENNA
OUTDOOR ANTENNA
OUTDOOR ANTENNA
CEL-FI GO
CEL-FI GO
CEL-FI GO
TOP VIEW
STATUS
INDICATOR
MODE
INDOOR
ANTENNA
INDOOR
ANTENNA
INDOOR
ANTENNA
