Page 1
celexon Laser presenter Professional LP150
User guide
celexon Laser presenter
Professional LP150
Thank you for purchasing this product from celexon.
Please read the user guide carefully and keep for
future reference.
Page 2
celexon Laser presenter Professional LP150
WARNING - RISK OF INJURY!
Laser product class 2M
According to DIN EN 60825-1
Wavelength 650nm
Laser power <1 mW
Laser beams can cause permanent eye
damage. Do not look into the laser beam
and do not direct it at other people or
animals. Keep this device away from
children. This is a working tool and not a
toy and should only be used by adults.
Any use other than that described in this
manual is not permitted and will invalidate
the warranty.
The information in this document is
subject to change without notice. No part
of this document may be reproduced or
transmitted in any form or by any means
without the prior consent of the
manufacturer.
The manufacturer assumes no liability for
damage and / or injuries caused by
improper use.
.
Page 3
celexon Laser presenter Professional LP150
Introduction
I. Key features
1) Supports PowerPoint, Keynote and
Prezi
2) Thanks to the ISM-free 2.4GHz
frequency, this presenter can be used
worldwide without restrictions
3) The omnidirectional emitter allows the
control of devices in other rooms
4) A transmitter can control up to 6 USB
receivers
5) Supports the following functions:
Page up / down, full screen, black
screen
6) Supports Hyperlink function in
PowerPoint
7) Volume control via side button
8) The LED flashes when battery is low
9) The receiver can be inserted into the
presenter's housing
10) Safe laser class according to
EN60825-1.
11) Compatible with USB3.0, plug and
play.
12) Energy-saving with auto standby and
on / off switch
13) Power supply via an AAA battery
Page 4
celexon Laser presenter Professional LP150
Supported Operating Systems
Windows 7, Windows 8, Windows 10,
Mac OS, Linux, Android 4.3 and later
In the box:
1) Laser-Presenter Professional LP150
2) AAA battery
3) User guide
Technical specs
Transmitter
Technology: Radio frequency
Frequency: 2.4GHz
Range control: up to 100m
Laser: Class 2M
Laser power: <1mW
Laser distance: >200m
Wavelength: 650nm
Battery: 1 x AAA
Operating Voltage: 1.5V
Weight: 21.7g
Dimensions: 139.2 x 18.2 x
USB receiver
USB Version: USB 2.0
Betriebsspannung: 5V DC
Abmessungen: 26.5*12.7*5.5 mm
Gewicht: 1.9g
19.7mm
Page 5
celexon Laser presenter Professional LP150

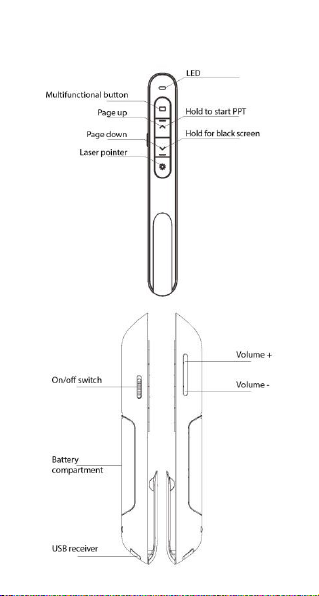

II. Functions - overview
Page 6
celexon Laser presenter Professional LP150
Functions
1) To use the laser pointer on, press and
hold the ‘laser pointer’ button.
2) Press the ‘page up’ button for 2
seconds to view the current slide. If
the button is held for another 2
seconds, the slide will appear in full
screen mode.
3) Press the ‘page down’ button to move
to the next slide during the
presentation. The ‘page up’ takes you
back to the previous slide.
4) To pause the presentation with a
black screen, hold the ‘page up’
button for 2 seconds. If held for
another 2 seconds, the presentation
will continue with the following slide.
5) The LP150 supports PowerPoint,
Keynote and Prezi. The presentation
mode can be changed by
simultaneously pressing the ‘page up
/ page down’ buttons. By default, the
up and down buttons on the LP150
have the same function as the up and
down arrows on your keyboard
(PowerPoint / Keynote). If you press
the up and down buttons
simultaneously, they function as left
and right arrows when using Prezi.
When pressed 3 times, the LP150
goes back to its default settings.
Page 7
celexon Laser presenter Professional LP150
6) If your presentation contains
hyperlinks, you can navigate the links
with the multifunction button. A double
click opens the link. (WPS does not
support this function). Hold the
multifunction button to switch between
programs. To open a program,
release the button.
7) The volume can be controlled with the
volume + and volume – buttons.
Page 8
celexon Laser presenter Professional LP150

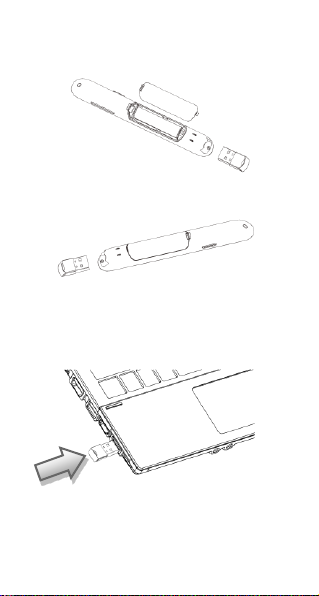

Installation
1) Insert the battery
2) Take out the mini USB receiver
3) Insert the USB receiver into a USB
port
Operating systems such as Windows,
Android and Linux automatically install
the driver for the USB receiver.
Page 9
celexon Laser presenter Professional LP150
4) After the automatic installation, the
presenter can be used. The blue LED
will flash with each press of a button

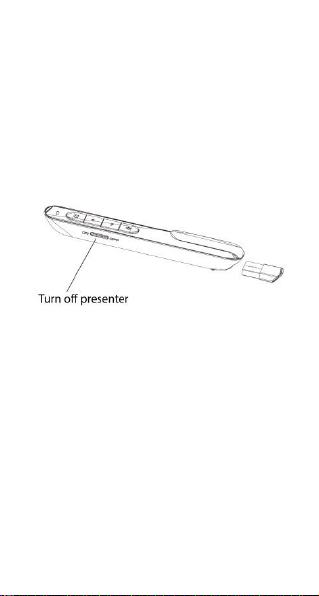

5) To switch the presenter off, use the
switch on the side
6) If the LED flashes slowly, the battery
is empty and needs to be replaced
Page 10
celexon Laser presenter Professional LP150
1. How do I know that the battery is
low?
Turn on the presenter. When the LED
flashes slowly, the battery is empty and
needs to be replaced. Alternatively press
the laser button to determine if the laser
can be turned on. If it cannot be switched
on, the battery needs to be replaced.
2. Why does the laser pointer not
work?
Check whether the Presenter is switched
on. If the LED flashes slowly, it means
that the power is low and the battery
needs to be replaced.
III. Certificates
CE, ROHS, FDA ,FCC
