CC55--SS

Addvvaanncceedd SSeerriieess

INSTRUCTION MANUAL

●●

CC88--SS

●● CC99..2255--SS

INTRODUCTION ....................................................................................................................................................................................................4

Warning.................................................................................................................................................................................................................4

ASSEMBLY..............................................................................................................................................................................................................7

Setting up the Tripod.............................................................................................................................................................................................7

Attaching the Equatorial Mount.............................................................................................................................................................................8

Attaching the Center Leg Brace.............................................................................................................................................................................8

Installing the Counterweight Bar...........................................................................................................................................................................8

Installing the Counterweight..................................................................................................................................................................................9

Attaching the Hand Control Holder .......................................................................................................................................................................9

Attaching the Slow Motion Knobs.........................................................................................................................................................................9

Attaching the Optical Tube to the Mount.............................................................................................................................................................10

Attaching the Visual Back ...................................................................................................................................................................................10

Installing the Star Diagonal..................................................................................................................................................................................11

Installing the Eyepiece.........................................................................................................................................................................................11

Installing the Finderscope....................................................................................................................................................................................11

Removing the Lens Cap.......................................................................................................................................................................................12

Moving the Telescope Manually..........................................................................................................................................................................13

Balancing The Mount in R.A...............................................................................................................................................................................13

Balancing The Mount in DEC .............................................................................................................................................................................14

Adjusting the Mount............................................................................................................................................................................................14

Adjusting the Mount in Altitude.......................................................................................................................................................................... 14

Adjusting the Mount in Azimuth......................................................................................................................................................................... 15

Attaching the Declination Cable (For GT Models Only) .....................................................................................................................................15

Powering the Telescope.......................................................................................................................................................................................15

HAND CONTROL .................................................................................................................................................................................................16

Hand Control Operation...................................................................................................................................................................................... 17

Alignment Procedures..........................................................................................................................................................................................18

Startup Procedure.................................................................................................................................................................................................18

Auto Align...........................................................................................................................................................................................................19

Auto Three-Star Align .........................................................................................................................................................................................19

Quick-Align.........................................................................................................................................................................................................20

Last Alignment ....................................................................................................................................................................................................20

Re-Alignment ......................................................................................................................................................................................................20

Object Catalog.....................................................................................................................................................................................................21

Selecting an Object ............................................................................................................................................................................................. 21

Slewing to an Object........................................................................................................................................................................................... 21

Finding Planets.................................................................................................................................................................................................... 21

Tour Mode .......................................................................................................................................................................................................... 22

Constellation Tour............................................................................................................................................................................................... 22

Direction Buttons ................................................................................................................................................................................................ 22

Rate Button ......................................................................................................................................................................................................... 22

Setup Procedures .................................................................................................................................................................................................23

Tracking Mode...........................................................................................................................................................................................23

Tracking Rate.............................................................................................................................................................................................23

Date/Time ..................................................................................................................................................................................................23

User Defined Objects.................................................................................................................................................................................23

Get RA/DEC..............................................................................................................................................................................................24

Goto R.A/Dec ............................................................................................................................................................................................24

Identify.......................................................................................................................................................................................................24

Precise GoTo....................................................................................................................................................................................................... 25

Scope Setup Features .......................................................................................................................................................................................... 25

Setup Time-Site .........................................................................................................................................................................................25

Anti-backlash.............................................................................................................................................................................................25

Filter Limits ...............................................................................................................................................................................................25

Direction Buttons.......................................................................................................................................................................................26

Goto Approach...........................................................................................................................................................................................26

Autoguide Rates.........................................................................................................................................................................................26

Azimuth Limits..........................................................................................................................................................................................26

East/West Filtering.....................................................................................................................................................................................27

Utility Features.................................................................................................................................................................................................... 27

Calibrate Goto............................................................................................................................................................................................27

Home Position............................................................................................................................................................................................27

Polar Align.................................................................................................................................................................................................27

Light Control..............................................................................................................................................................................................28

Factory Settings .........................................................................................................................................................................................28

Version.......................................................................................................................................................................................................28

Get Alt-Az .................................................................................................................................................................................................28

Goto Alt-Az ...............................................................................................................................................................................................28

Hibernate....................................................................................................................................................................................................28

Turn On/Off GPS.......................................................................................................................................................................................28

TELESCOPE BASICS ...........................................................................................................................................................................................30

Image Orientation ............................................................................................................................................................................................... 30

Focusing.............................................................................................................................................................................................................. 31

Aligning the Finderscope .................................................................................................................................................................................... 31

Calculating Magnification................................................................................................................................................................................... 31

Determining Field of View.................................................................................................................................................................................. 32

General Observing Hints..................................................................................................................................................................................... 32

ASTRONOMY BASICS.........................................................................................................................................................................................33

The Celestial Coordinate System ........................................................................................................................................................................ 33

Motion of the Stars.............................................................................................................................................................................................. 34

Finding the North Celestial Pole ......................................................................................................................................................................... 36

Declination Drift Method of Polar Alignment..................................................................................................................................................... 37

CELESTIAL OBSERVING...................................................................................................................................................................................38

Observing the Moon............................................................................................................................................................................................ 38

Lunar Observing Hints........................................................................................................................................................................................ 38

Observing the Planets.......................................................................................................................................................................................... 38

Observing the Sun............................................................................................................................................................................................... 38

Solar Observing Hints......................................................................................................................................................................................... 39

Observing Deep Sky Objects .............................................................................................................................................................................. 39

Seeing Conditions ............................................................................................................................................................................................... 39

Transparency....................................................................................................................................................................................................... 39

Sky Illumination.................................................................................................................................................................................................. 39

Seeing ................................................................................................................................................................................................................. 39

ASTROPHOTOGRAPHY.....................................................................................................................................................................................41

Short Exposure Prime Focus Photography.......................................................................................................................................................... 41

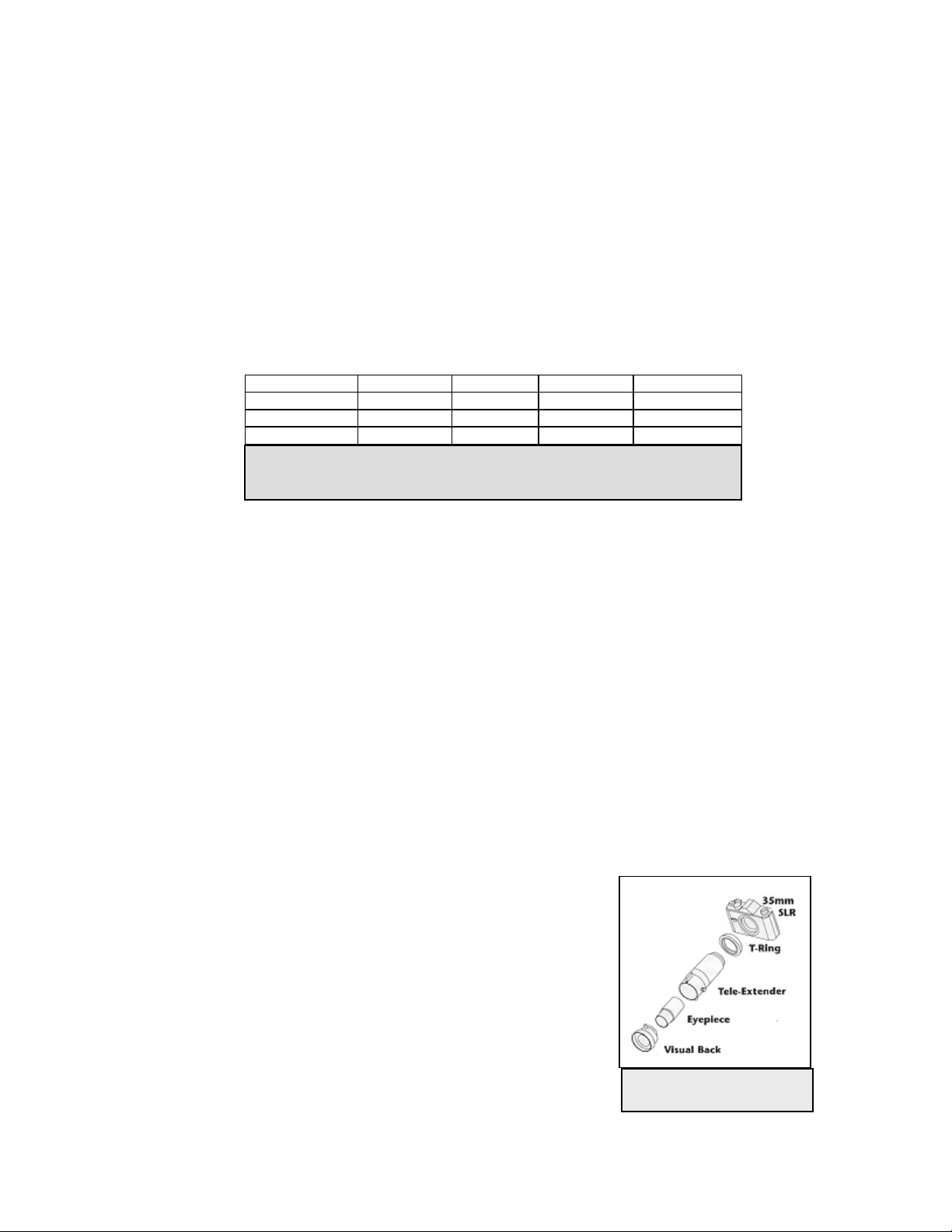

Eyepiece Projection............................................................................................................................................................................................. 42

Long Exposure Prime Focus Photography .......................................................................................................................................................... 43

Terrestrial Photography....................................................................................................................................................................................... 45

Metering.............................................................................................................................................................................................................. 45

Reducing Vibration............................................................................................................................................................................................. 45

CCD Imaging...................................................................................................................................................................................................... 45

Auto Guiding ...................................................................................................................................................................................................... 46

TELESCOPE MAINTENANCE...........................................................................................................................................................................47

Care and Cleaning of the Optics.......................................................................................................................................................................... 47

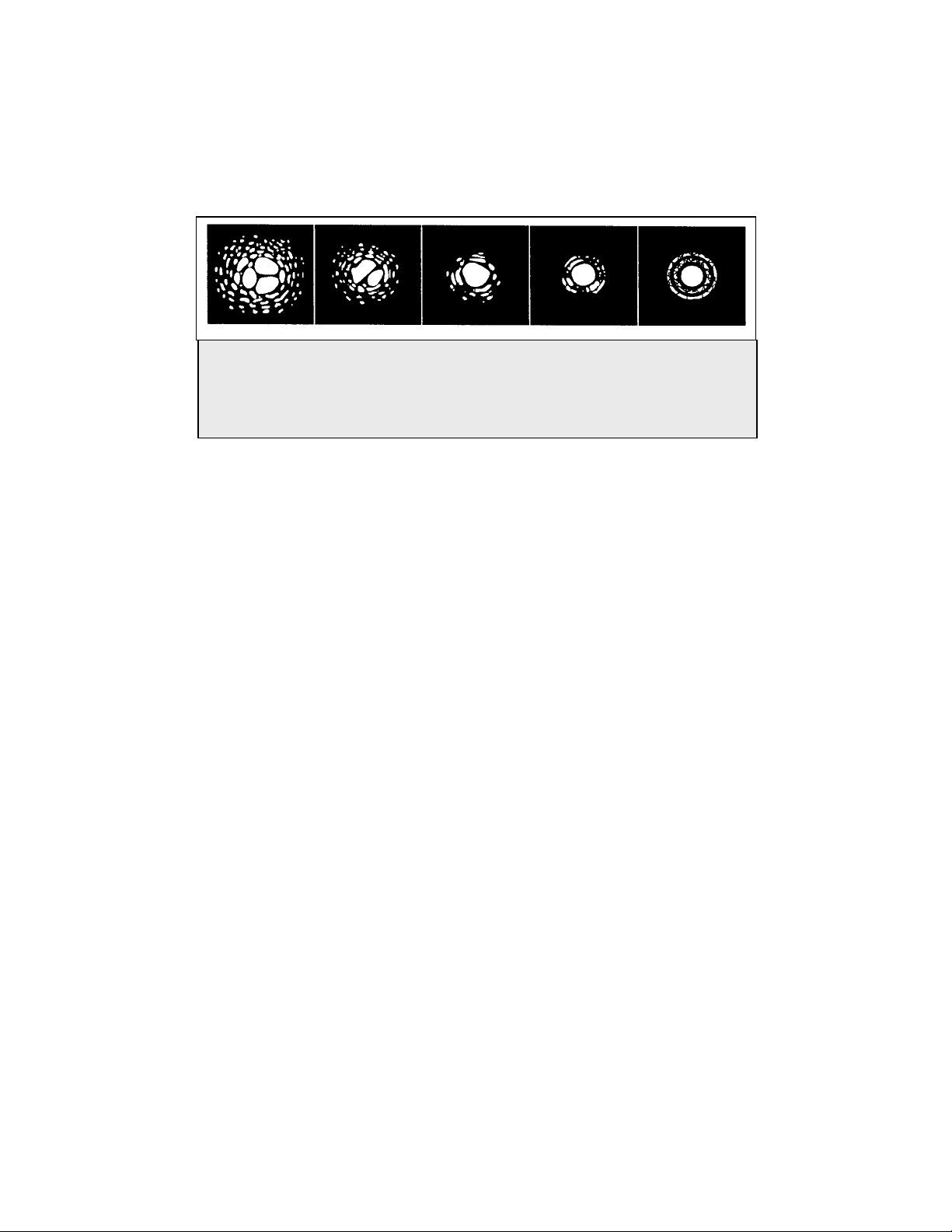

Collimation ......................................................................................................................................................................................................... 47

OPTIONAL ACCESSORIES...............................................................................................................................................................................49

APPENDIX A – TECHNICAL SPECIFICATIONS .........................................................................................................................................52

APPENDIX B – GLOSSARY OF TERMS .........................................................................................................................................................53

APPENDIX C – LONGITUDES AND LATITUDES ..........................................................................................................................................56

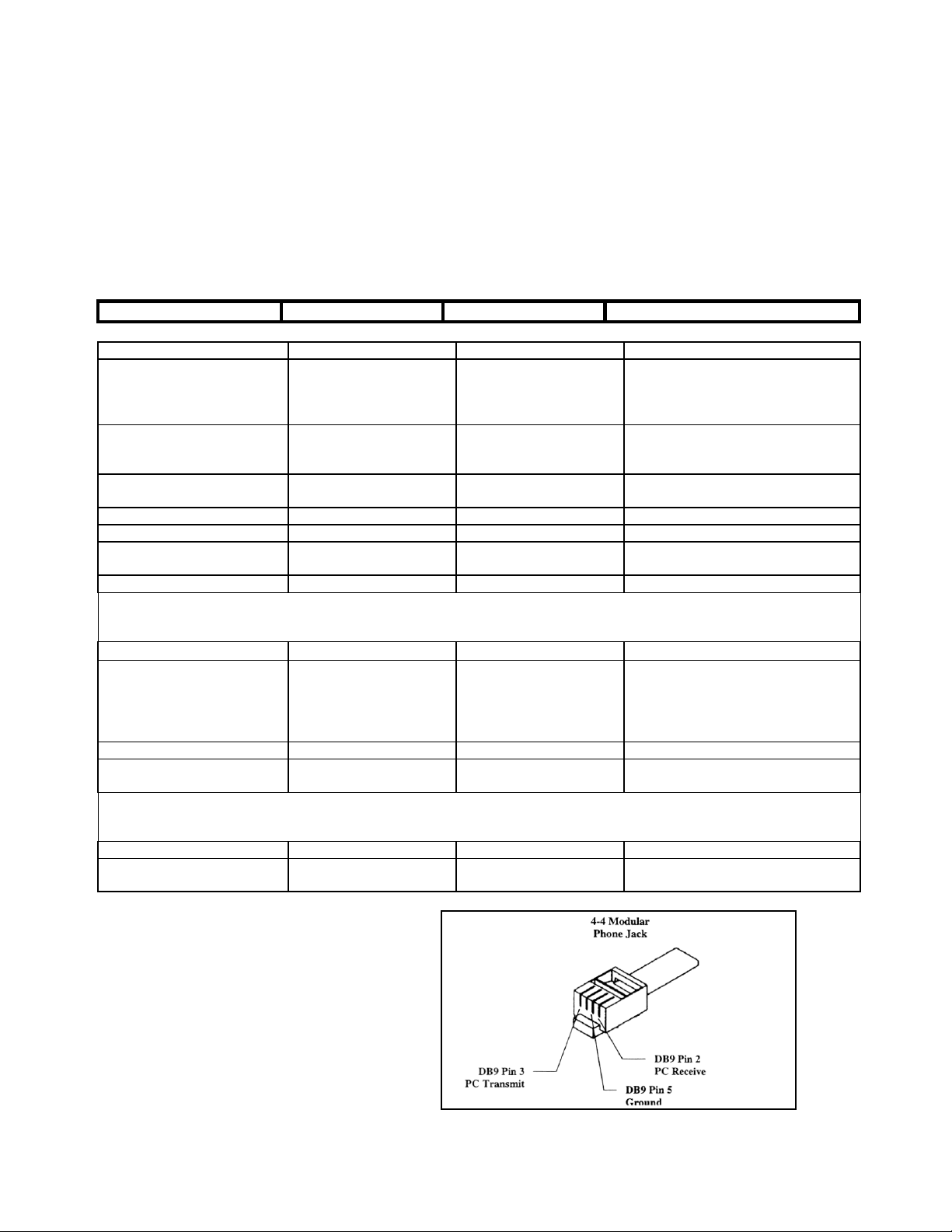

APPENDIX D – RS-232 CONNECTION..............................................................................................................................................................61

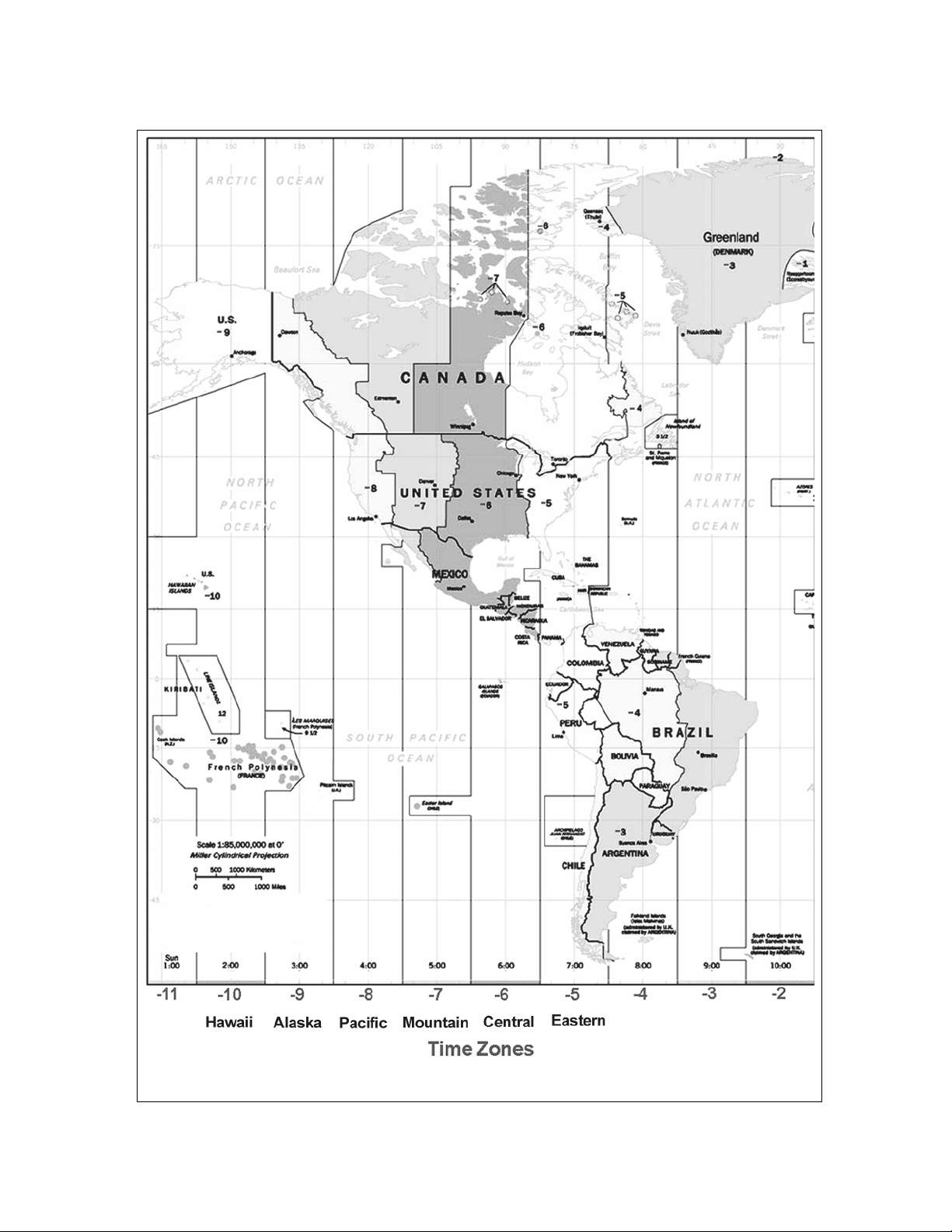

APPENDIX E – TIME ZONE MAP .....................................................................................................................................................................63

SKY MAPS..............................................................................................................................................................................................................65

Congratulations on your purchase of the Celestron Advanced Series telescope (AST)! The Advanced Series of telescopes come in standard (non-computerized) and computerized GT models. The Advanced Series is made of the highest quality materials to ensure stability and durability. All this adds up to a telescope that gives you a lifetime of pleasure with a minimal amount of maintenance. Furthermore, your Celestron telescope is versatile — it will grow as your interest grows.

The Advanced GT Series ushers in the next generation of computer automated telescopes. T

he Celestron Advanced GT series continues in this proud tradition combining large aperture optics with the sophistication and ease of use of our computerized GoTo mount.

If you are new to astronomy, you may wish to start off by using the built-in Sky Tour feature, which commands the telescopes to find the most interesting objects in the sky and automatically slews to each one. Or if you are an experienced amateur, you will appreciate the comprehensive database of over 40,000 objects, including customized lists of all the best deep-sky objects, bright double stars and variable stars. No matter at what level you are starting out, the Advanced Series telescopes will unfold for you and your friends all the wonders of the Universe.

Some of the many standard features of the Advanced GT include:

• Fully enclosed optical encoders for position location.

• Ergonomically designed mount that disassembles into compact and portable pieces.

• Database filter limits for creating custom object lists.

• Storage for programmable user defined objects; and

Many other high performance features!

The AST’s deluxe features combine with Celestron’s legendary Schmidt-Cassegrain optical system to give amateur astronomers the most sophisticated and easy to use telescopes available on the market today.

Take time to read through this manual before embarking on your journey through the Universe. It may take a few observing sessions to become familiar with your telescope, so you should keep this manual handy until you have fully mastered your telescope’s operation. The Advanced GT hand control has built-in instructions to guide you through all the alignment procedures needed to have the telescope up and running in minutes. Use this manual in conjunction with the on-screen instructions provided by the hand control. The manual gives detailed information regarding each step as well as needed reference material and helpful hints guaranteed to make your observing experience as simple and pleasurable as possible.

Your telescope is designed to give you years of fun and rewarding observations. However, there are a few things to consider before using your telescope that will ensure your safety and protect your equipment.

Warning

Y Never look directly at the sun with the naked eye or with a telescope (unless you have the

proper solar filter). Permanent and irreversible eye damage may result.

Y Never use your telescope to project an image of the sun onto any surface. Internal heat build-up can damage the telescope

and any accessories attached to it.

Y Never use an eyepiece solar filter or a Herschel wedge. Internal heat build-up inside the telescope can cause these devices to

crack or break, allowing unfiltered sunlight to pass through to the eye. Never leave the telescope unsupervised, either when children are present or adults who may not be familiar with the correct operating procedures of your telescope

Figure 2.1 – Advanced Series

ASSE

(Advanced C8-S Shown)

1 Optical Tube 7 Tripod

2 Finderscope 8 Counterweight(s)

3 Finderscope Bracket 9 Counterweight Bar

4 Equatorial Mount 10 Declination Setting Circle

5 Latitude Adjustment Scale 11 Dovetail Mounting Bar

6 Tripod Center Leg Brace/Accessory Tray 12 Schmidt Corrector Lens

Figure 2.2 – Advanced Series GT

(Advanced C8-SGT Shown)

1 Optical Tube 9 Counterweight Bar

2 Finderscope 10 Declination Setting Circle

3 Finderscope Bracket 11 Dovetail Mounting Bar

4 Equatorial Mount 12 Schmidt Corrector Lens

5 Latitude Adjustment Scale 13 Hand Control

6 Tripod Center Leg Brace/Accessory Tray 14 R.A. Motor Drive / Control Panel

7 Tripod 15 Declination Motor Drive

8 Counterweight(s)

CONTROL PANEL C Autoguider Port

A Hand Control Port D 12v Input Jack

B DEC Motor Port E On/Off Switch

This section covers the assembly instructions for your Celestron Advanced Series Telescope (AST). Your AST telescope should be set up indoor the first time so that it is easy to identify the various parts and familiarize yourself with the correct assembly procedure before attempting it outdoor.

Diamete

Focal Length

Eyepiece

Finderscope

Diagonal

Mount

Tripod

Software

Counterweights

#11071 / 11072 #11025 / 11026 #11045 / 11046

C5-S C8-S

127mm (5") Schmidt-Cassegrain 203mm (8") Schmidt-Cassegrain 235mm (9.25") Schmidt-Cassegrain

1250mm F/10 2032mm F/10 2350mm F/10

25mm - 1.25" (50x) 25mm - 1.25" (81x) 25mm - 1.25" (94x)

6x30 6x30 6x30

90° - 1.25" 90° - 1.25" 90° - 1.25"

CG-5 Equatorial CG-5 Equatorial CG-5 Equatorial

2" Stainless Steel 2" Stainless Steel 2" Stainless Steel

The Sky L1 The Sky L1 The Sky L1

1-11lb 1-11lb

C9.25-S

2-11lb

The Celestron Advanced Series telescopes are shipped in two boxes (three boxes for GT models). In separate boxes are the following:

• Optical Tube Assembly and Standard Accessories

• Equatorial Mount, Tripod, Hand Control, Counterweight(s) and Counterweight Bar (equatorial mount with

motors comes in separate box for GT models)

Remove all the pieces from their respective boxes and place on a flat, clear work area. A large floor space is ideal. When setting up your Celestron telescope you must start with the tripod and work up from there. These instructions are laid out in the order each task must be performed.

SSeettttiinngg uupp tthhee TTrriippood

The CG-5 tripod comes with an all metal center leg brace / accessory tray to give rock solid support to the mount. The tripod comes fully assembled with a metal plate, called the tripod head, that holds the legs together at the top. In addition, there is a central rod that extends down from the tripod head that attaches the equatorial mount to the tripod. To set up the tripod:

1. Stand the tripod upright and pull the tripod legs apart until each leg is fully extended. The tripod will now stand by itself. Once the tripod is set up, you can adjust the height at which it stands.

2. Loosen the lever on the leg clamp so that the tripod leg can be adjusted.

3. Slide the center portion of the tripod leg away from the tripod head until it is at the desired height.

4. Tighten the levers on each leg clamp to hold the legs in place.

AAttttaacchhiinngg tthhee EEqquuaattoorriiaall MMoouunntt

The equatorial mount allows you to tilt the telescope’s axis of rotation so that you can track the stars as they move across the sky. The CG-5 mount is a German equatorial mount that attaches to the tripod head. On one side of the tripod head there is a metal alignment peg for aligning the mount. This side of the tripod will face north when setting up for an astronomical observing session. To attach the equatorial head:

1. Locate the azimuth adjustment screws on the equatorial mount.

2. Retract the screws so they no longer extend into the azimuth housing on the mount. Do NOT remove the screws since they are needed later for polar alignment.

3. Hold the equatorial mount over the tripod head so that the azimuth housing is above the metal peg.

4. Place the equatorial mount on the tripod head so that the two are flush.

5. Tighten the knob (attached to the central rod) on the underside

of the tripod head to hold the equatorial mount firmly in place.

AAttttaacchhiinngg tthhee CCeenntteerr LLeegg BBrraaccee

1. Slide the accessory tray over the central rod so that each arm of the tray is pushing against the inside of the tripod legs.

2. Thread the accessory tray knob on to the central rod and tighten.

IInnssttaalllliinngg tthhee CCoouunntteerrwweeiigghhtt BBaarr

To properly balance the telescope, the mount comes with a counterweight bar and at least one counterweight (depending on model). To install the counterweight bar:

1. Locate the opening in the equatorial mount on the DEC axis

2. Thread the counterweight bar into the opening until tight.

3. Tighten the counterweight bar lock nut fully for added support.

Once the bar is securely in place you are ready to attach the counterweight.

Since the fully assembled telescope can be quite heavy, position the mount so that the polar axis is pointing towards north before the tube assembly and counterweights are attached. This will make the polar alignment procedure much easier.

Equatorial

Moun

Azimuth Alignment Screws

Tripod

Head

Figure 2-3

Alignment Peg

Mounting Knob

Central Rod

Accessory Tray

Figure 2-3

Figure 2-4

Accessory Tray Knob

IInnssttaalllliinngg tthhee CCoouunntteerrwweeiigghht

Depending on which AST telescope you have, you will receive either one or two counterweights. To install the counterweight(s):

1. Orient the mount so that the counterweight bar points toward the ground .

2. Remove the counterweight safety screw on the end of the counterweight bar (i.e., opposite the end that attaches to the mount).

3. Loosen the locking screw on the side of the counterweight.

4. Slide the counterweight onto the shaft (see Figure 2-5).

5. Tighten the locking screw on the side of the weight to hold the counterweight in place.

6. Replace the counterweight safety screw.

AAttttaacchhiinngg tthhee HHaanndd CCoonnttrrooll HHoollddeerr ((AAddvvaanncceedd GGTT MMooddeellss OOnnllyy)

The Advanced GT telescope models come with a hand control holder to place the computerized hand control. The hand control holder comes in two pieces: the leg clamp that snaps around the tripod leg and the holder which attaches to the leg clamp. To attach the hand control holder:

1. Place the leg clamp up against one of the tripod legs and press firmly until the clamp wraps around the leg.

2. Slide the back of the hand control holder downward into the channel on the front of the legs clamp (see Fig 2-6) until it snaps into place.

AAttttaacchhiinngg tthhee SSllooww MMoottiioonn KKnnoobbss ((FFoorr NNoonn--GGTT MMooddeellss OOnnllyy)

The Advanced Series (non-GT models) comes with two slow motion control knobs that allows you to make fine pointing adjustments to the telescope in both R.A. and Declination. To install the knobs:

1. Locate the hard plastic shell under the R.A. shafts.

2. Remove either of the two oval tabs by pulling tightly.

3. Line up the flat area on the inner portion of the R.A. slow motion knob with the flat area on the R.A. shaft (see Fig 2-7).

4. Slide the R.A. slow motion knob onto the R.A. shaft.

Counterweigh

Locking Screw

Counterweigh

Safety Screw

Bar

Figure 2-5

)

Figure 2-6

Hand Control Holder

Leg Clamp

Figure 2-7

The knob is a tension fit, so sliding it on holds it in place. As mentioned above, there are two R.A. shafts, one on either side of the mount. It makes no difference which shaft you use since both work the same. Use whichever one you find more convenient. If, after a few observing sessions, you find the R.A. slow motion knob is more accessible from the other side, pull firmly to remove the knob, then install it on the opposite side.

5. The DEC slow motion knob attaches in the same manner as the R.A. knob. The shaft that the DEC slow motion knob fits over is toward the top of the mount, just below the telescope mounting platform. Once again, you have two shafts to choose from. Use the shaft that is pointing toward the ground. This makes it easy to reach while looking through the telescope, something which is quite important when you are observing.

AAttttaacchhiinngg tthhee OOppttiiccaall TTuubbee ttoo tthhee MMoouunntt

Advanced GT Users!

1. Loosen the mounting screw on the side of the telescope mounting

2 Slide the dovetail bar on the telescope tube into the mounting platform of the

3 Tighten the mounting screw on the side of the mounting platform to hold the telescope in place.

1. Remove the rubber cover on the rear cell.

2. Place the knurled slip ring on the visual back over the threads on the rear cell (Fig 2-10).

The telescope attaches to the mount via a dovetail slide bar which is mounted along the bottom of the

telescope tube. Before you attach the optical tube, make sure that the declination and right ascension clutch knobs are tight. This will ensure that the mount does not move suddenly while

attaching the telescope. To mount the telescope tube:

In order for the GT computerized mount to function properly, before installing the optical tube, the mounting platform must be positioned so that the Declination Index Marks are aligned (see Fig 2-8).

platform. This allows you to slide the dovetail bar onto the mount.

mount. Slide the telescope so that the back of the dovetail bar is close to the back of the mounting platform.

Now that the optical tube is securely in place, the visual accessories can now be attached to the telescope.

AAttttaacchhiinngg tthhee VViissuuaall BBaacckk

The visual back is the accessory that allows you to attach all visual accessories to the telescope. The Advanced Series optical tubes come with the visual back installed. If it is not already on the tube it can be attached as follows:

Dovetail Bar

Telescope Mounting Screw

Figure 2-9

Declination Index Marks

Figure 2-8

3. Hold the visual back with the set screw in a convenient position and rotate the knurled slip ring clockwise until tight.

Once this is done, you are ready to attach other accessories, such as eyepieces, diagonal prisms, etc.

If you want to remove the visual back, rotate the slip ring counterclockwise until it is free of the rear cell.

IInnssttaalllliinngg tthhee SSttaarr DDiiaaggoonnaall

The star diagonal is a prism that diverts the light at a right angle to the light path of the telescope. This allows you to observe in positions that are physically more comfortable than if you looked straight through. To attach the star diagonal onto the optical tube:

1. Turn the set screw on the visual back until its tip no longer extends into (i.e., obstructs) the inner diameter of the visual back.

2. Slide the chrome portion of the star diagonal into the visual back.

3. Tighten the set screw on the visual back to hold the star diagonal in place.

If you wish to change the orientation of the star diagonal, loosen the set screw on the visual back until the star diagonal rotates freely. Rotate the diagonal to the desired position and tighten the set screw.

IInnssttaalllliinngg tthhee EEyyeeppiieeccee

The eyepiece, or ocular, is an optical element that magnifies the image focused by the telescope. The eyepiece fits into either the visual back directly or the star diagonal. To install an eyepiece:

1. Loosen the set screw on the star diagonal until the tip no longer extends into the inner diameter of the eyepiece end of the diagonal.

2. Slide the chrome portion of the eyepiece into the star diagonal.

3. Tighten the set screw on the star diagonal to hold the eyepiece in place.

To remove the eyepiece, loosen the set screw on the star diagonal and slide the eyepiece out. You can replace it with another eyepiece (purchased separately).

Eyepieces are commonly referred to by focal length and barrel diameter. The focal length of each eyepiece is printed on the eyepiece barrel. The longer the focal length (i.e., the larger the number) the lower the eyepiece power and the shorter the focal length (i.e., the smaller the number) the higher the magnification. Generally, you will use low-to-moderate power when viewing. For more information on how to determine power, see the section on “Calculating Magnification.”

IInnssttaalllliinngg tthhee FFiinnddeerrssccooppee

The AST telescopes come with a 6x30 finderscope used to help you locate and center objects in the main field of your telescope. To accomplish this, the finder has a built-in cross-hair reticle that shows the optical center of the finderscope.

Start by removing the finder and hardware from the plastic wrapper. Included are the following:

Eyepiece

Star Diagona

Visual Bac

Figure 2-10

• Finderscope

• Finder Bracket

• Rubber O-ring

• Three Nylon Tipped Thumbscrews (10-24x1/2")

• Two Phillips Head Screws (8-32x1/2")

To install the finderscope:

1. Attach the bracket to the optical tube. To do this,

place the curved portion of the bracket with the slot over the two holes in the rear cell. The bracket should be oriented so that the rings that hold the finder are over the telescope tube, not the rear cell (see Fig 2-11). Start threading the screws in by hand and tighten fully with an Allen wrench.

2. Partially thread-in the three nylon-tipped

thumbscrews that hold the finder in place inside the bracket. Tighten the screws until the nylon heads are flush with the inner diameter of the bracket ring. Do NOT thread them in completely or they will interfere with the placement of the finder. (Having the screws in place when the finder is installed will be easier than trying to insert the screws after the finder has been installed.)

3. Slide the rubber O-ring over the back of the finder (it will NOT fit over the objective end of the

finder). It may need to be stretched a little. Once on the main body of the finder, slide it up about one inch from the end of the finder.

4. Rotate the finder until one cross hair is parallel to the R.A. axis and the other is parallel to the DEC

axis.

5. Slide the eyepiece end of the finder into the front of the bracket.

6. Slightly tighten the three nylon tipped thumbscrews on the front ring of the bracket to hold the finder

in place.

7. Once on, push the finder back until the O-ring is snug inside the back ring of the finder bracket.

8. Hand tighten the three nylon tipped thumbscrews until snug.

RReemmoovviinngg tthhee LLeennss CCaapp

The C5-S and C9.25-S have aluminum lens caps that slide on and off of the front of the telescope. The C8-S lens cap utilizes a bayonet-type locking mechanism to hold it in place. To remove the lens cap, hold the cover firmly and rotate the outer edge 1/2” counterclockwise and pull off.

Finderscope

Nylon Adjustment Screw

Finder Bracket

Figure 2-11

MMoovviinngg tthhee TTeelleessccooppee MMaannuuaallllyy

In order to properly balance your telescope, you will need to move your telescope manually at various portions of the sky to observe different objects. To make rough adjustments, loosen the R.A. and DEC clutch knobs slightly and move the telescope in the desired direction.

Both the R.A. and DEC axis have lock levers to clutch down each axis of the telescope. To loosen the clutches on the telescope, rotate the lock levers counterclockwise.

BBaallaanncciinngg TThhee MMoouunntt iinn RR..AA..

To eliminate undue stress on the mount, the telescope should be properly balanced around the polar axis. Proper balancing is crucial for accurate tracking. To balance the mount:

1. Verify that the telescope is securely attached to the telescope mounting platform.

2. Loosen the R.A. lock lever and position the telescope off to one side of the mount. The counterweight bar will extend horizontally on the opposite side of the mount.

3. Release the telescope — GRADUALLY — to see which way the telescope “rolls.”

4. Loosen the set screws on the side of the counterweight so it can be moved the length of the counterweight bar.

5. Move the counterweight to a point where it balances the telescope (i.e., the telescope remains stationary when the R.A. clutch knobs are loose).

6. Tighten the screw on the counterweight to hold it in place.

While the above instructions describe a perfect balance arrangement, there should be a SLIGHT imbalance to ensure the best possible tracking. When the scope is on the west side of the mount the counterweight should be slightly imbalanced to the counterweight bar side. And when the tube is on the east side of the mount there should be a slight imbalance toward the telescope side. This is done so that the worm gear is pushing against a slight load. The amount of the imbalance is very slight. When taking astrophotographs, this balance process can be done for the specific area at which the telescope is pointing to further optimize tracking accuracy.

Declination Lock Lever

R.A. Lock Lever

Figure 2-12

Figure 2-13

BBaallaanncciinngg TThhee MMoouunntt iinn DDEEC

Although the telescope does not track in declination, the telescope should also be balanced in this axis to prevent any sudden motions when the DEC lock lever is loose. To balance the telescope in DEC:

1. Loosen the R.A. clutch lock lever and rotate the telescope so that it is on one side of the mount (i.e., as described in the previous section on “Balancing the Mount in R.A.”).

2. Tighten the R.A. lock lever to hold the telescope in place.

3. Loosen the DEC clutch lock lever and rotate the telescope until the tube is parallel to the ground.

4. Release the tube — GRADUALLY — to see which way it rotates around the declination axis. DO

NOT LET GO OF THE TELESCOPE TUBE COMPLETELY!

5. Slightly loosen the knobs that holds the telescope to the mounting platform and slide the telescope either forward or backward until it remains stationary when the DEC clutch is loose. Do NOT let go of the telescope tube while the knob on the mounting platform is loose. It may be necessary to rotate the telescope so that the counterweight bar is pointing down before loosening the mounting platform screw.

6. Tighten the knobs on the telescope mounting platform to hold the telescope in place.

Like R.A. balance, these are general balance instructions and will reduce undue stress on the mount. When taking astrophotographs, this balance process should be done for the specific area at which the telescope is pointing.

AAddjjuussttiinngg tthhee MMoouunntt

In order for a motor drive to track accurately, the telescope’s axis of rotation must be parallel to the Earth’s axis of rotation, a process known as polar alignment. Polar alignment is achieved NOT by moving the telescope in R.A. or DEC, but by adjusting the mount vertically, which is called altitude, and horizontally, which is called azimuth. This section simply covers the correct movement of the telescope during the polar alignment process. The actual process of polar alignment, that is making the telescope’s axis of rotation parallel to the Earth’s, is described later in this manual in the section on “Polar Alignment.”

Adjusting the Mount in Altitude

• To increase the latitude of the polar axis, tighten the rear latitude adjustment screw and loosen the front screw (if necessary).

• To decrease the latitude of the polar axis, tighten the front (under the counterweight bar) latitude adjustment screw and loosen the rear screw (if necessary).

The latitude adjustment on the CG-5 mount has a range from approximately 30° going up to 60°.

It is best to always make final adjustments in altitude by moving the mount against gravity (i.e. using the rear latitude adjustment screw to raise the mount). To do this you should loosen both latitude adjustment screws and manually push the front of the mount down as far as it will go. Then tighten the rear adjustment screw to raise the mount to the desired latitude.

Figure 2-14

Rear Latitude Adjustment Screw

Front Latitude Adjustment Screw

Azimuth Adjustment Knobs

For Advanced GT users, it may be helpful to remove the front latitude adjustment screw completely. This will allow

the mount to reach lower latitudes without the screw coming into contact with the R.A. motor assembly. To remove the latitude screw, first use the rear screw to raise the mount head all the way up. Then remove the front latitude screw completely. Now you should be able to manually move the mount head all the way to its lowest latitude. Now, using only the rear screw, raise the mount to your desired latitude.

Adjusting the Mount in Azimuth

For rough adjustments in azimuth, simply pick up the telescope and tripod and move it. For fine adjustments in azimuth:

1. Turn the azimuth adjustment knobs located on either side of the azimuth housing (see Fig 2-14). While standing behind the telescope, the knobs are on the front of the mount.

• Turning the right adjustment knob clockwise moves the mount toward the right.

• Turning the left adjustment knob clockwise moves the mount to the left.

Both screws push off of the peg on the tripod head, which means you may have to loosen one screw while tightening the other. The screw that holds the equatorial mount to the tripod may have to be loosened slightly.

Keep in mind that adjusting the mount is done during the polar alignment process only. Once polar aligned, the mount must NOT be moved. Pointing the telescope is done by moving the mount in right ascension and declination, as described earlier in this manual.

AAttttaacchhiinngg tthhee DDeecclliinnaattiioonn CCaabbllee ((FFoorr GGTT MMooddeellss OOnnllyy))

The Advanced Series mount comes with a declination cable that connects from the R.A. motor drive electronic panel to the Dec motor drive. To attach the motor cable:

• Locate the Declination cable and plug

one end of the cable into the port on the electronics panel labeled DEC Port and plug the other end of the cable into the port located on the declination motor drive (see Fig 2-15).

PPoowweerriinngg tthhee TTeelleessccooppe

The Advanced GT can be powered by the supplied car battery adapter or optional 12v AC adapter. Use only adapters supplied by Celestron. Using any other adapter may damage the electronics or cause the telescope not to operate properly, and will void your manufacturer's warranty.

1. To power the telescope with the car battery adapter (or 12v AC adapter), simply plug the round post into the 12v outlet on the electronic panel and plug the other end into your cars cigarette lighter outlet or portable power supply (see Optional Accessories). Note: to prevent the power cord from being accidentally pulled out, wrap the power cord around the strain relief located below the power switch.

2. Turn on the power to the telescope by flipping the switch, located on the electronics panel, to the "On" position.

R.A. Lockin

Clam

Figure 2-15

DEC Locking Clamp

Declination Cable Input Port

Declination Cable Output Port

12v Power Input

On/Off Switch

The Advanced Series GT, computerized version of each telescope has a hand controller designed to give you instant access to all the functions that your telescope has to offer. With automatic slewing to over 40,000 objects, and common sense menu descriptions, even a beginner can master its variety of features in just a few observing sessions. Below is a brief description of the individual components of the computerized hand controller:

1. Liquid Crystal Display (LCD) Window: Has a dual-line, 16 character display screen that is backlit for comfortable viewing of telescope information and scrolling text.

2. Align: Instructs the telescope to use a selected star or object as an alignment position.

3. Direction Keys: Allows complete control of the telescope in any direction. Use the direction keys to move the telescope to the initial alignment stars or for centering objects in the eyepiece.

Figure 3-1

The Advanced GT Hand Control

4. Catalog Keys: The Advanced Series has keys on the hand control to allow direct access to each of the catalogs in its database. The hand control contains the following catalogs in its database:

Messier – Complete list of all Messier objects. NGC – Complete list of all the deep-sky objects in the Revised New General Catalog. Caldwell – A combination of the best NGC and IC objects. Planets - All 8 planets in our Solar System plus the Moon. Stars – A compiled list of the brightest stars from the SAO catalog. List – For quick access, all of the best and most popular objects in the Advanced GT database have

been broken down into lists based on their type and/or common name:

Named Stars

Named Objects

Double Stars

Variable Stars

Asterisms

CCD Objects

IC Objects

Abell Objects

Constellation

5. Info: Displays coordinates and useful information about objects selected from the Advanced GT database.

6. Tour: Activates the tour mode, which seeks out all the best objects for the current date and time, and automatically slews the telescope to those objects.

7. Enter: Pressing Enter allows you to select any of the Advanced GT functions and accept entered parameters.

8. Undo: Undo will take you out of the current menu and display the previous level of the menu path. Press Undo repeatedly to get back to a main menu or use it to erase data entered by mistake.

9. Menu: Displays the many setup and utilities functions such as tracking rates and user defined objects and many others.

10. Scroll Keys: Used to scroll up and down within any of the menu lists. A double-arrow will appear on the right side of the LCD when there are sub-menus below the displayed menu. Using these keys will scroll through those sub-menus.

11. Rate: Instantly changes the rate of speed of the motors when the direction buttons are pressed.

12. RS-232 Jack: Allows you to interface with a computer and control the telescope remotely.

Common name listing of the brightest stars in the sky. Alphabetical listing of over 50 of the most popular deep sky objects. Numeric-alphabetical listing of the most visually stunning double, triple and quadruple stars in the sky. Select list of the brightest variable stars with the shortest period of changing magnitude. A unique list of some of the most recognizable star patterns in the sky. A custom list of many interesting galaxy pairs, trios and clusters that are well suited for CCD imaging with the Advanced GT telescope. A complete list of all the Index Catalog deep-sky objects. A custom list of the Abell Catalog deep-sky galaxies. A complete list of all 88 constellations.

Hand Control Operation

This section describes the basic hand control procedures needed to operate the GT Series Telescopes. These procedures are grouped into three categories: Alignment, Setup and Utilities. The alignment section deals with the initial telescope alignment as well as finding objects in the sky; the setup section discusses changing parameters such as tracking mode and tracking rate; finally, the last section reviews all of the utilities functions such as calibrating your mount, polar alignment and backlash compensation.

AAlliiggnnmmeenntt PPrroocceedduurreess

In order for the telescope to accurately point to objects in the sky, it must first be aligned to three known positions (stars) in the sky. With this information, the telescope can create a model of the sky, which it uses to locate any object with known coordinates. There are many ways to align your telescope with the sky depending on what information the user is able to provide: Auto Align allows the telescope to select three stars and uses the entered time/location information to align the telescope; Auto Three Star Align involves the same process as Auto Align, however it allows the user to select which star to use to align the telescope. Quick-Align will ask you to input all the same information as you would for the Auto Align procedure. However, instead of slewing to the alignment stars for centering and alignment, the telescope bypasses this step and simply models the sky based on the information given. Finally, Last Alignment restores your last saved star alignment and switch position. Last Alignment also serves as a good safeguard in case the telescope should lose power.

SSttaarrttuupp PPrroocceedduurree

Before any of the described alignments are performed, the telescope mount needs to be positioned so that the index marks are aligned on both the right ascension and declination axes (see Fig 2-8). First index its switch position so that each axis has an equal amount of travel to move in either direction. Once the index position has been set,

Mount Calibration

the hand control will display the last entered date and time information stored in the hand control. Once the telescope is powered on:

1. Press ENTER begin the alignment process.

2. The hand control will ask the user to set the mount to its index

fter an Auto Align is successfully completed, the hand control will display the message, Calibrating...

position. Move the telescope mount, either manually or with the hand control, so that the index marked in both R.A. and Dec are aligned (see Fig 2-8). Press Enter to continue.

3. The hand control will then display the last entered local time, date, time zone, longitude and latitude.

• Use the Up/Down keys (10) to view the current parameters.

• Press ENTER to accept the current parameters.

• Press UNDO to enter current date and time

information into the hand control. The following information will be displayed:

Time - Enter the current local time for your area. You can enter either the local time (i.e. 08:00), or you can enter military time (i.e. 20:00 ).

• Select PM or AM. If military time was entered,

the hand control will bypass this step.

• Choose between Standard time or Daylight

Savings time. Use the Up and Down scroll buttons

This automatic calibration routine is necessary to calculate and compensates for "cone" erro inherent in all German equatorial mounts. Cone error is the inaccuracy that results from the optical tube not being exactly perpendicular to the mounts declination axis as well as various other inaccuracies such as backlash in the mounts gears. The telescope is able to automatically determine the cone error value by always using alignment stars on both sides of the Meridian (see Figure 3-2). Mechanical errors can be reduced further by always centering alignment stars using the up and right arrow buttons as described in the Pointing Accuracy box below.

(10) to toggle between options.

• Select the time zone that you are observing from. Again, use the Up and Down buttons (10) to

scroll through the choices. Refer to Time Zone map in Appendix for more information.

Date - Enter the month, day and year of your observing session.

• Finally, you must enter the longitude and latitude of the location of your observing site. Use

the table in Appendix C to locate the closest longitude and latitude for your current observing location and enter those numbers when asked in the hand control, pressing ENTER after each entry. Remember to select "West" for longitudes in North America and "North" for latitudes in the North Hemisphere. For international cities, the correct hemisphere is indicated in the Appendix listings.

4. Select one of the four alignment methods as described below.

Note: If incorrect information is entered into the hand control, the UNDO button acts like a back space button allowing the user to re-enter the correct data.

AAuuttoo AAlliiggn

Auto Align allows the telescope to automatically choose three stars (two on one side of the Meridian, and one on the opposite side) on which to align itself. To Auto Align your telescope:

1. Select Auto Align from the alignment choices given. Based on the date and time information entered, the telescope will automatically select and go to a bright star that is above the horizon.

• If for some reason the chosen star is not visible

(perhaps behind a tree or building) press UNDO to automatically select the next bright star from the database star list.

2. Once the telescope is finished slewing to your first

alignment star, the display will ask you to use the arrow buttons to align the selected star with the crosshairs in the center of the finderscope. Once centered in the finder, press ENTER.

3. The display will then instruct you to center the star in the field of view of the eyepiece. When the star is centered, press ALIGN to accept this star as your first alignment

The Meridian is an imaginary line in the sky that starts at the North celestial pole and ends at the South celestial pole and passes through the zenith. If you are facing South, the meridian starts from your Southern horizon and passes directly overhead to the North celestial pole.

Figure 3-2

star.

4. After the first alignment star has been entered the telescope will automatically select a second alignment star on the same side of the Meridian and have you repeat this procedure for that star.

5. For the third alignment star, the telescope will select a bright star on the opposite side of the Meridian and slew to it. Once again center the star in the crosshairs of the finderscope and then center the star in the eyepiece, pressing ENTER when complete.

When the telescope has been aligned on all three stars the display will read Alignment Successful, and you are now ready to find your first object.

AAuuttoo TThhrreeee--SSttaarr AAlliiggnn

Auto Three-Star Alignment works much the same way as Auto Align, however

Pointing Accuracy

instead of automatically slewing to the alignment stars, the user is allowed to select the alignment stars from a list. To use Auto Three-Star Align:

1. Select Auto Three Star Align from the alignment choices given.

2. The hand control will display a recommended alignment star to

begin.

• Press UNDO to display the next recommended star on the same

side of the Meridian, or

• Press the UP and DOWN arrows keys to scroll through the

compete list of available alignment stars to choose from.

3. Once the desired alignment star is displayed on the hand control

press ENTER to slew the telescope to the star.

For the best possible pointing accuracy, always center the alignment stars using the up arrow button and the right arrow button.

pproaching from this direction when looking through the eyepiece will eliminate much of the backlash between the gears and assures the most accurate alignmen possible.

4. As with the Auto Align procedure, you will be asked to center the star in the crosshairs of the finderscope and then center the star in the eyepiece, pressing ENTER when complete.

NOTE: Although the telescope allows the user to select the alignment stars, for best all-sky pointing accuracy it is still necessary to select two alignment stars on one side of the Meridian and the third star on the opposite side of the Meridian. For this reason, the hand control will only display stars that are on the same side of the Meridian for the first two alignment stars, then will only display stars on the opposite side of the Meridian for the third alignment star.

QQuuiicckk--AAlliiggnn

Quick-Align uses all the date and time information entered at startup to align the telescope. However, instead of slewing to the alignment stars for centering and alignment, the telescope bypasses this step and simply models the sky based on the information given. This will allow you to roughly slew to the coordinates of bright objects like the moon and planets and gives the telescope the information needed to track objects in any part of the sky (depending on accuracy of polar alignment). Quick-Align is not meant to be used to accurately locate small or faint deep-sky objects or to track objects accurately for photography.

To use Quick-Align, simply select Quick Align from the alignment options and press ENTER. The telescope will automatically use the entered date/time parameters to align itself with the sky and display Alignment Successful.

NOTE: Once a Quick-Align has been done, you can use the Re-alignment feature (see below) to improve your telescopes pointing accuracy.

LLaasstt AAlliiggnnmmeenntt

The Last Alignment method will automatically recall the last stored index positions to continue using the alignment that was saved when the telescope was last powered down. This is a useful feature should your telescope accidentally lose power or be powered down.

NOTE: Just like with Quick-Align, you can use the Re-alignment feature (see below) to improve your telescopes pointing accuracy after using the Last Alignment method. To maintain a more accurate alignment over a series of observing sessions, use the Hibernate feature described later in this chapter.

RRee--AAlliiggnnmmeenntt

The Advanced Series telescopes have a re-alignment feature which allows you to replace any of the original

• If you are observing over a period of a few hours, you may notice that your original two alignment

• If you have aligned your telescope using the Quick-Align method, you can use re-align to align on

To replace an existing alignment star with a new alignment star:

1. Select the desired star (or object) from the database and slew to it.

2. Carefully center the object in the eyepiece.

3. Once centered, press the UNDO button until you are at the main menu.

4. With Advanced GT displayed, press the ALIGN key on the hand control.

5. The display will then ask you which alignment star you want to replace. Use the UP and Down scroll keys to select the alignment star to be replaced. It is usually best to replace the star closest to the new object. This will space out your alignment stars across the sky.

6. Press ALIGN to make the change.

alignment stars with a new star or celestial object. This can be useful in several situations:

stars have drifted towards the west considerably. (Remember that the stars are moving at a rate of 15º every hour). Aligning on a new star that is in the eastern part of the sky will improve your pointing accuracy, especially on objects in that part of the sky.

actual objects in the sky. This will improve the pointing accuracy of your telescope without having to re-enter addition information.

Helpful

Hint

OObbjjeecctt CCaattaalloogg

Selecting an Object

Now that the telescope is properly aligned, you can choose an object from any of the catalogs in the telescope's extensive database. The hand control has a key (4) designated for each of the catalogs in its database. There are two ways to select objects from the database: scrolling through the named object lists and entering object numbers.

Pressing the LIST key on the hand control will access all objects in the database that have common names or types. Each list is broken down into the following categories: Named Stars, Named Object, Double Stars, Variable Stars, Asterisms and CCD Objects. Selecting any one of these catalogs will display a numericalphabetical listing of the objects under that list. Pressing the Up and Down keys (10) allows you to scroll through the catalog to the desired object.

When scrolling through a long list of objects, holding down either the Up or Down key will allow you to scroll through the catalog more rapidly by only displaying every fifth catalog object.

Pressing any of the other catalog keys (M, CALD, NGC, or STAR) will display a blinking cursor below the name of the catalog chosen. Use the numeric key pad to enter the number of any object within these standardized catalogs. For example, to find the Orion Nebula, press the "M" key and enter "042".

Slewing to an Object

Once the desired object is displayed on the hand control screen, choose from the following options:

• Press the INFO Key. This will give you useful information about the selected object such as R.A.

and declination, magnitude size and text information for many of the most popular objects.

• Press the ENTER Key. This will automatically slew the telescope to the coordinates of the object.

Caution: Never slew the telescope when someone is looking into the eyepiece. The telescope can move at fast slew speeds

and may hit an observer in the eye.

Object information can be obtained without having to do a star alignment. After the telescope is powered on, pressing any of the catalog keys allows you to scroll through object lists or enter catalog numbers and view the information about the object as described above.

Finding Planets

Your telescope can locate all 8 of our solar systems planets plus the Moon. However, the hand control will only display the solar system objects that are above the horizon (or within its filter limits). To locate the planets, press the PLANET key on the hand control. The hand control will display all solar system objects that are above the horizon:

• Use the Up and Down keys to select the planet that you wish to observe.

• Press INFO to access information on the displayed planet.

• Press ENTER to slew to the displayed planet.

Tour Mode

The Advanced Series telescopes include a tour feature which automatically allows the user to choose from a list of interesting objects based on the date and time in which you are observing. The automatic tour will display only those objects that are within your set filter limits (see Filter Limits in the Setup Procedures section of the manual). To activate the Tour mode, press the TOUR key (6) on the hand control. The hand control will display the best objects to observe that are currently in the sky.

• To see information and data about the displayed object, press the INFO key.

• To slew to the object displayed, press ENTER.

• To see the next tour object, press the Up key.

Constellation Tour

In addition to the Tour Mode, your telescope has a Constellation Tour that allows the user to take a tour of all the best objects in each of the 88 constellations. Selecting Constellation from the LIST menu will display all the constellation names that are above the user defined horizon (filter limits). Once a constellation is selected, you can choose from any of the database object catalogs to produce a list of all the available objects in that constellation.

• To see information and data about the displayed object, press the INFO key.

• To slew to the object displayed, press ENTER.

• To see the next tour object, press the Up key.

Direction Buttons

The hand control has four direction buttons (3) in the center of the hand control which control the telescope's motion in altitude (up and down) and azimuth (left and right). The telescope can be controlled at nine different speed rates.

Rate Button

Pressing the RATE key (11) allows you to instantly change the speed rate of the motors from high speed slew rate to precise guiding rate or anywhere in between. Each rate corresponds to a number on the hand controller key pad. The number 9 is the fastest rate (3º per second, depending on power source) and is used for slewing between objects and locating alignment stars. The number 1 on the hand control is the slowest rate (.5x sidereal) and can be used for accurate centering of objects in the eyepiece and photographic guiding. To change the speed rate of the motors:

• Press the RATE key on the hand control. The LCD will display the current speed rate.

• Press the number on the hand control that corresponds to the desired speed. The number will

appear in the upper-right corner of the LCD display to indicate that the rate has been changed.

The hand control has a "double button" feature that allows you to instantly speed up the motors without having to choose a speed rate. To use this feature, simply press the arrow button that corresponds to the direction that you want to move the telescope. While holding that button down, press the opposite directional button. This will increase the slew rate to the maximum slew rate.

The direction that a star moves in the eyepiece when a direction is pressed will change depending on which side of the Meridian the telescope tube is positioned. In order to change the direction of the arrow buttons, see Scope Setup Features later in this section.

1 = .5x 6 = 64x 2 = 1x (sidereal) 7 = .5º / sec 3 = 4x 8 = 2º / sec 4 = 8x 9 = 3º / sec 5 = 16x

SSeettuupp PPrroocceedduurreess

The Advanced GT contains many user defined setup functions designed to give the user control over the telescope's many advanced features. All of the setup and utility features can be accessed by pressing the MENU key and scrolling through the options:

Nine available slew speeds

Tracking Mode This allows you to change the way the telescope tracks depending on the type of mount

being used to support the telescope. The telescope has three different tracking modes:

EQ North

EQ South

Used to track the sky when the telescope is polar aligned in the Northern Hemisphere.

Used to track the sky when the telescope is polar aligned in the Southern Hemisphere.

Off

When using the telescope for terrestrial (land) observation, the tracking can be turned off so that the telescope never moves.

Tracking Rate In addition to being able to move the telescope with the hand control buttons, your

telescope will continually track a celestial object as it moves across the night sky. The tracking rate can be changed depending on what type of object is being observed:

Sidereal

Lunar

Solar

This rate compensates for the rotation of the Earth by moving the telescope at the same rate as the rotation of the Earth, but in the opposite direction. When the telescope is polar aligned, this can be accomplished by moving the telescope in right ascension only.

Used for tracking the moon when observing the lunar landscape.

Used for tracking the Sun when solar observing with the proper filter.

View Time-Site - Displays the current time and longitude/latitude downloaded from the optional CN-16 GPS

receiver. It will also display other relevant time-site information like time zone, daylight saving and local sidereal time. Local sidereal time (LST) is useful for knowing the right ascension of celestial objects that are located on the Meridian at that time. View Time-Site will always display the last saved time and location entered while it is linking with the GPS. Once current information has been received, it will update the displayed information. If GPS is switched off or not present, the hand control will only display the last saved time and location.

User Defined Objects - Your telescope can store up to 400 different user defined objects in its memory. The

objects can be daytime land objects or an interesting celestial object that you discover that is not included in the regular database. There are several ways to save an object to memory depending on what type of object it is:

Helpful

Hint

GoTo Object: To go to any of the user defined objects stored in the database, scroll down to either

GoTo Sky Obj or Goto Land Obj and enter the number of the object you wish to select and press ENTER. The telescope will automatically retrieve and display the coordinates before slewing to the object.

Save Sky Object: Your telescope stores celestial objects to its database by saving its right ascension and

declination in the sky. This way the same object can be found each time the telescope is aligned. Once a desired object is centered in the eyepiece, simply scroll to the "Save Sky Obj" command and press ENTER. The display will ask you to enter a number between 1-200 to identify the object. Press ENTER again to save this object to the database.

Enter R.A. - Dec: You can also store a specific set of coordinates for an object just by entering the R.A.

and declination for that object. Scroll to the "Enter RA-DEC " command and press ENTER. The display will then ask you to enter first the R.A. and then the declination of the desired object.

Save Land Object: The telescope can also be used as a spotting scope on terrestrial objects. Fixed land

objects can be stored by saving their altitude and azimuth relative to the location of the telescope at the time of observing. Since these objects are relative to the location of the telescope, they are only valid for that exact location. To save land objects, once again center the desired object in the eyepiece. Scroll down to the "Save Land Obj" command and press ENTER. The display will ask you to enter a number between 1-200 to identify the object. Press ENTER again to save this object to the database.

To replace the contents of any of the user defined objects, simply save a new object using one of the existing identification numbers; the telescope will replace the previous user defined object with the current one.

Get RA/DEC - Displays the right ascension and declination for the current position of the telescope.

Goto R.A/ Dec - Allows you to input a specific R.A. and declination and slew to it.

To store a set of coordinates (R.A./Dec) permanently into the database, save it as a User Defined Object as described above.

Identify

Identify Mode will search any of the telescope's database catalogs or lists and display the name and offset distances to the nearest matching objects. This feature can serve two purposes. First, it can be used to identify an unknown object in the field of view of your eyepiece. Additionally, Identify Mode can be used to find other celestial objects that are close to the objects you are currently observing. For example, if your telescope is pointed at the brightest star in the constellation Lyra, choosing Identify and then searching the Named Star catalog will no doubt return the star Vega as the star you are observing. However, by selecting Identify and searching by the Named Object or Messier catalogs, the hand control will let you know that the Ring Nebula (M57) is approximately 6° from your current position. Searching the Double Star catalog will reveal that Epsilon Lyrae is only 1° away from Vega. To use the Identify feature:

• Press the Menu button and select the Identify option.

• Use the Up/Down scroll keys to select the catalog that you would like to search.

• Press ENTER to begin the search.

Note: Some of the databases contain thousands of objects, and can therefore take several minutes to return the closest objects.

Precise GoTo

The Advanced Series telescopes have a precise goto function that can assist in finding extremely faint objects and centering objects closer to the center of the field of view for astrophotography and CCD imaging. Precise Goto automatically searches out the closest bright star to the desired object and asks the user to carefully center it in the eyepiece. The hand control then calculates the small difference between its goto position and its centered position. Using this offset, the telescope will then slew to the desired object with enhanced accuracy. To use Precise Goto:

1. Press the MENU button and use the Up/Down keys to select Precise Goto.

• Choose Database to select the object that you want to observe from any of

the database catalogs listed or;

• Choose RA/DEC to enter a set of celestial coordinates that you wish to slew

to.

2. Once the desired object is selected, the hand control will search out and display the closest bright star to your desired object. Press ENTER to slew to the bright alignment star.

3. Use the direction buttons to carefully center the alignment star in the eyepiece.

4. Press ENTER to slew to the desired object.

Scope Setup Features

Setup Time-Site

time and location parameters (such as time zone and daylight savings).

Anti-backlash – All mechanical gears have a certain amount of backlash or play

between the gears. This play is evident by how long it takes for a star to move in the eyepiece when the hand control arrow buttons are pressed (especially when changing directions). The Advanced GT's anti-backlash features allows the user to compensate for backlash by inputting a value which quickly rewinds the motors just enough to eliminate the play between gears. The amount of compensation needed depends on the slewing rate selected; the slower the slewing rate the longer it will take for the star to appear to move in the eyepiece. There are two values for each axis, positive and negative. Positive is the amount of compensation applied when you press the button, in order to get the gears moving quickly without a long pause. Negative is the amount of compensation applied when you release the button, winding the motors back in the other direction to resume tracking. Normally both values should be the same. You will need to experiment with different values (from 0-99); a value between 20 and 50 is usually best for most visual observing, whereas a higher value may be necessary for photographic guiding.

To set the anti-backlash value, scroll down to the anti-backlash option and press ENTER. While viewing an object in the eyepiece, observe the responsiveness of each of the four arrow buttons. Note which directions you see a pause in the star movement after the button has been pressed. Working one axis at a time, adjust the backlash settings high enough to cause immediate movement without resulting in a pronounced jump when pressing or releasing the button. Now, enter the same values for both positive and negative directions. If you notice a jump when releasing the button, but setting the values lower results in a pause when pressing the button, go with the higher value for positive, but use a lower value for negative. The telescope will remember these values and use them each time it is turned on until they are changed.

Filter Limits – When an alignment is complete, the telescope automatically knows which celestial objects are

above the horizon. As a result, when scrolling through the database lists (or selecting the Tour function), the hand control will display only those objects that are known to be above the horizon when you are observing. You can customize the object database by selecting altitude limits that are appropriate for your location and situation. For example, if you are observing from a mountainous location where the horizon is partially obscured, you can set your

- Allows the user to customize the telescope's display by changing

SCOPE SETUP

SETUP TIME-SITE ANTI -BACKLAS H

AZM POSITIVE AZM NEGATIVE ALT POSITIVE ALT NEGATIVE

FILTER LIMITS

ALTMAX IN LIST ALT MIN IN LIST

DIRECT ION BUTTONS

AZM BUTTONS ALT B UTTONS

GOTO APPROACH

AZM APPROACH ALT APPROACH

AUTOGUIDE RATES

AZM RATE ALT RATE

AZIMUT H LIM ITS

AZM MIN LIMIT AZM MAX LIMIT

E/W FILTERING

FILTERING ON FILTERING OFF

Observing

(

Tip!

Helpful

Hint!

minimum altitude limit to read +20º. This will make sure that the hand control only displays objects that are higher in altitude than 20º.

If you want to explore the entire object database, set the maximum altitude limit to 90º and the minimum limit to – 90º. This will display every object in the database lists regardless of whether it is visible in the sky from your location.

Direction Buttons –The direction a star appears to move in the eyepiece changes depending on which side of the

Meridian the telescope tube is on. This can create confusion especially when guiding on a star when doing astrophotography. To compensate for this, the direction of the drive control keys can be changed. To reverse the button logic of the hand control, press the MENU button and select Direction Buttons from the Utilities menu. Use the Up/Down arrow keys (10) to select either the azimuth (right ascension) or altitude (declination) button direction and press ENTER. Select either positive or negative for both axes and press ENTER to save. Setting the azimuth button direction to positive will move the telescope in the same direction that the telescope tracks (i.e. towards the west). Setting the altitude buttons to positive will move the telescope counterclockwise along the DEC axis.

Goto Approach - lets the user define the direction that the telescope will approach when slewing to an object.

This allows the user the ability to minimize the affects of backlash when slewing from object to object. Just like with Direction Buttons, setting GoTo Approach to positive will make the telescope approach an object from the same direction as tracking (west) for azimuth and counterclockwise in declination. Declination Goto approach will only apply while the telescope tube is on one side of the Meridian. Once the tube passes over to the other side of the Meridian, the Goto approach will need to be reversed.

To change the Goto approach direction, simply choose Goto Approach from the Scope Setup menu, select either Altitude or Azimuth approach, choose positive or negative and press ENTER.

In order to minimize the affect of gear backlash on pointing accuracy, the settings for Button Direction should ideally match the settings for GoTo Approach. By default, using the up and right direction buttons to center alignment stars will automatically eliminate much of the backlash in the gears. If you change the Goto approach of your telescope it is not necessary to change the Button Direction as well. Simply take notice of the direction the telescope moves when completing it final goto approach. If the telescope approaches its alignment star from the west (negative azimuth) and clockwise (negative altitude) then make sure that the buttons used to center the alignment stars also move the telescope in the same directions.

Autoguide Rate – Allows the user to set an autoguide

rate as a percentage of sidereal rate. This is helpful when calibrating your telescope to a CCD autoguider for long exposure photography.

Azimuth Limits - Sets the limits that the telescope can

slew in azimuth (R.A.) The slew limits are set to 0º to 180º; with zero being the position of the telescope when the counterweight bar is extended out towards the west and 180º being the position when the counterweight bar is extended out toward the east (see Fig 3-3). However, the slew limits can be customized depending on your needs. For example, if you are using CCD imaging equipment that has cables that are not long enough to move with the telescope as it slews across the sky, you can adjust the azimuth slew limit on the side of the mount that is restricted by the cables. Using the example above, the user could slew the telescope in R.A. (azimuth) until it reaches the point that the cables are extended to their maximum. Then by displaying the

Fig 3-3 – Azimuth Slew Limits- This

figure shows the full range of motion

for the R.A.

azimuth) axis

telescopes azimuth in this position (by looking at Get Alt-Az under the Utilities menu) you can determine the telescopes azimuth at its most extended position. Enter this azimuth reading for either the maximum or minimum azimuth slew limit to ensure that the telescope will not slew beyond this point.

Warning: In order for the telescope to be able to slew to a star from the direction that minimizes the amount of backlash in the gears, it may be necessary for the telescope to slew beyond the specified slew limit in order to approach the star from the correct direction. This can limit your ability to slew to an object by as much as 6º from the azimuth slew limit set in the hand control. If this proves to be a problem, the direction that the telescope takes to center an object can be changed. To change the telescopes slewing direction, see Goto Approach under the Scope Setup menu. In order to guaranty that the telescope will have a full range of motion in R.A. (azimuth), set the azimuth slew limits to 354 and 186. This will allow the mount to slew without regard to the slew limits.

East/West (E/W) Filtering - In order to ensure the best possible full sky pointing accuracy, the Advanced series

telescopes automatically filters and chooses its initial alignment stars so that the first two alignment stars are located on one side of the Meridian and the third star is on the opposite side of the Meridian. East/West Filtering allows you to turn off this automatic filtering feature, allowing the hand control to display all of its alignment stars when doing a Auto Three Star Align, without regard to the Meridian.

Utility Features

Scrolling through the MENU (9) options will also provide access to several advanced utility functions within the Advanced Series telescopes such as; Calibrate Goto, Polar Alignment, Hibernate as well as many others.

Calibrate Goto

telescope. Goto Calibration calculates the amount of distance and time it takes for the mount to complete its final slow goto when slewing to an object. Changing the balance of the telescope can prolong the time it takes to complete the final slew. Goto Calibration takes into account any slight imbalances and changes the final goto distance to compensate.

Home Position –

used to store the telescope when not in use. The home position is useful when storing the telescope in a permanent observatory facility. By default the Home position is the same as the index position used when aligning the mount. To set the Home position for your mount simply use the arrow buttons on the hand control to move the telescope mount to the desired position. Select the Set option and press Enter.

Polar Align- The Advanced GT has a polar alignment function that will help you

polar align your telescope for increased tracking precision and astrophotography. After performing an Auto Alignment, the telescope will slew to where Polaris should be. By using the equatorial head to center Polaris in the eyepiece, the mount will then be pointed towards the actual North Celestial Pole. Once Polar Align is complete, you must re-align your telescope again using any of the alignment methods described earlier. To polar align the mount in the Northern Hemisphere:

1. With the telescope set up and roughly positioned towards Polaris, align the mount using the Auto Align or Auto Three Star method.

2. Select Polar Align from the Utilities menu and press Enter.

Based on your current alignment, the telescope will slew to where it thinks Polaris should be. Use the equatorial head latitude and azimuth adjustments to place Polaris in the center of the eyepiece. Do not use the direction buttons to position Polaris. Once Polaris is centered in the eyepiece press ENTER; the polar axis should then be pointed towards the North Celestial Pole.

- Goto Calibration is a useful tool when attaching heavy visual or photographic accessories to the

UTILITIES

CALIBRATE GOTO HOME POSTION

The telescopes "home" position is a user-definable position that is

GOTO SET

POLAR ALIGN LIGHT CONTROL

KEYPAD OFF KEYPAD ON DISPLAY OFF DISPLAY ON

FACTORY SETTING

PRESS UNDO PRESS "0"

VERSION GET ALT-AZ GOTO ATL-AZ HIBERNATE TURN ON/OFF GPS

HHeellppffuull

HHiinnt

Light Control – This feature allows you to turn off both the red key pad light and LCD display for daytime use to

conserve power and to help preserve your night vision.

Factory Settings – Returns the Advanced GT hand control to its original factory settings. Parameters such as

backlash compensation values, initial date and time, longitude/latitude along with slew and filter limits will be reset. However, stored parameters such as user defined objects will remain saved even when Factory Settings is selected. The hand control will ask you to press the "0" key before returning to the factory default setting.

Version - Selecting this option will allow you to see the current version number of the hand control, motor control

and GPS software (if using optional CN-16 GPS accessory). The first set of numbers indicate the hand control software version. For the motor control, the hand control will display two sets of numbers; the first numbers are for azimuth and the second set are for altitude. On the second line of the LCD, the GPS and serial bus versions are displayed.

Get Alt-Az - Displays the relative altitude and azimuth for the current position of the telescope.

Goto Alt-Az - Allows you to enter a specific altitude and azimuth position and slew to it.

Hibernate - Hibernate allows the telescope to be completely powered down and still retain its alignment when

turned back on. This not only saves power, but is ideal for those that have their telescopes permanently mounted or leave their telescope in one location for long periods of time. To place your telescope in Hibernate mode:

1. Select Hibernate from the Utility Menu.

2. Move the telescope to a desire position and press ENTER.

3. Power off the telescope. Remember to never move your telescope manually while in Hibernate mode. Once the telescope is powered on again the display will read Wake Up. After pressing Enter you have the option of scrolling through the time/site information to confirm the current setting. Press ENTER to wake up the telescope.

Pressing UNDO at the Wake Up screen allows you to explore many of the features of the hand control without waking the telescope up from hibernate mode. To wake up the telescope after UNDO has been pressed, select Hibernate from the Utility menu and press ENTER. Do not use the direction buttons to move the telescope while in hibernate mode.

Turn On/Off GPS - If using your Advanced GT telescope with the optional CN-16 GPS accessory (see Optional

Accessories section of the manual), you will need to turn the GPS on the first time you use the accessory. . If you

want to use the telescope's database to find the coordinates of a celestial object for a future or past dates you would need to turn the GPS off in order to manually enter a time other than the present.

ADVANCED GT

TRACKING

MODE

EQ NORT EQ SOUTH OFF

RATE

SIDEREAL SOLAR LUNAR

VIEW TIME-SITE SCOPE SETUP

SETUP TIME-SIT ANTI-BACKLASH FILTER LIMITS DIRECTION BUTTONS GOTO APPROAC AUTOGUIDE RATE AZIMUTH LIMITS EAST/WEST FILTERING

UTILITIES

CALIBRATE GOTO HOME POSITIO POLAR ALIG LIGHT CONTROL FACTORY SETTING VERSION GET ALT-A GOTO ALT-A HIBERNATE TURN ON/OFF GPS

USER OBJECTS

ALIGNMENT

START-UP PROCUDURE

SET TO INDEX ENTER TIM DLS/ST TIME ZONE ENTER DATE- MM/DD/YY ENTER LONG/LAT

AUTO ALIGN

CENTER STAR 1

CENTER STAR 2

AUTO THREE-S TAR ALIG N

SELECT STAR 1

SELECT STAR 2

SELECT STAR 3

LAST ALIGNMENT QUICK-ALIGN

LIST

NAMED STAR NAMED OBJECT ASTERISM TOUR VARIABLE STAR DOUBLE STAR CCD OBJECTS ABELL IC CATALOG CALDWELL MESSIER NGC SAO SOLAR SYSTEM CONSTELLATION

CENTER STAR 3

CENTER S TAR 1

CENTER S TAR 2

CENTER S TAR 3

GOTO SKY OBJ SAVE SKY OBJ ENTER RA & DEC SAVE LAND OB GOTO LAND OBJ

GET RA-DEC GOTO RA-DEC IDENTIFY

SELECT CATALOG

PRECISE GOTO

GOTO TYPE

A telescope is an instrument that collects and focuses light. The nature of the optical design determines how the light is focused. Some telescopes, known as refractors, use lenses. Other telescopes, known as reflectors, use mirrors. The Schmidt-Cassegrain optical system (or Schmidt-Cass for short) uses a combination of mirrors and lenses and is referred to as a compound or catadioptric telescope. This unique design offers large-diameter optics while maintaining very short tube lengths, making them extremely portable. The Schmidt-Cassegrain system consists of a zero power corrector plate, a spherical primary mirror, and a secondary mirror. Once light rays enter the optical system, they travel the length of the optical tube three times.

The optics of the Advenced Series Schmidt-Cassegrain telescopes have Starbright coatings - enhanced multi-layer coatings on the primary and secondary mirrors for increased reflectivity and a fully coated corrector for the finest anti-reflection characteristics.

Inside the optical tube, a black tube extends out from the center hole in the primary mirror. This is the primary baffle tube and it prevents stray light from passing through to the eyepiece or camera.

Figure 4-1

AA ccuuttaawwaayy vviieeww ooff tthhee lliigghhtt ppaatthh ooff tthhee SScchhmmiiddtt--CCaasssseeggrraaiinn ooppttiiccaall ddeessiiggn

Image Orientation

The image orientation changes depending on how the eyepiece is inserted into the telescope. When using the star diagonal, the image is right-side-up, but reversed from left-to-right (i.e., mirror image). If inserting the eyepiece directly into the visual back (i.e., without the star diagonal), the image is upside-down and reversed from left-to-right (i.e., inverted). This is normal for the Schmidt-Cassegrain design.

Actual image orientation as seen

with the unaided eye

Reversed from left to right, as

viewed with a Star Diagonal

Figure 4-2

Inverted image, as viewed with

the eyepiece directly in telescope

Focusing

The Schmidt-Cassegrain focusing mechanism controls the primary mirror which is mounted on a ring that slides back and forth on the primary baffle tube. The focusing knob, which moves the primary mirror, is on the rear cell of the telescope just below the star diagonal and eyepiece. Turn the focusing knob until the image is sharp. If the knob will not turn, it has reached the end of its travel on the focusing mechanism. Turn the knob in the opposite direction until the image is sharp. Once an image is in focus, turn the knob clockwise to focus on a closer object and counterclockwise for a more distant object. A single turn of the focusing knob moves the primary mirror only slightly. Therefore, it will take many turns (about 30) to go from close focus (approximately 60 feet) to infinity.

For astronomical viewing, out of focus star images are very diffuse, making them difficult to see. If you turn the focus knob too quickly, you can go right through focus without seeing the image. To avoid this problem, your first astronomical target should be a bright object (like the Moon or a planet) so that the image is visible even when out of focus. Critical focusing is best accomplished when the focusing knob is turned in such a manner that the mirror moves against the pull of gravity. In doing so, any mirror shift is minimized. For astronomical observing, both visually and photographically, this is done by turning the focus knob counterclockwise.

NOTE: Before turning the focus knob, remember to lossen to two mirror locking knobs located on the rear cell of the telescope. These knobs connect a screw to the primary mirror mounting plate and prevent the mirror from moving when locked down. These screws should be locked down when transporting the telescope.

correct rotational direction for focusing your telescope

Figure 4-3

The emblem on the end of

the focus knob shows the

Aligning the Finderscope

Accurate alignment of the finder makes it easy to find objects with the telescope, especially celestial objects. To make aligning the finder as easy as possible, this procedure should be done in the daytime when it is easy to find and identify objects. The finderscope has a spring-loaded adjustment screw that puts pressure on the finderscope while the remaining screws are used to adjust the finder horizontally and vertically. To align the finder:

1 Choose a target that is in excess of one mile away. This eliminates any possible parallax effect between the

telescope and finder.

2 Release the altitude and azimuth clamps and point the telescope at your target.

3 Center your target in the main optics of the telescope. You may have to move the telescope slightly to center it.

4 Adjust the screw on the finder bracket that is on the right (when looking through the finder) until the crosshairs are

centered horizontally on the target seen through the telescope.

5 Adjust the screw on the top of the finder bracket until the crosshairs are centered vertically on the target seen

through the telescope.

Image orientation through the finder is inverted (i.e., upside down and backwards left-to-right). This is normal for any finder that is used straight-through. Because of this, it may take a few minutes to familiarize yourself with the directional change each screw makes on the finder.

Calculating Magnification

You can change the power of your telescope just by changing the eyepiece (ocular). To determine the magnification of your telescope, simply divide the focal length of the telescope by the focal length of the eyepiece used. In equation format, the formula looks like this: Focal Length of Telescope Magnification = Focal Length of Eyepiece



(mm)

Let’s say, for example, you are using the 40mm Plossl eyepiece. To determine the magnification you simply divide the focal length of your telescope (the C8-S for example has a focal length of 2032mm) by the focal length of the eyepiece, 40mm. Dividing 2032 by 40 yields a magnification of 51 power.

Although the power is variable, each instrument under average skies has a limit to the highest useful magnification. The general rule is that 60 power can be used for every inch of aperture. For example, the C8-S is 8 inches in diameter. Multiplying 8 by 60 gives a maximum useful magnification of 480 power. Although this is the maximum useful magnification, most observing is done in the range of 20 to 35 power for every inch of aperture which is 160 to 280 times for the C8-S telescope.

Determining Field of View

Determining the field of view is important if you want to get an idea of the angular size of the object you are observing. To calculate the actual field of view, divide the apparent field of the eyepiece (supplied by the eyepiece manufacturer) by the magnification. In equation format, the formula looks like this:

Apparent Field of Eyepiece True Field =  Magnification

As you can see, before determining the field of view, you must calculate the magnification. Using the example in the previous section, we can determine the field of view using the same 40mm eyepiece. The 40mm Plossl eyepiece has an apparent field of view of 46°. Divide the 46° by the magnification, which is 51 power. This yields an actual field of .9°, or nearly a full degree.

To convert degrees to feet at 1,000 yards, which is more useful for terrestrial observing, simply multiply by 52.5. Continuing with our example, multiply the angular field .9° by 52.5. This produces a linear field width of 47 feet at a distance of one thousand yards. The apparent field of each eyepiece that Celestron manufactures is found in the Celestron Accessory Catalog (#93685).

General Observing Hints

When working with any optical instrument, there are a few things to remember to ensure you get the best possible image.

• Never look through window glass. Glass found in household windows is optically imperfect, and as a result, may vary in

thickness from one part of a window to the next. This inconsistency can and will affect the ability to focus your telescope. In most cases you will not be able to achieve a truly sharp image, while in some cases, you may actually see a double image.

• Never look across or over objects that are producing heat waves. This includes asphalt parking lots on hot summer days or

building rooftops.

• Hazy skies, fog, and mist can also make it difficult to focus when viewing terrestrially. The amount of detail seen under

these conditions is greatly reduced. Also, when photographing under these conditions, the processed film may come out a little grainier than normal with lower contrast and underexposed.

• If you wear corrective lenses (specifically glasses), you may want to remove them when observing with an eyepiece

attached to the telescope. When using a camera, however, you should always wear corrective lenses to ensure the sharpest possible focus. If you have astigmatism, corrective lenses must be worn at all times.

Up to this point, this manual covered the assembly and basic operation of your telescope. However, to understand your telescope more thoroughly, you need to know a little about the night sky. This section deals with observational astronomy in general and includes information on the night sky and polar alignment.

The Celestial Coordinate System

To help find objects in the sky, astronomers use a celestial coordinate system that is similar to our geographical coordinate system here on Earth. The celestial coordinate system has poles, lines of longitude and latitude, and an equator. For the most part, these remain fixed against the background stars.

The celestial equator runs 360 degrees around the Earth and separates the northern celestial hemisphere from the southern. Like the Earth's equator, it bears a reading of zero degrees. On Earth this would be latitude. However, in the sky this is referred to as declination, or DEC for short. Lines of declination are named for their angular distance above and below the celestial equator. The lines are broken down into degrees, minutes of arc, and seconds of arc. Declination readings south of the equator carry a minus sign (-) in front of the coordinate and those north of the celestial equator are either blank (i.e., no designation) or preceded by a plus sign (+).

The celestial equivalent of longitude is called Right Ascension, or R.A. for short. Like the Earth's lines of longitude, they run from pole to pole and are evenly spaced 15 degrees apart. Although the longitude lines are separated by an angular distance, they are also a measure of time. Each line of longitude is one hour apart from the next. Since the Earth rotates once every 24 hours, there are 24 lines total. As a result, the R.A. coordinates are marked off in units of time. It begins with an arbitrary point in the constellation of Pisces designated as 0 hours, 0 minutes, 0 seconds. All other points are designated by how far (i.e., how long) they lag behind this coordinate after it passes overhead moving toward the west.

Figure 5-1

The celestial sphere seen from the outside showing R.A. and DEC.

Motion of the Stars

The daily motion of the Sun across the sky is familiar to even the most casual observer. This daily trek is not the Sun moving as early astronomers thought, but the result of the Earth's rotation. The Earth's rotation also causes the stars to do the same, scribing out a large circle as the Earth completes one rotation. The size of the circular path a star follows depends on where it is in the sky. Stars near the celestial equator form the largest circles rising in the east and setting in the west. Moving toward the north celestial pole, the point around which the stars in the northern hemisphere appear to rotate, these circles become smaller. Stars in the mid-celestial latitudes rise in the northeast and set in the northwest. Stars at high celestial latitudes are always above the horizon, and are said to be circumpolar because they never rise and never set. You will never see the stars complete one circle because the sunlight during the day washes out the starlight. However, part of this circular motion of stars in this region of the sky can be seen by setting up a camera on a tripod and opening the shutter for a couple hours. The processed film will reveal semicircles that revolve around the pole. (This description of stellar motions also applies to the southern hemisphere except all stars south of the celestial equator move around the south celestial pole.)

All stars appear to rotate around the celestial poles. However, the appearance of this motion

varies depending on where you are looking in the sky. Near the north celestial pole the stars

scribe out recognizable circles centered on the pole (1). Stars near the celestial equator also follow circular paths around the pole. But, the complete path is interrupted by the horizon.

These appear to rise in the east and set in the west (2). Looking toward the opposite pole, stars

curve or arc in the opposite direction scribing a circle around the opposite pole (3).

Figure 5-2

Latitude Scales

The easiest way to polar align a telescope is with a latitude scale. Unlike other methods that require you to find the celestial pole by identifying certain stars near it, this method works off of a known constant to determine how high the polar axis should be pointed. The Advanced Series mount can be adjusted from 30 to 60 degrees (see figure 5-3).

The constant, mentioned above, is a relationship between your latitude and the angular distance the celestial pole is above the northern (or southern) horizon; The angular distance from the northern horizon to the north celestial pole is always equal to your latitude. To illustrate this, imagine that

Latitude Scale

you are standing on the north pole, latitude +90°. The north celestial pole, which has a declination of +90°, would be directly overhead (i.e., 90 above the horizon). Now, let’s say that you move one degree south — your latitude is now +89° and the celestial pole is no longer directly overhead.

Figure 5-3

It has moved one degree closer toward the

northern horizon. This means the pole is now 89° above the northern horizon. If you move one degree further south, the same thing happens again. You would have to travel 70 miles north or south to change your latitude by one degree. As you can see from this example, the distance from the northern horizon to the celestial pole is always equal to your latitude.

If you are observing from Los Angeles, which has a latitude of 34°, then the celestial pole is 34° above the northern horizon. All a latitude scale does then is to point the polar axis of the telescope at the right elevation above the northern (or southern) horizon. To align your telescope:

1. Make sure the polar axis of the mount is pointing due north. Use a landmark that you know faces north.

2. Level the tripod. There is a bubble level built into the mount for this purpose.

NOTE: Leveling the tripod is only necessary if using this method of polar alignment. Perfect polar alignment is still possible using other methods described later in this manual without leveling the tripod.

3. Adjust the mount in altitude until the latitude indicator points to your latitude. Moving the mount affects the angle the polar axis is pointing. For specific information on adjusting the equatorial mount, please see the section “Adjusting the Mount.”

This method can be done in daylight, thus eliminating the need to fumble around in the dark. Although this method does NOT put you directly on the pole, it will limit the number of corrections you will make when tracking an object. It will also be accurate enough for short exposure prime focus planetary photography (a couple of seconds) and short exposure piggyback astrophotography (a couple of minutes).

Pointing at Polaris

This method utilizes Polaris as a guidepost to the celestial pole. Since Polaris is less than a degree from the celestial pole, you can simply point the polar axis of your telescope at Polaris. Although this is by no means perfect alignment, it does get you within one degree. Unlike the previous method, this must be done in the dark when Polaris is visible.

1. Set the telescope up so that the polar axis is pointing north.

2. Loosen the DEC clutch knob and move the telescope so that the tube is parallel to the polar axis. When this is done, the declination setting circle will read +90°. If the declination setting circle is not aligned, move the telescope so that the tube is parallel to the polar axis.

3. Adjust the mount in altitude and/or azimuth until Polaris is in the field of view of the finder.

Definition

4. Center Polaris in the field of the telescope using the fine adjustment controls on the mount.

Remember, while Polar aligning, do NOT move the telescope in R.A. or DEC. You do not want to move the telescope itself, but the polar axis. The telescope is used simply to see where the polar axis is pointing.

Like the previous method, this gets you close to the pole but not directly on it. The following methods help improve your accuracy for more serious observations and photography.

Finding the North Celestial Pole

In each hemisphere, there is a point in the sky around which all the other stars appear to rotate. These points are called the celestial poles and are named for the hemisphere in which they reside. For example, in the northern hemisphere all stars move around the north celestial pole. When the telescope's polar axis is pointed at the celestial pole, it is parallel to the Earth's rotational axis.

Many methods of polar alignment require that you know how to find the celestial pole by identifying stars in the area. For those in the northern hemisphere, finding the celestial pole is not too difficult. Fortunately, we have a naked eye star less than a degree away. This star, Polaris, is the end star in the handle of the Little Dipper. Since the Little Dipper (technically called Ursa Minor) is not one of the brightest constellations in the sky, it may be difficult to locate from urban areas. If this is the case, use the two end stars in the bowl of the Big Dipper (the pointer stars). Draw an imaginary line through them toward the Little Dipper. They point to Polaris (see Figure 5-5). The position of the Big Dipper changes during the year and throughout the course of the night (see Figure 5-4). When the Big Dipper is low in the sky (i.e., near the horizon), it may be difficult to locate. During these times, look for Cassiopeia (see Figure 5-5). Observers in the southern hemisphere are not as fortunate as those in the northern hemisphere. The stars around the south celestial pole are not nearly as bright as those around the north. The closest star that is relatively bright is Sigma Octantis. This star is just within naked eye limit (magnitude 5.5) and lies about 59 arc minutes from the pole.

The north celestial pole is the point in the northern hemisphere around which all stars

appear to rotate. The counterpart in the southern hemisphere is referred to as the south celestial pole.

Figure 5-4 The position of the

Big Dipper changes

throughout the year and the

The two stars in the front of the bowl of the Big Dipper point to Polaris which is less than one degree from the true (north) celestial pole. Cassiopeia, the “W” shaped constellation, is on the opposite side of the pole from the Big Dipper. The North Celestial Pole (N.C.P.) is marked by the “+” sign.

Figure 5-5

night.

Declination Drift Method of Polar Alignment

This method of polar alignment allows you to get the most accurate alignment on the celestial pole and is required if you want to do long exposure deep-sky astrophotography through the telescope. The declination drift method requires that you monitor the drift of selected stars. The drift of each star tells you how far away the polar axis is pointing from the true celestial pole and in what direction. Although declination drift is simple and straight-forward, it requires a great deal of time and patience to complete when first attempted. The declination drift method should be done after any one of the previously mentioned methods has been completed.

To perform the declination drift method you need to choose two bright stars. One should be near the eastern horizon and one due south near the meridian. Both stars should be near the celestial equator (i.e., 0° declination). You will monitor the drift of each star one at a time and in declination only. While monitoring a star on the meridian, any misalignment in the east-west direction is revealed. While monitoring a star near the east/west horizon, any misalignment in the north-south direction is revealed. It is helpful to have an illuminated reticle eyepiece to help you recognize any drift. For very close alignment, a Barlow lens is also recommended since it increases the magnification and reveals any drift faster. When looking due south, insert the diagonal so the eyepiece points straight up. Insert the cross hair eyepiece and align the cross hairs so that one is parallel to the declination axis and the other is parallel to the right ascension axis. Move your telescope manually in R.A. and DEC to check parallelism.

First, choose your star near where the celestial equator and the meridian meet. The star should be approximately within 1/2 an hour of the meridian and within five degrees of the celestial equator. Center the star in the field of your telescope and monitor the drift in declination.

• If the star drifts south, the polar axis is too far east.

• If the star drifts north, the polar axis is too far west.

Make the appropriate adjustments to the polar axis to eliminate any drift. Once you have eliminated all the drift, move to the star near the eastern horizon. The star should be 20 degrees above the horizon and within five degrees of the celestial equator.

• If the star drifts south, the polar axis is too low.

• If the star drifts north, the polar axis is too high.

Again, make the appropriate adjustments to the polar axis to eliminate any drift. Unfortunately, the latter adjustments interact with the prior adjustments ever so slightly. So, repeat the process again to improve the accuracy checking both axes for minimal drift. Once the drift has been eliminated, the telescope is very accurately aligned. You can now do prime focus deep-sky astrophotography for long periods.

NOTE: If the eastern horizon is blocked, you may choose a star near the western horizon, but you must

reverse the polar high/low error directions. Also, if using this method in the southern hemisphere, the direction of drift is reversed for both R.A. and DEC.

With your telescope set up, you are ready to use it for observing. This section covers visual observing hints for both solar system and deep sky objects as well as general observing conditions which will affect your ability to observe.

Observing the Moon

Often, it is tempting to look at the Moon when it is full. At this time, the face we see is fully illuminated and its light can be overpowering. In addition, little or no contrast can be seen during this phase.

One of the best times to observe the Moon is during its partial phases (around the time of first or third quarter). Long shadows reveal a great amount of detail on the lunar surface. At low power you will be able to see most of the lunar disk at one time. The optional Reducer/Corrector lens allows for breath-taking views of the entire lunar disk when used with a low power eyepiece. Change to higher power (magnification) to focus in on a smaller area. Choose the lunar tracking rate from the hand control's MENU tracking rate options to keep the moon centered in the eyepiece even at high magnifications.

Lunar Observing Hints

To increase contrast and bring out detail on the lunar surface, use filters. A yellow filter works well at improving contrast while a neutral density or polarizing filter will reduce overall surface brightness and glare.

Observing the Planets

Other fascinating targets include the five naked eye planets. You can see Venus go through its lunar-like phases. Mars can reveal a host of surface detail and one, if not both, of its polar caps. You will be able to see the cloud belts of Jupiter and the great Red Spot (if it is visible at the time you are observing). In addition, you will also be able to see the moons of Jupiter as they orbit the giant planet. Saturn, with its beautiful rings, is easily visible at moderate power.

Planetary Observing Hints

• Remember that atmospheric conditions are usually the limiting factor on how much planetary detail will be visible. So, avoid observing the planets when they are low on the horizon or when they are directly over a source of radiating heat, such as a rooftop or chimney. See the "Seeing Conditions" section later in this section.

• To increase contrast and bring out detail on the planetary surface, try using Celestron eyepiece filters.

Observing the Sun

Although overlooked by many amateur astronomers, solar observation is both rewarding and fun. However, because the Sun is so bright, special precautions must be taken when observing our star so as not to damage your eyes or your telescope.

Never project an image of the Sun through the telescope. Because of the folded optical design, tremendous heat buildup will result inside the optical tube. This can damage the telescope and/or any accessories attached to the telescope.

For safe solar viewing, use a solar filter that reduces the intensity of the Sun's light, making it safe to view. With a filter you can see sunspots as they move across the solar disk and faculae, which are bright patches seen near the Sun's edge.

Solar Observing Hints

• The best time to observe the Sun is in the early morning or late afternoon when the air is cooler.

• To center the Sun without looking into the eyepiece, watch the shadow of the telescope tube until it forms a

circular shadow.

• To ensure accurate tracking, be sure to select the solar tracking rate.

Observing Deep Sky Objects

Deep-sky objects are simply those objects outside the boundaries of our solar system. They include star clusters, planetary nebulae, diffuse nebulae, double stars and other galaxies outside our own Milky Way. Most deep-sky objects have a large angular size. Therefore, low-to-moderate power is all you need to see them. Visually, they are too faint to reveal any of the color seen in long exposure photographs. Instead, they appear black and white. And, because of their low surface brightness, they should be observed from a dark-sky location. Light pollution around large urban areas washes out most nebulae making them difficult, if not impossible, to observe. Light Pollution Reduction filters help reduce the background sky brightness, thus increasing contrast.

Seeing Conditions

Viewing conditions affect what you can see through your telescope during an observing session. Conditions include transparency, sky illumination, and seeing. Understanding viewing conditions and the effect they have on observing will help you get the most out of your telescope.

Transparency

Transparency is the clarity of the atmosphere which is affected by clouds, moisture, and other airborne particles. Thick cumulus clouds are completely opaque while cirrus can be thin, allowing the light from the brightest stars through. Hazy skies absorb more light than clear skies making fainter objects harder to see and reducing contrast on brighter objects. Aerosols ejected into the upper atmosphere from volcanic eruptions also affect transparency. Ideal conditions are when the night sky is inky black.

Sky Illumination

General sky brightening caused by the Moon, aurorae, natural airglow, and light pollution greatly affect transparency. While not a problem for the brighter stars and planets, bright skies reduce the contrast of extended nebulae making them difficult, if not impossible, to see. To maximize your observing, limit deep sky viewing to moonless nights far from the light polluted skies found around major urban areas. LPR filters enhance deep sky viewing from light polluted areas by blocking unwanted light while transmitting light from certain deep sky objects. You can, on the other hand, observe planets and stars from light polluted areas or when the Moon is out.

Seeing

Seeing conditions refers to the stability of the atmosphere and directly affects the amount of fine detail seen in extended objects. The air in our atmosphere acts as a lens which bends and distorts incoming light rays. The amount of bending depends on air density. Varying temperature layers have different densities and, therefore, bend light differently. Light

rays from the same object arrive slightly displaced creating an imperfect or smeared image. These atmospheric disturbances vary from time-to-time and place-to-place. The size of the air parcels compared to your aperture determines the "seeing" quality. Under good seeing conditions, fine detail is visible on the brighter planets like Jupiter and Mars, and stars are pinpoint images. Under poor seeing conditions, images are blurred and stars appear as blobs.

The conditions described here apply to both visual and photographic observations.

Figure 6-1

Seeing conditions directly affect image quality. These drawings represent a point source (i.e., star) under bad seeing conditions (left) to excellent conditions (

right). Most often, seeing conditions produce images that lie some where

After looking at the night sky for a while you may want to try photographing it. Several forms of celestial photography are possible with your telescope, including short exposure prime focus, eyepiece projection, long exposure deep sky, terrestrial and even CCD imaging. Each of these is discussed in moderate detail with enough information to get you started. Topics include the accessories required and some simple techniques. More information is available in some of the publications listed at the end of this manual.

In addition to the specific accessories required for each type of celestial photography, there is the need for a camera but not just any camera. The camera does not have to have many of the features offered on today's state-of-the-art equipment. For example, you don't need auto focus capability or mirror lock up. Here are the mandatory features a camera needs for celestial photography. First, a “B” setting which allows for time exposures. This excludes point and shoot cameras and limits the selection to SLR cameras, the most common type of 35mm camera on the market today.

Second, the “B” or manual setting should NOT run off the battery. Many new electronic cameras use the battery to keep the shutter open during time exposures. Once the batteries are drained, usually after a few minutes, the shutter closes, whether you were finished with the exposure or not. Look for a camera that has a manual shutter when operating in the time exposure mode. Olympus, Nikon, Minolta, Pentax, Canon and others have made such camera bodies.

The camera must have interchangeable lenses so you can attach it to the telescope and so you can use a variety of lenses for piggyback photography. If you can't find a new camera, you can purchase a used camera body that is not 100-percent functional. The light meter, for example, does not have to be operational since you will be determining the exposure length manually.

You also need a cable release with a locking function to hold the shutter open while you do other things. Mechanical and air release models are available.

Short Exposure Prime Focus Photography

Short exposure prime focus photography is the best way to begin recording celestial objects. It is done with the camera attached to the telescope without an eyepiece or camera lens in place. To attach your camera you need the Celestron TAdapter (#93633-A) and a T-Ring for your specific camera (i.e., Minolta, Nikon, Pentax, etc.). The T-Ring replaces the 35mm SLR camera's normal lens. Prime focus photography allows you to capture the majority of the lunar disk or solar disk. To attach your camera to your telescope.

1. Remove all visual accessories.

2. Thread the T-Ring onto the T-Adapter.

3. Mount your camera body onto the T-Ring the same as you would any other lens.

4. Thread the T-Adapter onto the back of the telescope while holding the camera in the desired orientation (either vertical or horizontal).

With your camera attached to the telescope, you are ready for prime focus photography. Start with an easy object like the Moon. Here's how to do it:

1. Load your camera with film that has a moderate-to-fast speed (i.e., ISO rating). Faster films are more desirable when the Moon is a crescent. When the Moon is near full, and at its brightest, slower films are more desirable.

are some film recommendations:

Here

• T-Max 100

• T-Max 400

• Any 100 to 400 ISO color slide film

• Fuji Super HG 400

• Ektar 25 or 100

2. Center the Moon in the field of your telescope.

3. Focus the telescope by turning the focus knob until the image is sharp.

4. Set the shutter speed to the appropriate setting (see table below).

5. Trip the shutter using a cable release.

6. Advance the film and repeat the process.

Lunar Phase ISO 50 ISO 100 ISO 200 ISO 400 Crescent Quarter Full

Above is a listing of recommended exposure times when photographing the Moon at the

1/2 1/4 1/8 1/15 1/15 1/30 1/60 1/125 1/30 1/60 1/125 1/250

Table 7-1

rime focus of your telescope.

The exposure times listed in table 7-1 should be used as a starting point. Always make exposures that are longer and shorter than the recommended time. Also, take a few photos at each shutter speed. This will ensure that you will get a good photo.

• If using black and white film, try a yellow filter to reduce the light intensity and to increase contrast.

• Keep accurate records of your exposures. This information is useful if you want to repeat your results or

if you want to submit some of your photos to various astronomy magazines for possible publication!

• This technique is also used for photographing the Sun with the proper solar filter.

Eyepiece Projection

This form of celestial photography is designed for objects with small angular sizes, primarily the Moon and planets. Planets, although physically quite large, appear small in angular size because of their great distances. Moderate to high magnification is, therefore, required to make the image large enough to see any detail. Unfortunately, the camera/telescope combination alone does not provide enough magnification to produce a usable image size on film. In order to get the image large enough, you must attach your camera to the telescope with the eyepiece in place. To do so, you need two additional accessories; a deluxe tele-extender (#93643), which attaches to the visual back, and a T-ring for your particular camera make (i.e., Minolta, Nikon, Pentax, etc.).

Because of the high magnifications during eyepiece projection, the field of view is quite small which makes it difficult to find and center objects. To make the job a little easier, align the finder as accurately as possible. This allows you to get the object in the telescope's field based on the finder's view alone.

Another problem introduced by the high magnification is vibration. Simply tripping the shutter  even with a cable release  produces enough vibration to smear the image. To get around this, use the camera's self-timer if the exposure time is less than one second  a common occurrence when photographing the Moon. For exposures over one second, use the "hat trick." This technique incorporates a hand-held black card placed over the aperture of the telescope to

Figure 7-1 - Accessories for

Projection Photography

act as a shutter. The card prevents light from entering the telescope while the shutter is released. Once the shutter has been released and the vibration has diminished (a few seconds), move the black card out of the way to expose the film. After the exposure is complete, place the card over the front of the telescope and close the shutter. Advance the film and you're ready for your next shot. Keep in mind that the card should be held a few inches in front of the telescope, and not touching it. It is easier if you use two people for this process; one to release the camera shutter and one to hold the card. Here's the process for making the exposure.

1. Find and center the desired target in the viewfinder of your camera.

2. Turn the focus knob until the image is as sharp as possible.

3. Place the black card over the front of the telescope.

4. Release the shutter using a cable release.

5. Wait for the vibration caused by releasing the shutter to diminish. Also, wait for a moment of good seeing.

6. Remove the black card from in front of the telescope for the duration of the exposure (see accompanying table).

7. Replace the black card over the front of the telescope.

8. Close the camera's shutter.

Advance the film and you are ready for your next exposure. Don't forget to take photos of varying duration and keep accurate records of what you have done. Record the date, telescope, exposure duration, eyepiece, f/ratio, film, and some comments on the seeing conditions.

The following table lists exposures for eyepiece projection with a 10mm eyepiece. All exposure times are listed in seconds or fractions of a second.

Planet ISO 50 ISO 100 ISO 200 ISO 400 Moon Mercury Venus Mars Jupiter Saturn

The exposure times listed here should be used as a starting point. Always make exposures that are longer and shorter than the recommended time. Also, take a few photos at each shutter speed. This will ensure that you get a good photo. It is not uncommon to go through an entire roll of 36 exposures and have only one good shot.

NOTE: Don't expect to record more detail than you can see visually in the eyepiece at the time you are photographing.

Once you have mastered the technique, experiment with different films, different focal length eyepieces, and even different filters.

4 2 1 1/2 16 8 4 2 1/2 1/4 1/8 1/15 16 8 4 2 8 4 2 1 16 8 4 2

Recommended ex

Table 7-2

osure time for photographing planets.

Long Exposure Prime Focus Photography

This is the last form of celestial photography to be attempted after others have been mastered. It is intended primarily for deep sky objects, that is objects outside our solar system which includes star clusters, nebulae, and galaxies. While it may seem that high magnification is required for these objects, just the opposite is true. Most of these objects cover large angular areas and fit nicely into the prime focus field of your telescope. The brightness of these objects, however, requires long exposure times and, as a result, are rather difficult.

There are several techniques for this type of photography, and the one chosen will determine the standard accessories needed. The best method for long exposure deep sky astrophotography is with an off-axis guider. This device allows you to photograph and guide through the telescope simultaneously. Celestron offers a very special and advanced offaxis guider, called the Radial Guider (#94176). In addition, you will need a T-Ring to attach your camera to the Radial Guider.

Other equipment needs include a guiding eyepiece. Unlike other forms of astrophotography which allows for fairly loose guiding, prime focus requires meticulous guiding for long periods. To accomplish this you need a guiding ocular with an illuminated reticle to monitor your guide star. For this purpose, Celestron offers the Micro Guide Eyepiece (#94171) Here is a brief summary of the technique.

1. Polar align the telescope. manual.

2. Remove all visual accessories.

3. Thread the Radial Guider onto your telescope.

4. Thread the T-Ring onto the Radial Guider.

5. Mount your camera body onto the T-Ring the same as you would any other lens.

6. Set the shutter speed to the "B" setting.

7. Focus the telescope on a star.

8. Center your subject in the field of your camera.

9. Find a suitable guide star in the telescope field. This can be the most time consuming process.

10. Open the shutter using a cable release.

11. Monitor your guide star for the duration of the exposure using the buttons on the hand controller to make the needed corrections.

For more information on polar aligning, see the Polar Alignment section earlier in the

12. Close the camera's shutter.

When getting started, use fast films to record as much detail in the shortest possible time. Here are proven recommendations:

• Ektar 1000 (color print)

• Konica 3200 (color print)

• Fujichrome 1600D (color slide)

• 3M 1000 (color slide)

• Scotchchrome 400

• T-Max 3200 (black and white print)

• T-Max 400 (black and white print)

As you perfect your technique, try specialized films, that is films that are designed or specially treated for celestial photography. Here are some popular choices:

• Ektar 125 (color print)

• Fujichrome 100D (color slide)

• Tech Pan, gas hypered (black and white print)

• T-Max 400 (black and white print)

There is no exposure determination table to help you get started. The best way to determine exposure length is look at previously published photos to see what film/exposure combinations were used. Or take unguided sample photos of various parts of the sky while the drive is running. Always take exposures of various lengths to determine the best exposure time.

Terrestrial Photography

Your telescope makes an excellent telephoto lens for terrestrial (land) photography. Terrestrial photography is best done will the telescope in Alt-Az configuration and the tracking drive turned off. To turn the tracking drive off, press the MENU (9) button on the hand control and scroll down to the Tracking Mode sub menu. Use the Up and Down scroll keys (10) to select the Off option and press ENTER. This will turn the tracking motors off, so that objects will remain in your camera's field of view.

Metering

The Advanced Series telescope has a fixed aperture and, as a result, fixed f/ratios. To properly expose your subjects photographically, you need to set your shutter speed accordingly. Most 35mm SLR cameras offer through-the-lens metering which lets you know if your picture is under or overexposed. Adjustments for proper exposures are made by changing the shutter speed. Consult your camera manual for specific information on metering and changing shutter speeds.

Reducing Vibration

Releasing the shutter manually can cause vibrations, producing blurred photos. To reduce vibration when tripping the shutter, use a cable release. A cable release keeps your hands clear of the camera and lens, thus eliminating the possibility of introducing vibration. Mechanical shutter releases can be used, though air-type releases are best. Blurry pictures can also result from shutter speeds that are too slow. To prevent this, use films that produce shutter speeds greater than 1/250 of a second when hand-holding the lens. If the lens is mounted on a tripod, the exposure length is virtually unlimited.

Another way to reduce vibration is with ground and tripod feet. They reduce the vibration amplitude and vibration time.

the Vibration Suppression Pads (#93503). These pads rest between the

CCD Imaging

Advanced GT telescope's versatility allows it to be used in many different f-number configurations for CCD imaging. It can be used at f/6.3 (with the optional Reducer/Corrector), f/10, and f/20 (with the optional 2x Barlow) making it the most versatile imaging system available today. This makes the system ideal for imaging deep-sky objects as well as planetary detail.

The key factors for good CCD imaging are; exposure time, field-of-view, image size, and pixel resolution. As the F/# goes down (or gets faster), the exposure times needed decreases, the field-of-view-increases, but the image scale of the object gets smaller. What is the difference between f/6.3 and f/10? F/6.3 has about 2/3 the focal length of f/10. That makes the exposure time needed about 2.5 times shorter than at f/10, the field of view 50% larger compared to that of f/10. (see Table below)

Telescope Model

Standard Cassegrain f/10

With Reducer/Corrector f/6.3

Focal Length & Speed

ST 237 F.O.V.*

C5-S

C8-S

C9.25-S

C5-S 13 x 10 (arc

C8-S 8 x 6.1 (arc

C9.25-S 6.9 x 5.3 (arc

49" (1250mm) 31" (788mm)

80" (2032mm) 50.4" (1280mm)

93" (2350mm) 58" (1481mm)

min)

20.5 x 15.7 (arc min)

12.6 x 9.7 (arc min)

11 x 8.4 (arc min)

* Field of view calculated using SBIG ST 237 CCD camera with 4.7mm x 3.6mm chip.

Table 7-3

Auto Guiding

The Advanced GT telescope has a designated auto guiding port for use with a CCD autoguider. The diagram below may be useful when connecting the CCD camera cable to the telescope and calibrating the autoguider. Note that the four outputs are active-low, with internal pull-ups and are capable of sinking 25 mA DC.

While your telescope requires little maintenance, there are a few things to remember that will ensure your telescope performs at its best.

Care and Cleaning of the Optics

Occasionally, dust and/or moisture may build up on the corrector plate of your telescope. Special care should be taken when cleaning any instrument so as not to damage the optics.

If dust has built up on the corrector plate, remove it with a brush (made of camel’s hair) or a can of pressurized air. Spray at an angle to the lens for approximately two to four seconds. Then, use an optical cleaning solution and white tissue paper to remove any remaining debris. Apply the solution to the tissue and then apply the tissue paper to the lens. Low pressure strokes should go from the center of the corrector to the outer portion. Do NOT rub in circles!

You can use a commercially made lens cleaner or mix your own. A good cleaning solution is isopropyl alcohol mixed with distilled water. The solution should be 60% isopropyl alcohol and 40% distilled water. Or, liquid dish soap diluted with water (a couple of drops per one quart of water) can be used.

Occasionally, you may experience dew build-up on the corrector plate of your telescope during an observing session. If you want to continue observing, the dew must be removed, either with a hair dryer (on low setting) or by pointing the telescope at the ground until the dew has evaporated.

If moisture condenses on the inside of the corrector, remove the accessories from the rear cell of the telescope. Place the telescope in a dust-free environment and point it down. This will remove the moisture from the telescope tube.

To minimize the need to clean your telescope, replace all lens covers once you have finished using it. Since the rear cell is NOT sealed, the cover should be placed over the opening when not in use. This will prevent contaminants from entering the optical tube.

Internal adjustments and cleaning should be done only by the Celestron repair department. If your telescope is in need of internal cleaning, please call the factory for a return authorization number and price quote.

Collimation

The optical performance of your telescope is directly related to its collimation, that is the alignment of its optical system. Your

telescope was collimated at the factory after it was completely assembled. However, if the telescope is dropped or jarred severely during transport, it may have to be collimated. The only optical element that may need to be adjusted, or is possible, is the tilt of the secondary mirror.

To check the collimation of your telescope you will need a light source. A bright star near the zenith is ideal since there is a minimal amount of atmospheric distortion. Make sure that tracking is on so that you won’t have to manually track the star. Or, if you do not want to power up your telescope, you can use Polaris. Its position relative to the celestial pole means that it moves very little thus eliminating the need to manually track it.

Before you begin the collimation process, be sure that your telescope is in thermal equilibrium with the surroundings. Allow 45 minutes for the telescope to reach equilibrium if you move it between large temperature extremes.

The three collimation screws are located

FFiigguurree 88--11

on the front of the secondary mirror

housin

To verify collimation, view a star near the zenith. Use a medium to high power ocular — 12mm to 6mm focal length. It is important to center a star in the center of the field to judge collimation. Slowly cross in and out of focus and judge the symmetry of the star. If you see a systematic skewing of the star to one side, then re

-collimation is needed.

Figure 8-2 -- Even though the star pattern appears the same on both sides of focus, they are asymmetric. The dark obstruction is skewed off to the left side of the diffraction pattern indicating poor collimation.

To accomplish this, you need to tighten the secondary collimation screw(s) that move the star across the field toward the direction of the skewed light. These screws are located in the secondary mirror holder (see figure 8-1). Make only small 1/6 to 1/8 adjustments to the collimation screws and re-center the star by moving the scope before making any improvements or before making further adjustments.

To make collimation a simple procedure, follow these easy steps:

1. While looking through a medium to high power eyepiece, de-focus a bright star until a ring pattern with a dark shadow appears (see figure 8-2). Center the de-focused star and notice in which direction the central shadow is skewed.

2. Place your finger along the edge of the front cell of the telescope (be careful not to touch the corrector plate), pointing towards the collimation screws. The shadow of your finger should be visible when looking into the eyepiece. Rotate your finger around the tube edge until its shadow is seen closest to the narrowest portion of the rings (i.e. the same direction in which the central shadow is skewed).

3. Locate the collimation screw closest to where your finger is positioned. This will be the collimation screw you will need to adjust first. (If your finger is positioned exactly between two of the collimation screws, then you will need to adjust the screw opposite where your finger is located).

4. Use the hand control buttons to move the de-focused star image to the edge of the field of view, in the same direction that the central obstruction of the star image is skewed.

5. While looking through the eyepiece, use an Allen wrench to turn the collimation screw you located in step 2 and 3. Usually a tenth of a turn is enough to notice a change in collimation. If the star image moves out of the field of view in

the direction that the central shadow is skewed, than you are turning the collimation screw the wrong way. Turn the screw in the opposite direction, so that the star image is moving towards the center of the field of view.

6. If while turning you notice that the screws get very loose, then simply tighten the other two screws by the same amount. Conversely, if the collimation screw gets too tight, then loosen the other two screws by the same amount.

7. Once the star image is in the center of the field of view, check to see if the rings are concentric. If the central obstruction is still skewed in the same direction, then continue

Figure 8-3

A collimated telescope

should appear

symmetrical with the

central obstruction

centered in the star's

diffraction pattern.

Perfect collimation will yield a star image very symmetrical just inside and outside of focus. In addition, perfect collimation delivers the optimal optical performance specifications that your telescope is built to achieve.

turning the screw(s) in the same direction. If you find that the ring pattern

a different direction, than simply repeat steps 2 through 6 as described

direction.

If seeing (i.e., air steadiness) is turbulent, collimation is difficult to judge. Wait until a better night if it is turbulent or aim to a steadier part of the sky. A steadier part of the sky is judged by steady versus twinkling stars.

is skewed in

above for the new

You will find that additional accessories enhance your viewing pleasure and expand the usefulness of your telescope. For ease of reference, all the accessories are listed in alphabetical order.

Adapter AC (#18773)

Auxiliary Port Accessory (#93965) – This accessory plugs into the auxiliary port of the telescopes control panel to

provide additional ports for accessories like the CN-16 GPS as well as a PC programming port.

Barlow Lens - A Barlow lens is a negative lens that increases the focal length of a telescope. Used with any eyepiece, it doubles the magnification of that eyepiece. Celestron offers two Barlow lens in the 1-1/4" size. The 2x Ultima Barlow (#93506) is a compact triplet design that is fully multicoated for maximum light transmission and parfocal when used with the Ultima eyepieces. The OMNI Barlow (#93326) is a compact achromatic Barlow lens that is under three inches long and weighs only 4 oz. It works very well with all Celestron eyepieces.

Erect Image Diagonal (#94112-A) - This accessory is an Amici prism arrangement that allows you to look into the telescope at a 45° angle with images that are oriented properly (upright and correct from left-to-right). It is useful for daytime, terrestrial viewing.

Eyepieces - Like telescopes, eyepieces come in a variety of designs. Each design has its own advantages and disadvantages. For the 1-1/4" barrel diameter there are four different eyepiece designs available.

- Allow DC (battery powered) telescopes to be converted for use with 120 volt AC power.

• OMNI Plössl - Plössl eyepieces have a 4-element lens designed for low-to-high power observing. The Plössls offer

razor sharp views across the entire field, even at the edges! In the 1-1/4" barrel diameter, they are available in the following focal lengths: 4mm, 6mm, 9mm, 12.5mm, 15mm, 20mm, 25mm, 32mm and 40mm.

• X-Cel - This 6 element design allows each X-Cel Eyepiece to have 20mm of eye relief, 55°

field of view and more than 25mm of lens aperture (even with the 2.3mm). In order to maintain razor sharp, color corrected images across its 55° field of view, extra-low dispersion glass is used for the most highly curved optical elements. The excellent refractive properties of these high grade optical elements, make the X-Cel line especially well suited for high magnification planetary viewing where sharp, color-free views are most appreciated. X-Cel eyepiece come in the following focal lengths: 2.3mm, 5mm, 8mm, 10mm, 12.5mm, 18mm, 21mm, 25mm.

• Ultima - Ultima is our 5-element, wide field eyepiece design. In the 1-1/4" barrel diameter,

they are available in the following focal lengths: 5mm, 7.5mm, 10mm, 12.5mm, 18mm, 30mm, 35mm, and 42mm. These eyepieces are all parfocal. The 35mm Ultima gives the widest possible field of view with a 1-1/4" diagonal.

• Axiom – As an extension of the Ultima line, a new wide angle series is offered – called the Axiom series. All units are

seven element designs and feature a 70º extra wide field of view (except the 50mm). All are fully multicoated and contain all the features of the Ultimas.

Filters Sets

are these highly useful filter combinations, but they also offer an economical way to add versatility to your filter collection.

Series 1 – #94119-10 Orange, Light Blue, ND13%T, Polarizing (#s 21, 80A, #15, Polarizing)

, Eyepiece - Celestron offers four convenient filter sets, which contain four different filters per set. Not only

Series 2 – #94119-20 Deep Yellow, Red, Light Green, ND25% T (#s 12, 25, 56, 96ND-25)

Series 3 – #94119-30 Light Red, Blue, Green, ND50% T (#s 23A, 38A, 58, 96ND-50)

Series 4 – #94119-40 Yellow, Deep Yellow, Violet, Pale Blue (#s 8, 47, 82A, ND96-13)

Flashlight, Night Vision - (#93588) - Celestron’s premium model for astronomy, using two red LED's to preserve night vision better than red filters or other devices. Brightness is adjustable. Operates on a single 9 volt battery (included).

CN16 GPS Accessory (#93963) - Plug in this 16-channel GPS module into your telescopes drive base port to link up and automatically download information from one of many global positioning satellites. Controlled with the computerized hand control, the CN-16 will greatly improve the accuracy of your star alignments.

CN16 GPS Bracket (#93964) – Support your CN-16 GPS accessory with this bracket and strap combination that securely wraps around any of the tripod legs and holds the GPS module in place .

Light Pollution Reduction (LPR) Filters - These filters are designed to enhance your views of deep sky astronomical objects when viewed from urban areas. LPR Filters selectively reduce the transmission of certain wavelengths of light, specifically those produced by artificial lights. This includes mercury and high and low pressure sodium vapor lights. In addition, they also block unwanted natural light (sky glow) caused by neutral oxygen emission in our atmosphere. Celestron offers a model for 1-1/4" eyepieces (#94126A) and a model that attaches to the rear cell ahead of the star diagonal and visual

back (#94127A).

Micro Guide Eyepiece (#94171) - This multipurpose 12.5mm illuminated reticle can be used for guiding deep-sky astrophotos, measuring position angles, angular separations, and more. The laser etched reticle provides razor sharp lines and the variable brightness illuminator is completely cordless. The micro guide eyepiece produces 163 power with the C8-S and 188 power with the C9.25-S.

Moon Filter (

the brightness of the moon and improving contrast, so greater detail can be observed on the lunar surface. The clear aperture is 21mm and the transmission is about 18%.

#94119-A) - Celestron’s Moon Filter is an economical eyepiece filter for reducing

Motor Drive, Single Axis (#93518) — This motor drive is a single axis (R.A.), DC motor drive. It is powered by four D-

cell batteries (not included). 2x and 4x sidereal speeds are available through the included hand controller. For noncomputerized Advanced Series Mounts.

Motor Drive, Dual Axis (#93523) - This dual axis motor drive, with drive corrector capabilities, are designed for Celestron's Advanced CG-5 mounts. They precisely control the telescope's tracking speed during long, timed exposures of celestial objects, producing the best possible image sharpness. Four speeds are available—1x (sidereal), 2x for guiding, 4x, and 8x for centering. These precision, state-of-the-art DC motor drives operate from 4 D-cell batteries (not included). The hand controller module is very compact and fits easily in the palm of your hand. Motors for both axes are included, along with brackets, clutches and hardware. For non-computerized Advanced Series Mounts.

Polarizing Filter Set (#93608) - The polarizing filter set limits the transmission of light to a specific plane, thus increasing contrast between various objects. This is used primarily for terrestrial, lunar and planetary observing.

Polar Axis Finderscope (#94220) – This useful accessory speeds accurate polar alignment by providing a means of visually aligning your German equatorial mount with Polaris and true north. As a result, you can spend more time observing and less time setting up. The finderscope has an easy to use cross hair reticle.

PowerTank (#18774)

two 12v output cigarette outlets, built-in red flash light , Halogen emergency spotlight. Switchable 110v/220v AC adapter and cigarette lighter adapter included.

– 12v 7Amp hour rechargeable power supply. Comes with

Radial Guider (#94176) - The Celestron Radial Guider® is specifically designed for use in prime focus, deep sky astrophotography and takes the place of the T-Adapter. This device allows you to photograph and guide simultaneously through the optical tube assembly of your telescope. This type of guiding produces the best results since what you see through the guiding eyepiece is exactly reproduced on the processed film. The Radial Guider is a “T”-shaped assembly that attaches to the rear cell of the telescope. As light from the telescope enters the guider, most passes straight through to the camera. A small portion, however, is diverted by a prism at an adjustable angle up to the guiding eyepiece. This guider has two features not found on other off-axis guiders; first, the prism and eyepiece housing rotate independently of the camera orientation making the acquisition of a guide star quite easy. Second, the prism angle is tunable allowing you to look at guide stars on-axis. This accessory works especially well with the Reducer/Corrector.

Reducer/Corrector (#94175) - This lens reduces the focal length of the telescope by

1280mm f/6.3 instrument

aberrations to produce crisp images all the way across the field when used visually. When used photographically, there is some vignetting that produces a 26mm circular image on the processed film. It also increases the field of view significantly and is ideal for widefield, deep-space viewing. It is also perfect for beginning prime focus, long-exposure astro photography when used with the radial guider. It makes guiding easier and exposures much shorter.

. In addition, this unique lens also corrects inherent

37%, making your C8-S a

RS-232 Cable (#93920) – Allows your Advanced Series telescope to be controlled using

a laptop computer or PC. Once connected, the telescope can be controlled using popular astronomy software programs.

Sky Maps (#93722) - Celestron Sky Maps are the ideal teaching guide for learning the night sky. You wouldn’t set off on a road trip without a road map, and you don’t need to try to navigate the night sky without a map either. Even if you already know your way around the major constellations, these maps can help you locate all kinds of fascinating objects.

Skylight Filter (#93621) -

rear cell of your telescope. All other accessories, both visual and photographic (with the exception of Barlow lenses), thread onto the skylight filter. The light loss caused by this filter is minimal.

The Skylight Filter is used on the Celestron telescope as a dust seal. The filter threads onto the

Solar Filter - The Baader AstroSolar® filter is a safe and durable filter that covers the front opening of the telescope. View sunspots and other solar features using this double-sided metal coated filter for uniform density and good color balance across the entire field. The Sun offers constant changes and will keep your observing interesting and fun. Celestron offers filters for the C5-S (#94139) and

C8-S (#94162).

T-Adapter (#93633-A) - T-Adapter (with additional T-Ring) allows you to attach your SLR camera to the rear cell of your Celestron telescope. This turns your telescope into a short exposure lunar and filtered solar photography

T-Ring - The T-Ring couples your 35mm SLR camera body to the T-Adapter, radial guider, or tele-extender. This accessory is mandatory if you want to do photography through the telescope. Each camera make (i.e., Minolta, Nikon, Pentax, etc.) has its own unique mount and therefore, its own T-Ring. Celestron

Tele-Extender, Deluxe (#93643) - The tele-extender is a hollow tube that allows you to attach a camera to the telescope when the eyepiece is installed. This accessory is used for eyepiece projection photography which allows you to capture very high power views of the Sun, Moon, and planets on film. The tele-extender fits over the eyepiece onto the visual back. This tele-extender works with eyepieces that have large housings, like the Celestron Ultima series.

A full description of all Celestron accessories can be found in the Celestron Accessory Catalog (#93685)

high power telephoto lens perfect for terrestrial photography and

has 8 different models for 35mm cameras.

Appendix A – Technical Specifications

Advanced Series 11071/11072 11025/11026 11045/11046

C5-S C8-S C9.25-S

Specifications:

Optical Design Focal Length Finderscope Mount Eyepiece Star Diagonal Accessory tray Tripod

Technical Specs

Highest Useful Magnication Lowest Useful Magnification Limiting Stellar Magnitude Resolution: Rayleigh Dawes Limit Photographic Resolution Light Gathering Power Field of View: standard eyepiece Linear FOV (@1000 yds) Optical Coatings - Standard Secondary Mirror Obstruction by Area by Diameter Optical tube length Telescope Weight

127mm(5") Schmidt-Cassegrain 203mm (8") Schmidt-Cassegrain 235mm (9.25") Schmidt-Cassegrain

1250mm F/10 2032mm F/10 2350mm F/10

6x30 6x30 6x30

CG-5 Equatorial CG-5 Equatorial CG-5 Equatorial

25mm Plossl (50x) 25mm Plossl (81x) 25mm Plossl (94x)

1.25" 1.25" 1.25" Yes Yes Yes

2" Stainless Steel 2" Stainless Steel 2" Stainless Steel

300x 480x 555x

18x 29x 34x

13 14 14.4

1.1arc seconds .68 arc seconds .59 arc seconds

.91 arc seconds .57 arc seconds .49 arc seconds

200 line/mm 200 line/mm 200 line/mm

329x unaided eye 843x unaided eye 1127x unaided eye

1º .64º .55º

52.5 ft. 33.6 ft. 29 ft.

Starbright Coating Starbright Coating Starbright Coating

1.75" 2.7" 3.35"

12% 11% 13% 35% 34% 36%

14 inches 17 inches 22 inches

48 lbs 54.5 lbs 73 lbs

Advanced GT

Additional Specifications

Hand Control Motor: Type Max Slew Speed Software Precision Hand Control Ports Motor Ports Tracking Rates Tracking Modes Alignment Procedures

Database Complete Revised NGC Catalog Complete Messier Catalog Complete IC Catalog Complete Caldwell Abell Galaxies Solar System objects Famous Asterisms Selected CCD Imaging Objects Selected SAO Stars Total Object Database

Double line, 16 character Liquid Crystal Display; 19 fiber optic backlit LED buttons DC Servo motors with encoders, both axes 3º/second 24bit, 0.08 arcsec calculation RS-232 communication port on hand control Aux Port, Autoguide Ports Sidereal, Solar and Lunar EQ North & EQ South AutoAlign, 3-Star Alignment, Quick Align, Last Align 40,000+ objects, 400 user defined programmable objects.

Enhanced information on over 200 objects 7,840 110 5,386 109 2,712 9 20 25 29,500 45,492

Appendix B - Glossary of Terms

A-

Absolute magnitude The apparent magnitude that a star would have if it were observed from a standard distance of 10

parsecs, or 32.6 light-years. would just be visible on Earth on a clear moonless night away from surface light.

Airy disk The apparent size of a star's disk produced even by a perfect optical system. Since the star can never

be focused perfectly, 84 per cent of the light will concentrate into a single disk, and 16 per cent into a system of surrounding rings.

Alt-Azimuth Mounting A telescope mounting using two independent rotation axis allowing movement of the instrument in

Altitude and Azimuth.

Altitude In astronomy, the altitude of a celestial object is its Angular Distance above or below the celestial

horizon.

Aperture the diameter of a telescope's primary lens or mirror; the larger the aperture, the greater the

telescope's light-gathering power.

Apparent Magnitude A measure of the relative brightness of a star or other celestial object as perceived by an observer on

Earth.

Arcminute A unit of angular size equal to 1/60 of a degree. Arcsecond A unit of angular size equal to 1/3,600 of a degree (or 1/60 of an arcminute). Asterism Asteroid A small, rocky body that orbits a star. Astrology

Astronomical unit (AU)

Aurora

Azimuth The angular distance of an object eastwards along the horizon, measured from due north, between

B Binary Stars

A small

unofficial grouping of stars in the night sky.

The pseudoscientific belief that the positions of stars and planets exert an influence on human

affairs; astrology has nothing in common with astronomy The distance between the Earth and the Sun. It is equal to 149,597,900 km., usually rounded off to 150,000,000 km.

The emission of light when charged particles from the solar wind slams into and excites atoms and

es in a planet's upper atmosphere.

molecul

the astronomical meridian (the vertical line passing through the center of the sky and the north and south points on the horizon) and the vertical line containing the celestial body whose position is to be measured. .

Binary

(Double) stars are pairs of stars that, because of their mutual gravitational attraction, orbit

around a common Center

is called a multiple system. It is believed that approximately 50 percent of all stars belong to binary or multiple systems. Systems with individual components that can be seen separately by are called visual binaries or visual multiples. The nearest "star" to our solar system, Alpha Centauri, is actually our nearest example of a multiple star system, it consists of three stars to our Sun and one dim, small, red star orbiting around one another.

C Celestial Equator The projection of the Earth's equator on to the celestial sphere. It divides the sky into two equal

hemispheres.

Celestial pole Celestial Sphere An imaginary sphere surrounding the Earth, concentric with the Earth's center. Collimation D -

Declination

E Ecliptic The projection of the Earth's orbit on to the celestial sphere. It may also be defined as "the apparent

Equatorial mount A telescope mounting in which the instrument is set upon an axis which is parallel to the axis of the

(DEC)

The imaginary projection of Earth's rotational axis north or south pole onto the celestial sphere.

The act of putting a telescope's optics into perfect alignment.

The angular distance of a celestial body north or south of the celestial equator. It may be said to correspond to latitude on the surface of the Earth.

yearly path of the Sun against the stars".

Earth; the angle of the axis must be equal to the observer's latitude.

F -

Focal length The distance between a lens (or mirror) and the point at which the image of an object at infinity is

brought to focus. The focal length divided by the aperture of the mirror or lens is termed the focal ratio.

The absolute magnitude of the Sun is 4.8. at a distance of 10 parsecs, it

of Mass. If a group of three or more stars revolve around one another, it

a telescope

, two very similar

J Jovian Planets

K Kuiper Belt A region beyond the orbit of Neptune extending to about 1000 AU which is a source of many short

L -

Light-Year

M Magnitude Magnitude is a measure of the brightness of a celestial body. The brightest stars are assigned

Meridian A reference line in the sky that starts at the North celestial pole and ends at the South celestial pole

Messier A French astronomer in the late 1700’s who was primarily looking for comets. Comets are hazy

N Nebula Interstellar cloud of gas and dust. Also refers to any celestial object that has a cloudy appearance. North Celestial Pole The point in the Northern hemisphere around which all the stars appear to rotate. This is caused by

Nova Although Latin for "new" it denotes a star that suddenly becomes explosively bright at the end of its

O Open Cluster One of the groupings of stars that are concentrated along the plane of the Milky Way. Most have an

P Parallax Parallax is the difference in the apparent position of an object against a background when viewed by

Parfocal Refers to a group of eyepieces that all require the same distance from the focal plane of the

Parsec The distance at which a star would show parallax of one second of arc. It is equal to 3.26 light-years,

Point Source An object which cannot be resolved into an image because it to too far away or too small is

R Reflector A telescope in which the light is collected by means of a mirror. Resolution The minimum detectable angle an optical system can detect. Because of diffraction, there is a limit

Right Ascension: (RA)

S Schmidt Telescope Rated the most important advance in optics in 200 years, the Schmidt telescope combines the best

Sidereal Rate This is the angular speed at which the Earth is rotating. Telescope tracking motors drive the

(LY)

Any of the four gas giant planets that are at a greater distance form the sun than the planets.

period comets.

A light-year is the distance light traverses in a vacuum in one year at the speed of 299,792 km/ sec. With 31,557,600 seconds in a year, the light-year equals a distance of 9.46 X 1 trillion km (5.87 X 1 trillion mi).

magnitude 1 and those increasingly fainter from 2 down to magnitude 5. The faintest star that can be seen without a telescope is about magnitude 6. Each magnitude step corresponds to a ratio of 2.5 in

rightness. Thus a star of magnitude 1 is 2.5 times brighter than a star of magnitude 2, and 100 times brighter than a magnitude 5 star. The brightest star, Sirius, has an apparent magnitude of -1.6, the full moon is -12.7, and the Sun's brightness, expressed on a magnitude scale, is -26.78. The zero point of the apparent magnitude scale is arbitrary.

and passes through the zenith. If you are facing South, the meridian starts from your Southern horizon and passes directly overhead to the North celestial pole.

diffuse objects and so Messier cataloged objects that were not comets to help his search. This catalog became the Messier Catalog, M1 through M110.

the fact that the Earth is rotating on an axis that passes through the North and South celestial poles. The star Polaris lies less than a degree from this point and is therefore refer

life cycle.

asymmetrical appearance and are loosely assembled. They contain from a dozen to many hundred

stars.

an observer from two different locations. These positions and the actual position of the object form a triangle from which the apex angle (the parallax) and the distance of the object can be determined if the length of the baseline between the observing positions is known and the angular direction of the object from each position at the ends of the baseline has been measured. The traditional method in astronomy of determining the distance to a celestial object is to measure its parallax.

telescope to be in focus. This means when you focus one parfocal eyepiece all the other parfocal eyepieces, in a particular line of eyepieces, will be in focus.

206,265 astronomical units, or 30,8000,000,000,000 km. (Apart from the Sun, no star lies within one parsec of us.)

considered a point source. A planet is far away but it can be resolved as a disk. Most stars cannot be resolved as disks, they are too far away.

to the minimum angle, resolution. The larger the aperture, the better the resolution.

red to as the "Pole Star".

terrestrial

The angular distance of a celestial object measured in hours, minutes, and seconds along the

Celestial Equator eastward from the Vernal Equinox.

features of the refractor and reflector for photographic purposes. It was invented in 1930 by Bernhard Voldemar Schmidt (1879-1935).

telescope at this rate. The rate is 15 arc seconds per second or 15 degrees per hour.

T Terminator U Universe The totality of astronomical things, events, relations and energies capable of being described

V Variable Star A star whose brightness varies over time due to either inherent properties of the star or something

W Waning Moon The period of the moon's cycle between full and new, when its illuminated portion is decreasing.

Waxing Moon The period of the moon's cycle between new and full, when its illuminated portion is increasing. Z -

Zenith The point on the Celestial Sphere directly above the observer.

Zodiac

The

boundary line between the light and dark portion of the moon or a planet.

objectively.

eclipsing or obscuring the brightness of the star.

The zodiac is the portion of the Celestial Sphere that lies within 8 deg Ecliptic. The apparent paths of the Sun, the Moon, and the planets, with the exception of some portions of the path of Pluto, lie within this band. Twelve divisions, or signs, each 30 deg width, comprise the zodiac. These signs coincided with the zodiacal constellations about 2,000 years ago. Because of the Precession of the Earth's axis, the Vernal Equinox has moved westward by about 30 deg constellations.

rees since that time; the signs have moved with it and thus no longer coincide with the

rees on either side of the

rees in

AAPPPPEENNDDIIXX CC LLOONNGGIITTUUDDEESS AANNDD LLAATTIITTUUDDEES

ALABAMA

Anniston 85 51 33 34.8 Auburn 85 26.4 32 40.2 Birmingham 86 45 33 34.2 Centreville 87 15 32 54 Dothan 85 27 31 19.2 Fort Rucker 85 43.2 31 16.8 Gadsden 86 5.4 33 58.2 Huntsville 86 46.2 34 39 Maxwell AFB 86 22.2 32 22.8 Mobile 88 15 30 40.8 Mobile Aeros 88 4.2 30 37.8 Montgomery 86 2.4 32 18 Muscle Shoal 87 37.2 34 45 Selma 86 59.4 32 20.4 Troy 86 1.2 31 52.2 Tuscaloosa 87 37.2 33 13.8

ALASKA

Anchorage 149 51 61 13.2 Barrow 156 46.8 71 18 Fairbanks 147 52.2 64 49.2 Haines Hrbor 135 25.8 59 13.8 Homer 151 3 59 37.8 Juneau 134 34.8 58 22.2 Ketchikan 131 4.2 55 21 Kodiak 152 3 57 45 Nome 165 25.8 64 30 Sitka 135 21 57 4.2 Sitkinak 154 1.2 56 52.8 Skagway 135 31.8 59 45 Valdez 146 21 61 7.8

ARIZON A

Davis-M AFB 110 52.8 32 10.2 Deer Valley 112 4.8 33 40.8 Douglas 109 3.6 31 27 Falcon Fld 111 43.8 33 28.2 Flagstaff 111 40.2 35 7.8 Fort Huachuc 110 21 31 36 Gila Bend 113 10.2 33 33 Goodyear 112 22.8 33 25.2 GrandCanyon 112 9 35 57 Kingman 113 57 35 16.2 Luke 112 22.8 33 31.8 Page 111 27 36 55.8 Payson 111 19.8 34 13.8 Phoenix 112 1.2 33 25.8 Prescott 112 25.8 34 39 Safford Awrs 109 40.8 32 49.2 Scottsdale 111 55.2 33 37.2 Show Low 110 0 34 16.2 Tucson 110 55.8 32 7.2 Williams AFB 111 40.2 33 18 Winslow 110 43.8 35 1.2 Yuma 115 0 33 6 Yuma Mcas 114 37.2 32 39 Yuma Prv Gd 114 2.4 32 51

ARKANS AS

Blytheville 89 57 35 58.2 Camden 92 2.4 33 31.2 El Dorado 92 4.8 33 13.2 Fayetteville 94 10.2 36 0 Ft Smith 94 22.2 35 19.8 Harrison 93 9 36 16.2 Hot Springs 93 0.6 34 28.8 Jonesboro 90 39 35 49.8 Little Rock 92 22.8 35 13.2 Pine Bluff 91 55.8 34 10.2 Springdale 94 7.8 36 10.8 Texarkana 94 0 33 27 Walnut Ridge 90 55.8 36 7.8

CALIFORNIA

Alameda 122 19.2 37 46.8 Alturas 120 31.8 41 28.8 Arcata 124 0.6 40 58.8 Bakersfield 119 3 35 25.8 Beale AFB 121 27 39 7.8 Beaumont 116 57 33 55.8 Bicycle Lk 116 37.2 35 16.8 Big Bear 116 40.8 34 16.2 Bishop 118 3.6 37 36 Blue Canyon 120 4.2 39 16.8

LONGITUDE LATITUDE

degrees min degrees min

Blythe 114 43.2 33 37.2 Burbank 118 22.2 34 12 Campo 116 28.2 32 37.2 Carlsbad 117 16.8 33 7.8 Castle AFB 120 34.2 37 22.8 Chico 121 51 39 46.8 China Lake 117 40.8 35 40.8 Chino 117 37.8 33 58.2 Concord 122 3 37 58.8 Crescent Cty 124 13.8 41 46.8 Daggett 116 46.8 34 52.2 Edwards AFB 117 52.8 34 54 El Centro 115 40.8 32 49.2 El Monte 118 1.8 34 4.8 El Toro 117 43.8 33 40.2 Eureka 124 16.8 41 19.8 Fort Hunter 121 19.2 36 0 Fort Ord 121 46.2 36 40.8 Fresno 119 43.2 36 46.2 Fullerton 117 58.2 33 52.2 George AFB 117 22.8 34 34.8 Hawthorne 118 19.8 33 55.2 Hayward 122 7.2 37 39 Imperial 115 34.2 32 49.8 Imperial Bch 117 7.2 32 34.2 La Verne 117 46.8 34 6 Lake Tahoe 120 0 38 54 Lancaster 118 13.2 34 43.8 Livermore 121 49.2 37 42 Long Beach 118 9 33 49.2 Los Alamitos 118 3 33 46.8 Los Angeles 118 2.4 33 55.8 Mammoth 118 55.2 37 37.8 March AFB 117 16.2 33 52.8 Marysville 121 34.2 39 6 Mather AFB 121 1.8 38 34.2 Mcclellan 121 2.4 38 40.2 Merced 120 31.2 37 16.8 Miramar NAS 117 9 32 52.2 Modesto 120 57 37 37.8 Moffet 122 3 37 25.2 Mojave 118 9 35 3 Montague 122 31.8 41 43.8 Monterey 121 51 36 34.8 Mount Shasta 122 19.2 41 19.2 Mount Wilson 118 4.2 34 13.8 Napa 122 16.8 38 13.2 Needles 114 37.2 34 46.2 North Is 117 1.2 32 42 Norton AFB 117 13.8 34 6 Oakland 122 13.2 37 43.8 Ontario Intl 117 37.2 34 3 Oxnard 119 1.2 34 12 Palm Springs 116 3 33 49.8 Palmdale 118 7.8 35 3 Palo Alto 122 7.2 37 28.2 Paso Robles 120 37.8 35 40.2 Pillaro Pt 122 49.8 37 49.8 Point Mugu 119 7.2 34 7.2 Pt Arena 124 13.2 39 34.8 Pt Arguello 121 7.2 34 57 Pt Piedras 121 16.8 35 40.2 Red Bluff 122 15 40 9 Redding 122 1.8 40 30 Riverside 117 27 33 57 Sacramento 121 3 38 31.2 Salinas 121 3.6 36 40.2 San Carlos 122 15 37 31.2 San Clemente San Diego 117 7.8 32 49.2 San Francisco San Jose 121 55.2 37 22.2 San Luis Obi 120 39 35 13.8 San Mateo 117 34.8 33 22.8 San Miguel 120 2.4 34 1.8 Sandburg 118 43.8 34 45 Santa Ana 117 52.8 33 40.2 Santa Barb 119 49.8 34 25.8 Santa Maria 120 27 34 54 Santa Monica 118 27 34 1.2 Santa Rosa 122 49.2 38 31.2

LONGITUDE LATITUDE

degrees min degrees min

117 37.2 33 25.2

122 22.8 37 37.2

Shelter Cove 124 4.2 40 1.8 Siskiyou 122 28.2 41 46.8 Stockton 121 15 37 54 Superior Val 117 0.6 35 19.8 Susanville 120 57 40 37.8 Thermal 116 10.2 33 37.8 Torrance 118 19.8 33 48 Travis AFB 121 55.8 38 16.2 Tahoe 120 7.8 39 19.2 Tustin Mcas 117 49.8 33 42 Ukiah 123 1.2 39 7.8 Van Nuys 118 28.8 34 13.2 Vandenberg 120 57 35 12 Visalia 119 2.4 36 19.2

COLORADO

Air Force A 105 21 39 31.2 Akron 103 13.2 40 10.2 Alamosa 105 52.2 37 27 Aspen 106 52.2 39 13.2 Brmfield/Jef 105 7.2 39 54 Buckley 104 45 39 43.2 Colo Sprgs 104 43.2 38 49.2 Cortez 108 37.8 37 18 Craig-Moffat 107 31.8 40 30 Denver 104 52.2 39 45 Durango 107 45 37 9 Eagle 106 55.2 39 39 Englewood 104 49.8 39 34.2 Fort Carson 104 46.2 38 40.8 Fraser 105 3 39 34.2 Ft Col/Lovel 105 1.2 40 27 Ft Collins 105 4.8 40 34.8 Grand Jct 108 31.8 39 7.2 Greeley-Wld 104 37.8 40 25.8 Gunnison 106 55.8 38 33 La Junta 103 31.2 38 3 Lamar 102 3.6 38 7.2 Leadville 106 1.8 39 15 Limon 103 4.2 39 10.8 Montrose 107 52.8 38 30 Pueblo 104 31.2 38 16.8 Rifle 107 4.8 39 31.8 Salida 106 3 38 31.8 Trinidad 104 19.8 37 15 Winter Park 105 52.2 40 0

CONNECTICUT

Bridgeport 73 7.8 41 10.2 Danbury 73 28.8 41 22.2 Groton 72 3 41 19.8 Hartford 72 39 41 43.8 New Haven 72 40.2 41 13.2 New London 72 4.8 41 18 Windsor Loc 72 40.8 41 55.8

DELAWARE

Dover 75 28.2 39 7.8 Wilmington 75 3.6 39 40.2

D.C. WASH

Washington 77 27.6 38 57

FLORIDA

Apalachicola 85 1.8 29 43.8 Astor NAS 81 34.2 29 7.2 Avon Park G 81 33 28 4.8 Cape Canaveral Cecil 81 52.8 30 13.2 Crestview 86 31.2 30 46.8 Cross City 83 0.6 29 37.2 Daytona Bch 81 3 29 10.8 Duke Fld 86 31.2 30 39 Eglin AFB 86 31.8 30 28.8 Egmont Key 82 46.2 27 36 Fort Myers 81 52.2 26 34.8 Ft Lauderdale 80 9 26 4.2 Ft Myers 81 52.2 26 39 Gainesville 82 16.2 29 40.8 Homestead 80 22.8 25 28.8 Hurlburt Fld 86 40.8 30 25.8 Jacksonville 81 40.8 30 13.8 Key West 81 45 24 33 Lakeland 81 57 28 1.8 Macdill AFB 82 31.2 27 51 Marianna 85 10.8 30 50.4 Mayport NAS 81 25.2 30 24

LONGITUDE LATITUDE

degrees min degrees min

80 33 28 28.2

LONGITUDE LATITUDE

degrees min degrees min

Melbourne 80 37.8 28 6 Miami 80 16.8 25 49.2 Naples 81 4.8 26 7.8 Nasa Shuttle 80 40.8 28 37.2 Orlando 81 19.2 28 25.8 Panama City 85 40.8 30 12 Patrick AFB 80 3.6 28 13.8 Pensacola 87 19.2 30 21 Ruskin 82 3.6 27 58.2 Saint Peters 82 40.8 27 55.2 Sanford 81 15 28 46.8 Sarasota 82 33 27 24 Tallahassee 84 22.2 30 22.8 Tampa Intl 82 31.8 27 58.2 Titusville 80 4.8 28 31.2 Tyndall AFB 85 34.8 30 4.2 Vero Beach 80 25.2 27 39 West Palm Beach Whiting Fld 87 1.2 30 43.2

GEORGIA

Albany 84 10.8 31 31.8 Alma 82 31.2 31 31.8 Athens 83 19.2 33 57 Atlanta 84 25.2 33 39 Augusta/Bush 81 58.2 33 22.2 Brunswick 81 22.8 31 9 Columbus 84 55.8 32 31.2 Dobbins AFB 84 31.2 33 55.2 Fort Benning 85 0 32 19.8 Ft Stewart 81 34.2 31 52.8 Hunter Aaf 81 9 32 1.2 La Grange 85 4.2 33 0.6 Macon/Lewis 83 39 32 42 Moody AFB 83 1.2 30 58.2 Robins AFB 83 3.6 32 37.8 Rome/Russell 85 10.2 34 21 Valdosta 83 16.8 30 46.8 Waycross 82 2.4 31 15

HAWAII

Barbers Pt 158 7.2 21 31.8 Barking San 160 1.8 22 3 Fr Frigate 166 28.2 24 27 Hilo 155 4.2 19 43.2 Honolulu Int 157 55.8 21 21 Kahului Maui 156 25.8 20 54 Kaneohe Mca 158 16.8 21 45 Kilauea Pt 159 40.2 22 22.8 Lanai-Lanai 156 57 20 48 Lihue-Kauai 159 21 21 58.8 Maui 156 49.8 20 58.2 Molokai 157 0.6 21 9 Upolo Pt Ln 156 28.2 20 25.2 WaimeaKoha

IDAHO

Boise 116 13.2 43 34.2 Burley 113 46.2 42 31.8 Challis 114 13.2 44 31.2 Coeur d'Alene Elk City 115 25.8 45 49.2 Gooding 115 10.2 43 0 Grangeville 116 7.8 45 55.2 Idaho Falls 112 4.2 43 31.2 Lewiston 117 1.2 46 22.8 Malad City 112 19.2 42 10.2 Malta 113 22.2 42 18 Mccall 116 0.6 44 52.8 Mullan 115 4.8 47 28.2 Pocatello 112 3.6 42 55.2 Salmon 113 5.4 45 10.8 Soda Springs 111 34.8 42 39 Sun Valley 114 1.8 43 30 Twin Falls 114 28.8 42 28.8

ILLINOIS

Alton 90 3 38 52.8 Aurora 88 19.2 41 46.2 Bistate Park 90 9 38 34.2 Bloomington 88 55.8 40 28.8 Bradford 89 3.6 41 9.6 Cairo 89 13.2 37 4.2 Carbondale 89 15 37 46.8 Centralia 89 5.4 38 30.6 Champaign 88 16.8 40 1.8 Chicago 87 39 41 54 Danville 87 3.6 40 12 DeKalb 88 43.2 41 55.8 Decatur 88 52.2 39 49.8 Du Page 88 15 41 55.2 Galesburg 90 25.8 40 55.8

80 7.2 26 40.8

156 7.2 20 0

116 49.2 47 46.2

Glenview NAS Kankakee 87 51 41 4.2 Macomb 90 39.6 40 31.2 Marion 89 0 37 45 Marseilles 88 40.8 41 22.2 Mattoon 88 16.8 39 28.8 Moline/Quad 90 31.2 41 27 Mount Vernon Peoria 89 40.8 40 40.2 Quincy 91 1.2 39 55.8 Rockford 89 0.6 42 12 Salem 88 57.6 38 37.8 Scott AFB 89 51 38 33 Springfield 89 40.2 39 51 Sterling 89 40.2 41 44.4 Taylorville 89 19.8 39 31.8 Vandalia 89 10.2 38 59.4

INDIAN A

Bakalar 86 3 39 22.8 Bloomington 86 37.2 39 7.8 Elkhart 86 0 41 43.2 Evansville 87 31.8 38 3 Fort Wayne 85 1.2 41 0 Gary 87 25.2 41 37.2 Grissom AFB 86 9 40 39 Indianapolis 86 16.2 39 43.8 Muncie 85 22.8 40 13.8 South Bend 86 19.2 41 42 Terre Haute 87 1.8 39 27 W Lafayette 86 55.8 40 25.2

IOWA

Burlington 91 7.2 40 46.8 Cedar Rapids 91 4.2 41 52.8 Des Moines 93 39 41 31.8 Dubuque 90 4.2 42 24 Estherville 94 45 43 24 Fort Dodge 94 10.8 42 33 Lamoni 93 55.8 40 37.2 Mason City 93 19.8 43 9 Ottumwa 92 27 41 6 Sioux City 96 22.8 42 24 Spencer 95 9 43 10.2 Waterloo Mun 92 2.4 42 33

KANSAS

Chanute 95 28.8 37 40.2 Col. J Jabar 97 13.2 37 45 Concordia 97 39 39 33 Dodge City 99 58.2 37 46.2 Elkhart 101 52.8 37 0 Emporia 96 1.2 38 19.8 Ft Leavnwrth 94 55.2 39 22.2 Ft Riley 96 46.2 39 3 Garden City 100 43.2 37 55.8 Goodland 101 4.2 39 22.2 Hays 99 16.2 38 51 Hill City 99 49.8 39 22.8 Hutchinson 97 52.2 38 4.2 Johnson Cnty 94 52.8 38 49.2 Liberal 100 58.2 37 3 Manhatten 96 40.2 39 9 Mcconnell Af 97 16.2 37 37.2 Medicine Ldg 98 34.8 37 18 Olathe 94 5.4 38 51 Russell 98 49.2 38 52.2 Salina 97 39 38 48 Topeka 95 37.2 39 4.2 Topeka/Forbe 95 40.2 38 57 Wichita 97 25.8 37 39

KENTUCKY

Bowling Gren 86 25.8 36 58.2 Ft Campbell 87 3 36 40.2 Ft Knox 85 58.2 37 54 Jackson 83 19.2 37 36 Lexington 85 0 38 3 London 84 4.2 37 4.8 Louisville 85 40.2 38 13.8 Owensboro 87 10.2 37 45 Paducah 88 46.2 37 4.2 Pikeville 82 31.2 37 28.8

LOUISIANA

Alexandria 92 1.8 31 22.8 Barksdale 93 40.2 32 30 Baton Rouge 91 9 30 31.8 Boothville 89 40.2 29 33 Cameron Heli 93 1.8 29 46.8 Claiborne R 92 57 31 13.2 England AFB 92 33 31 19.8 Eugene Is. 91 46.8 28 28.2 Fort Polk 93 1.2 31 3

LONGITUDE LATITUDE

degrees min degrees min

87 49.2 42 4.8

88 51.6 38 19.2

LONGITUDE LATITUDE

degrees min degrees min

Grand Isle 90 4.2 29 10.8 High Island 94 2.4 28 7.8 Houma 90 39 29 34.2 Intercoastal 92 7.2 29 43.8 Lafayette 92 0 30 12 Lake Charles 93 13.2 30 7.2 Lk Palourde 91 0.6 29 42 Missippi Can 89 3 28 46.8 Monroe 92 3 32 31.2 Morgan City 91 1.2 29 42 New Iberia 91 52.8 30 1.8 New Orleans 90 15 29 58.8 S Marsh Isl 91 58.8 28 18 Shreveport 93 45 32 31.2 Slidel 89 49.2 30 21

MAINE

Augusta 69 4.8 44 19.2 Bangor 68 49.2 44 48 Bar Harbor 68 22.2 44 27 Brunswick 69 55.8 43 52.8 Caribou Mun 68 1.2 46 52.2 Greenville 69 33 45 27 Houlton 67 46.8 46 7.8 Loring AFB 67 52.8 46 57 Portland 70 19.2 43 39 Presque Isle 68 3 46 40.8 Rockland 69 7.2 44 4.2 Rumford 70 52.8 44 52.8

MARYLAND

Andrews AFB 76 52.2 38 49.2 Baltimore 76 40.2 39 10.8 Fort Meade 76 46.2 39 4.8 Hagerstown 77 43.2 39 42 Ocean City 75 7.8 38 33 Patuxent 76 2.4 38 16.8 Phillips 76 10.2 39 28.2 Salisbury 75 3 38 19.8

MASSACHUSETTS

Bedford 71 16.8 42 28.2 Beverly 70 55.2 42 34.8 Boston 71 1.8 42 22.2 Cape Cod 70 3 41 46.8 Chatham 69 58.2 41 40.2 Fort Devens 71 3.6 42 34.2 Hyannis 70 16.8 41 40.2 Lawrence 71 7.2 42 43.2 Marthas Vine 70 37.2 41 24 Nantucket 70 4.2 41 15 New Bedford 70 58.2 41 40.8 Norwood 71 10.8 42 10.8 Otis ANGB 70 31.2 41 39 Pittsfield 73 10.8 42 15.6 S Weymouth 70 55.8 42 9 Westfield 72 43.2 42 10.2 Westover 72 31.8 42 12 Worcester 71 52.2 42 16.2

MICHIGAN

Alpena 83 34.2 45 4.2 Ann Arbor 83 45 42 13.2 Battle Creek 85 13.8 42 18 Benton Harbor Chippewa 84 28.2 46 15 Coopersville 85 57 43 4.2 Copper Harb 87 51 47 28.2 Detroit 83 1.2 42 25.2 Escanaba 87 4.8 45 43.8 Flint/Bishop 83 45 42 58.2 Grand Rapids 85 31.2 42 52.8 Hancock 88 3 47 10.2 Harbor Beach 82 31.8 43 49.8 Houghton Lake Iron Mtn 88 7.2 45 49.2 Ironwood 90 7.8 46 31.8 Jackson 84 28.2 42 16.2 Kalamazoo 85 33 42 13.8 Lansing 84 3.6 42 46.2 Manistee 86 15 44 16.2 Marquette 87 57 46 52.8 Menominee 87 37.8 45 7.2 Muskegon 86 15 43 10.2 Pellston 84 4.8 45 34.2 Pontiac 83 25.2 42 40.2 Saginaw 84 4.8 43 31.8 Sault Ste M 84 22.2 46 28.2 Sawyer AFB 87 2.4 46 21 Selfridge 82 49.8 42 37.2 Seul Choix 85 55.2 45 55.2 Traverse Cty 85 34.8 44 43.8

86 25.8 42 7.8

84 40.8 44 22.2

LONGITUDE LATITUDE

degrees min degrees min

Wurtsmith 83 2.4 44 27 Ypsilanti 83 31.8 42 13.8

MINNESOTA

Albert Lea 93 22.2 43 40.8 Alexandria 95 22.8 45 52.2 Bemidji Muni 94 55.8 47 30 Brainerd-Crw 94 7.8 46 24 Detroit Laks 95 52.8 46 49.2 Duluth 92 10.8 46 49.8 Ely 91 49.2 47 54 Fairmont 94 25.2 43 39 Fergus Falls 96 4.2 46 18 Grand Rapids 93 31.2 47 13.2 Hibbing 92 51 47 22.8 Intl Falls 93 22.8 48 34.2 Litchfield 94 31.2 45 7.8 Mankato 93 55.2 44 13.2 Marshall Arpt 95 49.2 44 27 Minneapolis 93 28.2 44 49.8 Park Rapids 95 4.2 46 54 Pequot Lake 94 19.2 46 36 Rochester 92 3 43 55.2 Saint Paul 93 3 44 55.8 St Cloud 94 4.2 45 33 Thief River 96 10.8 48 4.2 Tofte 90 49.8 47 34.8 Warroad 95 21 48 55.8 Worthington 95 34.8 43 39

MISSISSIPPI

Columbus AFB Golden Trian 88 34.8 33 27 Greenville 90 58.8 33 28.8 Greenwood 90 4.8 33 30 Gulfport 89 4.2 30 24 Hattiesburg 89 19.8 31 28.2 Jackson 90 4.8 32 19.2 Keesler AFB 88 55.2 30 25.2 Laurel 89 10.2 31 40.2 Mccomb 90 28.2 31 10.8 Meridian NAS 88 34.2 32 33 Meridian/Key 88 45 32 19.8 Natchez 91 15 31 37.2 Oxford 89 32.4 34 23.4 Tupelo 88 46.2 34 16.2

MISSOURI

Columbia 92 13.2 38 49.2 Cape Girardeau Ft Leonard 92 7.8 37 45 Jefferson City 92 10.2 38 36 Joplin 94 3 37 10.2 Kansas City 94 43.2 39 19.2 Kirksville 92 33 40 6 Monett 94 21 37 19.8 Muskogee 95 21.6 35 39.6 Poplar Bluff 90 28.2 36 46.2 Richards-Geb 94 33 38 51 Spickard 93 43.2 40 15 Springfield 93 22.8 37 13.8 St Joseph 95 31.8 40 16.8 St Louis 90 22.2 38 45 Vichy/Rolla 91 46.2 38 7.8 West Plains 92 25.2 37 13.2 Whiteman AFB

MONTAN A

Billings 108 31.8 45 48 Bozeman 111 9 45 46.8 Broadus 105 40.2 45 40.2 Butte 112 3 45 57 Cut Bank 112 22.2 48 36 Dillon 112 33 45 15 Drummond 113 9 46 40.2 Glasgow 106 37.2 48 13.2 Glendive 104 4.8 47 7.8 Great Falls 111 22.2 47 28.8 Harlowton 109 49.8 46 25.8 Havre 109 46.2 48 33 Helena 112 0 46 36 Jordan 106 55.8 47 19.8 Kalispell 114 16.2 48 18 Lewiston 109 27 47 3 Livingston 110 25.8 45 42 Malmstrom 111 10.8 47 30 Miles City 105 52.2 46 25.8 Missoula 114 4.8 46 55.2 Monida 112 19.2 44 34.2 Sidney 104 10.8 47 43.2 W Yellowston 111 0.6 44 39

88 27 33 39

89 34.8 37 13.8

93 33 38 43.8

NEBRASKA

Ainsworth 99 58.8 42 34.8 Alliance 102 4.8 42 3 Beatrice 96 45 40 19.2 Broken Bow 99 39 41 25.8 Burwell 99 9 41 46.8 Chadron 103 4.8 42 49.8 Columbus 97 21 41 27 Cozad 100 0 40 52.2 Falls City 95 34.8 40 4.2 Grand Island 98 19.2 40 58.2 Hastings 98 25.8 40 36 Imperial 101 23.4 40 19.8 Kearney 99 0 40 43.8 Lincoln Muni 96 45 40 51 Mccook 100 34.8 40 13.2 Mullen 101 3 42 3 Norfolk 97 25.8 41 58.8 North Omaha 96 1.2 41 22.2 North Platte 100 40.8 41 7.8 O'neill 98 40.8 42 28.2 Offutt AFB 95 55.2 41 7.2 Omaha 95 5.4 41 18 Ord/Sharp 98 57 41 37.2 Scottsbluff 103 3.6 41 52.2 Sidney Muni 102 58.8 41 6 Valentine 100 33 42 52.2

NEVADA

Austin 117 7.8 39 49.8 Battle Mtn 116 52.2 40 37.2 Caliente 114 31.2 37 37.2 Elko 115 46.8 40 49.8 Ely/Yelland 114 51 39 16.8 Eureka 115 58.2 39 30 Fallon NAS 118 4.2 39 25.2 Hawthorne 118 37.8 38 33 Ind Sprng Rn 115 34.2 36 31.8 Las Vegas 115 10.2 36 4.8 Lovelock 118 55.2 40 6 Mercury 116 1.2 36 37.2 Nellis AFB 115 1.8 36 13.8 Owyhee 116 10.2 42 34.8 Reno 119 46.8 39 30 Tonopah 117 4.8 38 4.2 Wildhorse 116 15 41 19.8 Winnemucca 117 4.8 40 54 Yucca Flat 116 4.8 37 34.8 NEW HAMPSHIRE Berlin 71 10.8 44 34.8 Concord 71 3 43 12 Jaffrey 72 0 42 48 Keene 72 16.2 42 54 Laconia 71 25.8 43 34.2 Lebanon 72 1.8 43 37.8 Manchester 71 25.8 42 55.8 Mt Washingtn 71 1.8 44 16.2 Nashua 71 31.2 42 46.8 Pease AFB 70 49.2 43 4.8 Wolfeboro 71 22.8 44 0

NEW JERSEY

Atlantic CtIy 74 34.2 39 27 Barnegat Ls 74 16.8 40 16.8 Fairfield 74 16.8 40 52.2 Lakehurst 74 21 40 1.8 Mcguire AFB 74 3.6 40 1.2 Millville 75 4.2 39 22.2 Morristown 74 25.2 40 48 Newark Intl 74 10.2 40 42 Teterboro 74 3 40 51 Trenton 74 49.2 40 16.8

NEW MEXICO

Albuquerque 106 3.6 35 3 Cannon 103 19.2 34 22.8 Carlsbad 104 16.2 32 19.8 Clayton Arpt 103 9 36 27 Corona 105 40.8 34 6 Deming 107 4.2 32 15 Farmington 108 13.8 36 45 Gallup/Clark 108 46.8 35 31.2 Grants 107 5.4 35 10.2 Hobbs 103 1.2 32 40.8 Holloman AFB Las Cruces 106 46.2 32 18 Las Vegas 105 9 35 39 Los Alamos 106 16.8 35 52.8 Moriarity 106 3 34 58.8 Northrup Str 106 2.4 32 54 Raton 104 3 36 44.4 Roswell 104 31.8 33 18

LONGITUDE LATITUDE

degrees min degrees min

106 0.6 32 51

LONGITUDE LATITUDE

degrees min degrees min

Santa Fe 106 4.8 35 37.2 Silver City 108 10.2 32 37.8 Socorro 106 5.4 34 4.2 Taos 105 34.2 36 25.2 Truth Or Con 107 16.2 33 13.8 Tucumcari 103 3.6 35 10.8 White Sands 106 2.4 32 37.8

NEW YORK

Albany 73 4.8 42 45 Ambrose 74 22.2 40 45 Binghamton 75 58.8 42 13.2 Buffalo 78 43.8 42 55.8 Dansville 78 1.2 42 58.2 Elmira 76 5.4 42 10.2 Farmingdale 73 25.8 40 43.8 Fort Drum 75 43.8 44 3 Glens Falls 73 37.2 43 21 Griffiss AFB 75 2.4 43 13.8 Islip 73 0.6 40 46.8 Ithaca 76 28.2 42 28.8 Jamestown 79 15 42 9 Massena 74 51 44 55.8 Monticello 74 4.8 41 42 New York 73 58.8 40 46.2 Newburgh 74 0.6 41 30 Niagara Fall 78 57 43 6 Ogdensburg 75 2.4 44 40.8 Oneonta 75 7.2 42 52.2 Plattsburgh 73 28.2 44 39 Rochester 77 40.2 43 7.2 Saranac Lk 74 1.2 44 22.8 Schenectady 73 55.8 42 51 Syracuse 76 7.2 43 7.2 Utica 75 22.8 43 9 Watertown 76 1.2 44 0 Westhampton 72 37.8 40 51 White Plains 73 43.2 41 4.2

NORTH CAROLINA

Asheville 82 33 35 25.8 Cape Hattera 75 33 35 16.2 Charlotte 80 55.8 35 13.2 Cherry Point 76 52.8 34 54 Dare Co Gr 76 3 36 7.8 Diamond Sho 75 3 35 15 Elizabeth 76 10.8 36 16.2 Fayetteville 78 52.8 35 0 Fort Bragg 78 55.8 35 7.8 Greensboro 79 57 36 4.8 Hickory 81 22.8 35 45 Hot Springs 82 49.2 35 54 Jacksonville 77 37.2 34 49.2 Kinston 77 37.8 35 19.2 Mackall Aaf 79 3 35 1.8 Manteo Arpt 75 40.8 35 55.2 New Bern 77 3 35 4.8 New River 77 25.8 34 42 Pope AFB 79 1.2 35 10.2 Raleigh-Durh 78 46.8 35 52.2 Rocky Mt 77 52.8 35 51 Southern Pin 79 23.4 35 14.4 Wilmington 77 55.2 34 16.2 WinstonSalem

NORTH DAKOTA

Bismarck 100 45 46 46.2 Devil's Lake 98 5.4 48 7.2 Dickenson 102 4.8 46 46.8 Fargo 96 4.8 46 54 Grand Forks 97 10.8 47 57 Jamestown 98 40.8 46 55.2 Lidgerwood 97 9 46 6 Minot 101 16.8 48 16.2 Roseglen 101 49.8 47 45 Williston 103 37.8 48 10.8

OHIO

Athens 82 13.8 39 12.6 Canton 81 25.8 40 55.2 Cincinnati 84 40.2 39 3 Cleveland 81 40.8 41 31.2 Columbus 82 52.8 40 0 Dayton 84 1.2 39 54 Findlay 83 40.2 41 1.2 Mansfield 82 31.2 40 49.2 Rickenbacker 82 55.8 39 49.2 Toledo 83 4.8 41 36 Willoughby 81 2.4 41 37.8 Youngstown 80 40.2 41 16.2 Zanesville 81 5.4 39 57

80 13.8 36 7.8

LONGITUDE LATITUDE

degrees min degrees min

OKLAHOMA

Altus AFB 99 16.2 34 40.2 Ardmore 97 1.2 34 18 Bartlesville 96 0 36 45 Clinton 99 1.2 35 21 Enid 97 4.8 36 22.8 Fort Sill 98 2.4 34 39 Gage 99 46.2 36 18 Hobart 99 3 35 0 Lawton 98 25.2 34 34.2 Mcalester 95 46.8 34 52.8 Norman 97 28.2 35 13.8 Oklahoma 97 3.6 35 24 Page 94 37.2 34 40.8 Ponca City 97 0.6 36 43.8 Stillwater 97 5.4 36 9.6 Tinker AFB 97 22.8 35 25.2 Tulsa 95 5.4 36 12 Vance AFB 97 55.2 36 19.8

OREGON

Astoria 123 52.8 46 9 Aurora 122 45 45 15 Baker 117 49.2 44 49.8 Brookings 124 28.2 42 4.8 Burns Arpt 118 57 43 36 Cape Blanco 124 57 43 22.8 Cascade 121 52.8 45 40.8 Corvallis 123 16.8 44 30 Eugene 123 13.2 44 7.2 Hillsboro 122 57 45 31.8 Klamath Fall 121 43.8 42 9 La Grande 118 0 45 16.8 Lake View 120 21 42 10.8 Meacham 118 2.4 45 30 Medford 122 52.2 42 22.2 Newport 124 3 44 37.8 North Bend 124 15 43 25.2 Ontario 117 1.2 44 1.2 Pendleton 118 51 45 40.8 Portland 122 3.6 45 36 Redmond 121 9 44 16.2 Roseburg 123 22.2 43 13.8 Salem 123 0 44 55.2 Sexton 123 22.2 42 37.2 The Dalles 121 9 45 37.2 Troutdale 122 2.4 45 33

PENNSYLVANIA

Allentown 75 25.8 40 39 Altoona 78 19.2 40 18 Beaver Falls 80 19.8 40 45 Blairsville 79 5.4 40 16.2 Bradford 78 37.8 41 48 Dubois 78 5.4 41 10.8 Erie 80 10.8 42 4.8 Franklin 79 52.2 41 22.8 Harrisburg 76 51 40 13.2 Johnstown 78 49.8 40 19.2 Lancaster 76 1.8 40 7.8 Latrobe 79 2.4 40 16.8 Middletown 76 46.2 40 12 Muir 76 34.2 40 25.8 Nth Philadel 75 1.2 40 4.8 Philadelphia 75 15 39 52.8 Philipsburg 78 7.8 41 28.2 Pittsburgh 79 55.8 40 21 Reading 75 58.2 40 22.8 Site R 77 25.8 39 43.8 State Colleg 77 49.8 40 51 Wilkes-Barre 75 43.8 41 19.8 Williamsport 76 55.2 41 15 Willow Grove 75 9 40 12

RHODE ISLAND

Block Island 71 34.8 41 10.2 Nth Kingston 71 25.2 41 36 Providence 71 25.8 41 43.8

SOUTH CAROLINA

Anderson 82 43.2 34 30 Beaufort 80 43.2 32 28.8 Charleston 80 1.8 32 54 Columbia 81 7.2 33 57 Florence 79 43.2 34 10.8 Greenville 82 21 34 51 Mcentire 80 4.8 33 55.2

Myrtle Beach 78 55.8 33 40.8 Shaw AFB 80 28.2 33 58.2 Spartanburg 81 57.6 34 55.2

SOUTH DAKOTA

Aberdeen 98 25.8 45 27 Brookings 96 4.8 44 18 Chamberlain 99 19.2 43 48 Custer 103 3.6 43 46.2 Ellsworth 103 0.6 44 9 Huron 98 13.2 44 22.8 Lemmon 102 10.2 45 55.8 Mitchell 98 1.8 43 46.2 Mobridge 100 25.8 45 31.8 Philip 101 3.6 44 3 Pierre 100 16.8 44 22.8 Rapid City 103 4.2 44 3 Redig 103 19.2 45 9.6 Sioux Falls 96 43.8 43 34.8 Watertown 97 9 44 55.2 Yankton 97 22.8 42 55.2

TENNESSEE

Bristol 82 2.4 36 28.8 Chattanooga 85 1.2 35 1.8 Clarksville 87 25.2 36 37.2 Crossville 85 4.8 35 57 Dyersburg 89 2.4 36 1.2 Jackson 88 55.2 35 36 Knoxville 83 58.8 35 49.2 Memphis Intl 90 0 35 3 Monteagle 85 30.6 35 9 Nashville 86 40.8 36 7.2 Smyrna 86 3 36 0

TEXAS

Abilene 99 40.8 32 25.2 Alice 98 1.8 27 43.8 Amarillo 101 4.2 35 13.8 Austin 97 4.2 30 18 Bergstrom Af 97 40.8 30 12 Big Sky 101 28.8 32 23.4 Big Spring 101 27 32 18 Brownsville 97 25.8 25 54 Brownwood 98 57.6 31 47.4 Carswell AFB 97 25.8 32 46.8 Chase NAS 97 40.2 28 22.2 Childress 100 16.8 34 25.8 College Stn 96 22.2 30 34.8 Corpus Chrst 97 3 27 46.2 Cotulla 99 13.2 28 27 Dalhart 102 33 36 1.2 Dallas/FW 97 1.8 32 54 Del Rio 100 55.2 29 22.2 Dyess AFB 99 51 32 25.8 El Paso 106 2.4 31 48 Ellington Af 95 10.2 29 37.2 Fort Worth 97 21 32 49.2 Ft Hood Aaf 97 43.2 31 9 Galveston 94 52.2 29 16.2 Gray AFB 97 49.8 31 4.2 Greenville 96 4.2 33 4.2 Guadalupe 104 4.8 31 49.8 Harlingen 97 40.2 26 13.8 Hondo 99 10.2 29 21 Houston 95 21 29 58.2 Junction 99 46.2 30 30 Kelly AFB 98 34.8 29 22.8 Kerrville 99 4.8 29 58.8 Killeen 97 40.8 31 4.8 Kingsville 97 49.2 27 30 Laredo Intl 99 28.2 27 31.8 Laughlin AFB 100 46.8 29 22.2 Longview 94 43.2 32 22.8 Lubbock 101 49.2 33 39 Lufkin 94 45 31 13.8 Marfa 104 1.2 30 22.2 Mcallen 98 13.8 26 10.8 Midland 102 10.8 31 57 Mineral Wlls 98 4.2 32 46.8 Palacios 96 15 28 43.2 Paris/Cox 95 27 33 37.8 Plainview 101 42.6 34 10.2 Port Arthur 94 1.2 30 34.8 Reese AFB 102 3 33 36 Rockport 97 1.8 28 4.8

LONGITUDE LATITUDE

degrees min degrees min

LONGITUDE LATITUDE

degrees min degrees min

San Angelo 100 3 31 22.2 San Antonio 98 28.2 29 31.8 Sanderson 102 25.2 30 10.2 South Brazos 95 52.2 28 1.8 Stephenville 98 10.8 32 13.2 Temple 97 25.2 31 9 Tyler/Pounds 95 2.4 32 22.2 Victoria 96 55.2 28 51 Wichita Flls 98 3 33 58.8 Wink 103 1.2 31 46.8

UTAH

Blanding 109 46.8 38 1.8 Bullfrog Mar 110 4.2 37 30 Cedar City 113 0.6 37 42 Delta 112 34.8 39 19.8 Eagle Range 113 4.2 41 3 Green River 110 9 39 0 Hanksville 110 43.2 38 22.2 Hill AFB 111 58.2 41 7.2 Logan 111 51 41 46.8 Milford 113 1.8 38 43.2 Moab 109 45 38 46.2 Ogden 112 1.2 41 10.8 Price/Carbon 110 45 39 37.2 Provo 111 43.2 40 13.2 Roosevelt 110 37.8 40 30 Saint George 113 3.6 37 4.8 Salt Lake Ct 111 58.2 40 46.8 Tooele 112 1.2 40 10.2 Vernal 109 31.2 40 27 Wendover 114 3 41 13.2

VERMONT

Burlington 73 9 44 28.2 Montpelier 72 34.2 44 12 Newport 72 19.8 45 33 Rutland 73 57 43 31.8 St Johnsbury 72 1.2 44 25.2 Wilmington 72 52.8 42 52.8

VIRGINIA

Charlottes 78 27 38 7.8 Chesapeake 76 1.2 37 30 Danville 79 19.8 36 34.2 Fort Belvoir 77 10.8 38 43.2 Fort Eustis 76 37.2 37 7.8 Hot Springs 79 49.2 37 57 Langley AFB 76 22.2 37 4.8 Lynchburg 79 1.2 37 19.8 Newport News Norfolk NAS 76 16.8 36 55.8 Norfolk Rgnl 76 1.2 36 54 Oceana NAS 76 1.8 36 49.2 Quantico Mca 77 1.8 38 30 Richmond 77 19.8 37 30 Roanoke Muni Staunton 78 51 38 16.2 Volens 78 58.8 36 57 Wallops Sta 75 28.8 37 51

WASHINGTON

Bellingham 122 31.8 48 48 Bremerton 122 46.2 47 28.8 Burlington 122 19.8 48 30 Colville 118 28.2 48 52.8 Ephrata 119 31.2 47 19.2 Everet/Paine 122 16.8 47 55.2 Fairchild 117 39 47 37.2 Fort Lewis 122 34.8 47 4.8 Hanford 119 3.6 46 34.2 Hoquiam 123 58.2 46 58.2 Mcchord AFB 122 28.8 47 9 Moses Lake 119 19.2 47 12 Oak Harbor 122 40.8 48 15 Olympia 122 5.4 46 58.2 Omak 119 31.8 48 25.2 Pasco 119 7.2 46 16.2 Port Angeles 123 3 48 7.2 Pullman 117 7.2 46 45 Quillayute 124 33 47 57 Renton 122 13.2 47 30 Seattle 122 1.8 47 27 Shelton 123 9 47 15 Spokane 117 31.8 47 37.8 Tacoma 122 34.8 47 16.2 Toledo 122 4.8 46 28.8

76 3 37 7.8

79 58.2 37 19.2

LONGITUDE LATITUDE

degrees min degrees min

Walla Walla 118 16.8 46 6 Wenatchee 120 1.2 47 24 Whidbey Is 122 39 48 21 Yakima 120 31.8 46 34.2

WEST VIRGINIA

Beckley 81 7.2 37 46.8 Bluefield 81 13.2 37 18 Charleston 81 3.6 38 22.2 Clarksburg 80 13.8 39 16.8 Elkins 79 51 38 52.8 Huntington 82 33 38 22.2 Lewisburg 80 2.4 37 52.2 Martinsburg 77 58.8 39 24 Morgantown 79 55.2 39 39 Parkersburg 81 25.8 39 21 Wheeling 80 39 40 10.8 Wh Sulphur 80 1.2 37 27.6

CCAANNAADDAA

CITY PROVINCE LONGITUDE LATITUDE CITY COUNTRY LONGITUDE LATITUDE

Calgary Alberta 114 7 51 14 Churchill Newfoundland 94 0 58 45 Coppermine Northwest Terr. 115 21 67 49 Edmonton Alberta 113 25 53 34 Frederickton New Brunswick 66 40 45 57 Ft Mcpherson Northwest Terr 134 50 67 29 Goose Bay Newfoundland 60 20 53 15 Halifax Nova Scotia 63 34 44 39 Hazelton BC 127 38 55 15 Kenora Ontario 94 29 49 47 Labrador City Labrador 66 52 52 56 Montreal Quebec 73 39 45 32 Mt. Logan Yukon 140 24 60 34 Nakina Yukon 132 48 59 12 Ottawa Ontario 75 45 45 18 Peace River Alberta 117 18 56 15 Pr. Edward Isl Nova Scotia 63 9 46 14 Quebec Quebec 71 15 46 50 Regina Saskatchewan 104 38 50 30 Saskatoon Saskatchewan 101 32 52 10 St. Johns Newfoundland 52 43 47 34 Toronto Ontario 79 23 43 39 Vancouver BC 123 7 49 16 Victoria BC 123 20 48 26 Whitehorse Yukon 135 3 60 43 Winnipeg Manitoba 97 9 49 53

IINNTTEERRNNAATTIIOONNAAL

Aberdeen Scotland 2 9 w 57 9 n

Adelaide Australia 138 36 e 34 55 s Amsterdam Holland 4 53 e 52 22 n Ankara Turkey 32 55 e 39 55 n Asunción Paraguay 57 40 w 25 15 s Athens Greece 23 43 e 37 58 n Auckland New Zealand 174 45 e 36 52 s Bangkok Thailand 100 30 e 13 45 n Barcelona Spain 2 9 e 41 23 n Belém Brazil 48 29 w 1 28 s Belfast Northern Ireland 5 56 w 54 37 n Belgrade Yugoslavia 20 32 e 44 52 n Berlin Germany 13 25 e 52 30 n Birmingham England 1 55 w 52 25 n Bombay India 72 48 e 19 0 n Bordeaux France 0 31 w 44 50 n Bremen Germany 8 49 e 53 5 n Brisbane Australia 153 8 e 27 29 s Bristol England 2 35 w 51 28 n Brussels Belgium 4 22 e 50 52 n Bucharest Romania 26 7 e 44 25 n Budapest Hungary 19 5 e 47 30 n Buenos Aires Argentina 58 22 w 34 35 s Cairo Egypt 31 21 e 30 2 n Canton China 113 15 e 23 7 n Cape Town South Africa 18 22 e 33 55 s Caracas Venezuela 67 2 w 10 28 n Chihuahua Mexico 106 5 w 28 37 n Chongqing China 106 34 e 29 46 n Copenhagen Denmark 12 34 e 55 40 n Córdoba Argentina 64 10 w 31 28 s Darwin Australia 130 51 e 12 28 s Dublin Ireland 6 15 w 53 20 n Durban South Africa 30 53 e 29 53 s Edinburgh Scotland 3 10 w 55 55 n Frankfurt Germany 8 41 e 50 7 n Georgetown Guyana 58 15 w 6 45 n

WISCONSIN

Appleton 88 31.2 44 15 Eau Claire 91 28.8 44 52.2 Green Bay 88 7.8 44 28.8 Janesville 89 1.8 42 37.2 La Crosse 91 15 43 52.2 Lone Rock 90 10.8 43 12 Madison 89 19.8 43 7.8 Manitowac 87 40.2 44 7.8 Milwaukee 87 5.4 42 57 Mosinee 89 40.2 44 46.8 Neenah 88 31.8 44 13.2 Oshkosh 88 34.2 44 0 Rhinelander 89 27 45 37.8 Rice Lake 91 43.2 45 28.8 Volk Fld 90 16.2 43 55.8 Wausau 89 37.2 44 55.2

LONGITUDE LATITUDE

degrees min degrees min

Glasgow Scotland 4 15 w 55 50 n Guatemala City Guatemala 90 31 w 14 37 n Guayaquil Ecuador 79 56 w 2 10 s Hamburg Germany 10 2 e 53 33 n Hammerfest Norway 23 38 e 70 38 n Havana Cuba 82 23 w 23 8 n Helsinki Finland 25 0 e 60 10 n Hobart Tasmania 147 19 e 42 52 s Iquique Chile 70 7 w 20 10 s Irkutsk Russia 104 20 e 52 30 n Jakarta Indonesia 106 48 e 6 16 s Johannesburg South Africa 28 4 e 26 12 s Kingston Jamaica 76 49 w 17 59 n La Paz Bolivia 68 22 w 16 27 s Leeds England 1 30 w 53 45 n Lima Peru 77 2 w 12 0 s Liverpool England 3 0 w 53 25 n London England 0 5 w 51 32 n Lyons France 4 50 e 45 45 n Madrid Spain 3 42 w 40 26 n Manchester England 2 15 w 53 30 n Manila Phillipines 120 57 e 14 35 n Marseilles France 5 20 e 43 20 n Mazatlán Mexico 106 25 w 23 12 n Mecca Saudi Arabia 39 45 e 21 29 n Melbourne Australia 144 58 e 37 47 s Mexico City Mexico 99 7 w 19 26 n Milan Italy 9 10 e 45 27 n Montevideo Uruguay 56 10 w 34 53 s Moscow Russia 37 36 e 55 45 n Munich Germany 11 35 e 48 8 n Nagasaki Japan 129 57 e 32 48 n Nagoya Japan 136 56 e 35 7 n Nairobi Kenya 36 55 e 1 25 s Nanjing China 118 53 e 32 3 n Naples Italy 14 15 e 40 50 n Newcastle England 1 37 w 54 58 n Odessa Ukraine 30 48 e 46 27 n Osaka Japan 135 30 e 34 32 n Oslo Norway 10 42 e 59 57 n Panama City Panama 79 32 w 8 58 n Paramaribo Surinam 55 15 w 5 45 n Paris France 2 20 e 48 48 n Beijing China 116 25 e 39 55 n Perth Australia 115 52 e 31 57 s Plymouth England 4 5 w 50 25 n Rio de Janeiro Brazil 43 12 w 22 57 s Rome Italy 12 27 e 41 54 n Salvador Brazil 38 27 w 12 56 s Santiago Chile 70 45 w 33 28 s St. Petersburg Russia 30 18 e 59 56 n Sao Paulo Brazil 46 31 w 23 31 s Shanghai China 121 28 e 31 10 n Sofia Bulgaria 23 20 e 42 40 n Stockholm Sweden 18 3 e 59 17 n Sydney Australia 151 0 e 34 0 s Tananarive Madagascar 47 33 e 18 50 s Teheran Iran 51 45 e 35 45 n Tokyo Japan 139 45 e 35 40 n Tripoli Libya 13 12 e 32 57 n Venice Italy 12 20 e 45 26 n Veracruz Mexico 96 10 w 19 10 n Vienna Austria 16 20 e 48 14 n Warsaw Poland 21 0 e 52 14 n Wellington New Zealand 174 47 e 41 17 s Zürich Switzerland 8 31 e 47 21 n

LONGITUDE LATITUDE

degrees min degrees min

WYOMING

Big Piney 110 0.6 42 34.2 Casper 106 28.2 42 55.2 Cheyenne 104 49.2 41 9 Cody 109 1.2 44 31.2 Douglas 105 22.8 42 45 Evanston 111 0 41 19.8 Gillette 105 31.8 44 21 Jackson 110 43.8 43 36 Lander 108 43.8 42 49.2 Laramie 105 40.8 41 19.2 Moorcroft 104 48.6 44 21 Rawlins 107 1.2 41 48 Riverton 108 27 43 3 Rock Springs 109 4.2 41 36 Sheridan 106 58.2 44 46.2 Worland 107 58.2 43 58.2 Yellowstone 110 25.2 44 33

Appendix D - RS-232 Connection

You can control your telescope with a computer via the RS-232 port on the computerized hand control and using an optional RS-232 cable (#93920). Once connected, the telescope can be controlled using popular astronomy software programs.

Communication Protocol:

The Advanced GT communicates at 9600 bits/sec, No parity and a stop bit. All angles are communicated with 16 bit angle and communicated using ASCII hexadecimal.

Description PC Command ASCII Hand Control Response

Echo Kx X# Useful to check communication Goto Azm-Alt B12AB, 4000 # 10 characters sent. B=Command,

Goto Ra-Dec R34AB, 12CE # Scope must be aligned. If

Get Azm-Alt Z 12AB, 4000# 10 characters returned,

Get RA-Dec E 34AB, 12CE# Scope must be aligned Cancel Goto M # Is Goto in Progress L 0# or 1# 0=No, 1=Yes; "0" is ASCII

Is Alignment Complete J 0# or 1# 0=No, 1=Yes

Commands below available on version 1.6 or later

HC version V Stop/Start Tracking Tx

32-bit goto RA-Dec r34AB0500,12CE0500 # 32-bit get RA-Dec e 34AB0500,12CE0500# The last two characters will always

Commands below available on version 2.2 or later

32-bit goto Azm-Alt b34AB0500,12CE0500 # 32-bit get Azm-Alt z 34AB0500,12CE0500# The last two characters will always

# Alt-Az tracking requires alignment x = 0 (Tracking off) x = 1 (Alt-Az on) x = 2 (EQ-N) x = 3 (EQ-S)

Notes

12AB=Azm, comma, 4000=Alt. If command conflicts with slew limits, there will be no action.

command conflicts with slew limits, there will be no action.

12AB=Azm, comma, 4000=Alt, #

character zero

Two bytes representing V2.2

be zero.

The cable required to interface to the telescope has an RS-232 male plug at one end and a 4-4 telephone jack at the other end. The wiring is as follows:

Additional RS232 Commands

SSeenndd AAnnyy TTrraacckk RRaattee TThhrroouugghh RRSS223322 TToo TThhee HHaanndd CCoonnttrrool

1. Multiply the desired tracking rate (arcseconds/second) by 4. Example: if the desired trackrate is 150 arcseconds/second, then TRACKRATE = 600

2. Separate TRACKRATE into two bytes, such that (TRACKRATE = TrackRateHigh*256 + rackRateLow). Example: TrackRateHigh = 2 TrackRateLow = 88

3. To send a tracking rate, send the following 8 bytes:

a. Positive Azm tracking: 80, 3, 16, 6, TrackRateHigh, TrackRateLow, 0, 0 b. Negative Azm tracking:80, 3, 16, 7, TrackRateHigh, TrackRateLow, 0, 0 c. Positive Alt tracking: 80, 3, 17, 6, TrackRateHigh, TrackRateLow, 0, 0 d. Negative Alt tracking: 80, 3, 17, 7, TrackRateHigh, TrackRateLow, 0, 0

4. The number 35 is returned from the handcontrol

Send A Slow-Goto Command Through RS232 To The Hand Control

(note: Only valid for motorcontrol version 4.1 or greater)

1. Convert the angle position to a 24bit number. Example: if the desired position is 220°, then POSITION_24BIT = (220/360)*2

2. Separate POSITION_24BIT into three bytes such that (POSITION_24BIT = PosHigh*65536 + PosMed*256 + PosLow). Exampe: PosHigh = 156, PosMed = 113, PosLow = 199

3. Send the following 8 bytes:

a. Azm Slow Goto: 80, 4, 16, 23, PosHigh, PosMed, PosLow, 0 b. Alt Slow Goto: 80, 4, 17, 23, PosHigh, PosMed, PosLow, 0

4. The number 35 is returned from the handcontrol

Reset The Position Of Azm Or Alt

1. Convert the angle position to a 24bit number, same as Slow-Goto example.

2. Send the following 8 bytes:

a. Azm Set Position: 80, 4, 16, 4, PosHigh, PosMed, PosLow, 0 b. Alt Set Position: 80, 4, 17, 4, PosHigh, PosMed, PosLow, 0

3. The number 35 is returned from the handcontrol

4. Note: If using Motorcontrol version less than 4.1, then send:

a. Azm Set Position: 80, 3, 16, 4, PosHigh, PosMed, PosLow, 0 b. Alt Set Position: 80, 3, 17, 4, PosHigh, PosMed, PosLow, 0

= 10,252,743

APPENDIX E – MAPS OF TIME ZONES

CELESTRON TWO YEAR WARRANTY

A. Celestron warrants this telescope to be free from defects in materials and workmanship for two years. Celestron will repair or

replace such product or part thereof which, upon inspection by Celestron, is found to be defective in materials or workmanship. As a condition to the obligation of Celestron to repair or replace such product, the product must be returned to Celestron together with proof-of-purchase satisfactory to Celestron.

B. The Proper Return Authorization Number must be obtained from Celestron in advance of return. Call Celestron at (310) 328-

9560 to receive the number to be displayed on the outside of your shipping container.

All returns must be accompanied by a written statement setting forth the name, address, and daytime telephone number of the owner, together with a brief description of any claimed defects. Parts or product for which replacement is made shall become the property of Celestron.

The customer shall be responsible for all costs of transportation and insurance, both to and from the factory of Celestron, and shall be required to prepay such costs.

Celestron shall use reasonable efforts to repair or replace any telescope covered by this warranty within thirty days of receipt. In the event repair or replacement shall require more than thirty days, Celestron shall notify the customer accordingly. Celestron reserves the right to replace any product which has been discontinued from its product line with a new product of comparable value and function.

This warranty shall be void and of no force of effect in the event a covered product has been modified in design or function, or subjected to abuse, misuse, mishandling or unauthorized repair. Further, product malfunction or deterioration due to normal wear is not covered by this warranty.

CELESTRON DISCLAIMS ANY WARRANTIES, EXPRESS OR IMPLIED, WHETHER OF MERCHANTABILITY OF FITNESS FOR A PARTICULAR USE, EXCEPT AS EXPRESSLY SET FORTH HEREIN.

THE SOLE OBLIGATION OF CELESTRON UNDER THIS LIMITED WARRANTY SHALL BE TO REPAIR OR REPLACE THE COVERED PRODUCT, IN ACCORDANCE WITH THE TERMS SET FORTH HEREIN. CELESTRON EXPRESSLY DISCLAIMS ANY LOST PROFITS, GENERAL, SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES WHICH MAY RESULT FROM BREACH OF ANY WARRANTY, OR ARISING OUT OF THE USE OR INABILITY TO USE ANY CELESTRON PRODUCT. ANY WARRANTIES WHICH ARE IMPLIED AND WHICH CANNOT BE DISCLAIMED SHALL BE LIMITED IN DURATION TO A TERM OF TWO YEARS FROM THE DATE OF ORIGINAL RETAIL PURCHASE.

Some states do not allow the exclusion or limitation of incidental or consequential damages or limitation on how long an implied warranty lasts, so the above limitations and exclusions may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Celestron reserves the right to modify or discontinue, without prior notice to you, any model or style telescope.

If warranty problems arise, or if you need assistance in using your telescope contact:

Celestron Customer Service Department 2835 Columbia Street Torrance, CA 90503 U.S.A. Tel. (310) 328-9560

Fax. (310) 212-5835 Monday-Friday 8AM-4PM PST

This warranty supersedes all other product warranties.

NOTE: This warranty is valid to U.S.A. and Canadian customers who have purchased this product from an Authorized Celestron Dealer in the U.S.A. or Canada. Warranty outside the U.S.A. and Canada is valid only to customers who purchased from a Celestron Distributor or Authorized Celestron Dealer in the specific country and please contact them for any warranty service.

Celestron 2835 Columbia Street Torrance, CA 90503 U.S.A. Tel. (310) 328-9560 Fax. (310) 212-5835 Web site at http//www.celestron.com

(Products or instructions may change without notice or obligation.)

Item # 11025-INST $10.00 08-03

Celestron C8-S, C9-S, C5-S User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
