3236 Scott Boulevard Santa Clara, California 95054 Phone: (408) 986-5060 Fax: (408) 986-5095

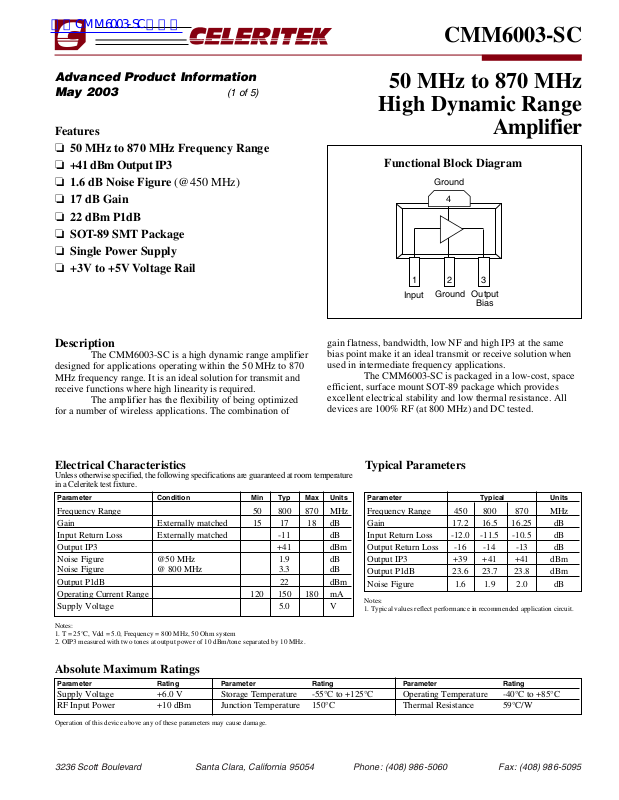

CMM6003-SC
Features
❏ 50 MHz to 870 MHz Frequency Range
❏ +41 dBm Output IP3
❏ 1.6 dB Noise Figure (@450 MHz)
❏ 17 dB Gain
❏ 22 dBm P1dB
❏ SOT-89 SMT Package
❏ Single Power Supply
❏ +3V to +5V Voltage Rail
Description
The CMM6003-SC is a high dynamic range amplifier
designed for applications operating within the 50 MHz to 870
MHz frequency range. It is an ideal solution for transmit and
receive functions where high linearity is required.
The amplifier has the flexibility of being optimized
for a number of wireless applications. The combination of
gain flatness, bandwidth, low NF and high IP3 at the same
bias point make it an ideal transmit or receive solution when
used in intermediate frequency applications.
The CMM6003-SC is packaged in a low-cost, space
efficient, surface mount SOT-89 package which provides
excellent electrical stability and low thermal resistance. All
devices are 100% RF (at 800 MHz) and DC tested.
50 MHz to 870 MHz
High Dynamic Range
Amplifier
Advanced Product Information
May 2003
(1 of 5)

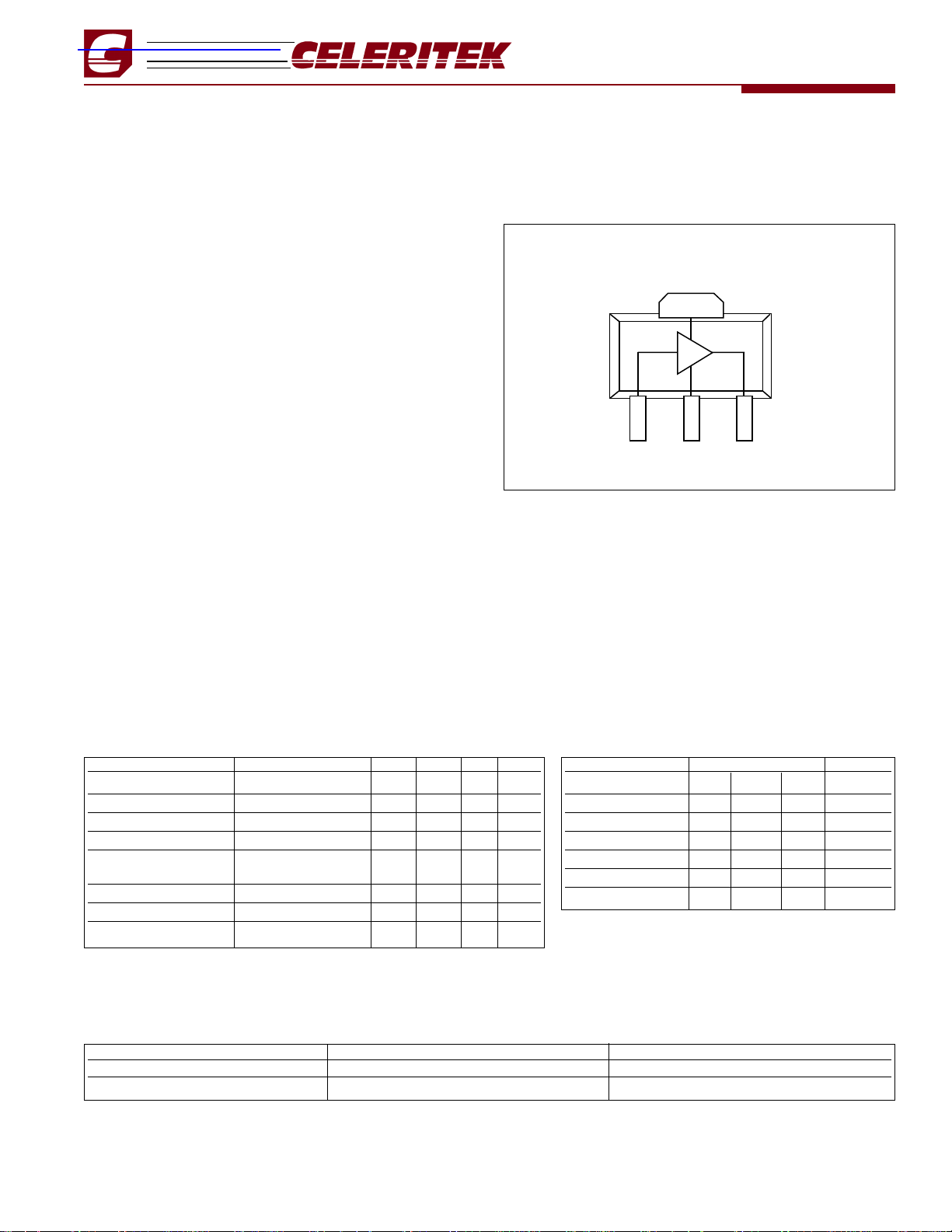

Functional Block Diagram
Absolute Maximum Ratings
Parameter Rating Parameter Rating Parameter Rating
Supply Voltage +6.0 V Storage Temperature -55°C to +125°C Operating Temperature -40°C to +85°C
RF Input Power +10 dBm Junction Temperature 150°C Thermal Resistance 59°C/W
Parameter Condition Min Typ Max Units
Frequency Range 50 800 870 MHz
Gain Externally matched 15 17 18 dB
Input Return Loss Externally matched -11 dB
Output IP3 +41 dBm
Noise Figure @50 MHz 1.9 dB
Noise Figure @ 800 MHz 3.3 dB
Output P1dB 22 dBm
Operating Current Range 120 150 180 mA
Supply Voltage 5.0 V
Electrical Characteristics
Unless otherwise specified, the following specifications are guaranteed at room temperature
in a Celeritek test fixture.
Notes:
1. T = 25°C, Vdd = 5.0, Frequency = 800 MHz, 50 Ohm system
2. OIP3 measured with two tones at output power of 10 dBm/tone separated by 10 MHz.
Operation of this device above any of these parameters may cause damage.
Parameter Typical Units
Frequency Range 450 800 870 MHz
Gain 17.2 16.5 16.25 dB
Input Return Loss -12.0 -11.5 -10.5 dB
Output Return Loss -16 -14 -13 dB
Output IP3 +39 +41 +41 dBm
Output P1dB 23.6 23.7 23.8 dBm
Noise Figure 1.6 1.9 2.0 dB
Typical Parameters
Notes:
1. Typical values reflect performance in recommended application circuit.
Input
Ground Output
Bias
Ground
1
2
3
4
查询CMM6003-SC供应商
Page 2
3236 Scott Boulevard, Santa Clara, California 95054
Phone: (408) 986-5060 Fax: (408) 986-5095
CMM6003-SC
Advanced Product Information - May 2003
(2 of 5)

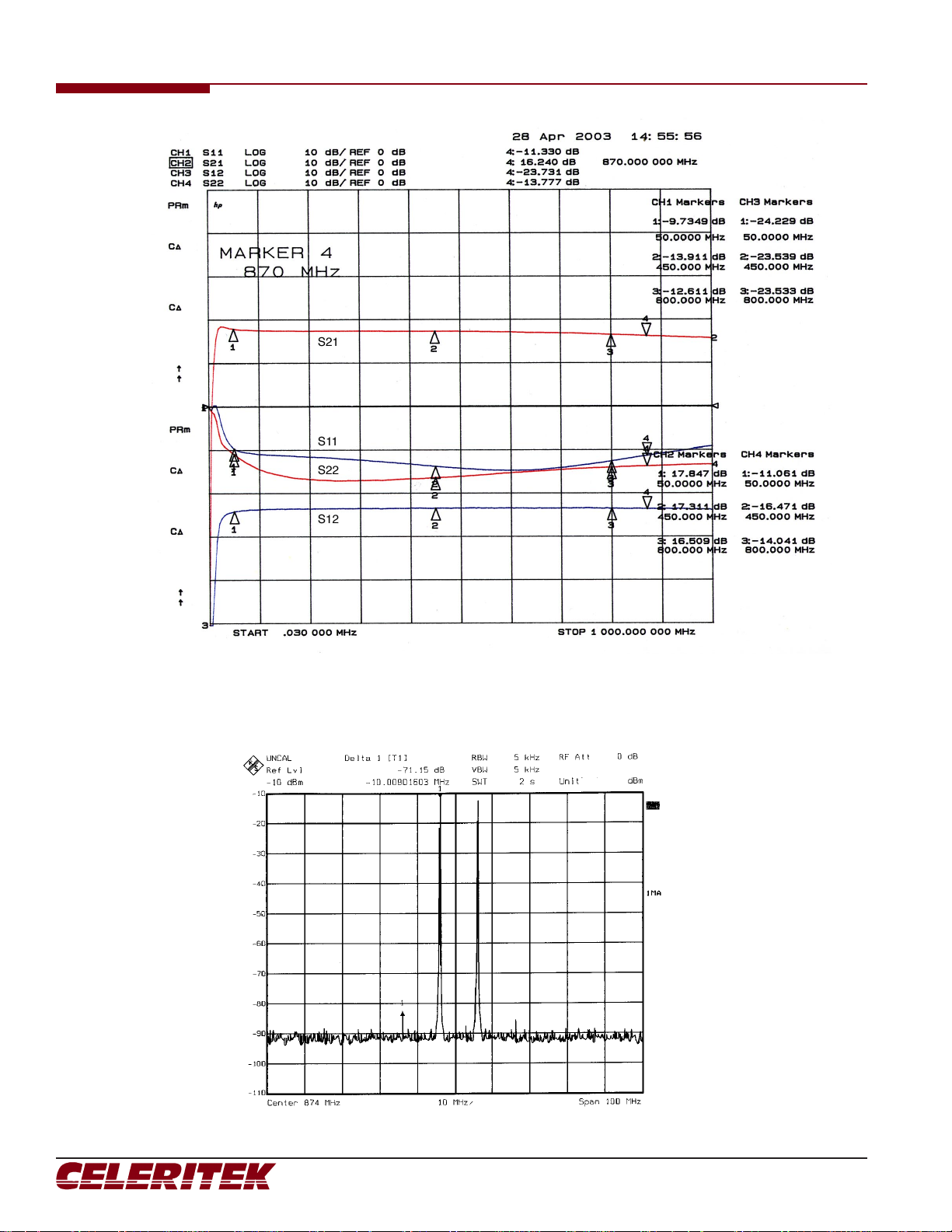

IP3 measured with 2 tones at an output power of 10 dBm/tone separated by 10 MHz
S-Parameters vs Frequency
Page 3
3236 Scott Boulevard Santa Clara, California 95054 Phone: (408) 986-5060 Fax: (408) 986-5095
CMM6003-SC
Advanced Product Information - May 2003 (3 of 5)
Typical Scattering Parameters (Vds = +5V, Ids = 150 mA, T = 22°C, unmatched device in a 50 ohm system)
Frequency S
11
S
21
S
12
S
22
(MHz) (Mag) (Ang) (Mag) (Ang) (Mag) (Ang) (Mag) (Ang)
50 0.418 -33.88 8.155 166.00 0.064 16.93 0.152 -97.060
75 0.366 -31.32 7.826 167.10 0.065 9.83 0.115 -113.000
100 0.347 -31.04 7.683 167.20 0.066 6.57 0.096 -123.500
125 0.338 -31.54 7.614 166.50 0.066 4.30 0.087 -132.000
150 0.344 -32.97 7.566 165.50 0.066 2.50 0.080 -139.400
175 0.322 -34.79 7.520 164.40 0.066 1.25 0.076 -145.400
200 0.331 -36.93 7.487 163.10 0.066 -0.01 0.074 -150.200
225 0.332 -39.38 7.462 161.80 0.066 -1.00 0.071 -154.000
250 0.334 -41.89 7.432 160.40 0.066 -1.79 0.069 -157.900
275 0.335 -44.55 7.402 159.00 0.066 -2.69 0.068 -161.400
300 0.377 -47.27 7.379 157.50 0.066 -3.40 0.067 -164.100
325 0.340 -50 7.350 156.00 0.066 -4.19 0.066 -166.200
350 0.343 -52.74 7.318 154.50 0.066 -4.66 0.065 -168.900
375 0.346 -55.52 7.294 153.00 0.066 -5.44 0.065 -171.200
400 0.349 -58.24 7.259 151.40 0.066 -6.12 0.064 -173.500
425 0.352 -60.96 7.233 149.90 0.066 -6.73 0.064 -174.900
450 0.356 -63.68 7.197 148.40 0.066 -7.42 0.062 -176.900
475 0.360 -66.33 7.160 146.90 0.066 -7.95 0.062 -178.800
500 0.363 -68.99 7.127 145.30 0.066 -8.43 0.062 179.700
525 0.368 -71.67 7.095 143.80 0.066 -8.99 0.061 178.900
550 0.371 -74.19 7.059 142.30 0.066 -9.64 0.060 177.000
575 0.375 -76.77 7.023 140.80 0.066 -10.12 0.060 175.200
600 0.379 -79.29 6.986 139.30 0.066 -10.74 0.060 173.900
625 0.384 -81.76 6.948 137.80 0.065 -11.32 0.059 173.300
650 0.388 -84.27 6.907 136.20 0.065 -11.81 0.059 171.900
675 0.392 -86.65 6.870 134.80 0.066 -12.39 0.059 170.300
700 0.396 -89.00 6.829 133.30 0.065 -12.90 0.059 169.100
725 0.400 -91.40 6.791 131.70 0.065 -13.49 0.058 168.200
750 0.405 -93.68 6.749 130.30 0.065 -13.96 0.057 167.300
775 0.409 -95.90 6.705 128.80 0.065 -14.40 0.057 165.900
800 0.413 -98.12 6.666 127.40 0.065 -14.99 0.057 165.000
825 0.417 -100.30 6.624 125.90 0.065 -15.51 0.056 164.700
850 0.422 -102.40 6.583 124.40 0.065 -15.97 0.055 163.800
875 0.426 -104.60 6.537 123.00 0.065 -16.41 0.055 162.400
900 0.430 -106.70 6.502 121.60 0.065 -16.99 0.055 161.600
925 0.434 -108.80 6.460 120.10 0.065 -17.53 0.054 161.300
950 0.438 -110.80 6.417 118.70 0.065 -17.91 0.054 160.400
975 0.433 -112.80 6.375 117.30 0.065 -18.51 0.053 159.200
1000 0.447 -114.70 6.330 115.90 0.065 -18.97 0.053 158.600
Page 4
3236 Scott Boulevard, Santa Clara, California 95054
Phone: (408) 986-5060 Fax: (408) 986-5095
CMM6003-SC
Advanced Product Information - May 2003
(4 of 5)
Ref Designator Value Description Size
C2 0.1 µF VITR 0.1µF 25V CER 0603
CAP 0603 X7R 10%
C2 100 pF 0603CG101J9B20 T/R 0603
L1 6.8 nH TOKO LL1608-F6N8J 0603
L2 390 nH Coilcraft 0805CS-391XJBC 0603

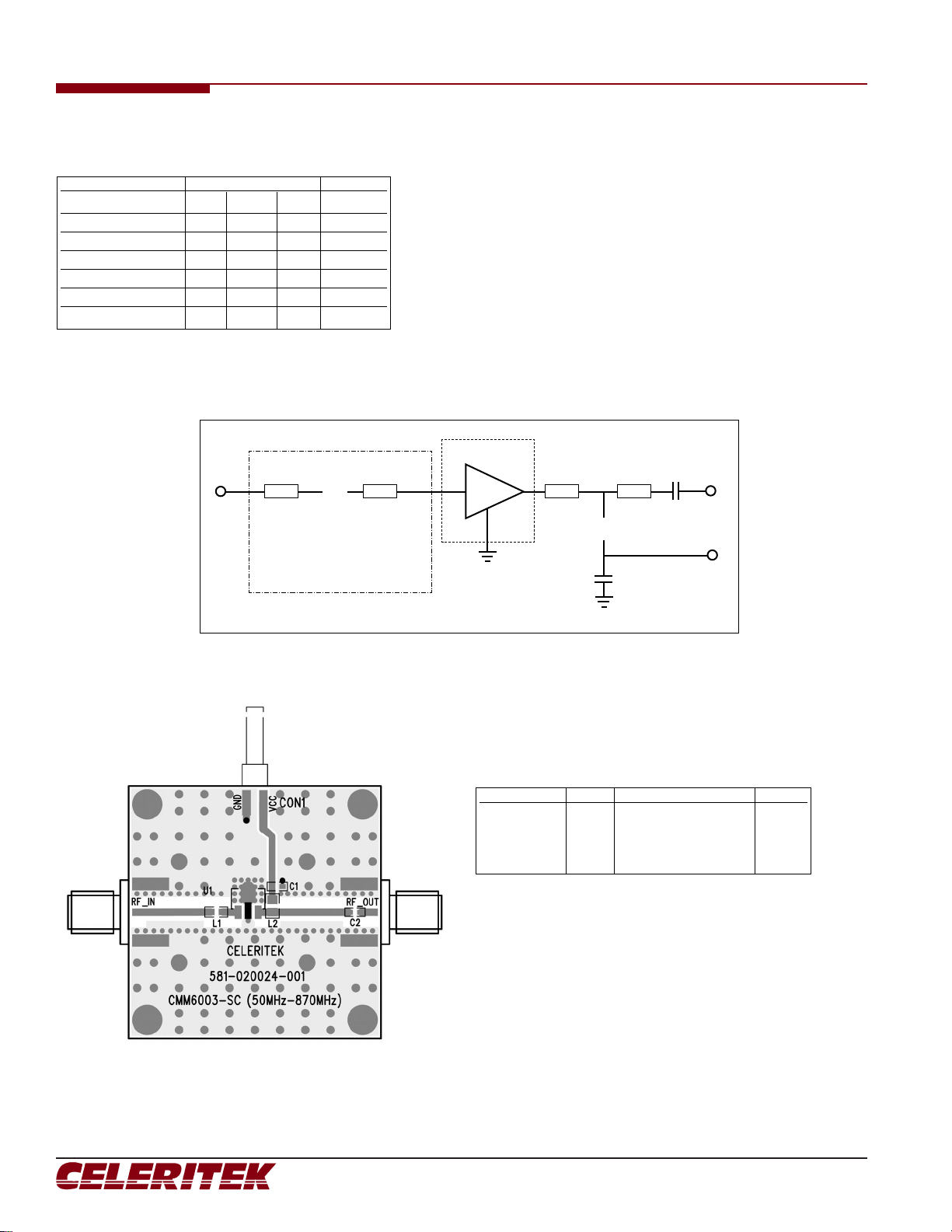

Application Circuit
Parameter Typical Units
Frequency Range 450 800 870 MHz
Gain 17.2 16.5 16.25 dB
Input Return Loss -12.0 -11.5 -10.5 dB
Output Return Loss -16 -14 -13 dB
Output IP3 +396 +41 +41 dBm
Output P1dB 23.6 23.7 23.8 dBm
Noise Figure 1.6 1.9 2.0 dB
Notes:
1. Typical values reflect performance in recommended application circuit.
RF
OUT
uuuu
uuuu
C2
100 pF
L2
390 nH
Vcc
5V
C1
0.1 µF
L1
6.8 nH
RF
IN
CMM6003-SC
SOT-89
T = 125 mil
INPUT MATCHING NETWORK
T = 70 mil
T = 500 mil
T = 500 mil
Page 5
3236 Scott Boulevard Santa Clara, California 95054 Phone: (408) 986-5060 Fax: (408) 986-5095
Celeritek reserves the right to make changes without further notice to any products herein. Celeritek makes no warranty, representation or guarantee regarding the
suitability of its products for any particular purpose, nor does Celeritek assume any liability arising out of the application or use of any product or circuit, and specifically
disclaims any and all liability, including without limitation consequential or incidental damages. “Typical” parameters can and do vary in different applications. All operating
parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. Celeritek does not convey any license under its patent
rights nor the rights of others. Celeritek products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body,
or other applications intended to support or sustain life, or for any other application in which the failure of the Celeritek product could create a situation where personal
injury or death may occur. Should Buyer purchase or use Celeritek products for any such unintended or unauthorized application, Buyer shall indemnify and hold Celeritek
and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out
of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that Celeritek was negligent
regarding the design or manufacture of the part. Celeritek is a registered trademark of Celeritek, Inc. Celeritek, Inc. is an Equal Opportunity/Affirmative Action Employer.

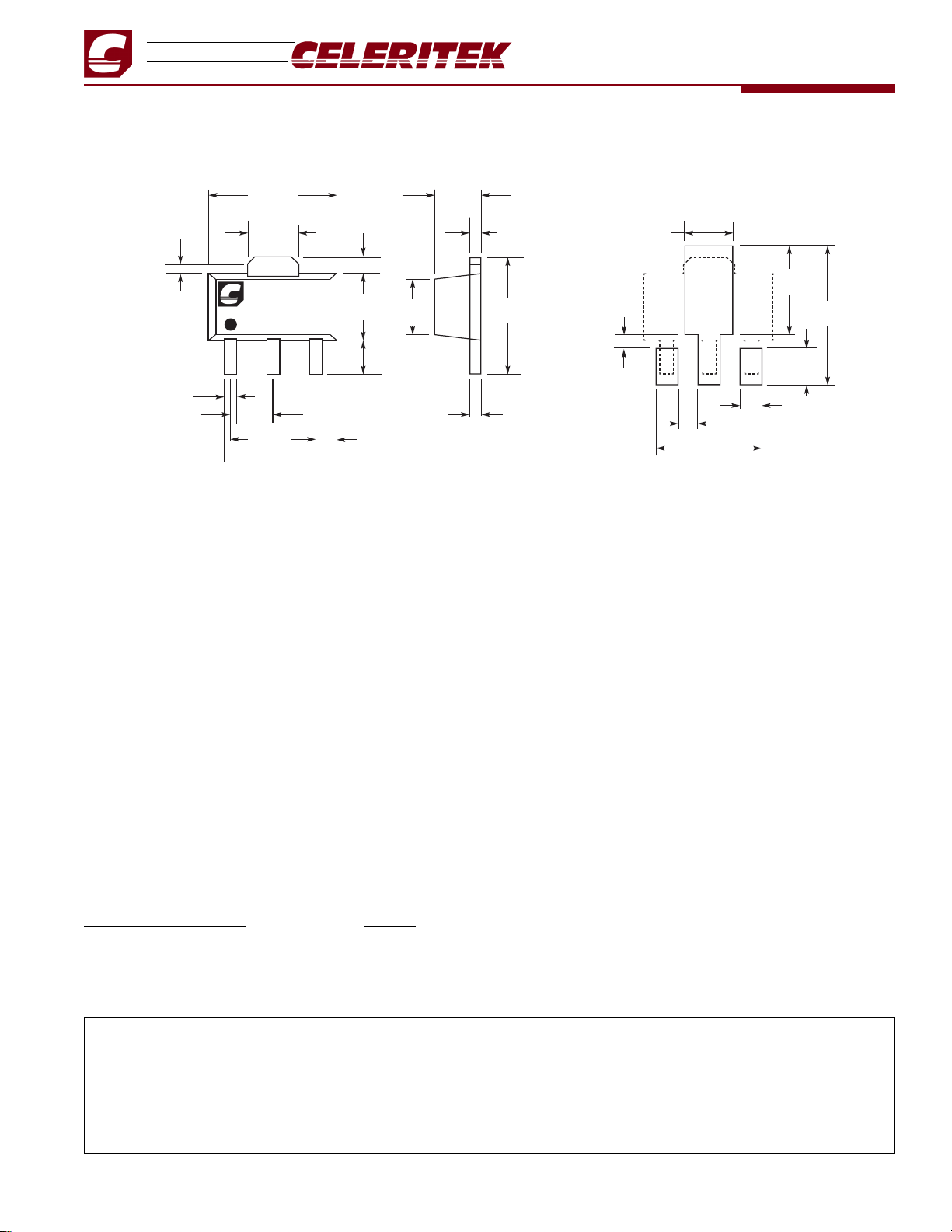

Physical Dimensions
Ordering Information
The CMM6003-SC is available in a surface-mount SOT-89 package and devices are available in tape and reel.
Part Number for Ordering Package
CMM6003-SC SOT-89 surface-mount power package in tape and reel
PB-CMM6003-SC Evaluation Board with SMA connectors for CMM6003-SC
CMM6003-SC
Advanced Product Information - May 2003 (5 of 5)
4.50
[0.177]
1.73
[0.068]
4
0.41
[0.016]
0.46
[0.18]
3X
MARKINGS:
6XXX = CELERITEK MODEL NO.
XXXXXX = WAFER LOT NO.
ZYYWW = DATE CODE (YR/WEEK)
FIRST LETTER COUNTRY OF ORIGIN IF OTHER THAT USA
6XXX
XXXXXX
ZYYWW
123
1.50
[0.059]
3.00
[0.118]
0.71
[0.028]
2.50
[0.096]
[0.030]
0.99
[0.039]
0.76
2.06
[0.081]
0.38
[0.015]
1.55
[0.061]
0.38
[0.015]
4.41
[0.163]
DIMENSIONS IN INCHES
[MILLIMETERS]
0.58
[0.023]
1.70
[0.067]
3.86
[0.152]
0.64
[0.025]
3.48
[0.137]
1.27
[0.050]
0.86
[0.034]
5.33
[0.210]
