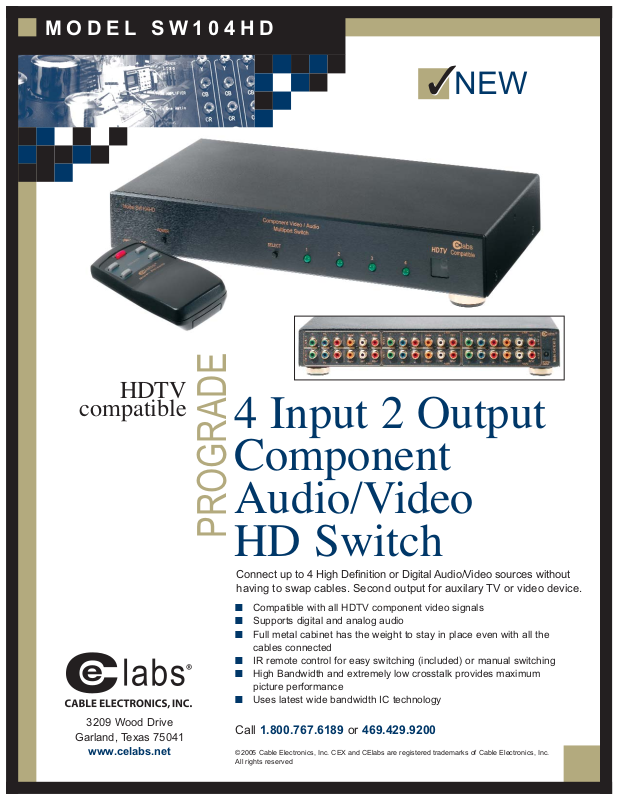

CE Labs SW-104-HD Brochure
MODEL SW104HD
Connect up to 4 High Definition or Digital Audio/Video sources without
having to swap cables. Second output for auxilary TV or video device.
Call 1.800.767.6189 or 469.429.9200
3209 Wood Drive
Garland, Texas 75041
www.celabs.net
©2005 Cable Electronics, Inc. CEX and CElabs are registered trademarks of Cable Electronics, Inc.
All rights reserved
I Compatible with all HDTV component video signals
I Supports digital and analog audio
I Full metal cabinet has the weight to stay in place even with all the
cables connected
I IR remote control for easy switching (included) or manual switching
I High Bandwidth and extremely low crosstalk provides maximum
picture performance
I Uses latest wide bandwidth IC technology
HDTV
compatible
PROGRADE
4 Input 2 Output
Component
Audio/Video
HD Switch
NEW
MODEL SW104HD
Video
Nominal Input Level: 1 Volt peak to peak
Gain: 1 Volt into 75 ohms (2 Volts Unterminated)
Input Impedance: 75 ohms
Output Impedance: 75 ohms
Isolation port to port: > 50 dB
Isolation on to off: > 60 dB
Return Loss: > 18 dB
Video Bandwidth: > 100 MHz (HDTV requires 37 MHz min.)
Audio (Analog)
Nominal Input Level: 1 Volt peak to peak
Gain: Unity (one to one)
Input Impedance: 22k ohm
Output Impedance: 1k ohm
THD: 0.05%
Frequency Response: 20 Hz to 100 KHz
Channel Separation: > 75 dB
Port to Port Isolation: > 50 dB
Out to Input Isolation: 60 dB
Signal to Noise: 100 dB @ 2 Volts (out)
Audio (Digital)
Supports standard SPDIF digital audio. Unity gain when
terminated into 75 ohms (2X gain high imp.). Greater than
50 MHz of bandwidth to ensure minimal degradation.
(If not used for digital audio, this port can be used to
switch standard video).
Power
Requirement: External 9 to 10 Volt AC @ 500 mA with a
2.1 mm coaxial connector. Power supply is included.
HDTV compatible, prograde
4 Input 2 Output Component
Audio/Video HD Switch
Connect up to 4 high definition or digital audio/video sources without having to swap cables. Full
metal cabinet has the weight to stay in place even with all the cables connected.
Call 1.800.767.6189 or 469.429.9200
3209 Wood Drive • Garland, Texas 75041
www.celabs.net
DigitalPrPbY Left Right
OUTPUT 1OUTPUT 2
DigitalPrPbY Left Right
HD PVR or Aux. TV
AUDIO
INPUT 1INPUT 2
AUDIO
TV
HD VCR PLAYER
HD SET-TOP BOX
HD DVD PLAYER
DigitalPrPbY Left Right
DigitalPrPbY Left Right
AUDIO
AUDIO
DigitalPrPbY Left Right
DigitalPrPbY Left Right
AUDIO
INPUT 4INPUT 3
9-10Vac
AUDIO
Model SW104HD
500mA
HD DIGITAL RECEIVER
