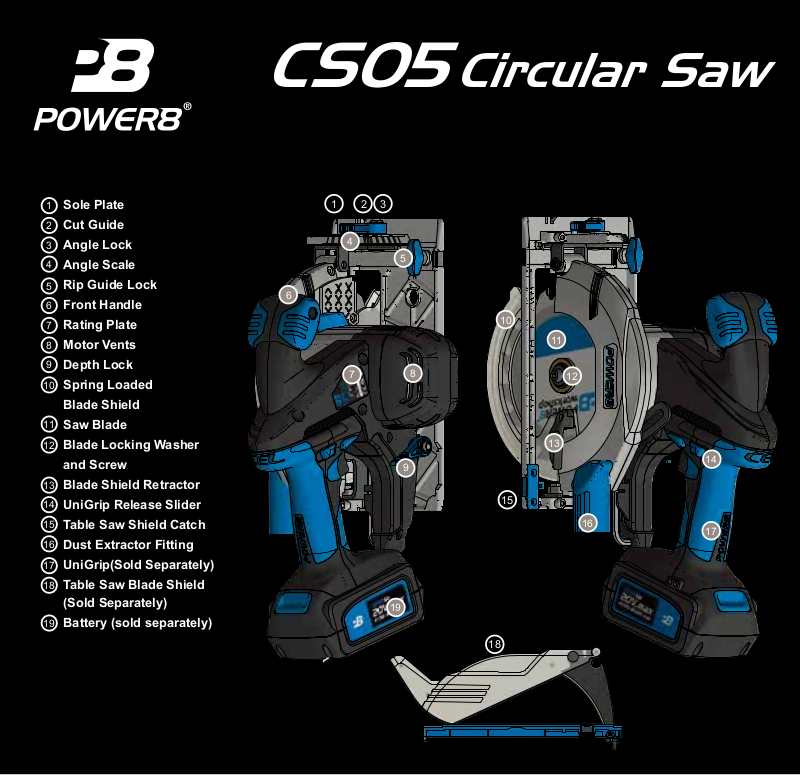

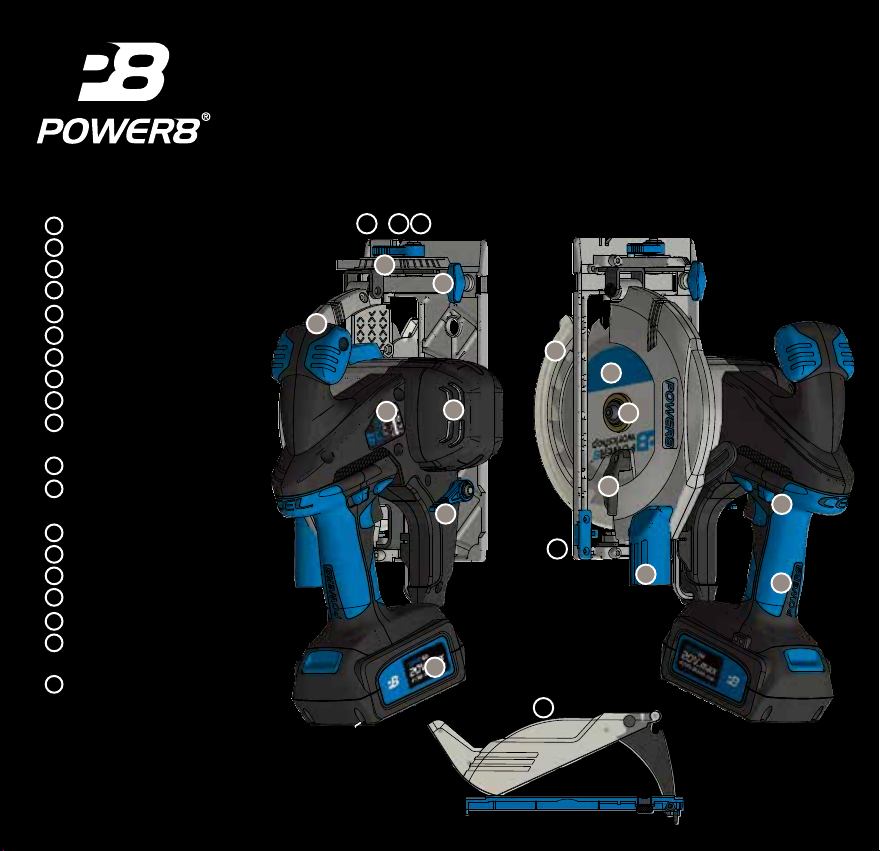

Sole Plate
1
Cut Guide
2
3
Angle Lock
4
Angle Scale
Rip Guide Lock
5
Front Handle
6
Rating Plate
7
8
Motor Vents
9
Depth Lock
10
Spring Loaded
Blade Shield
11
Saw Blade
12
Blade Locking Washer
and Screw
13
Blade Shield Retractor
14
UniGrip Release Slider
15
Table Saw Shield Catch
16
Dust Extractor Fitting
UniGrip(Sold Separately)
17
18
Table Saw Blade Shield
(Sold Separately)
Battery (sold separately)
19
CS05
3
21
4
5
6
7
8
9
19
Circular Saw
10
11
12
13
15
16
18
14
17
TECHNICAL SPECIFICATIONS
CIRCULAR SAW SAFETY WARNINGS
PRODUCT CODE CS05
BATTERY 20Volts_max LI-ion
NO LOAD SPEED 0-3800 RPM
ORBITAL MOTION 4
CUTTING CAPACITY OF WOOD PIECE:
CUTTING DEPTH MAX 2.25 in
CUTTING DEPTH MAX @45’ 1.75 in
BEVEL CUT CAPACITY 0° to 55°
BLADE DIAMETER 150mm / 5.1/2”
WEIGHT WITH UNIGRIP
(BARE TOOL WEIGHT)
No person should use these products without rst reading and
understanding all documentation and warning labels. Keep these
instructions safe and provide them to all users. For use only as outlined
in this document, any other use will be considered as misuse.
If you experience any problems with the product please contact
2.66kg
email: power8@cel-global.com
www.cel-global.com
CIRCULAR SAW SAFETY WARNINGS
Safety Warnings for Circular Saw
DANGER! Keep hands away from cutting area and the blade. Keep your
second hand on auxiliary handle, or motor housing. If both hands are
holding the saw, they cannot be cut by the blade.
Do not reach underneath the workpiece. The guard cannot protect you
from the blade below the workpiece.
Adjust the cutting depth to the thickness of the workpiece. Less than
a full tooth of the blade teeth should be visible below the workpiece. Never
hold the workpiece being cut in your hands or across your leg. Secure
the workpiece to a stable platform. It is important to support the work
properly to minimize body exposure, blade binding, or loss of control.
Hold power tool by the insulated gripping surfaces, when performing
an operation where the cutting tool may run into hidden wiring.
Contact with a “live” wire will make exposed metal parts of the tool “live”
and shock the operator.
When ripping always use a rip fence or straight edge guide. This
improves the accuracy of cut and reduces the chance of blade binding.
Always use blades which match those specied, never modify a blade
or tting.
Blades that do not match the mounting hardware of the saw may run
eccentrically, causing loss of control or other damage.
Never use damaged or incorrect blade washers or bolt. The blade
washers and bolt were specially designed for your saw, for optimum
performance and safety of operation.
Causes and operator prevention of kickback:
– Kickback is a sudden reaction to a pinched, bound or misaligned saw
blade, causing an uncontrolled saw to lift up and out of the workpiece
toward the operator.
– When the blade is pinched or bound tightly by the kerf closing down, the
blade stalls and the motor reaction drives the unit rapidly back toward the
operator.
– If the blade becomes twisted or misaligned in the cut, the teeth at the
back edge of the blade can dig into the top surface of the wood causing the
blade to climb out of the kerf and jump back toward the operator.
Kickback is the result of saw misuse and/or incorrect operating
procedures or conditions and can be avoided by taking proper
precautions as given below.
Maintain a rm grip with both hands on the saw and position your arms to
resist kickback forces. Position your body to either side of the blade, but
not in line with the blade.
Kickback could cause the saw to jump backwards, but kickback forces can
be controlled by the operator, if proper precautions are taken.
When blade is binding, or when interrupting a cut for any reason, release
the trigger and hold the saw motionless in the material until the blade
comes to a complete stop.
Never attempt to remove the saw from the work or pull the saw backward
while the blade is in motion or kickback may occur. Investigate and take
corrective actions to eliminate the cause of blade binding.
When restarting a saw in the workpiece, centre the saw blade in the kerf
and check that saw teeth are not engaged into the material. If saw blade
is binding, it may walk up or kickback from the workpiece as the saw is
restarted.
Support large panels to minimise the risk of blade pinching and kickback.
Large panels tend to sag under their own weight. Supports must be placed
under the panel on both sides, near the line of cut and near the edge of the
panel. Do not use dull or damaged blades. Unsharpened or improperly set
blades produce narrow kerf causing excessive friction, blade binding and
kickback.
Blade depth and bevel adjusting locking levers must be tight and secure
before making cut. If blade adjustment shifts while cutting, it may cause
binding and kickback.
Use extra caution when making a “plunge cut” into existing walls or other
blind areas. The protruding blade may cut objects that can cause kickback.
Check lower guard for proper closing before each use. Do not operate the
saw if lower guard does not move freely and close instantly. Never clamp
or tie the lower guard into the open position.
If saw is accidentally dropped, the lower guard may be bent. Raise the
lower guard with the retracting handle and make sure it moves freely and
does not touch the blade or any other part, in all angles and depths of cut.
- 18 -
PREPARE YOUR WORK
• Mark your cut and use the notch at the front of
the Sole Plate to guide the blade.
• Set the depth of cut so it just clears the timber.
READ ALL
INSTRUCTIONS
• Start the saw and allow it to reach full speed before starting the
cut. Maintain a steady, even pressure and speed that does not
slow the rotation speed. Ease o slightly if the blade slows but
continue the cut in one pass when possible and safe to do so to
ensure a clean cut.
• Use a guide. A rail system is best, a straight edge clamped to
the work piece is a good alternative. Fit the adjustable rip guide
onto the saw to use the edge of the work piece as a guide. For
short rips, a single clamp can be positioned on the work piece
so the edge of the sole plate runs against it -see the sole plate
measurements at the bottom of this page.
• A smoother nish can be achieved by using a blade with more
teeth. A blade with less teeth will make a faster, rougher cut that
uses less energy.
• The teeth of the blade can cause cracks and splintering as they
exit whereas the entry side will have a smoother nish. When
cutting a nishing piece -eg a worktop or skirting board. Face
the nished side downward and run the saw along the back.
Scoring timber can also help prevent splintering.
• Splintering can be reduced when cutting diagonally across grain
by cutting with, rather than against the grain.
• Slow down slightly but follow through at the end of a cut to
prevent scung the cut with the back of the blade or leaving
snags or chips. Ensure the blade has cleared the cut before
allowing the saw to leave the guide.
2-5mm is enough. This will help prevent blade
binding, help prevent splintering and improve
eciency.
25mm
CS05 SOLE PLATE - Useful size information
2mm
• When cutting thick timber or performing compound or angled
cuts it may be necessary to rotate the blade shield to prevent it
stopping the cut as it hooks on the edge of the work piece. Use
the Blade Shield Retractor to rotate the shield into the saw. As the
rear of the blade enters the work piece, release the Blade Shield
so it rests on the surface of the work and will safely cover the
blade when it exits the cut.
• When doing big jobs that require constant charging of the
batteries remember that you can swap Li-Ion batteries at any time
during a charge/ discharge cycle.
A 4.0 Battery will be charged to 80% of its full capacity in the rst
60 minutes on the fast charger, the nal 20% capacity charges at
a lower current.
• The maximum capacity of a Li-Ion battery drops faster in warm
conditions permanently reducing its working lifetime. Storing the
batteries at a stable temperature below 20°C (68°F) and above
freezing will allow them to retain a higher capacity throughout
their life, avoid keeping them in hot vehicles or storage areas.
This is dierent to other types of battery such as NiCD, NiMh and
Pb which last longest in a warmer environment 10ºC - 24ºC (50ºF
-75ºF).
• Never store a Li-Ion battery for a long period with a low charge,
maintain 40 to 80% charge in general use and storage to avoid
premature failure.
Once every 10 charge cycles it is advised to fully discharge, then
fully charge the battery, this will help maintain maximum capacity.
99mm
- 19 -
INTENDED USE FITTING UNIGRIP AND BATTERY
The machine is intended for lengthways and crossways cutting
of wood with straight cutting lines as well as mitre cuts in wood
while resting rmly on the work piece or correctly mounted in
the POWER8 WORKSHOP CASE. With suitable saw blades,
thin-walled non-ferrous metals,
eg, proles, can also be sawed.
Working ferrous metals is not permitted.
Read and understand all safety warnings and all instructions
before operating this product.
Failure to follow the warnings and instructions may result in
electric shock, re and/or serious injury.
WARNING! When changing battery, blade or whenever the
tool is not in immediate use the direction switch must be in its
central locked position to prevent accidental starting. Ensure
the tool will not be accidentally started by pressing the trigger.
NOTE! Remove any debris from the area that joins the UniGrip
and Battery to the tool. Damage to contacts or mechanical
controls could occur if debris is caught between them.

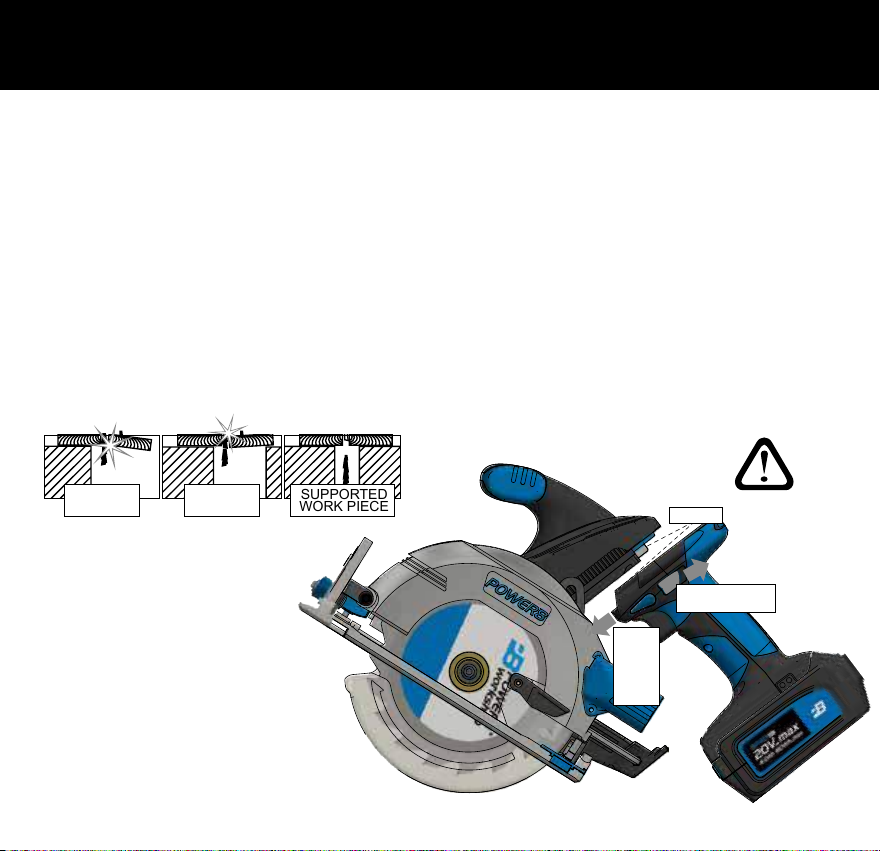

PINCHED
BLADE
PINCHED
BLADE
SUPPORTED
WORK PIECE
Prepare Your Work
By preparing your work and work area
you will be able to perform your cuts
more accurately, eciently and safely.
Supporting your work will prevent
blade pinch allowing the blade to pass
more freely through the work, this
will greatly improve battery life and
appearance of cut as well as reducing
dangerous kickback.
Inserting the UniGrip
Align the rails on the UNIGRIP Circular Saw so they will slide
smoothly into the rails on the UniGrip. Once aligned, slide the
two parts together rmly until there is a “click” as the locking
catch engages. Test the catch is secure and the electrical
contacts are engaged by selecting a direction and briey
pressing the trigger.
Removing the UniGrip.
Hold down the UniGrip. Lock Button while sliding the two
UniGrip. Release Switches to the rear of the handle and slide the
UniGrip. out of the tool from the rear.
GENERAL
HAZARD
Release Switch
(both sides) - Slide
Slide
rmly
along
rails until
locked in
place.
Align Rails
WARNING! Ensure there is nothing
under the work piece that will touch
the blade.
- 20 -

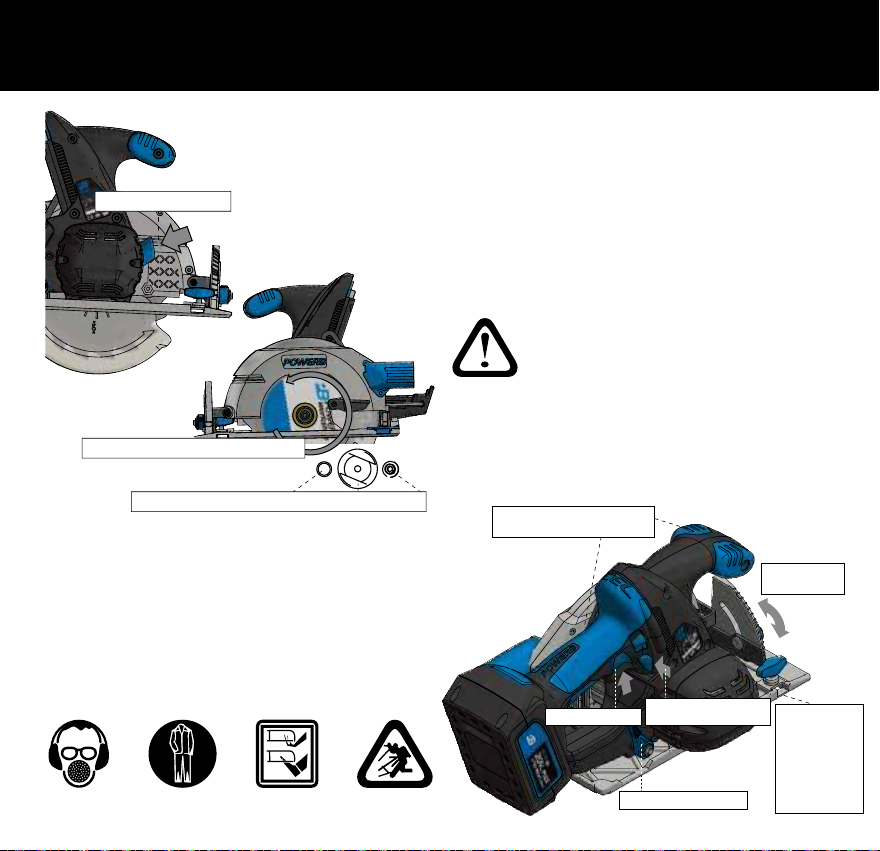

OPERATING THE TOOL
Always remove the battery before
cleaning or making adjustments to
the tool or attachments.
Spindle Lock - Press
Blade Shield Retractor - Rotate
Bore Adaptor, Locking Washer, Locking Screw
Changing the Blade
Remove battery.
Press and hold spindle Lock.
Remove Locking Screw (reverse thread) Remove washers.
Retract Blade Shield.
Fit replacement blade.
Place Locking Washer.
Lock in place with Locking Screw and tighten rmly using a 5mm
hex key, hold the Spindle Lock to prevent the blade from turning.
Change Blade Depth
Rotate the Depth Lock clockwise to unlock. Set the blade to the
required depth. Rotate the Depth Lock anti-clockwise so it rmly
locks the sole plate. Test plate is locked before cutting.
Change Blade Angle
Rotate the Angle Lock anti-clockwise to unlock.
Set the blade angle using the scale.
Rotate the Angle Lock clockwise to lock it in place. Check the angle
is correct and the plate is locked before cutting.
Always remove the battery before cleaning or making
adjustments to the tool or attachments.
Starting the tool
After tting a charged Battery and UniGrip,
Grip both handles and move the Safety
Switch from the central position to either side to allow
the trigger to be pressed.
Be prepared for sudden kickback then squeeze the
trigger to start the saw.
Always grip both handles
when using the saw
Angle Lock
- Rotate
- 21 -
Trigger - Press
Depth Lock - Rotate
Safety Swich -
Press (either side)
Insert
optional Rip
Guide here
or from
other side
– Tighten
locking screw
to secure
CARE AND ENVIRONMENT
ASSEMBLE A TABLE SAW
General inspection
Regularly check that all the xing screws are present and tight,
they may vibrate loose over time.
Keep the tool’s air vents unclogged and clean at all times.
Remove dust and dirt regularly.
Cleaning is best done with compressed air or a rag.
CAUTION, Do not use cleaning agents to clean the plastic parts of
the tool. A mild detergent on a damp cloth is recommended. Water
must never come into contact with the tool.
After each use, carefully clean the tool with a brush or rag.
Clear any debris from around the battery mount, moving parts and
clips.
Lubrication
No internal lubrication is necessary, the bearing area is sealed.
A coating of machine oil on the blade will help prevent corrosion
but must be cleaned o before cutting wood.
Storage
Store the tool, instruction manual and accessories in a secure, dry
place. In this way you will always have all the information and parts
ready to hand.
Lithium ion batteries should ideally be stored with 40 to 80%
capacity between 10ºC and 20ºC (50ºF and 68ºF). Other parts
should be stored between 10ºC and 24ºC (50ºF and 75ºF).
WARNING! Always charge Li-ion batteries before storage and at
least every 3 months to prevent permanent damage.
Environment
When the time comes to dispose of this product please consider
the environment and take it to a recognised recycling facility
instead of disposing with general household waste.
Call your local council, civic amenity site, or recycling centre for
information on the recycling and disposal of electrical products and
batteries. If you do
not have access to suitable disposal facilities in your area please
contact your place of purchase, they will advise you on the best
way to dispose of your product.
Maintenance
All electrical parts should be regularly serviced by an approved
engineer.

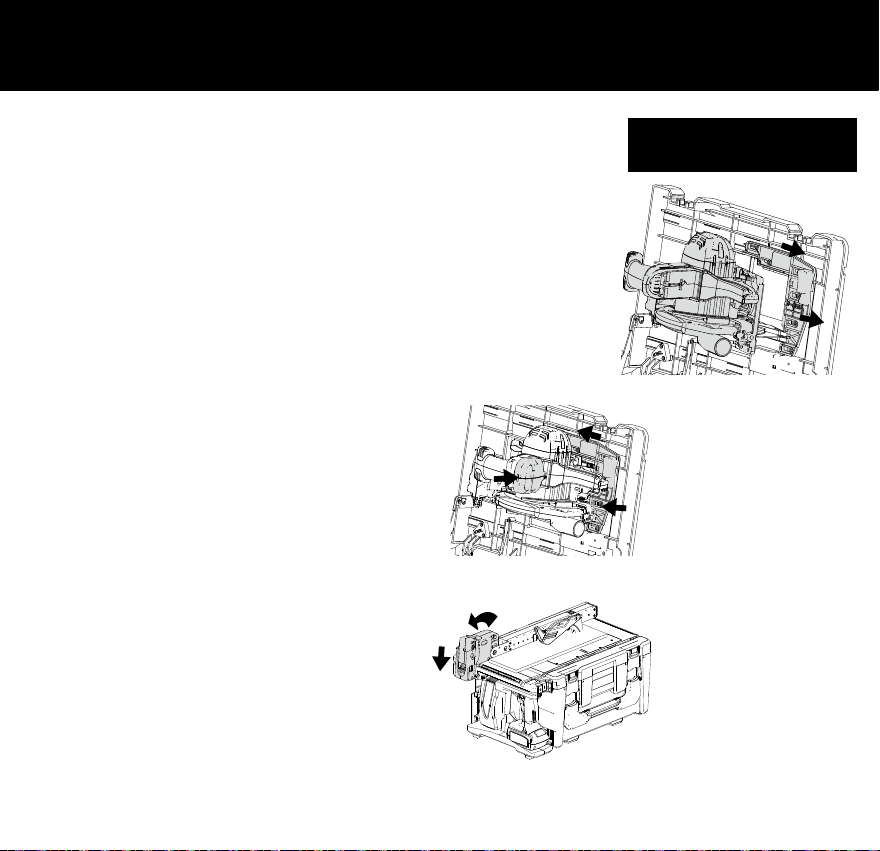

Fit the Circular Saw to the
Case Lid
Open the case lid and
remove any tted tools.
Fit the Blade Shield as
shown. Slide the Locking
Slider out of the way. Fit
the nose of the Sole Plate
into the recess on the left of
the large slot in the lid and
the blade through the slot.
Rotate the saw into place
and release the Locking
Slider, ensure it slides back
to hold the saw in place
securely.
These instructions should be read in
conjunction with those for the specic
model of tool being tted.
Fit the Internal Power Coupling
onto the Rails on the saw in
where the POWERhandle
connects for handheld use.
Set Blade Depth and Blade
Angle then close and latch the
lid.
Fit the Rip Fence by hooking
the Small Hock onto the edge of
the case then place it at on the
surface and rotate the large end
so the 2nd hock is over the edge
of the case, press the Sliding
Lock downward to lock into
place. To remove, slide this up
again and unhook the post.
The Protractor can slide in the
slots on either side of the saw.
All measurements should
be taken from the saw blade
when accuracy is vital. Provide
adequate support to the rear and
sides of the sawtable for wide or
long workpieces
- 22 -
Loading...
