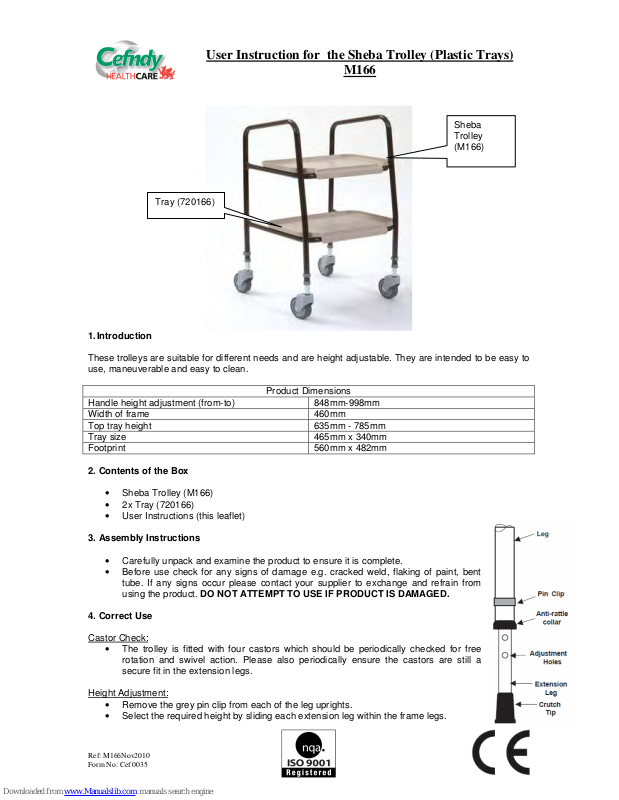

Page 1
User Instruction for the Sheba Trolley (Plastic Trays)
M166
Sheba
Trolley
(M166)
Tray (720166)
1. Introduction
These trolleys are suitable for different needs and are height adjustable. They are intended to be easy to
use, maneuverable and easy to clean.
Product Dimensions
Handle height adjustment (from-to) 848mm-998mm
Width of frame 460mm
Top tray height 635mm - 785mm
Tray size 465mm x 340mm
Footprint 560mm x 482mm
2. Contents of the Box
• Sheba Trolley (M166)
• 2x Tray (720166)
• User Instructions (this leaflet)
3. Assembly Instructions
• Carefully unpack and examine the product to ensure it is complete.
• Before use check for any signs of damage e.g. cracked weld, flaking of paint, bent
tube. If any signs occur please contact your supplier to exchange and refrain from
using the product. DO NOT ATTEMPT TO USE IF PRODUCT IS DAMAGED.
4. Correct Use
Castor Check:
• The trolley is fitted with four castors which should be periodically checked for free
rotation and swivel action. Please also periodically ensure the castors are still a
secure fit in the extension legs.
Height Adjustment:
• Remove the grey pin clip from each of the leg uprights.
• Select the required height by sliding each extension leg within the frame legs.
Ref: M166Nov2010
Form No: Cef 0035
Page 2
User Instruction for the Sheba Trolley (Plastic Trays)
M166
• For each leg, when the desired height is found align the selected hole in the extension leg with
the one in the frame and refit the pin clip ensuring it goes fully through. It is important to ensure
that each extension leg is set to the same height so that the trays remain level.
• The trolley is now ready for use.
5. Cleaning
• Use mild detergent with warm water to wipe down framework on at least a weekly basis more
frequently if required.
• Do not use an abrasive cleaner as this will damage the frame and nullify your warranty.
Use of power/jet washing & industrial washing machines:
• If either of the above is used to clean equipment care must be taken since high-pressure water
can be penetrative.
• Care should be taken that frames are not placed too close to high-pressure water jets.
• After cleaning ensure any residual water is removed from the framework as it could cause
permanent rusting of the frame (leave frames open in a warm environment for several hours to
ensure all internal moisture evaporates).
• We cannot offer advice on industrial washing machines with regards to specific machine
settings, as these will be dependant on the manufacturer’s instructions.
6. Maintenance Requirements
• The product should be checked on a regular basis for damage or wear and tear – this includes
flaking or cracking paint. Any undue signs of damage should be noted and reported to the
supplier in the first instance. Should damage be evident, then the user should refrain from using
the product until advice has been sought from the supplier.
7. Warning
• This is meant for light use only – not heavy weights.
• We recommend a full risk assessment should be carried out before use.
8. Warranty
This product carries a 12 month warranty from the date of purchase against manufacturing defects.
Misuse or damage is not covered. This warranty does not affect your statutory rights. As manufacturers
we cannot specify expected product life as this is based on the level of usage.
9. Disposal Instructions
• Appropriate hygiene standards should be applied before disposal to reduce the risk of infection.
• Materials used are essentially non hazardous and can be disposed of appropriately.
10. Contact Details
We have attempted to cover most eventualities, however if you have any specific queries, please
contact:
Cefndy Healthcare
Cefndy Road
Rhyl
Denbighshire
LL18 2HG
Tel: 0044 1745 343877 (Quality Assurance Dept)
E-mail: [email protected]
Ref: M166Nov2010
Form No: Cef 0035
