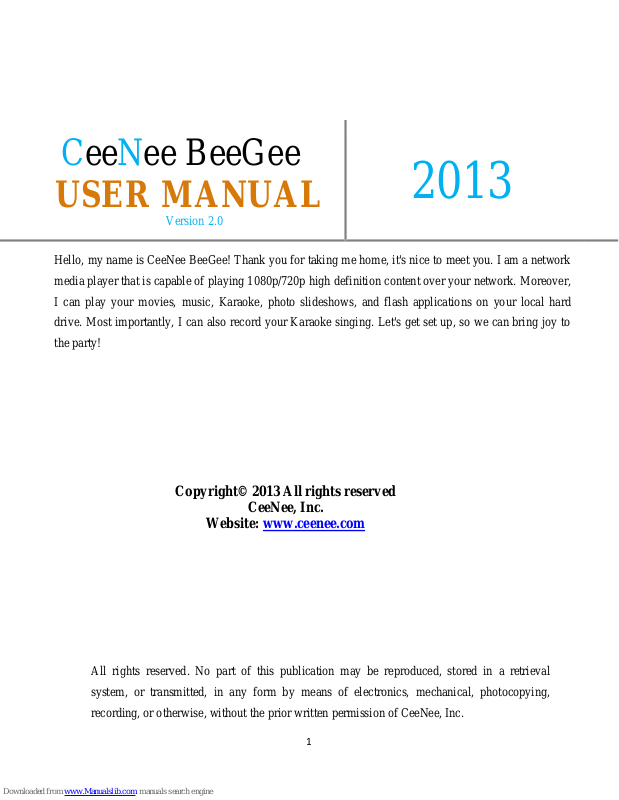

CeeNee BeeGee
USER MANUAL
Version 2.0
2013
1
Disclaimer
The information in the CeeNee product documentation and on this User Manual has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies.
CeeNee, Inc. reserves the right to make changes without further notice to any products to improve reliability, function or design. CeeNee, Inc. does not assume any liability arising out of the application or use of any product or circuit described; neither does it convey any license under its patent rights of others.
The CeeNee consumer product line is for home use only. The CeeNee general policy does not recommend the use of its consumer products in life support applications wherein a failure or malfunction of the product may directly threaten life or injury. Per the terms and conditions of sales of CeeNee, Inc., the user of CeeNee products in life support applications assumes all risks of such use and indemnifies CeeNee, Inc. against all damages.
2
TABLE OF CONTENTS
Disclaimer ....................................................................................................................................... 2
Product Safety ................................................................................................................................. 4
Recording your CeeNee Product Information ................................................................................ 5
Product Overview ........................................................................................................................... 6
Package Contents ........................................................................................................................ 6
Connections ................................................................................................................................. 7
Getting Started ................................................................................................................................ 8
Quick Start ................................................................................................................................... 8
Installation ................................................................................................................................... 8
Typical connection diagram for Karaoke ..................................................................................... 13
Using the Remote Control ......................................................................................................... 14
Usage & Navigation ...................................................................................................................... 17
Menus ........................................................................................................................................ 17
Home ......................................................................................................................................... 17
Video.. .................................................................................................................................... 18
Music.. ................................................................................................................................... 20
Photo.. .................................................................................................................................... 22
Karaoke .................................................................................................................................. 24
Applications ........................................................................................................................... 30
1. File Explorer ............................................................................................................... 31
2. KaraokeCloud ............................................................................................................. 39
Web browser .......................................................................................................................... 47
YouTube ................................................................................................................................ 47
Settings .................................................................................................................................. 48
1. Video-Audio ............................................................................................................... 48
2. Video .......................................................................................................................... 51
3. Music .......................................................................................................................... 51
4. Photo ........................................................................................................................... 52
5. Karaoke ....................................................................................................................... 53
6. Recording.................................................................................................................... 60
7. System ........................................................................................................................ 60
8. Network ...................................................................................................................... 63
9. Shared Network .......................................................................................................... 66
Codec Support ........................................................................................................................... 68
Video Containers ................................................................................................................... 68
Video Code Format ................................................................................................................ 68
Audio Containers ................................................................................................................... 69
Audio Codec Format .............................................................................................................. 69
Photo Containers .................................................................................................................... 69
CeeNee Technical Support ........................................................................................................ 70
Troubleshooting ............................................................................................................................ 71
KEYBOARD ............................................................................................................................. 73
HISTORY .................................................................................................................................. 74
3
Product Safety
Follow all instructions. Heed all warnings. Do not operate the device near water to avoid the risk of electric shock or damage. Do not throw, shake, or drop the device, otherwise damage may occur. Avoid exposing the product to moisture, high humidity, or dust. Do not attempt to repair or service the product yourself. Opening or removing the covers
may expose you to the risk of high voltages, electric shock, and other hazards. If repair is required, please contact your dealer and refer all servicing to qualified service personnel.
Do not touch the power cord during lightning. Avoid handling the power cord during
electrical storms to avoid electric shock.
Unplug this apparatus during lightning storms or when unused for long periods of time. Do not overload power strips or extension cords. Overloading an electrical outlet can
result in fire, electric shock, or device damage.
Never push foreign objects into the device. Hold the outer power connector when removing the power cable. Pulling the power cable
itself may damage the wires inside the cable, and it can cause fire, or electric shock. Unplug this apparatus when it is not being used for an extended period of time.
Do not spray chemical on, or near the device. Maintain a distance of at least 3 feet between the device and any heat source, i.e. radiator,
heater, oven, amplifier, etc...
Do not operate the product close to smoke. Do not operate in a high heat environment over 95 °F (degrees Fahrenheit). Do not use the product in an enclosed environment, or else the device may get damaged. Do not touch the connector with wet hands to avoid the risk of electric shock. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
Operating environment. Temperature: 40 °F ~ 95 °F, Humidity: 20% ~ 80% non-
condensing.
For additional safety information, please refer to www.ceenee.com.
4
Serial Number:
Model Number:
Purchase Date:
System and Software Notes:
Recording your CeeNee Product Information
In the following table, please write the serial and model numbers of your new CeeNee BeeGee product.
You can find this information on the label at the bottom of the device. You should also note the date of purchase. This information may be required when requesting technical support.
5
Product Overview
This user manual provides step-by-step instructions for installing and using your new media player. For the latest CeeNee product information and news, please visit us at www.ceenee.com.
The CeeNee BeeGee is an all-in-one high end HD Karaoke Network Media Player. It is a high­definition (HD) USB 2.0/3.0 and networked media player that attaches to home entertainment system through a variety of audio/video interfaces. It supports up to Full HD (1080P) video playback (through an HDMI connection) or standard definition for TVs with lower capabilities. High-fidelity digital audio is also supported from an optical interface. The five USB ports and an SD card slot are available to connect external storage devices. With the advanced built-in mixer, and auto volume control, customers can be guaranteed that they have the best entertainment experience. The included remote control lets you quickly browse through your media library and configure settings.
Package Contents
CeeNee BeeGee HD Karaoke Network Media Player AC Adapter HDMI Cable Composite A/V Cable Remote Control 2 AAA Batteries Quick Start Guide USB Wi-Fi dongle
* USB Mini-B Host Adapter (Optional) * Mini USB/OTG Cable (Optional)
* USB 3G/4G dongle (Optional)
6
Connections
1. One Infrared Receiver
2. Two USB ports
3. One USB/OTG port
4. Two MIC connectors
5. SD card slot
1. One 12V power adapter
2. One Optical audio connector
3. One Coaxial audio connector
4. One 10/100/1000 Ethernet port
5. One HDMI port
6. One Composite A/V connectors
7. One Component connectors
Front Panel
Back Panel
Connecting devices
1. USB external drive
2. SD/SDHC Card
3. Network storage devices
7
Getting Started
Quick Start
Connect the CeeNee BeeGee media player to your TV or entertainment unit through the desired interface option.
1. Connect your CeeNee BeeGee to the TV set using the HDMI cable or Composite AV
cable or Component cable.
2. To connect the player to the Internet/Network: connect the Ethernet cable to the Ethernet
port or connect a WiFi USB dongle/ an optional 3G/4G dongle to the USB connector.
3. Connect the Red and White of Composite cable between A/V connectors to TV. To use
the optical digital sound, connect the optical cable and/or the coaxial cable from the player to amplifier.
4. Connect the AC adapter to the wall unit and to CeeNee BeeGee and turn the switch to
ON.
5. Insert a USB drive/a SD card (not included)/ or an internal hard drive that store(s) your
favorite movies, music, Karaoke songs, flash applications (including games) and photos to the player.
6. Insert two AAA batteries into the remote control device.
7. Wait a moment for the player to search for contents, and then enjoy!
Installation
Step 1: Connect the CeeNee BeeGee media player to your TV or entertainment unit through the
desired interface option. The below figures illustrate the cable connections supported by the CeeNee BeeGee media player. The standard connection uses the included composite AV cables.
Choosing the Best Connection
The quality of the media contents depends on the quality of your TV and its connection to the CeeNee BeeGee media player.
8
Connection
Quality
Connections
HDMI
BEST
Specialized, high-definition connector
COMPONENT
BETTER
Red, Green, and Blue
COMPOSITE
GOOD
Yellow = video Red = right audio White = left audio
For High Definition TV
For Standard Definition TV
9
Step 2: Insert the network cable or USB Wi-Fi dongle or USB 3G/4G dongle (This step is optional and only required if networking and internet browsing is desired).
Step 3: Insert the optical digital cable (Optical digital cable is not included).
Step 4: Connect the AC adapter
10
Step 5: To transfer media contents to the BeeGee internal hard drive:
Currently, BeeGee has two options to transfer media contents: Option 1:
Connect CeeNee BeeGee to the computer using the mini USB/OTG cable.
Connect Mini-B type connector end of the USB/OTG cable to the CeeNee BeeGee’s mini
connector located on the back side of the player
Connect USB-A type connector end of the cable to the computer/laptop Connect the AC adaptor to the BeeGee Wait for a few moments while the computer/laptop scans the internal HDD of CeeNee
BeeGee
Computer/laptop will show the notification of newly connected CeeNee BeeGee Copy favorite media contents on the CeeNee BeeGee
Option 2:
Customer can use “File Explorer” application to transfer content from their USB, SD card, or external hard drive to the internal hard drive. Or, transfer contents among those
connecting devices. It will be more comfortable for customers because they don’t need to
move the CeeNee BeeGee next to the PC.
Step 6: Connecting and removing the USB drive or SD card
Connect a USB drive or a SD card to the CeeNee BeeGee media player. Please wait a few seconds while the CeeNee BeeGee media player scans the USB device
or the SD card for the media files. In the case of the USB devices, this may take a few minutes, depending on the storage capacity of the USB device and the number of available media files. When the external device is detected, the respective status light turns on and the Home screen displays the new USB directory icon or the SD card icon whichever is applicable.
11
Removing the USB device/SD card
To prevent data loss, please remove the storage devices properly following the below procedure:
Press the EJECT button on the remote. Select the desired device you want to remove. Highlight OK on the prompt and then press the OK button on the remote. Disconnect the ejected device from the CeeNee BeeGee media player.
12
Typical connection diagram for Karaoke
13
Using the CeeNee BeeGee media player
Using the Remote Control
The standard CeeNee BeeGee remote control let you navigate the Home screen, browse for media files, enable playback options, and customize the system settings. The picture below shows the front and back of the remote control and where the battery compartment is.
14
* CeeNee BeeGee is also backward compatible with other CeeNee players’ remote
controls. The other remote control model has black buttons and no dedicated REC button.
** CeeNee BeeGee can also be controlled by a U.S. International Keyboard. For information on how to use the keyboard to control the player, please visit the
Keyboard section at the end of this manual
15
Remote Control
1. POWER: Switch the
power on/off
2. REV: Backward
3. PLAY: Play/Pause
4. SUBTITLE: Switch
subtitles
5. REC: record button
6. TIME SEEK: Play at
time which is being selected
7. INFO: Display
main/sub-screen picture source
8. OK: To choose a
selection
9. MUTE: Turn the sound
on/off
10. VOL +/-: Volume
Up/Down adjustment
11. AUDIO: Select audio
channel
12. MENU: Toggle the
menu bar
13. ZOOM: Zoom frame
(support only video and photo)
14. TOGGLE: Press this
button and OK button at the same time will disable/enable the mouse
15. VIDEO: shortcut key to
Video page or record when singing Karaoke
16. PHOTO: shortcut key to
Photo page
17. EJECT: Eject safely an
attached folder from shared network: from a USB or a SD card
18. FWD: Forward
19. STOP: Halt play and
return to the list
20. 16:9: Switch Aspect
ratio
21. REPEAT: Switch
modes: Normal, Repeat One, Repeat All, Shuffle, Repeat All and Shuffle
22. RETURN: Navigate
back to the previous screen
23. HOME: Exit back to
the homepage
24. 4 WAY
NAVIGATION ARROWS: Navigate through the menu
25. : Previous track
26. : Next track
27. NUMBER PAD:
Searches by video/song/photo/app lication name by alphanumeric keys. Press multiple times on the numeric key cycles through numbers and letters.
28. DELETE: Delete
input character or delete a queue song in Karaoke
29. SLOW: Do not
support
30. SETUP: Go to
Settings interface
31. MUSIC: shortcut key
to Music page
32. KARAOKE: shortcut
key to Karaoke
16
Usage & Navigation
Menus
Use the 4-way arrows on the remote control to navigate through the menu. Press the “OK” button to select a feature, and then press the “RETURN” button to go back. Turning on the CeeNee BeeGee Player for the first time may take a few moments for the Navigation Home to display. Users will be prompt to select the default langue. We currently support English, Vietnamese, Japanese, Chinese, Spanish, and Korean.
Ejecting a Disk: Press the “EJECT” button on the remote control.
Home
The navigation is split into several parts. The left side of the screen shows Karaoke, Video, Photo, Music, Applications, Web Browser, YouTube, and Settings. The center shows the current time, and the right side shows time at the selected location, weather, and stock.
17
Video
1. Two methods to go to Video interface:
Select the “VIDEO” tab in the CeeNee BeeGee homepage, and then press the
“OK” button on the remote.
Press the “VIDEO (RED)” button on the remote when you are viewing the
interfaces such as Home page, Music list, Photo list, Application list, Settings.
2. Organizing videos: Folder, All Videos, and Search
3. In the video browser screen: a. Press the “OK”, or “RIGHT ARROW” button and then select a USB, a SD card
or shared directories from a Local Network
b. Searching: Use the NUMBER PAD and press “OK” to search. Press the
“DELETE” button if you need to delete a character in the search box
c. Press the or button to display the next/previous page in the video list d. Press “OK”, “PLAY” or “RIGHT ARROW” button on the remote to play a video e. Press the “PHOTO (GREEN)” button to go to PHOTO interface. f. Press the “KARAOKE (YELLOW)” button to go to KARAOKE interface. g. Press the “MUSIC (BLUE)” button to go to MUSIC interface. h. Press the “SETUP” button to go to SETTINGS interface. i. Press the “RETURN” button to go back to the previous screen. j. Press the “HOME” button to exit back to the homepage.
18
4. In the video player screen: a. When playing a video, if program displays “Resume?” message:
- Press “YES” to start playing the video again after being interrupted
- Press “NO” to play the video from scratch
b. Press the “INFO” button to bring up the playback options such as fast forward,
pause, play, and stop.
c. Press the “MENU” button to bring up the selections such as Audio Channel,
Subtitles, Zoom in, Zoom out, Move, Restore, and Repeat.
d. Press the button to play the next video. e. Press the button to play the previous video. f. Press the “FWD” button to fast forward the video. g. Press the “REV” button to backward the video. h. Press the “PLAY” button to play/pause the video. i. Press the “STOP” button to stop the video. j. Press the “TIME SEEK” button to play the video at time which is being selected. k. Press the “AUDIO” button:
Depending on the media, if containing more than one soundtrack you can
press the audio button to select accordingly.
While playing a video, press AUDIO with “LEFT or RIGHT ARROW” to
select the available soundtrack.
It may take a few seconds to change audio track because it has to sync. l. Press the “MUTE” button to turn the sound on/off. m. Press the “VOL+/- ” to adjust volume up/down.
19
Music
1. Two methods to go to Music interface:
n. Press the “SUBTITLE” button, a dialog will be showed and you can change the
values to get a suitable subtitle.
o. Press the “REPEAT” button and use the “LEFT or RIGHT ARROW” button to
switch modes: Normal, Repeat One, and Repeat All.
p. Press the “ZOOM” and “RIGHT ARROW” button to zoom in the frame or
“LEFT ARROW” button to zoom out the frame.
q. Press “16:9” button to switch Aspect ratio: Normal/Widescreen. r. Press the “SETUP” button to go to SETTINGS interface. s. Press the “RETURN” button to go back to the previous screen. t. Press the “HOME” button to exit back to the homepage.
Select the “MUSIC” tab in the CeeNee BeeGee homepage, and then press the
“OK” button on the remote.
Press the “MUSIC (BLUE)” button on the remote when you are viewing the
interfaces such as Home page, Video list, Photo list, Karaoke, Application list, Settings.
2. Organizing music: Folder, All Music and Search
20
3. In the music browser screen: a. Press the “OK”, ”PLAY” or “RIGHT ARROW” button to select a USB, a SD
card, or shared directories from Local Network
b. Searching: Use the NUMBER PAD and press “OK” to search. Press “DELETE”
button if you need to delete a character in the search box
c. Press the or button to display the next/previous page in the music list d. Browse to the music to play, and select the song by pressing “OK”, “PLAY” or
“RIGHT ARROW” button on the remote
e. Press the “VIDEO (RED)” button to go to VIDEO interface. f. Press the “PHOTO (GREEN)” button to go to PHOTO interface. g. Press the “KARAOKE (YELLOW)” button to go to KARAOKE interface. h. Press the “SETUP” button to go to SETTINGS interface. i. Press the “RETURN” button to get back to the previous screen. j. Press the “HOME” button to get back to the homepage.
4. In the music player screen:
a. Press the button to play the next music. b. Press the button to play the previous music. c. Press the “FWD” button to forward the music. d. Press the “REV” button to backward the music. e. Press the “PLAY” button to play or pause the music. f. Press the “STOP” button to halt play and return to the list.
21
g. Press the “MUTE” button to turn the sound on/off. h. Press the “VOL+/-” to adjust the volume up/down. i. Press the “REPEAT” button to switch modes: Normal, Repeat One, Repeat All,
Shuffle, Repeat All and Shuffle.
j. Press the “SETUP” button to go to SETTINGS interface. k. Press the “RETURN” button to get back to the previous screen. l. Press the “HOME” button to get back to the homepage. Note:
- You still can continue to listen to music if you return to home page, browse
video list, or view a photo.
- When pressing the STOP button, opening a video, applications, going to
Karaoke, Web browser, YouTube or Settings, the music will be stopped.
1. Two methods to go to Photo interface:
Select the “PHOTO” tab in the CeeNee BeeGee homepage, and then press the
“OK” button on the remote.
Press the “PHOTO (GREEN)” button on the remote when you are viewing the
interfaces such as Home page, Video list, Music list, Karaoke, Application list, Settings.
2. Organizing photo: Folder, All Photos and Search
22
3. In the photo browser screen:
a. Press the “OK”, ”PLAY” or “RIGHT ARROW” button to select a USB, a SD
card or shared directories from Local Network.
b. Searching: Use the NUMBER PAD and press “OK” to search. Press “DELETE”
button if you need to delete a character in the search box.
c. Press the or button to display the next/previous page in the photo list. d. Browse to the photo to view, and select the photo by pressing “OK” or “RIGHT
ARROW” button on the remote.
e. Select the photo on the list and press the “PLAY” button on the remote to view
photo slide.
f. Press the “VIDEO (RED)” button to go to VIDEO interface. g. Press the “KARAOKE (YELLOW)” button to go to KARAOKE interface. h. Press the “MUSIC (BLUE)” button to go to MUSIC interface. i. Press the “SETUP” button to go to SETTINGS interface. j. Press the “RETURN” button to get back to the previous screen. k. Press the “HOME” button to get back to the homepage.
4. In the photo player screen:
a. Press the “INFO” button to view photo’s information.
b. Press the “MENU” button to bring up the selections such as Move, Rotate Right,
Rotate Left, Zoom in, Zoom out, Restore, Repeat and Shuffle.
c. Press the or “RIGHT ARROW” button to view next photo. d. Press the or “LEFT ARROW” button to view previous photo. e. Press the “PLAY” button to play/pause the photo (when view slide photo).
23
f. Press the “STOP” button:
- To halt play and return to the list.
- If user is viewing photo and listening to music, press the “STOP” button to halt play photo and return to the list, and then press the “STOP” button again to stop the music.
g. Press the “MUTE” button to turn the sound on/off (if user view photo and listen to
music concurrently).
h. Press the “VOL+/-” to adjust the volume up/down (if user view photo and listen
to music concurrently).
i. Press the “REPEAT” button and use the “LEFT, RIGHT, UP or DOWN
ARROW” button to switch modes: Normal, Repeat All, Shuffle, Shuffle and
Repeat All.
j. Press the “ZOOM” button then the “RIGHT ARROW” button to zoom in the
photo, or the “LEFT ARROW” button to zoom out the photo.
k. Press the “SETUP” button to go to SETTINGS interface. l. Press the “RETURN” button to get back to the previous screen. m. Press the “HOME” button to get back to the homepage.
Karaoke
The CeeNee Karaoke Player is a full featured sing-along player. There are functions to create a song booklet, queue songs, and modify playlists. Navigating the Karaoke menu
1. Playing a Song: Two methods to go to Karaoke interface:
Select the “KARAOKE” tab in the CeeNee BeeGee homepage, and then press
Press the “KARAOKE (YELLOW)” button on the remote when you are
2. If on screen displays the “Empty. Please press SETUP button on remote control”.
the “OK” button on the remote.
viewing the interfaces such as Home page, Video list, Music list, Photo list, Application list, Settings.
You have to go into “Settings -> Karaoke -> Select Folder (if you select HD Karaoke) or Select MP3 Folder (if you select MP3 Karaoke)” to add any folder containing Karaoke files (go to section “Settings/5.Karaoke” in this Manual to view in details).
24
Return to Karaoke interface after adding successfully. By default, the player will detect the Karaoke folder and generate a song book from that directory automatically.
3. Select a song from the karaoke song list, and press the “OK” button to play.
4. Searching:
a. Quick search: Before finding a song by using “MENU” button, use the
NUMBER PAD to enter the song number and press “OK” to select it.
25
b. Normal search: Press the “MENU” button to display the main menu. Next,
select the “Choose Song” tab and press the “RIGHT ARROW” button or “OK” button. Then type word that you want to search and press “OK”. The word could be a part of the song title.
5. Create Book: press the “MENU” button, and then press the “DOWN ARROW”
button to select the “Create Book” tab. This will enable the user to create or update a Karaoke song book, which the user can print out.
a. Update book: Replace whole content of the existing book.
26
b. Create book: Create a printable Excel file with the song numbers and song titles,
which the user can then print. The file will be saved in the location specified by the user. This song book is helpful in browsing/queuing songs while others are singing. A song book only includes all songs in active devices.
6. Create Playlist:
- Press the “MENU” button and then the “DOWN ARROW” button to select the
“Create Playlist” tab.
- Press the “OK or RIGHT ARROW” button to go to the create playlist menu.
Select the “Create New Playlist” and press “OK” button.
- Type the desired playlist name and press the “RIGHT ARROW” button to go to
the songs. Select the song and press “OK” to add to the playlist.
- Press the “LEFT ARROW” to go back to the playlist. Press the “UP ARROW” to
highlight the playlist name and press “OK”.
27
- Select the location to save your playlist.
* To delete a playlist, simply highlight it and press the Delete button on the remote control. Select Yes to confirm.
7. To insert a song to the top of queue songs:
- After select the songs from the “Choose Song” tab, they will appear on the top
screen. Use the “LEFT or RIGHT ARROW” button to select the song which you
wish to move and press “OK”.
8. To delete a song on queue songs:
- Select a song on queue songs by using the “LEFT or RIGHT ARROW” button and
press the “DELETE” button
9. Karaoke Playback Menu: a. Press the “MENU” button to toggle on/off the “Choose Song Menu” b. Press the “MUTE” button to turn the sound on/off c. Press the “VOL+/-” to adjust the volume up/down d. Press the “AUDIO” button to select an Audio Channel e. Press the button to play the next song in the queue f. Press the “PLAY” button to play/pause the current song g. Press the “STOP” button to stop playback h. Press the “FWD” button to fast forward the current song i. Press the “REV” button to move backward the current song j. Press “16:9” button to switch Aspect ratio: Normal/Widescreen k. Press the “VIDEO (RED)” button to record your voice. l. Press the “PHOTO (GREEN)” button to go to PHOTO interface. m. Press the “MUSIC (BLUE)” button to go to MUSIC interface. n. Press the “SETUP” button to go to SETTINGS interface o. Press the “RETURN” button to go back to the previous screen p. Press the “HOME” button to exit back to the homepage
28
10. Record a Karaoke song:
While playing a Karaoke song, you can press lightly (one time) the “VIDEO
(RED)” button or the dedicated “REC” button of the remote control to start the recording process. Now, a blank screen will be showed in little seconds before displaying karaoke screen with red button (REC symbol) on the left corner.
This procedure will be stopped automatically at the end of the song. The player
will select the location (either the default location or location is selected by user in “Setting Recording”) to save the recorded song. Finally, user can go to MUSIC interface to listen the recorded song.
User can also press either one these buttons (VIDEO or REC) on remote control
again any time to stop the recording. At this time, player will display the red string “Saving your recorded song…”. If user would like to return recording, user should press the “VIDEO” or “REC” button.
29
Applications
There are the applications we currently have: Facebook, Gmail, Amazon, File Explorer, and KaraokeCloud. We will continue to develop additional applications, and
these will be available on the new firmware. Please check our website for firmware update frequently.
The Applications folder allows users to access flash games that they downloaded from our ”Game” menu on http://www.ceenee.com. To access the games, please do the following:
1. Select the “Applications” tab in the CeeNee BeeGee homepage. Next, choose the
“Applications” button and press the “OK” button on the remote.
2. Organizing application: Folder, All Applications, and Search.
3. In the application browser screen: a. Press the “OK” or “RIGHT ARROW” button to select a USB, a SD card, or
shared directories from Local Network.
b. Searching: Use the NUMBER PAD and press “OK” button to search. Press
“DELETE” button if you need to delete a character in the search box.
c. Press the or button to display the next/previous page in the application list. d. Browse to the application to play, and select the application by pressing the “OK”
or “RIGHT ARROW” button on the remote.
e. Press the “VIDEO (RED)” button to go to VIDEO interface. f. Press the “PHOTO (GREEN)” button to go to PHOTO interface. g. Press the “KARAOKE (YELLOW)” button to go to KARAOKE interface.
30
h. Press the “MUSIC (BLUE)” button to go to MUSIC interface. i. Press the “SETUP” button to go to SETTINGS interface. j. Press the “RETURN” button to go back to the previous screen. k. Press the “HOME” button to exit back to the homepage.
4. In the application player screen: a. Press the “RETURN” button to get back to the previous screen. b. Press the “HOME” button to get back to the homepage.
1. File Explorer
We support a lot of functions such as: Copy, Move, Delete, Rename and New Folder.
a. Copy
Allow user to copy files and/or folders from the folder to another one. Execute:
o Select “Copy” menu.
31
o Select a device (HDD, USB, SD card) or a folder in shared network, then
press on OK button on remote control. The sub-folders and files are displayed.
o Select the files and/or folders which you need to copy, then click on
“Done” button on user interface, continue to select the target folder and click on “Done” again to start work.
- If the destination doesn’t have the paste right or its space is not enough, you will see a message “Can’t Copy: No space left on the destination.”.
- If the file/folder is already in the destination which you want to copy to,
the following dialog will be displayed:
o Go to a device or a folder in shared network to check the result after
receiving a message “Complete”.
32
b. Move
Allow user to move files and/or folders from the folder to another one. Execute:
o Select “Move” menu. o Select a device (HDD, USB, SD card) or a folder in shared network, then
press on OK button on remote control. The sub-folders and files are displayed.
o Select the files and/or folders which you need to move, then click on
“Done” button, continue to select the target folder and click on “Done” again to start work.
- If the destination doesn’t have the paste right or its space is not enough, you will see a message “Can’t Move: No space left on the destination.”.
33
- If the file/folder is already in the destination which you want to copy to,
the following dialog will be displayed:
o Go to a device or a folder in shared network to check the result after
receiving a message “Complete”.
c. Delete
Allow user to delete files and/or folders from current folder. Execute:
o Select “Delete” menu. o Select a device (HDD, USB, SD card) or a folder in shared network, then
press on OK button on remote control. The sub-folders and files are displayed.
34
o Select the files and/or folders which you need to delete, then click on
“Done” button.
o A dialog will be showed. Select “Yes” if you want to remove them from
current folder.
o Go to a device or a folder in shared network to check the result after
receiving a message “Complete”.
35
d. Rename
Allow user to rename file or folder. Execute:
o Select “Rename” menu. o Select a device (HDD, USB, SD card) or a folder in shared network, then
press on OK button on remote control. The sub-folders and files are displayed.
o Select a file or a folder which you need to rename, then click on “Done”
button
36
o Enter new name for it and click on “Apply”.
o Go to a device or a folder in shared network to check the result after
receiving a message “Complete”.
e. New Folder
Allow user to create a new folder in a device (HDD, USD, SD Card) or a folder of
shared network.
Execute:
o Select “New Folder” menu. o Select a device (HDD, USB, SD card) or a folder in shared network, then
press on OK button on remote control.
37
o The sub-folders and files are displayed. Click on “Done” button
o Enter name for new folder and click on “Apply”.
- If the new name is already, you will a message “There is a name conflict. Please choose another name.”
o Go to a device or a folder in shared network to check the result after
receiving a message “Complete”.
38
2. KaraokeCloud
This application allows user to use some functions as http://www.karaokecloud.com.
a. Login
Firstly, if you don’t have an account on karaokecloud.com, you need to create a
new account as follows:
o Select the “Sign Up” tab. o Fill in all required information and Tick on “I agree to the Terms of Service”. o Press the “Sign Up” button to finish.
Otherwise, if you already have an account on karaokecloud.com, you should
select the “Login” tab, next to enter Username and Password, and then press the “Login” button.
39
Note: For a customer who has the email address as a login, instead of using the keyboard in the back of the remote, uses the front number 1 key (the button “1. /@”) and presses until you see the @ symbol.
b. Help
To use the supported functions effetely, you should read the help content before
using them.
c. Library
40
Use the search function to view Library’s content. Start your search by typing
words, next press the “OK” button on Remote to choose a search type. Finally, press the “Search” button to get information.
If you want to left search function, press the “Cancel” button. The result list will be displayed:
41
Select a song in list and press “OK” button on remote control, you will see the
options such as play a song or add a song to your playlist
(currently, we don’t support the “create a new playlist” function
yet; therefore you must go to www.karaokecloud.com to execute this task) or buy it .
Select to play a song, BeeGee will display the song information
and allow user to pause or stop this song.
Select to add a song to your playlist, you will see the following
interface. Next, you must to choose a playlist and press the “OK” button on remote control to finish.
42
d. Most Played
In this list, you can also search the songs, select a song to play or add it to your
playlist or buy it similar to Library.
e. Newest Tracks
In this list, you can also search the songs, select a song to play or add it to your
playlist or buy it similar to Library.
43
f. Purchased
The “Purchased” shows the songs which you bought. And you can also search the
songs, select a song to play or add it to your playlist similar to Library.
g. Cart
Currently, we do not support this function yet. We will add it on the new
firmware. Please check our website for firmware update frequently.
44
h. Playlists:
Currently, we do not support the functions such as create a new playlist, remove a
playlist, or remove the songs in playlist. We will add it on the new firmware. Please check our website for firmware update frequently. Therefore, you must create the playlists on www.karaokecloud.com.
BeeGee will show playlists and their details.
To view each playlist in details, you select a playlist and press the “OK” button.
BeeGee will show all songs in the playlist (below figure). Here, you can also select a song to play or add it to another playlist or buy it.
45
i. Account
The “Account” menu shows your information.
Press the “Logout” button to exit Karaoke Cloud. To change data in the “User information” field, you use “ARROW” buttons on
remote control to go into First Name, Last Name, or Email and use the NUMBER PAD to enter the data. Finally, press the “Save” button to finish.
To add a credit card, you select “Add a credit card” button and fill in the required
information as below figure:
Next, press the “Save” button to save your information. Click “Cancel” if you
want to left above interface.
46
Besides, you can also remove the information of credit card by pressing the
“Remove” button as below figure.
Web browser
Select the “WEB BROWSER” button in the CeeNee BeeGee homepage and press the
“OK” button on the remote control to browse the websites. You need to turn on the
mouse cursor on the remote when using the function by pressing and holding the
“TOGGLE” button and then press the “OK” button.
YouTube
Select the “YouTube” button in the CeeNee BeeGee homepage and press the “OK”
button on the remote control to go to YouTube page.
47
Settings
You need to turn off the mouse cursor on the remote by pressing and holding the
“TOGGLE” button and then press the “OK” button. You can view our instruction at
http://www.youtube.com/watch?v=VrGl23XPIx0
Two methods for Settings interface:
Select the “Settings” button in the CeeNee BeeGee homepage, and press “OK”. Press the “SETUP” button anywhere except when you are viewing the Applications,
Web browser, or YouTube.
The “Settings” menu has options to change features and settings in the CeeNee BeeGee.
1. Video-Audio
The menu and submenu can change the output of Video and Audio.
To access the submenus on the right: Use the 4-way arrows on the remote, press the
“RIGHT ARROW” button and select “Video Output,” “Resolution,” etc.
a. Video Output: Select the output of video: HDMI, Composite, Component, or All.
Default is “HDMI”.
48
b. Resolution: Change the size of the screen from 480i all the way to 1080p60Hz.
Default is “Auto”.
c. Aspect Ratio: Change the screen format to either 4:3 “Normal” or to 16:9
“Widescreen”. Default is “Widescreen”.
d. NTSC/PAL: American Television is displayed in NTSC format—this is default if the
BeeGee was purchased in America. PAL is default for Asian and European countries.
49
e. Digital Audio Output: includes two parts
+ HDMI Audio: change the audio format to either PCM or Bit Stream. PCM is for stereo sound, and Bit Stream is for pass through digital audio, especially for DTS movies and/or Dolby digital movies. Default is “PCM”.
+ S/PDIF Audio: (Sony/Philips Digital Interconnect Format) is for optical sound. It is used for transporting high quality digital audio signals on transmit or receive. You have two options when you select S/PDIF: PCM or Bit Stream. PCM is for stereo sound; Bit Stream is for pass through digital audio, especially for DTS movies and/or Dolby digital movies. Default is “PCM”.
50
The Video, Music, and Photo menu change the way how the content is played back.
2. Video
a. Video sequence: Adjust the frequency of video playback to either play just normal,
once, or repeat. Default is “Normal”.
3. Music
a. Music sequence: Adjust the frequency of music playback to Normal, Repeat One,
Repeat All, Shuffle, Repeat All and Shuffle. Default is “Normal”.
51
4. Photo
a. Photo Sequence: Adjust the frequency of photo playback to Normal, Shuffle, Repeat
All, Repeat All and Shuffle. Default is “Normal”.
b. Photo Scale: Option to enlarge photo to fill the screen. Default is “Fit to screen”.
c. Photo Effect: Enable fade-out between photos during photo slideshow playback.
Default is “Normal”.
52
d. Interval: Define the amount of time between playbacks of photos from 3 seconds to
30 minutes. Default is “10 seconds”.
5. Karaoke
a. Karaoke Type
CeeNee requests every user to create folder with the name called "Karaoke" on the
external HDD and put all the karaoke songs in this folder.
CeeNee firmware can play karaoke songs directly from this folder without any extra
effort.
If at all user wants to have a separate folder for the karaoke songs other than the name
mentioned above. It’s very simple to setup you karaoke source:
b. HD Karaoke:
53
i. Playback Option
When finish a Karaoke song and don’t have any queue song in Karaoke interface:
If you select “Playback Option” is “Random”, CeeNee BeeGee will select a
random song in the Karaoke folder to play.
And if you select “Playback Option” is “Sequence”, CeeNee BeeGee will play
the next song in the Karaoke folder automatically.
ii. Play mode:
When finish a Karaoke song:
If you select “Play mode” is “Continuous”, CeeNee BeeGee will open and play a
song.
And if you select “Play mode” is “Pause before each song”, CeeNee BeeGee will
open and pause a song, user need to press the “Play” button to play it.
54
iii. Select Folder: You can view the folders on your attached HDD and you can
select the folder that contains karaoke songs. Go to the Karaoke folder and firmware will display the songs from the selected resource.
55
iv. Deselect Folder: You can view the folders on your attached HDD and you can
deselect the folder that contains karaoke songs.
56
c. MP3 Karaoke:
i. Playback Option: Same as Playback Option in HD Karaoke.
ii. Play mode: Same as Play mode in HD Karaoke.
57
iii. Select the Background Mode: User has freedom to play any video or photo
background while playing Mp3 karaoke. Select the Background mode as "Photo" or "Video" or “Keeping Original Background”
Select Background: Choose the folder which contains the photos or the video that you want to play in the background while playing the Mp3 karaoke songs.
Go to the Karaoke and firmware will display the Mp3 karaoke songs from the "Karaoke folder" and it will start playing the user selected background.
Note: If the user selected background is very big in size and contents then CeeNee will switch to its default mode in order to make sure smooth karaoke playback. Firmware will start playing Nature photos or the ocean video automatically it encounters the problem in playing user selected background.
58
iv. Photo Background Settings:
- Slideshow Effect including two options: Normal or Effect. Normal: not have effect when switch from photo to another photo on
background karaoke.
Effect: have effect when switch from photo to another photo on
background karaoke.
- Slideshow Interval: set time show a photo on background karaoke.
v. Deselect Background: Remove the resource for the background (video/photo):
select the folder and press “OK” to remove.
59
6. Recording
Recording Destination: this option allows users to select the location where the
recorded song will be saved. The player will select a default location. However, users have option to change it.
7. System
a. Language: Option to change the languages: English, Spanish, Vietnamese, Japanese,
Korean, and Chinese.
60
b. Screensaver delay: Set the amount of time before the screensaver is turned on.
Default is “10 minutes”.
c. Update firmware: Download the firmware and upgrade the device to the most
current firmware.
61
d. Set time: Display time on the Clock.
e. About: Describe the product, firmware, and Linux version.
62
8. Network
a. Wired: To change the method of IP addresses retrieval to either “On” (DHCP) or
“Off” (Static). First, select “Mode Auto IP” and then press the “OK” button on the
remote to switch between “On” and “Off.” To change the “IP Address” and other
settings, select the settings, press “OK,” and then use the onscreen keyboard to enter
the numbers.
b. WiFi:
- In the Settings, select Network press “OK” to turn on Wi-Fi. When it is on, it will
scan all the available Wi-Fi networks automatically.
63
- Use the “DOWN ARROW” button to select the network. With Wi-Fi including
password, user must enter password. While enter password, to switch character
groups (abc, ABC, 123), user need to focus cursor on “Password” textbox and press
MENU button on remote control.
- After finish to enter password, select “Connect” button to connect. If Wi-Fi is
connected successfully, a tick icon will be displayed on this Wi-Fi.
64
c. WiFi Configuration:
- To configure WiFi, in the WiFi menu, use the “UP” and “DOWN” arrow buttons to
highlight the connected network and press OK.
- Select IP Setting and press OK
- The IP Mode: Auto will get the IP automatically from the router or switch. Use the
“UP” or “DOWN” arrow button to highlight the IP Mode, and press OK to change to manual. Enter your settings and select Apply to save.
d. 3G:
Select the correct country and then the service provider. Choose the correct APN and then press Connect.
d. Time:
Adjust the “Time Zone” to match the user’s local time. “Time Server” is the location
the time is updated from.
65
e. Stock:
Information about stock index will be displayed on the Home page. To change stock index, press the “OK” button and enter the stock index which you wish to replace.
9. Shared Network
a. Requirement: enable windows file sharing over the network. b. There are two ways to get directory from shared network:
Way 1: Enter location, username, and password directly.
66
Way 2: Browse through your network to your shared computer to share a folder.
Enter the Username and Password for your shared folder.
Step 1: Select a work group
Step 2: Select a Computer/NAS and press OK
Step 3: Select a directory, enter Username and Password (optional) and select the + icon to add it.
67
Codec Support
Video Containers
MPEG1/2/4 Elementary (M1V, M2V, M4V) MPEG1/2 PS (M2P, MPG, DAT, VOB) MPEG2 Transport Stream (TS, TP, TRP, M2T, M2TS, MTS) AVI, ASF, WMV Matroska (MKV) MOV (H.264), MP4, RMP4
FLV (only support H264) MP3+G, CD+G, MP3+XML
Video Code Format
XVID SD/HD MPEG-1 MPEG-2 MP@HL MPEG-4.2 ASP@L5, 720p, 1-point GMC MPEG-4.10 (H.264) BP@L3 MP@L4.0 HP@L4.0 HP@L4.1 WMV9 MP@HL SMPTE 421M (VC-1) MP@HL AP@L3
68
Audio Containers
AAC, M4A MPEG audio (MP1, MP2, MP3, MPA) WAV FLAC OGG
Audio Codec Format
DTS Dolby
Dolby Digital Dolby Digital Plus Dolby TrueHD
MPEG AAC, HE-AAC DRA
FLAC
Photo Containers
JPEG, BMP, PNG, GIF
69
CeeNee Technical Support
Important: Should you encounter any problem, please do not return this product to the store
before carefully reading the user manual. You can also find answers to your technical support questions through our knowledge base at http://support.ceenee.com or e-mail support service at
support@ceenee.com. Besides, we also provide the page http://support.ceenee.com/create-new­ticket/ so you can create new ticket. If you still need assistance, please visit us at www.ceenee.com
Your CeeNee product includes TBD days of free technical support during the applicable warranty period for your product. The TBD day period commences on the date of your first telephone contact with CeeNee technical support. To help us keep you informed of new features and services, remember to register your CeeNee product online at
https://ceenee.com/wp-signup.php
70
Troubleshooting
Problem
Solution
DISPLAY
The TV screen is blank and the CeeNee player power LED remains off.
• Make sure the TV is turned on.
• Make sure that the power adapter and power outlet
are okay.
• Make sure that the interface cable is properly
attached to the correct terminals on both the TV and the CeeNee player.
The TV screen is blank and the CeeNee player power LED is ON.
• Make sure the TV is turned on.
• Make sure that the interface cable is properly
attached to the correct terminals on both the TV and the CeeNee player.
• Press the reset button for 10 seconds.
The TV screen is blinking and fuzzy.
• Make sure that the interface cable is properly
inserted on both the TV and the CeeNee player.
• Make sure the CeeNee player power LED is on.
• If you are using a standard definition TV, Make
sure that the Composite option is selected as the video output.
• If you are using an LCD TV, Make sure that the
HDMI option is selected as the video output.
• Make sure that the video resolution option is set as
Auto.
• Make sure the TV system setting matches the
system used in your region.
The pictures are distorted on display screens.
• Navigate to the Settings | Photo and select Keep as
original or Fit to screen in the Photo Scaling field
FILES
Some of the media files do not play.
• Verify compatibility of the media file with the
CeeNee player. Refer to “Supported formats” in
71
user manual.
AUDIO
There is no sound.
• Make sure the volume on the entertainment unit is
not muted.
• Make sure the correct audio output setting is
selected.
• If you are using an optical and/or HDMI
connection, make sure the entertainment unit is capable of processing bit streams otherwise PCM setting should be selected.
• If there is no sound from the microphone, please
press the Power button on the remote control to turn the player off. When it is off, press the power again to turn back on.
USB DEVICE
The attached USB device is not visible on the Home screen.
• CeeNee Network Media Player only supports mass
USB storage mode. Make sure that the USB device is configured as a "mass storage device."
• Make sure the USB device’s file system is
supported (NTFS, FAT/FAT32)
REMOTE CONTROL
The CeeNee player remote control does not work.
• Press only one button at a time.
• Make sure the batteries are properly inserted.
• The batteries may already be drained out. Replace
batteries with new ones.
• Make sure that the path between the remote control
and the CeeNee player is not blocked.
72
KEYBOARD
Keyboard Remote
Un/plug Power Power
Esc Eject
0 0
1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
9 9
Plus sign (+) Vol +
Minus sign (-) Vol -
F3 Menu
Delete Delete
Home Home
Backspace Return
Print Screen Info
F5 Time Seek
Page Down Previous Track
Page Up Next Track
F2 Play/Pause
F4 Stop
F6 Subtitle
F7 Repeat
Alt Bookmark
Scroll Lock Zoom
Insert 16:9
Pause Break Setup
F8 TV Mode
F9 Video
F10 Photo
F11 Karaoke
F12 Blue button
Enter OK
Up Up
Down Down
Left Left
Right Right
~ Mute
# Audio
> Fast Forward
< Rewind
End Slow
73
HISTORY
Created/Modified By
Date
Revision
Comment
KV
12/20/2012
1.0
First version
HMHT
08/15/2013
2.0
Second version
74
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
