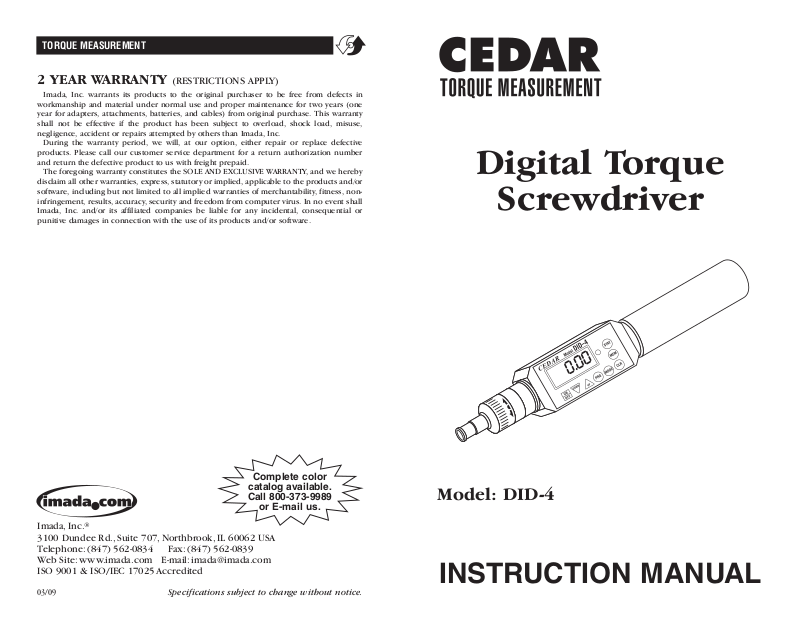

Cedar DID-4 Instruction Manual

TORQUE MEASUREMENT

2 YEAR WARRANTY (RESTRICTIONS APPLY)

Imada, Inc. warrants its products to the original purchaser to be free from defects in
workmanship and material under normal use and proper maintenance for two years (one
year for adapters, attachments, batteries, and cables) from original purchase. This warranty
shall not be effective if the product has been subject to overload, shock load, misuse,
negligence, accident or repairs attempted by others than Imada, Inc.

During the warranty period, we will, at our option, either repair or replace defective
products. Please call our customer service department for a return authorization number
and return the defective product to us with freight prepaid.

The foregoing warranty constitutes the SOLE AND EXCLUSIVE WARRANTY, and we hereby
disclaim all other warranties, express, statutory or implied, applicable to the products and/or
software, including but not limited to all implied warranties of merchantability, fitness, non­infringement, results, accuracy, security and freedom from computer virus. In no event shall
Imada, Inc. and/or its affiliated companies be liable for any incidental, consequential or
punitive damages in connection with the use of its products and/or software.

03/09

Complete color
catalog available.
Call 800-373-9989

or E-mail us.

Specifications subject to change without notice.

Imada, Inc.

®

3100 Dundee Rd., Suite 707, Northbrook, IL 60062 USA
Telephone: [phone] Fax: [phone]
Web Site: www.imada.com E-mail: [e-mail]
ISO 9001 & ISO/IEC 17025 Accredited

Digital Torque

Screwdriver

INSTRUCTION MANUAL

Model: DID-4

page 11page 2

TORQUE MEASUREMENTTORQUE MEASUREMENT

DIMENSIONS
DID-4

Specifications subject to change without notice

Read First: Safety Information

For safety, and for damage avoidance, be sure to read this manual
thoroughly. The warranty is only valid when the product is used fol­lowing the instructions provided within this manual.

●

Do not use tester in high temperature, high humidity, or in damp
or wet areas.

●

Recommended operating temperature is between 0-42ºC (32-100ºF).

●

Do not apply torque exceeding the rated capacity (35 lbf-in),
regardless of whether the unit is On or Off. Avoid shock load.

●

When charging the battery, be sure to use the provided AC
adapter/charger exclusively.

●

Do not use lacquer thinner or any solvent to clean the unit.

●

Do not disassemble or modify the unit.

Digital Torque Tester/Screwdriver
Model DID-4

List of Equipment

DIgital Torque Tester/Screwdriver

with CW and CCW ratchet (¼" female hex)

2 Phillips tips

AC adapter/charger

Carrying case

DID-4 Digital Torque Tester Ranges Accuracy ± 0.5% F.S., ±1 LSD

Capacity

ozf-in lbf-in kgf-cm N-cm N-m

DID-4 2.0~560.0 0.20~35.00 0.20~40.00 2.0~400.0 0.2~4.000

1

2

3

4

4

1

2

3

page 3page 10

TORQUE MEASUREMENTTORQUE MEASUREMENT

SPECIFICATIONS

ON/OFF Press to turn on or off (click once, do not hold). After 10

minutes of non-use the unit shuts off.
MODE Select Real Time, PP (Peak), PD (Peak Down), C
(Continuous Output mode)

CLEAR Reset display to zero and send data to memory
LCD display Displays torque value, battery icon, mode & units.
GO/NG Indicator Green for values between LO and HI setpoints,

flashing red for values above HI, solid green for data output

DOWN Change values or numeric places
UP Change values or options
PRG Enter programming mode or enter values
MEM Display memory locations and data
STAT Display statistics; number of records, Max, Min, and Ave

DC INUSB PORTRATCHET RESET

CHARGE LIGHT

BATTERY ICON

MODE STATS UNITS

Ratchet Operation CW, CCW and fixed positions
USB Port Send data to computer via USB cable
Charge light lights when charging, off when complete.
DC IN AC charger/adapter receptacle
RESET System reset button

1

2

3

4

5

6

7

8

9

10

6 7 8

9

10

21 3

4

5

Measuring range 2.0~560.0 ozf-in 0.20~35.00 lbf-in 0.20~40.00 kgf-cm

2.0~400.0 N-cm 0.2~4.000 N-m

Accuracy ± 0.5% F.S., ±1 LSD
Display 4 digit LCD
Operation CW, CCW and fixed position
Measuring modes PP: Peak Mode displays PEAK torque value that will not change until a

higher value is measured.
PD: Peak Down Mode Captures first peak down value above the PDLO
Real Time: Displays transient torque values
C: Real-time Output 180 data per second

GO/NO GO testing Programmable High and Low setpoints with both audible beep and

Green/Red LED indicator

Statistics Number of data, maximum, minimum and average
Data transfer ASCII, 19200 bps, USB miniB cable
Data memory 800 data
Batch Counter 1-99 (CW only)
Power supply Ni-Cad rechargeable batteries 1.2V×4cells 600mAh
Auto power save Automatic switch off after 10 minutes of non-use
Charging time From empty - less than 5hours
Working time 12 hours continuous use
Bit size 6.35mm
Weight 430g
Accessories AC/DC Adapter/Charger, 100~230VAC, 2 Phillips bits, NIST certificate

page 9

TORQUE MEASUREMENT

page 4

TORQUE MEASUREMENT

Output is available in PD, PP and C modes. In PD and PP modes peak
data is output when ZERO is pressed or activated by the AUTO ZERO
function. In C mode, the gauge outputs data continuously 160
data/second.

Comport signal

8 data, 2 stop, no parity. Baud Rate: 19,200 bps.

Output Connector

USB A/B cable

Peak Data Output Format

[CAN] _ _ _ [SO] [value] _ [SI] [unit] [CR]

(_ _ _ is memory location)
[CAN]: ASCII control code 24
_: Space (code 32)
[SO]: ASCII control code 14
[value]: Output data with sign and decimal point. Plus sign

represents for CW torque and minus sign for CCW.

[Value] always occupy six locations and empty

locations will be filled with spaces.
[SI]: ASCII control code 15
[unit]: N*m _ _ _=N.m

kgf*cm = kg.cm

lb*in _ = lb.in
[CR]: ASCII control code 13 (Carriage Return)

Continuous Output Data Format

[CAN] [value] [CR]

GENERAL OPERATION

1. Press and hold MODE for one second to select from the follow­ing Measuring Modes.

Real Time–Displays torque transients (no output or indicator)
PP Mode– Peak, captures peak torque (peak data output, PP

appears on the display)

PD Mode– First Peak, capture first peak value (peak data

output, PD appears on the display)

C Mode– Continuous RS-232 output Display and output

torque transients (180 data/sec., C appears on
the display)

2. Insert Phillips tip into the screwdriver.

3. To select ratchet operation turn the ratchet one
click clockwise or counter-clockwise from the
center position. To disable ratcheting, turn it so
the semi circle is in the center position.

4. Press the CLEAR button on the display unit to
zero the display. Insert the screwdriver tip into
the screw, hold perpendicularly (not at an
angle), and turn to measure.

5. After measuring, press CLEAR to zero the display for the next test.

PROGRAMMING

Press POWER to turn on. Press PRG for one second. The display
shows, "HI" and then the High setpoint value. This confirms the
tester is ready for the following programming steps.

1. High Setpoint (HI)

After "HI" is displayed and the High setpoint
value, press DOWN to move the numeric
place and press UP to select values i.e. 50.0
for 50.0 lbf-in, then press PRG to enter.

2. Low Setpoint (LO)

After High value is entered, "LO" is displayed,
then the Low setpoint value. Press DOWN to
move the numeric place and press the UP to
select values, then press PRG to enter.

8

7

6

page 5

TORQUE MEASUREMENT

page 8

TORQUE MEASUREMENT

The PC and tester will communi­cate through the USB port the
same as a com port. To verify the
COM port number open the
Device Manager.

OUTPUT

USB Virtual COM Port

When the tester is con­nected to a computer’s
USB port and turned on,
Windows XP or Vista will
recognize the tester and
ask to connect to the
Internet. Allow Windows
Update to connect to the
Internet and follow the
instructions on your screen
to download and install
two drivers for the USB virtual com port. For Windows 98, ME and
MAC go to www.ftdichip.com/Drivers/VCP.htm.

3. Peak Down Minimum (PdLO)

After Low value is entered, "PdLO" is displayed, then the PdLO
value. Press DOWN to move the numeric place and press the UP
to select values, then press PRG to enter.

PdLO sets a minimum torque value for Peak Down mode. For
example, if "PdLO" value is set at 5.0 lbf-in, only a reading over

5.0 lbf-in will be measured in Peak Down mode.

4. Continuous Data Output Minimum (CLO)

After Peak Down value is entered, "CLO" is displayed, then the
CLO value. Press DOWN to move the numeric place and press
the UP to select values, then press PRG to enter.

CLO sets the start and stop trigger points for Continuous data
output. When torque reaches the CLO value, the tester starts to
output data and stops if torque falls below the value. Note: the
display does not show any value below the CLO minimum.

5. Auto Zero Reset (AC)

After Continuous Data Output Minimum is entered, "AC" is dis­played, then the Auto Zero Reset duration value. Press UP or
DOWN to select 0.0C - 0.1C - 0.5C - 1.0C - 1.5C - 2.0C - 2.5C -

3.0C, and press PRG to enter (0.1C for 0.1 second and 0.0C for
MANUAL RESET).

After measuring, Auto Zero automatically resets the tester to "0.0".

6. Batch Counter (CO)

After the Auto Zero value is entered, "CO" is displayed, then the
CO value. Use the UP or DOWN keys to select a value and press
PRG to enter (0-99, clockwise only).

7. Interval (In)

After the Batch Counter value is enetered, "In" is displayed, then
the In value. Use the UP or DOWN keys to select a value and
press PRG to enter (0-24 seconds in 2 second increments).

8. Beeper (bp)

After Interval value is entered, "bp" is displayed, then "On". Press
UP or DOWN to select On, OFF, or FF, then press PRG to enter.
"On"– beeper sounds for Good, NG and capacity overload
"OFF"– beeper sounds for capacity overload only
"FF"– beeper sounds for NG and capacity overload.

page 7

TORQUE MEASUREMENT

page 6

TORQUE MEASUREMENT

9. Units (Un)

After the Beeper is programmed, "Un" is displayed, then the current
unit selection. Press UP to cycle the units; lbf-in, ozf-in, kgf-cm,
N-m and N-cm.

After Units are entered, "-S-" is displayed to confirm programming
completion and zero is shown.

After High and Low setpoints are set and beeper is set to On,

In PP mode

Under LO setpoint– No LED light or beep
Over LO– Green LED lights
Over HI– Red LED flashes and beep sounds

In PD mode– no indicator or beep for values before Peak
down is sensed.

Under LO setpoint– Red LED flashes and slow beep sounds
Between LO and HI– Green LED lights and constant tone sounds
Over HI– Red LED flashes and fast beep sounds

In Real Time and C mode

Under LO setpoint– no LED light or beep
Between LO and HI– Green LED lights and beep sounds
Over HI– Red LED lights and beep sounds

DATA MEMORY

Storing and Recalling Data from Memory

Memory functions work in PP and PD modes. Store up to 800 val­ues in memory.

1. Measure in PP or PD mode, when the display resets by either
Auto Zero or manually pressing CLR, the peak value is stored.

2. To recall a value, press MEM and the last stored memory is dis­played. Press UP or DOWN to select a memory location (i.e.
.0.0.1 for first location) and torque value. The display cycles
between memory location and value.

Clearing Data from Memory

Single clear: Press MEM, then press UP or DOWN to move to a

memory location. When the desired memory value is displayed,
press CLR, "CLR" is displayed. Press CLR again to clear the data and
"– – – –" is displayed to confirm deletion.
All clear: Press CLR and hold until the display shows "ALL" then
press CLR again and "– – – –" is displayed to confirm deletion.

Downloading Memory Data

1. Press ON/OFF to turn on.

2. Press MEM and after memory data is displayed press MEM again
and "FA" is displayed. Use UP or DOWN to select the first memo­ry location then press MEM and "LA" is displayed. Use UP or
DOWN to select the last memory location. Press MEM again and
data is sent. While data is output -P- is displayed.

Note: By pressing DOWN switch for more than 1 sec, the download
function can be terminated.

Statistics

Press STATISTICS and the number of data, Max, Min, and Avg are dis­played in sequence.

Auto Power Off

To maximize the life of the battery, power automatically shuts off
after 10 minutes of non-use.

Low Battery Indicator

Battery indicator status shows full, half or needs recharging.
If the battery is empty, power is turned off immediately.
IMPORTANT! Use the provided CEDAR AC adapter/charger
exclusively and plug into the correct AC output. It takes 5 hours to
fully recharge for 12 hours of continuous use. When fully charged,
the charge light goes off.

System Reset

When battery power is completely depleted, the tester may not
work even though it has been recharged. In this case, press the
System Reset Button.
