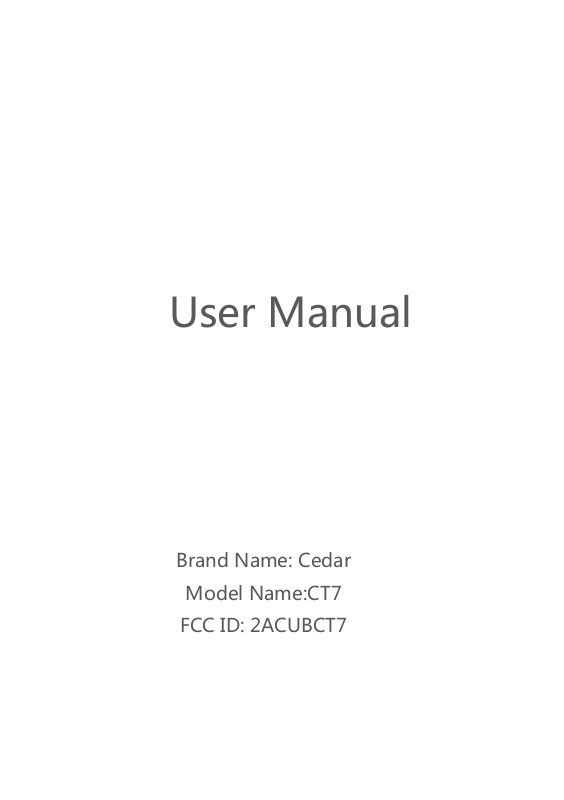

User Manual
Brand Name: Cedar
Model Name:CT7
FCC ID: 2ACUBCT7
Using this manual
Thank you for purchasing this tablet PC device. This device will provide
you with high quality tablet PC communication and entertainment based
on exceptional technology and high standards.
This user manual has been specially designed to guide you through the
functions and features of your device.
Read me first
This user manual includes important safety precautions and operation
guide. For avoiding accident, please read this manual carefully before
operating your tablet.
• This tablet is suitable for the non-tropics.
• Do not connect your tablet with other equipment without permission.
• Prohibit strictly to use other specification of battery.
• Prohibit strictly to charge battery under the Mine.
• Do not leave your tablet in car with windows closed in hot summer.
• Do not turn the volume too high. If you feel tinnitus, please turn down
the volume.
• Please charge when it is at below condition.
1. Battery icon indicates no power.
2. Tablet power off automatically and power off again soon after
reboot.
• Do not disconnect your tablet while uploading, downloading or
formatting to avoid a program error.
• Do not disassemble your tablet by yourself. Do not use alcohol,
diluents or Benzene to clean its surface.
• Do not use your tablet at the area where electronic devices are
forbidden, such as on flight.
• Do not operate your tablet when driving or walking at street.
• USB port is for data transmission and charging. (Please use the
original USB cable).
• Do not turn off your tablet when it is connecting to PC or other device.
CONTENTS
Part 1 QUICK GUIDE ................................................................................ 1
INTERFACE INTRODUTION .............................................................. 1
INDICATOR ICON ............................................................................. 2
PREPARATION ................................................................................. 4
TURN ON/OFF THE MACHINE ................................................. 4
CHARGE THE BATTERY ............................................................ 4
INSERT A MEMORY CARD........................................................ 4
REMOVE THE MEMORY CARD................................................. 5
TO INSTALL SIM ....................................................................... 5
CHECK RUBBER CONNECTORS ................................................ 5
SPECIFICATION ........................................................................ 5
Part 2 INSTRUCTION ................................................................................ 6
LOCKING / UNLOCKING SCREEN ..................................................... 6
GET TO KNOW THE MAIN SCREEN .................................................. 7
SETTING ........................................................................................... 8
SYSTEM SETTING ..................................................................... 8
WIRELESS&NETWORKS ........................................................... 9
DEVICE ................................................................................... 10
PERSONAL ............................................................................. 10
SYSTEM .................................................................................. 11
USB CONNECTION ................................................................. 11
POWER OFF ................................................................................... 12
Part 1 QUICK GUIDE
INTERFACE INTRODUTION
1
1．SOS Key：Poke the hole to make a SOS call.
2．Card Slot：use for SIM Card
3．Card Slot：use for TF-Card
4．Power Button：Press power button to select power off or press for 10
seconds to reset your tablet.
5．Camera Shortcut Key：use for opening Camera function
6．External Module Jack：use for connecting with external modules
7．Volume Button：to control the volume for –
8．Volume Button：to control the volume for +
9．Front Camera：2.0 MP
10．Charging Lamp：to indicate the charging status of battery
11．Receiver：to listen to the coming call
12．MIC: Used for record
13．Shortcut key for Back to last step
14．Shortcut key for back to Home page
15．Shortcut key for back to Menu
16．Rear Camera：8.0 MP
17．Flash for Rear Camera
18．Speaker：Left speaker and right speaker
19．Dock contactor： use for connecting PAD with Charging Dock for
Charging
20．Micro USB：Connect to external USB device or other mobile device.
21．Earphone Jack: The built-in speaker will shut down automatically
when plug in the earphone.
INDICATOR ICON
Icons shown on the display may vary depending on your region or service
2
ICON
FUNCTION
Return
Go to the opening screen
Check the running applications
WLAN connected
Auto-rotate screen
Adjust screen brightness
Notification
Setting up
Bluetooth activated
New text or multimedia message
Alarm activated
Error occurred or caution required
Battery power level
Connected to PC
provider.
3
PREPARATION
TURN ON/OFF THE MACHINE
Pressing “power button” for 3 seconds, you will see the loading screen
and then the opening screen.
Pressing “power button” for 3 seconds, you will see a power-off option
notice.
Tap “Power off” to turn off your tablet.
Notes:
• Follow all posed warnings and directions from official personal when in
areas where the use of wireless devices is restricted, such as airplanes
and hospitals.
CHARGE THE BATTERY
Before using the device for the first time, you must charge the battery.You
can charge the device with a adapter.
Notes:
1.Whenyour battery islow, the device will display a low battery message,
the battery icon will also be empty. If the battery level becomes too
low the device will automatically power off. Recharge your battery to
continue using your device.
2. If the battery is completely discharged, you can not turn on the
device, even with the travel adapter connected. Allow a depleted
battery to charge for a few minutes before you try to turn on the
device.
INSERT A MEMORY CARD
To store additional multimedia files, you can insert a memory card. Your
device accept micro SD memory card with maximum capacities of 32GB
(depending on memory card manufacturer and type).
• Insert a memory card with memory card slot.
4
Product Module
7〞Tablet PC
Brief Introduction
tri-proof
Chipset
Qualcomm Quad-core 8*25Q 1.2GHz
Built-In OS
Android 4.1.2
RAM Density
1GB DDR2
FLASH MEMORY
16GB
LCM
800*1280 IPS Panel
REMOVE THE MEMORY CARD
Before removing a memory card, first uninstall it for safe removal.
1. In idle mode, select Applications → Settings→ Storage →Uninstall SD
card →OK.
2. Remove the memory card.
Notes: Do not remove a memory card while the device is transferring or
accessing information, as this could result in loss of data or damage to the
memory card or device.
TO INSTALL SIM
When you subscribe to cellular service, you will receive a subscriber
identity (SIM) card, with subscription details, such as your personal
identification optional services, to use network data services.
• Insert a SIM card with SIM card slot.
Notes:
Do not remove a SIM card while the device’s modem power is not turn off.
CHECK RUBBER CONNECTORS
Please make sure that all kinds of rubber connectors havebeen locked
tightly before using the tablet PC.
SPECIFICATION
5
Touch Panel
Multi Capacitive Touch
Support
3G、Wi-Fi 、GPS、Bluetooth
Camera
Front: 2.0 M Pixel ; Rear: 8.0 M Pixel
Battery
Li-Polymer 7000mAh/3.7V
Connection Slot
SIM Card / MicroSD Card / Micro USB /
30pin USB / Earphone Jack
Part 2 INSTRUCTION
LOCKING / UNLOCKING SCREEN
To operate the tablet PC, swipe the locking screen to unlock.
6
When the screen is unlocked, the camera will be accessible.
GET TO KNOW THE MAIN SCREEN
When the device is in idle mode, you will see the idle screen. The idle
screen has multiple panels, scroll left or right to a panel of the idle screen.
You can also select a dot at the bottom of the screen to move the
corresponding panel of the idle screen directly.
7
Quick setting
Quick
setting
Application
screen
SETTING
SYSTEM SETTING
Tap the settings icon to enter system settings.
8
8
WIRELESS&NETWORKS
• Wi-Fi
9
It is for setting wireless device and turning it on/off.
• Bluetooth
It is for setting bluetooth device and turn it on /off.
Note: hotspot mode is supported.
• NFC
Turning on the paring mode, prepare your NFC supported device and
swipe the NFC area to detect the device and then it will complete the
paring automatically.
• Data usage
Measured by your tablet, your carrier’s data usage accounting may
different.
• More
It includes two parts about VPN settings and Mobile networks settings.
DEVICE
• Sound
It is for setting volume, notice ring, default notification etc.
• Display
It is for setting brightness, wallpaper, auto-rotate screen, sleep and front
size.
• Storage
It is for checking the memory capacity and memory usage status.
• Battery
It is for checking battery use .
• Apps
It is for management application.
PERSONAL
• Location services
It is for setting Google’s location service 、 GPS satellites and
Location&Google search.
• Security
It is setting Screen lock, owner info, encrypt tablet etc
• Language & input
10
It is setting language, default language, personal dictionary , etc.
• Backup & reset
It is for restoring factory setting etc.
SYSTEM
• Date & time
It is for setting date and time.
• Accessibility
It is for setting touch & hold delay etc.
• Developer options
It is for setting USB debugging,etc.
• About tablet
It is for showing some information about tablet.
USB CONNECTION
You must first configurate the Storage Mode before transferring file in
storage setting.
Use USB cable to connect your phone to a computer, and it will pop up a
notification message in the pull down notification bar.
That means that the phone has successfully connected to the computer by
USB.(The default connection will be in charging mode)
11
You can manually select the USB storage device, then it can connect to
the PC successfully.
POWER OFF
When you do not use the tablet PC, you can press the power button to
switch it off.
12
13
TROUBLE SHOOT
Your device displays network or service error messages.
When you are in areas with weak signals or poor reception, you may lose
reception, move to another area and try again.
If “?” icon displaying with 3G signal,take notice the plugging
direction for SIM card.
You cannot access some optional without a subscription, contact your
service provider for more details.
The touch screen responds slowly or improperly.
If your device has a touch screen and the touch screen is not responding
properly, try the following:
1. Remove any protective covers from the touch screen, protective
covers may prevent the device from recognizing your inputs and are
not recommended for touch screen devices.
2. Ensure that your hands are clean and dry when tapping the touch
screen.
3. Restart your device to clear any temporary software bugs.
4. Ensure that your device software is upgraded to the latest version.
5. If the touch screen is scratched or damaged, take it to your service
center.
Your device is hot to the touch.
When you use applications that require more power or use applications on
your device for an extended period of time, your device may feel hot to the
touch, this is normal and should not affect your device’s lifespan or
performance.
A connection is not established when you connect the device to a PC.
1. Ensure that the USB cable you are using is compatible with your
device.
2. Once connected properly,the charging indicator LED will be red or
14
green.
3. Ensure that you have the proper drivers installed and updated on
your PC.
Reset Tablet: Once it happened to be down or could
not power on, Press the Power Key for 10 seconds to reset
the tablet.
1/OTG function: Expansion port in the flat side of the fuselage 30pin
leads, not the lead in the bottom of the 5pin Microi USB.
2/OTG function and charging can not be used at the same time:
When using an external OTG function mouse, keyboard and U disk,
this time can not be charged for the tablet.
FCC RF EXPOSURE INFORMATION:
WARNING!! Read this information before using your phone
In August 1986 the Federal Communications Commission (FCC)
of the United States with its action in Report and Outer FCC 96326 adopted an updated safety standard for human exposure to
radio frequency (RF) electromagnetic energy emitted by FCC
regulated transmitters. Those guidelines are consistent with the
safety standard previously set by both U.S. and international
standards bodies. The design of this phone complies with the
FCC guidelines and these international standards. Use only the
supplied or an approved antenna. Unauthorized antennas
modifications, or attachments could impair call quality, damage
the phone, or result in violation of FCC regulations. Do not use
the phone with a damaged antenna. If a damaged antenna comes
into contact with the skin, a minor burn may result. Please
contact your local dealer for replacement antenna.
BODY-WORN OPERATION:
This device was tested for typical body-worn operations with the
back of the phone kept 10mm from the body. To comply with
15
FCC RF exposure requirements, a minimum separation distance
of 10mm must be maintained between the user's body and the
back of the phone, including the antenna. Third-party belt-clips,
holsters and similar accessories containing metallic components
shall not be used. Body-worn accessoriesthat cannot maintain
10mm separation distance between the user’s body and the back
of the phone, and have not been tested for typical body-worn
operations may not comply with FCC RF exposure limits and
should be avoided.
For more information about RF exposure, please visit the FCC
website at www.fcc.gov
Your wireless handheld portable telephone is a low power radio
transmitter and receiver. When it is ON, it receives and also
sends out radio frequency (RF) signals. In August, 1996, the
Federal Communications Commissions (FCC) adopted RF
exposure guidelines with safety levels for hand-held wireless
phones. Those guidelines are consistent with the safety
standards previously set by both U.S. and international
standards bodies:
<ANSIC95.1> (1992) / <NCRP Report 86> (1986) / <ICIMIRP>
(1996)
Those standards were based on comprehensive and periodic
evaluations of the relevant scientific literature. For example, over
120 scientists, engineers, and physicians from universities,
government health agencies, and industry reviewed the
available body of research to develop the ANSI Standard (C95.1).
Nevertheless, we recommend that you use a hands-free kit with
your phone (such as an earpiece or headset) to avoid potential
exposure to RF energy. The design of your phone complies with
the FCC guidelines (and those standards).
16
Use only the supplied or an approved replacement antenna.
Unauthorized antennas, modifications, or attachments could
damage the phone and may violate FCC regulations.
NORMAL POSITION:
Hold the phone as you would any other telephone with the
antenna pointed up and over your shoulder.
RF Exposure Information:
This product is compliance to FCC RF Exposure requirements and refer
to FCC website search for FCC ID: 2ACUBCT7 to gain further
information include SAR Values.
This device complies with part 15 of the FCC rules. Operation
is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE: The manufacturer is not responsible for any radio or
TV interference caused by unauthorized modifications to
this equipment. Such modifications could void the user’s
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
17
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for
help
Do not use the device with the environment which below
minimum -10℃ or over maximum 50℃, the device may not
work.
Changes or modifications to this unit not expressly approved
by the party responsible for compliance could void the user’s
authority to operate the equipment.
Ad Hoc function is supported but not able to operate on non-US
frequencies.
18
Loading...
