Cecilware WHIPPER MINI, WHIPPER User Manual

GOURMET HOT BEVERAGE DISPENSER

Models:

ICAP1 ICAP1-P ICAP-MINI WHIPPER WHIPPER MINI

OPERATIONAL MANUAL

Specifications

Installation & Operating Instructions

Adjustments

Care & Maintenance

Trouble Shooting Guide

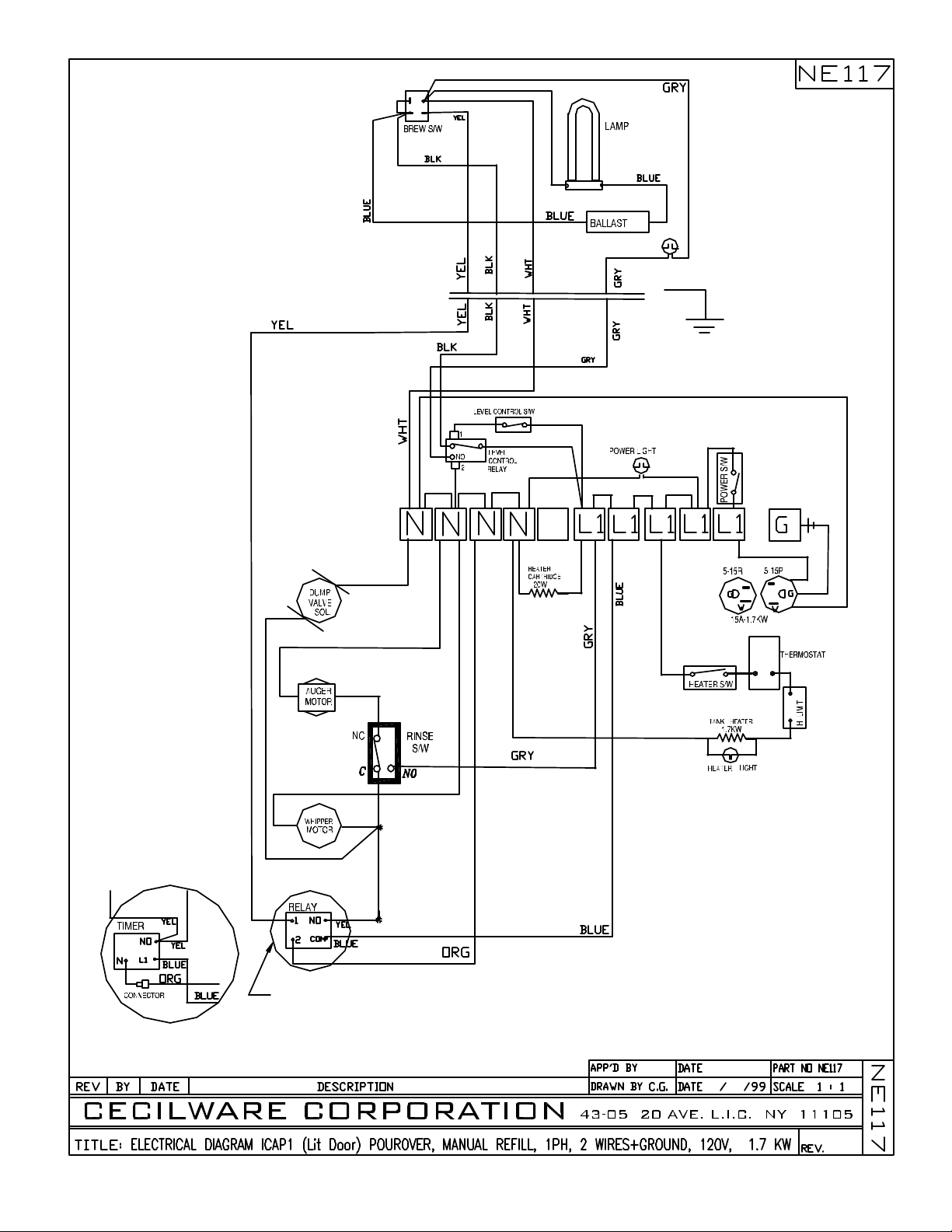

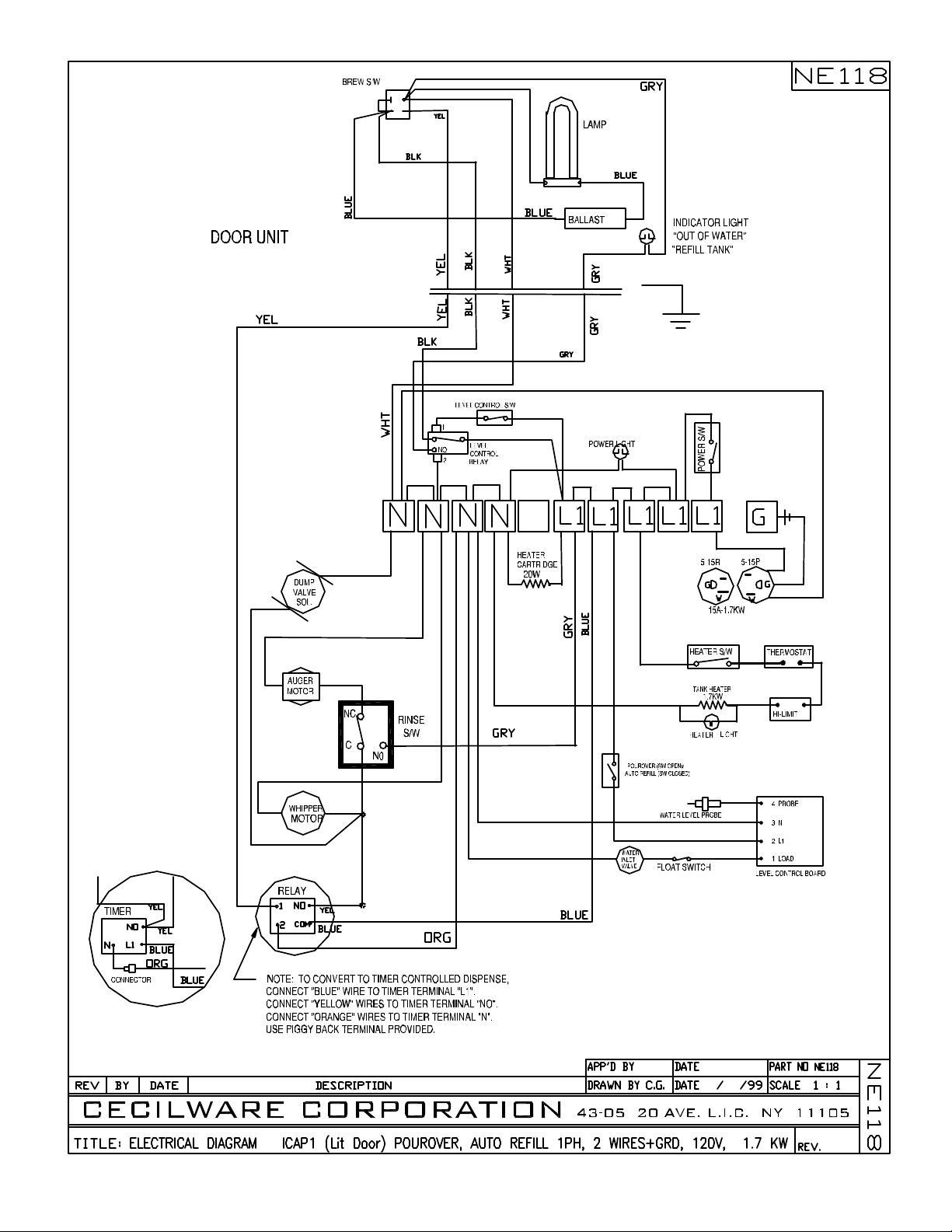

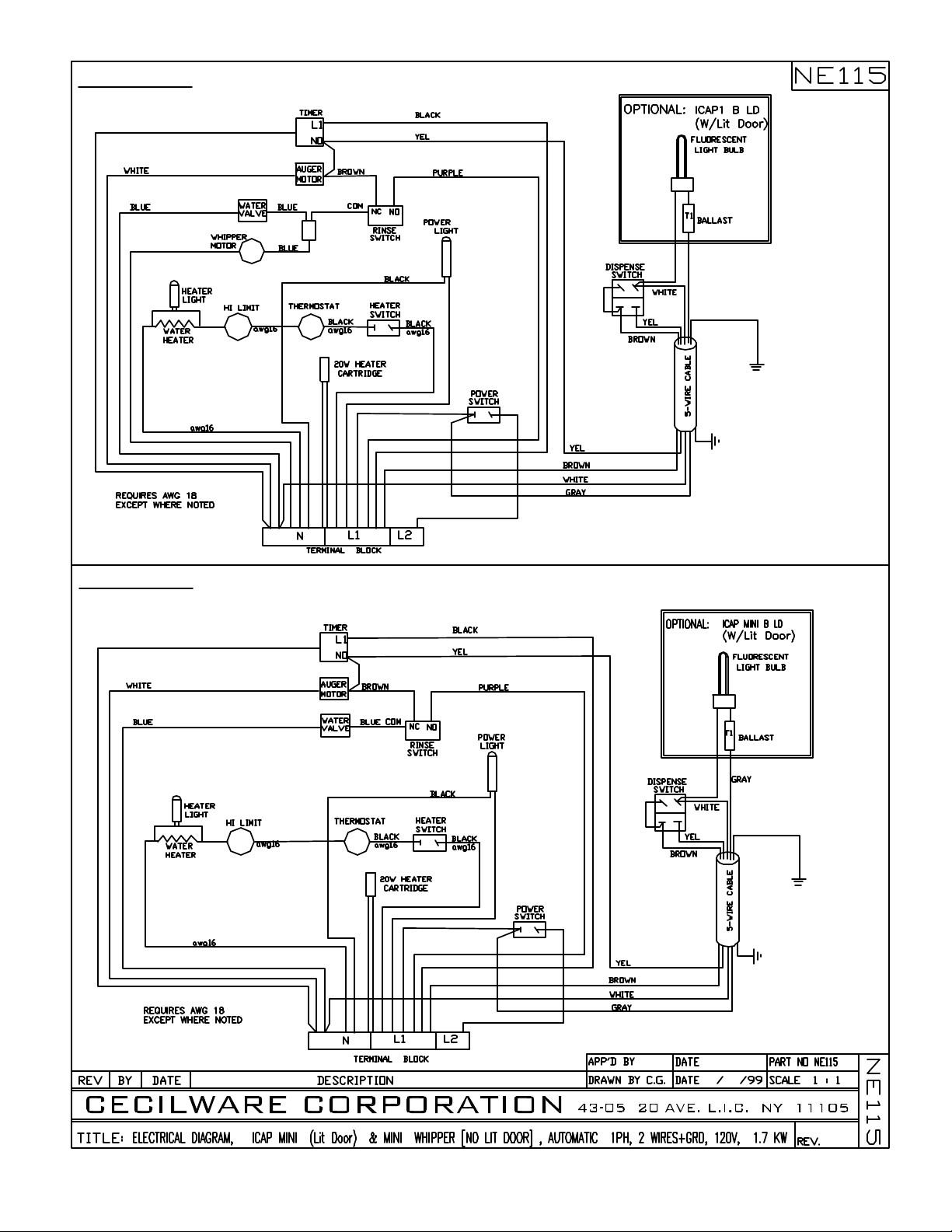

Wiring Diagram

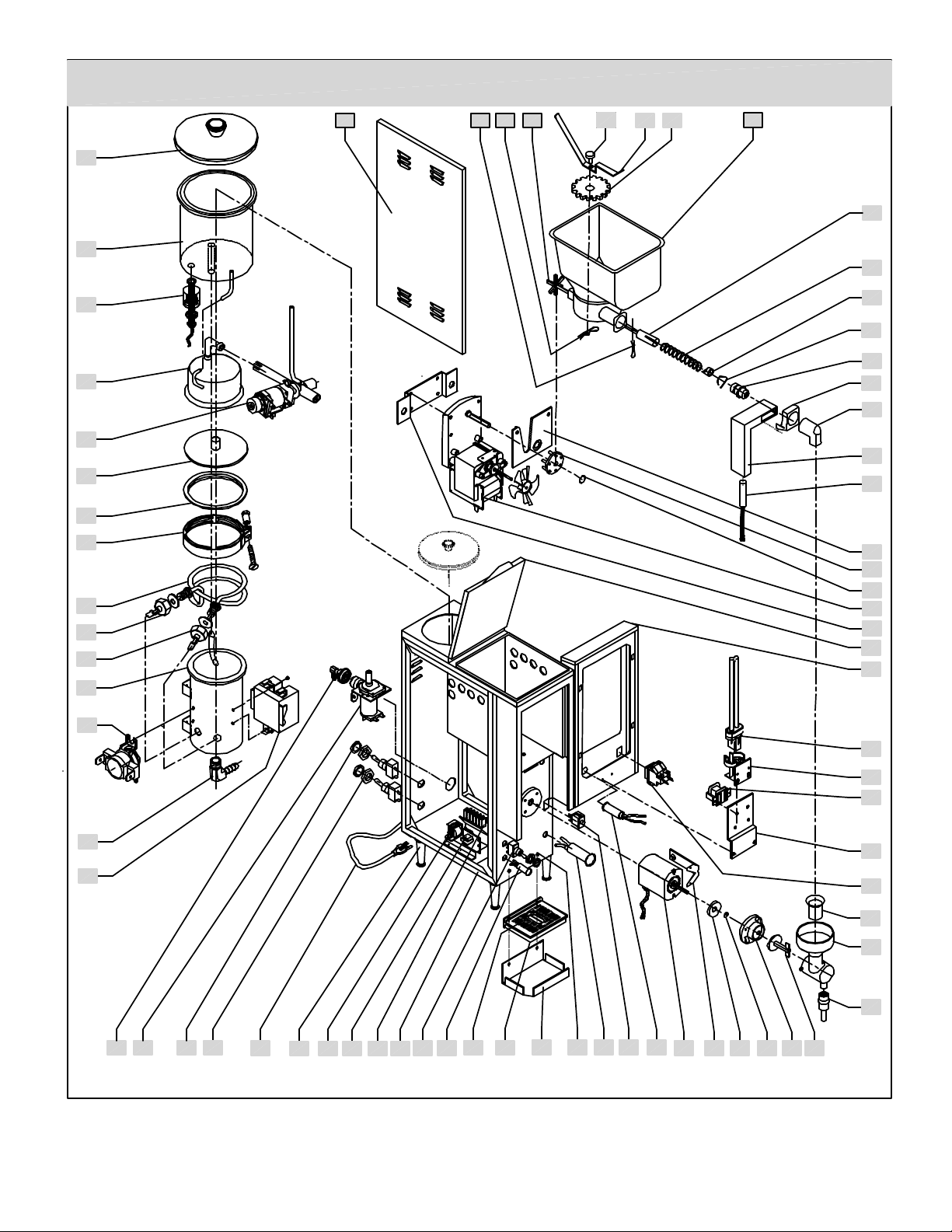

Parts List

THIS EQUIPMENT IS TO BE INSTALLED TO COMPLY WITH

THE APPLIC ABLE FEDER AL, STATE, OR LO CAL PLUMBING CODES HAVING JURISDICTION.

IN ADDITION:

1. A QUICK DISCONNECT WAT ER CONNECTION OR ENOUGH EXTRA COILED TUBING (AT LEAST 2X THE DEPTH OF THE UNIT) SO THAT THE MACHINE CAN BE MOVED FOR CLEANING UNDERNEATH.

2. AN APPROVED BACK FLOW PREVENTION DEVICE, SUCH AS A DOUBLE CHECK VALVE TO BE INSTALLED BETWEEN THE MACHINE AND THE WATER SUPPLY.

Cecilware sells value... Worldwide.

43-05 20th Avenue, Long Island City, NY 11105 · 718-932-1414 FAX: · 718-932-7860

1

NA64A 6/99

SPECIFICATIONS

MODELS: ICAP 1 B LD WHIPPER B ICAP1 B LD ICAP B LD WHIPPER B

STORAGE CAPACITY

Hopper Capacity [lb.] 8 8 8 8 8 Tank Capacity [gal.] 1.5 1.5 1.5 0 .6 0.6

PRODUCTION CAPACITY

Continuous Draw Rate [o z/drinks/min.] [drinks / hour]

2 (6 oz.) drinks/min

120

2 (6 oz.) .

120

2 (6 oz.)

120

2 (6 oz.)

60

2 (6 oz.)

60

Burst Capacity [oz.], drinks 28 (6 oz.) 28 (6 oz.) 28 (6 oz.) 12 (6 oz.) 12 (6 oz.)

BURST CAPACITY - Max. number of drinks dispensable with available hot water - based on 6 oz. cup. FLOW ADJUSTMENT RATE: STRENGTH ADJUSTMENT RANGE: RECOVERY TIME:

10 - 18 drinks [min.]

DISPENSING RATE:

DIMENSIONS & CONNECTIO NS

1 oz./sec.

22 - 34 gr/(6 oz.) drink

[1 oz./sec.]

Height [inches]: 23+2.5” legs 23+2.5” legs 23+2.5” legs 23+1” feet 23+1” feet

Width [inches]: 9 9 9 9 9 Depth [inches]: 21 21 21 16 16

CABINET MATERIAL: WATER INLET CONNECTION: WATER PRESSURE REQUIRED:

ELECTRICAL

Powder Coated Steel

1/4” Male Flare

30 -120 psi (2.1 - 8.6 kg/cm2 )

*Optional

Voltage: 110V or 220 V 110V or 220 V 110V or 220 V 110V or 220 V 110V or 220 V Frequency:

60 Hz/50Hz 60 Hz/50Hz 60 Hz/50Hz 60 Hz/50Hz 60 Hz/50Hz

Phase: Single Single Single Single Single Max. Amps: 15 A @ 115 V 15 A @ 115 V 15 A @ 115 V 15 A @ 115 V 15 A @ 115 V Heater Wattage [kw]:

1.7 1.7 1.7 1.5 1.5

TOP COVER

PROD UCT HOPPER

STEAM DEFLECTOR

PRODU CT GUIDE

CHAMBER INSERT

(PLAC E INSIDE

MIXING CHAMBER)

MIXING CHAMBER

EXTENSION

DR IP TRAY HOLDER

GRILL

DR IP TRAY

FRONT VIEW

ICAP1 B LD [w/lit door]

WHIPPER B [w/o lit door]

CLEANIN G LABEL

POWER CORD TO FRON T PANEL

RINSE SWITCH

HEATER SWITCH

HEATER LIGH T

SUPPORT LEG S

PRODU CT HOPPER

STEAM DEFLECTO R

MIXING CHAMBER

DRIP TRAY HO LDER

Illustration No. 1

2

TOP COVER

PRODU CT GUIDE

EXTENSION

RINSE SWITCH

GRILL

DRIP TRAY

POWER C ORD TO FRON T PANEL

HEATER SWITCH

H EAT ER LIG HT

SUPPORT LEGS

FRONT VIEW

ICAP MINI B LD [w/lit door]

MINI WHIPPER B [w/o lit door]

CLEANIN G LABEL

INSTALLATION REQUIREMENTS for ICAP1 B LD and WHIPPER B:

THIS EQUIPMENT IS TO BE INSTALLED TO COMPLY WITH THE APPLICABLE FEDERAL, STATE, OR LOCAL PLUMBING CODES HAVING JURISDICTION. IN ADDITION:

1. A QUICK DISCONNECT WATER CONNECTION OR ENOUGH EXTRA COILED TUBING (AT LEAST 2X THE DEPTH OF THE UNIT) SO THAT THE MACHINE CAN BE MOVED FOR CLEANING UNDERNEATH.

2. AN APPROVED BACK FLOW PREVENTION DEVICE, SUCH AS A DOUBLE CHECK VALVE TO BE INSTALLED BETWEEN THE MACHINE AND THE WATER SUPPLY.

INSTALLATION:

1. Flush inlet water line thoroughly before connecting. If pipe sealant is necessary, teflon tape is commended.

2. Connect water line to the 1/4” flare fitting located at rear of the unit. A shutoff valve in the water supply line is advisable.

3. Check that heater switch is in the OFF position. Switch is located below DOOR ASSEMBLY lower right side corner.

4. Turn on water. Check water line and fittings for leaks.

5. Plug the power cord into a grounded 120 volt, 60 Hz 15 Amp outlet, Single use. Press and hold Rinse Button until water flows through mixing chamber. It will take 2 to 4 minutes to fill the tank.

6. Fill hopper with DRY* powdered cocoa mix or cappuccino product. See filling instructions.

7. Turn heater switch on and allow 10 to 15 minutes for water to heat.

8. Push on Dispensing Button and check the operation of the hopper. A grinding noise will be heard if not properly engaged.

Go to Troubleshooting Guide.

9. Push on Dispensing Button and check the operation of the mixing chamber (for ICAP1 & Whipper ).

A scratching noise will be heard if whipper blade is not properly aligned. Go to Troubleshooting Guide.

10. Push Dispensing Button and check drink taste.

If adjustments are needed, see “Adjustments”.

DISPENSER OPERATION

FILLING

1. Open Front Door.

2. Lift Top Cover.

3. Fill hopper to desired level with DRY*

Powdered cocoa mix or cappuccino. Do not overfill or pack product down when filling.

4. Close Top Cover and Door.

DISPENSING

1. Place cup under mixing chamber spout.

2. a) For Manual Units (without Timer):

Press and hold push button until cup is approximately 2/3 full. b) For Automatic Units (with Timer): Press and release push button. Cup will fill to size set on Timer.

3. Remove cup when flow from mixing

chamber has stopped completely.

*Moist product will clog hopper and the unit will not operate properly.

Illustration No. 2 – (ICAP 1 B LD & WHIPPER B shown)

3

START UP INSTRUCTIONS FOR ICAP1 POUROVER CAPPUCCINO DISPENSER – see ill. 3

I. INSTALLATION INSTRUCTIONS

This equipment is to be installed to comply with the applicable Federal, State, or local plumbing codes having jurisdiction. In addition:

1. A quick disconnect water connection or enough extra coiled tubing (at least 2x the depth of the unit) so that the machine can be moved for cleaning underneath.

2. An approved back flow prevention device, such as a double check valve to be installed between the machine and the water supply.

The ICAP1 POUROVER beverage dispenser is equipped with a 3/4” Water Inlet Valve (¼" to 3/4” adapter supplied with the unit) which is located on the right side in the back of the base (when looking at the machine from the front).

HIGHLY RECOMMENDED: A WATER SHUT-OFF VALVE and A WATER FILTER, preferably a combination Charcoal/Phosphate Filter, to remove odors and inhibit lime and scale build up in the machine.

Note: In areas with extremely hard water, a water softener must be installed in order to prevent a malfunctioning of the equipment and in order not to void the warranty.

After the machine has been unpacked and placed on a counter, pull out the drip tray and splash guard. It should contain the following: A Set of 4 Adjustable Leveling Legs & Water Inlet Fitting.

Connect the ¼" dia. copper waterline to the ¼" flare water inlet fitting of the valve.

Caution: Do not plug into power outlet yet. Make sure the Heater Switch is OFF (Toggle Down).

II. PRIMING - MANUAL/BOTTLE POUROVER (Toggle UP, Water Selection Switch, on the back panel)

1. Do NOT plug into power outlet yet.

2. Make sure Heater Switch is in the OFF position, located in back of machine.

3. Fill reservoir tank (top) with 2 gallons of water, wait about 3 minutes for water to fill Heating Tank below.

Refill Top Reservoir Tank with another 2 gallons of water. The unit will NOT dispense unless the Top Reservoir Tank is at

least 1/2 full. So keep Reservoir Tank full

Note: The unit has a Float (item 3, Ill. 8) inside the Reservoir Tank, which stops the machine from dispensing when the Reservoir Tank is low.

4. Plug into power outlet.

5. Turn Heater Switch ON.

6. Allow 10 to 15 minutes for water to reach dispense temperature of 190°F. Heater Indicator Light (red) goes ON when

heater is on (see lower front panel).

7. Fill hopper with product.

8. Place cup under dispenser.

9. Push and hold Dispense Button (green) until water flows from mixing chamber.

10. Machine is primed and ready to go.

.

III. PRIMING INSTRUCTIONS FOR ICAP1 POUROVER

PRIMING - AUTOFILL (Toggle Down,Water Selection Switch, on the back panel)

1. Plug into power outlet.

2. Turn Heater Switch ON.

3. Allow 10 to 15 minutes for water to reach dispense temperature of 190°F.

Heater Indicator Light (red) goes ON when heater is on (see lower front panel).

4. Fill hopper with product.

5. Place cup under dispenser.

6. Push and hold Dispense Button (green) until water flow s from mixing chamber

7. Machine is primed and ready to go.

4

IV. POUROVER-PORTABLE BOTTLE OPERATION (Toggle UP, Water Selection Switch, on the back panel) UNIT CAN BE OPERATED WITH A 3 GALLONS CAPACITY FRESH WATER BOTTLE. TO OPERATE WITH PORTABLE BOTTLE, proceed AS FOLLOWS:

1. Remove Reservoir Tank Cover.

2. Make sure that Reservoir Tank is only 1/2 full or empty, to prevent water splillage. To remove excess water push dispense button.

3. Fill bottle with water .

4. Invert bottle into reservoir tank in one motion to minimize spillage.

5. Remove and refill bottle when “REFILL“ light is ON.

NOTE: REFILL LIGHT, ON THE FRONT DOOR PANEL, WILL GO ON, WHICH INDICATES THAT THE WATER TANK MUST BE REFILLED. WHEN REFILL LIGHT GOES ON, THE UNIT WILL NOT DISPENSE UNTIL TANK IS FILLED WITH WATER. REFILLING WITH HOT TAP WATER WILL SHORTEN HEAT UP TIME.

V. NORMAL OPERATION (POUROVER AND AUTOREFILL)

1. Place a 6 oz. or larger cup under dispense nozzle,

then press and hold dispense switch (green) for 6 seconds.

The machine will dispense water at the rate of 1 oz.

per second. Repeat it several times to check for consistent output.

BOTTLE

2. While the tank is heating up, remove the hopper, load with product and reposition it back in the machine.

RESERVOI R COVER

When Heater Light goes OFF, the tank has reached

its brew temperature and the machine is ready to begin dispensing the first cup of Cappuccino.

VI. WATER FLOW and

RESERVOIR TANK

DRINK STRENGTH ADJUSTMENTS

THE UNIT IS FACTORY ADJUSTED TO DISPENSE

WATER AND POWDER AT THE RATE OF 1.0 oz/ sec.

TO INCREASE OR DECREASE FLOW, PROCEED AS

FOLLOWS:

1. Remove left side panel and locate Dispense Valve Flow Adjuster on top of Heated Tank.

2. Locate Flow Adjustment Screw (white) on Dispense Valve.

3. Rotate Adjustment Screw Counterclockwise to IN- CREASE flow rate.

4. Rotate Clockwise to DECREASE flow rate.

When making strength adjustments, do not adjust by more than 1/4 turn at a time, without checking

WATER FLOW ADJUSTMENT, SCREW ON DISPENSE VALVE

HOT WATER TANK

INDICATOR LIGHT- RED "REFILL TANK WHEN ON"

DISPENSE BUTTON

drink strength (ratio of water to powder).

DRIP TRAY

Illustration No. 3 – ICAP 1 B LD POUROVER

5

DRINK STRENGTH ADJUSTMENTS

NOTE: The unit has been factory preset to deliver water at 1 oz. per second

A. TO ADJUST PRODUCT THROW (ILL # 4)

1. Open Door Assembly and remove Steam Deflector by pulling it forward.

2. To make adjustment use a screwdriver with 1/2 inch wide blade. Engage product adjuster as shown below and turn as follow.

3. Turn clockwise to increase drink strength or counter-clockwise to reduce it. Check drink strength after every half a turn. If after maximum adjustment, drink taste is not as desired proceed to adjust the water flow according to procedure B below.

4. Re-install Steam Deflector.

B. TO ADJUST WATER FLOW RATE (ILL. # 5

)

1. Remove right hand side cover of the unit. (looking at the unit from the front)

2. Locate Flow Adjustment Key inside unit mounted above water valve.

3. Engage Flow Adjustment Key into Flow Controller and rotate counterclockwise to decrease and clockwise to increase drink strength. When making strength adjustments, do not turn Adjustment Key more than 1/8” at a time without checking drink strength.

4. Return Adjustment Key back into keyholder. If after maximum adjustment, drink taste is still not strong as desired, take auger spring out of the hopper and re-

move the product adjuster.

C. DRINK SIZE ADJUSTMENT (ILL. # 6)

(AUTOMATIC UNITS - WITH TIMER)

1. Remove right side panel.

2. Turn knob on Timer right to increase or left to decrease drink size. The number 6 on the Timer indicates approximate drink size at a factory setting of 1 oz./sec. flow rate.

3. Press push button and check drink size. Repeat if

necessary, until desired drink size is dispensed.

4. Replace the side panel.

Illustration No. 4 – Product adjuster

Illustration No. 5 – Water Inlet Valve

Illustration No 6 - Timer

6

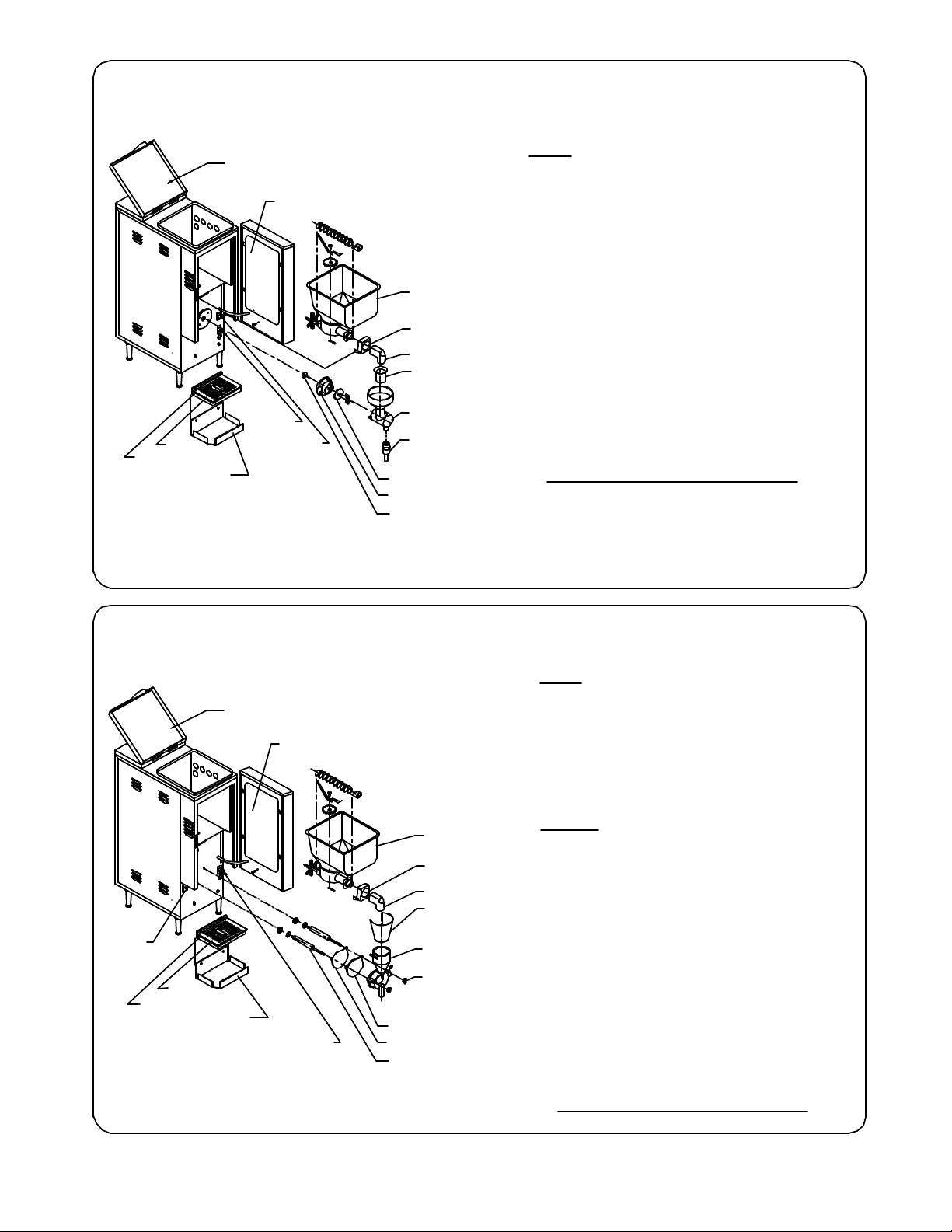

CLEANING INSTRUCTIONS

ICAP1 B LD (with Lit Door)

WHIPPER B (without Lit Door)

GRILL

DRIP TR AY

DR IP TRAY BRACKET

TOP COVER

CLEANING INSTRUCTIONS NA62C

HEATER SWITC H

RINSE SWITCH

PRODUCT HOPPER ASS'Y

STEAM DEFLEC TOR

PRODUCT SHUTE

MIXING CHAM BER INSERT

MIXING CHAM BER

MIXING CHAMBER EXTENSION

MIXER BLADE

MIXING CH AMBER MOUNT

SLINGER DISC

DAILY:

1. Wipe exterior of dispenser with a soft damp cloth. Deflector setup by pulling forward.

2. Disengage Product Hopper by lifting straight up, while retaining in the upright position.

3. Remove Mixing Chamber by turning Count erclockwise and pulling forward. A. Remove Mixing Chamber Insert by pulling up. B. Remove Mixing Chamber Extension by pulling down.

4. Remove Mixer Blade by pulling forward.

5. Wash Grill, Mixer Blade, Insert, Ext ension, and Mixing Chamber with a mild detergent.

6. W ipe upper compartment with a damp cloth.

7. Replace all parts including Hopper.

8. Dry thoroughly before reloading with product.

RINSE SWITCH

GRILL DRIP TR AY DR IP TRAY BRACKET

OPTIONAL

TOP C OVER

CLEANING INSTRUCTIONS

ICAP MINI B LD (with Lit Door)

MINI WHIPPER B (without Lit Door)

CLEANING INSTRUCTIONS

NB04A

HO PPER ASS'Y

STEAM DEFLECTOR

PRODU CT GUIDE

MIXING

CHAMBER EXTENDER

MIXING CHAMBER

WING N UT

SEAL (GASKET)

HEATER SWITCH

MIXING CH AMBER PLATE

MIXING CH AMBER SPACER

DAI LY :

1. Wipe exterior of dispenser with a soft dam p cloth. Deflector setup by pulling forward.

2. Wash Drip Tray with hot water.

3. Flush Mixing Chamber by depressing Rinse Button approximately 10 seconds.

WEEKLY:

NOTE: IN VERY HIG H VOLUME LOCATIONS, THIS PROCEDURE SHOULD BE DONE TWICE A WEEK.

1. Open Top Cover, Door Assembly, and remove Steam Deflector setup by pulling forward.

2. Disengage Hopper by lifting straight up, while retaining in the upright position.

3. Remove Mixing Chamber by unscrewing wing nuts.

4. Wash all components after removing.

5. Wipe upper compartment with a damp cloth.

6. Replace all parts including Hopper.

Illustration No. 7

7

7. Dry thoroughly before reloading with product.

TROUBLESHOOTING PROCEDURE

WARNING: To reduce the risk of electrical shock unplug the dispenser power cord before repairing or replacing any

internal components of the unit. Before any attempt to replace a component be sure to check all electrical

TROUBLE PROBABLE CAUSE REMEDY

Light Display does not go on. No power No water when Rinse Switch is depressed

a) Dispensing unit unplugged b) No power from terminal block a) Water supply off b) Clogged inlet screen (water valve)

a) Reconnect dispensing unit b) Check the terminal block for loose wire a)Turn on water b) Disconnect water line and clean inlet screen

No product when Dispense Button is depressed

Water does not shut off a) Leaking inlet water valve

Drink too strong a) Water flow too low

Drink too weak a) No product in hopper

Water drips from mixing chamber

a) No product in hopper b) Auger spring not working

c) Inoperative auger motor

d) Hopper outlet clogged

b) Malfunctioning Timer c) Inoperative dispense switch

b) Product throw too high

b) Product throw too low

a) Temperature too high b) Leaking inlet water valve c) Too much water in tank’s

a) Add product if auger spring is moving b) Engage hopper to auger motor’s gear Replace damaged coupling if needed Check connections of motor, relay and/or switch, if needed replace such component. d) Clean hopper and dry thoroughly

a) Clean and check all fittings of water valve. Replace water inlet valve b) Replace Timer (automatic units only) c) Check switch connections. Replace dispense switch

a) Adjust water flow (see To Adjust Water Flow Rate) b) Adjust product throw (see To Adjust Product Rate)) a) Add product b) Adjust product throw (see To Adjust Product Rate)

a) Adjust the thermostat accordingly b) Check fittings, if needed replace water valve c) Remove tank top and clean holes in inner

Cold drink a) No hot water

b) Run out of hot water

c) Tank does not heat up

Drink not whipped a) No whipper blade

b) Whipper blade stuck

c) Inoperative whipper motor

Noise coming from mixing chamber Light Display does not go on Defective light bulb and/or ballast. Check for loose wire or properly plugged light bulb.

Grinding noise coming from unit Dispenser repeats cycle. a) Malfunctioning Timer.

Whipper blade not properly aligned Check blade alignment, if needed replace blade and mix-

Hopper not properly engaged Check the mating between the auger motor’s gear and

b) Malfunctioning Dispense Switch

8

a) Allow tank to heat b) Allow tank to heat after filling c) Check for loose wire on either thermostat or heating element. Replace either or

a) Replace whipper blade b) Check blade alignment, if needed replace blade and mixing chamber c) Replace whipper motor

ing chamber

hopper’s coupling a) Replace Timer (automatic units only)

DESCRIPTION AND LOCATION OF COMPONENTS

ICAP1 B LD (with lit door) & WHIPPER B (without lit door)

Illustration No. 8

9

COMPONENTS IDENTIFICATION

ITEM DESCRIPTION P/N ITEM DESCRIPTION P/N

1 TANK TOP ASSY 97127 36 SLINGER DISC 83034 2 SILICONE TUBING 77184 37 "O" RING ? 3 DISCHAR GE TUBE ASSY 97122 38 MIXING CHAMBER MOUNT 83033 4 DISCHARGE TUBE BRACKET 73277 39 MIXER BLADE 90230 5 NOZZLE BRACKET RE81A 40 MIXING CHAMBER EXTENDER TUBE 77184 6 TANK BAFFLE ASSY 97198 41 MIXING CHAMBER 95001 7 TANK BAFFLE SEAL 20039 42 MIXING CHAMBER INSERT 83036 8 TANK CLAMP ASSY 97131 43 LAMP HOLDER MOUNTING BRACKET (lit door) RE52A

9 HEATER ELEMENT 1750W 120V G0140 44 BALLAST (for lit door only) CE221 10 WASHER, HEATER ELEMENT 07059 45 PRODUCT SWITCH L455C 11 NUT HEATER ELEMENT 03051 46 LAMP SOCKET - LEVITTON ( for lit door only) 44496 12 TANK LIMIT 97293 47 FLOURESCENT LAMP 9W ( for lit door only) L024A 13 HI-LIMIT TEMPERATURE CONTROL 59024 48 DOOR WELDMENT ASSY - ICAP 1 B LD (w/lit door) RC53Q

14 ELBOW, MALE 1/8 NPT X 1/4 09246 49 AUGER MOTOR BRACKET 73272 15 CONTROL THERMOSTAT 59016 50 AUGER MOTOR 115V 52037 16 TOP FRONT COVER RC42C 51 SUPPORT PLATE F/AUGER MOTOR 90209 17 HOSE BARB FITTING K435C 52 GEAR AUGER DR IVE MOTOR GEAR, PLASTIC 90208

18 ADJ. VALVE ASSY #H5107 NPT K415A 53 O RING 20015 19 HOSE NUT 95101 54 CARTRIDGE HEATER 20W 87024 20 WATER VALVE INLET ASSY L477A 55 HEAT DUCT 97135 21 POWER CORD 44242 56 PRODUCT DISPENSER ADAPTER CD70C 22 TIMER, OPTIONAL - (for automatic units only) 120v

TIMER, IPTIONAL - (for automatic units only) 220v 23 TERMINAL BLOCK SINGLE B135A 58 RESTRICTOR 92173 24 RELAY (for automatic only) 120v B129A 59 RESTRICTOR RETAINER 34007 25 BODY FRAME WELDMENT ASSY RE80Q 60 PRODUCT ADJUSTER 71001 26 Legs, set 2.5" BLK M034C 61 AUGER SPRING 95116 27 STUD DRIPTRAY 92007 62 AUGER DRIVE COUPLING, PLASTIC 90211

58017 58019

57 STEAM DEFLECTOR 90272

28 DRIP TRAY PAN 75060 63 HOPPER & BASE ASSY 97098 29 GRILL 75015 64 AGITATOR DRIVE GEAR 90268 30 DRIP TRAY BRACKET (HOLDER )(OPTIONAL) RE73A 65 AGITATOR 40692 31 RINSE SWITCH 56039 66 PIN/STUD HOPPER 04026 32 HEATER SWITCH L299C 67 GEAR AUGER DRIVE (HOPPER BASE), PLASTIC 90210

33 HEATER INDICATOR LIGHT AMBER C002C 68 RETAINER PIN, STEEL (UNDER HOPPER) 04025 34 WHIPPER MOTOR 115V 52038 69 RETAINER PIN, S/STEEL (on coupling) 04030 35 WHIPPER MOTOR BRACKET PLATED 92177 70 SIDE PANEL RC40A

10

DESCRIPTION AND LOCATION OF COMPONENTS

ICAP1 B LD POUROVER (with lit door)







%



!

"

#

$

%

&

'

$&

$#$$$%$'%%

$"

$!

$

$

$

#'

#&

#%

#$

## #"

#! #

# #

"'

!

"

#

& '

' 

  ! " # $ %

 " # $ %

!

Illustration No. 9

& ' ! ! ! !! !"

& '

! !

! !! !" !# !$ !% !& !' "&%$$%

"&

"% "#

""

"$

"!

"

"

!# !$ !% !& !' "

11

ICAP1 B LD POUROVER (with lit door]

ITEM DESCRIPTION P/N ITEM DESCRIPTION P/N

1. COLD TANK COVER ASS'Y Q164A 37. SLINGER DISC 83034

2. COLD WATER TANK WELDMENT ASS'Y Q163Q 38. “O” RING ?

3. WATER LEVEL FLOAT/CONTROL SWITCH (COLD) L499A 39. MIXING CHAMBER MOUNT 83033

4. TANK TOP ASS'Y (FOR HOT WATER TANK) Q166Q 40. MIXER BLADE 90230

5. DISPENSE (DUMP) VALVE (MULLER) L467A 41. MIXING CHAMBER EXTENDER TUBE 77184

6. TANK BAFFLE ASS'Y 97128 42. MIXING CHAMBER 95001

7. TANK CLAMP SEAL 20039 43. MIXING CHAMBER INSERT 83036

8. TANK CLAMP ASS'Y 97131 44. LAMP HOLDER MOUNTING BR ACKET ( Lit Door ) RE52C

9. HEATER ELEMENT 1750W 120V G0140 46. BREW SWITCH L455A

10. WASHER, HEATER ELEMENT 07059 47. LAMP SOCKET - LEVITTON (for Lit Door only) 44496

11. NUT, HEATER ELEMENT 03051 48. FLUORESCENT LAMP 9W (for Lit Door only) L042A

12. HOT WATER TANK WELDMENT ASS'Y Q165Q 49. DOOR WELDEMENT ASS'Y - ICAP1 B LD POUROVER RC53Q

13. HI-LIMIT TEMPERATURE CONTROL 59024 50. TOP FRONT COVER RC42A

14. ELBOW, MALE 1/8 NPT X 1/4 09246 51. AUGER MOTOR BRACKET 73272

15. CONTROL THERMOSTAT 59016 52. AUGER MOTOR 115V 52037

16. HOSE NUT 95101 53. O RING 20015

17. WATER VALVE INLET ASS'Y L477A 54. GEAR, AUGER DRIVE MOTOR GEAR, PLASTIC 90208

18. HEATER SWITCH L299A 55. SUPPORT PLATE F/AUGER MOTOR 90209

19. AUTO REFILL SWITCH L299A 56. CARTRIDGE HEATER 20W 87024

20. POWER CORD 44242 57. HEAT DUCT 97135

21. LEGS, SET 2.5" BLK M034A 58. PRODUCT DISPENSER ADAPTER CD70A

23. RELAY (DOUBLE POLE-on at all times) 120V L018A 59. STEAM DEFLECTOR 90272

24. TERMINAL BLOCK SINGLE B135A 60. RESTRICTOR 92172

25. BODY FRAME WELDMENT ASS'Y RI88Q 61. RESTRICTOR RETAINER 34007

26. POWER SWITCH (TOGGLE) L069A 62. PRODUCT ADJUSTER 71001

27. POWER INDICATOR LIGHT, (red) C165A 63. AUGER SPRING 95116

28. GRILL 75015 64. AUGER DR IVE COUPLING, PLASTIC 90211

29. DRIP TRAY PAN 75060 65. HOPPER & BASE ASS'Y 97098

30. DRIPTRAY BRACKET (HOLDER)(OPTIONAL) RE73A 66. AGITATOR DRIVE GEAR 90268

31. STUD, DRIPTRAY 92007 67. AGITATOR 40692

68. PIN/STUD HOPPER 04026

32. HEATER INDICATOR LIGHT AMBER C002A 69. GEAR AUGER DRIVE (HOPPER B ASE), PL ASTIC 90210

33. RINSE SWITCH 56039 70. RETAINER PIN, STEEL (under Hopper) 04025

34. INDICATOR LIGHT, GREEN "out of water/refill tank" C072A 71. RETAINER PIN, S/STEEL (on Coupling) 04030

35. WHIPPER MOTOR 115V 52038 72. SIDE PANEL RC40A

36. WHIPPER MOTOR BRACKET PLATED 92177

12

DESCRIPTION AND LOCATION OF COMPONENTS

ICAP MINI B LD (w/Lit Door) and MINI WHIPPER B (w/o Lit Door)

'







!

"

#



!

"

$"$#$$$%$&

$!

$

$

#

$

$

#'

%

#&

&

#%

#$

##

#"

#!

#

#

#

"' "&

"% "$

$

%

&

'





! "

# $

% &

Illustration No. 10

"#

""

"!

"

"

"

!'

!&

!%

' ! ! ! !! !" !# !$

13

ICAP MINI 1 B LD w/lit door) & MINI WHIPPER B (w/o lit door)

ITEM DESCRIPTION P/N ITEM DESCRIPTION P/N

1 TANK TOP ASSY W/QC 97166 35 PLATE - MIX CHAMBER 40138 2 SILICONE TUBING (HOSE) 77216 36 SEAL - MIX CHAMBER (GASKET) 20032 3 HOSE CLAMP, METAL 34034 37 WING NUT 03005 4 CHECK VALVE, PLASTIC M323A 38 HOSE BARB S/S 1/4 WITH FITTING K436A 5 TANK BAFFLE ASSY 97170 39 MIXING CHAMBER 97169 6 TANK BAFFLE SEAL 20039 40 EXTENDER-MIXING CHAMBER 83041 7 TANK CLAMP ASSY 97131 41 LAMP HOLDER MOUNTING BRACKET (for lit Door RE52A

8 HEATER ELEMENT 1500W/110V 87037 42 BALLAST (for lit Door only) (CA33C older units CE221

9 WASHER, HEATER ELEMENT 07059 43 PRODUCT SWITCH L455A 10 NUT, HEATER ELEMENT 03051 44 LAMP SOCKET - LEVITTON (for lit Door only) 44496 11 TANK 97165 45 FLOURESCENT LAMP 9W (for lit Door only) L042A 12 HI-LIMIT TEMPERATURE CONTROL 59010 46 DOOR WELDMENT ASSY - ICAP 1 B LD RC53Q

13 DRAIN PLUG, BRASS K044A 47 AUGER MOTOR BRACKET 73272 14 CONTROL THERMOSTAT 59016 48 AUGER MOTOR 115V 52037 15 TOP FRONT COVER RC42A 49 SUPPORT PLATE F/AUGER MOTOR 90209 16 HOSE BARB FITTING K435A 50 GEAR, AUGER DRIVE MOTOR GEAR, PLASTIC 90208

17 ADJ. VALVE ASSY #H5107 NPT K415A 51 O RING 20015 18 HOSE NUT 95101 52 CARTRIDGE HEATER 87024 19 WATER VALVE INLET ASSY L477A 53 HEAT DUCT 97167 20 POWER CORD 44242 54 PRODUCT GUIDE (SHUTE) CD70A 21 TIMER (for automatic units only) 120v 58017 55 STEAM DEFLECTOR 90272

22 TERMINAL BLOCK SINGLE B135A 56 RESTRICTOR 92173 23 BODY FRAME WELDMENT ASSY RG94Q 57 RETAINER 34007 24 LEGS (2.5") BLACK, PLASTIC (OPTIONAL)

RUBBER FEET 1" BLACK (W/O BRACKETS 25 STUD-DRIP TRAY 92007 59 AUGER SPRING 95116 26 DRIP TRAY PAN 75060 60 AUGER DRIVE COUPLING, PLASTIC 90211

27 GRILL 75015 61 HOPPER & BASE ASSY 97098 28 BRACKET-DRIP TRAY HOLDER (OPTIONAL W/2.5" LEGS ONLY) RE73A 62 GEAR, AGITATOR DRIVE 90268 29 RINSE SWITCH 56039 63 AGITATOR 40692 30 HEATER SWITCH L299A 64 PIN (STUD) HOPPER 04026 31 HEATER INDICATOR LIGHT AMBER C002A 65 GEAR AUGER DRIVE (HOPPER VBASE), PLASTIC 90210

32 NUT - FOR SPACER 03003 66 RETAINER PIN, STEEL, (UNDER HOPPER) 04025 33 WASHER - FOR SPACER 07007 67 RETAINER PIN, S/STEEL, (ON COUPLING) 04030 34 SPACER - MIX CHAMBER (STUD) 05041 68 SIDE PANEL RC75A

M034A

18003

58 PRODUCT ADJUSTER 71001

14
