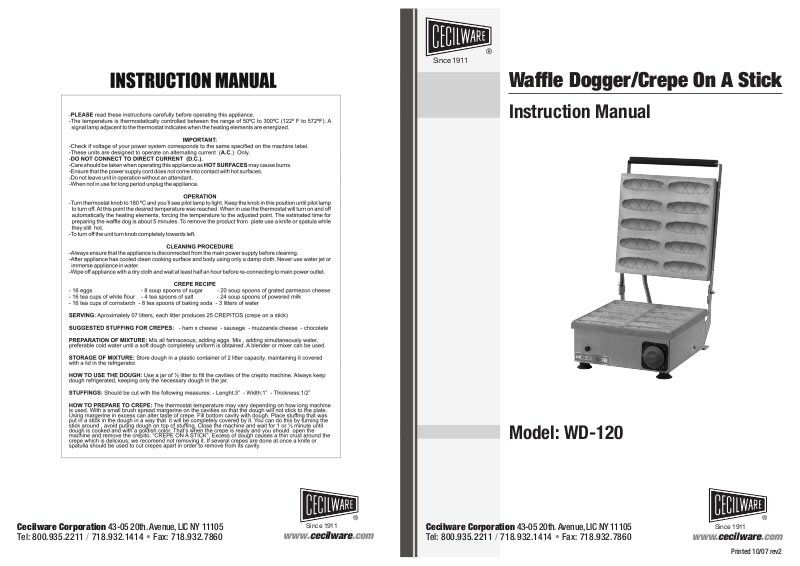

Cecilware WD-120 Installation Manual
Since 1911
®
Waffle Dogger/Crepe On A Stick
Instruction Manual
Cecilware Corporation 43-05 20th. Avenue,LIC NY 11105
Tel: 800.935.2211 / 718.932.1414 • Fax: 718.932.7860
Since 1911
®
www.cecilware.com
Model: WD-120
Cecilware Corporation 43-05 20th. Avenue, LIC NY 11105
Tel: 800.935.2211 / 718.932.1414 • Fax: 718.932.7860
Since 1911
®
www.cecilware.com
Printed 10/07 rev2
Waffle Dogger/Crepe On A Stick
Instruction Manual
Model: WD-120
Item Part # Description
1 N/A Rubber Finishing
2 N/A Screw (1/4")
3 N/A Lid
4 N/A Thermal Insulation
5 N/A Heating Element Support
6 N/A Screw (3/16")
7 N/A Screw.(4,8)
8 04061 Handle Bar
9 N/A Nut (3/16")
10 04018 Handle
11 N/A Nut (5/32”)
12 N/A Washer(3/16")
13 04021 Heating Element 850W
14 N/A Upper Heating Plate
15 N/A Lower Heating Plate
16 N/A Heating Element Protection Plate
17 N/A Washer (3/16”)
18 N/A Wiring Connector
19 04028 Thermostat
20 N/A Body
21 04005 Screw(Thermostat)
22 04028 Knob
23 04032 Pilot Light
24 04017 Foot
25 N/A Screw (2,9)
26 N/A Bottom Cover Plate
27 04097 Cord Retainer
28 04040 Plug & Cord
29 N/A Screw.(3/8")
30 04019 Metal Foot
31 04039 Thermostat Bulb Retainer
32 N/A Heating Element Support Plate
33 04064 Right Hinge Support
34 N/A Nut (1/4")
35 N/A Screw.(3/16")
36 04020 Hinge’s Pin
37 N/A Wiring Protection
38 04065 Left Hinge Support
39 N/A Screw (5/32”)
40 04006 Screw (Thermostat Connection)
41 N/A Plate
Specifications
Model WD-120
Volts 110
Watts 1700
Amps 15.5
Width
Depth
Height
Ship
Weight
11½"
15.3"
7½""
21.1
