Cecilware SFGS Installation Manual
Since 1911
®
Small Griddle
Instruction Manual
Cecilware Corporation 43-05 20th. Avenue,LIC NY 11105
Tel: 800.935.2211 / 718.932.1414 • Fax: 718.932.7860
Since 1911
®
www.cecilware.com
Model: SFGS
Cecilware Corporation 43-05 20th. Avenue, LIC NY 11105
Tel: 800.935.2211 / 718.932.1414 • Fax: 718.932.7860
Since 1911
®
www.cecilware.com
Printed 10/07 rev2

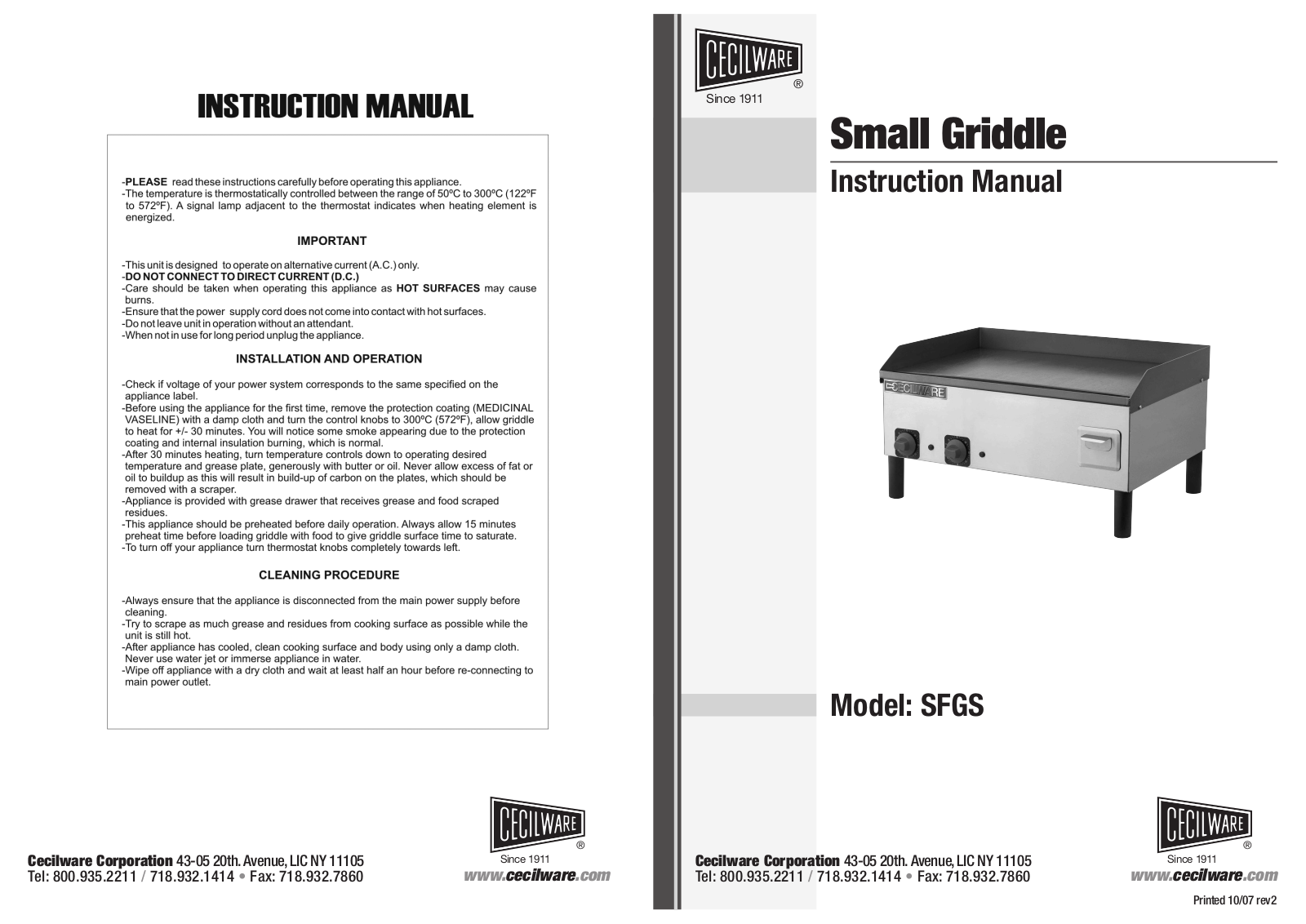

Small Griddle
Instruction Manual
Model: SFGS

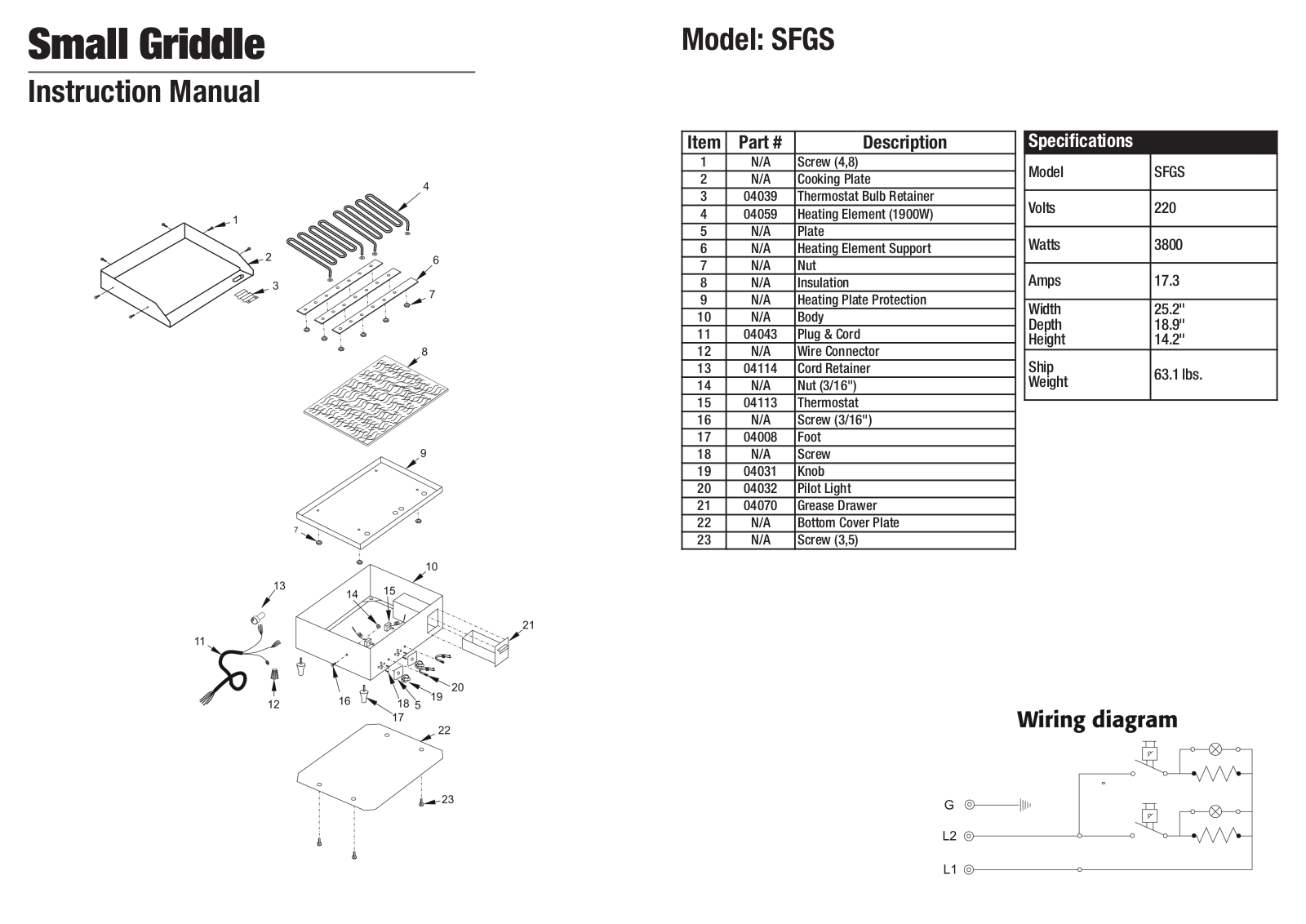

Item Part # Description
1 N/A Screw (4,8)
2 N/A Cooking Plate
3 04039 Thermostat Bulb Retainer
4 04059 Heating Element (1900W)
5 N/A Plate
6 N/A Heating Element Support
7 N/A Nut
8 N/A Insulation
9 N/A Heating Plate Protection
10 N/A Body
11 04043 Plug & Cord
12 N/A Wire Connector
13 04114 Cord Retainer
14 N/A Nut (3/16")
15 04113 Thermostat
16 N/A Screw (3/16")
17 04008 Foot
18 N/A Screw
19 04031 Knob
20 04032 Pilot Light
21 04070 Grease Drawer
22 N/A Bottom Cover Plate
23 N/A Screw (3,5)
Specifications
Model SFGS
Volts 220
Watts 3800
Amps 17.3
Width
Depth
Height
Ship
Weight
25.2"
18.9"
14.2"
63.1 lbs.
