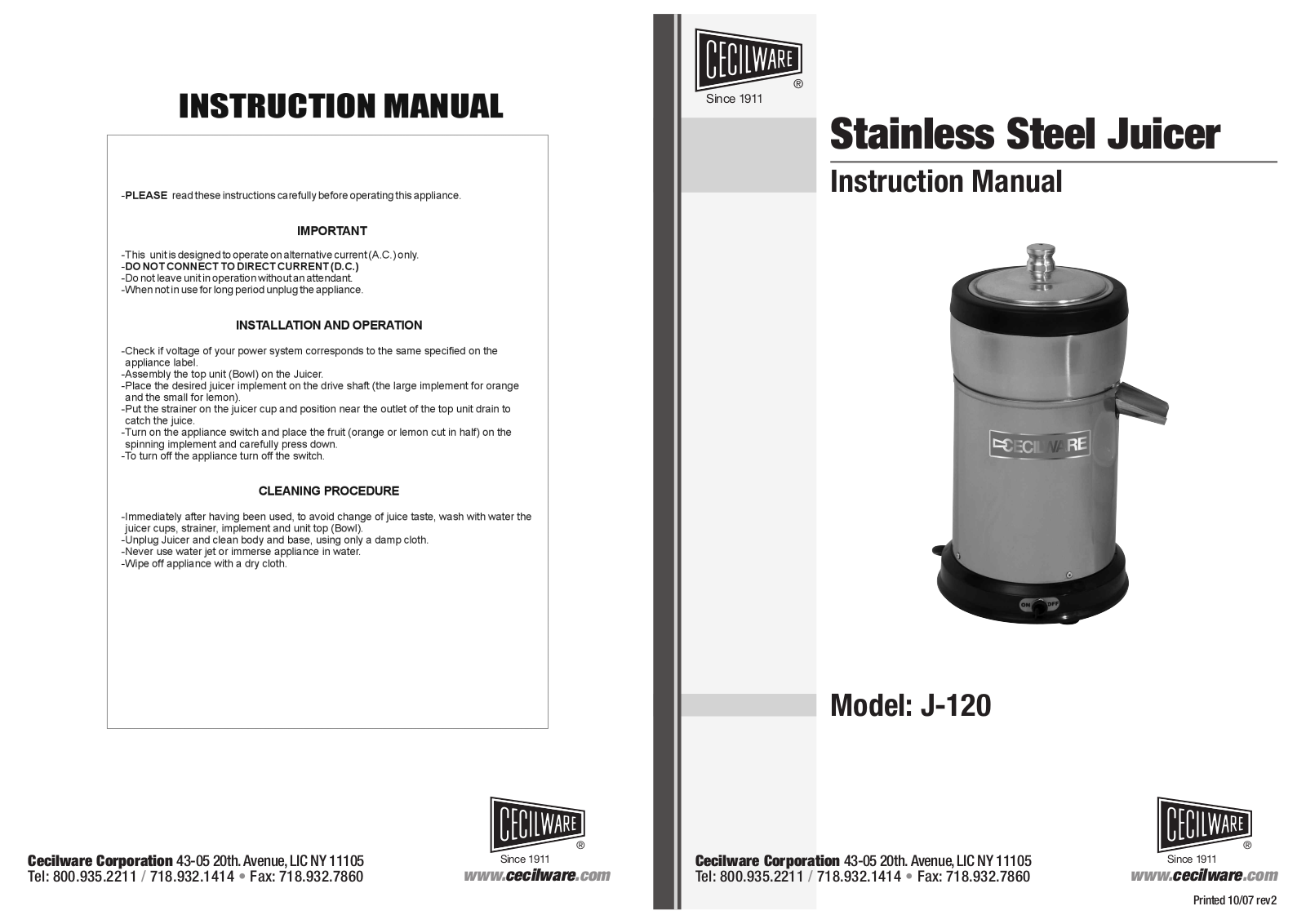

Cecilware J-120 Installation Manual
Since 1911
®
Stainless Steel Juicer
Instruction Manual
Cecilware Corporation 43-05 20th. Avenue,LIC NY 11105
Tel: 800.935.2211 / 718.932.1414 • Fax: 718.932.7860
Since 1911
®
www.cecilware.com
Model: J-120
Cecilware Corporation 43-05 20th. Avenue, LIC NY 11105
Tel: 800.935.2211 / 718.932.1414 • Fax: 718.932.7860
Since 1911
®
www.cecilware.com
Printed 10/07 rev2
Stainless Steel Juicer
Instruction Manual
Model: J-120

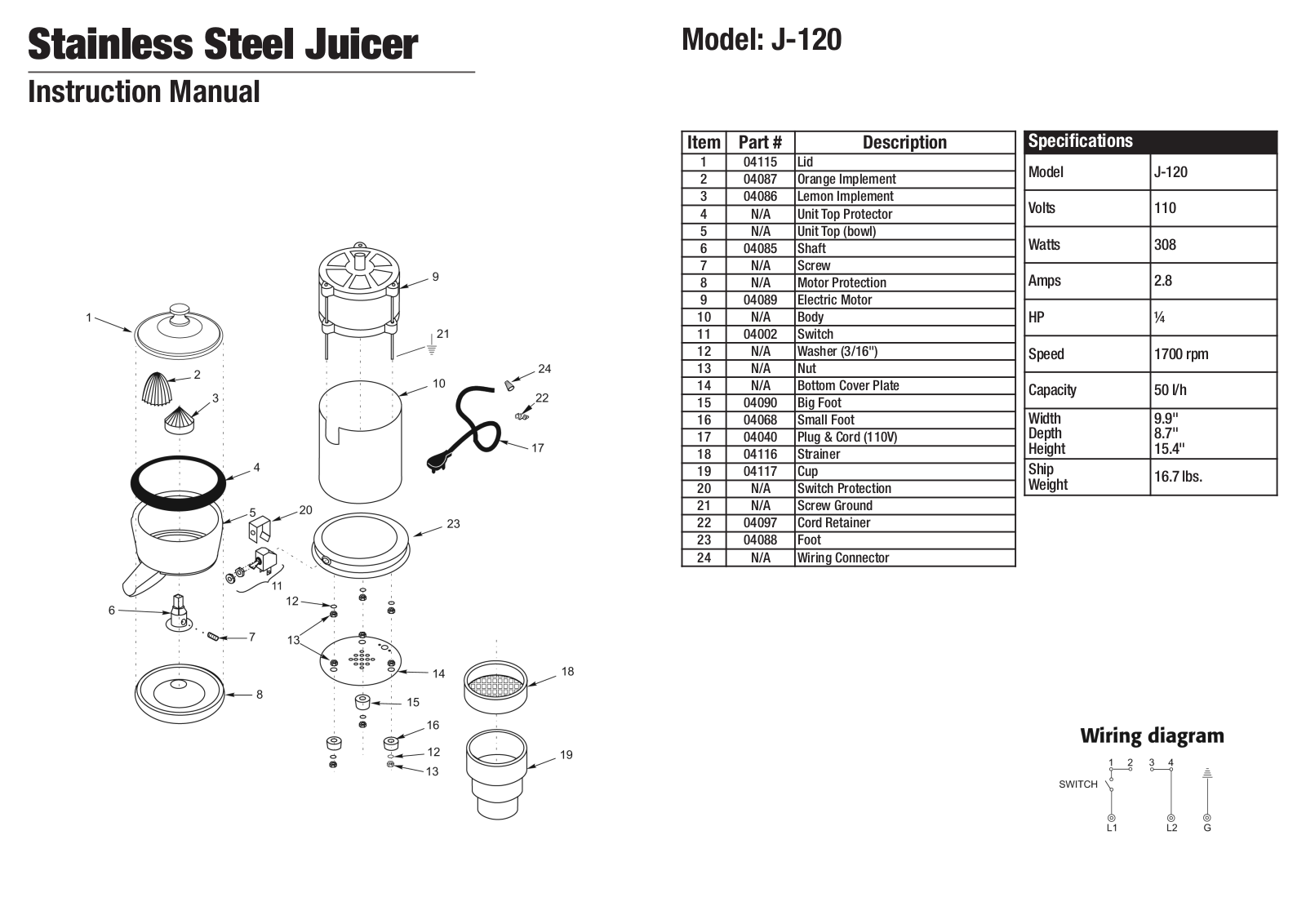

Item Part # Description
1 04115 Lid
2 04087 Orange Implement
3 04086 Lemon Implement
4 N/A Unit Top Protector
5 N/A Unit Top (bowl)
6 04085 Shaft
7 N/A Screw
8 N/A Motor Protection
9 04089 Electric Motor
10 N/A Body
11 04002 Switch
12 N/A Washer (3/16")
13 N/A Nut
14 N/A Bottom Cover Plate
15 04090 Big Foot
16 04068 Small Foot
17 04040 Plug & Cord (110V)
18 04116 Strainer
19 04117 Cup
20 N/A Switch Protection
21 N/A Screw Ground
22 04097 Cord Retainer
23 04088 Foot
24 N/A Wiring Connector
Specifications
Model J-120
Volts 110
Watts 308
Amps 2.8
HP ¼
Speed 1700 rpm
Capacity 50 I/h
Width
Depth
Height
Ship
Weight
9.9"
8.7"
15.4"
16.7 lbs.
