CAPPUCCINO, COFFEE, and SOUP DISPENSERS

GB-IT (Intelligent Technology)

• Microprocessor Technology

Cecilware sells value... Worldwide

45 -05 20th Avenue, Long Island City, NY 11105 TEL • 718-932-1414 FAX • 718-932-7860

• Touch Pad Control Panel

• Free Flow and Portion Control

• Counts Total Number of Cups Dispensed

• Automatic Rinse Cycle

• Diagnostics for Electrical Problems

• Removable & Replaceable Picture easy – no assembly required

OPERATION MANUAL

• Specifications...................................................... 2

• Installation and Operating Instructions.............. 4

• Adjustments......................................................... 6

• Programming Instructions................................. 8

• Care and Maintenance........................................ 8

• Trouble Shooting Guide..................................... 11

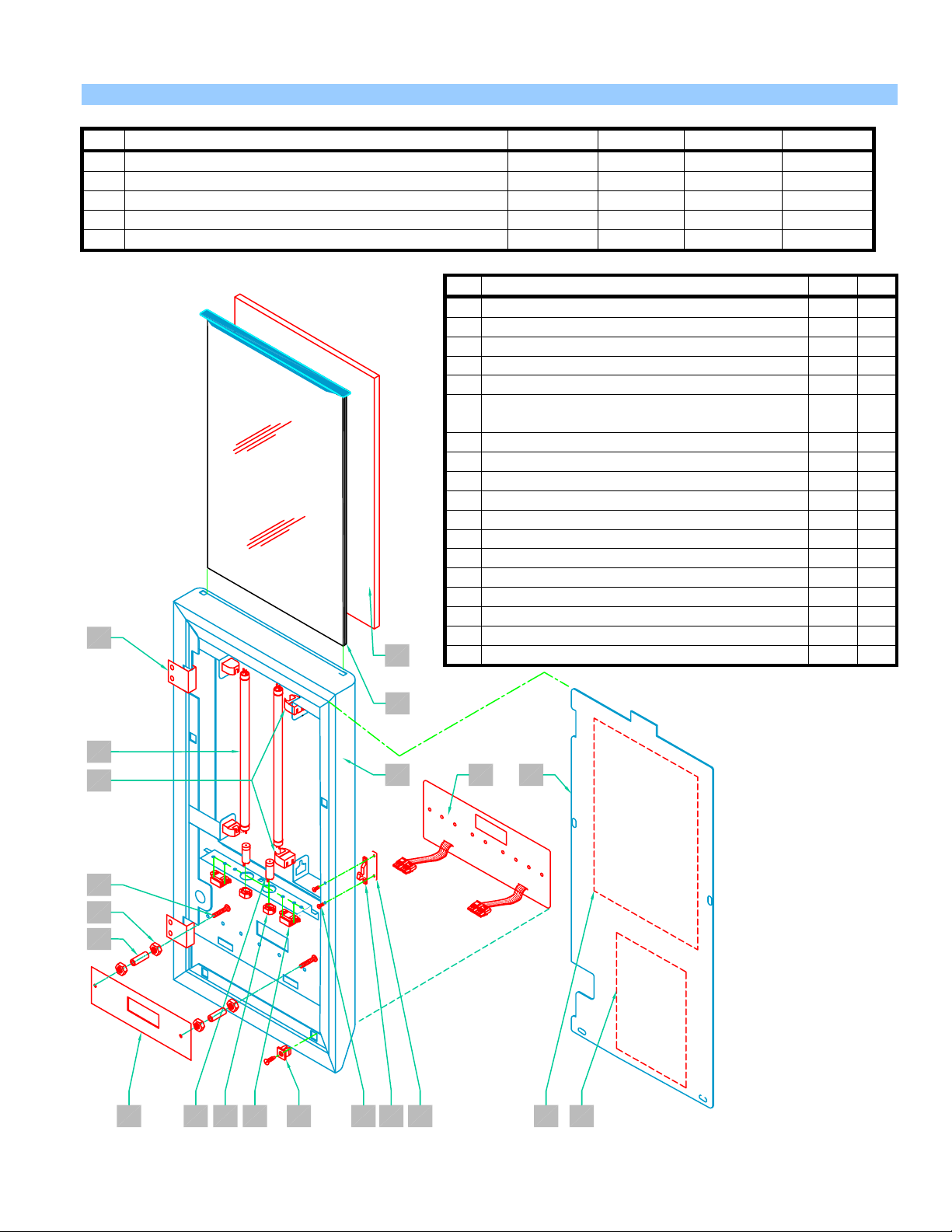

• Parts Identification.......................................…... 15

• Wiring Diagrams................................................ 21

MECHANICAL SPECIFICATIONS

MODEL: WIDTH

GB1M-IT 8.5 22 34 8 (1) GB2M-5.5-IT 8.5 22 34 5.5 (2) GB3M-5.5-IT 11 22 34 4 (3) GB3M-5.5-IT S/S 11 22 34 5.5 (3) GB3M-IT-10 LEFT [11.5”W] 11.5 22 34 10 (1) + 5.5 (2)

GB3M-IT-10 RIGHT [11.5”W] 11.5 22 34 10 (1) + 5.5 (2) GB4M-IT 14.125 22 34 5.5 (4)

GB5M-IT 17.25 22 34 5.5 (5)

DEPTH

HEIGHT

Lb (qty)

TANK

GAL.

BURST

CAPACITY

2.2 58 (7 x 13) 91 65

2.2 58 (7 x 13) 91 86

3.2 85 (9½ x 13) 123 100

4.5 112 (123/8 x 13) 164 110

4.5 112 (123/8 x 13) 164 120

4.5 140 (123/8 x 13) 164 140

ELECTRICAL SPECIFICATIONS

LIT DISPLAY AREA

(W x H) Sq. in.

SHIPPG

WEIGHT LB.

Model No.

ALL MODELS 120V 1 60 1.8KW 1 15 5-15R 15A ALL MODELS 120/240V 1 60 3.0KW 1 15 L14-20R** 20A

ALL EXPORT MODELS 220V 1 60 3.0KW 1 15 †† 20A

GB3M-5.5-IT, GB4M-5.5-IT 120/240V 1 60 6.0KW 2 25 L14-30R** 30A

120V, 1.8 KW, 15A, Nema 5-15R standard on all models; 3.0 KW and 6.0 KW, 120/240V units available ** 120/240V, 3 pole, 4 wire grounding type Twist-Plug Receptacle. For 240V units, Use L6-20R or L6-30R, 2 pole, 3 wire Twist-Plug Receptacle.

†† 220V Export Receptacle to be specified where order is placed.

See Electrical Data Label attached to the back of the unit for proper voltages, breaker sizes and electrical outlet requirements for each model number listed. See wiring diagram in back of manual, for wiring instructions.

Volts Phase Hz Watts

Number of

Heaters Amps

Receptacle

Nema No.

Circuit

Breaker

UNPACKING INSTRUCTIONS

Carefully unpack the GB Machine and inspect immediately for shipping damage. Your GB Machine was shipped in a carton designed to give it maximum protection in normal handling. It was thoroughly inspected before leaving the factory. In case of damage, contact the shipper, not Cecilware.

INSTALLATION INSTRUCTIONS

Water Inlet Connection:

This equipment is to be installed to comply with the applicable Federal, State, or local plumbing codes having jurisdiction. In addition:

1. A quick disconnect water connection or enough extra coiled tubing (at least 2x the depth of the unit) so that the machine can be moved for cleaning underneath.

2. An approved back flow prevention device, such as a double check valve to be installed between the machine and the water supply.

The GB beverage dispenser is equipped with a ¼" Flare Water Inlet Fitting which is located on the left side in the back of the base.

HIGHLY RECOMMENDED:

A WATER SHUT-OFF VALVE and A WATER FILTER, preferably a combination Charcoal/Phosphate Filter, to remove odors and inhibit lime and scale build up in the machine. Note: In areas with extremely hard water, a water softener must be installed in order to prevent a

malfunctioning of the equipment and in order not to void the warranty.

After the machine has been unpacked and placed on a counter, pull out the stainless steel drip tray. It should contain the following: A Set of 4 Adjustable Leveling Legs & Water Inlet Fitting.

START-UP PROCEDURE

1. Connect the ¼" dia. copper waterline to the ¼" flare water inlet fitting of the valve.

2. Plug the power cord into a proper receptacle.

3. Activate the Power Switch (Toggle Up) located on the right side of the splash panel below the door.

The power switch controls all power to the machine including the heater elements. The door display panel will light up and the tank will start filling. The LCD window will display this message briefly “CECILWARE, DISPENSER V#.## “.

4. The LCD window will display this message “Low Water Level”. Allow approximately 3-5 minutes for the tank to fill.

If the tank does not fill up within the first 5 minutes an error message will appear in the CD window [SYSTEM ERROR, FILL

RESPONSE].

See Definition of Screen and Troubleshooting Guide.

5. The LCD window will display this message “Low Water Temp.” Allow up to 30 minutes for the water to reach a temperature of 190°F.

The heat up time will depend on the water inlet temperature, the input voltage and the wattage of the elements in the machine. While the tank is heating up, remove the hoppers, load them with products and reposition them back in the machine. Be sure to

reposition the hoppers so that the 1/4” pin slides into the hole of the compartment base.

When the machine has reached the proper dispensing temperature, the LCD windowill dispay one of these messages:

IF THE RINSE MODE IS ON

IF THE RINSE MODE IS OFF

PLEASE RINSE

TO CONTINUE

OR PLEASE SELECT

CHOICE OF DRINK

To Rinse press simultaneously the Rinse/Blue Button & Green Button for each hopper.

6. To Dispense a Cup of Cappuccino or Soup: Place a 8 oz. or larger cup under selected drink dispense nozzle. Press

Dispense/Green Button.

For units set for “free flow“: Push and hold Green button until cup is 2/3 full For units set for “portion control”: Press and Release Green Button

, then release button.

. Cup will fill up automatically to it’s preset amount.

The machine is factory preset to dispense water at the rate of 1 oz./sec. for Cappuccino and 1.3 oz/sec. for Soup.

This flow rate corresponds with the factory preset cup sizes [small 6 oz.] [medium 8 oz.] [large 12 oz.]. To adjust the Water Flow Rate on the Dispense Valve see Illustration B . See Programming Instructions if different levels of drink strength are desired or different cup sizes are desired.

TO CHECK VOLUME AND GRAM THROW DISPENSED (RATIO):

NOTE: These GB units have a fixed speed Auger Motor CD150 [95 RPM] and dispenses powder at a constant fixed rate.

The water flow rate should not exceed 1.3 oz./sec. This may cause overflow in the mixing chamber/cup. a. Remove the product guide from the hopper and position a receptacle under the hopper nozzle to catch the gram throw of product. b. Also place a measuring cup under extension tube to catch the water dispensed. c. Push the dispense button and check the amount of product dispensed, amount of water dispensed, and time [use stop watch] to

dispense that water.

d. The amount of of water dispensed in the measuring cup divided by the time required to dispense that water is the Water Flow Rate

from Dispense Valve. If the amount [oz.] of water dispensed is different from the programmed amount [oz.] for Cup Size, then adjust the Water Flow Rate from Dispense Valve. See illustration B.

FOR CAPPUCCINO:

The machine is factory adjusted to dispense 4-4.5 gr./sec. per OZ. Cup. [32 grams Product per 8 oz. cup] The recommended throw is 28-32 grams per 8 oz. cup for Cappuccino, with 80% fill.

FOR COFFEE

The machine is factory adjusted to dispense 0.3 gr./sec per OZ. Cup. [1.5 grams of coffee product per 5 oz. of liquid (in a 6 oz. cup). The recommended throw is 1.5 to 1.8 grams per 6 oz. cup of Coffee, with 80% fill.

FOR SOUP:

The machine is factory preset to specified customer requirements, because the gram throw for each soup flavor and type varies considerably with the consistency of each product. Adjustments can also be made by the customer, as shown above and by programming the desired amounts. For customer specified/special settings see insert.

GB3M-5.5-IT DIMENSIONS & CONPONENTS LOCATION - ILL. A

FRONT VIEW

BACK VIEW

TECHNOLOGY INSIDE

HOPPER

DISPENSE BUTTON (9)

PRODUCT LABEL

LATCH

PRODUCT GUIDE

DISPENSE CHAMBER MIXING CHAMBER

WHIPPER CHAMBER

DISPENSE NOZZLE

LABEL AREA

PLEASE SELECT DRINK ....

5.5 LB

LAMP

BALLAST

CORD SET

POWER SWITCH

FUSE

DRIP TRAY

NA88A

DRIP TRAY

NA88A

DISPENSE VALVE

TOUCH PAD

LCD BOARD

RIGHT SIDE VIEW

WATER LEVEL PROBE

THERMISTER PROBE

HEATER ELEMENT

TANK ASS'Y

WATER LEVEL CONTROLS: Under normal conditions and operation, the water level in the tank should not drop more than ½" from the probe. If it does, the tank is not refillin Check the water line and may need cleaning or replacing.

Water Inlet Valve L462A Water Level Probe K355Q [K402A & P410A]

fast enough.

water filter, they

MAIN CONTROL BOARD

FUSE

WATER INLET VALVE

DRIP TRAY

POWER CORD

ADJUSTMENTS - ILL. B

WATER FLOW RATE The Dispense Valves are factory adjusted fo r a maximum Flow Rate of 1 to 1.3 oz./sec.

[Approximate settings: 0.85 to 1 oz./sec for SOUP; 1.3 oz./sec. for COFFEE and CAPPUCCINO] Exceeding this Flow Rate will cause the Mixing Chamber to overflow. Note: To access the Water Dispense Valves, open door and remove Hoppers.

TO ADJUST WATER FLOW RATE:

1. Open door and remove hoppers. Locate Dispense Valve behind hoppers, mounted on tank.

2. Locate adjustment screw on Dispense Valve.

3. Using Allen Key or flat screwdriver rotate, 1/4 turn at a time,

CLOCKWISE to decrease water flow, or COUNTERCLOCKWISE

to increase water flow.

4. Check water flow output, after each 1/4 turn.

HOPPERS AND AUGERS

CD130 NYLON AUGER [22.5mm%%c X 17mmPT] W/O-RING CD139

CD101 WIRE AUGER [22.5mm%%c X 17mmPT] CAPPUCCINO/FAST FLOW & SOUP

CD149 WIRE AUGER {22.5mm%%c X 24.8mmPT] HOT CHOCOLATE & THICK SOUP

CD74A WIRE AUGER {17mm%%c X 12mmPT] DRY COFFEE/FAST FLOW

CD153 WIRE AUGER [17mm%%c X 9.15mmPT] DRY COFFEE & INSTANT ESPRESSO

A. When using NYLON AUGERS

SPLASH GUARD

Adjust Water Flow Rate so that the water level reaches almost at the top in the Mixing Chamber

, as shown.

B. When using WIRE AUGERS

: Adjust Water Flow Rate so that the water level reaches half way up in the Mixing Chamber

, as shown.

MIXING CHAMBER CD145

FAST FLOW [COLD]

CD115

AUGER GEAR CD117 [w/NYLON AUGER CD130] CD117 [w/WIRE AUGER CD101 & CD149] CD97A [w/WIRE AUGER CD74A & CD153]

AUGERS:

DISPENSE CAP

TRIANGULAR

RIB

CD61A

MIXING CHAMBER CD137

FAST FLOW [HOT]

PRODUCT GUIDE CD70A

CD90A

RECTANGULAR RIB

CORRECT WATER LEVEL FOR MAX FLOW RATE WHEN USING WIRE AUGER

CORRECT WATER LEVEL FOR MAX FLOW RATE WHEN USING NYLON

AUGER

CD76A

DISPENSE CAP

CD61A

MIXING CHAMBER CD62A

SOUP UNITS

Features and Benefits of the Digital Dispenser Controller

1. 100% Solid State Control for improved reliability

2. Modular design and reduced component count for ease of service

3. Optional sanitary features such as Rinse Lockouts and Rinse Warnings

4. Redundant system interlocks for uncompromising user safety

5. Large two line display for viewing system status and modifying parameters

6. Individual dispense counters and totalizers for product marketing information and inventory control

7. Advanced system diagnostics that continuously monitor the status of all motors, solenoids, sensors, and heaters to ensure proper operation and aid in identifying potential problems

8. Protection from heater burnout due to lack of water in the reservoir tank

9. Elimination of dry powder feed at the beginning of a dispense and product dilution at the end of a dispense

10. Extremely accurate dispensing control utilizing DC servo-motor drive technology

11. Stable water temperature regulation with an adjustment resolution of one-degree Fahrenheit

12. Optional Low Water Temperature Lockout to prevent dispensing at water temperatures below an adjustable threshold

13. Units of measure displayed in either English or Metric

14. Digital adjustment of serving sizes with a resolution of one-tenth of an ounce

15. Digital adjustment of gram throw with a resolution of one-percent-of-maximum

16. Audible alarm

17. User selectable “Portion Control” or “Free Flow” dispense modes

18. Optional power saving “sleep mode” for extended periods of inactivity

19. Easy to use menu-driven dispensing and rinsing instructions

20. Optional Teach-Me method of setting serving size

21. Several “engineering functions” designed to speed new product development

22.

PARAMETER DEFINITIONS FOR SYSTEM SOFTWARE VERSION 1.11

1. Grand Total – This parameter indicates the total amount of water dispensed (in ounces or milliliters) for the entire machine. The Grand

Total does not include Rinse Dispenses. The maximum Grand Total value is 16,777,216 ounces; after which the value will begin again from zero. This parameter cannot be reset to zero. Default Values has no effect on this parameter

2. Dispense Total – This parameter indicates the total amount of water dispensed (in ounces or milliliters) for a selected hopper. The

Dispense Total does not include Rinse Dispenses. The maximum Dispense Total value is 16,777,216 ounces; after which the value will begin again from zero. This parameter cannot be reset to zero. Default Values has no effect on this parameter.

3. Dispense Counter – This parameter indicates the total number of cups dispensed for a selected Serving Size. The Dispense Counter

does not include Rinse Dispenses. The maximum Dispense Counter value is 49,999; after which the value will begin again from zero. In Service Mode this parameter can be reset to zero by simultaneously depressing the  and  Keys. Default Values has no effect on this

parameter.

4. Dispense Mode – This parameter determines whether the system dispenses in a continuous (Free Flow) or fixed size (Portion Control)

method. The default setting for this parameter is Portion Control

5. Serving Size – This parameter determines the amount of water dispensed for each Dispense Key when the Dispense Mode is set to

Portion Control. The default settings are as follows: Small = 6.0 ounces, Medium = 8.0 ounces, Large = 12.0 ounces. The minimum Serving Size is 2.0 ounces. The maximum Serving Size is 64.0 ounces.

6. Gram Throw – This parameter determines the ratio of product to water during a Dispense for a selected Hopper. The units of measure

for Gram Throw are proportional to Auger Turns per ounce of water. At a Fill Constant of 1.00 ounces per second the maximum Gram Throw is 100 and the minimum Gram Throw is 20. The maximum and minimum values are scaled proportional to a Fill Constant of 1.00 ounces per second. For example: if the Fill Constant is set to 1.30 ounces per second the maximum Gram Throw would be (100*1.00)/1.3 = 77. This prevents the user from requesting a Gram Throw that is beyond the capability of the Auger Motor. Auger Start and Stop Times have no effect on this parameter. The default setting for this parameter is 75.

7. Auger Start Time – This parameter sets the time that the Auger starts to turn relative to the activation (opening) of the Dump Valve. A

positive value indicates an Auger starting at some time after the opening of the Dump Valve. A negative number indicates an Auger starting at some time before the opening of the Dump Valve. The minimum Auger Start Time = (-3.0) seconds. The maximum Auger Start Time is 3.0 seconds. The default value for this parameter is 0.3 seconds

8. Mixer Start Time – This parameter sets the time that the Mixer starts to turn relative to the activation (opening) of the Dump Valve. A

positive value indicates a Mixer starting at some time after the opening of the Dump Valve. A negative number indicates a Mixer starting at some time before the opening of the Dump Valve. The minimum Mixer Start Time = (-3.0) seconds. The maximum Mixer Start Time is 3.0 seconds. The default value for this parameter is 0.3 seconds.

9. Auger Stop Time – This parameter sets the time that the Auger stops turning relative to the de-activation (closing) of the Dump Valve. A

positive value indicates an Auger stopping at some time after the closing of the Dump Valve. A negative number indicates an Auger stopping at some time before the closing of the Dump Valve. The minimum Auger Stop Time = (-3.0) seconds. The maximum Auger Stop Time is 3.0 seconds. The default value for this parameter is 0.3 seconds.

10. Mixer Stop Time – This parameter sets the time that the Mixer stops turning relative to the de-activation (closing) of the Dump Valve. A

positive value indicates a Mixer stopping at some time after the closing of the Dump Valve. A negative number indicates a Mixer stopping at some time before the closing of the Dump Valve. The minimum Mixer Stop Time = (-3.0) seconds. The maximum Mixer Stop Time is

3.0 seconds. The default value for this parameter is 0.6 seconds.

11. Fill Constant – This parameter is set to the actual Fill Rate of all of the Dump Valves. All Dump Valves in a system must be adjusted so

that they have equal Fill Rates. The maximum Fill Constant is 4.00 ounces per second. The minimum Fill Constant is 0.50 ounces per second. The maximum and minimum values are scaled proportional to a Gram Throw of 100. For example: if the highest Gram Throw setting is 77 then the maximum Fill Constant would be (100*1.00)/77 = 1.30. This prevents the user from requesting a Gram Throw that is beyond the capability of the Auger Motor. The default setting for this parameter is 1.30 ounces per second.

12. Rinse Dispense Time – This parameter determines the amount of time that the Dump Valve is open during a Rinse Cycle. The minimum Rinse Time = 3 seconds. The maximum Rinse Time is 15 seconds. The default value for this parameter is 6 seconds.

13. Rinse Warning Status – This parameter determines whether the Rinse Warning Option is turned ON or OFF. If this option is ON the system generates a Rinse Warning if a Hopper has dispensed and has not been Rinsed for of time greater than that defined by (50 * Rinse Lockout Time) minutes. For example: If the Rinse Warning Status is ON and the Rinse Lockout Time is 6 Hours then a Rinse Warning will be generated when a Hopper is not Rinsed for more than (50 * 6 = 300) minutes (5 hours). Generating a Rinse Warning will cause the audible alarm to sound for two seconds and the Rinse Warning Screen to be displayed for five seconds. The system will then revert back to normal operation. If the offending Hopper is not rinsed after the first Rinse warning additional Rinse Warnings will be generated every five minutes until the respective Hopper is rinsed. The default setting for this parameter is OFF.

14. Rinse Lockout Status - This parameter determines whether the Rinse Lockout Option is turned ON or OFF. If this option is ON the system generates a Rinse Lockout if a Hopper has dispensed and has not been Rinsed for a period of time greater than that defined by the Rinse Lockout Time. Once a Hopper enters Rinse Lockout the LED’s of the Dispense Keys related to that Hopper will turn OFF thus indicating that the Hopper will no longer dispense. The default setting for this parameter is OFF.

15. Rinse Lockout Time – This parameter determines the length of time required before entering Rinse Lockout. The minimum Rinse Lockout Time = 1 hour. The maximum Rinse Lockout Time is 12 hours. The default value for this parameter is 6 hours

16. Water Temperature Set Point – This parameter determines the required reservoir tank water temperature. The minimum Water Temperature Set Point is 140°F. The maximum Water Temperature Set point is 203°F. The default value for this parameter is 190°F

17. Low Water Temperature Lockout Status – This parameter determines whether the Low Water Temperature Lockout Option is turned ON or OFF. If this option is ON the system generates a Low Water Temperature Lockout if the present water temperature is below the value defined by the Low Water Temperature Lockout Set Point. Once a Hopper enters Low Water Temperature Lockout, all of the Dispense Key LED’s will turn OFF thus indicating that the system will no longer dispense. The default setting for this parameter is ON

18. Low Water Temperature Lockout Set Point – This parameter determines the minimum reservoir tank water temperature allowed before entering Low Water Temperature Lockout. The minimum Low Water Temperature Lockout Set Point is 125°F. The maximum Low Water Temperature Lockout Set point is 203°F. The default value for this parameter is 140°F

19. Sleep Mode Status – This parameter determines whether the Sleep Mode Option is turned ON or OFF. If this option is ON and the system has not dispensed for four hours the system will enter Sleep Mode. Once in Sleep Mode the system will reduce the required Water Temperature to equal that defined by (10°F + Low Water Temperature Lockout Set Point). The default setting for this parameter is

OFF.

20. Hopper Status – This parameter determines the whether a selected Hopper is turned ON or OFF. If a Hopper is ON then the Auger

Motor, Mixer Motor, and Dump Solenoid status checking is enabled and the Hopper is allowed to dispense. If a Hopper is OFF then Auger Motor, Mixer Motor, and Dump Solenoid status checking is disabled and the LED’s of the Dispense Keys related to that Hopper will turn OFF thus indicating that the Hopper will no longer dispense. The default setting for this parameter is OFF.

21. Auger Status – This parameter determines whether the Auger Motor of the selected Hopper is turned ON or OFF. If an Auger Motor is ON then dispenses from the selected Hopper will include powder (product). If an Auger Motor is OFF then dispenses from the selected Hopper will not include powder (product). This is a temporary parameter and is reset to the default setting at “power-on”. The default

setting for this parameter is ON.

22. Mixer/Dump Status – This parameter determines whether the Mixer/Dump (combination of the Mixer Motor and Dump Solenoid) of the

selected Hopper is turned ON or OFF. If a Mixer/Dump is ON then dispenses from the selected Hopper will mix and will include water. If a Mixer/Dump is OFF then dispenses from the selected Hopper will not mix and will not include water. This is a temporary parameter and is reset to the default setting at “power-on”. The default setting for this parameter is ON

23. Displayed Units – This parameter determines whether the displayed units of measure are English or Metric. If the Displayed Units parameter is set to English then all temperatures are displayed as Degrees Fahrenheit and all volumes are displayed as Fluid Ounces. If the Displayed Units parameter is set to Metric then all temperatures are displayed as Degrees Celsius and all volumes are displayed as Milliliters. The default setting for this parameter is English

24. Dispense Type – This parameter determines whether the customer is prompted to select a choice of Drink or choice of Soup. If the Dispense Type is set to Drink then the instructional prompt will read “PLEASE SELECT CHOICE OF DRINK”. If the Dispense Type is set to Soup then the instructional prompt will read “PLEASE SELECT CHOICE OF SOUP”. The default setting for this parameter is Drink

25. Default Parameters – This screen gives the user the ability to reset all system parameters except the Grand Total, Dispense Total, and

Cups Dispensed. Simultaneously depressing the and  keys will force all system parameters to revert to designated individual default settings.

*Important Note* The default status for all Hoppers is OFF. Thus before any Hopper will dispense the Hopper Status must be

manually set to ON.

PROGRAMMING INSTRUCTIONS – ILL. C

Center of CECILWARE LOGO and Center of FAST FLOW LOGO

To access SERVICE MODE – Press simultaneously

To access PROGRAM MODE – Press simultaneously

RINSE and STOP

To decrease or increase parameters

LCD WINDOW

PLEASE SELECT DRINK…..

RED – LED BLINKING LIGHTS

GREEN – DISPENSE BUTTON

The a functional description of Version 1.07 of the dispensing controller is as follows:

MODES OF OPERATION

1. Initializing Mode – This mode is only active during the first few seconds after a “power-on” or system reset. The main function of this mode is to configure the system using the previously saved operating parameters.

2. Normal Mode – This mode becomes active immediately after Initializing Mode has completed its tasks. The main functions of this mode are to monitor and report system status and control dispensing.

3. Rinse Mode – This mode becomes active when the Rinse key is depressed while in Normal Mode. The main function of this mode is to allow the operator to initiate an individual Rinse for any enabled Hopper.

4. Program Mode – This mode becomes active when the Rinse and the Stop keys are simultaneously depressed for more than 1.5 seconds while in Normal Mode. The main function of this mode is to provide limited access to frequently used system parameters.

5. Service Mode – This mode becomes active when the hidden keys under the “Cecilware Logo” and the “Fast Flow Logo” are simultaneously depressed for more than 1.5 seconds while in Normal Mode. The main function of this mode is to allow access to all system parameters that can be modified.

INITIALIZING MODE

The following screen signifies this presence of this mode: It should be noted that this is the only time the System Software Version Number (V #.##) is displayed. All other functions of this mode are completely transparent to the operator.

CECILWARE

DISPENSER V #.##

NORMAL MODE

The following is a list of functions performed by this mode:

1. Dispensing Control – This mode is responsible for implementing and supervising the dispensing process.

2. Water Level Control – This mode is responsible for maintaining the proper level of water in the reservoir tank.

3. Water Temperature Control – This mode is responsible for maintaining the required water temperature in the reservoir tank.

4. Sanitary (Rinse) Functions – This mode is responsible for annunciating and enforcing rinse warnings and lockouts.

5. Safety Functions – This mode is responsible for monitoring all sensors, motors, solenoids, and heaters for proper operation.

RINSE MODE

An individual Rinse is initiated by simultaneously pressing the Rinse key and a Dispense key corresponding to the hopper to be rinsed.

PROGRAM MODE

General Conventions (unless otherwise indicated)

1. To enter or exit Program Mode simultaneously depress both the Rinse key and the Stop key until the buzzer sounds (approximately 1.5 seconds).

2. Pressing the Stop key will cause the menu to scroll up and pressing the Rinse key will cause the menu to scroll down.

3. The blinking LED's) signify which Hopper or Serving Size the displayed parameter corresponds to.

4. Pressing the ▼or ▲ keys individually will decrease or increase the displayed parameter respectively.

5. Pressing the ▼and ▲ simultaneously will cause the parameter to revert to a default value.

Functions:

1. All Dispense LED’s will be illuminated and the LCD/VFD screen will display the following: DISPENSE TOTAL

SELECT A KEY

2. If the Stop key is pressed the LCD/VFD screen will display the following: DISPENSE TOTAL

#######.# OZ.

3. Pressing any of the Dispense keys will cause the Dispense LED of the corresponding key to

blink and the LCD/VFD screen will display the serving counter for the indicated Dispense key as follows:

4. Pressing any of the Dispense keys will cause the Dispense LED of the corresponding key to

blink and the LCD/VFD screen will display the Serving Counter for the indicated Dispense key as follows:

If the Stop key is pressed the LCD/VFD screen will display the following:

If the▼or ▲ keys are pressed the Dispense Mode will toggle between “free flow” and “portion control”.

7. If the Stop key is pressed the LCD/VFD screen will display the following: TEACH-ME SETUP

8. Pressing the ▼and ▲ keys simultaneously will cause the menu to display the following:

Teach Me Timer Setup

A. Place cup or decanter under the desired nozzle. B. Press one of the illuminated Dispense keys corresponding to the selected nozzle to begin dispensing. C. Release the Dispense key to stop dispensing. D. Wait a short time to allow the foam to settle. E. Jog the Dispense key as needed to top off cup or decanter. F. If desired simultaneously press the ▼and ▲ keys to use the last Serving Size for all equal cup sizes.

Repeat steps A-F for each Dispense key as required.

SERVING COUNTER

SELECT A KEY

SERVING COUNTER

##### CUPS

DISPENSE

MODE FREE

FLOW

ARE YOU SURE ?

TEACH-ME SETUP

SELECT A KEY

PORTION CONTROL

DISPENSE MODE

9. If the Stop key is pressed the LCD/VFD screen will display the following:

10. Pressing any of the Dispense keys will cause the Dispense LED of the corresponding key to

blink and the LCD/VFD screen will display the Serving Size for the indicated Dispense key as follows:

11. Pressing ▼or ▲ key will decrease or increase the Serving Size respectively.

12. If the Stop key is pressed the LCD/VFD screen will display the following:

SERVING SIZE SELECT A KEY

SERVING SIZE

##.# OZ.

GRAM THROW SELECT A KEY

13. Pressing any of the Dispense keys will cause the Dispense LED(s) of the corresponding

Hopper to blink and the LCD/VFD screen will display the Gram Throw for the indicated

GRAM THROW

###

Hopper as follows:

14. Pressing ▼or ▲ key will decrease or increase the Gram Throw respectively.

15. If the Stop key is pressed the LCD/VFD screen will display the following:

HOPPER STATUS

SELECT A KEY

16. Pressing any of the Dispense keys will cause the Dispense LED(s) of the corresponding

Hopper to blink and the LCD/VFD screen will display the Status for the indicated Hopper as

HOPPER

STATUS ON

HOPPER STATUS

OFF

follows:

17. If the ▼or ▲ keys are pressed the Hopper Status will toggle between “on” and “off”.

Note: IF either the Auger Motor, or Mixer Motor, or Solenoid Error Screen appear: The entire system is inoperable this means that

one of either the Auger Motor, or Mixer Motor, or Solenoid [Dispense Valve] is not functional while that Hopper Status in ON. To continue operating the other Hoppers:

Press RINSE, Press ▼or ▲ key until you get the HOPPER STATUS screen, Set the

non-functional HOPPER STATUS to OFF, Wait at least 10 sec., then Exit program.

SERVICE MODE

General Conventions:

1. To enter or exit Service Mode simultaneously depress both the hidden key behind the Cecilware Logo the Fast Flow Logo

until the buzzer sounds (approximately 1.5 seconds).

2. Pressing the Stop key will cause the menu to scroll up and pressing the Rinse key will cause the menu to scroll down.

3. The blinking LED(s) signify which Hopper or Serving Size the displayed parameter corresponds to.

4. Pressing the ▼and ▲keys individually will decrease or increase the displayed parameter respectively.

5. Pressing the ▼and ▲keys simultaneously will cause the parameter to revert to a default value.

Functions:

and the hidden key behind

1. All Dispense LED’s will be illuminated and the LCD/VFD screen will display the following: DISPENSE TOTAL

SELECT A KEY

2. Pressing any of the Dispense keys will cause the Dispense LED of the corresponding key to

blink and the LCD/VFD screen will display the serving counter for the indicated Dispense

DISPENSE TOTAL

#######.# OZ.

key as follows:

3. Pressing the ▼and ▲ keys simultaneously will reset the Dispense Total for the indicated Hopper.

4. If the Stop key is pressed the LCD/VFD screen will display one of the following: SERVING COUNTER

SELECT A KEY

5. . Pressing any of the Dispense keys will cause the Dispense LED of the

corresponding key to blink and the LCD/VFD screen will display the Serving

SERVING COUNTER

SELECT A KEY

SERVING COUNTER

##### CUPS

Counter for the indicated Dispense key as follows:

6. Pressing the ▼and ▲ keys simultaneously will reset the Serving Counter for the indicated Dispense key.

7. If the Stop key is pressed the LCD/VFD screen will display the following:

DISPENSE MODE

FREE FLOW

DISPENSE MODE

PORTION CONTROL

9. If the Stop key is pressed the LCD/VFD screen will display the following:

10. Pressing any of the Dispense keys will cause the Dispense LED of the corresponding key to

blink and the LCD/VFD screen will display the Serving Size for the indicated Dispense key

SERVING SIZE SELECT A KEY

SERVING SIZE

##.## OZ.

as follows:

11. If the Stop key is pressed the LCD/VFD screen will display the following:

GRAM THROW SELECT A KEY

12. Pressing any of the Dispense keys will cause the Dispense LED(s) of the corresponding

Hopper to blink and the LCD/VFD screen will display the Gram Throw for the indicated Hopper as follows:

13. If the Stop key is pressed the LCD/VFD screen will display the following:

14. Pressing any of the Dispense keys will cause the Dispense LED(s) of the corresponding

Hopper to blink and the LCD/VFD screen will display the Auger Start Time for the indicated Hopper as follows:

15. If the Stop key is pressed the LCD/VFD screen will display the following:

16. Pressing any of the Dispense keys will cause the Dispense LED(s) of the corresponding

Hopper to blink and the LCD/VFD screen will display the Mixer Start Time for the indicated Hopper as follows:

17. Pressing any of the Dispense keys will cause the Dispense LED(s) of the corresponding

Hopper to blink and the LCD/VFD screen will display the Auger Stop Time for the indicated Hopper as follows:

18. If the Stop key is pressed the LCD/VFD screen will display the following:

GRAM THROW

###

AUGER START TIME

SELECT A KEY

AUGER START TIME

#.# SEC.

MIXER START TIME

SELECT A KEY

MIXER START TIME

#.# SEC.

AUGER STOP TIME

SELECT A KEY

AUGER STOP TIME

#.# SEC.

19. If the Stop key is pressed the LCD/VFD screen will display the following:

20. Pressing any of the Dispense keys will cause the Dispense LED(s) of the corresponding

Hopper to blink and the LCD/VFD screen will display the Mixer Stop Time for the indicated

MIXER STOP TIME

SELECT A KEY

MIXER STOP TIME

#.# SEC.

Hopper as follows:

21 If the Stop key is pressed the LCD/VFD screen will display the following:

22. If the Stop key is pressed the LCD/VFD screen will display one of the following:

23.

If the Stop key is pressed the LCD/VFD screen will display one of the following:

24.

If the ▼and ▲ keys are pressed the Rinse Lockout will toggle between “on” and “off”.

RINSE WARNING

FILL CONSTANT

#.## OZ./SEC.

RINSE TIME

## SEC.

RINSE WARNING

OFF

25.

If the Stop key is pressed the LCD/VFD screen will display one of the following:

26.

If the ▼and ▲ keys are pressed the Rinse Warning will toggle between “on” and “off”.

RINSE LOCKOUT

OFF

27. If the Stop key is pressed the LCD/VFD screen will display the following:

RINSE LOCKOUT

## HRS.

28. If the Stop key is pressed the LCD/VFD screen will display the following:

29. If the Stop key is pressed the LCD/VFD screen will display the following:

TEMP LOCKOUT

WATER TEMP.

### DEG F

TEMP LOCKOUT

Off

30. If the ▼and ▲ keys are pressed Low Temperature Lockout will toggle between “on” and “off”.

31. If the Stop key is pressed the LCD/VFD screen will display the following:

32. If the Stop key is pressed the LCD/VFD screen will display the following:

LOW TEMP LOCKOUT

### DEG F

HOPPER STATUS

SELECT A KEY

33. Pressing any of the Dispense keys will cause the Dispense LED(s) of the corresponding

Hopper to blink and the LCD/VFD screen will display the status for the indicated Hopper as

HOPPER STATUS

Off

follows:

34. If the ▼and ▲ keys are pressed the hopper status will toggle between “on” and “off”.

35. If the Stop key is pressed the LCD/VFD screen will display the following:

36. Pressing any of the Dispense keys will cause the Dispense LED(s) of the corresponding

Hopper to blink and the LCD/VFD screen will display the status for the indicated Auger as

AUGER STATUS

SELECT A KEY

UGER STATUS

AUGER STATUS

Off

follows:

37. If the ▼and ▲ keys are pressed the Auger Status will toggle between “on” and “off”.

38. If the Stop key is pressed the LCD/VFD screen will display the following:

39. Pressing any of the Dispense keys will cause the Dispense LED(s) of the corresponding

MIX/DUMP STATUS

hopper to blink and the LCD/VFD screen will display the status for the indicated Mixer/Dump Valve as follows:

40. If the ▼and ▲ keys are pressed the Mixer/Dump Valve Status will toggle between “on” and “off”.

41. If the Stop key is pressed the LCD/VFD screen will display one of the following:

DISPLAYED

UNITS ENGLISH

42. If the ▼and ▲ keys are pressed the Displayed Units will toggle between “English” and “Metric”.

43. If the Stop key is pressed the LCD/VFD screen will display the following:

44. Pressing the ▼and ▲ keys simultaneously will cause all parameters to revert to default

values and the menu to display the following:

MIX/DUMP STATUS

SELECT A KEY

MIX/DUMP STATUS

RESET SYSTEM

ARE YOU SURE?

RESET SYSTEM

COMPLETED

Off

DISPLAYED

UNITSMETRIC

DEFINITION OF SCREENS DURING NORMAL OPERATION:

1. Initialization Screen

Definition – This screen is displayed only during the first few seconds after “power-on”. The only purpose of this screen is to display the System Software Title (DISPENSER) and Version Number (V #.##).

2. Low Water Level Screen

Definition – This screen is displayed after the Initialization Screen during the initial filling of the water tank (first fill). Once the water in the reservoir tank has reached the appropriate fill level this screen is retired.

Low Temperature Lockout Screen

Definition – This screen is displayed when the Low Temperature

Lockout feature is ON and the present water temperature is below the Low Temperature Lockout trip point.

RESET SYSTEM

COMPLETED

PLEASE WAITLOW

WATER LEVEL

PLEASE WAITLOW

WATER TEMP.

4. System Rinse Lockout Screen

Definition – This screen is displayed when the Rinse Lockout feature is ON and all Hoppers have met the conditions for Rinse Lockout. A Hopper will enter Rinse Lockout when the respective Hopper has dispensed but has not been rinsed for a period of time

reater than that defined by the Rinse Lockout Time.

PLEASE RINSE

TO CONTINUE

Since the system has no method of recording elapsed time during “power-off”, the system will place all Hoppers in Rinse Lockout upon “power-on” as a sanitary precaution.

5. Rinse Screen

Definition – This screen appears when the Rinse Key is pressed while the system is waiting to dispense. If any of the Dispense Keys are pressed while this screen is being displayed the system will rinse the Hopper corresponding to the depressed key. If the Rinse Key is released while a Hopper is being rinsed this

PRESS AND RELEASE

TO RINSE

screen will remain until the rinse process is complete.

6. Selection Screen

Definition – This screen is displa This screen alternates with a Dispense Screen every three seconds.

ed along with a Dispense Screen while the system is waiting to dispense.

PLEASE SELECT

CHOICE OF DRINK

7. Portion Control Dispense Screen

Definition – This screen is displayed while the system is waiting to dispense if the Dispense Mode is set to Portion Control. This screen alternates with the Selection Screen every three seconds.

PRESS AND RELEASE

TO DISPENSE

Free Flow Dispense Screen

Definition – This screen is displayed while the system is waiting to dispense if the Dispense Mode is set to Free Flow. This screen alternates with the Selection Screen every three seconds.

Rinse Warning Screen

Definition – This screen appears when the Rinse Warning feature is ON and a Hopper (identified by @)

PRESS AND HOLD

HOPPER # @MUST BE

UNTIL 2/3 FULL

RINSED

has dispensed but has not been rinsed for a period of time greater than that defined by (50 * Rinse Lockout Time) minutes.

For example: if the Rinse Lockout Time is 6 Hrs and the Rinse Warning feature is ON then the Rinse Warning will be triggered when a Hopper is not rinsed for 300 minutes (5 hours). Triggering a Rinse Warning will cause the audible alarm to sound for two seconds and the Rinse Warning Screen to be displayed for five seconds. The system will then revert back to normal operation. If the offending Hopper is not rinsed after the first Rinse waning additional Rinse Warnings will be triggered every five minutes until the respective Hopper is rinsed.

10. Rinse Lockout Screen

Definition – This screen appears when a Dispense Key is pressed corresponding to a Hopper (identified by @) that has entered Rinse Lockout. A Hopper will enter Rinse Lockout when the respective Hopper has dispensed but has not been rinsed for a period of time Once a Hopper enters Rinse Lockout the LED’s of the Dispense Keys related to that Hopper will turn OFF

HOPPER #@

MUST BE RINSED

reater than that defined by the Rinse Lockout Time.

thus indicating that the Hopper will no longer dispense.

11.

High Temperature Lockout Screen

Definition – This screen is displayed when the present water temperature is 10 °F above the water temperature set point.

Hopper Status Warning Screen

12.

Definition – This screen appears when a Dispense Key is pressed corresponding to a Hopper (identified by @) that has been turned OFF. Once a Hopper has been turned OFF the LED’s of the Dispense Keys related to that Hopper will turn OFF thus indicating that the Hopper will no longer dispense.

HIGH WATER TEMP

PLEASE WAIT

HOPPER # @

IS OFF

DEFINITION OF ERROR SCREENS AND TROUBLESHOOTING

IF ANY OF THESE ERROR SCREENS COME UP ALSO CHECK THE SAFETY RELAY IN ADDITION TO THE COMPONENT IN QUESTION. SEE RELAY TEST.

1. Over Temperature Error Screen Definition – This screen is displayed and the system is shut down when the present water temperature is sensed higher than 208 °F.

Possible Causes: Invalid required Water Temperature or Faulty Water Temperature Sensor.

2. Water OverflowError Screen Definition – This screen is displayed and the system is shut down when the OT/OF Sensor is detecting a rapid change in ambient temperature inside the overflow tube.

Possible Causes: Faulty fill Solenoid or faulty/ disconnected Level Sensor.

3. No Fill Response Error Screen Definition – This screen is displayed and the system is shut down when the Fill Solenoid has been continuously energized (open & filling) for more than five minutes during the first fill or more than 30 seconds thereafter.

Possible Causes: Water supply is turned OFF or faulty / disconnected Level Sensor.

4. No Temperature Response Error Screen Definition – This screen is displayed and the system is shut down when the Water Heater has been continuously energized (heating) for more than 30 minutes .thereafter.

Possible Causes: faulty/disconnected Level Sensor, faulty Water Temperature Sensor, or faulty Water Heater.

5. Water Heater Error Screen Definition – This screen is displayed and the system is shut down when the required status (ON/OFF) of the Water Heater does not match the sensed status for more than two seconds.

Possible Causes: faulty/disconnected Water Heater, faulty/disconnected Triac, or faulty/disconnected Safety Relay.

SYSTEM ERROR!

OVER TEMPERATURE

!SYSTEM ERROR!

WATER OVERFLOW

!SYSTEM ERROR!

NO FILL RESPONSE

!SYSTEM ERROR!

NO TEMP RESPONSE

!SYSTEM ERROR!

WATER HEATER

6. Fill Solenoid Error Screen – Water Inlet Valve Definition – This screen is displayed and the system is shut down when the required status (ON/OFF) of

!SYSTEM ERROR!

FILL SOLENOID

the Fill Solenoid does not match the sensed status for more than two seconds.

Possible Causes: Faulty/disconnected Fill Solenoid or faulty/disconnected Safety Relay.

7. Auger Motor Error Screen Definition – This screen is displayed and the entire system is inoperable

when the required status

!SYSTEM ERROR!

AUGER MOTOR

(ON/OFF) of the Auger Motor (identified by @) does not match the sensed status for more than two seconds.

Possible Causes: Faulty/disconnected Auger Motor.

8. Dump Solenoid Error Screen – Dispense Valve Error Screen Definition – This screen is displayed and the entire system is inoperable

when the required status

!SYSTEM ERROR!

DUMP MOTOR # @

(ON/OFF) of the Dump Solenoid (identified by @) does not match the sensed status for more than two seconds.

Possible Causes: Faulty/disconnected Dump Solenoid [Dispense Valve] or faulty/disconnected Safety Relay.

9. Mixer Motor Error Screen Definition – This screen is displayed and the entire system is inoperable

when the required status

!SYSTEM ERROR!

MIXER MOTOR # @

(ON/OFF) of the Mixer Motor (identified by @) does not match the sensed status for more than two seconds.

Possible Causes: Faulty/disconnected Mixer Motor or faulty/disconnected Safety Relay. If Mixer Motor or Relay check out good, manually check for loose connections or defective parts on all 120V ac circuits including: fuse, fuse holder, transformer, hi-limit, and harness.

Note: IF either the Auger Motor, or Mixer Motor, or Solenoid Error Screen appear: The entire system is inoperable this means that one of either the Auger Motor, or Mixer Motor, or Solenoid [Dispense Valve] is not functional while that Hopper Status in ON. To continue operating the other Hoppers: Press RINSE to get the HOPPER STATUS screen, Press ▼or ▲key to set the non-functional HOPPER STATUS to OFF; Wait at least 10 sec., then Exit program. Reset Power Switch [OFF and ON].

10. High Temperature Lockout Screen Definition – This screen is displayed when the present water temperature is 10 °F above the water temperature set point.

Possible Causes: Faulty/disconnected Temperature Sensor.

11. Over Temperature / Over Flow Error Screen Definition – This screen is displayed and the system is shut down when the present water temperature is sensed higher than 208 °F.

Possible Causes: Faulty/disconnected Over-Temperature/Over-Flow Sensor.

Go into Program Mode [by pressing simultaneously the Rinse and Stop keys],

!SYSTEM ERROR!

TEMP SENSOR

!SYSTEM ERROR!

OT/OF SENSOR

12. Communications Error Screen Definition – This screen is displayed and the system is shut down when the Communications Link between the Display Board and the Control Board has been interrupted for more than five seconds and then re-established.

Possible Causes: Faulty connection between the Display Board and the Control Board .

13. Communications Failure Screen Definition – This screen is displayed and the system is shut down when the Communications Link between the Display Board and the Control Board has been interrupted for more than five seconds.

Possible Causes: Faulty connection between the Display Board and the Control Board.

!SYSTEM ERROR!

COMMUNICATIONS

!SYSTEM ERROR!

COM FAILURE V 1.4

TESTS

1) Water Inlet Valve Test

Turn power off. If the water level rises inside the tank, the Water Inlet Valve is leaking.

Disconnect wires from the Water Inlet Valve coil and connect a 2 wire line cord to the terminals. Plug it into a 115V outlet. If water flows in and stops when you pull it out, the Valve is working fine. Repeat this test a few times. The problem may be in the Probe. If the water does not flow in when the cord is plugged into an electrical outlet, the Solenoid coil may be damaged, opened or the valve may have an obstruction preventing the water from flowing in. Clean or replace it.

A Check Valve is installed to prevent backflow. To check proper function of Check Valve, disconnect water line from the Check Valve, check for

dripping from the disconnected end of the Check Valve. If it leaks replace it.

2) Water Level Probe Test

If there is a lack of water, you will get an error message on the LCD window. Check the probe as

follows:

Turn on the power and water supply. Check inside the tank to make sure the water is not

touching the Probe. Pull the wire and terminal out of the Probe rod. If water starts flowing into the tank, the Probe may be grounded, due to excessive liming. Check with Ohm meter. Clean or replace.

3) Relay Test Turn Power Switch ON. Measure Voltage across Output “COM” to Ground. Should read 120 V. Measure Voltage across Input “NO” to Ground. Should read 120 V.

Measure Voltage across Input to Coil . Should read 24 VDC.

CHECK VALVE ASS’Y L463A

HOSE NUT ASS’Y K178A

WATER INLET VALVE L462A

RECOMMENDED PREVENTIVE MAINTENANCE

1. CHECK ALL DISPENSE VALVES FOR LIME BUILD-UP.

•Drain The Water Tank To Just Below The Level Of The Dispense Valves.

•Remove The Valves And Clean. ( You Can Take These Valves Apart By Hand As Shown).

•Replace The Assembly As Needed (L467A).

•Replace The Valve Into The Tank And Refill tank.

2. CHECK ALL CHAMBER MOUNTS FOR SIGNS OF WEAR

A. Product running down th front of the unit. B. Product built up on the back of Chamber Mount.

•Remove Chamber Mount.

•Clean And Re-Lubricate motor shaft using food grade lubricant only

•Replace with new Chamber Mount.

3. CLEAN OUT VENT MOTOR, TROUGH AND TUBING

•Remove Two Screws Holding Trough In Place.

•Clean, And Replace Trough.

•Remove Hose Assembly From The Motor.

•Clean Out And Replace.

WATER FLOW ADJUSTMENT

PICTURE / DURATRAN REPLACEMENT and BULB AND STARTER REPLACEMENT - ILL. D To Replace The Picture / Duratran:

Lift up the two end tabs on top of door with a pointed object or flat head screwdriver. Pull the entire picture frame out. Open up the two clear panels and replace picture. Tuck clear plastic panel inside bracket at top.

To replace the Fluorescent Bulb:

Remove the inside door panel. Turn the lamp and pull it out of the lamp holder, then place the new lamp into the lamp holder and turn it until it snaps into position.

To replace the Starter:

Remove the inside door panel. Turn the starter slightly counterclockwise and take it out of the starter base.

To install the new starter, snap the starter into the starter base and turn it slightly clockwise into position.

BE SURE TO TUCK CLEAR PANEL UNDER BRACKET BEFORE SLIDING FRAME ASS'Y INSIDE DOOR.

SANITIZING, CLEANING AND REFILLING HOPPERS

Sanitizing:

To prepare a sanitizing solution: ROOM TEMPERATURE (70°- 90°F). Note: Always start with a unopened bottle of Clorox Bleach since the solution from an opened bottle has a short life span.

• Soak all parts for a minimum of 3 min. in the sanitizing solution.

• Let all sanitized parts drain and dry naturally. DO NOT WIPE THEM DRY.

• Before using the sanitized unit (or parts) with food stuffs, rinse all parts thoroughly with water. Water pipe connecting and fixtures directly connected to a potable water supply shall be sized, installed, and maintained in accordance with

Federal, Sate, and Local codes (section 7).

Cleaning

1. Turn the power switch to OFF.

2. Remove the drip tray with grill and empty the contents.

3. Wash and let dry the tray and grill (use a mild dishwasher detergent).

4. Wash and let dry the dispense area.

5. Turn the power switch to ON.

Cleaning the Hoppers (See Illustration E)

1. Open the cabinet door and raise the top cabinet lid.

2. Take the hopper out of the cabinet.

3. Pull off the elbow chute and remove the hopper cover.

4. Unscrew the auger gear CW while holding steady the auger inside the hopper. Take out the auger, agitator wheel, and spring.

5. Rinse each item thoroughly.

6. Let dry all items and reassemble.

Filling the Hoppers

1. Open the cabinet door, raise the top cabinet lid.

2. Fill each hopper with the correct product. Note: Hoppers can also be removed for filling.

3. Reposition hoppers in the hopper compartment, making sure the hoppers are properly seated.

Flushing the Whipper Chamber

1. Open the cabinet door and turn the RINSE switch to ON.

2. Place a container under each dispense nozzle and push the dispense switches. Note: On manual dispense machines, push and hold the dispense buttons for 10 seconds.

3. Open the cabinet door and turn the Rinse switch back to OFF.

4. Wash and let dry the splash panel.

5. Remove the drip tray, wash and let dry thoroughly.

Removing and Cleaning the Whipper Chambers (See Illustration E)

1. Remove the dispense cap by pulling it forward and at the same time twisting it clockwise.

2. Grab and pull the mixing bowl out of the mixing bowl socket.

3. Grab and twist the whipping chamber clockwise and pull it off the mounting plate.

4. Pull the Whipper blade off the motor shaft. Notice the flat keyway on the shaft and the matching keyway inside the Whipper blade shaft. It is important that these two keyways are lined up when re-assembling the components.

5. Twist the mounting plate clockwise and pull it off the motor shaft.

6. Slip off the o-ring from the Whipper chamber mounting plate and clean o-ring and o-ring seat.

Removing and Cleaning the Mixing Chambers (See Illustration E)

1. Remove the dispense cap.

2. Pull the mixing bowl out of the mixing bowl socket.

3. Take out the extension tubes.

4. Rinse them thoroughly

All food dispensing units should be sanitized periodically. All parts to be sanitized must be cleaned first.

ADD 2 TSP. OF LIQUID CLOROX BLEACH (5.25% CONCENTRATION) TO 1 GALLON OF WATER AT

HOPPER and DISPENSING CHAMBER ASS'YS WITH WIRE AUGERS - ILL. E

HOPPER COVER CD106

HOPPER CD144

HOPPER CD152

HOPPER CD98A

MIXING CHAM. CD137

WHIP CHAM. CD63A

EXTENSION TUBE M467A

WHIPPER BLADE CD143 or CD64A

HOPPER and DISPENSING CHAMBER ASS'Y WITH NYLON AUGERS - ILL. E

HOPPER ASS'Y CD104, 7 LB, 18"HIGHT x 3"W, W/NYLON AUGER HOPPER ASS'Y CD120, 5.5 LB, 14"HIGHT x 3"W, W/NYLON AUGER HOPPER ASS'Y CD68A, 4 LB, 11.5"HIGHT x 3"W, W/NYLON AUGER

HOPPER ASS'Y CD313, 1 LB COFFEE, 7.875" HIGHT x 3"W, W/NYLON AUGER

HOPPER ASS'Y CD105 (14 lb; 18"H IGHT X 6.25"SQ) W/NYLON AUGER

HOPPER ASS'Y CD99A (8 lb; 11.5"]HIGHT X 6.25"SQ) W/NYLON AUGER

WHIPPER BLADE CD143 or CD64A

TROUBLESHOOTING GUIDE

WARNING: To reduce the risk of electrical shock unplug the dispenser power cord before repairing or replacing any internal components of the unit.. Before any attempt to replace a component be sure to check all electrical connections for proper contact

PROBLEM PROBABLE CAUSE REMEDY

1. Light Display not lit. No power.

2. No water when Rinse Switch is ON.

3. No product when Dispense Button is pressed

4. Water does not shut off. Water keeps dispensing.

5. No water is going into tank at all.

6. Water will not stop flowing into tank.

7. Water is not heating up in the water tank.

9. Water drips from mixing chamber

a) Dispensing unit unplugged b) No power from Main Board or from Power Switch. c) Defective Bulb d) Loose Bulb in socket. e) Defective Ballast.

a) Water supply OFF. b) Clogged inlet screen (Water Inlet Valve). c) Inoperative Water Inlet Valve. d) Loose electrical connection.

a) No product in Hopper. b) Auger not working. c) Damaged, loose, or missing Agitator Gear. d) Inoperative Auger Motor. e) Hopper outlet clogged f) Faulty Coupling. a) Leaking Solenoid [Water Inlet Valve]. b) Inoperative Switches on Touch Pad. c) Inoperative Rinse Switch – Touch Pad

d) Clogged/stuck Water Dispense Valve a) Water Inlet Valve malfunction.

b) Probe malfunction. a) Water Level Probe malfunction. b) Solenoid (Water Inlet Valve) malfunction.

a) Temperature setting is incorrect. b) Loose connection to Heating element c) Heater is burned out or defective. a) Leaking Water Dispense Valve b) Too much water in tank. c) Mixing Chamber clogged. d) Water Valve blocked by scales.

a) Reconnect dispensing unit b) Check for loose wire to Main Board or to Power Switch. c) Replace Bulb. d) .Make sure bulb is seated properly in socket. e) Replace Ballast

a) Turn water ON. b) Disconnect water line and clean inlet screen. c) Check connection, if needed replace Valve. d) Check all electrical connections.

a) Add product. b) Engage Hopper/Nut to Motor Gear (see Ill. E). c) Replace Agitator Gear (see Ill. E) . d) Check connections of Motor, if needed replace such components. e) Clean Hopper and check Cartridge Heater. f) Replace damaged Coupling components. a) Clean/check fittings of Valve. Replace Valve if needed. See ”Water Inlet Valve Test” b) Check Touch Pad connections. Replace Touch Pad if needed. d) Clean/unclog Water Dispense (Dump) Valve. Replace Dispense Valve if inoperative. a) Check Solenoid valve. Replace if necessary. See “Water Inlet

Valve Test” b) Check Probe. Replace if necessary. See “Probe Test”. a) Check Probe. Replace if necessary. See “Probe Test” b) Check Solenoid. Replace if necessary. See “Water Inlet Valve

Test” a) Set Temperature at 195°F – See Programming Instructions b) Make sure all wires are tight. c) Replace the Heater. a) Replace Water Dispense (Dump) Valve b) Dispense some water from tank. c) Clean Mixing Chamber. d) Replace or clean Valve seat.

10. Cold drink. a) Run out of hot water b) Temperature setting is incorrect. c) Loose electrical connection.

d) Bad Heating Element or Heater is burned out.

11. Drink too

strong.

12. Drink too weak. a) No product in hopper

13. Drink not

whipped.

14. Dispenser

repeats cycle

a) Water flow too low b) Product throw too high

b) Product throw too low c) Water flow too high

a) Whipper Blade missing. b) Loose electrical connection to motor. c) Whipper Motor defective.

a) Touch Pad defective. b) Power [Dispense] Relay stuck.

a) Allow time for water in tank to heat after filling. b) Set temperature at 195°F. (See Programming Instructions) c) Check all electrical connections for contact. d) Replace Heater. (see Item 11 on Tank Ass’y ILL. F).

a) Adjust water flow rate (see Ill. B) b) Adjust Gram Throw. (see Programming Instructions)

a) Add product b) Adjust Gram Throw (see Programming Instructions) c) Adjust water flow rate (see Ill. B)

a) Replace Whipper Blade b) Check electrical connections to motor. c) Replace Whipper Motor.

a) Replace Touch Pad. b) Replace Relay.

15. Noise coming

from mixing chamber

a) Whipper blade not properly aligned or missing.

a) Check blade alignment, if needed replace blade and mixing

chamber.

16. Grinding noise

coming from unit

17. Banging or

clicking noise coming from hoppers

a) Hopper not properly engaged in back, or Hopper not seated properly

a) One or more Hoppers are empty or almost empty.

TANK ASS’Y - ILL. F

a) Check the mating between the auger motor’s gear and hopper’s coupling/nut. Check also pin in base. Pin must be dropped into hole in base.

a) Fill Hoppers with product.

ITEM DESCRIPTION P/N QTY

1 SCREW, S.S., 1/4 - 20 x 5/8 P465A 3 2 HEATER, 120V 1700W

HEATER, 240V, 3000W 3 GASKET, TANK HEATER M502A 1 4 RUBBER GASKET, FOR SCREW (ITEM 1 P446A) M533A 2 5 TUBE K525A 1 6 TANK TOP RY98A 1 7 WATER LEVEL PROBE [K402A + P410A] K402Q 1 8 HI-LIMIT [TEMP.] L573A 1 9 GROMMET PLUG (.466 ID) F/TESTING TEMP. M494A 1 10 THERMISTER PROBE [L616A-PROBE, L617A-SILICONE TUBE] L639Q 1 11 HEATER DUCT HOUSING RJ82A 1 12 SILICONE BUTT SPLICED GASKET [GB2MD]

SILICONE BUTT SPLICED GASKET (GB3MD)

SILICONE BUTT SPLICED GASKET [GB4MD]

SILICONE BUTT SPLICED GASKET (GB5MD)

13 TANK COVER BRACKETS RI42A 2 14 TANK BODY RI38A 1 15 GROMMET (.466 ID) M461A 9* 16 DISPENSE VALVE (DUMP) L467A 3* 17 TANK INSULATION MATERIAL M183A 1 18 DRAIN HOSE (on a roll) M483A 1 19 SILICONE DRAIN PLUG M391A 1 20 COPPER PLATE- HEAT SINK FOR TRIAC

WINGED NUT for mounting plate to tank 21 TRIAC 35 AMP

SCREW for Triac

* Quantity shown is for GB3M5.5 IT. Quantities very for each unit.

G267A G266A

M498A M499A M500A M473A

K770A

P301A 1 2 L623A P182A 1 2

DOOR ASS’Y WITH COMPONENTS (GB3M5.5 IT SHOWN) ILL. G

ITEM DESCRIPTION GB1/2M5.5-IT GB3M-5.5-IT GB3M-10-IT GB4M / 5M-IT

1 CLEAR WINDOW PANEL [1/8”] M774A M673A M673A M703A 2 PICTURE / DURATRAN FRAME ASS’Y SB98Q RX48Q RX48Q RZ91A 3 DOOR ASSEMBLY - RIGHT HINGED DOOR / LEFT HINGED DOOR SN04Q RX42Q RY89Q / RY91Q SA16Q / RZ90Q 4 TOUCH PAD [ OR NG27A F/SMALL, MEDIUM, LARGE – OPTIONAL F/ GB3] NG77A / NG78A NG29A NG29A NG72A / NG74A 5 INSIDE DOOR PANEL SD14A RY95A RY96A SA17A / RZ89A

ITEM DESCRIPTION P/N QTY

PROGRAMMING INSTRUCTIONS NH06A

CLEANING INSTRUCTIONS N978A

BACK PLATE FOR DOOR LATCH SD08A

DOOR LATCH, HIDDEN ( SET OF 2 UPPER AND LOWER) M704A

SCREW, 8-32x1/2 FOR DOOR LATCH P

SQ. NYLON RECEPTACLE SCREW F/ NYLON RECEPTACLE

BALLAST CE221

STARTER BASE B128A

STARTER, TYPE FS - 5, 5-6-8 WATT L396A

DISPLAY BOARD WITH LCD WINDOW PIGGYBACK L628A

NYLON SPACER, .563”L, WHITE, FOR BOARD ASS’Y M735A

NYLON NUT, WHITE, FOR BOARD ASS’Y P521A

STUD 10-32 x 1” 05052

LAMP HOLDER CE220

BULB, TYPE F8T5/CW [QTY FOR GB 1 & 2 IS “1”] CE76A

DOOR HINGE [ HIDDEN ] [1 SET OF 2, UPPER & LOWER] K618A DOOR HARNESS [+ DOOR CABLE CH16A ] CH18A

M08A

P415A

10 9 8

1 1 1 1 2 6 6 2 2 2 1 2 4 2 4 2 1 1

DESCRIPTION AND LOCATION OF COMPONENTS (GB3M5.5 IT SHOWN) ILL. H

16 201918

40 39

21 22 24

37 36

2523

GBM-5.5-IT COMMON PARTS IDENTIFICATION LIST

ITEM DESCRIPTION GB1/2M5.5-IT GB3M-5.5-IT GB3M-10-IT

TANK TOP ASS;Y -– FOR DETAILS SEE ILL.F SC32A RY98Q RY98Q RJ86Q

TANK WELDMENT ASS’Y – FOR DETAILS SEE ILL.F RJ83Q RI38Q RI38Q RJ85Q

THERMISTER ASS’Y [FOR HI-TEMP. & WATER OVERFLOW] ] L700Q L700Q L700Q L700Q

CHECK VALVE [PREVENTS BACKFLOW] L463A L463A L463A L463A

HOSE NUT ASS’Y K178A K178A K178A K178A

WATER INLET VALVE L462A L462A L462A L462A

FUSE HOLDER (120/240V only) C396A C396A C396A C396A

FUSE BUSSMAN SC15 (120/240V) or CE187 STEPDOWN TRANSFORMER CE181 / CE181 / CE181 CE181

POWER CORD C032A C032A C032A C032A

DUCT HOSE [FAN EXAUST] (16” X 1” ø) CD214 CD214 CD214 CD214

ELBOW INSERT [USE W/ FAN CD56A ONLY] CD108 CD108 CD108 -

FAN [GB1,2,3 CD56A] [GB4,5 CD224 110-115V, 60HZ, 110cu.m./hr., AC] CD56A CD56A CD56A CD224

MAIN CONTROL BOARD L627A L627A L627A L627A

13 14 TRANSFORMER C-CLASS [use w/DC motor CD151]

RELAY, SAFETY B190A B190A B190A B190A

FLOOR BRACKET, [ F/ MAIN CONTROL BOARD, TRANSFORMER, & RELAY ] RY69A RY69A RY69A SA57A

DOOR LATCH HIDDEN M705A M705A M705A M705A

4” LEGS M172A OR 1” FEET MO42A (SET OF 4) M172A M172A M172A M172A

POWER SWITCH (120 V) OR [120/240 V USE L299A] L069A L069A L069A L069A

DRIP TRAY PAN RT61A / RI11A RT62A RO04A RH05A / RJ53A

DRIP TRAY GRILL RI23A / RI18A RT69A RO07A RI20A / RJ56A

WHIPPER MOTOR short shaft [CD350] CD75A CD75A CD75A CD75A

SLINGER DISC CD124 CD124 CD124 CD124

GROMMET CHAMBER MOUNTING CD66A CD66A CD66A CD66A

CHAMBER MOUNT [USE BAR FOR COFFEE] CD65A CD65A CD65A CD65A

“O” RING # 125 (used w/ grommet CD66A) [FOR CHAMBER MOUNT] M379A M379A M379A M379A

WHIP BLADE - WITH STRAIGHT PROPELLERS OR [CD143 W/ BEV. PROP.] CD64A CD64A CD64A CD64A

EXTENSION TUBE - PLASTIC OR [STAINLESS STEEL H306A] M467A M467A M467A M467A

WHIP CHAMBER CD63A CD63A CD63A CD63A

MIXING CHAMBER W/TRIANGLE WING [ALTERNATE CD62A W/ RECT WING] CD137 CD137 CD137 CD137

DISPENSE CAP OR SPLASH GUARD CD61A CD61A CD61A CD61A

“O” RING (#110) (used w/socket CD67A) M378A M378 M378A M378A

MIXING BOWL SOCKET (was CD100 W/O RING M480) CD67A CD67A CD67A CD67A

DOOR ASS’Y – [ RIGHT / LEFT for GB3M-10 ] FOR DETAILS SEE ILL. G SN04Q RX42Q RY89Q / RY91Q SA16Q / SE45Q

SIDE PANELS RG48A RG48A RG48A RG48A

PRODUCT GUIDE CD70A CD70A CD70A CD70A

AUGER NYLON CD130 [22.5mmø X 18mm PT] [FOR CAPPUCCINO] OR

AUGER WIRE CD101 [22.5mmø X 18mm PT] [FOR SOUP]

AUGER BUSHING, FRONT [STD] W/”O” RING CD103 CD102 CD102 CD102 CD102

CANISTER ASS’Y WITH COVER [w/NYLON auger] OR [CD144 w/WIRE auger] CD120 CD120 CD120 CD120

AGITATOR (GEAR) [CD182 - OPTINAL] CD117 CD117 CD117 CD117

FLANGE (NUT) [CD340 – OPTIONAL] CD136 CD136 CD136 CD136

41 42 DC AUGER MOTOR 90 RPM CD151 [W/SCREW P443A]

CH332 CH332 CH332 CH332

CD130 CD101

CD151 CD151

CD130 CD101

CD151

GB4/5M-IT

CD130 CD101

CD151

USING OLDER VERSION OF TOUCH PAD WITH ONE RIBBON CONNECTOR

Cecilware GB-IT User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
