Cecilware GB1P-LD User Manual

Are water connection problems standing in your way of selling Cappuccino? if so, Cecilware has the
answer with its “Pour-over” Cappuccino dispenser series. As simple as placing a 3 or 6 gallon water

bottle on top of the dispenser, Cecilware can have you dispensing profit

s immediately. With its

intricate design, the “Pour-over” feature can also be used as a back up because a ¼" water line

connection comes standard.

When you think of Pourover Cappuccino Dispensers...

think Cecilware!

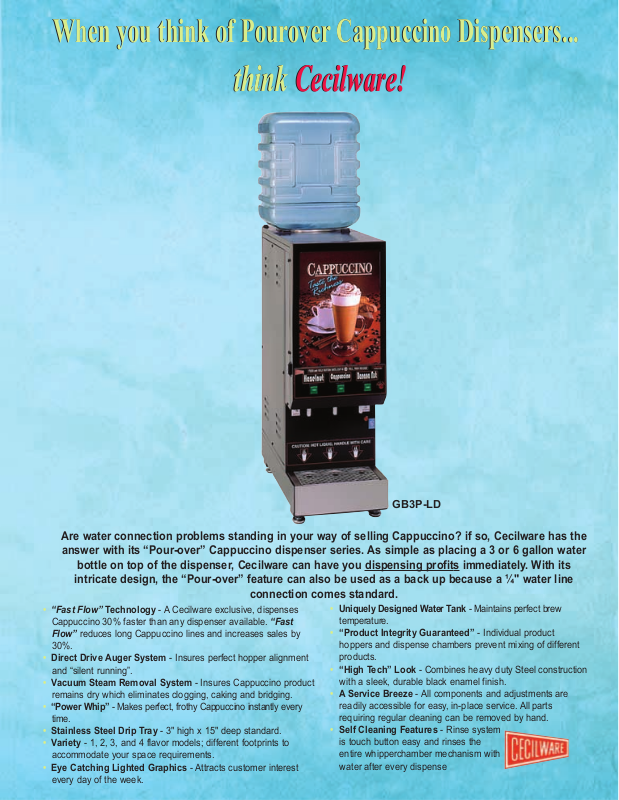

GB3P-LD

When you think of Pourover Cappuccino Dispensers...

think Cecilware!

• “Fast Flow” Technology - A Cecilware exclusive, dispenses

Cappuccino 30% faster than any dispenser available. “Fast
Flow” reduces long Cappuccino lines and increases sales by
30%.

• Direct Drive Auger System - Insures perfect hopper alignment

and “silent running”.

• Vacuum Steam Removal System - Insures Cappuccino product

remains dry which eliminates clogging, caking and bridging.

• “Power Whip” - Makes perfect, frothy Cappuccino instantly every

time.

• Stainless Steel Drip Tray - 3" high x 15" deep standard.

• Variety - 1, 2, 3, and 4 flavor models; different footprints to

accommodate your space requirements.

• Eye Catching Lighted Graphics - Attracts customer interest

every day of the week.

• Uniquely Designed Water Tank - Maintains perfect brew

temperature.

• “Product Integrity Guaranteed” - Individual product

hoppers and dispense chambers prevent mixing of different
products.

• “High Tech” Look - Combines heavy duty Steel construction

with a sleek, durable black enamel finish.

• A Service Breeze - All components and adjustments are

readily accessible for easy, in-place service. All parts
requiring regular cleaning can be removed by hand.

• Self Cleaning Features - Rinse system

is touch button easy and rinses the
entire whipperchamber mechanism with
water after every dispense

NO. OF HOPPERS 1 2 3 4

HOPPER

8 lbs. 4 lbs. 4 lbs. 4 lbs.

CAPACITY

WIDTH 8½" 8½" 11" 14"

WATER TANK 2.0 gal. 2.0 gal. 2.0 gal. 2.0 gal.
RESERVOIR 2.0 gal. 2.0 gal. 2.5 gal. 3.0 gal.

BURST

42 42 50 60

CAPACITY*

LIT DISPLAY

91 91 123 156

AREA (sq. in)

SHIP WEIGHT (lbs.) 75 75 95 110

MODEL No. GB1P-LD GB2P-LD GB3P-LD GB4P-LD

This is...

“What makes Cecilware #1 in Cappuccino!!”

Cecilware Corporation • 43-05 20th Avenue • LIC, NY 11105

Toll Free: 800-935-2211 • Fax: [phone]

visit us on the web: www.cecilware.com

Depth: 22" Height: 32" (without water bottle)

* Burst capacity based on 6 oz. cups

Electrical: 120V line cord, 1.8 KW, Nema 5-15 standard
Plumbing: All “GB” dispensers come standard with ¼" water line for connection if water line is available.

1. Hi-Performance Anti-Clog Dump-Valve - Pulls out of unique
silicone fitting in sidewall of tank and disassembles easily
without tools for cleaning. Silicone fittings are used for better tank
longevity.

2. Two safety mechanisms to prevent overflowing of water tank.

3. Hi-Limit controlled water tank heater. Prevents element burnout.

4. Heating element is accessible from top of tank. No need to
drain tank for replacement of element.

5. “Easy Access” side panels do not require removal of cabinet
top or sides first when doing most service operations.

6. Largest water tank capacity delivers highest burst rate.

7. Sealed Vacuum System removes excess steam. Prevents
bearding clogging of product chute and keeps electrical
components moisture free.

8. Power Relays are used to operate motors and controls,
resulting in longer component life span.

9. Large cup clearance (8½") handles tallest 20 oz. cups in
the industry.

10. Oversized Stainless Steel Drip Tray (3" High x 15" Deep).
No need to empty as often.

11. 4 and 8 lb. high capacity Hoppers require refilling less
often.

12. Two “Easy Access” independent fluorescent bulbs. If one
bulb fails, the other will remain lit.

13. Reliable Direct Drive Auger System. Insures perfect
alignment and silent running.

14. Starters and Ballasts are easily accessible.

15. Hand removable mixing and dispense chambers for easy
cleaning.

16. Rinse Cycle Switch flushes and sanitizes mixing and
dispense chambers.

Call Cecilware today to find out what a Pour-over Cappuccino Dispenser can do for your bottom line

1

2

6

3

4

5

8

7

9

10

11

12

13

14

16

15

Call Cecilware today to find out what a Pour-over Cappuccino Dispenser can do for your bottom line

Specifications subject to change without prior notice

This is...

“What makes Cecilware #1 in Cappuccino!!”
