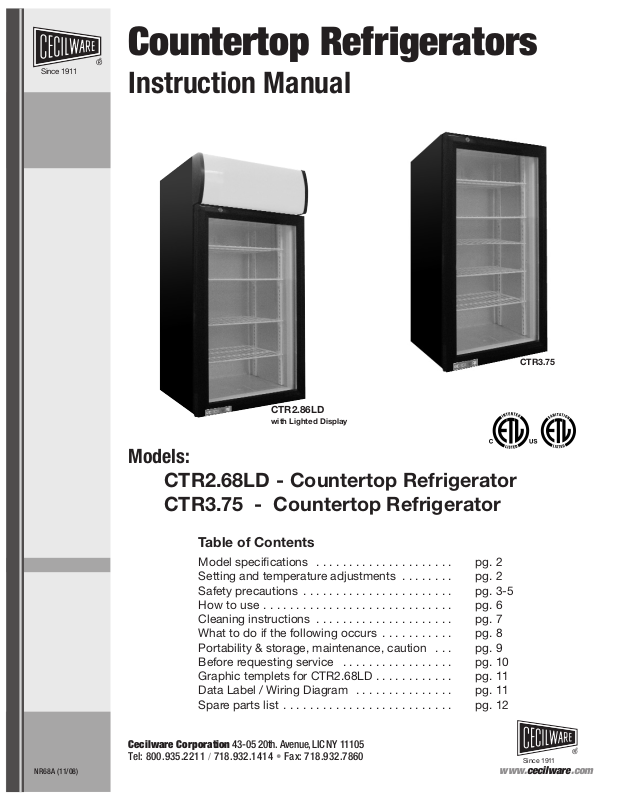

Countertop Refrigerators

Instruction Manual

Models:

CTR2.68LD - Countertop Refrigerator
CTR3.75 - Countertop Refrigerator

Table of Contents

Model specications . . . . . . . . . . . . . . . . . . . . . pg. 2

Setting and temperature adjustments . . . . . . . . pg. 2

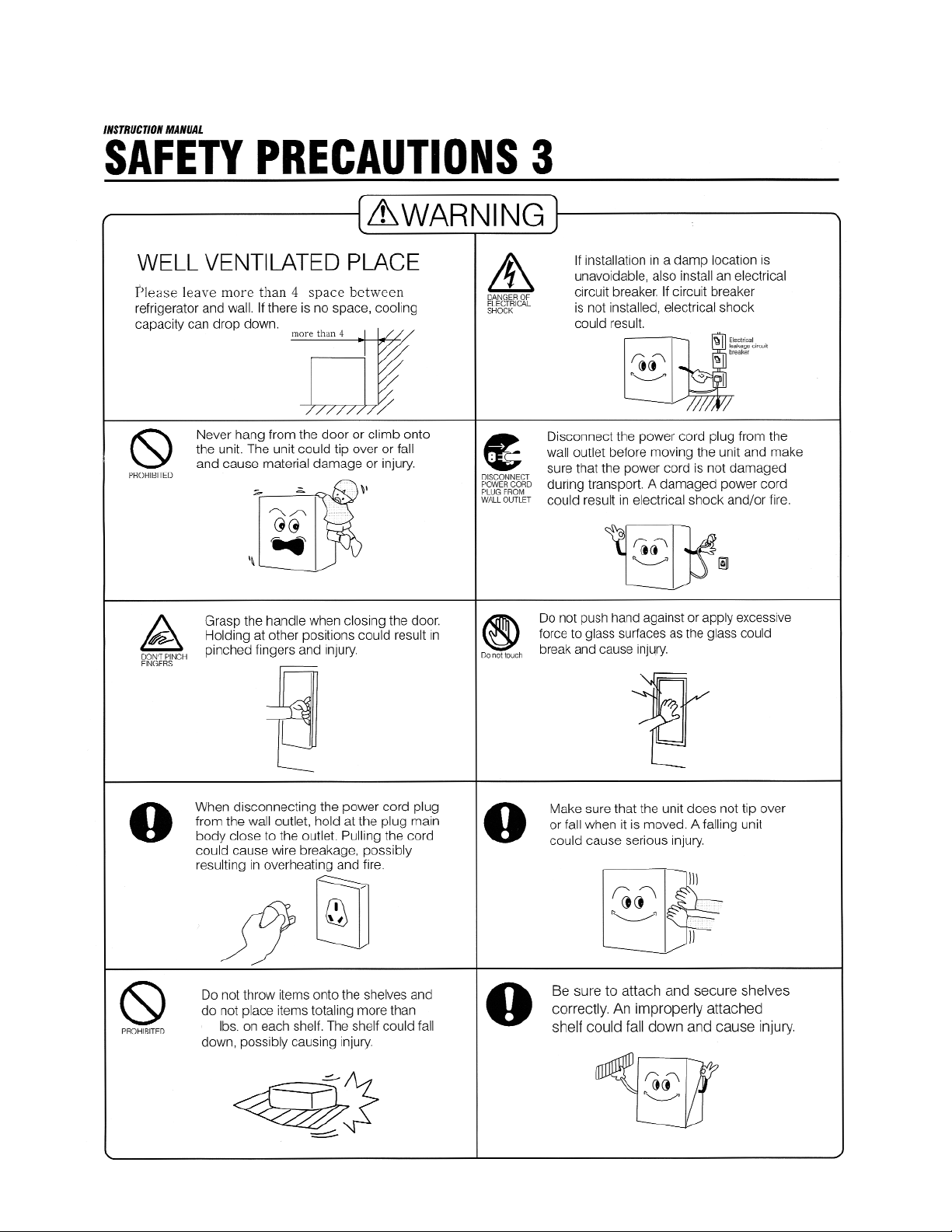

Safety precautions . . . . . . . . . . . . . . . . . . . . . . . pg. 3-5

How to use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pg. 6

Cleaning instructions . . . . . . . . . . . . . . . . . . . . . pg. 7

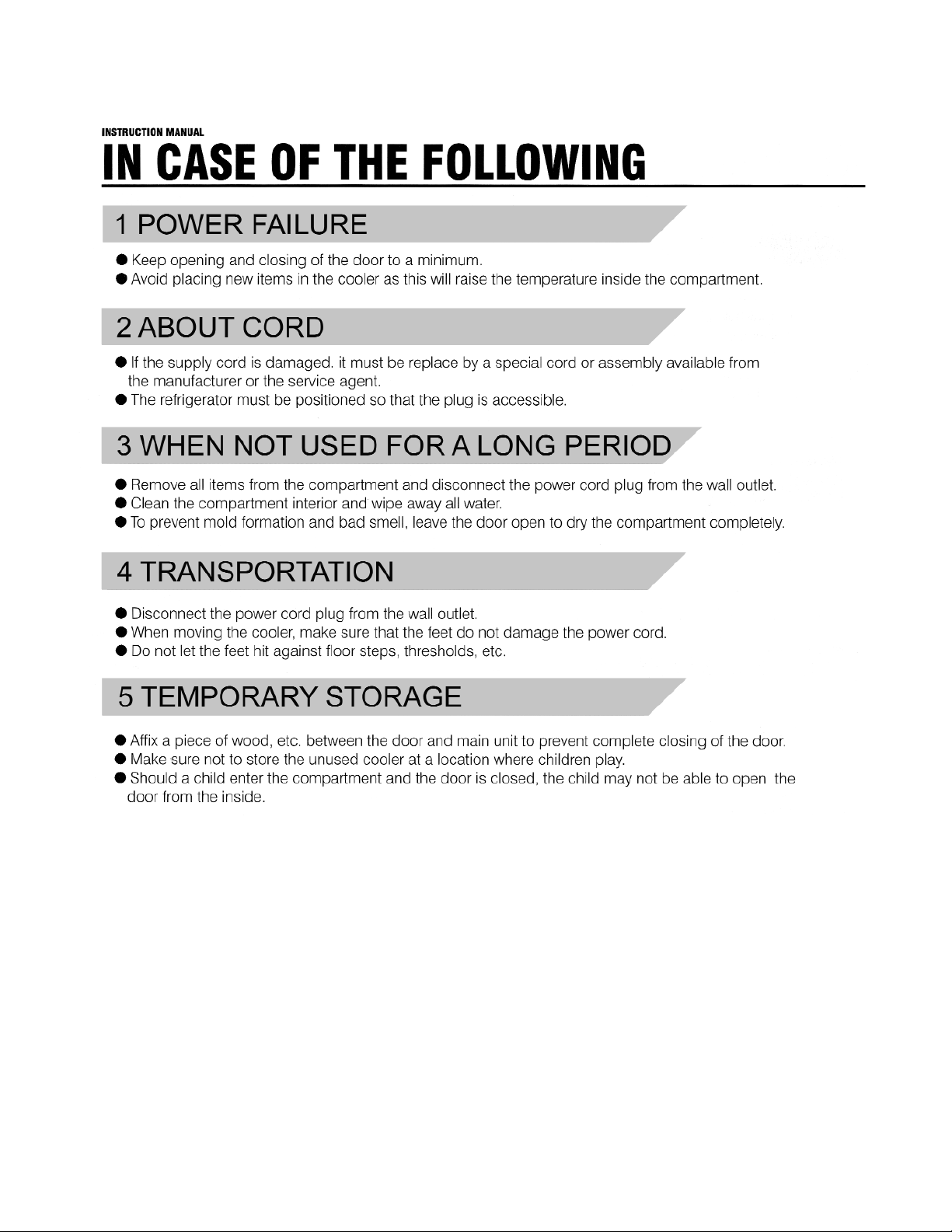

What to do if the following occurs . . . . . . . . . . . pg. 8

Portability & storage, maintenance, caution . . . pg. 9

Before requesting service . . . . . . . . . . . . . . . . . pg. 10

Graphic templets for CTR2.68LD . . . . . . . . . . . . pg. 11

Data Label / Wiring Diagram . . . . . . . . . . . . . . . pg. 11

Spare parts list . . . . . . . . . . . . . . . . . . . . . . . . . . pg. 12

CTR2.86LD

with Lighted Display

CTR3.75

2

Model
Number

CTR2.68LD CTR3.75

Dimensions
(WxDxH)

18"x183/8" x 36½" 18¾"x18"x 33¼"

Inner Cabinet
Dimensions

147/16"x 125/8"x 253/8" 16" x 14" x 29"

Capacity 2.68 cu. ft. 3.75 cu. ft.

Electrical 110V, 60 HZ, 1.8A 110V, 60 HZ, 2A

Input Power 92W 92W

Power
Consumption

1.0KW Hr/24Hrs. 1.2KW Hr/24Hrs.

Refrigerant

R134A - Thermoelectric

Cooling

R134A

Ship Weight 90 lbs. 85 lbs.

Setting and Temperature Adjustments

1. Adjust the storage temperature through the temperature controller.

2. The temperature adjustable capacity is from “1”-“5”. Adjust the storage temperature
by turning the temperature controller clockwise. The“5” setting is for colder storage
temperature. The knob can turn freely but can't turn clockwise from “5” to“1”.
Factory setting position is on “3” position.

3. Check if the knob is on the appropriate position before using. Frequent adjustments
is not appropriate when using.

4. Position “0” means refrigerator is off.

CTR2.68LD

CTR3.75LD

345

"

"

30

678

9

Portability and storage

1. Keep the unit vertical when carrying the unit, the angle to the horizontal line should not
be over 50°, otherwise it will damage the compressor and affect normal operation of the
unit.

2. Adjust the height with all the four feet adjusted.

3. After moving the unit, let it stand for 30 minutes before switching it on.

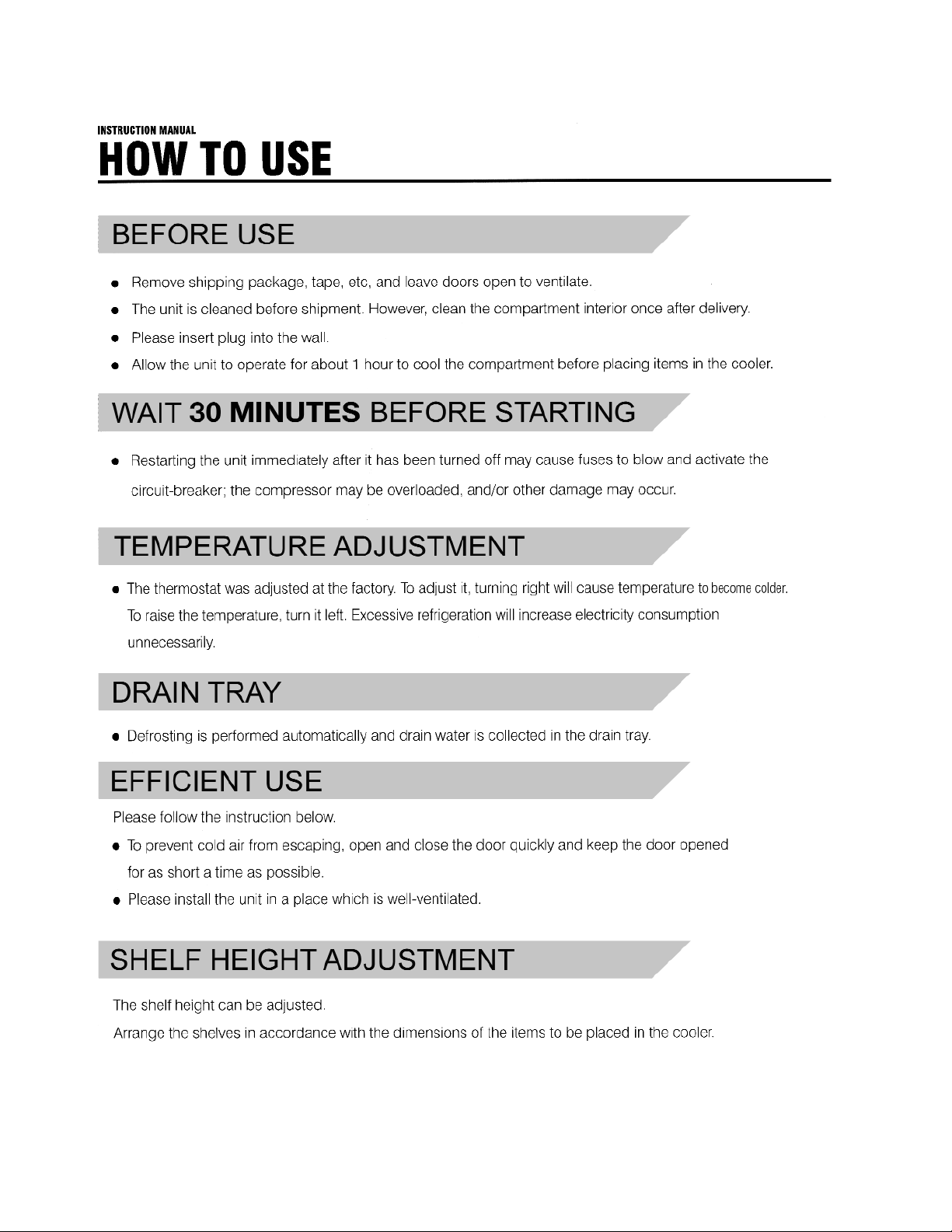

4. Running: close the door and connect the power. Turn on the light switch. The
temperature should be suitable for normal use after half hour.

5. After connecting the power, the unit should be kept empty for one hour.

Maintenance

Disconnect the power supply before performing maintenance on the machine!

1. Keep the door gasket clean, remove it from the door and wash it. Dry and seal it as
before. Putting some talcum powder on the magnetic surface would prolong its service
life.

2. Light replacement: remove the top cover, take out the light, replace with a new light,
then mount it again.

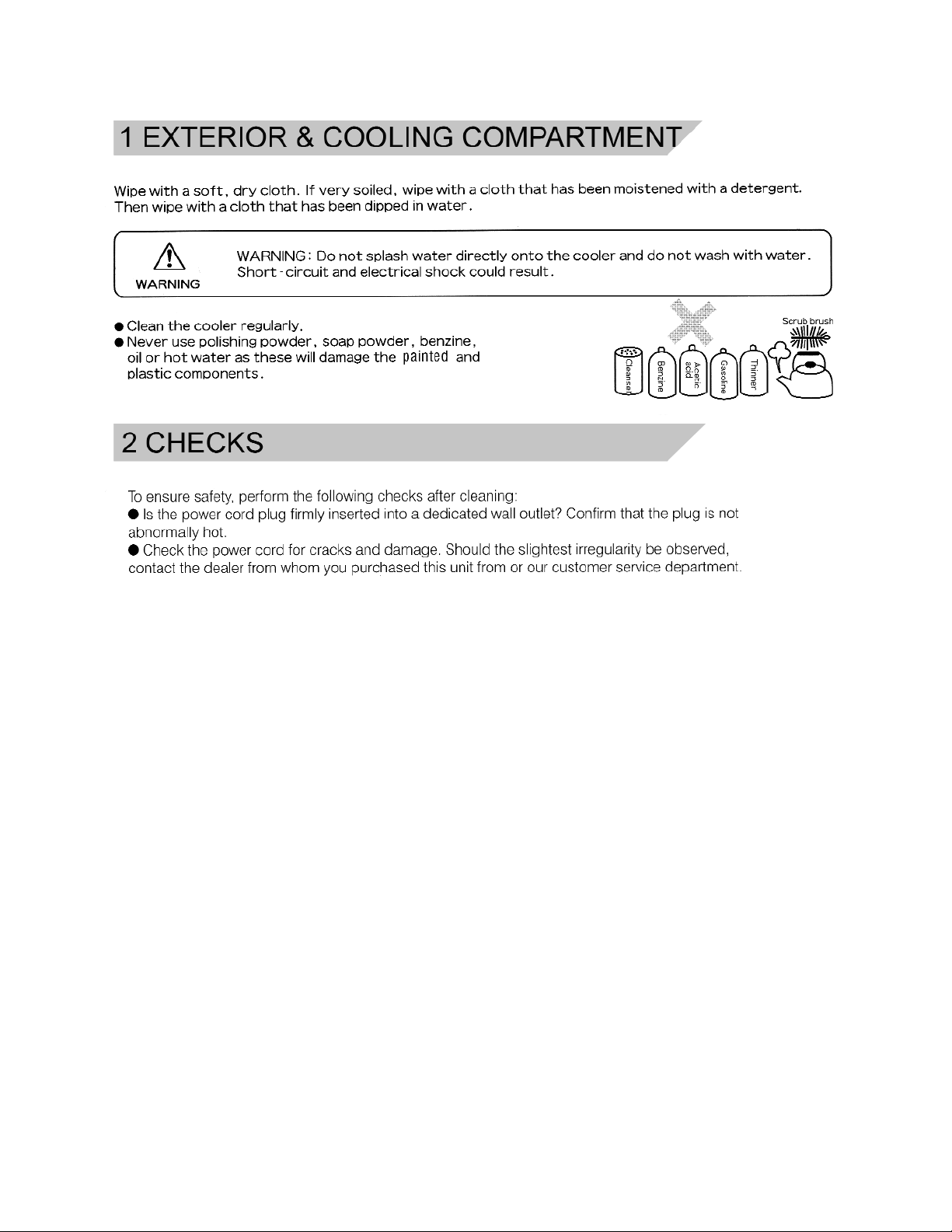

3. Use a soft cloth and dip some water or soap (Non-caustic, neutral detergent is also
available) to clean the unit. Dry the unit after cleaning to avoid rust.

4. Do not use organic liquid, boiled water, washing powder or acid products to clean the
unit. Rinsing the case with water is not allowed. Do not use a hard brush to clean the
case.

5. If the unit will not be used for a long time, disconnect the power, clean it by following
the above steps, wipe off the water inside the case with a soft cloth. Discard the water
in the water plate.

Caution

1. The unit is not suitable for storage of blood, pharmaceutical products and biological
products

2. Do not place heavy articles on the top of the unit.

10

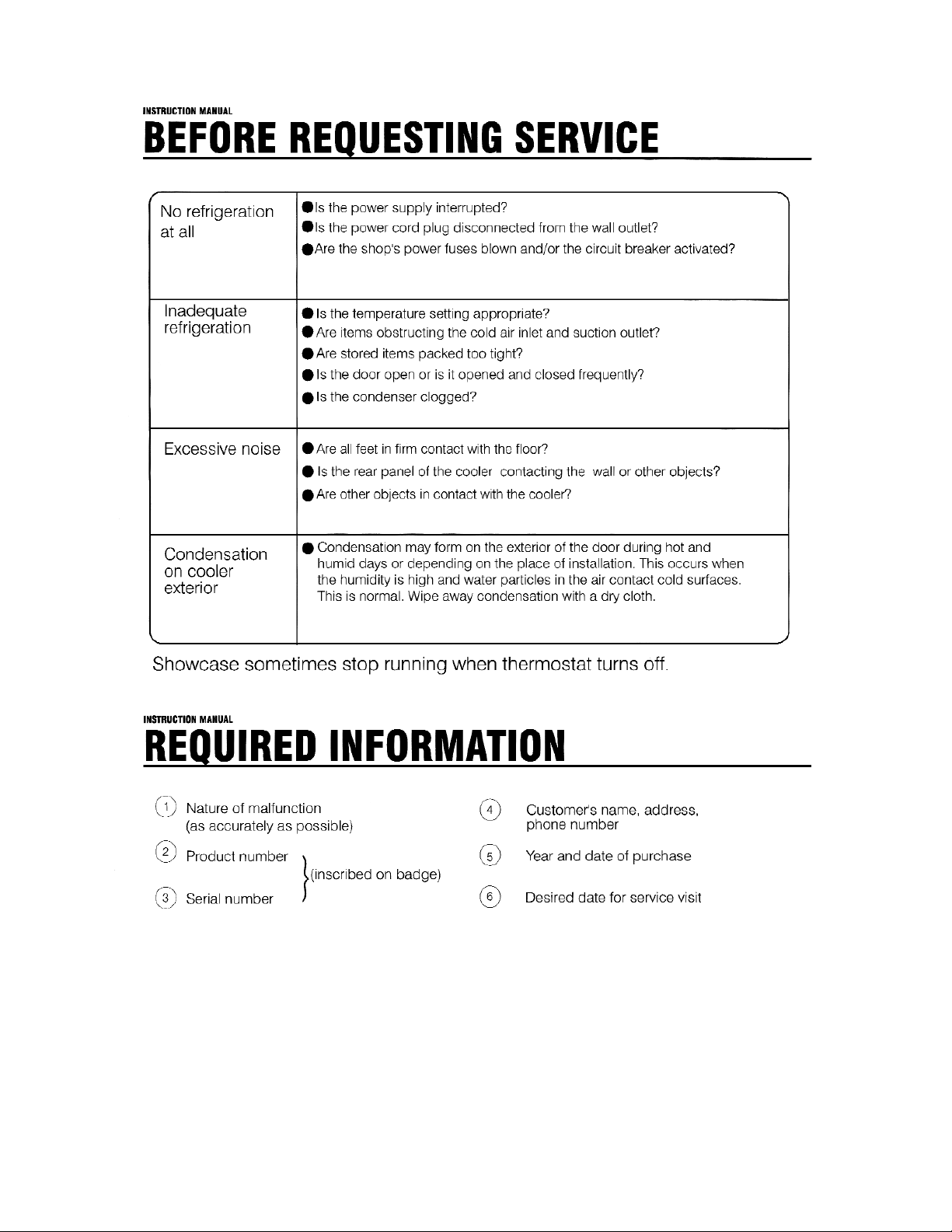

Before calling for service,
please have the following
information available:

11

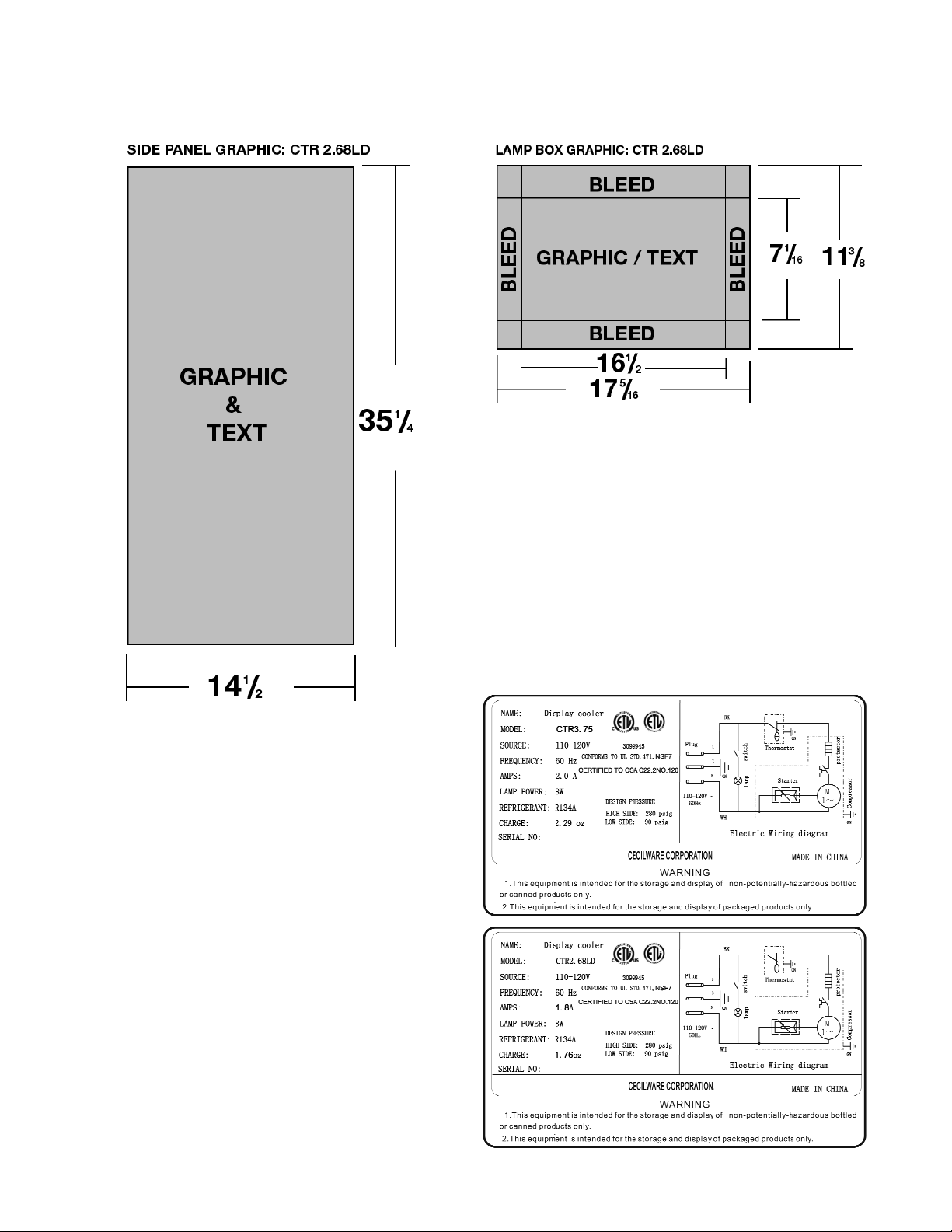

Graphic Templates

Data Label / Wiring Diagram

Spare Parts List

List

Part # Model # Description Price

08711 . . . . . . . . CTR2.68-LD, CTR3.75 . . . . . . .

08726 . . . . . . . . CTR3.75 . . . . . . . . . . . . . . . . . .

08705 . . . . . . . . CTR2.68-LD . . . . . . . . . . . . . . .

08707 . . . . . . . . CTR2.68-LD, CTR3.75 . . . . . . .

08708 . . . . . . . . CTR2.68-LD, CTR3.75 . . . . . .

08709 . . . . . . . . CTR3.75 . . . . . . . . . . . . . . . . . .

08710 . . . . . . . . CTR2.68-LD . . . . . . . . . . . . . . .

08716 . . . . . . . . CTR2.68-LD . . . . . . . . . . . . . . .

08717 . . . . . . . . CTR3.75 . . . . . . . . . . . . . . . . . .

08718 . . . . . . . . CTR2.68-LD, CTR3.75 . . . . . . .

08720 . . . . . . . . CTR2.68-LD, CTR3.75 . . . . . . .

08735 . . . . . . . . CTR1.75LD, CTR3.75 . . . . . . .

08731 . . . . . . . . CTR2.68-LD, CTR3.75 . . . . . . . Key to Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.10

08730 . . . . . . . . CTR2.68-LD, CTR3.75 . . . . . . . Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.10

08721 . . . . . . . . CTR2.68-LD, CTR3.75 . . . . . . .

08725 . . . . . . . . CTR2.68-LD . . . . . . . . . . . . . . .

Big Foot . . . . . . . . . . . . . . . . . . . . . . . . . . . $ 3.50

Bottom Basket Shelf . . . . . . . . . . . . . . . . . 9.30

Canopy logo plastic . . . . . . . . . . . . . . . . . . 12.30

Compressor . . . . . . . . . . . . . . . . . . . . . . . . 172.20

Dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.90

Fluorescent lamp . . . . . . . . . . . . . . . . . . . . 6.20

Fluorescent lamp . . . . . . . . . . . . . . . . . . . . 9.20

Glass door . . . . . . . . . . . . . . . . . . . . . . . . . 55.40

Glass door . . . . . . . . . . . . . . . . . . . . . . . . . 67.60

Hinge Bottom . . . . . . . . . . . . . . . . . . . . . . . 3.10

Hinge Upper . . . . . . . . . . . . . . . . . . . . . . . . 3.10

Inner Light . . . . . . . . . . . . . . . . . . . . . . . . . 6.20

Power Supply Cord . . . . . . . . . . . . . . . . . . 9.30

Shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.20

08727 . . . . . . . . CTR3.75 . . . . . . . . . . . . . . . . . .

08728 . . . . . . . . CTR2.68-LD . . . . . . . . . . . . . . .

08729 . . . . . . . . CTR2.68-LD . . . . . . . . . . . . . . .

08712 . . . . . . . . CTR2.68-LD, CTR3.75 . . . . . . .

08701 . . . . . . . . CTR2.68-LD, CTR3.75 . . . . . . .

08703 . . . . . . . . CTR2.68-LD, CTR3.75 . . . . . . .

Specications are subject to change without prior notice; prices valid until December 31, 2009

Cecilware Corporation 43-05 20th. Avenue, LIC NY 11105
Tel: [phone]
E-mail: [e-mail]

/ 718.932.1414 • Fax: [phone]

Shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.20

Side canopy cover left . . . . . . . . . . . . . . . . 4.90

Side canopy cover right . . . . . . . . . . . . . . . 4.90

Small Foot . . . . . . . . . . . . . . . . . . . . . . . . . 3.10

Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.10

Thermostat . . . . . . . . . . . . . . . . . . . . . . . . . 9.80

12
