Cecilware CTR2.68LD Installation Manual

Cecilware Corporation 43-05 20th. Avenue, LIC NY 11105

Tel: [phone]

/ 718.932.1414 • Fax: [phone]

®

Since 1911

®

Since 1911

www.cecilware.com

NR68A (11/08)

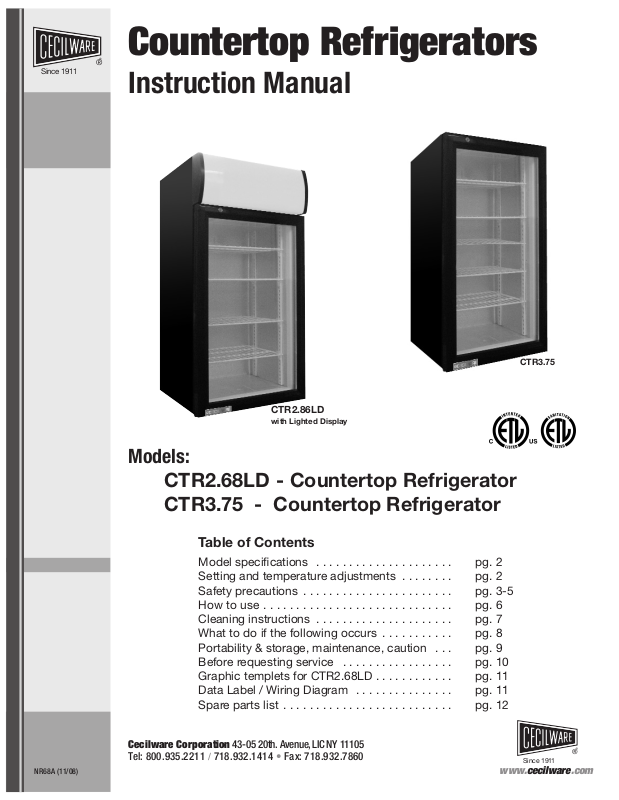

Countertop Refrigerators

Instruction Manual

Models:

CTR2.68LD - Countertop Refrigerator
CTR3.75 - Countertop Refrigerator

Table of Contents

Model specications . . . . . . . . . . . . . . . . . . . . . pg. 2

Setting and temperature adjustments . . . . . . . . pg. 2

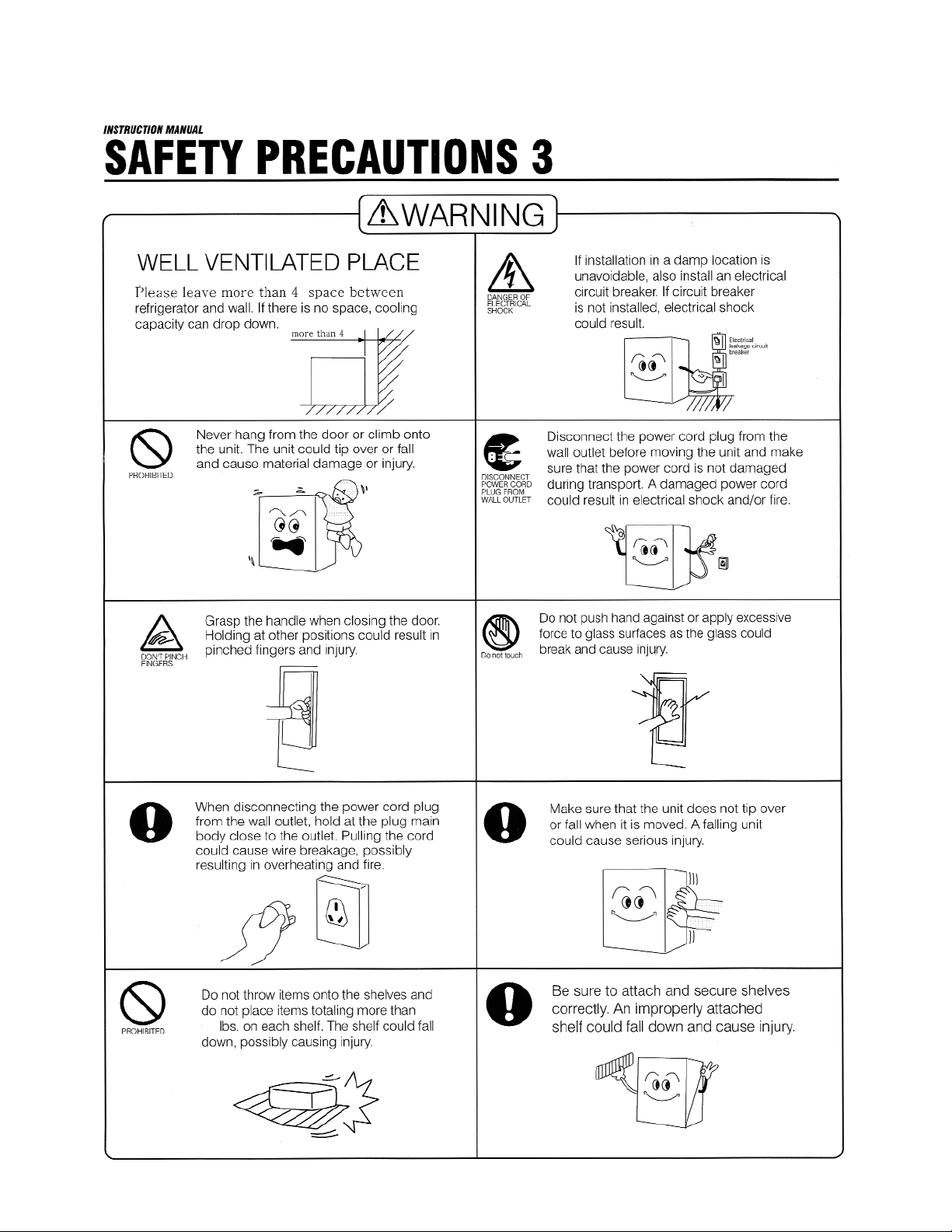

Safety precautions . . . . . . . . . . . . . . . . . . . . . . . pg. 3-5

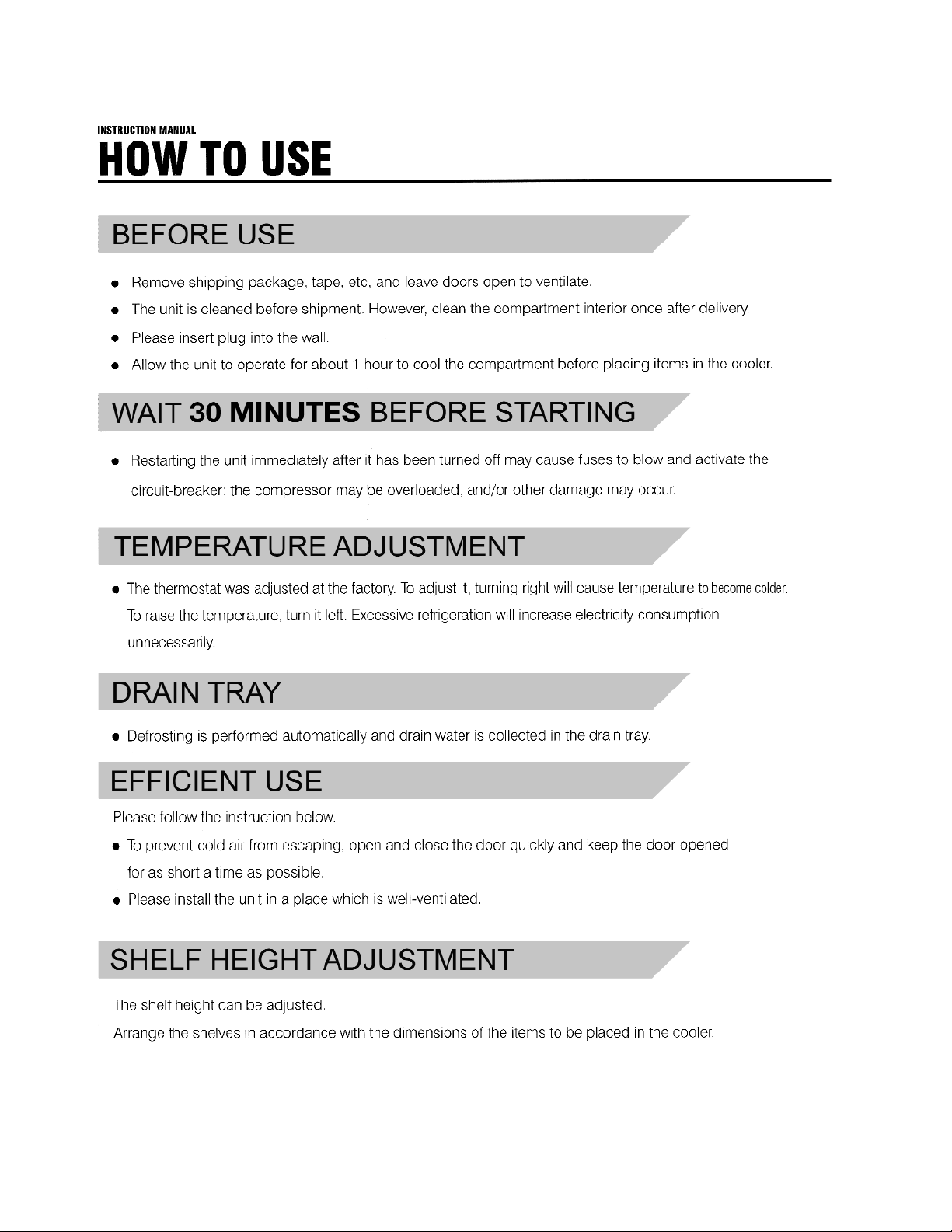

How to use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pg. 6

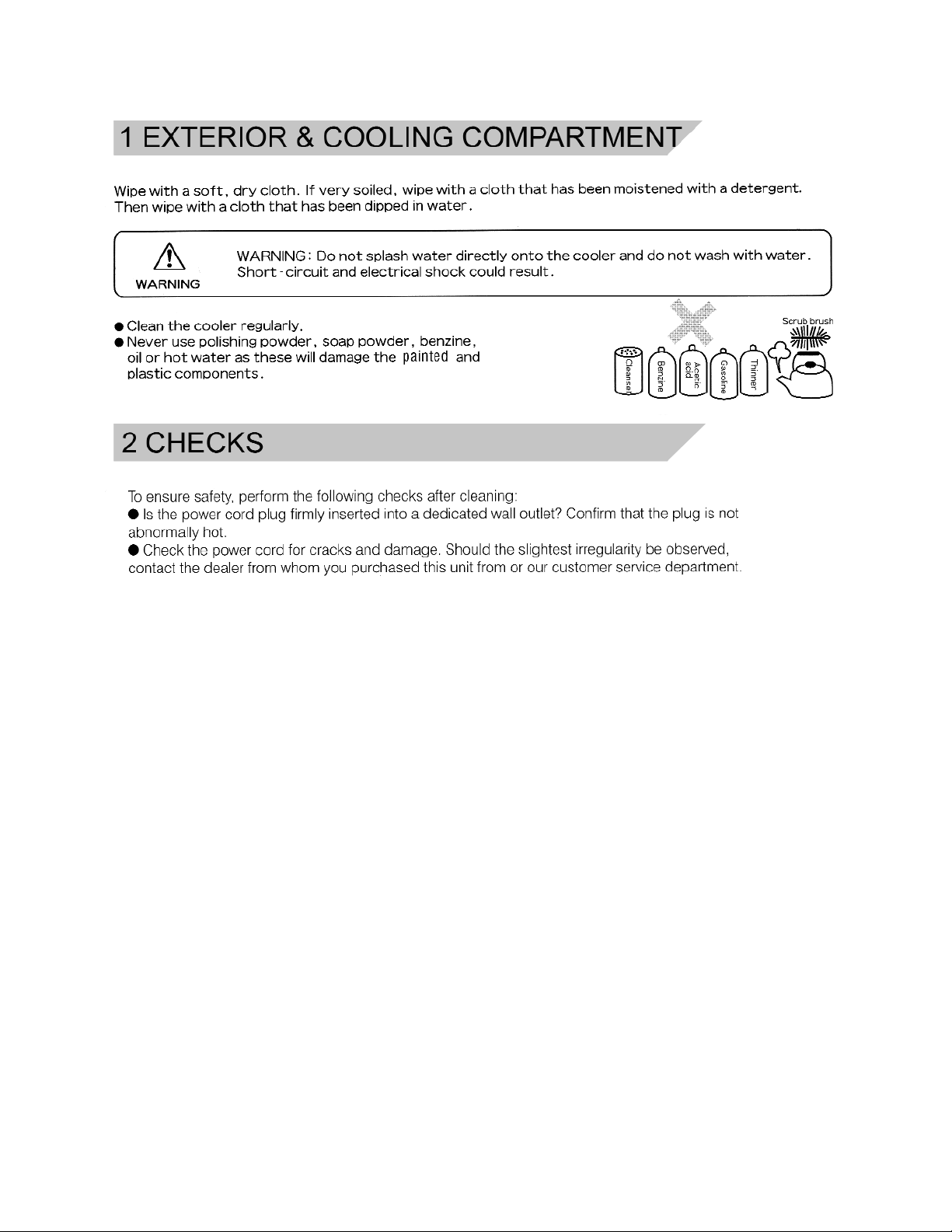

Cleaning instructions . . . . . . . . . . . . . . . . . . . . . pg. 7

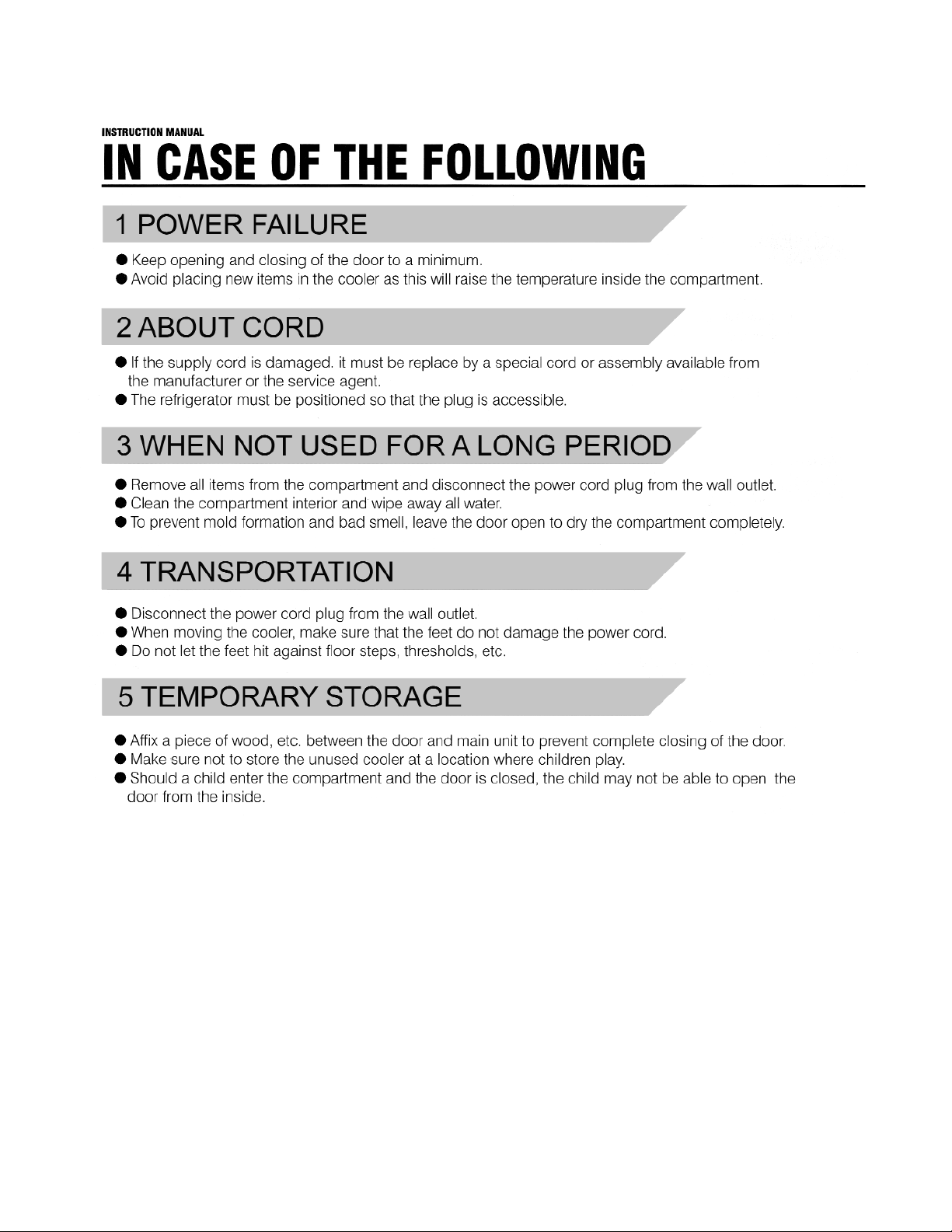

What to do if the following occurs . . . . . . . . . . . pg. 8

Portability & storage, maintenance, caution . . . pg. 9

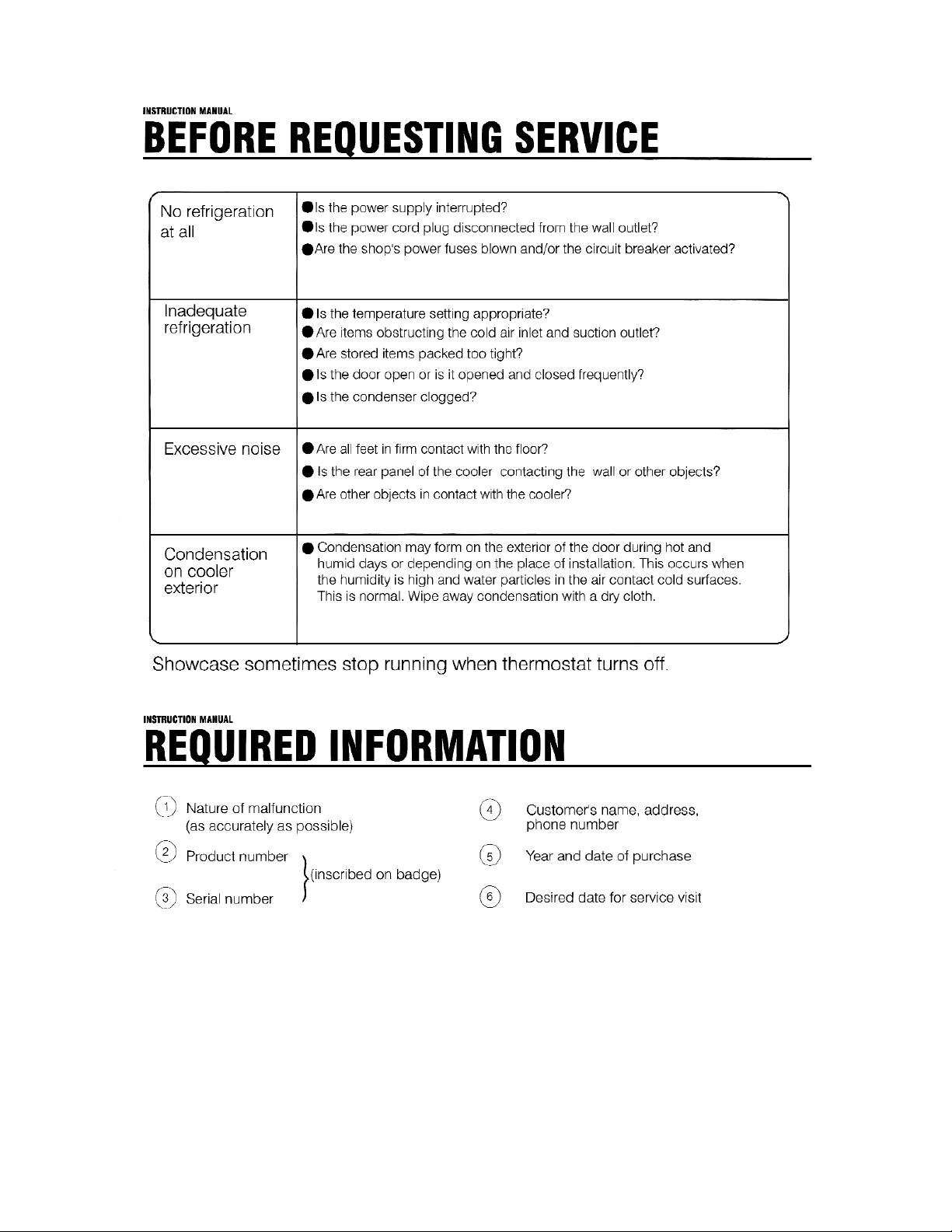

Before requesting service . . . . . . . . . . . . . . . . . pg. 10

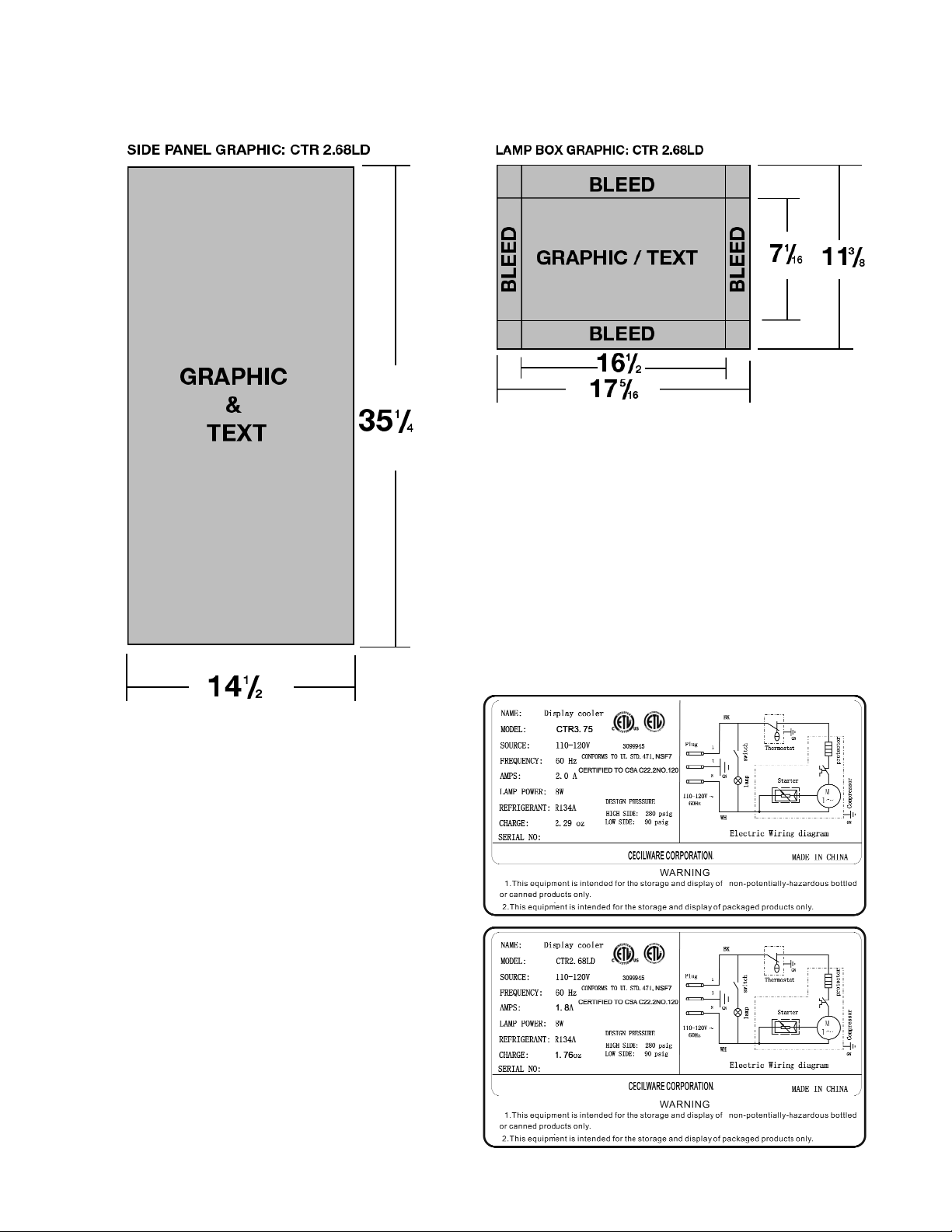

Graphic templets for CTR2.68LD . . . . . . . . . . . . pg. 11

Data Label / Wiring Diagram . . . . . . . . . . . . . . . pg. 11

Spare parts list . . . . . . . . . . . . . . . . . . . . . . . . . . pg. 12

CTR2.86LD

with Lighted Display

CTR3.75

2

Model
Number

CTR2.68LD CTR3.75

Dimensions
(WxDxH)

18"x183/8" x 36½" 18¾"x18"x 33¼"

Inner Cabinet
Dimensions

147/16"x 125/8"x 253/8" 16" x 14" x 29"

Capacity 2.68 cu. ft. 3.75 cu. ft.

Electrical 110V, 60 HZ, 1.8A 110V, 60 HZ, 2A

Input Power 92W 92W

Power
Consumption

1.0KW Hr/24Hrs. 1.2KW Hr/24Hrs.

Refrigerant

R134A - Thermoelectric

Cooling

R134A

Ship Weight 90 lbs. 85 lbs.

Setting and Temperature Adjustments

1. Adjust the storage temperature through the temperature controller.

2. The temperature adjustable capacity is from “1”-“5”. Adjust the storage temperature
by turning the temperature controller clockwise. The“5” setting is for colder storage
temperature. The knob can turn freely but can't turn clockwise from “5” to“1”.
Factory setting position is on “3” position.

3. Check if the knob is on the appropriate position before using. Frequent adjustments
is not appropriate when using.

4. Position “0” means refrigerator is off.

CTR2.68LD

CTR3.75LD

345
