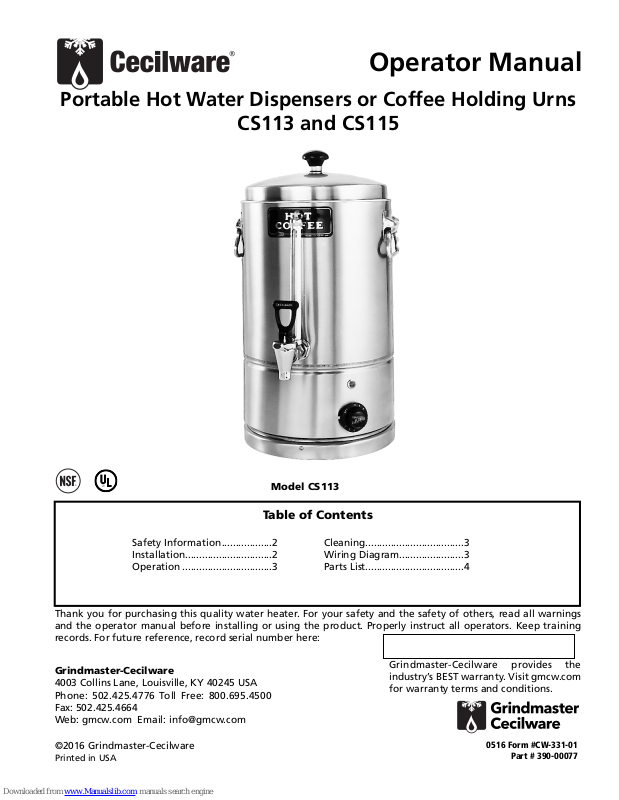

Cecilware CS113, CS115 Operator's Manual

Portable Hot Water Dispensers or Coffee Holding Urns

CS113 and CS115

Operator Manual

Grindmaster-Cecilware

4003 Collins Lane, Louisville, KY 40245 USA
Phone: [phone] Toll Free: 800.695.4500
Fax: [phone]
Web: gmcw.com Email: [e-mail]

Safety Information..................2

Installation...............................2

Operation ................................3

Cleaning...................................3

Wiring Diagram.......................3

Parts List...................................4

Thank you for purchasing this quality water heater. For your safety and the safety of others, read all warnings
and the operator manual before installing or using the product. Properly instruct all operators. Keep training
records. For future reference, record serial number here:

Table of Contents

©2016 Grindmaster-Cecilware

Printed in USA

0516 Form #CW-331-01

Part # 390-00077

Grindmaster-Cecilware provides the
industry’s BEST warranty. Visit gmcw.com
for warranty terms and conditions.

Model CS113

GB Series Cecilware

®

2

For safe and proper operation, the appliance must be placed in a stable, vertical position.

To reduce risk of serious burns or scalding, do not place hand or other body parts under dispenser or container
while product is heating.

Always unplug unit from power supply before servicing.

Surfaces are hot and can cause burns.

CAUTION

To reduce risk of electrical shock, do not remove or open cover. No user-serviceable parts inside. Repair should
be done by authorized service personnel only.

The appliance is not intended for outdoor use.

Do not clean with pressurized water or use in an area where pressurized water may be used.

Cleaning and maintenance shall be made only by properly trained persons with supervision.

This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack
of experience and knowledge, unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Do not alter or deform the power cord or plug in any way! Altering or deforming the plug may cause electrical
shock, damage unit, and will void warranty.

To reduce risk of explosion or fire, do not use near combustibles.

WARNING

2 Cecilware

®

Portable Hot Water Dispensers

Important Safety Information

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages
that follow this symbol to avoid possible injury or death.

For your safety and the safety of others, read all warnings and the operator manual before installing or using
the product.

DANGER: This term warns the user of imminent hazard that will result in serious injury or death.
WARNING: This term refers to a potential hazard or unsafe practice, which could result in serious injury or death.
CAUTION: This term refers to a potential hazard or unsafe practice, which could result in minor or moderate

injury.
NOTICE: This term refers to information that needs special attention or must be fully understood.

Use only on an electrical circuit that is properly protected and capable providing adequate power.

Electronically ground the chassis.

Follow national and local electrical codes.

Do not use extension cord.

NOTICE

Installation

Unpacking Instructions

Carefully unpack the machine and inspect immediately for shipping damage. The packaging may contain
unattached parts. Your machine was shipped in a carton designed to give it maximum protection in normal
handling. It was thoroughly inspected before leaving the factory. In case of damage, contact the shipper, not
Grindmaster-Cecilware.

NOTICE: Do not use extension cords. Make sure that the outlet the unit plugs into is grounded.

Check rating marking

on nameplate to be sure electric lines match voltage, phase, and amperage requirements of appliance.

Safety Information

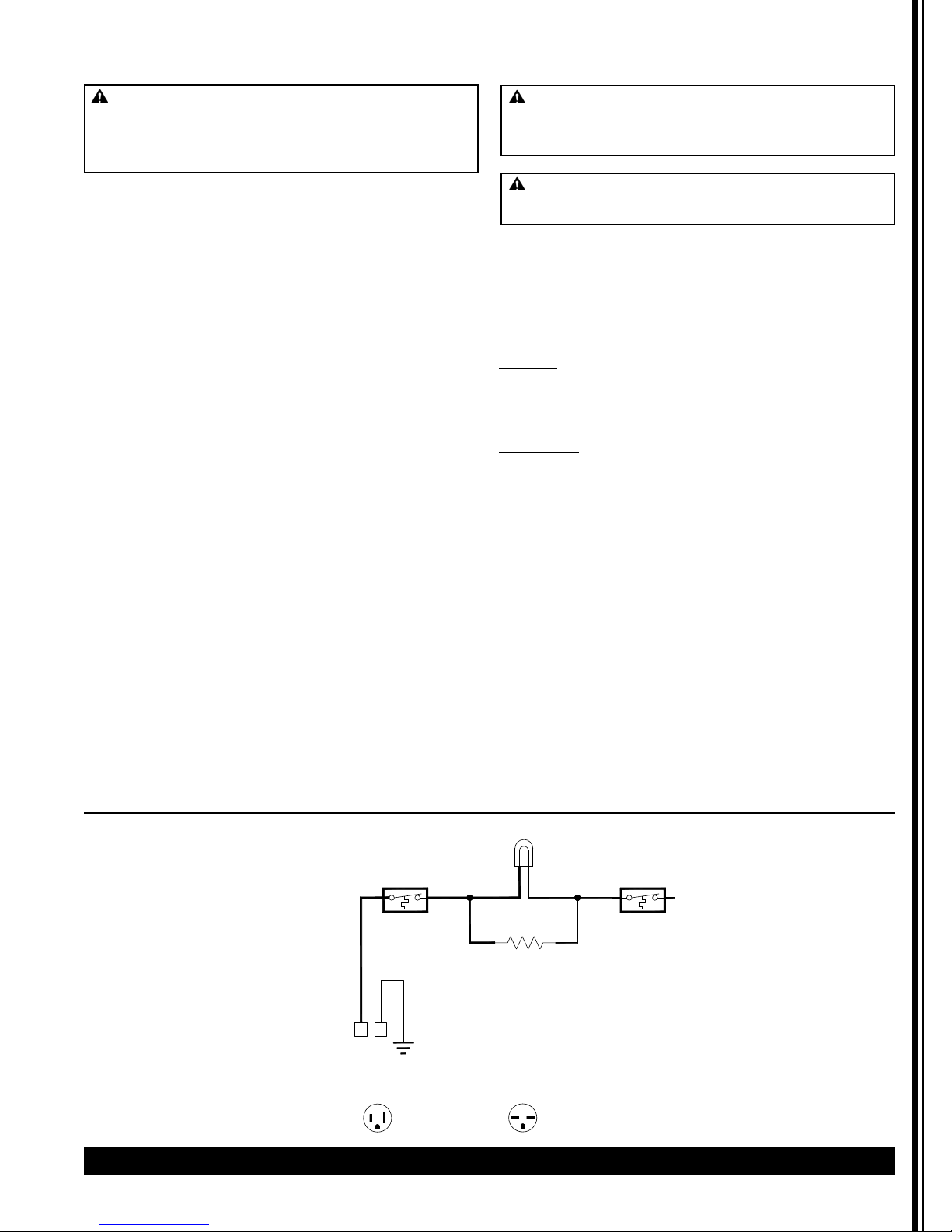

Wiring Diagram

Portable Hot Water Dispensers Cecilware

®

3

Operation Cleaning

NOTICE: Do not run the unit dry (without water).

1. Turn thermostat knob all the way counterclockwise
to OFF position.

2. Fill with fresh water, plug into electric outlet, turn
thermostat knob clockwise to the maximum setting
of “10”, then turn to the desired temperature
(between 5 and 8).

3. Sight Glass Indicates water level.

If you need help, call Grindmaster-Cecilware Technical
Service Department, [phone] or [phone]
(USA & Canada only) (Monday through Friday 8 AM - 6
PM EST). Please have the model and serial number
ready so that accurate information can be given.

Prior authorization must be obtained from
Grindmaster-Cecilware for all warranty claims.

Grindmaster-Cecilware provides the industry’s
BEST warranty. Visit our website at gmcw.com for
warranty terms and conditions.

NOTICE: All sanitizing agents in the food zone must

comply with 21 CFR 178.1010. Sanitize all food
dispensing units periodically. All parts to be sanitized
must be cleaned first. Cleaning and sanitizing frequency
must follow state and local health department
regulations.

Weekly

1. Clean urn inside with mild soap and water. Rinse
thoroughly.

2. Wipe exterior with a soft, damp cloth.

Sanitizing

1. With power to the unit disconnected, fill unit to
capacity.

2. Prepare a sanitizing solution in accordance with
local health department regulations. You may also
refer to the US Food and Drug Administration
regulation 21 CFR 178.1010 “Sanitizing Solutions”
and US Environmental Protection Agency 40 CFR

18.940 “Tolerance exemptions for active and inert
ingredients for use in antimicrobial formulations
(Food-contact surface sanitizing solutions)”.

3. Follow the instructions provided with the sanitizing
agent.

4. Drain all water from the unit slowly.

5. Let all sanitized parts drain and dry naturally. DO
NOT WIPE THEM DRY.

6. If the unit is not to be used again immediately after
sanitizing - do not rinse with water. If the unit is to
be used immediately after sanitizing - rinse with
water before refilling the unit for further use.

CAUTION: BURN HAZARD

Water from unit is very hot. Use caution when
pouring or transporting hot water. Accidental spills
may result in severe burns.

CAUTION: BURN HAZARD

Dispenser surfaces and water inside dispenser are very
hot. Use caution when cleaning unit to prevent burns.

CAUTION: BURN HAZARD

Never remove faucet when the unit has water in it.

O

1
R

PILOT LIGHT

THERMOSTAT

L005A L573A

G193A 1.6 KW 120V
G359A 1.6 KW 220V

BLACK

GREEN

LINE CORD C032A

120V

5-15P

W

120V 15A

G

C002A

HEATER

LINE CORD C770A

220V (DOMESTIC)

6-15P
220V 15A

G

HI-LIMIT

LINE CORD C

220V (EXPO

CEE
EUR
1Ph,

Grindmaster-Cecilware

4003 Collins Lane, Louisville, KY 40245 USA
Phone: [phone] Toll Free: 800.695.4500
Fax: [phone]
Web: gmcw.com Email: [e-mail]

©2016 Grindmaster-Cecilware

Printed in USA

0516 Form #CW-331-01

Part # 390-00077

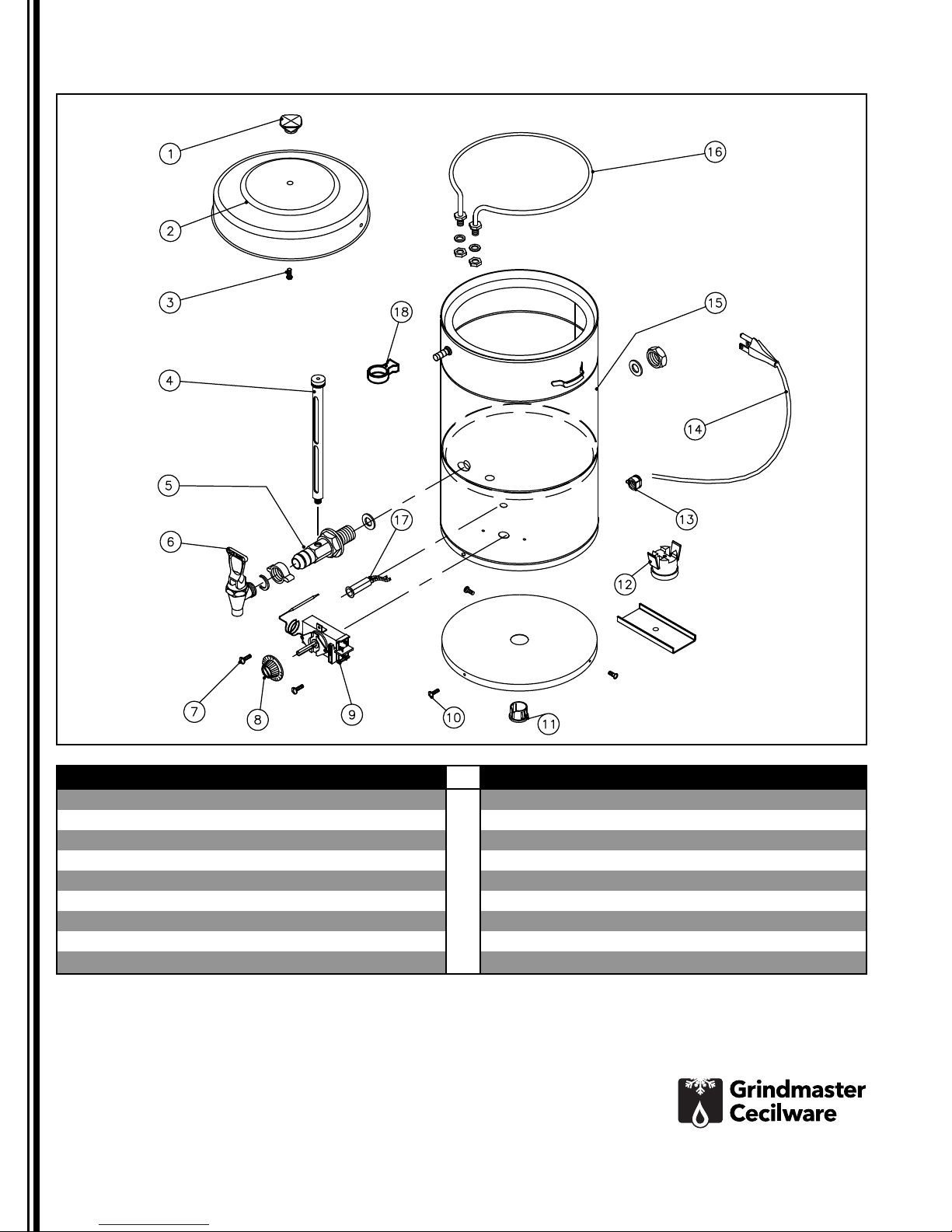

Parts List

ITEM DESCRIPTION PART # ITEM DESCRIPTION PART #

1 URN COVER KNOB M027AL 12 HI‐LIMIT L573AL
2 COVER, URN Q004AL 14 LINE CORD C032SL
4 GAUGE GLASS SHIELD 9" (CS113) D002B 15 URN BODY (CS113) R045QL
4 GAUGE GLASS SHIELD 10 1/2" (CS115) D018A 15 URN BODY (CS115) R046QL
5 GAUGE SHANK 1/2" D021AL 16 HEATER ELEMENT 120 V 320‐0023
6 FAUCET ASSEMBLY D064EL 16 HEATER ELEMENT 220 V G359AL
8 THERMOSTAT KNOB M008AL 17 LIGHT ‐ ORANGE C002A
9 THERMOSTAT L005AL 18 GAUGE SHIELD MT. BRACKET U160A
11 HOLE PLUG (1.250 DIA) P300A
